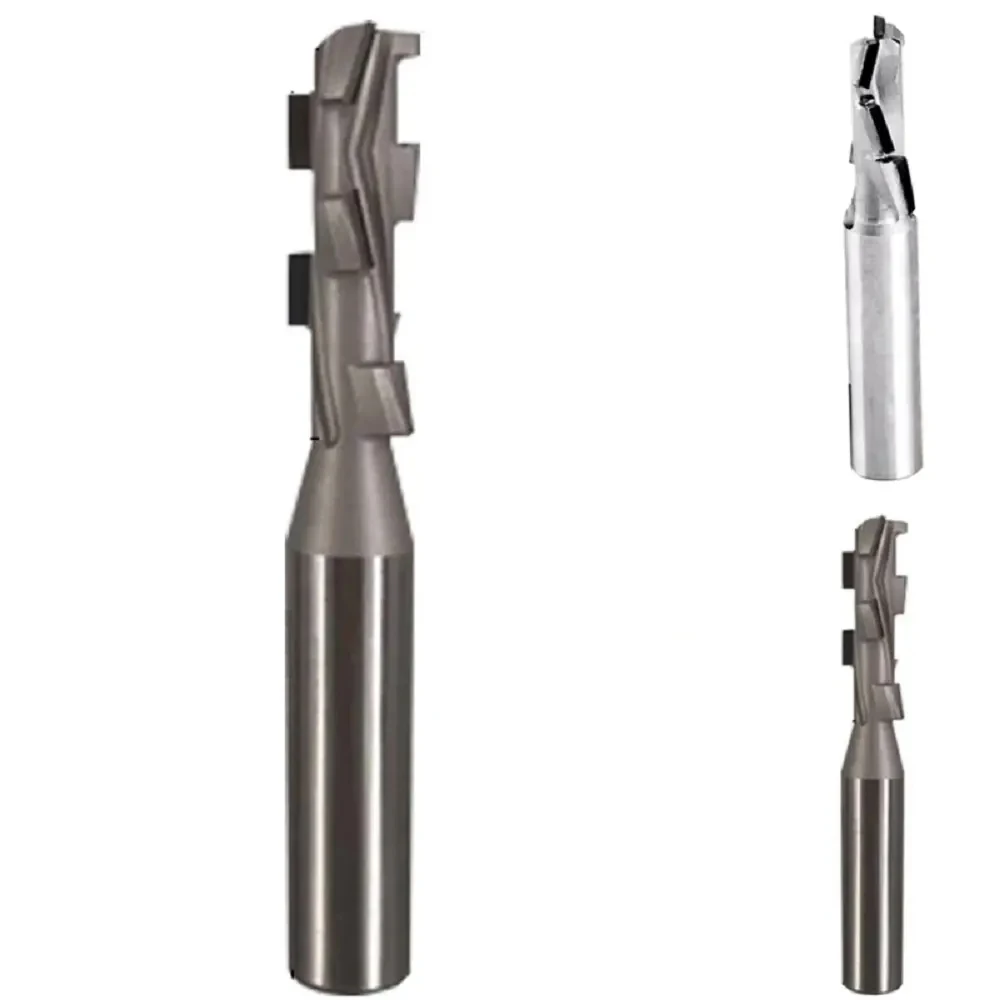

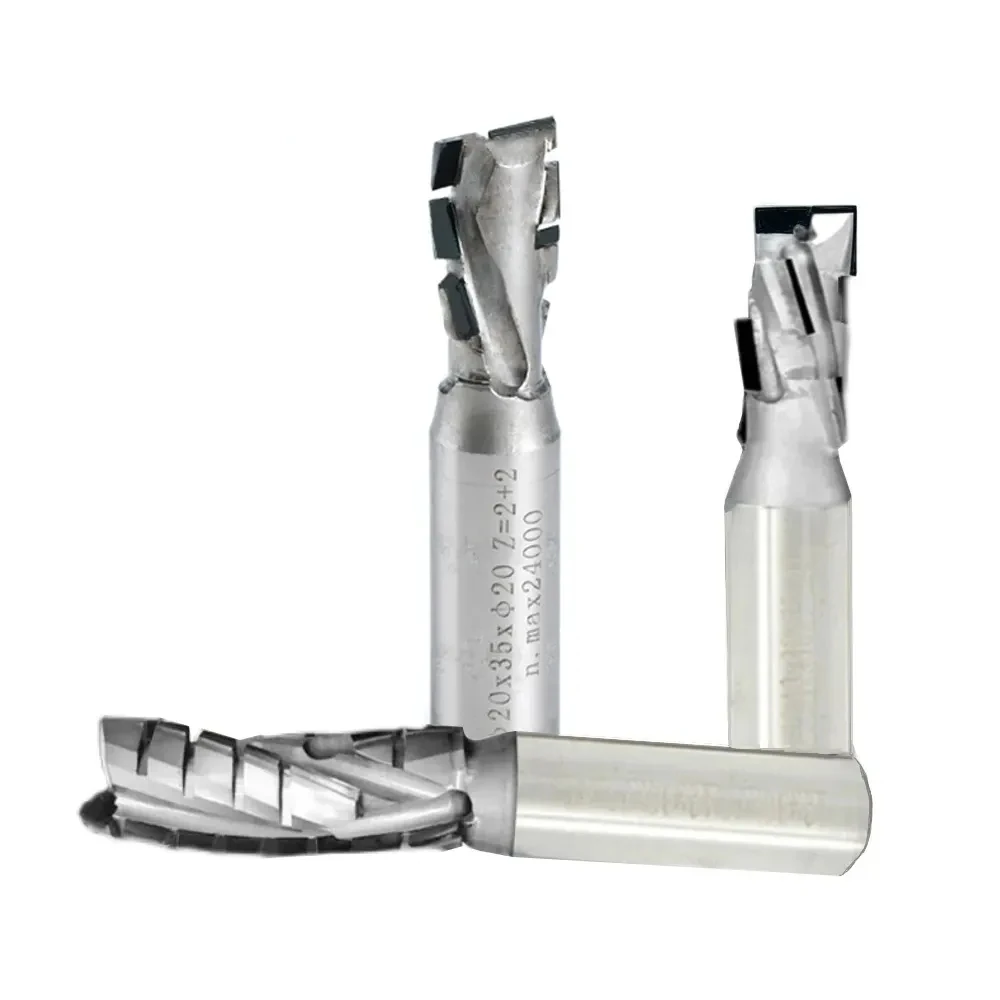

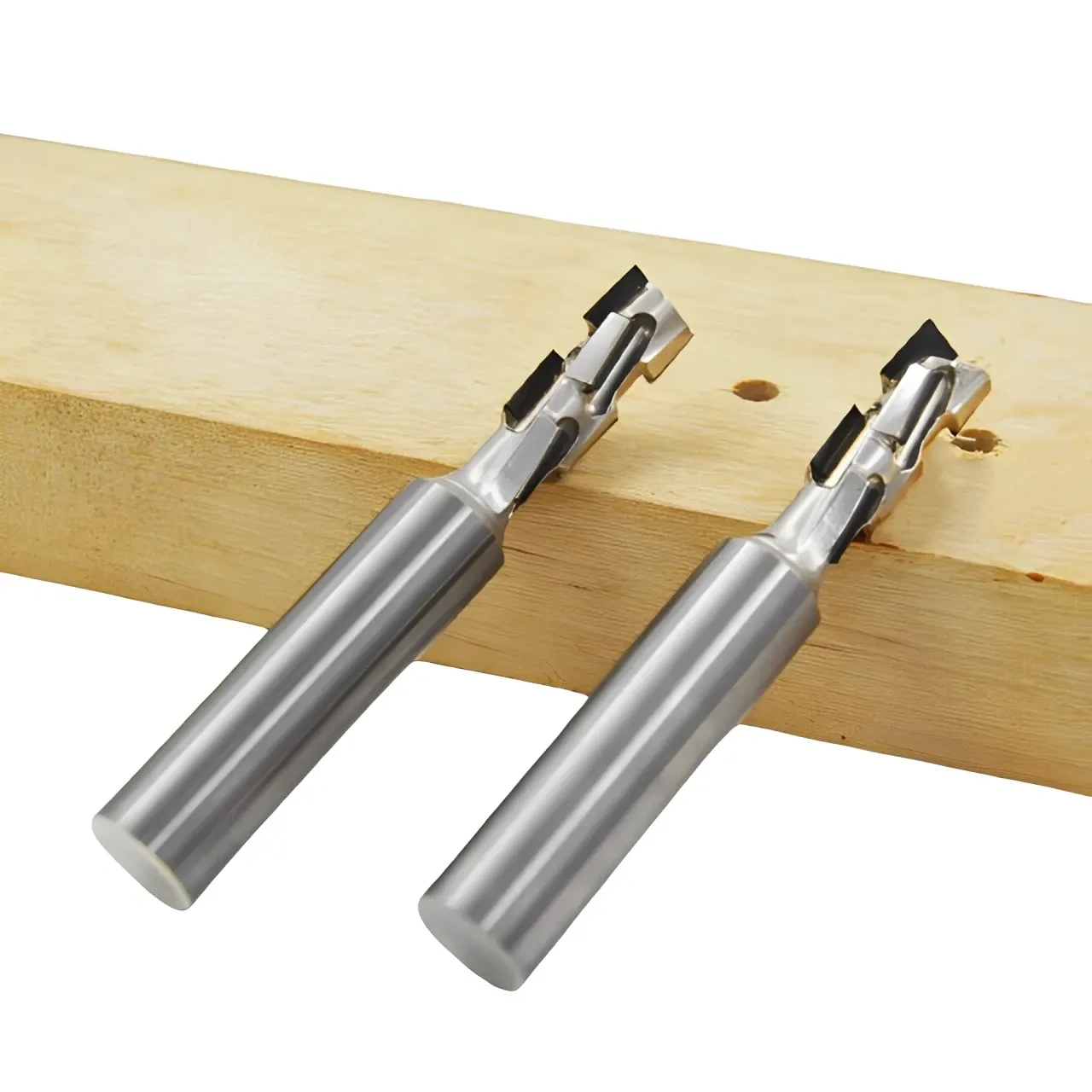

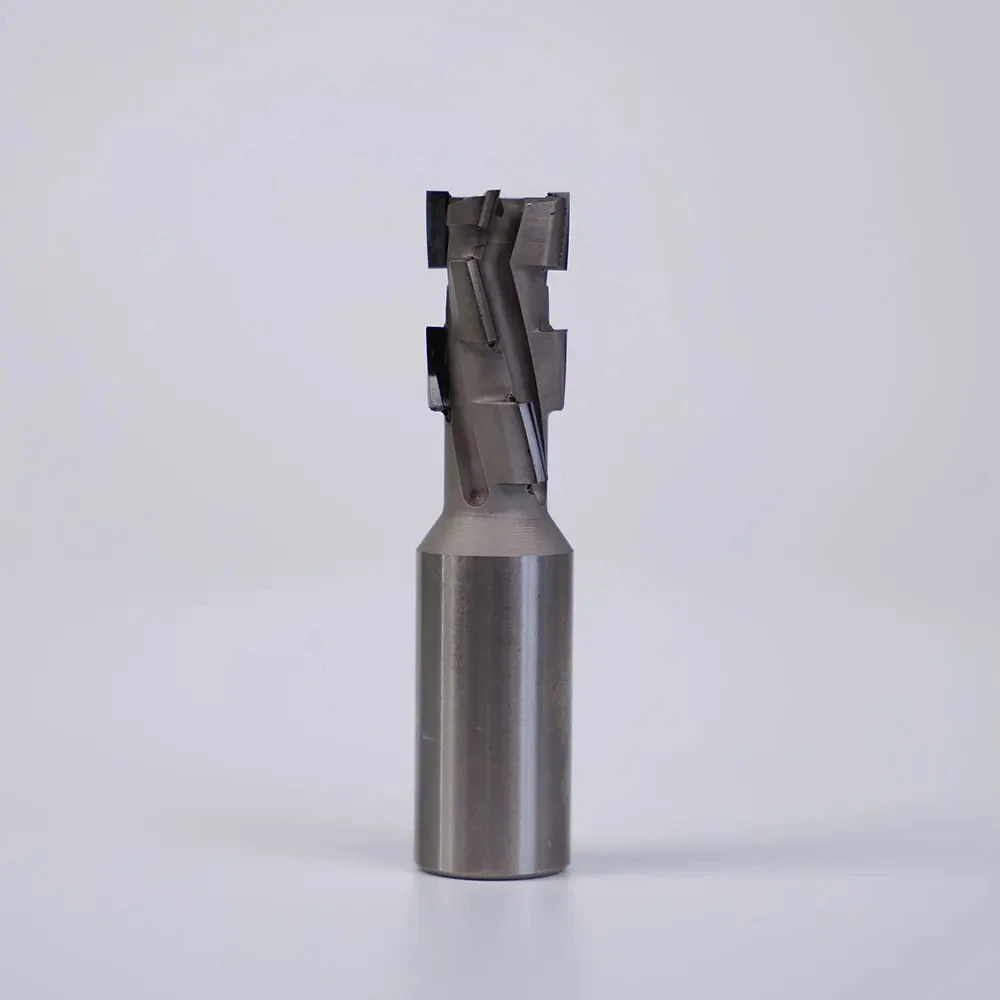

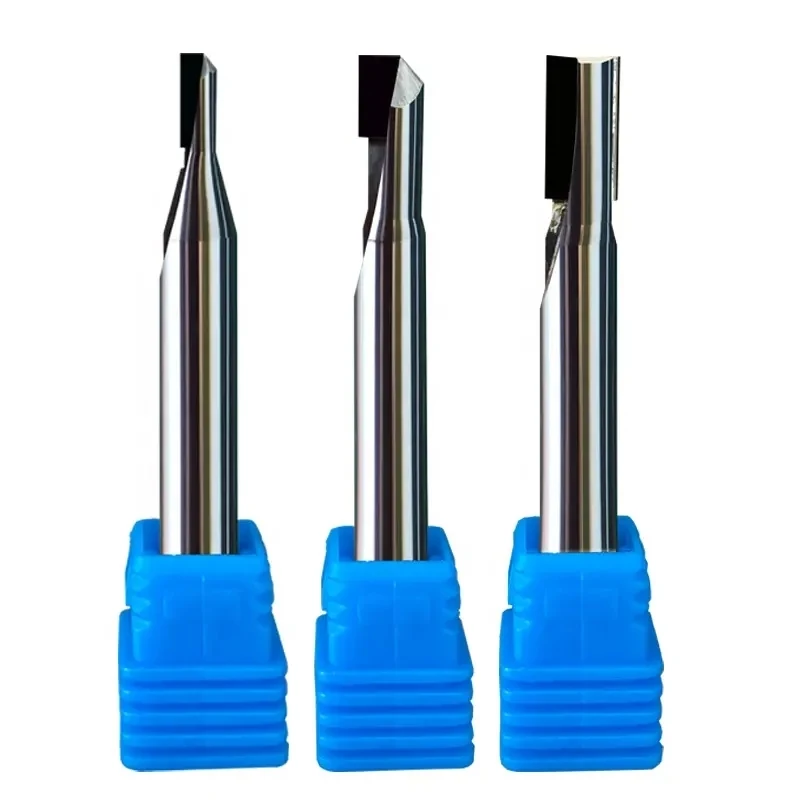

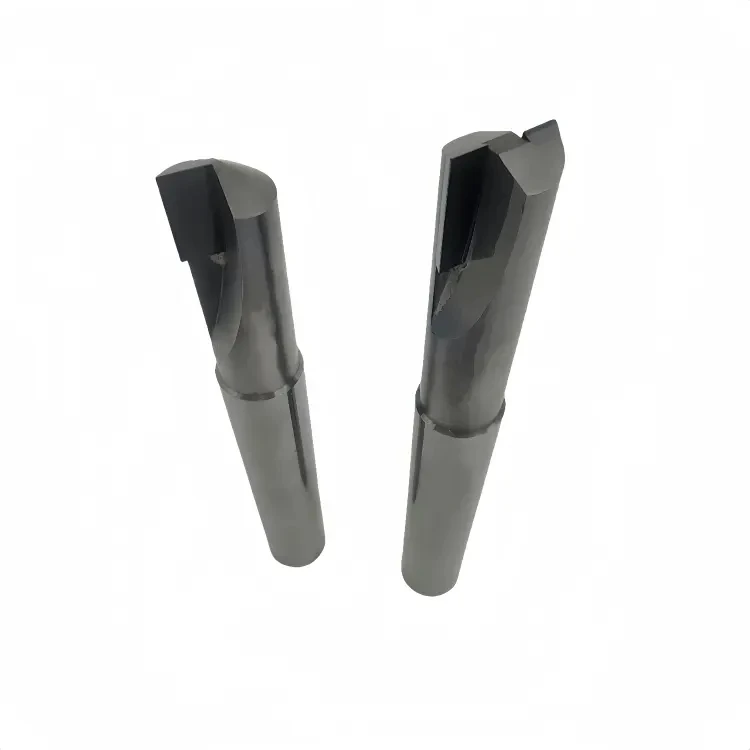

Polycrystalline diamond cutters PCD end mill cutter CNC precision tool milling cutters
- Category: >>>
- Supplier: Henan Uhd Ultrahard Tools Co. Ltd.
Share on (1601267333281):
Product Overview
Description
Product Description
Polycrystalline diamond cutters PCD end mill cutter CNC precision tool milling cutters
Diamond tip tools with Multi- tips features high processing precision and high processing efficiency, high abrasive resistance and thermal conductivity and strong toughness.
Application
▪ The with sharp cutting edge and light cutting. It is suitable for high-speed occasions.
▪ Medium grained PCD has both wear resistance and collapse resistance, and has excellent comprehensive properties.
▪ Different cutting edge lengths with the same specification diameter.
▪ The cutting edge is designed through the center, which can be used for axial feed milling similar to drilling.
▪ The treatment of small R angle and chamfer at the edge effectively increases the tool durability.
▪ The optimized groove can reach a higher level of dynamic balance.
▪ Compared with traditional coated tools, even under higher cutting parameters, not only the process is more reliable, but also the blade life is higher.
▪ Provide tool customization and grinding services.
For Hardened Steel
Grade | CBN Content | Machining Mode | Workpiece Material | Application |
UBN S1 | 90% | Interrupted Continuous | Grey cast iron Rough/semi-finish | Roll, surfacing roll repairing, mining machinery, large gear and etc. |
UBN S2 | 70% | Interrupted Continuous | Hardened steel Rough/semi-finish | Wind powder bearing, crankshaft, mining machinery, automobile gear and etc. |
UBN S3 | 50% | Interrupted Continuous | Hardened steel semi-finish/finish | Crankshaft, drive shaft and etc. |
UBN S4 | 60% | Interrupted Continuous | Hardened steel semi-finish/finish | Gear, shaft and etc. |
UBN S5 | 75% | Interrupted Continuous | Hardened steel semi-finish/finish | Wind powder bearing, gear for mining machinery, gear for automobile. |
Tip: insert can be customized with special ingredients.
Workpiece material:
High ncikel chromium alloy cast iron;
Hardness: HSD 78;
Hardness: HSD 78;
Cutting parameters:
Vc=55m/min, ap=2mm, f=0.2mm/r;
Grade: WBN S1
Vc=55m/min, ap=2mm, f=0.2mm/r;
Grade: WBN S1
Crankshaft
Workpiece material: 42CrMo
Hardness: HRC 42-47;
Cutting parameters:
Vc=150-180m/min;
ap=0.2-0.3mm;
f=0.08~0.12mm/r;
Grade: WBN S3, WBN S4
Vc=150-180m/min;
ap=0.2-0.3mm;
f=0.08~0.12mm/r;
Grade: WBN S3, WBN S4
For Cast Iron
Grade | CBN Content | Machining Mode | Workpiece Material | Application |
UBN X2 | 85% | Interrupted Continuous | Cast iron hardened steel semi-finis /finish | Automobile brake disc, engine cylinder block, cylinder liner, gear, bear and etc. |
UBN X3 | 92% | Interrupted Continuous | Cast iron | Automobile brake disc, engine cylinder block, cylinder liner, gear, bear and etc. |
UBN X5 | 85% | Interrupted Continuous | Borron copper/cast iron semi finish/ finish | Cylinder liner |
Tip: insert can be customized with special ingredients.
Hardness: HB170-210
Cutting Parameters:
Vc=160m/min,
ap=3mm,
f=0.3mm/r;
Grades: WBN S1
Cutting Parameters:
Vc=160m/min,
ap=3mm,
f=0.3mm/r;
Grades: WBN S1
Workpiece Material: Grey Cast IronCutting Parameters:
Vc=3000~ -2500mm/min,
ap=1.5~ 2.6mm,
f=0.1~0.2mm/r;
Grades: WBN X2

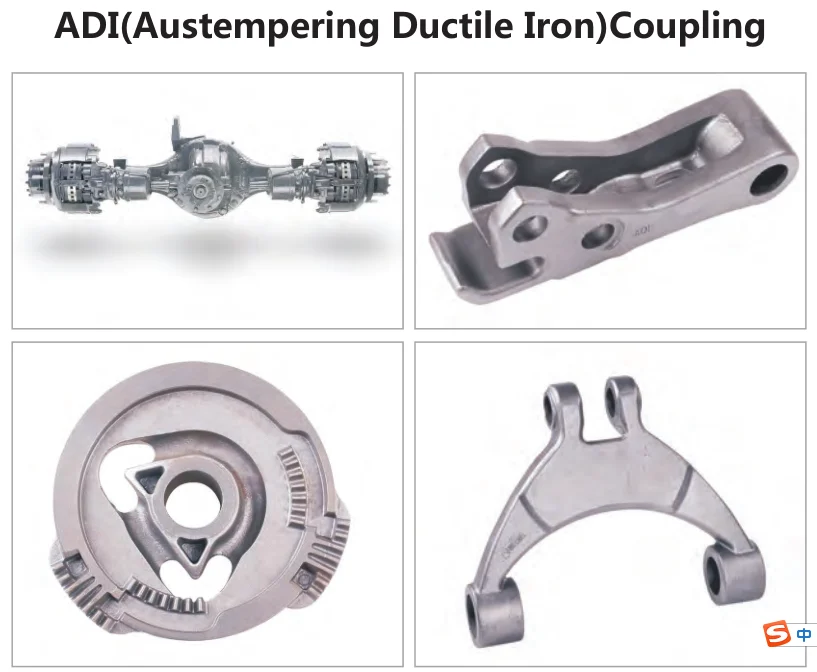

For Ductile Iron
Grades | CBN Content | Machining Mode | Workpiece Material | Application |
UDI Q | Special ingredients | Continuous | Bane of ductile iron | Be mainly applied for components such as crankshaft, camshaft, cylinder liner and and engine case for automobile, tractors, heavy duty machinery, internal combustion engine and etc, medium-pressure valve for general machinery, which are under complex conditions, and have high requirements for strength，toughness and wear resistance at the same time. |
Tip: insert can be customized with special ingredients.
Workpiece Material: QT400, 500, 600 800Hardness: HB350
Cutting Parameters: Vc=200m/min,
ap=1mm,
f=0.1mm/r
