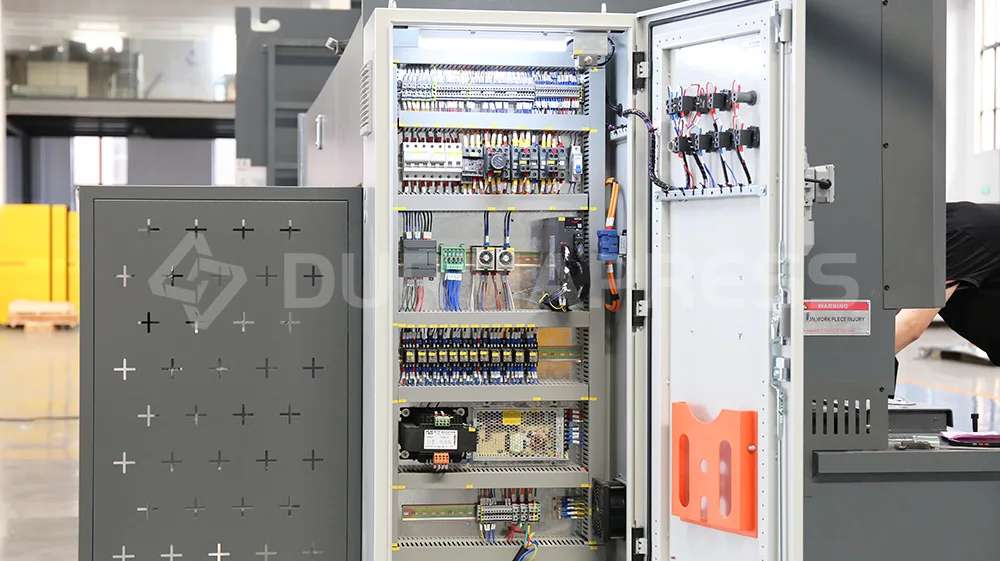

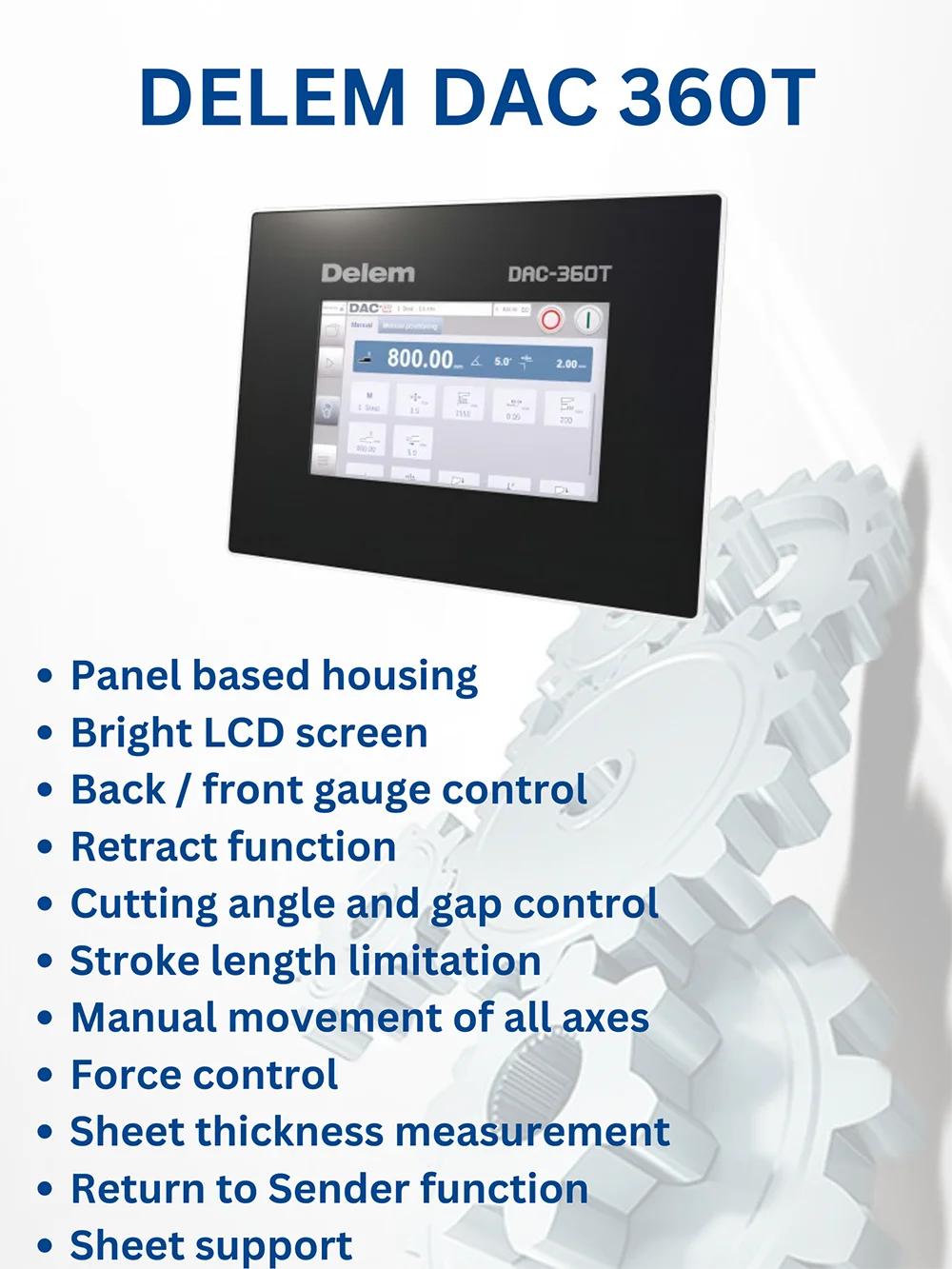

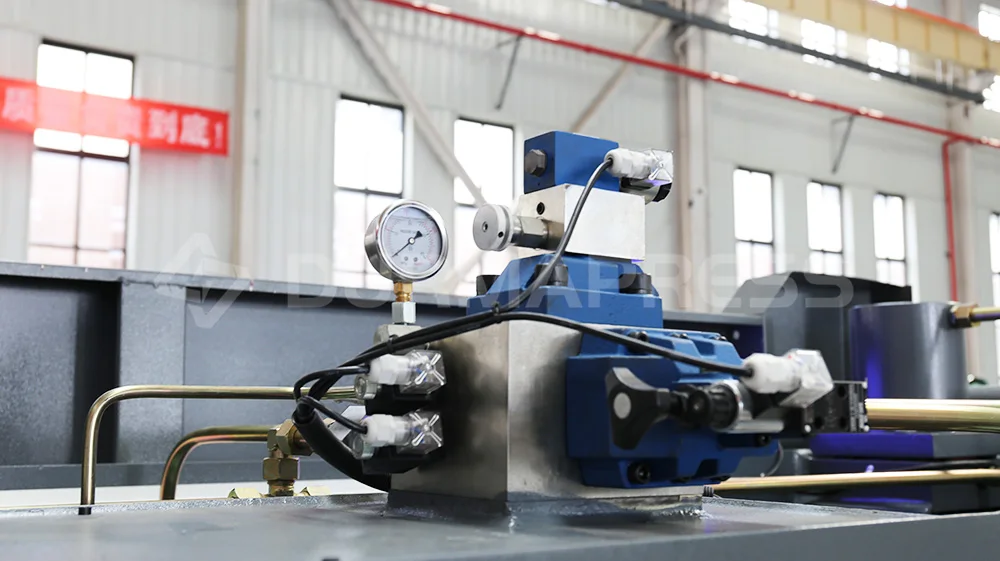

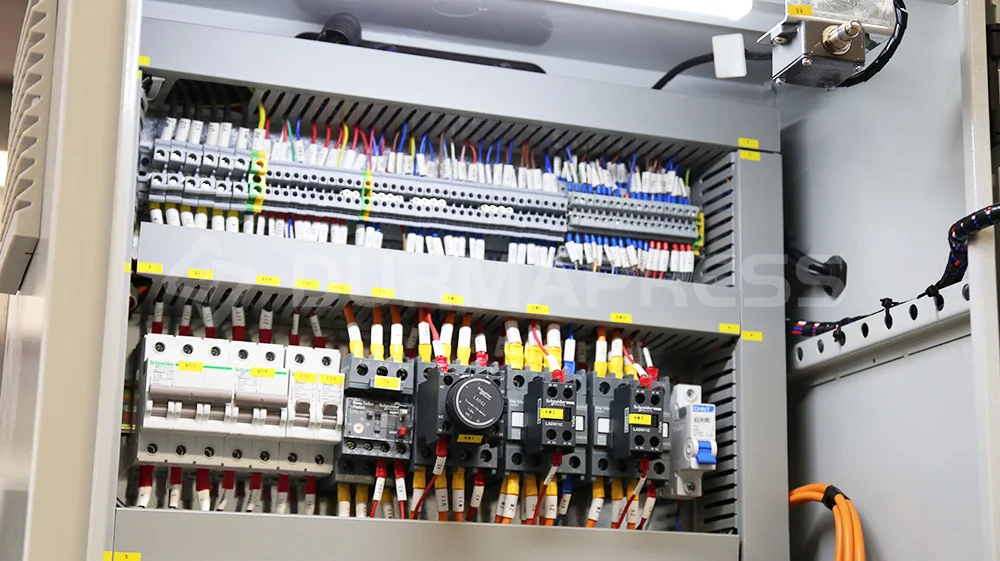

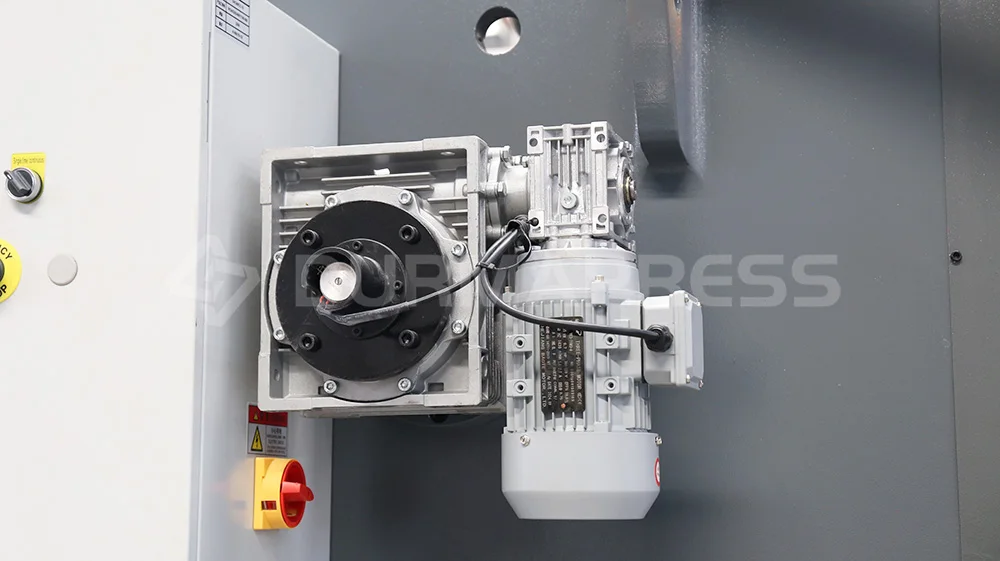

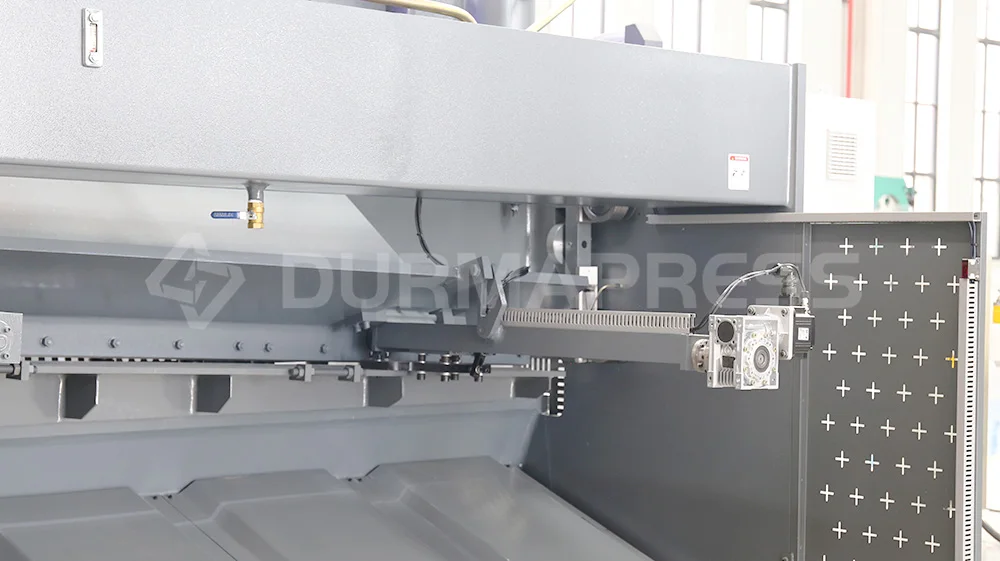

DURMAPRESS QC11K Hydraulic guillotine shearing machine 10*2500 8mm 3200mm with DAC360T controller
- Category: >>>
- Supplier: Maanshan Durmapress Machinery Technology Co. Ltd.
Share on (1601267336476):
Product Overview
Description
Product Description
Preoduct Parameters
Seri-al NO. | Name | Unit | 6*3200 | 6*4000 | 8*2500 | 8*3200 | 8*4000 | |||||||
1 | Max. Cutting Thickness | mm | 6 | 6 | 8 | 8 | 8 | |||||||
2 | Max.Cutting Length | mm | 3200 | 4000 | 2500 | 3200 | 4000 | |||||||
3 | Strength of sheared plate | N/mm2 | 450 | 450 | 450 | 450 | 450 | |||||||
4 | Cutting Angle | ° | 0.5-2.5 | 0.5-2.5 | 0.5-1.5 | 0.5-2.0 | 0.5-2.0 | |||||||
5 | Number of strokes | Hits/min | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | |||||||
6 | Length of Cutter Blade(A) | mm | 3300 | 4100 | 2600 | 3300 | 3300 | |||||||
7 | Height of working table above the ground (C) | mm | 10-750 | 10-750 | 10-700 | 10-700 | 10-750 | |||||||
8 | Backgauge Range of X Axis | mm | 10-800 | 10-800 | 10-800 | 10-800 | 10-800 | |||||||
9 | Main Motor | Type | Y132M-4/(B35) | Y132M-4/(B35) | Y132M-4/(B35) | Y132M-4/(B35) | Y132M-4/(B35) | |||||||
Power | KW | 7.5 | 7.5 | 7.5 | 7.5 | 11 | ||||||||
Rotate Speed | R/MIN | 1440 | 1440 | 1400 | 1400 | 1400 | ||||||||
10 | Gear Pump | Type | NBZ3-G25F/CP1-25-P-10R | NBZ3-G25F/CP1-25-P-10R | NBZ3-G25F/CP1-25-P-10R | NBZ3-G25F/CP1-25-P-10R | NBZ3-G25F/CP1-25-P-10R | |||||||
Norminal Flow | MI/r | 25 | 25 | 25 | 25 | 25 | ||||||||
Norminal Pressure | Mpa | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||||||||
11 | Back-gauge motor | Type | YS-7134 | YS-7134 | YS-7134 | YS-7134 | YS-7134 | |||||||
Power | KW | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | ||||||||
Rotate Speed | R/min | 1400 | 1400 | 1400 | 1400 | 1400 | ||||||||
12 | External Dimensions | Length | mm | 3700 | 4500 | 3000 | 3800 | 4500 | ||||||
Width | 1800 | 1900 | 1800 | 1800 | 1800 | |||||||||
Height | 2000 | 2100 | 2100 | 2100 | 2100 | |||||||||
13 | Power requirement | Power requirement | ||||||||||||
Certifications
Our company
Our packaging
2024 Our Exhibition
The exhibition we are about to attend
FABEX Saudi Arabia International metal and steel processing exhibition FABEX
Exhibition time: October 13-16, 2024
ExhibitionNumber：A100
Exhibition location: Saudi Arabia
STEEL FAB Middle East metalworking, welding and pipe equipment exhibition
Exhibition time: 8-11 January 2025
Exhibition location: Sharjah Convention Center, United Arab Emirates
Cooperative Partner
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant.
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant.
