1 Channel ESP32 WIFI Bluetooth BLE Relay Module DC5 60V Power Supply ESP32 WROOM 32E Development Board I/O Port Full Pin

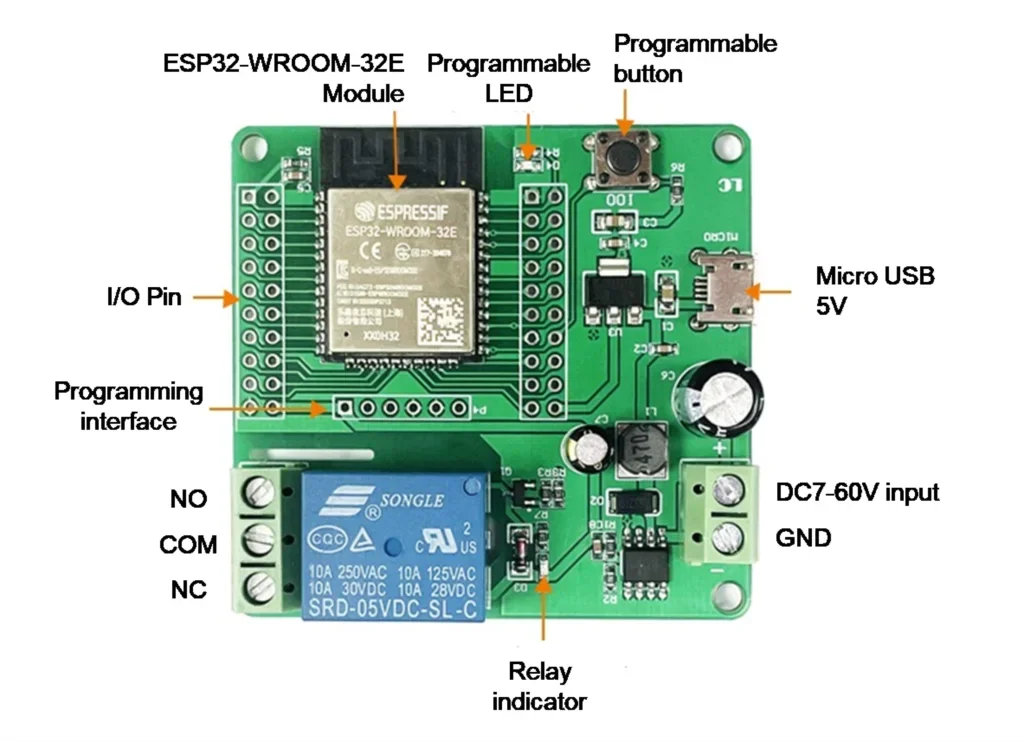

Features:

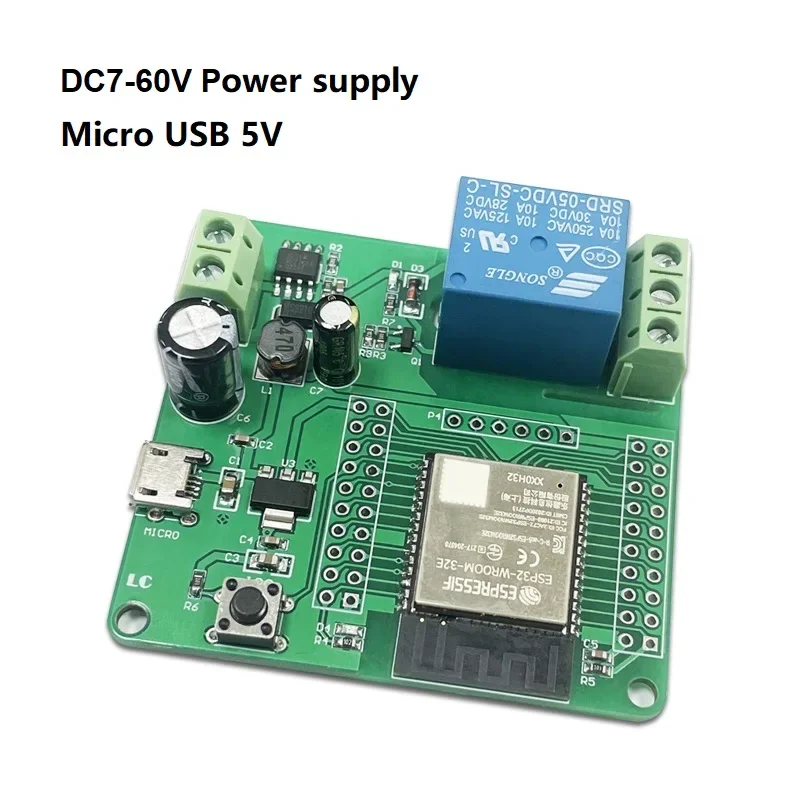

1. Power supply voltage DC7-60V and Micro USB 5V.

2. 1 programmable LED and relay indicator onboard.

3. Onboard ESP32 module IO0 programmable button and reset button.

4. Onboard mature and stable ESP32-WROOM-32E module, large-capacity 4MByteFlash.

5. The I/O ports and UART program download ports of the ESP32 module are all led out, which is convenient for secondary development.

6. ESP32 supports the use of ArduinoIDE development tools and provides reference programs in the Arduino development environment.

7. Onboard 1 channel 5V relay, output switch signal, suitable for controlling and controlling the load whose working voltage is within AC250V/DC30V.

Specifications:

Voltage: DC7-60V and Micro USB 5V

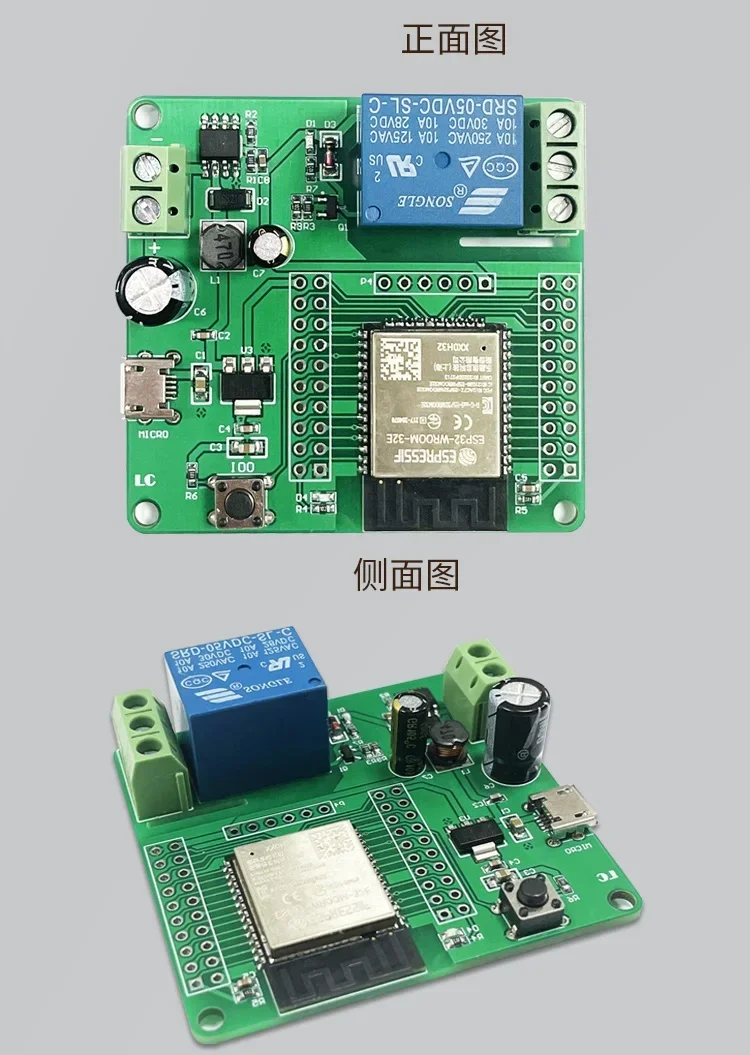

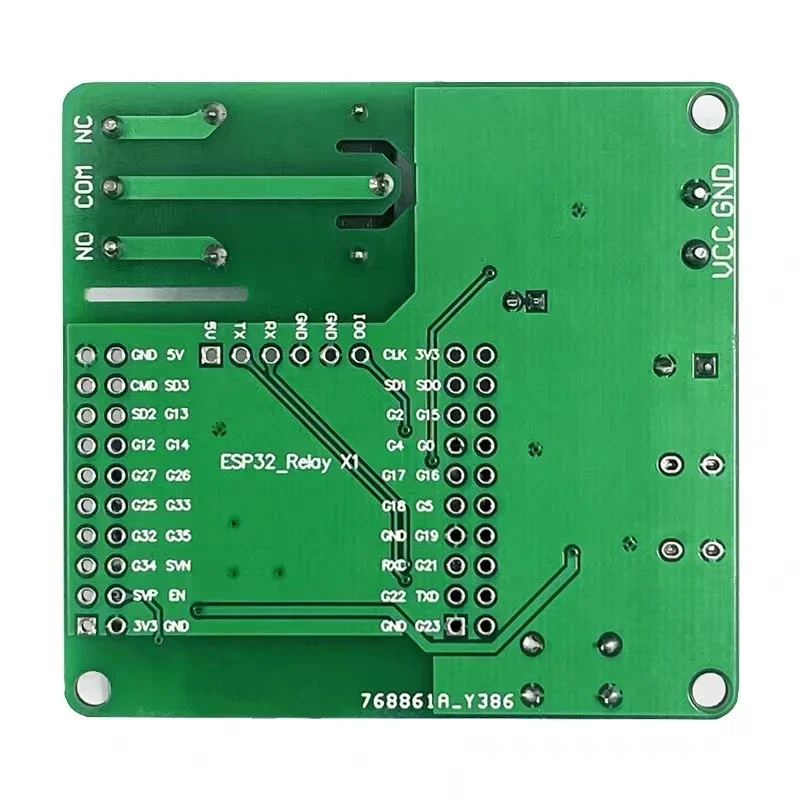

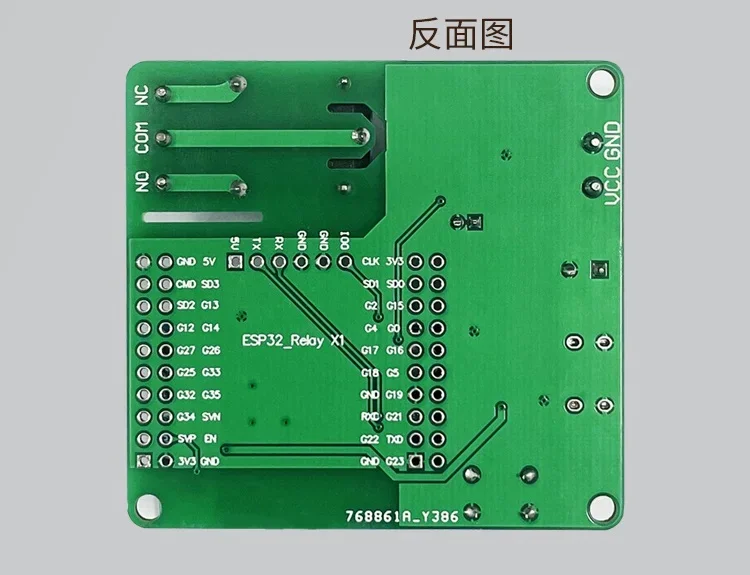

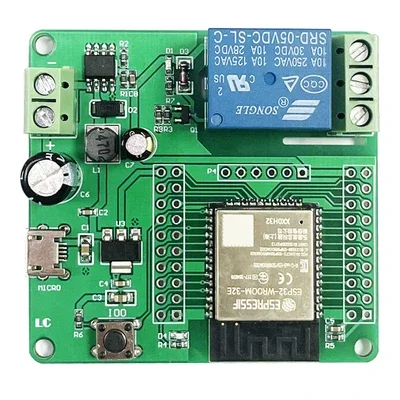

ESP32 1-channel relay development board is equipped with ESP32-WROOM-32E WiFi&BLE module, all I/O ports are led out, and supports DC7-60V and Micro USB 5V power supply mode. It is suitable for ESP32 secondary development and learning, smart home wireless control and other occasions

Board size: 57.5*53.7mm

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.
