Price:$450,000.00

Quantity:


Product Overview

Description



Products Description

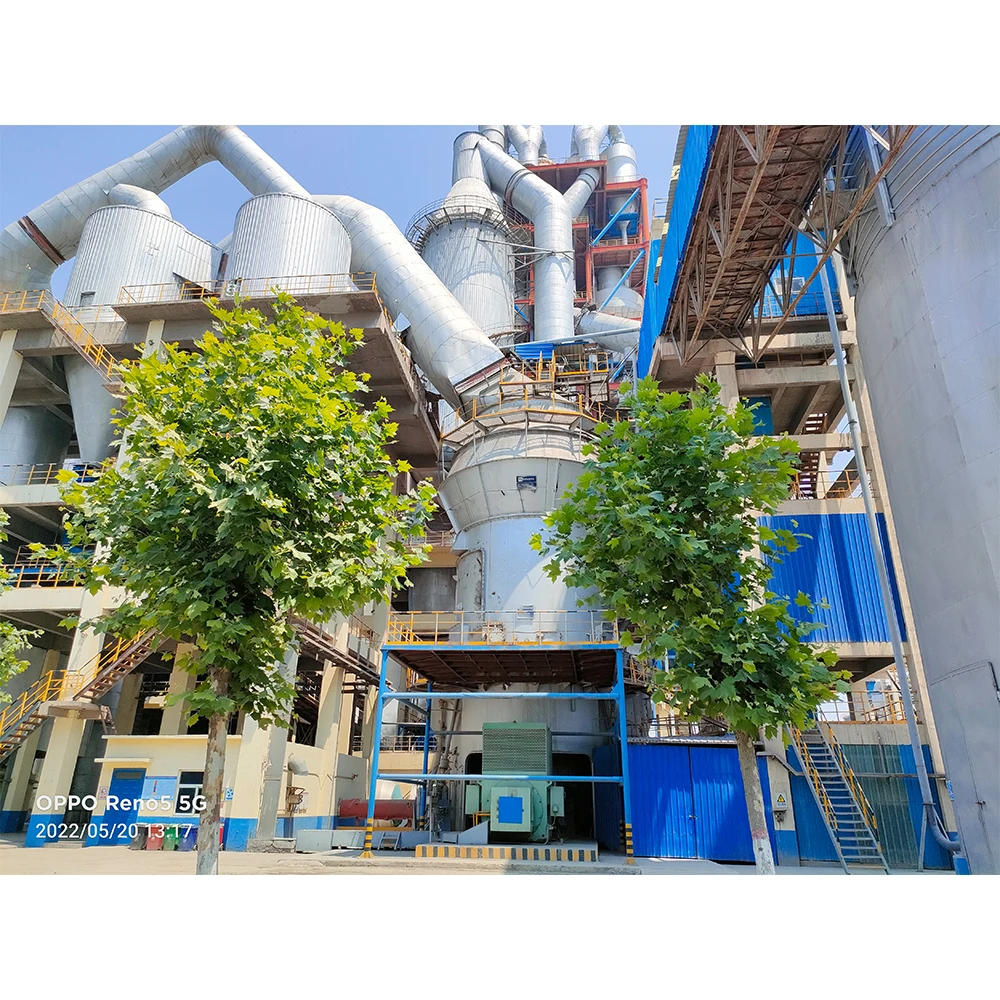

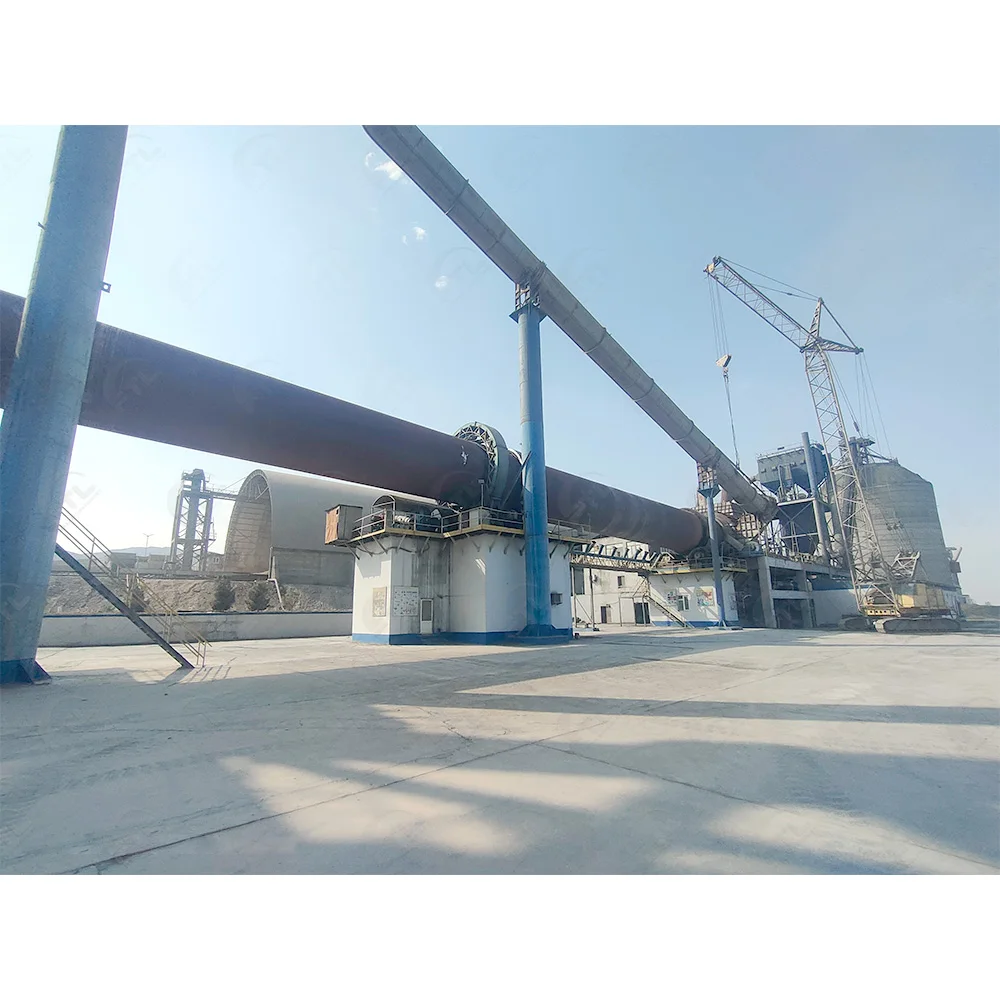

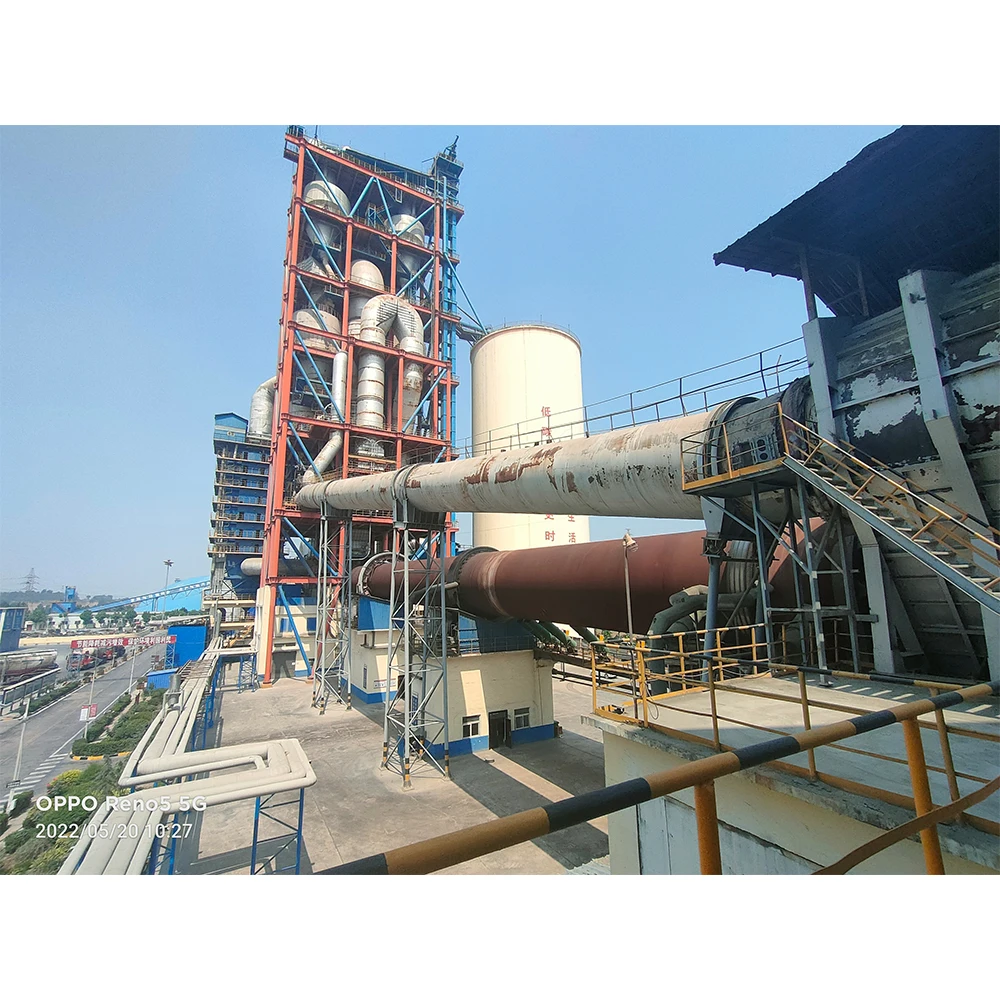

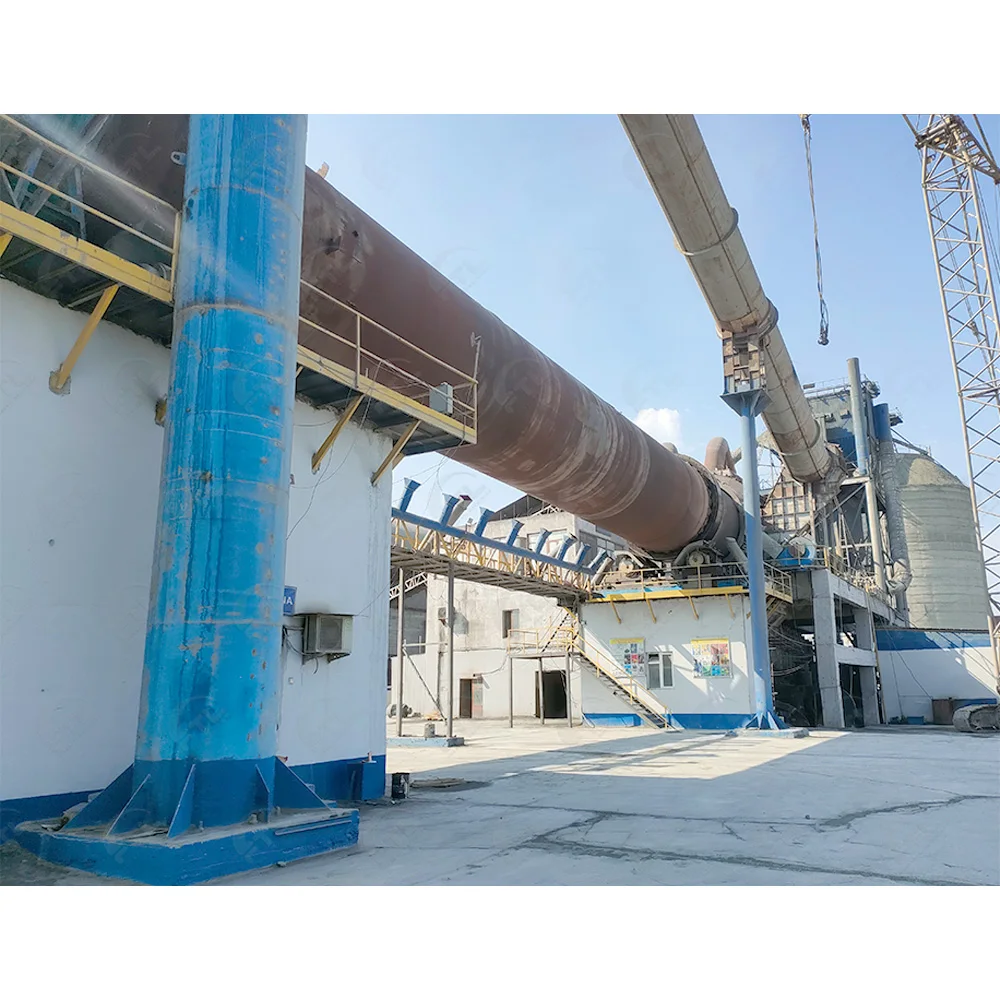

Project case 2500T Per Day cement production plant in UZ KZ Russia
Portland Cement production line

A complete plant of cement production line mainly consists of the process of crushing and prehomogenization, raw materials homogenizing, preheating decomposition, cement clinker firing, cement grinding & packaging.
The main equipments used in this whole production line include the vibrating feeder, jaw crusher, impact crusher, Raw material vertical mill, cement ball mill lifer, preheating system, cement rotary kiln and packing machine and so on. All the cement equipment in this line can be provided by our factory FTL Machinery.

The Portland cement(Silicate cement) production process is representative in cement production industry. The limestone and clay are usually taken as the main raw materials, first they will be crushed, batched, and ground into raw meal, then fed into the cement rotary kiln to calcine clinker, at last, it'll be ground into final cement by adding an appropriate amount of gypsum (sometimes mixed with mixed materials or admixtures).






Working principle of Cement Making Machine

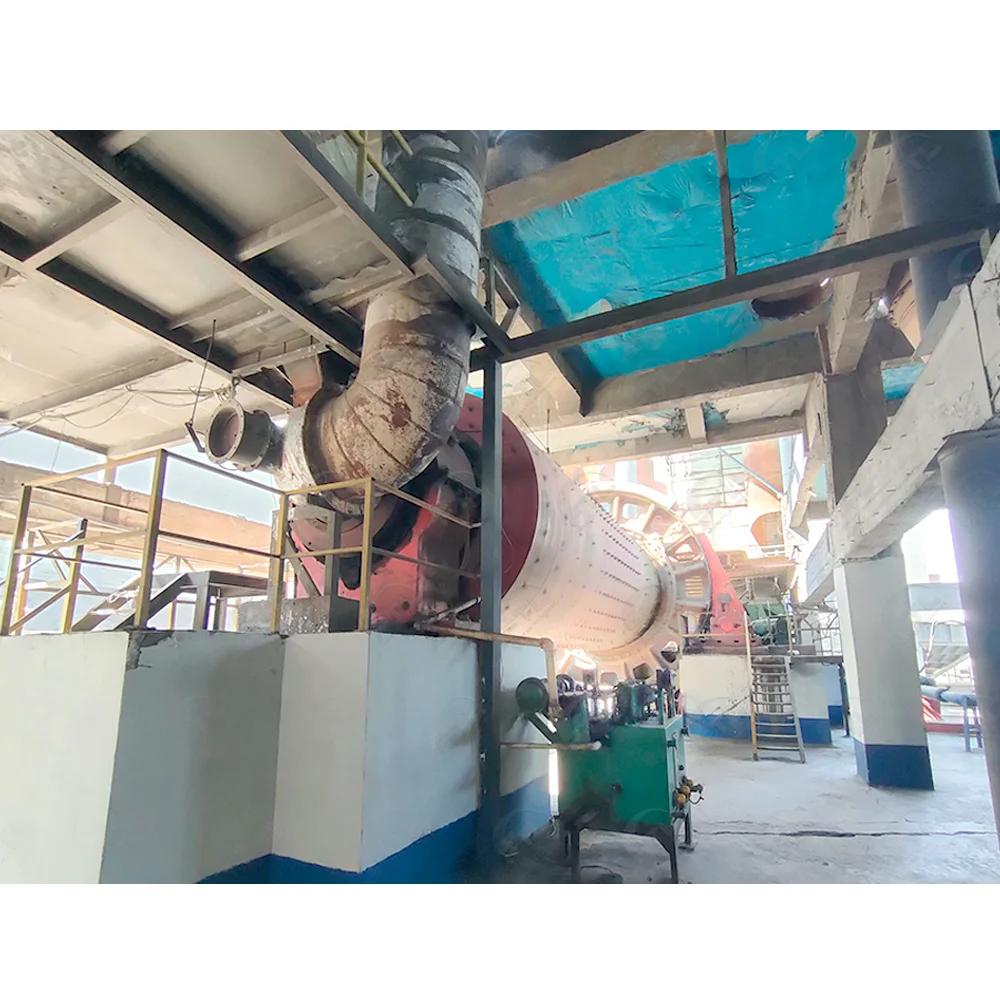

Cement Making Machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

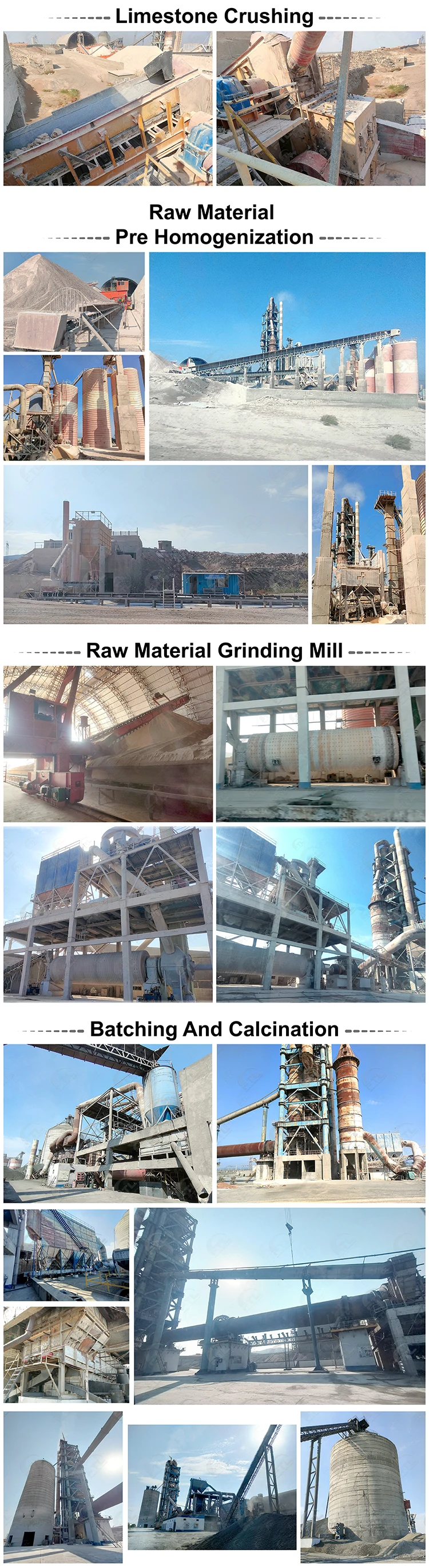

Our Projects






Main equipment


1
limestone crushing
2
raw material storage and blending
3
raw material grinding
4
raw material homogenizing and kiln feeding
5
kiln inlet, kiln middle, kiln head and pulverized coal preparation
6
waste gas treatment at kiln inlet
7
clinker and admixture storage
8

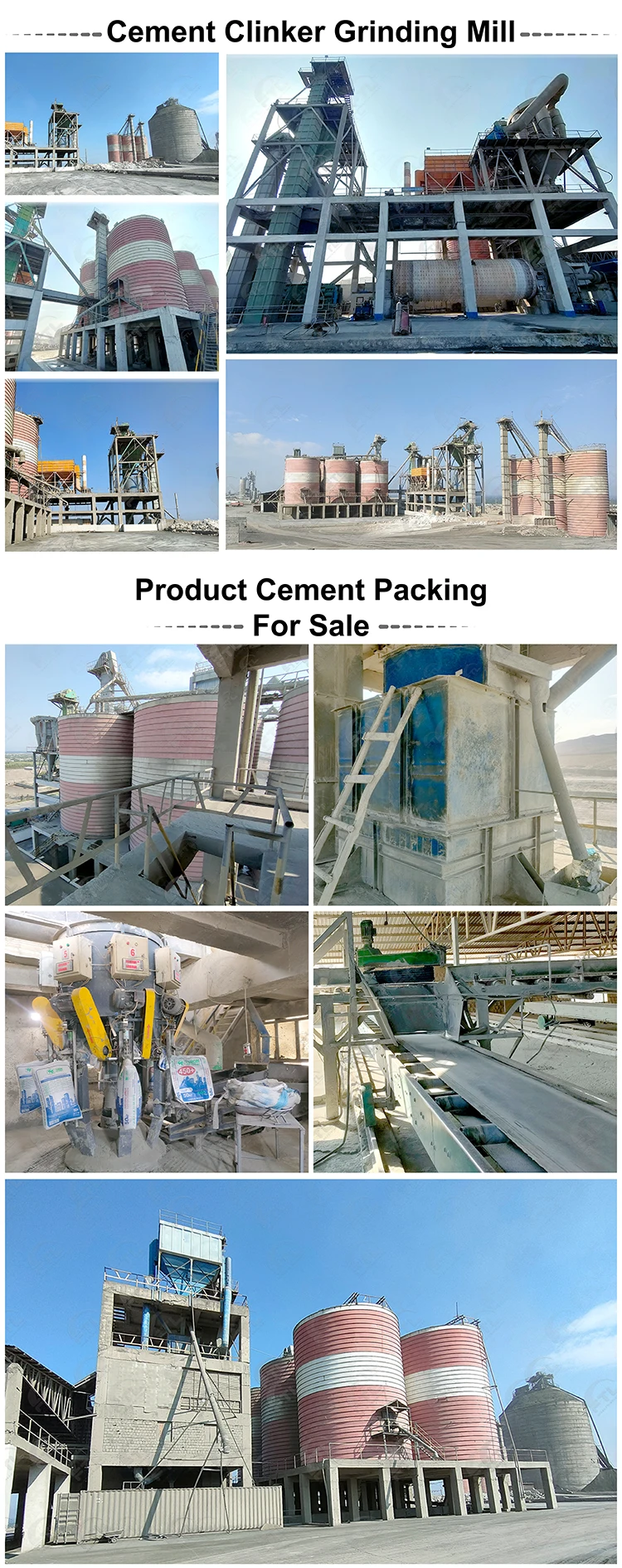

cement grinding
9
cement storage and packing


Производительность клинкера
300 т/сутки
700 т/сутки
1000 т/сутки
1500 т/сутки
Подогреватель
C1
2-Φ2500
Φ3500
Φ4800
2-Φ4000
C2
Φ3600
Φ4800
Φ4800
Φ5800
C3
Φ3600
2-Φ3700
Φ5200
Φ5800
C4
Φ3600
Φ4800
Φ5200
Φ6200
C5
Φ3600
Φ4800
Φ5200
Φ6200
Подогревательная печь
Модель
Φ2200
Φ2800
Φ4800
Φ5200
Вращающаяся печь
Модель
Φ2.8×44м
Φ3×48м
Φ3.2×50м
Φ3.5×54м

Производительность
12.5 т/ч
30 т/ч
42 т/ч
63 т/ч
Температура обжига
(℃)
1450
1450
1450
1450
Сырьевая мельница

Модель

Вертикальная
роликова мельница
Φ1700
Сухая мельница
Φ3.2×7+1.8м
Сухая мельница
Φ3.5×10м
Вертикальна роликова мельница
HRM2800

Производительность
30 т/ч
50 т/ч
85 т/ч
130~160 т/ч
Мощность
400 кВт
1000 кВт
1250 кВт
1250 кВт
Цементная мельница
Модель
Φ2.4×13м
Незамкнутая цепь
Φ3×11м
Замкнутыйтая цепь
Φ3.2×11м
Замкнутыйтая цепь
Φ4.2×13.5м
Замкнутыйтая цепь
Производительность
22 т/ч
42 т/ч
64 т/ч
95 т/ч
Мощность
800 кВт
1250 кВт
1400 кВт
3550 кВт






Packing and shipping
