Hybrid System 5KW Hybrid Power All in one Indoor Solar Energy System for Home

Share on (1601267382682):


Price:$0.32-0.48

Quantity:


Product Overview

Description

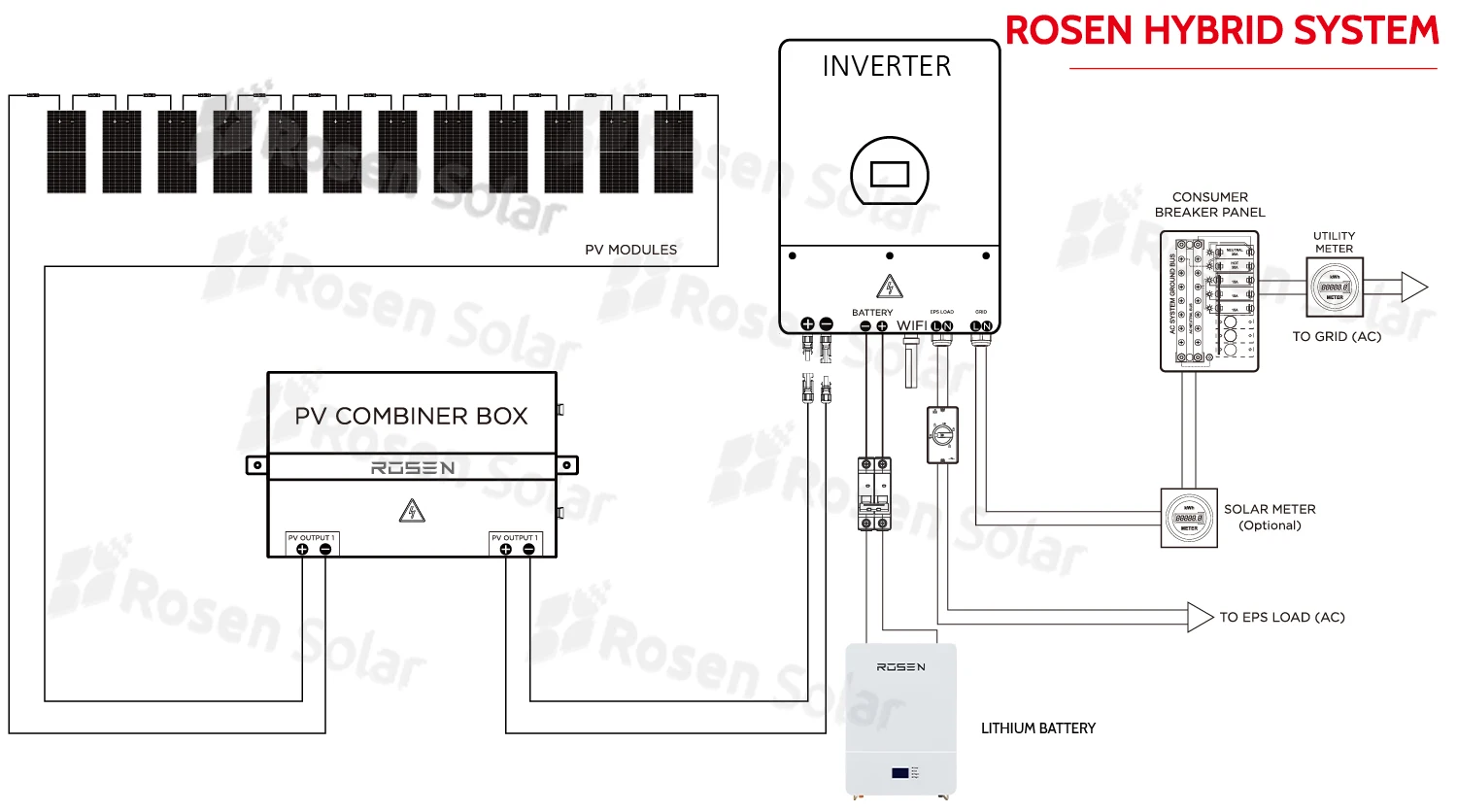

System Connection


Rosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types. Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock. Our technicians will help with installation guidance, project design, commissioning, and aftersale service.




System Configuration


5KW Hybrid Power Storage System



Solar Panels
12 Pieces ;   Poly/Mono modules 450/550W Optional
DC Combiner Box
1 set;    2inputs 1output(Switches, Breaker, SPD)
Inverter
1 set;   5KW Hybrid Inverter
Battery
4 sets;   2/12/48v GEL/AGM/Li Batteries optional
PV Cable
1 rolls;   4m㎡/6m㎡
MC4 Connector
10 pairs;   MC4; 30A/1000Vdc
Installation Brackets
1 set;   Aluminum/Galvanized steel;Customized
Installation Tools
MC4 spanner, Crimping pliers, wire stripper
Technical Specification, Installation Manual, Quotation List:  00-86 136-9677 5939 (Tel/Whatsapp/Skype/FB)


Product Exhibition

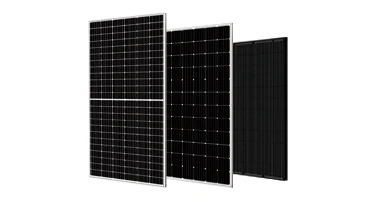

Solar Panels

Mono/Poly/felxible/black etc all types Panels;
High efficiency power up to 450W/ 550W/600W Half Cell/Bifacial Solar PV Modules;
All certificates listed with more than 30years life and 12-15years warranty


PID Resistant,High salt and ammonia resistance

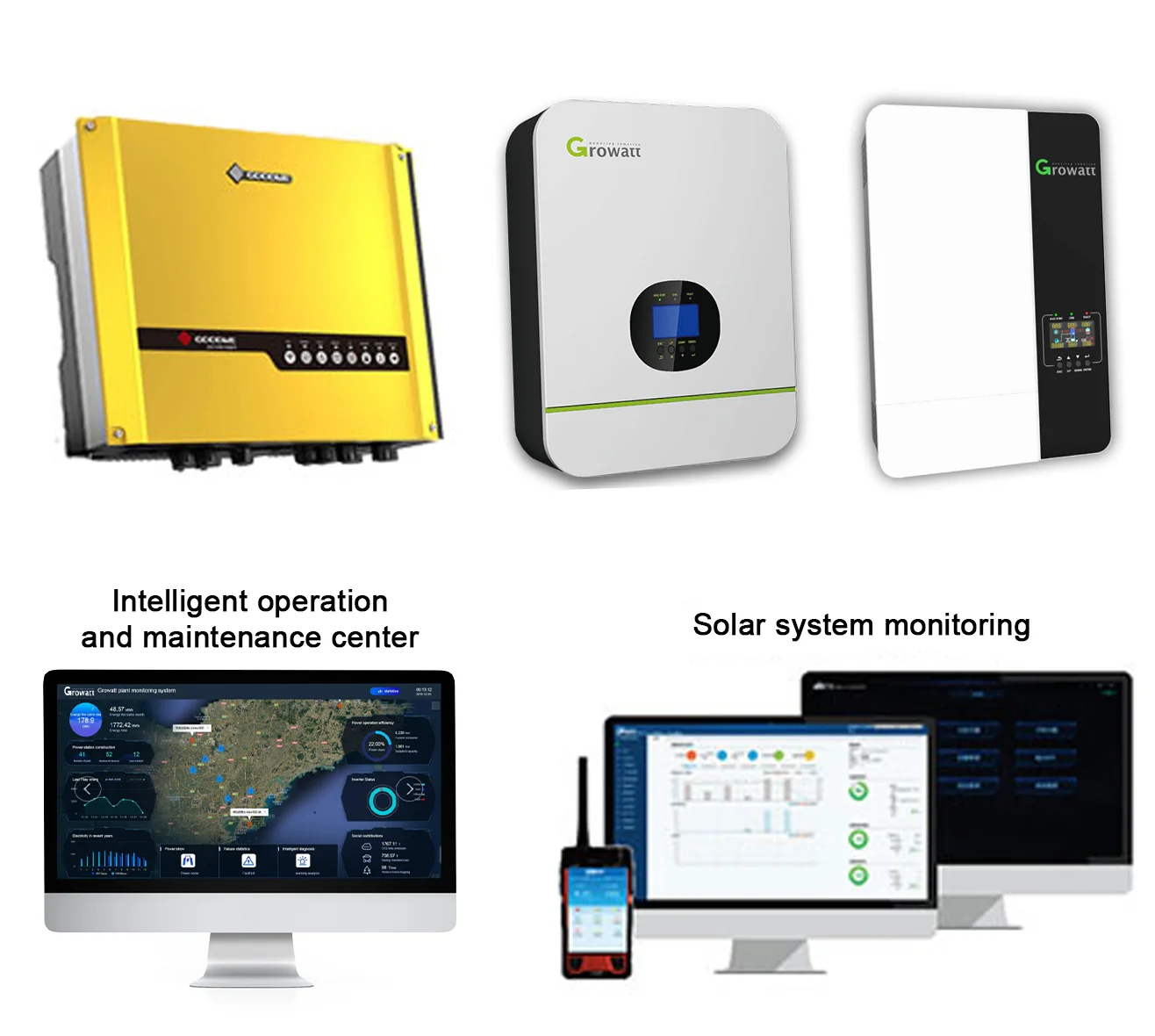

Hybrid Energy Storage Inverter

Automatic Switch to charge loads, batteries or from Grid backup with priority setting function;
Lithium Powerwall and GEL storage battery compatible with almost all types of inverters;
Comprehensive WIFI monitor for electricity production and consumption data, to check your investment payment on time;

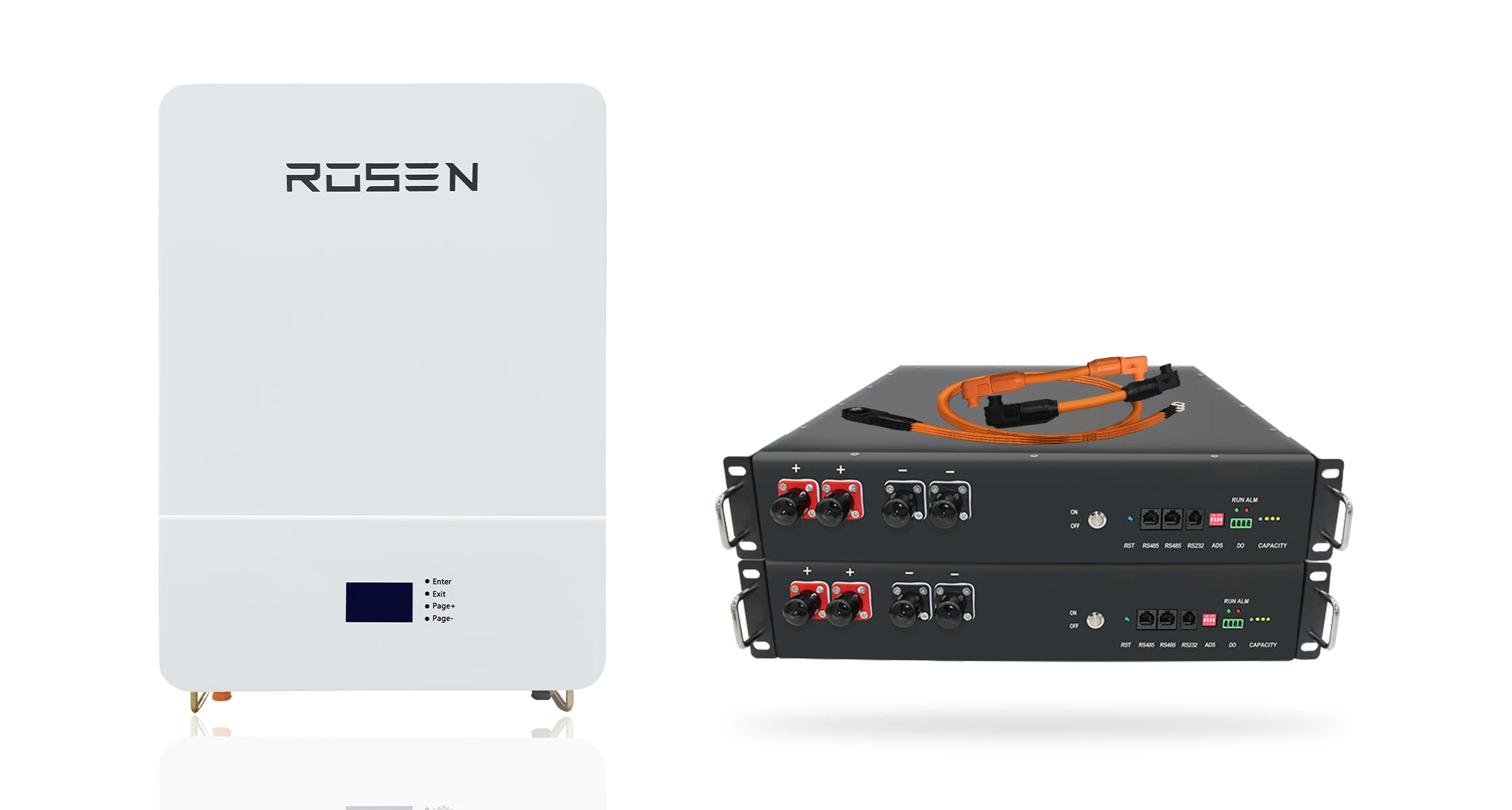

Solar Battery/LifePO4 Powerwall

Lithium and GEL Storage Batteries Optional;

48V 50Ah/100Ah/150Ah/200Ah, with 5kwh/10kwh/15kwh/30kwh ect capacity;
BMS Communication matched with almost all types of hybrid energy inverters;
Installation is convenient with cable, rack etc Accessories ready in package.

Rosen Powerwall design belongs to Rosen patent.
Rosen reserves sole and only right for sales of Rosen powerwall.

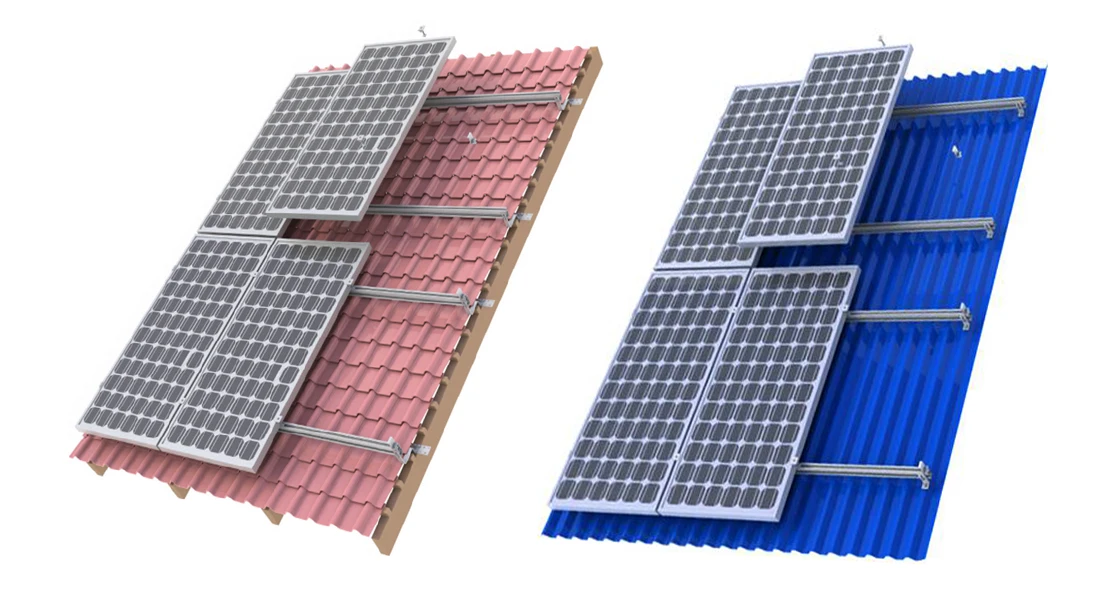

Mounting/Installation Bracket

Complete set with aluminium rails, mid/end clamps, L-feet,
Customized design with CAD drawing

Flat/pitched roof, soil/cement ground installation;
Aluminium Alloy/Hot dip galvanized steel etc
widely used for Home, Commercial and Industrial projects

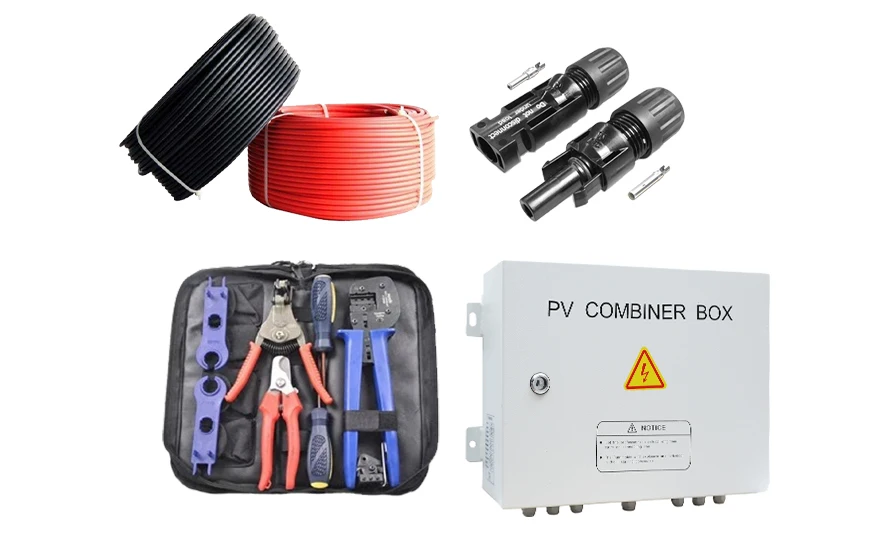

Installation Tools Box

Compatible MC4 Connector

MC4 spanner, Crimping pliers etc for installation;PV Combiner Box IP68
PV Cable with 4mm2/6mm2/10mm2/16mm2/25mm2 etc for connection
Customized PV Combiner box for solar panels connection in series and in parallel

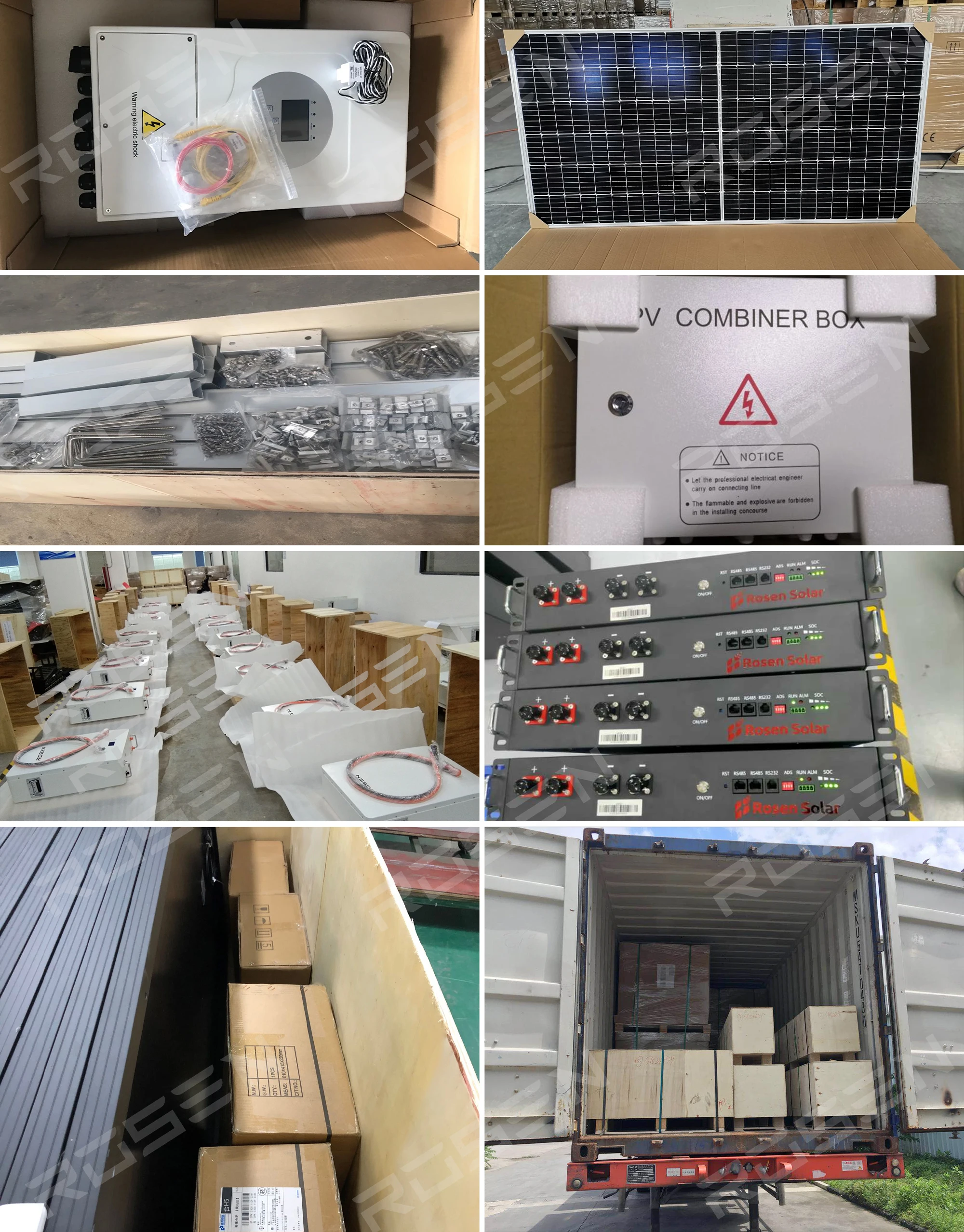

Packing & Delivery


Packing Details : PACKAGES in Carton or Wooden box
Delivery Details : 5-10 work days or customize for you

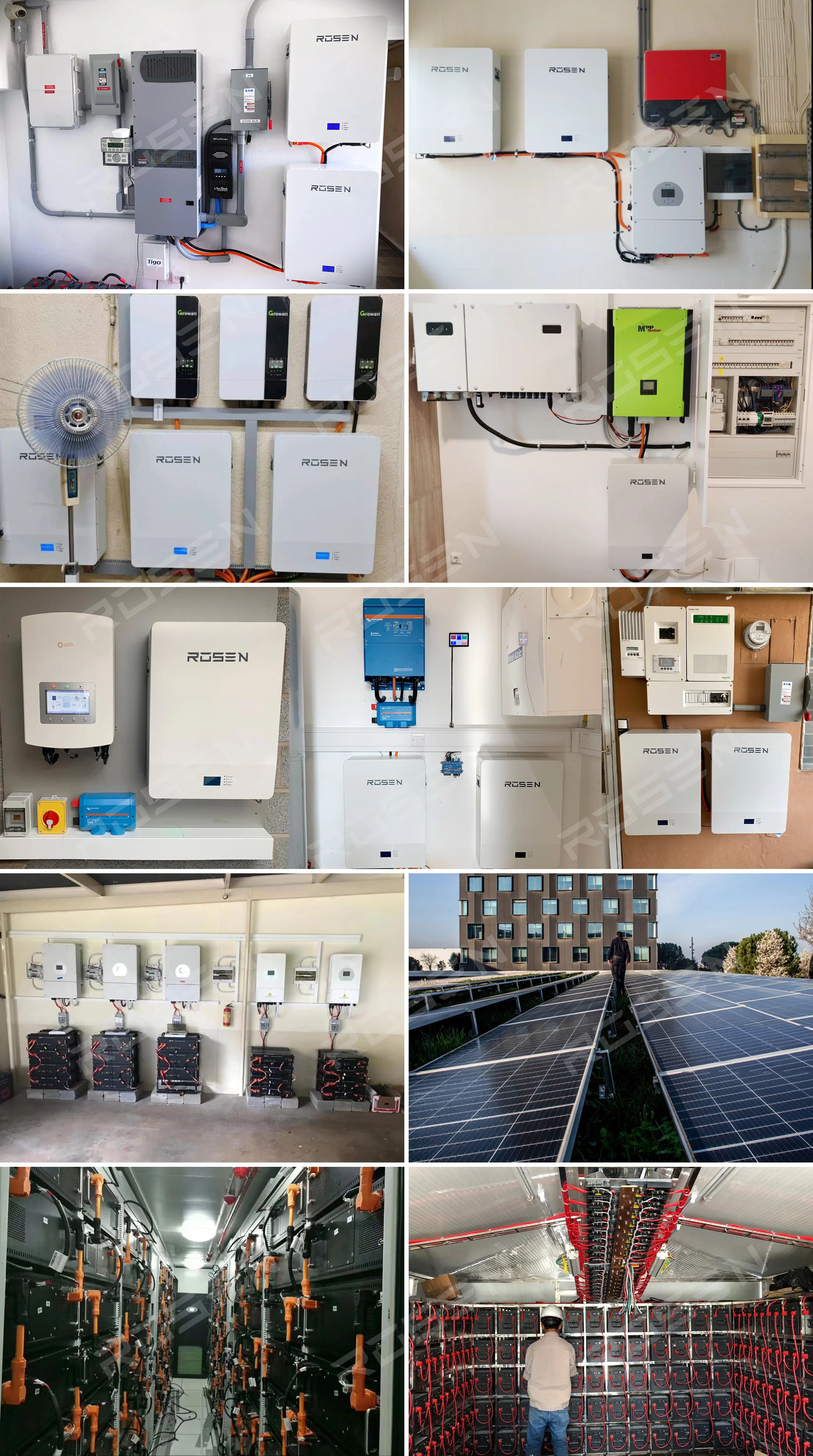

Our Projects

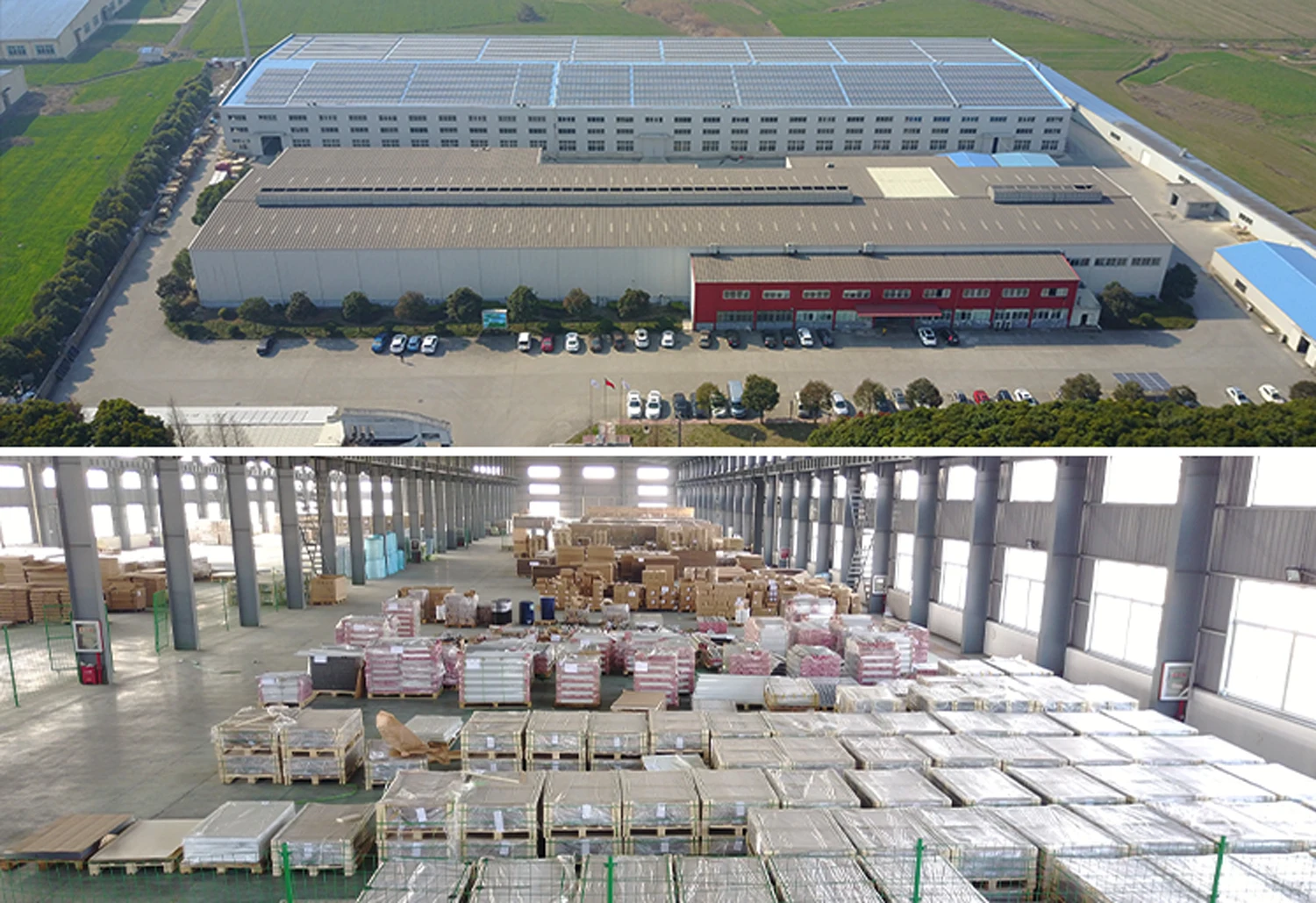

Our Company
