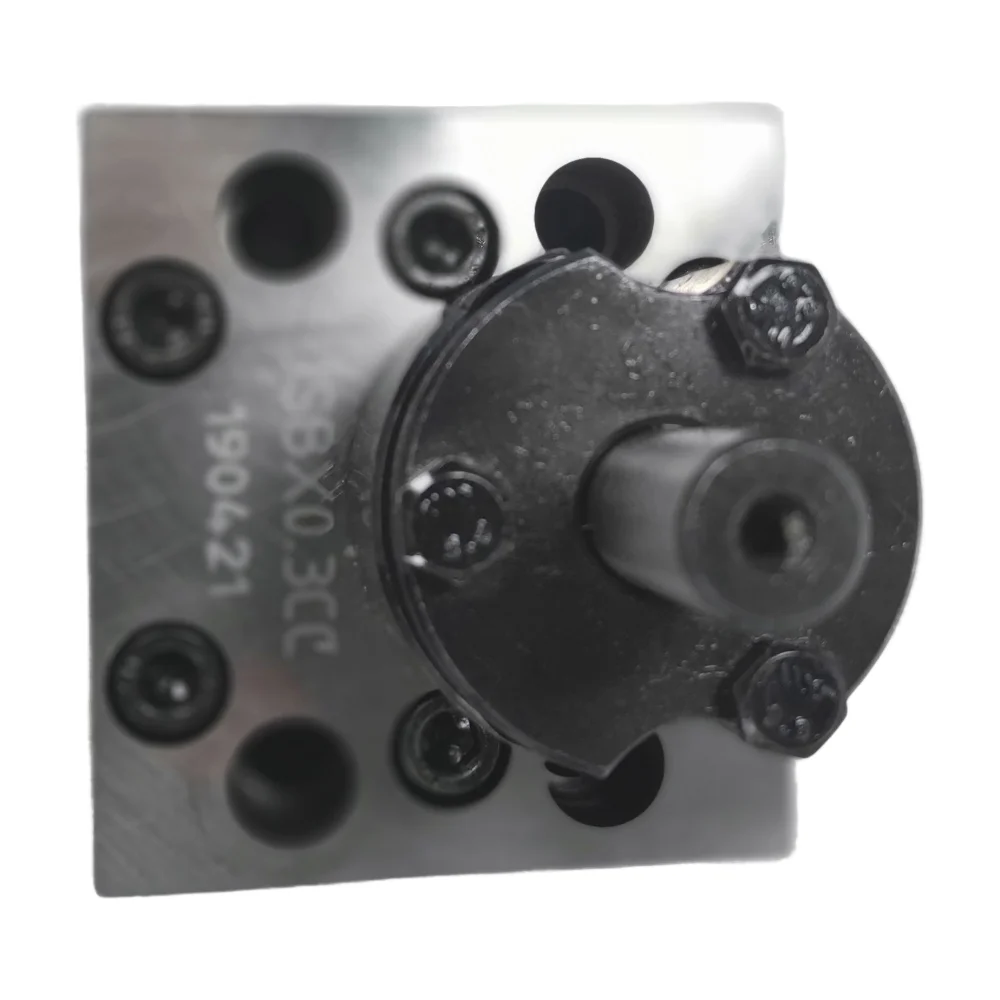

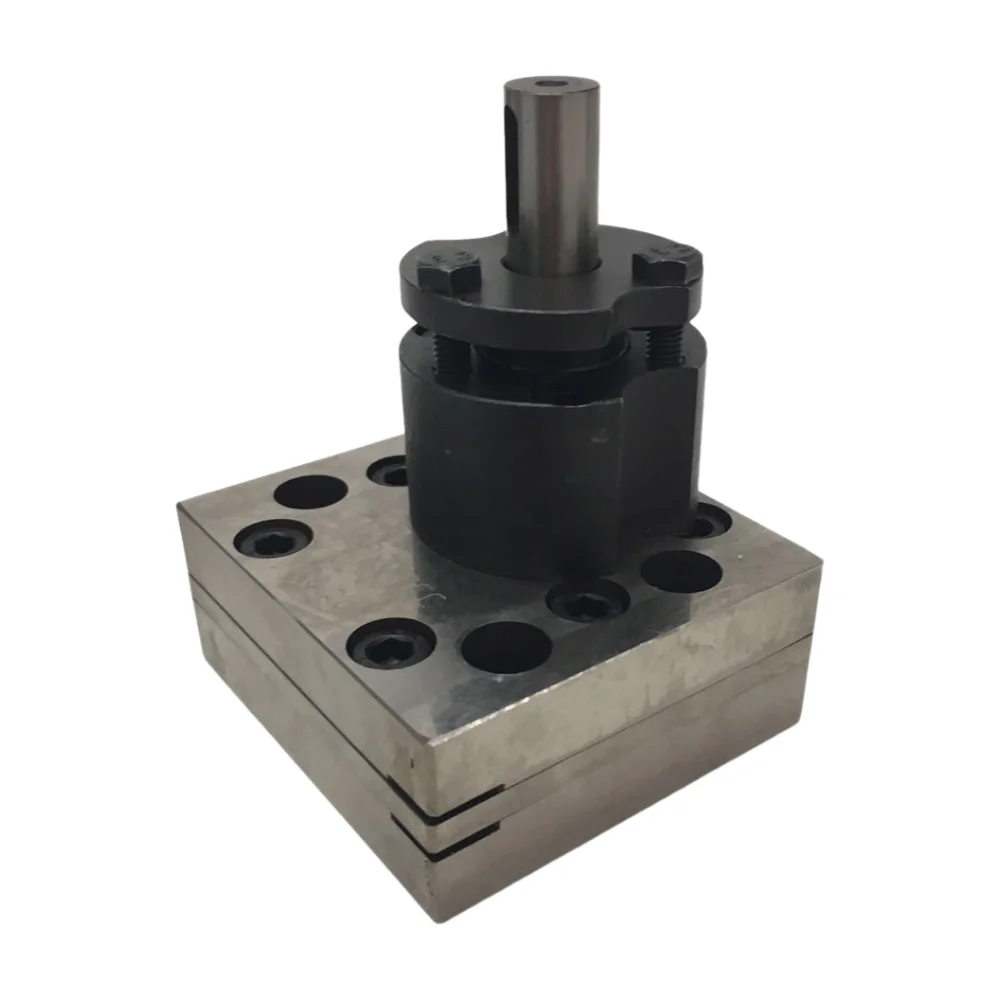

High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump
High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump

High Quality Rubber Resin Gear Pump Phenolic Resin Chemical Gear Metering Pump

Share on (1601267402111):


Price:

Quantity:


Product Overview

Description





Products Description

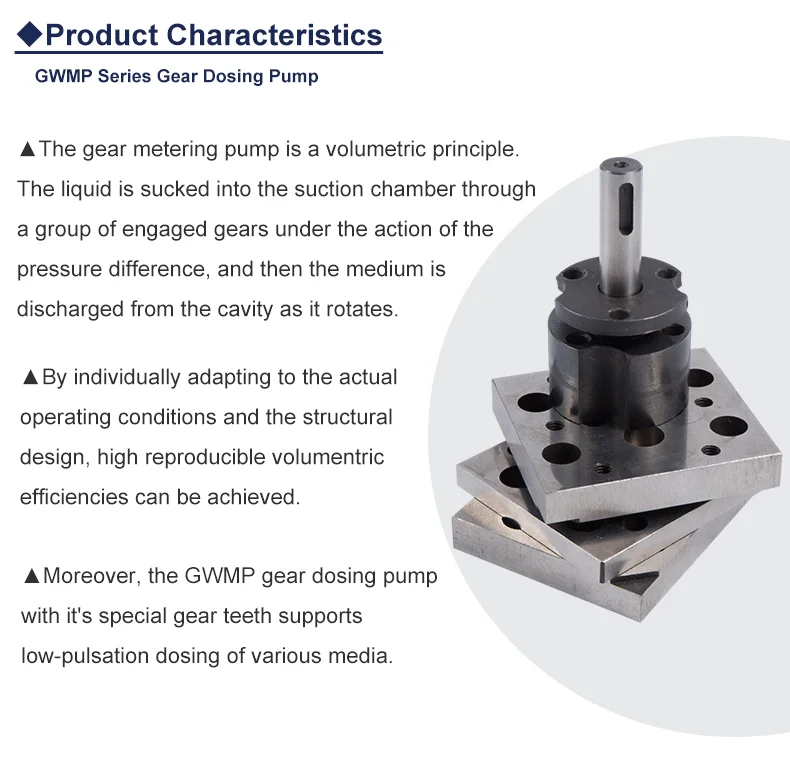

The working principle of a gear metering pump is that it is driven by a pair of meshing gears, one of which is an active gear and the other is a passive gear, which drives the meshing and rotation. There is a small gap directly left between the gear and the pump casing. When the gear rotates, the sealed volume between the teeth increases in the suction chamber where the teeth gradually detach from the mesh, forming a local vacuum. The liquid is sucked into the suction chamber under the pressure difference. As the gear rotates, the liquid is pushed forward by the gear in two ways between the gear and the shell, and sent to the discharge chamber. In the discharge chamber, the two gears gradually mesh, and the volume decreases. The liquid between the gears is squeezed to the discharge port.


Product Name
High Viscosity Glue Liquid Honey Flow Level Sensor Digital Display Fluid Dosing Metering Pump Food Grade Gear Pump
Displacement
0.05CC/R -150CC/R(±3%)
Bus board height
80mm-144mm
Total height
155mm-250mm
Min Inlet Pressure
<0.2Mpa
Working Speed
5~200 R/min
Medium
Fluid
Temperature
200℃
Max Outlet Pressure
<30Mpa
Flow Capacity
6-30(+/-30)CC/R
Sealing
Combined seal


Supporting use

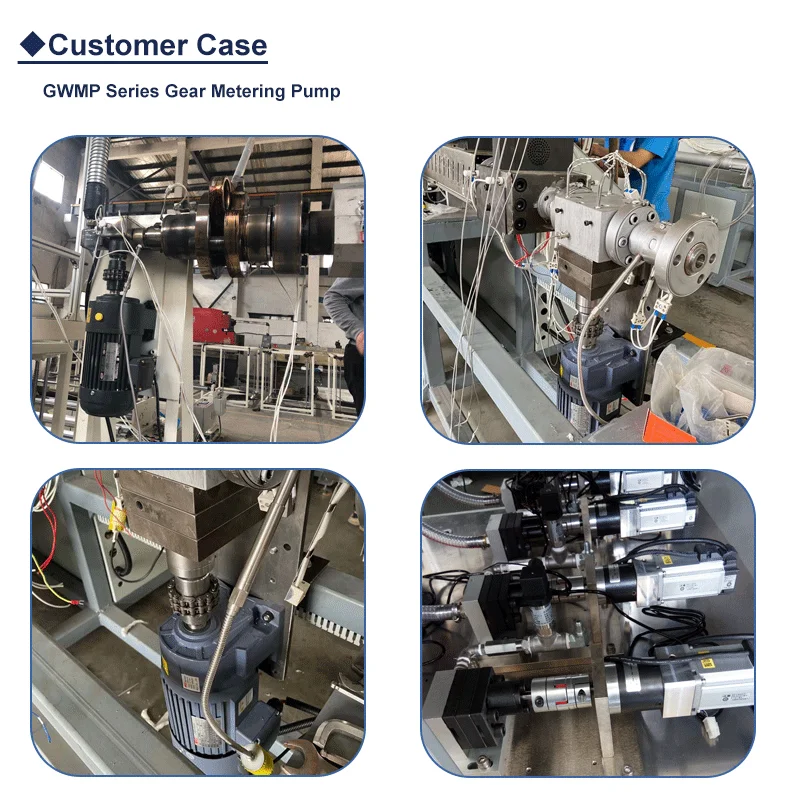

Gear metering pumps are widely used in dispensing equipment, polyurethane equipment, Hot-melt adhesive equipment, spinning metering equipment, food filling equipment and other industries.


“36 years” focus on the manufacturing of instruments and meters
Among them, the manufacturing of flow meters has entered the “top 10” nationwide
Served over "100+" countries and "100000+" customers
Has obtained the "100+" patent certificate and the "National High tech Enterprise Title"
Provide a one-stop solution with customer satisfaction of "99%".
[Obtain Quotation] [Contact Supplier]

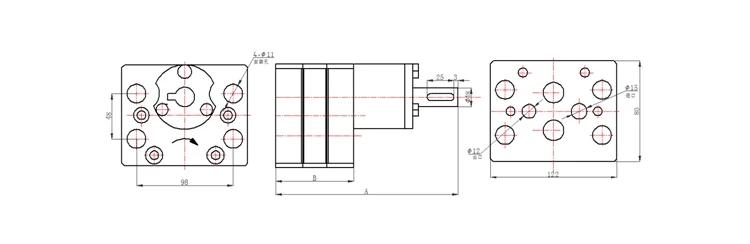

Specifications


Model
Displacement
(CC/R)
Pump plate height(B)
Total length of pump (A)
Min Inlet Pressure
Max Outpet Pressure
Accuracy
Temperature
0.05CC
0.05
36.94
65.94
<0.2Mpa
<30Mpa
+/-3%
200℃
0.15CC
0.15
24
85
<0.2Mpa
<30Mpa
+/-3%
200℃
0.3CC
0.3
28
85
<0.2Mpa
<30Mpa
+/-3%
200℃
0.6CC
0.6
28
85
<0.2Mpa
<30Mpa
+/-3%
200℃
1.2CC
1.2
32
90
<0.2Mpa
<30Mpa
+/-3%
200℃
2.4CC
2.4
32
100
<0.2Mpa
<30Mpa
+/-3%
200℃
3.2CC
3.2
50
103
<0.2Mpa
<30Mpa
+/-3%
200℃
3.6CC
3.6
135
105
<0.2Mpa
<30Mpa
+/-3%
200℃
4CC
4
38.2
120
<0.2Mpa
<30Mpa
+/-3%
200℃
6CC
6
41.6
125
<0.2Mpa
<30Mpa
+/-3%
200℃
9CC
9
46.4
130
<0.2Mpa
<30Mpa
+/-3%
200℃
12CC
12
51.2
135
<0.2Mpa
<30Mpa
+/-3%
200℃
15CC
15
56
140
<0.2Mpa
<30Mpa
+/-3%
200℃
20CC
20
64
145
<0.2Mpa
<30Mpa
+/-3%
200℃
25CC
25
72
155
<0.2Mpa
<30Mpa
+/-3%
200℃
30CC
30
80
160
<0.2Mpa
<30Mpa
+/-3%
200℃
30ACC
30
83.3
215
<0.2Mpa
<30Mpa
+/-3%
200℃
40CC
40
90
215
<0.2Mpa
<30Mpa
+/-3%
200℃
50CC
50
97
215
60CC
60
104.4
215
Note:Direction of rotation: clockwise from the axis of rotation

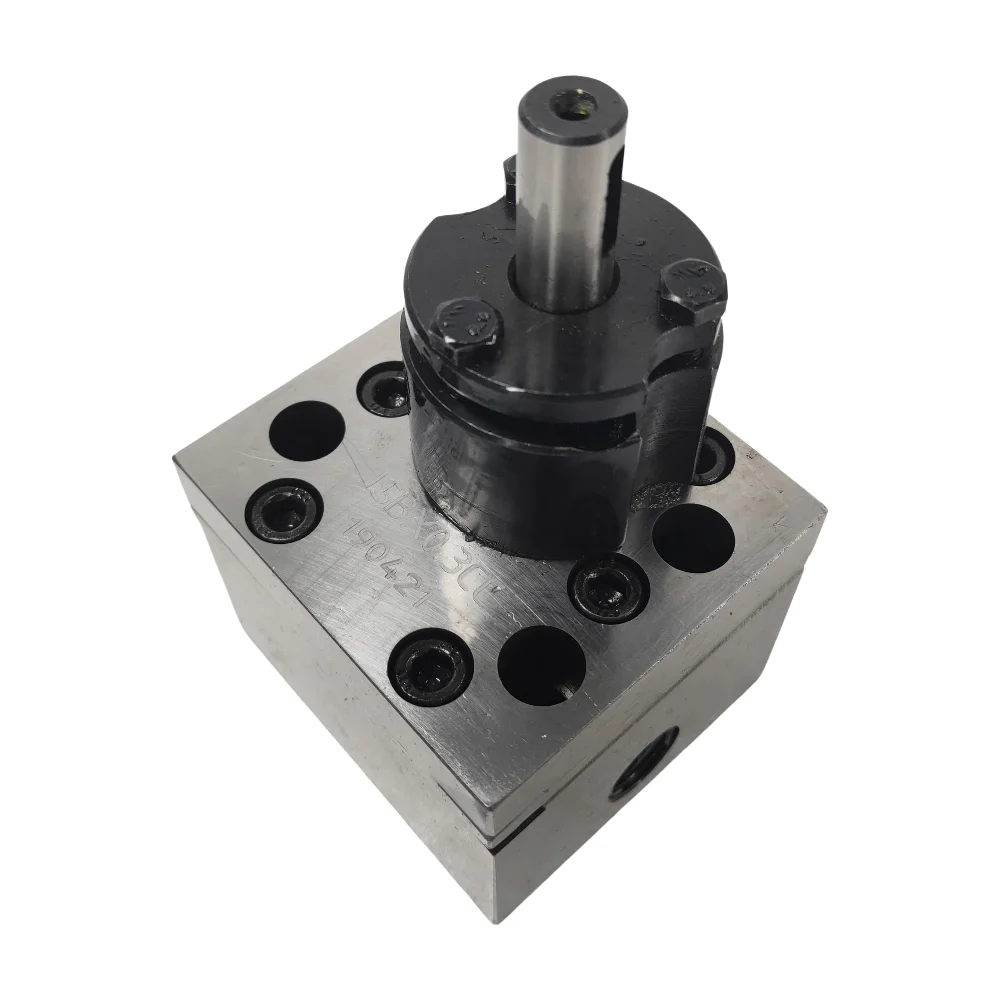

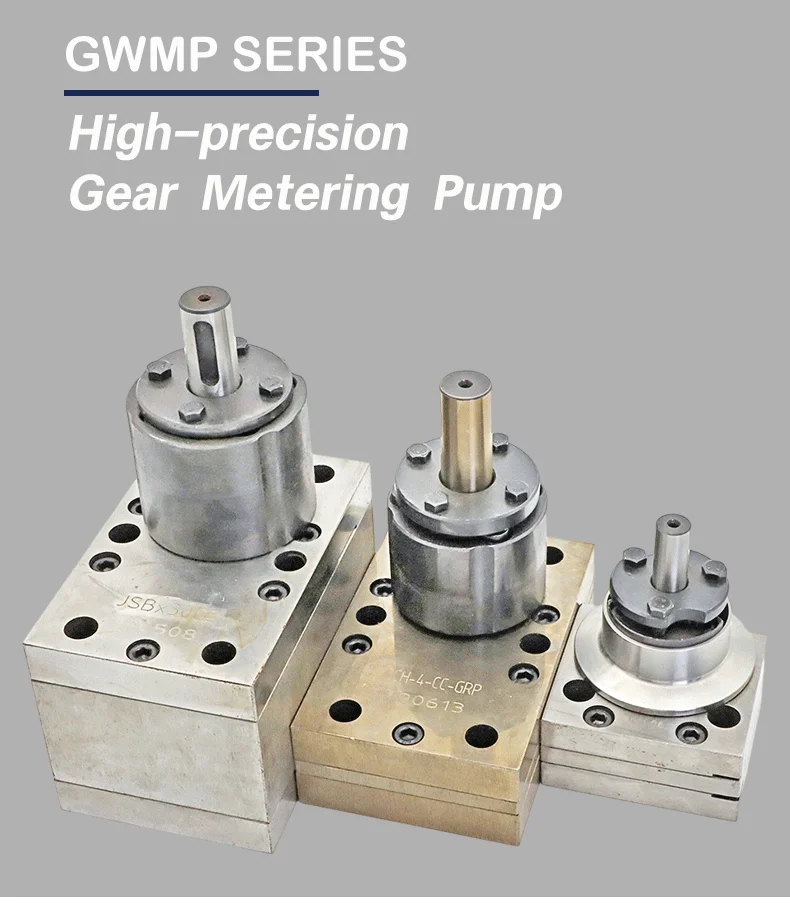

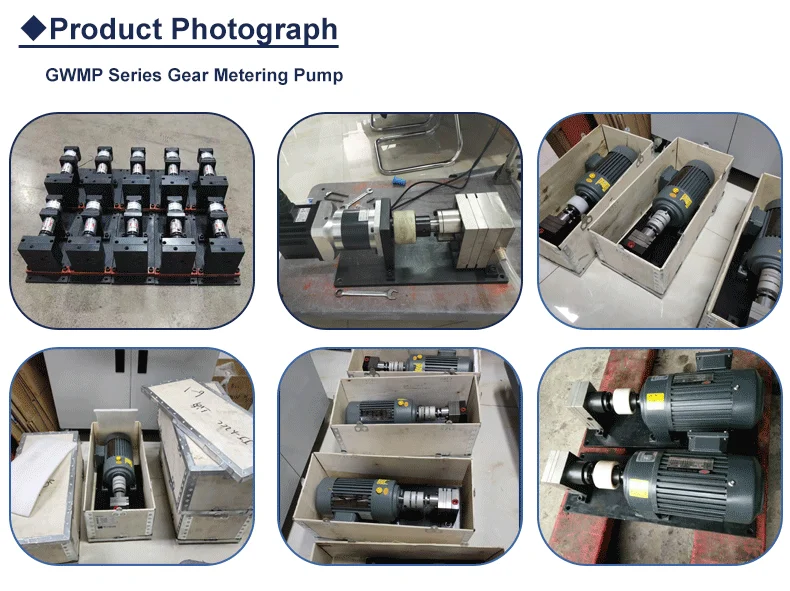

Product Show

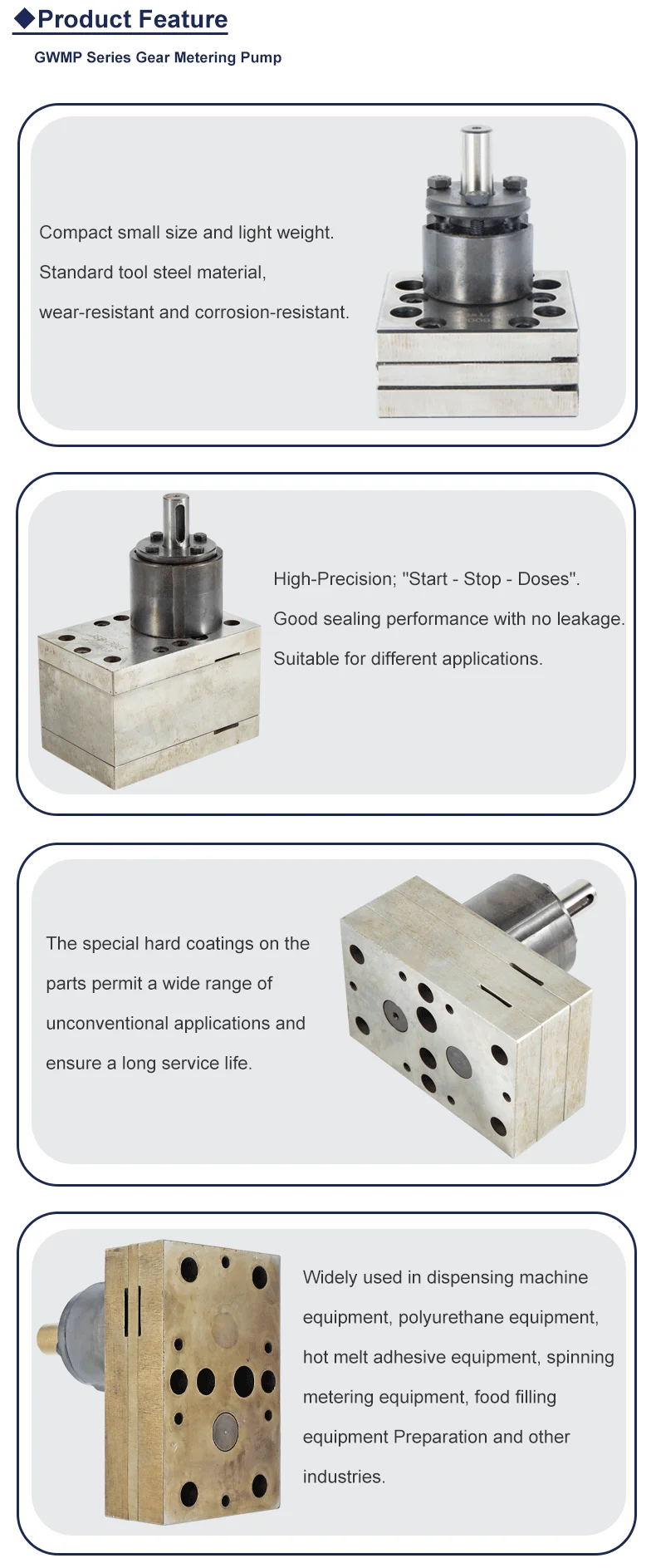

Feature

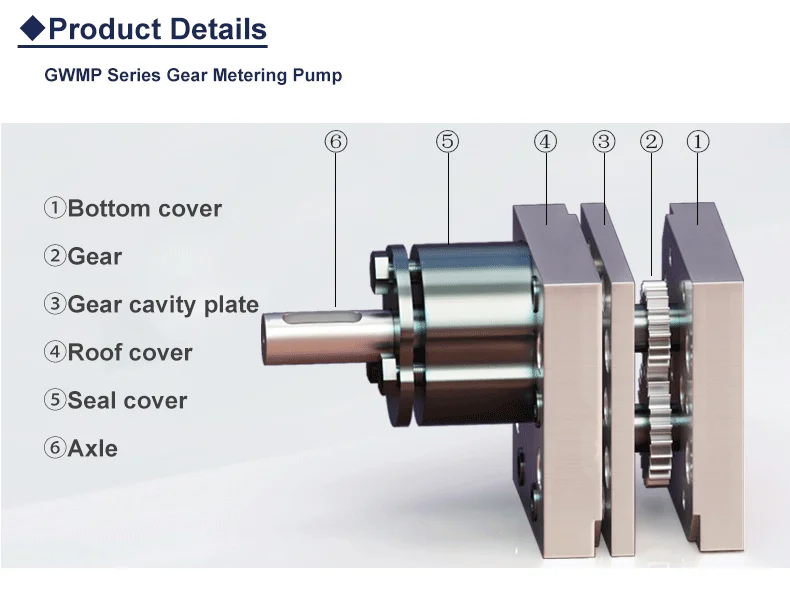

Gear pumps mainly consist of gears, shafts, pump bodies, pump covers, bearing sleeves, shaft end seals, etc. The gear adopts double. Manufacturing of circular arc sine curve teeth. Its most prominent advantage compared to involute gears is the gear meshing process.The middle tooth profile does not slide relative to each other, so the tooth surface is free of wear, operates smoothly, and has no hydraulic phenomena. It has low noise, long service life, and high efficiency

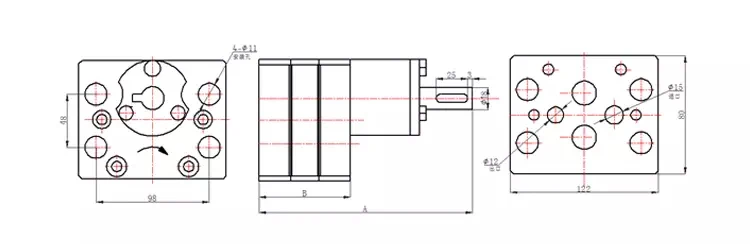

Model
6CC
9CC
12CC
15CC
20CC
25CC
30CC
A
130
135
140
145
150
158
165
B
41
46
51
56
64
72
80




Model
0.15CC
0.3CC
0.6CC
1.2CC
2.4CC
3.2CC
3.6CC
A
83
85
85
90
100
103
105
B
28.1
30.2
32
34
42
47.6
50


Min Inlet Pressure
<0.2Mpa
Working Speed
5~200 R/min
Medium
Fluid
Temperature
200℃
Max Outlet Pressure
<30Mpa
Flow Capacity
0.15-3.6(+/-3%)cc/r
Sealing
Combined seal

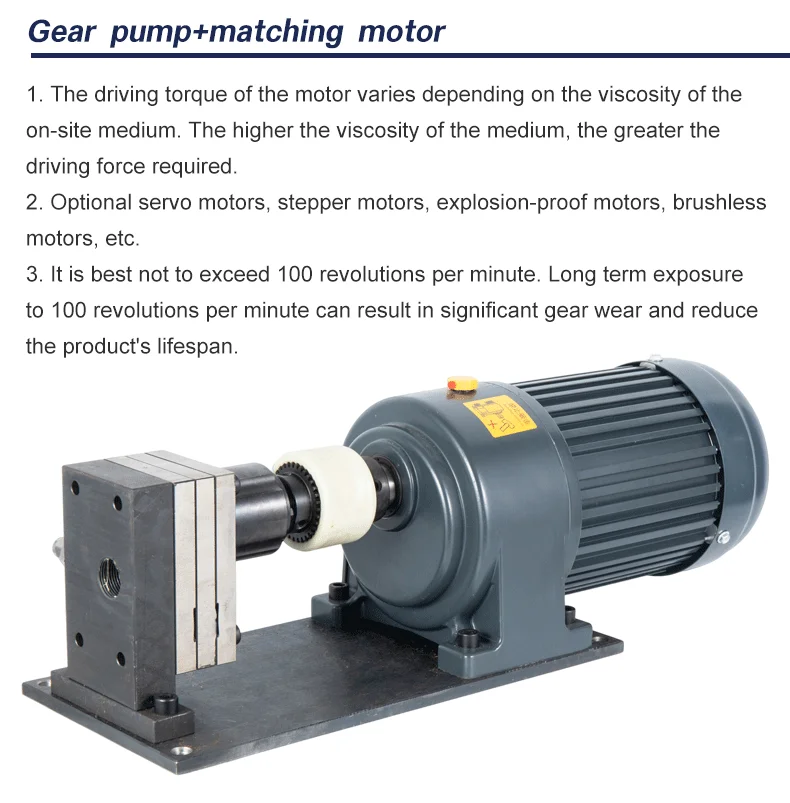

Matching selection tips:
For situations with PLC, it is recommended to choose:
A. Pump+coupling+reducer+servo motor;
B. Pump+coupling+stepper motor;
C. Low viscosity and low speed can be optionally equipped with a stepper motor
Suggested options for situations without PLC: pump+coupling+variable frequency motor+frequency converter
Flammable and explosive locations must be equipped with explosion-proof motors
