Product Overview
Description
Professional direct manufacturer eps sandwich wall panel molding machine wall panel making machine
Product Introduction
Lightweight and energy-saving composite wall panel is made of industrial waste fly ash, slag, ceramics, portland cement and EPS foam particles as the main raw materials. The production process is simple, the cost is low, and the economic benefits are considerable.

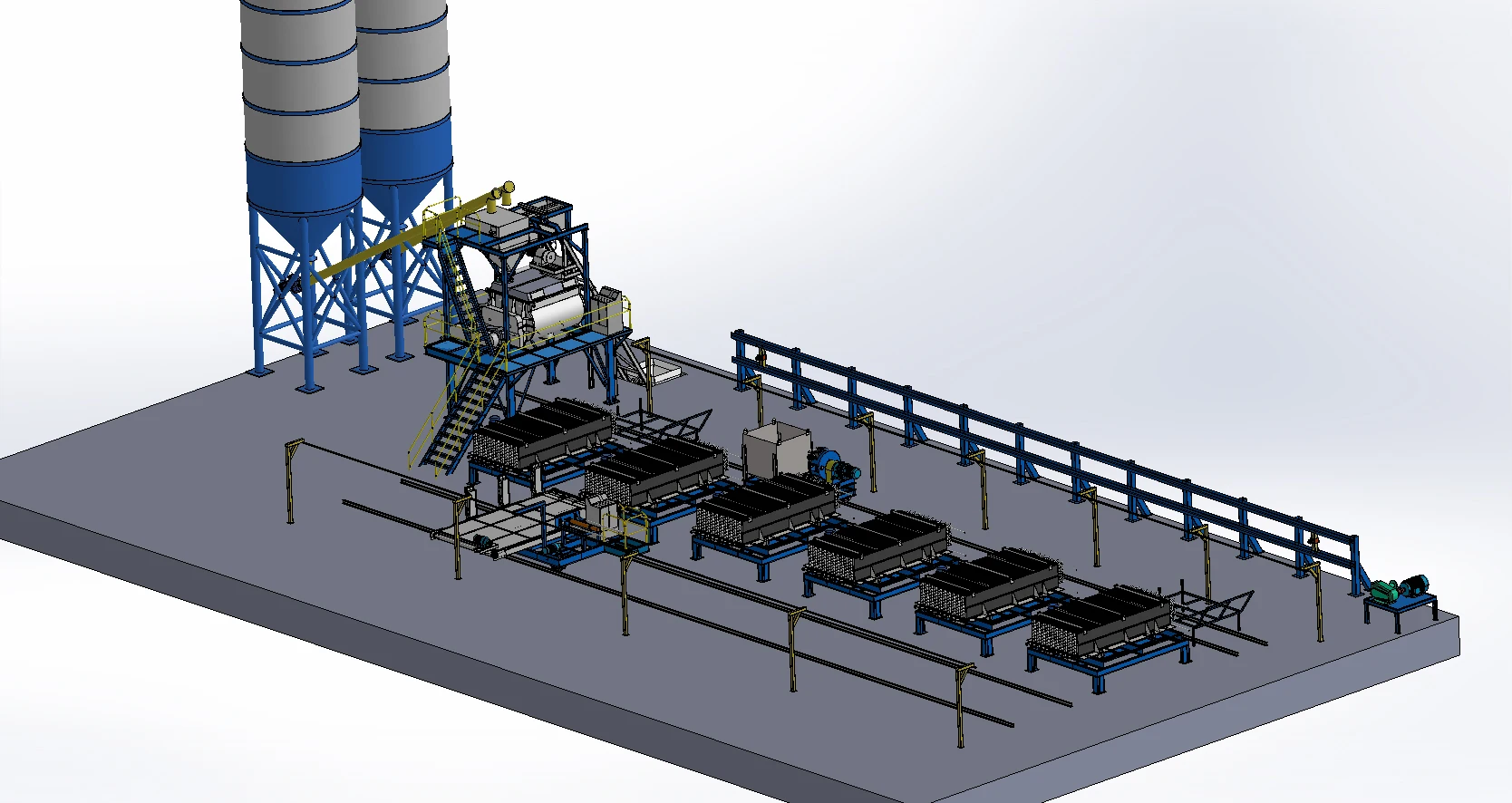

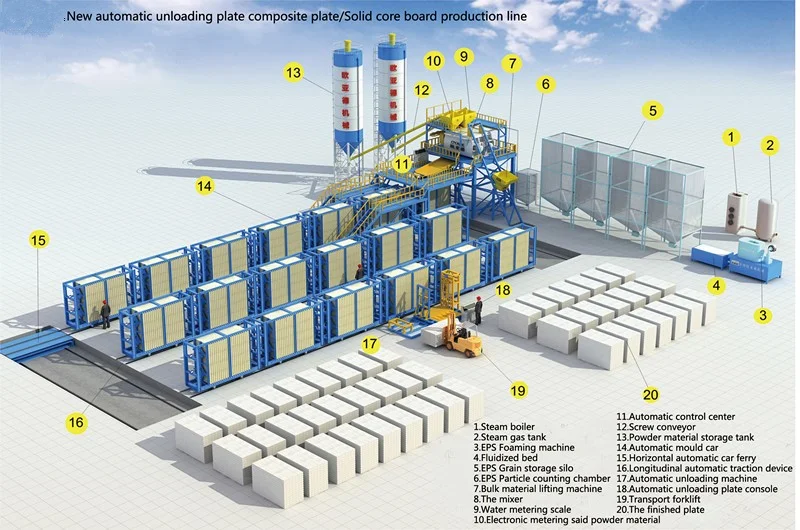

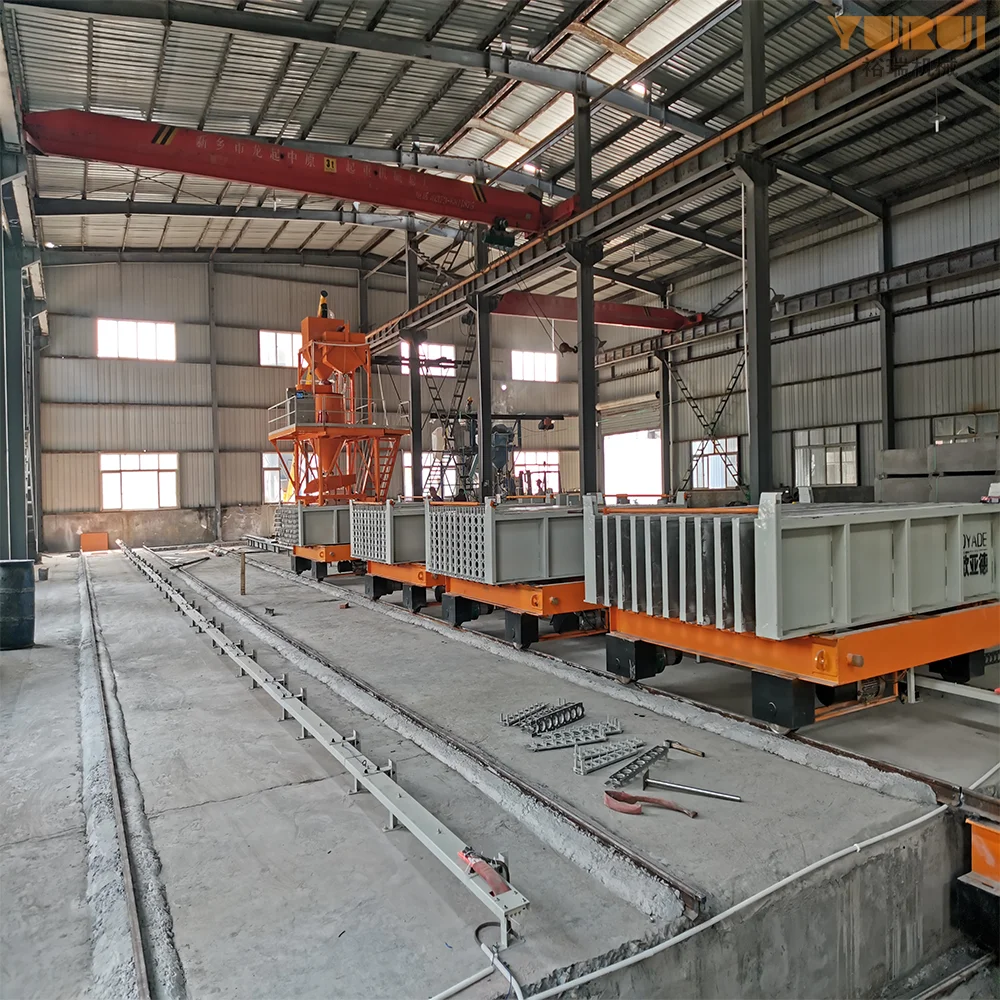

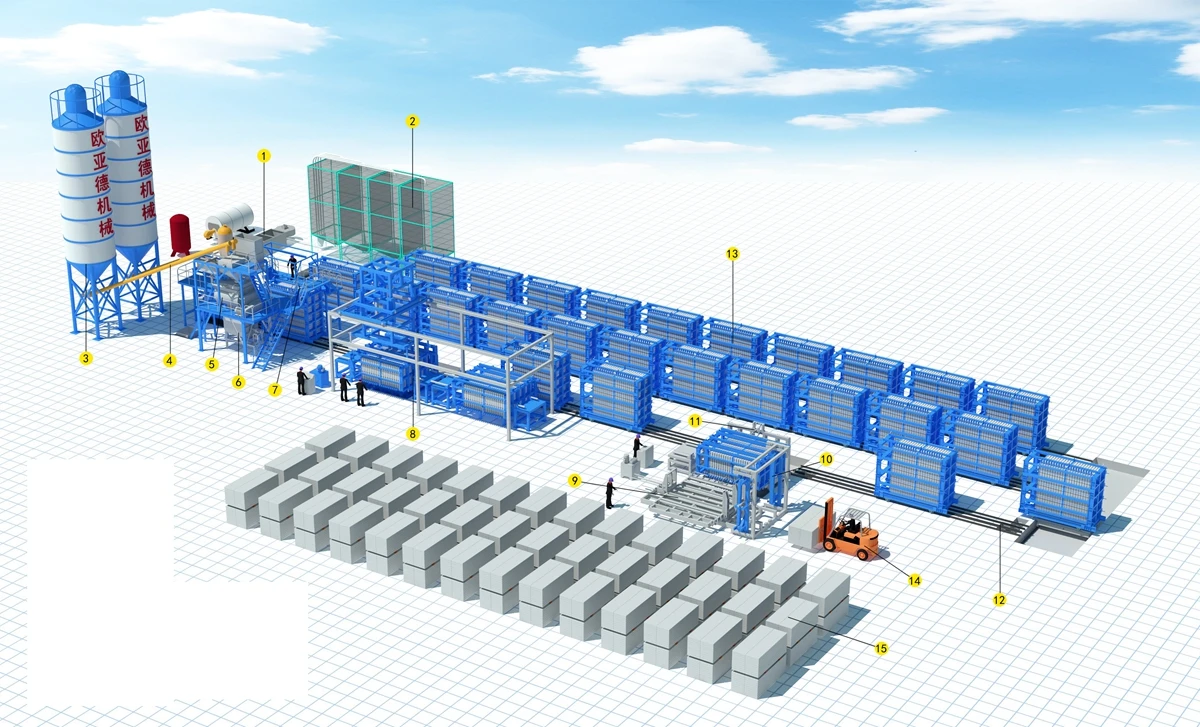

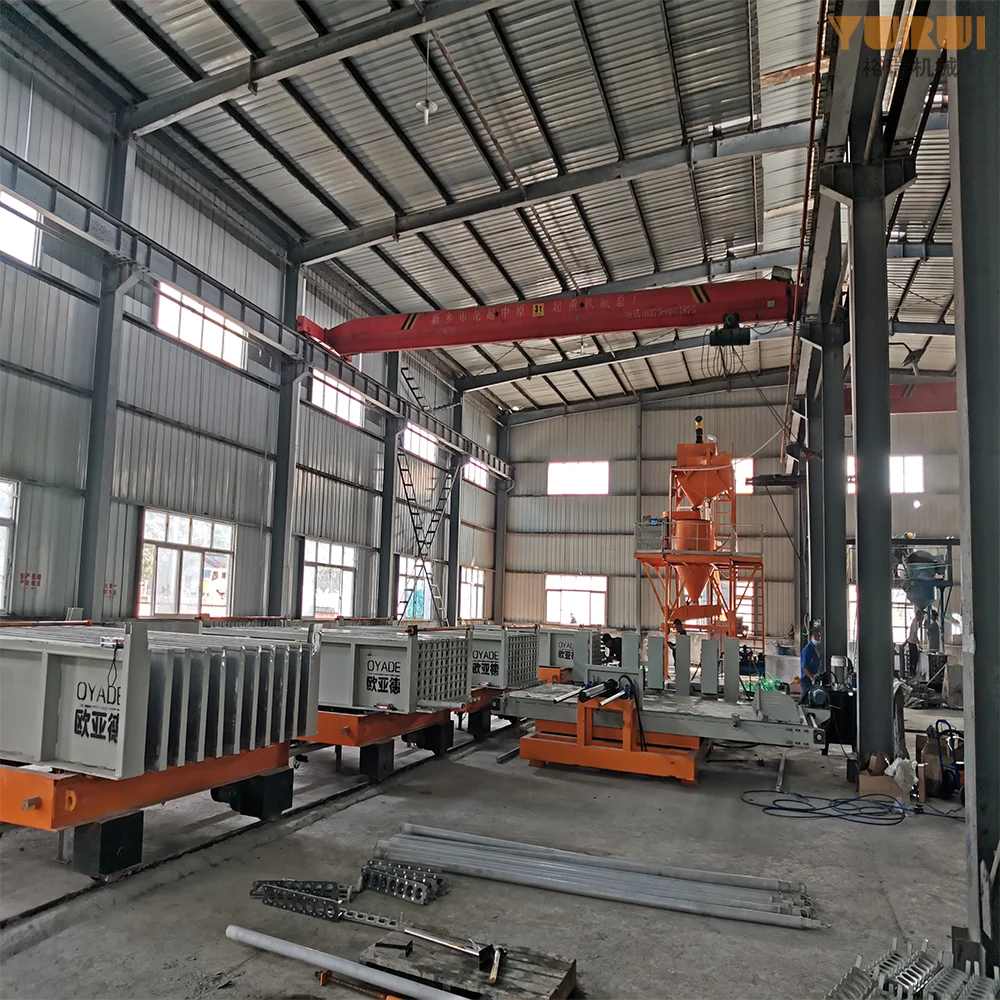

OYD-QZD lightweight wall panel production line main equipment includes: automatic lightweight aggregate concrete mixing plant, slurry pouring system, plate forming mold car, mold car automatic circulation system, plate ejection system, material storage system.
OYD-QZD lightweight wall panel production line main equipment includes: automatic lightweight aggregate concrete mixing plant, slurry pouring system, plate forming mold car, mold car automatic circulation system, plate ejection system, material storage system.
Equipment parameters
Capacity | 20,000sqm~800,000sqm per year | ||||||
Production Capacity | 1 million sqm | ||||||
Brand Name | OYD | ||||||
Warranty | two years | ||||||
Application | Building Materials Machinery | ||||||
Finished board type | 1. sandwich board, with surface board 2. solid panel, without furface board | ||||||
Raw material | There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional) 2. Fomed cement+additives | ||||||

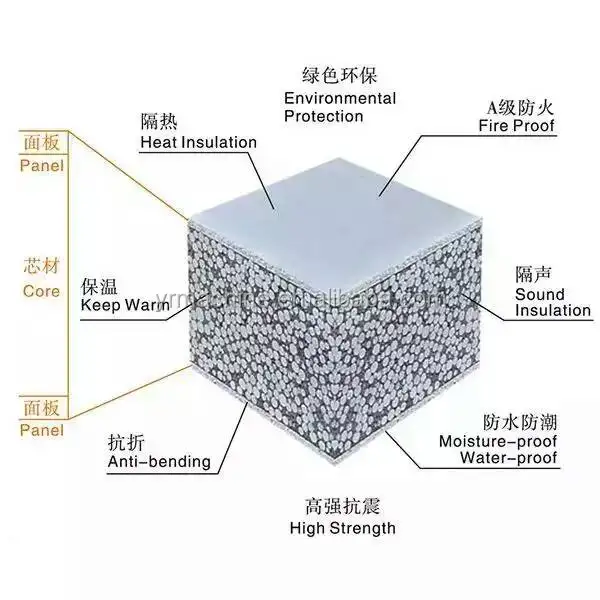

Finished Product advantages
1.The lighter material of the brick used weighs 25% to 40% of the weight of the bricks.
2.High thermal insulation.3.Remove a higher sound.
4.Install faster 4 times than the regular blocks.
5.Wall does not need the expenses of the work of the plaster.
6.Change the cement used to modern materials doubles the daily production and make the product lighter weight.
7. Manufacturing mold molds so that the measurement can be changed according to demand.
Main Equipment

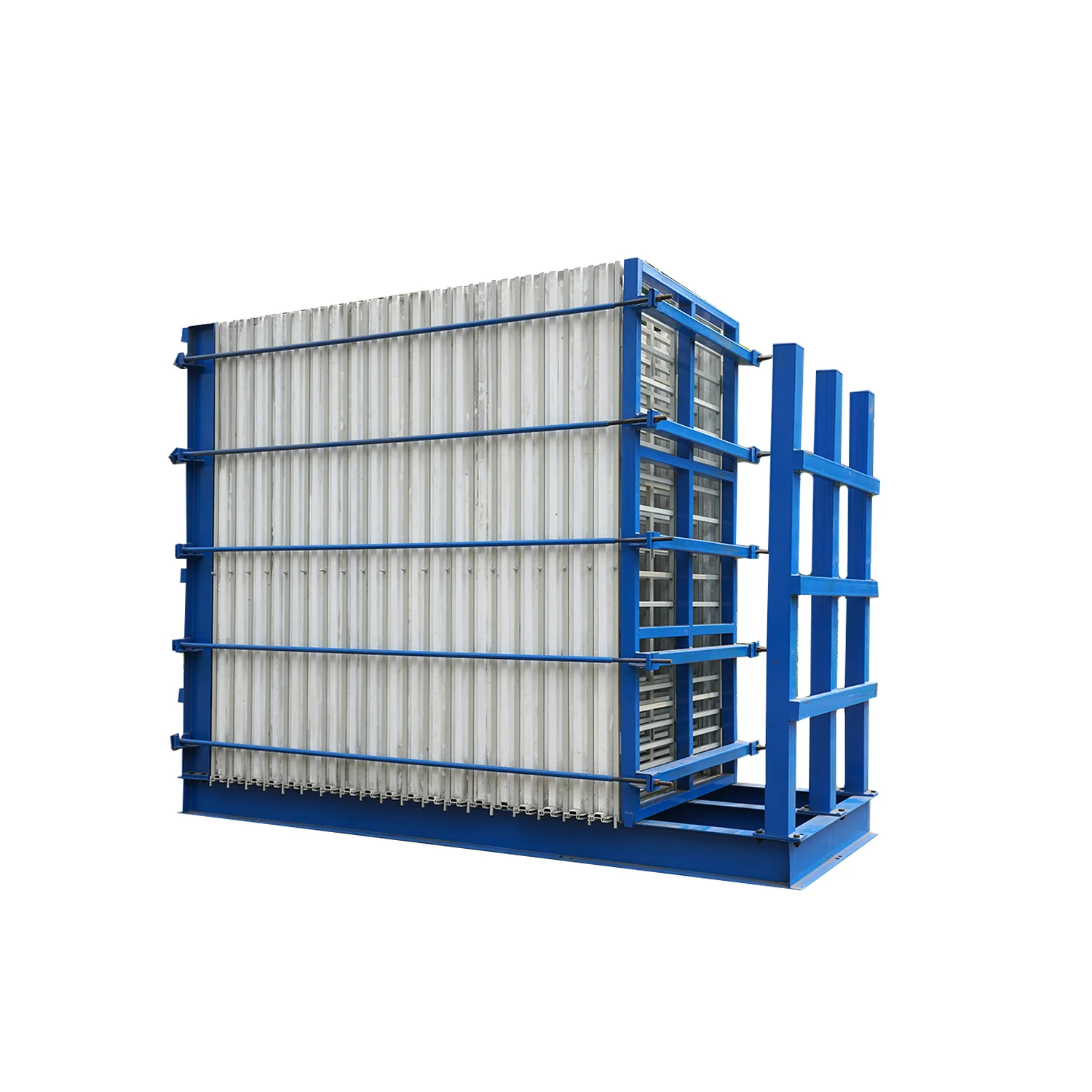

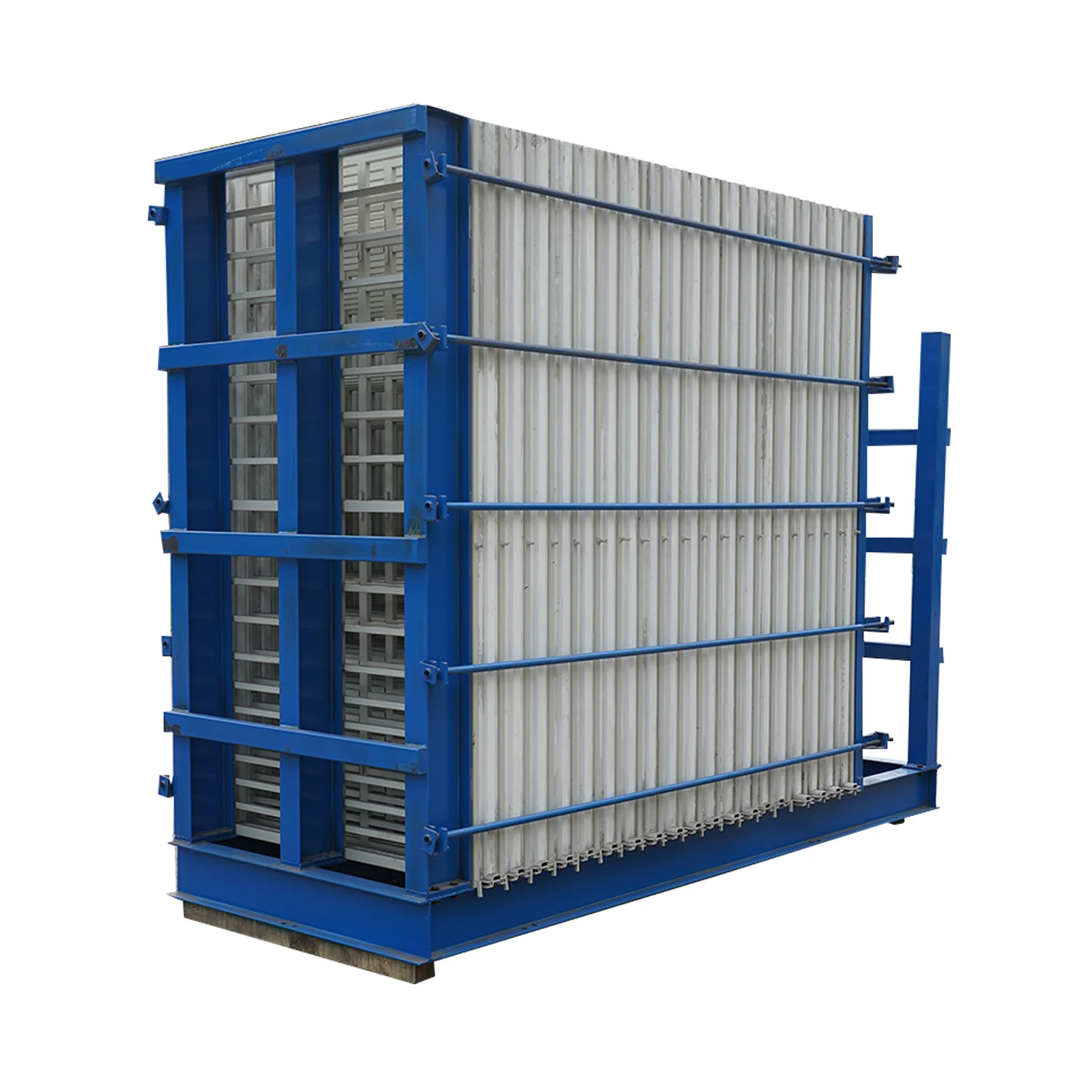

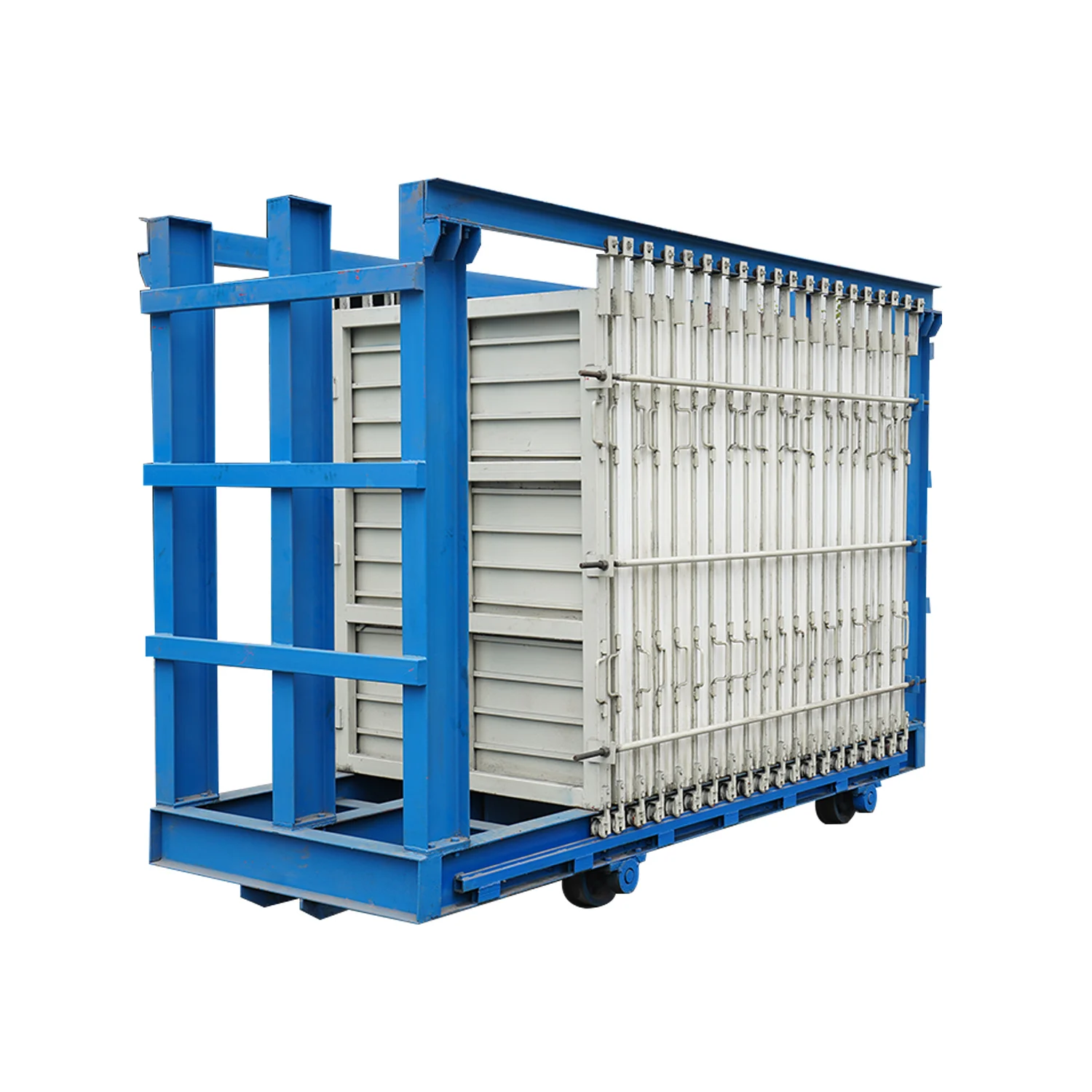

Vertical Mold Car :
It can produce sandwich wall panel and solid wall panel. Its advantages is bigger productions capacity. Like wall panel with 100mm thickness, it can produce 36 sheets per mold car.

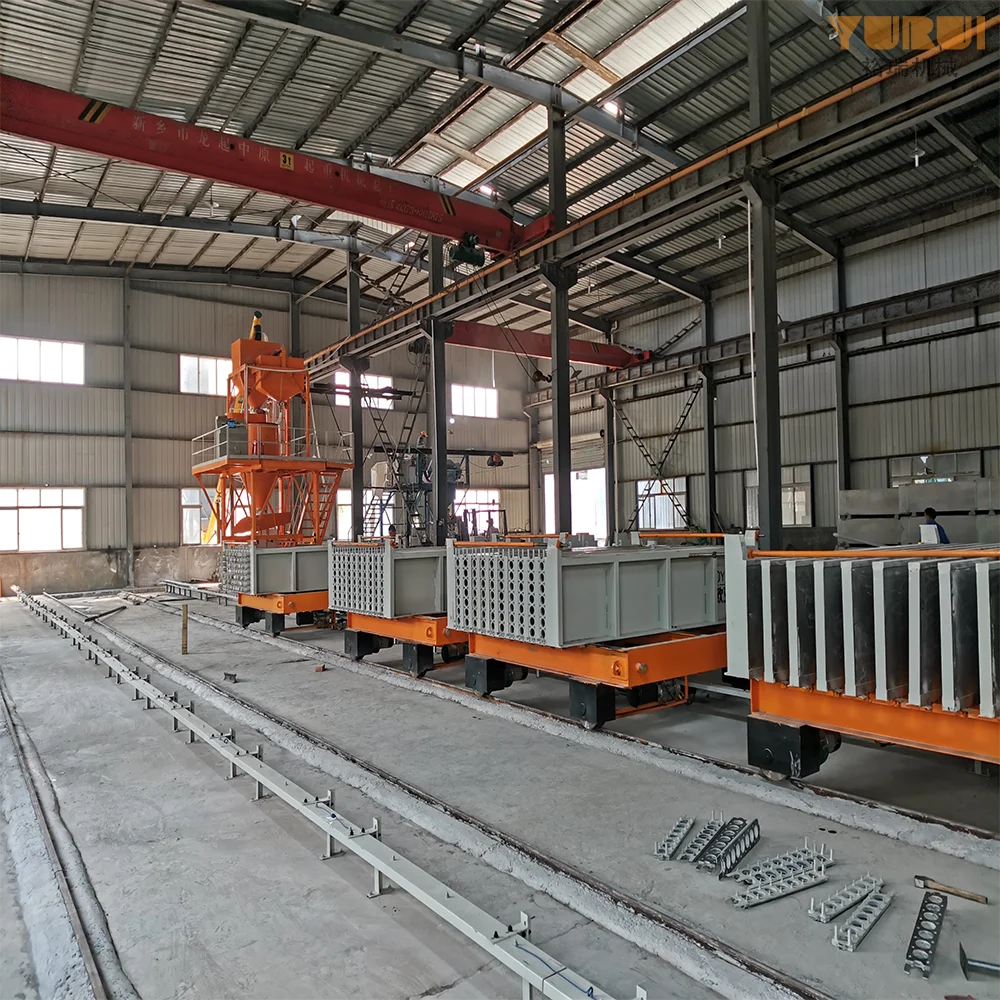

Horizonal mold car :
It is multi-functional. It can produce all kinds wall panel. Compared with vertical kind, it can only produce 10 sheets per mold car. For example, if you want to produce 300 sheets per day/100 mm thickness: For vertical mold car, you only need to buy 9 sets mold cars For horizontal mold car, you need to buy 30 sets mold cars. So in this horizontal mold car, your investment in machine is higher than vertical mold car.
Main Equipment Introduction

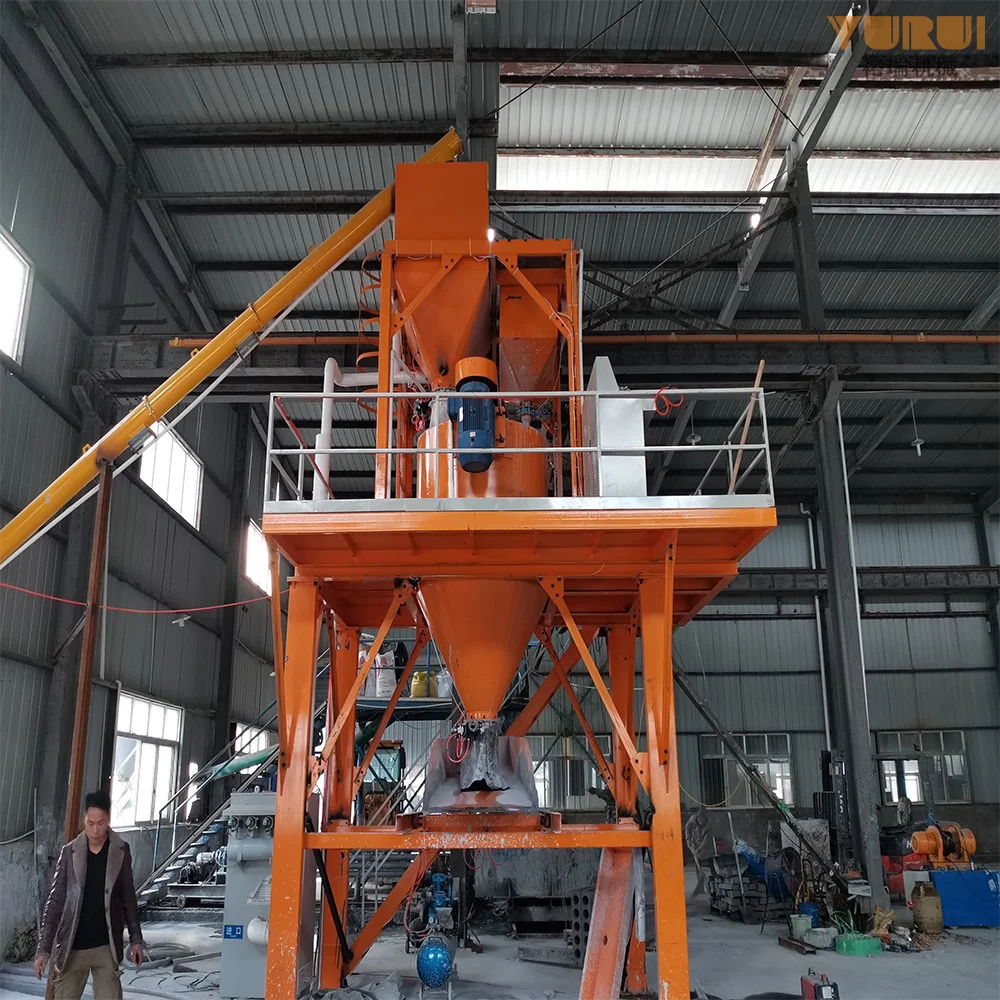

2. The mixer is a double-shaft, compact structure beautiful appearance, stable operation, convenient operation, and high production efficiency.
The end of the shaft has four seals, no oil leakage, no slurry leakage, and automatic oil filling maintenance.
3. The mixer is sealed, so there is only a small quantity of dust and no need dust collector, which can help you save cost.
5. With our mold car and molds ,customer could produce T&L shape wall panel.
6. After raw materail mxied well ,will be casted into the forming machine by the pump+ pipe , no need to vibrate, As the pipe keep under slurry durting casting , so can avoid air bubbles.
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Recommended by seller
Product Process
Company Introduction
Jinan Oyade Machinery Co., Ltd. is a technology-based enterprise integrating R&D and manufacturing of new wall material equipment and prefabricated construction equipment. Our company provides professional overall solutions for new building materials enterprises, and has a large number of successful cases at home and abroad. The market share is firmly in the forefront of the industry, and its products and services have a good reputation both inside and outside the industry.
Our company has always adhered to the business tenet of "Quality builds the brand, integrity wins the market", adheres to the development concept of "Low carbon, environmental protection, openness and sharing", strives to provide customers with satisfactory products and services, and continues to create maximum value for customers
Our company was established in 2011 and is headquartered in Jibei Development Zone, Jinan City. It covers an area of 100 acres and has a modern standard workshop of 60,000 square meters. The company has an independent design and development team, standardized laboratory, has 36 patents, and has strong technical strength.
Our company was established in 2011 and is headquartered in Jibei Development Zone, Jinan City. It covers an area of 100 acres and has a modern standard workshop of 60,000 square meters. The company has an independent design and development team, standardized laboratory, has 36 patents, and has strong technical strength.
Packing&Shipment
01.Firstly use plastic film to wrap and cover the machine
02.Then pack small parts in plywood box
03.Marked with required label or shipping mark
04.Use steel wire rope to fix in the container,so as to avoid damage because of moving
02.Then pack small parts in plywood box
03.Marked with required label or shipping mark
04.Use steel wire rope to fix in the container,so as to avoid damage because of moving
Certifications

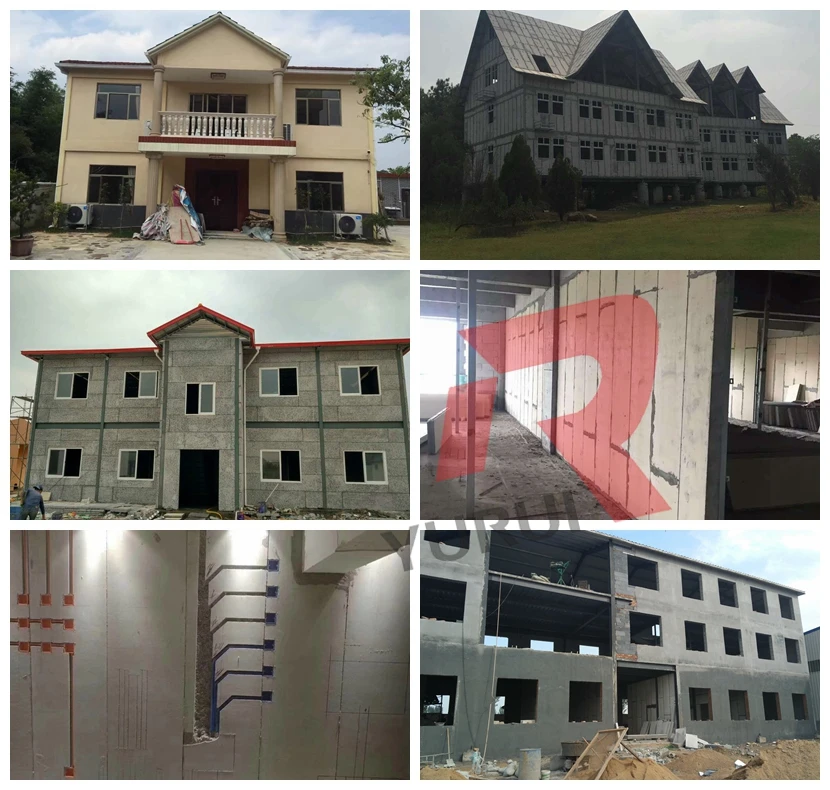

Sample projects
For all our customers, most of them we can have a long term cooperation relationship. Such like for our domestic customers, most of them are introduced by our old customers. For example, in this city, we already have a customer using our machine to produce panels.
The other customers also want to produce, so he can inquire about which machine from which factory. Now in China, we are a very famous brand already. If not, we can not sell so many machines in domestic markets. As you know in one Country, the information in the same industry is almost transparent. If our machine and service are not good, our factory can not live from the 2018 year to today.
The other customers also want to produce, so he can inquire about which machine from which factory. Now in China, we are a very famous brand already. If not, we can not sell so many machines in domestic markets. As you know in one Country, the information in the same industry is almost transparent. If our machine and service are not good, our factory can not live from the 2018 year to today.
Full range of services
Pre-Sales: Full Cooperation With Pre-Preparation Work
In addition to the technical aspects of the project itself, our support also includes assisting clients in obtaining feasibility
reports, government approvals, bank approvals, etc.
In-Sales: On-Time Reporting of Production Progress
You could inspect the production of your machine through photos and videos for the whole procedure.
After-Sales: Lifetime & 24h Technical Support
We offer a lifetime of technical support. Feel free to contact us for help with any technical issues,24 h available. We will also visit customers regularly to help them solve problems and assist to update formulas and equipment.
In addition to the technical aspects of the project itself, our support also includes assisting clients in obtaining feasibility
reports, government approvals, bank approvals, etc.
In-Sales: On-Time Reporting of Production Progress
You could inspect the production of your machine through photos and videos for the whole procedure.
After-Sales: Lifetime & 24h Technical Support
We offer a lifetime of technical support. Feel free to contact us for help with any technical issues,24 h available. We will also visit customers regularly to help them solve problems and assist to update formulas and equipment.
FAQ
Q: How long is the warranty of your equipment?
A: 1 year.
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning?
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
Q:How long time for the installation and commissioning?
A: Depend on configuration normally only need 15-25 days. Including workers training.
Warmly welcome you contact me for your questions.
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning?
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
Q:How long time for the installation and commissioning?
A: Depend on configuration normally only need 15-25 days. Including workers training.
Warmly welcome you contact me for your questions.
