QD Fast shipping heat pump dry freeze dried fruits and vegetables coconut dehydrator black garlic drying machine price
- Category: >>>
- Supplier: Zhucheng Qiangda Machinery Factory
Share on (1601267463103):
Product Overview
Description
Model | Unit | QD-03 | QD-06 | QD-10 | QD-12 | ||||||
Voltage/frequency | kw | 220V-380V/50Hz | 380v/50Hz | 380v/50Hz | 380v/50Hz | ||||||
Roted power | kw | 2.8 | 5.2 | 9.2 | 11.3 | ||||||
Rated current | A | 5.5 | 10.8 | 18.5 | 22.5 | ||||||
Heating capacity | kw | 11 | 22 | 36 | 45 | ||||||
Refrigeration capacity | kw | 7.9 | 19 | 26 | 35 | ||||||
Moisture removal capacity | L/H | 15 | 26 | 35 | 40 | ||||||
Maximum power | kw | 3.5 | 6.6 | 11.2 | 13.3 | ||||||
Maximum current | A | 7.1 | 13.1 | 22.5 | 26.5 | ||||||
Maximum temperature of oven | ℃ | 75 | 75 | 75 | 75 | ||||||
Ambient temperature range | ℃ | 0-43 | 0-43 | 0-43 | 0-43 | ||||||
Electrocution protection level | kind | 1 | 1 | 1 | 1 | ||||||
Maximum exhaust pressure | Mpa | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ||||||
Noise | dB(A) | ≤65 | ≤70 | ≤75 | ≤75 | ||||||
Weight | kg | 180 | 285 | 380 | 500 | ||||||
Dimensions | mm | 1675x860x1278 | 1760x1060x1278 | 2100x1256*1590 | 2100*1256x1590 | ||||||
Machine embedded oven dimensions | mm | 950x860x1278 | 1050x1060x1278 | 1170x1256x1590 | 1170x1256x1590 | ||||||
Model | Unit | QD-15 | QD-20 | QD-25 | QD-30 |
Voltage/frequency | kw | 380v/50Hz | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Roted power | kw | 13.2 | 19.1 | 22.5 | 26 |
Roted power | A | 28 | 35 | 40 | 50 |
Heating capacity | kw | 48 | 75 | 88 | 100 |
Refrigeration capacity | kw | 38 | 62 | 72 | 90 |
Moisture removal capacity | L/H | 45 | 60 | 70 | 85 |
Maximum power | kw | 14.3 | 22.1 | 25.3 | 28.5 |
Maximum current | A | 32 | 38.5 | 43 | 58 |
Maximum temperature of oven | ℃ | 75 | 75 | 75 | 75 |
Ambient temperature range | ℃ | 0-43 | 0-43 | 0-43 | 0-43 |
Electrocution protection level | kind | 1 | 1 | 1 | 1 |
Maximum exhaust pressure | Mpa | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
Noise | dB(A) | ≤75 | ≤80 | ≤80 | ≤80 |
Weight | kg | 500 | 650 | 700 | 800 |
Dimensions | mm | 2100*1256x1590 | 2400*1500*1640 | 2400*1500*1640 | 2400*1500*1720 |
Machine embedded oven dimensions | mm | 1170x1256x1590 | 1500x1500x1640 | 1500x1500x1640 | 1500x1500x1640 |
WORKING PRINCIPLE:
The airenergy heat pump is the latest generation of energy-saving and environmentally friendly heating equipment. It operates on the reverse Carnot principle. It only needs to use relatively little electrical energy to drive the compressor, absorb a large amount of low-temperature heat energy in the air, and then compress it through the compressor to turn it into high-lemperature heat energy, and then transfers the high-temperature heat energy to the heat exchanger to heat the air. Therefore, its energy consumption is very low, the efficiency is very high, the speed is very fast, the safety performance is first-class, and it does not cause pollution, and can continuously provide clean hot air at the appropriate temperature.
SCOPE OF APPLICATION:

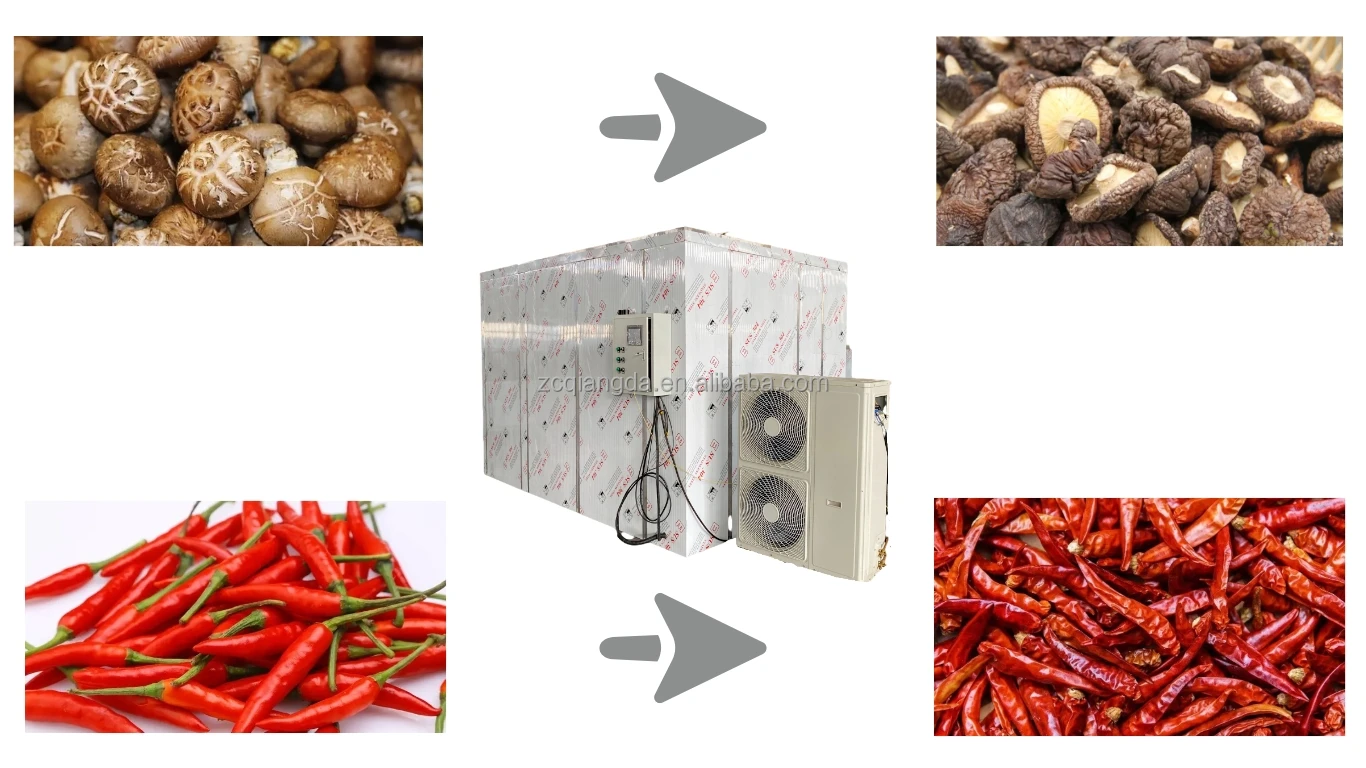

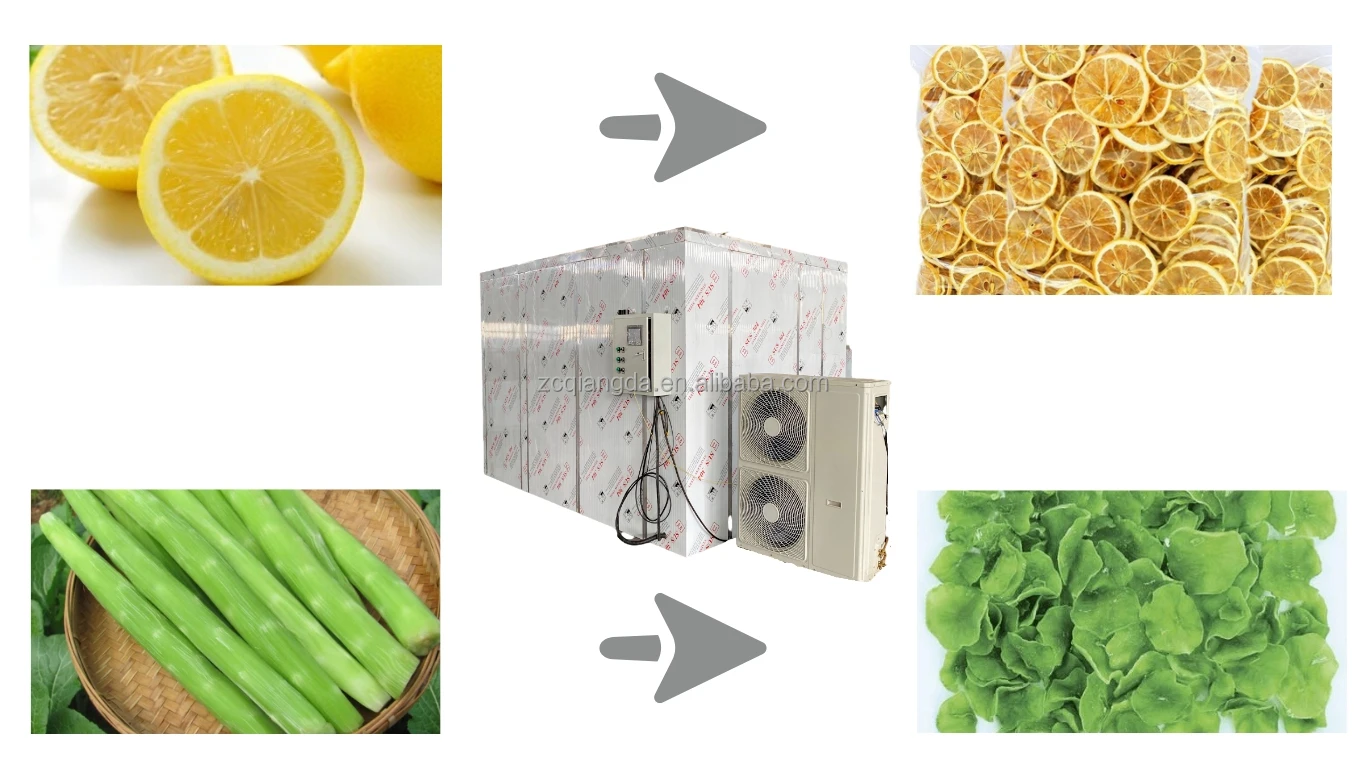

As a heat source, air energy heat pumps are widely praised in the market. The power consumption is much lower than traditional drying energy. Itis plug-in and easy to operate. Itis widely used in meat products, melon seeds and peanuts, Chinese medicinal materials, seeds, feed, and fruits. dehydrated vegetables, wood, tobacco and other agricultural and sideline products processing industries. The high-temperature heat pump dryer provides a brand-new solution for reducing material drying costs and high-quality drying, and has strong market competitiveness.
