Factory Price hw Eg8247w5 Dual Band Catv Ont Onu Gpon Onu 4ge 1usb 1tel catv 2.4g&5g
- Category: >>>
- Supplier: Shenzhen Lianbai Trading Co. Ltd.
Share on (1601267464308):
Product Overview
Description
Specification
HG8245Q2 FTTH Is an optical terminal UNit with 4GE+2VOICE+1USB+2WIFI 2.4G/5G
Overview

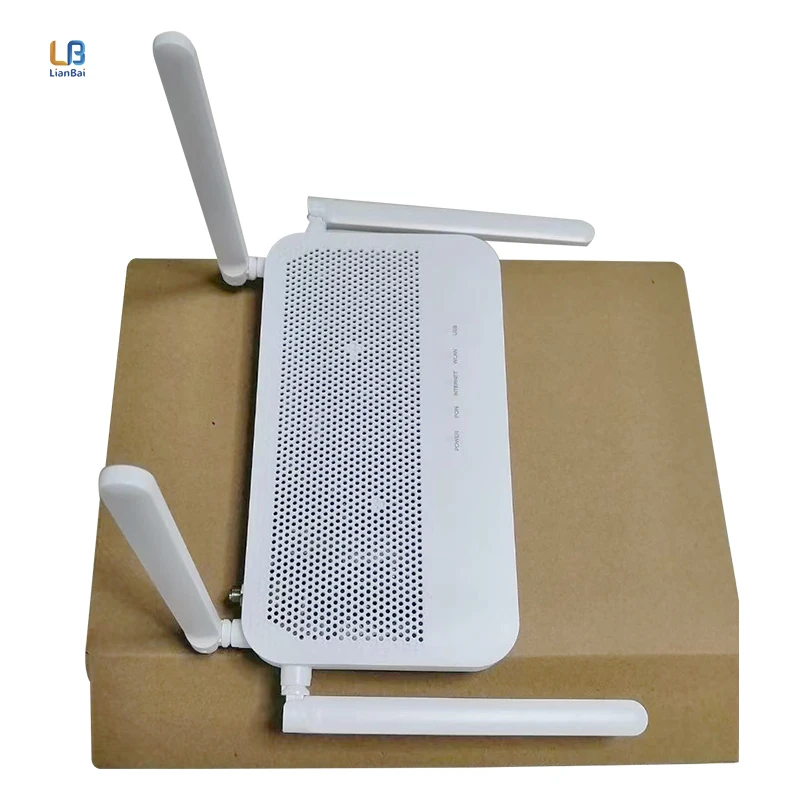

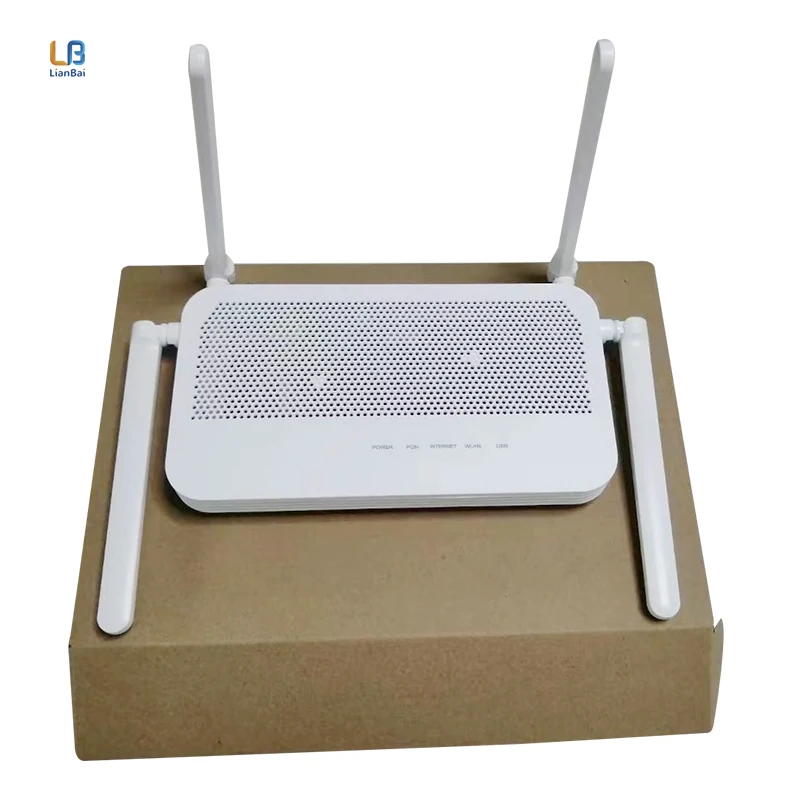

The HW EchoLife EG8247W5-8T is a routing-type ONT in the HW all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.
It provides 4 GE ports, 2 POTS ports, 1 USB port, 1 CATV port and 2.4G&5G WiFi ports. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability
Device Parameters
Dimensions (H x W x D) | 192 mm x 255 mm x 80 mm (with the base) | Static power consumption | 9.7 W |
Weight | About 770 g | Maximum power consumption | 28 W |
Operating temperature | 0°C to 40°C | NNI | GPON |
Operating humidity | 5% RH to 95% RH (noncondensing) | UNI | 2POTS + 4GE + 1CATV+ 2.4G/5G Wi-Fi + 1USB |
Power adapter input | 100–240 V AC, 50/60 Hz | Optical Connector | SC/APC |
System power supply | 11–14 V DC, 2 A | Indicators | POWER/PON/LOS/LAN/TEL /USB/WLAN/WPS/CATV |
Interface Parameters
GPON port | WLAN |
* Class B+ * Receiver sensitivity: -27 dBm * Overload optical power: -8 dBm * Wavelengths: US 1310 nm, DS 1490 nm * Wavelength blocking filter (WBF) of G.984.5 * Flexible mapping between GEM Port and TCONT * GPON: consistent with the SN or password authentication defined in G.984.3 * Bi-directional FEC * SR-DBA and NSR-DBA | * IEEE 802.11 b/g/n (2.4G) * IEEE 802.11 a/n/ac (5G) * 4 × 4 MIMO (2.4G) * 4 × 4 MIMO (5G) * Antenna gain: 2 dBi * WMM/Multiple SSIDs/WPS * 2.4G&5G concurrent * Air interface rate: 600 Mbit/s (2.4G), 1733 Mbit/s (5G) |
Ethernet port | POTS port |
* Ethernet port-based VLAN tags and tag removal * 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission * QinQ VLAN Limit on the number of learned MAC addresses * MAC address learning * Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s | * G.711A/μ, G.729a/b and G.722 encoding/decoding * T.30/T.38/G.711 fax mode * DTMF * Emergency calls (with the SIP protocol) |
Product Description
praise
Company Profile
Established in 2017, LianBai enterprise based in Shenzhen City , and enjoying convenient transportation access.
5-year domestic market and 2-year overseas market express,we are professional and key distributor of Chinese famous brand fiber optical equipment ,such as gpon/epon ONU , OLT .
our main markets include North American, South American, Southeast Asia,etc, enjoy a good reputation among clients.
24hours customer service, 2days shipment ,1year warranty ,2 engineers ,3 salesman give VIP customers (once you deal with us, you are the VIP in LianBai company) our best service whether pre-sale and after sale.
5-year domestic market and 2-year overseas market express,we are professional and key distributor of Chinese famous brand fiber optical equipment ,such as gpon/epon ONU , OLT .
our main markets include North American, South American, Southeast Asia,etc, enjoy a good reputation among clients.
24hours customer service, 2days shipment ,1year warranty ,2 engineers ,3 salesman give VIP customers (once you deal with us, you are the VIP in LianBai company) our best service whether pre-sale and after sale.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(30.00%),North America(20.00%),Western Europe(10.00%),South America(10.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),Eastern Asia(6.00%),Africa(5.00%),Mid East(5.00%),Central America(5.00%),Domestic Market(4.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optical Equipment,Gpon/Epon ONT,Gpon /Epon OLT,Power Card,AI intelligent mouse
4. why should you buy from us not from other suppliers?
We are located in shenzhen, China. Here is one of the largest electric centers of China and gathers many famous brands from at home and abroad. We are a professional supplier engaged in providing GPON ONU, EPON ONU ,OLT and equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,AUD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(30.00%),North America(20.00%),Western Europe(10.00%),South America(10.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),Eastern Asia(6.00%),Africa(5.00%),Mid East(5.00%),Central America(5.00%),Domestic Market(4.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optical Equipment,Gpon/Epon ONT,Gpon /Epon OLT,Power Card,AI intelligent mouse
4. why should you buy from us not from other suppliers?
We are located in shenzhen, China. Here is one of the largest electric centers of China and gathers many famous brands from at home and abroad. We are a professional supplier engaged in providing GPON ONU, EPON ONU ,OLT and equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,AUD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
