Current Sensor Transformer 3000/1 AC Split Core Coil Sensor Mini Split Base Current Transformer for 150A Amp Energy Meter
Current Sensor Transformer 3000/1 AC Split Core Coil Sensor Mini Split Base Current Transformer for 150A Amp Energy Meter
Current Sensor Transformer 3000/1 AC Split Core Coil Sensor Mini Split Base Current Transformer for 150A Amp Energy Meter
Current Sensor Transformer 3000/1 AC Split Core Coil Sensor Mini Split Base Current Transformer for 150A Amp Energy Meter

Current Sensor Transformer 3000/1 AC Split Core Coil Sensor Mini Split Base Current Transformer for 150A Amp Energy Meter

Share on (1601267476239):


Price:$3.59 - $3.99

Quantity:


Product Overview

Description



Product Description

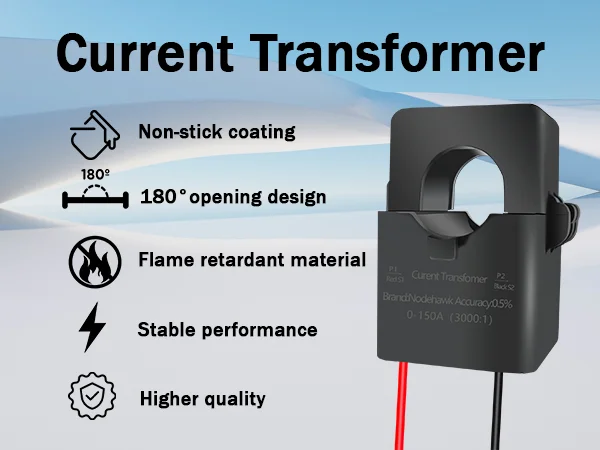

Product Characteristic


Pure Copper Coil
Pure copper coils are used inside the transformer to ensure safety and longer service life.
Silicon Steel Core
Made of high quality silicon steel sheet to ensure outstanding product quality.


Opening Design
Unique opening design provides an excellent solution for circuit system modification and facilitates installation and
commissioning.
Coil Made of PVC
Built-in input coil, compact and lightweight installation


Wide Application




Product Specification


Apertures
Variation ratio
Rated load
Measuring range
Accuracy
Voltage rating
16MM
1000/1
20
0-100A
0.5%
0.66KV
2000/1
20
0-100A
0.5%
0.66KV
3000/1
20
0-150A
0.5%
0.66KV
24MM
1000/1
20
0-100A
0.5%
0.66KV
2000/1
20
0-200A
0.5%
0.66KV
3000/1
20
0-300A
0.5%
0.66KV
4000/1
20
0-400A
0.5%
0.66KV
35MM
1000/1
20
0-100A
0.5%
0.66KV
2000/1
20
0-200A
0.5%
0.66KV
3000/1
20
0-300A
0.5%
0.66KV
4000/1
20
0-500A
0.5%
0.66KV
5000/1
20
0-600A
0.5%
0.66KV


24MM Aperture 5A Output Transformer


Rated input
Rated output
Rated capacity
Accuracy
Rated overload
Voltage rating
Compressive strength
100A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
150A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
200A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
250A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
300A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
350A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV
400A
5A
0.1VA
1.0%
1.2x
0.72KV
3KV


36MM Aperture 5A Output Transformer


Rated input
Rated output
Rated capacity
Accuracy
Rated overload
Voltage rating
Compressive strength
100A
5A
0.5VA
1.0%
1.2x
0.72KV
2KV
200A
5A
1.0VA
0.5%
1.2x
0.72KV
2KV
300A
5A
1.5VA
0.5%


1.2x
0.72KV
2KV
400A
5A
2VA
0.5%


1.2x
0.72KV
2KV
500A
5A
2VA
0.5%


1.2x
0.72KV
2KV
600A
5A
2.5VA
0.5%


1.2x
0.72KV
2KV


50MM Aperture 5A Output Transformer


Rated input
Rated output
Rated capacity
Accuracy
Rated overload
Voltage rating
Compressive strength
300A
5A
2.5VA
0.5%
1.2x
0.72KV
3KV
400A
5A
2.5VA
0.5%
1.2x
0.72KV
3KV
600A
5A
2.5VA
0.5%
1.2x
0.72KV
3KV
800A
5A
2.5VA
0.2%
1.2x
0.72KV
3KV
1000A
5A
5VA
0.2%
1.2x
0.72KV
3KV
1500A
5A
5VA
0.2%
1.2x
0.72KV
3KV

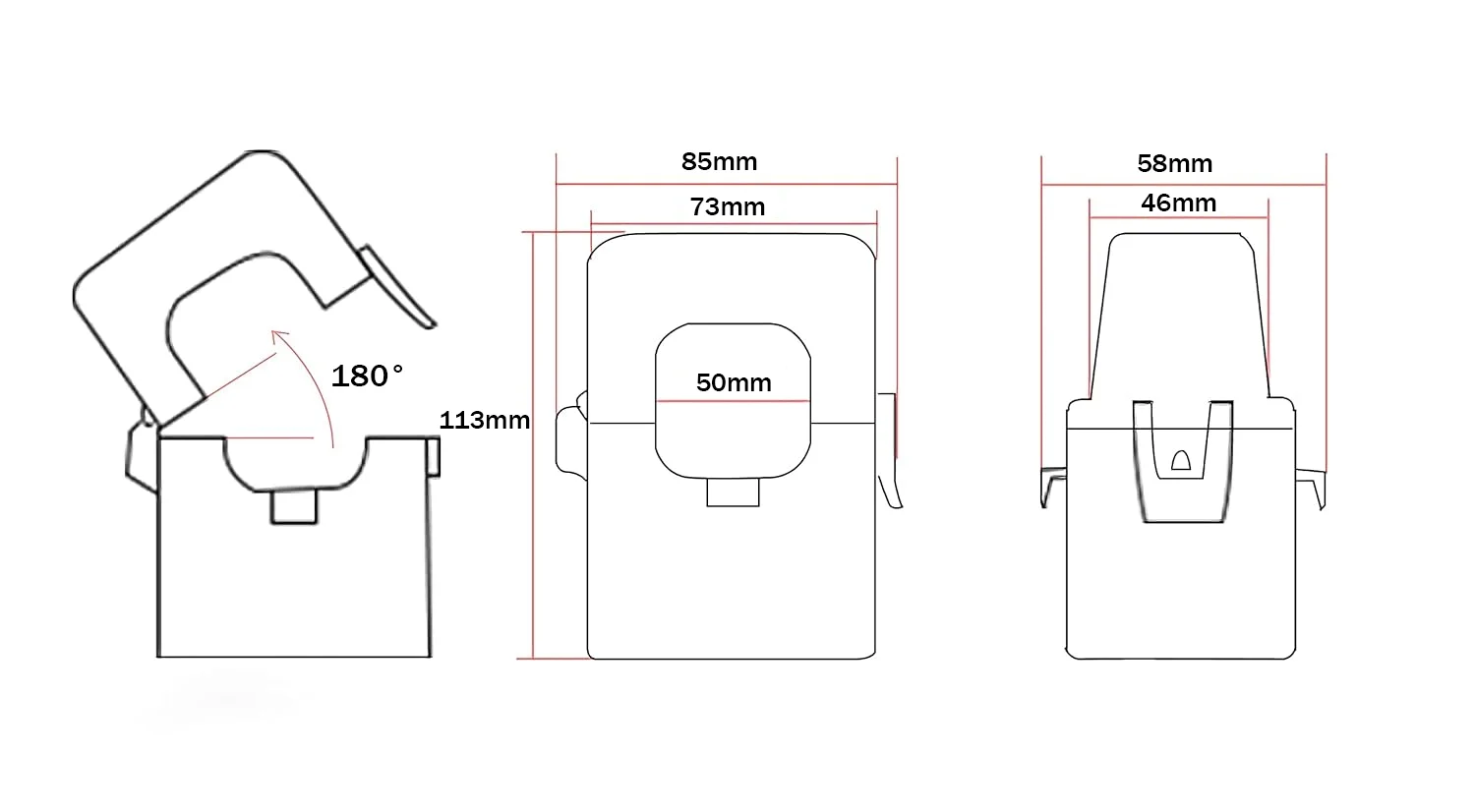

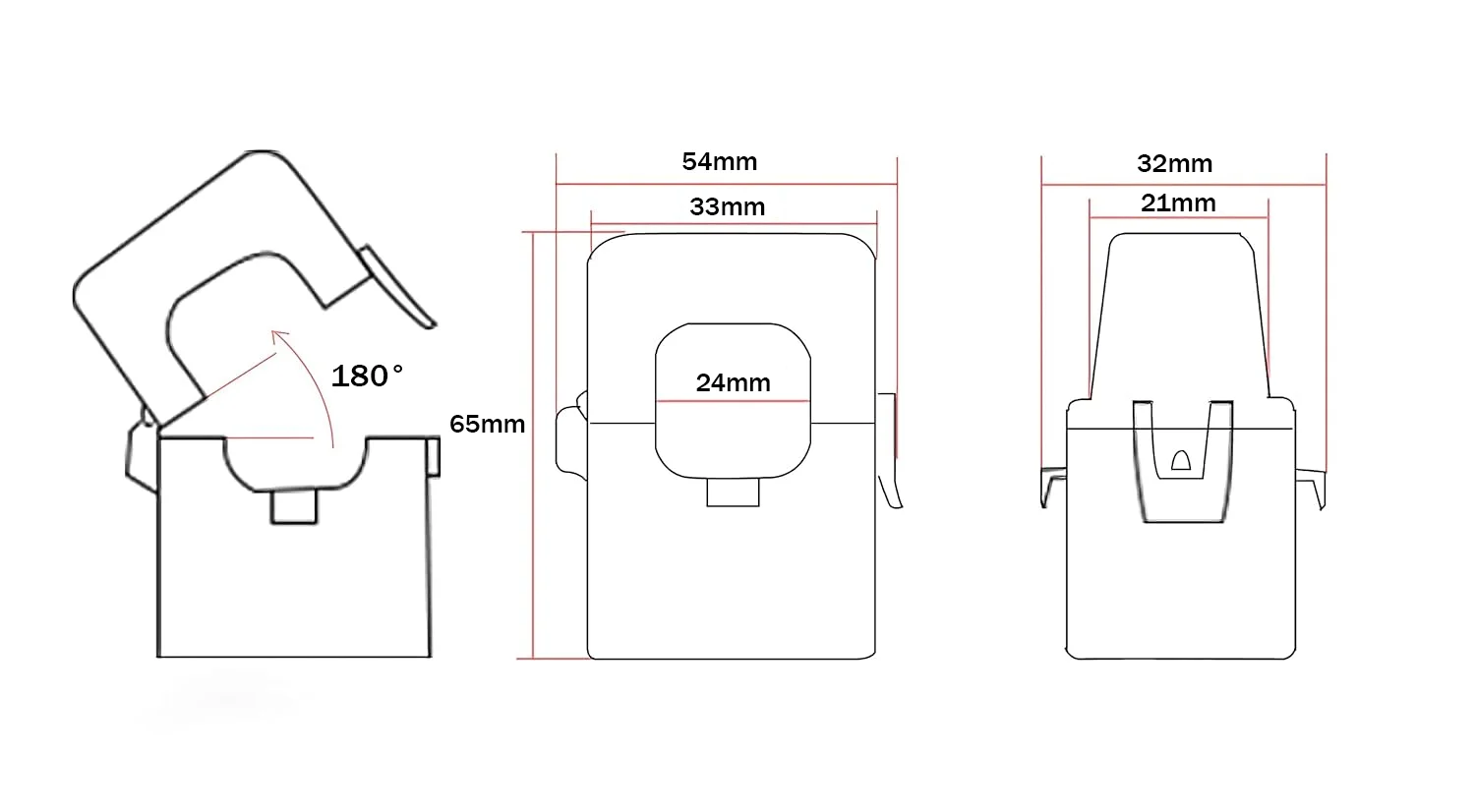

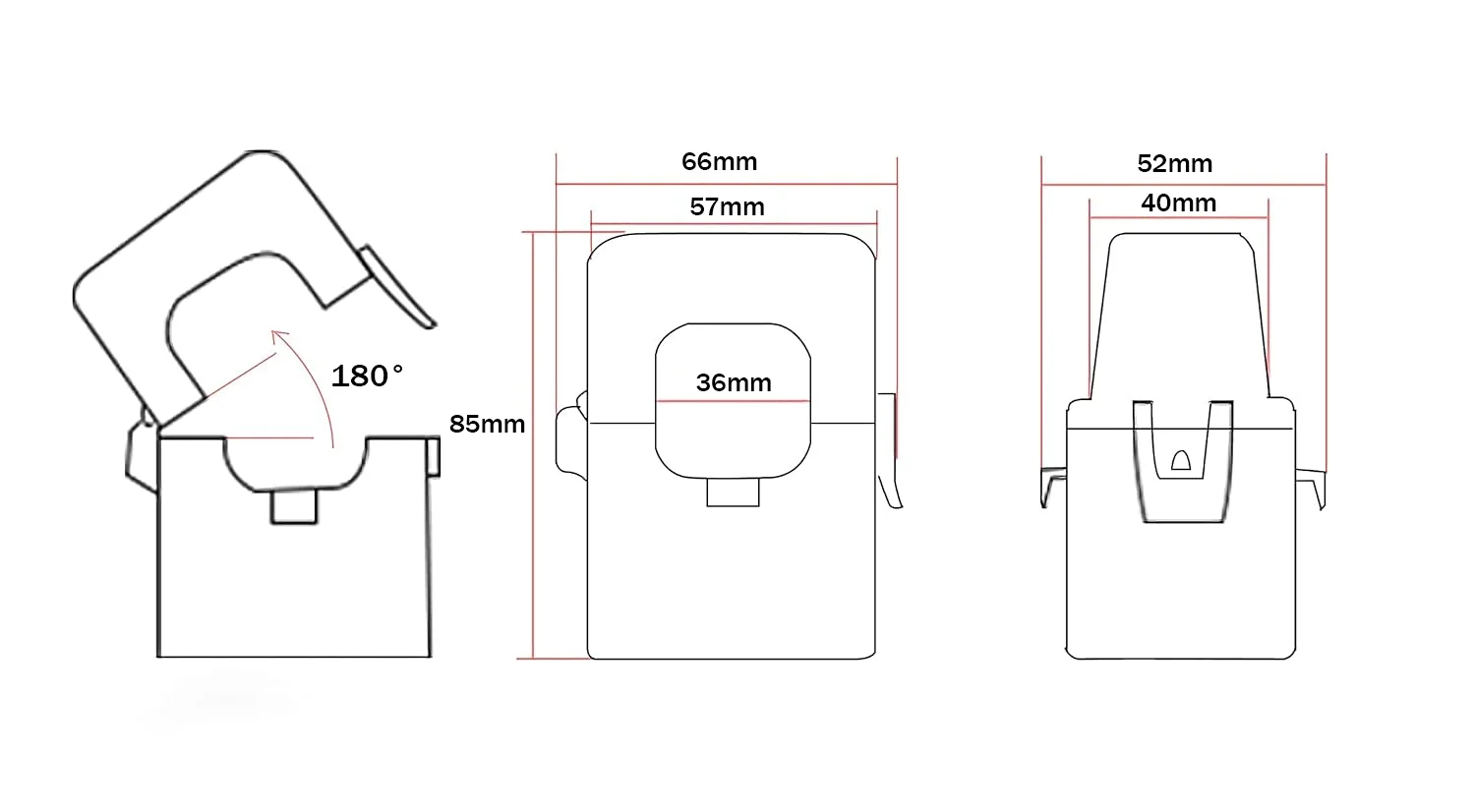

Product Dimension

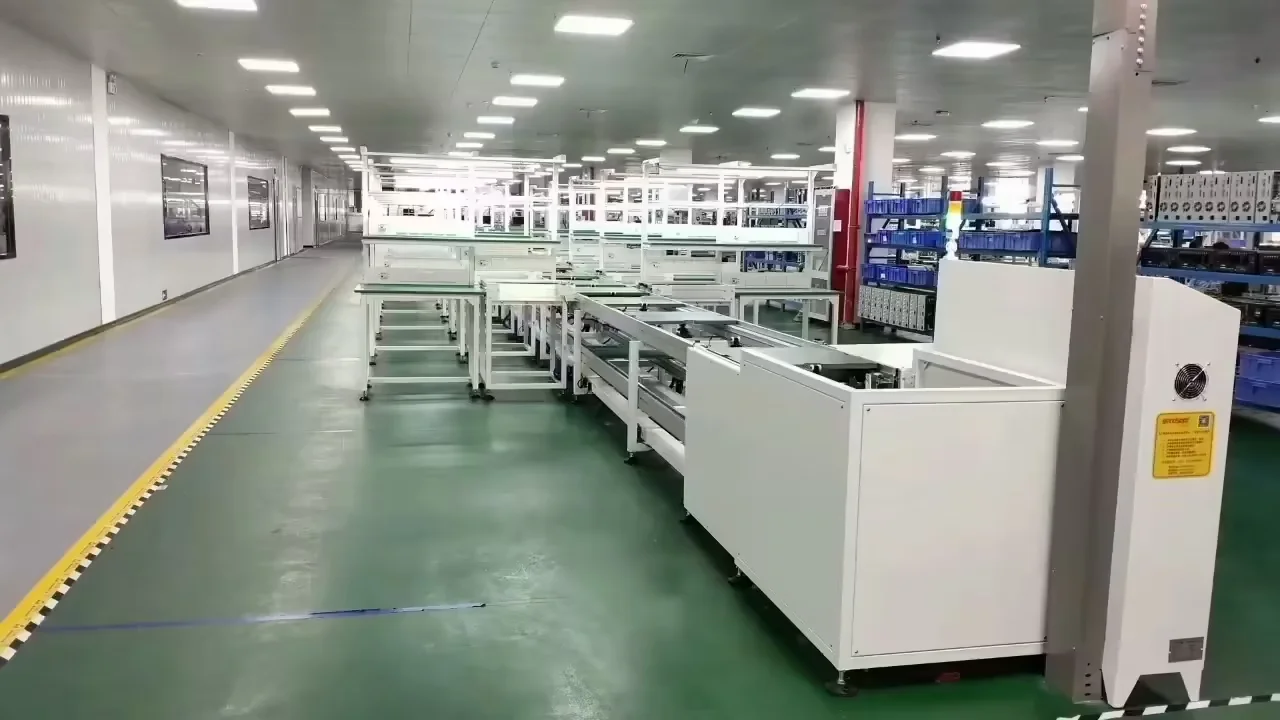

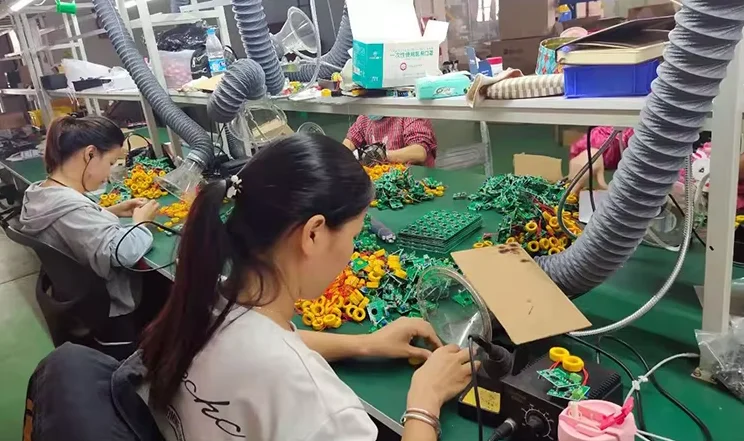

Company Profile




About us
Guangdong Fengli Electronics Co., Ltd. is an electronic technology limited company integrating R&D, production and sales. Our main products are: AC/DC current sensing switch, current transformer, intelligent digital ammeter, multi-function power meter, current transmitter, time relay, signal isolator, small intermediate relay and so on.Fengqi Brand Current Mutual Inductance Switches, with CE, FCC, ROSH certificates, reliable and stable quality, are widely welcomed by merchants, manufacturers and cooperative partners from all walks of life. Our company already has a professional team with rich experience and first-class technology.Whether it is pre-sales analysis, program recommendations, or after-sales product use of technical assistance, the company's strong technical team and sales team are adhering to the “integrity, collaboration, pragmatic, innovative, responsible” purpose, to provide customers with a full range of services.
