UMSTBVK2,5/21-G-5,08 Plug-in Terminal Block I/O
$35.00-50.00
High Quality Profinet IO PLC Controller Analog Input Interface Ethernet/IP System Competitive Price Modbus Ethercat Networking
- Category: >>>
- Supplier: Unionscience Technology Group Co. Ltd.
Share on (1601267492009):
Product Overview
Description
Products Description

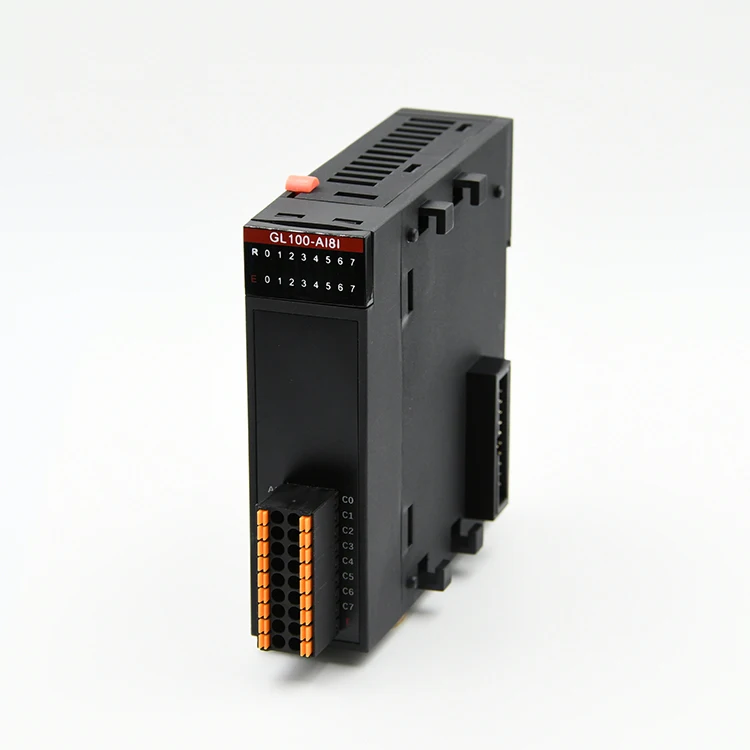

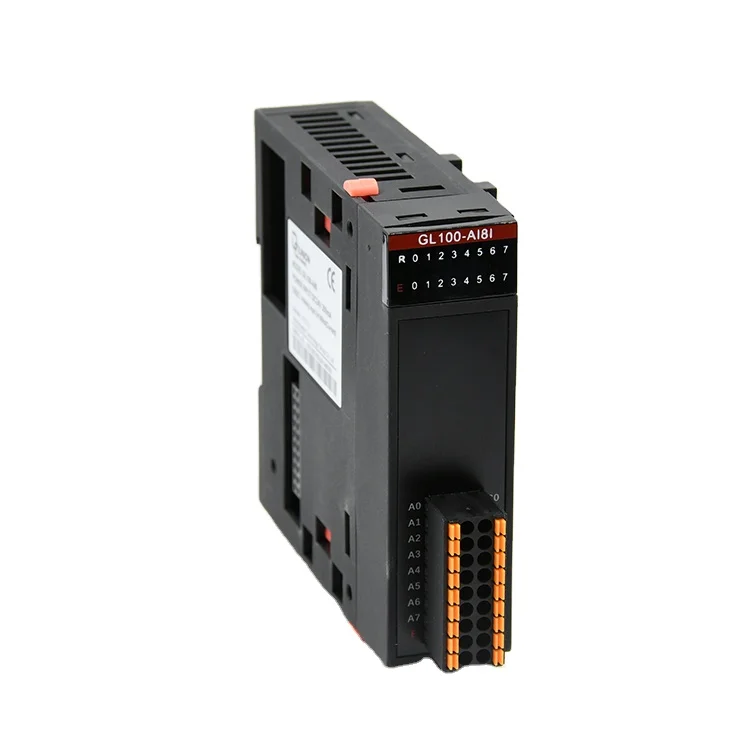

Product Name | PLC io module |
Model | GL100-AI8I |
Brand | LicOS |
Place of Origin | Yunnan，China |
Condition | 100% New 100% Original |
Series | GL100 series |
Product Function | For the acquisition of analogue signals, e.g. pressure sensors, temperature sensors, etc. |
Application | Acquisition of on-site analogue signals such as pressure, temperature, humidity, concentration, etc. |
Core Points | ★1: The input channel can be configured as current signal type or voltage signal type by IDE software. ★2: The resolution is 16 bits, which effectively reduces the analogue signal. ★3: Sampling time 1ms. ★4: Conversion time 2ms. ★5: Filtering time 1~255ms is configurable. ★6: Measurement accuracy: <0.1%F.S.@25℃ |
Technical Consulting Support | Yes |
Warranty | 1 year |
Product Feature | · 8-channel current input · Current ranges 0~20mA · 16-bit resolution · Accuracy <0.1%F.S.@25℃ · System side and field side are isolated · Configurable filtering time · Working, Fault, and Channel Input Indication |
Optical isolation between system and field side, isolation voltage ≥ 2KVrms
Operation, fault, communication indication; signal input indication, mode indication, channel range indication
Products Parameters
Product model | GL100-AI4 | GL100-AI8 | GL100-AI8U | GL100-AI8I | |||
IO Type | Analog input | ||||||
Input、output Chanel | 4 voltage/current input | 8 voltage/current input | 8 voltage input | 8 current input | |||
System side power consumption | 5VDC/50mA Internal self power supply | ||||||
Site side Power consumption | 24VDC/20mA Internal self power supply | ||||||
Voltage input and output range | ±10V、±5V、0-10V、0-5V | 0-10V | / | ||||
Voltage input output impedance | 380KΩ | 380KΩ | / | ||||
Current input and output range | 4-20mA、0-20mA | / | 4-20mA、0-20mA | ||||
Current input and output impedance | 250Ω | 250Ω | |||||
Sampling time | 1ms/chanel | ||||||
Conversion time | 2ms/chanel | ||||||
Filtering time | 1-255ms Configurable | ||||||
Precision | <0.1%F.S.@25℃ | ||||||
Limit input and output voltage | ±15V | / | |||||
Limit input and output current | ±24mA | ||||||
Isolation method | The system is optoelectronic isolated from the on-site side, with an isolation withstand voltage of ≥ 3KVrms | ||||||
Input output indication | Operation, fault, communication indication; Signal input indication, mode indication, channel range indication | ||||||
Short circuit protection | / | ||||||
Products Feedback
Products Certifications
About Us
Unionscience Technology Group Co., Ltd. was founded in 2000, is a high-tech enterprise focusing on industrial controller research and development and industrial Internet development. Then, we are a manufacturer with a research and development center and are now launching our brand LicOS, moreover, we support OEM and ODM. We also possess many certifications to ensure products' safety and quality, such as, CE certifications, ISO series certifications.
In the LicOS PLC and PAC product family, Unionscience has launched EC300 series small and medium-sized PLC, EC400 series large PLC, MC600 series PAC, GL100 series distributed IO system, covering nearly 100 types of CPU modules, remote communication modules and I/O modules. It meets the application requirements of logic control, sequence control, process control, motion control, edge intelligence and other industrial control scenarios, and has been widely used in transportation, logistics, chemical industry, new energy, machinery, high-end equipment manufacturing and other fields, providing personalized solutions for the automation field.
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
In the LicOS PLC and PAC product family, Unionscience has launched EC300 series small and medium-sized PLC, EC400 series large PLC, MC600 series PAC, GL100 series distributed IO system, covering nearly 100 types of CPU modules, remote communication modules and I/O modules. It meets the application requirements of logic control, sequence control, process control, motion control, edge intelligence and other industrial control scenarios, and has been widely used in transportation, logistics, chemical industry, new energy, machinery, high-end equipment manufacturing and other fields, providing personalized solutions for the automation field.
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
FAQ
Q1: Are you trading company or manufacturer?
We are manufacture. We can give you one-stop station automation purchasing.
We are manufacture. We can give you one-stop station automation purchasing.
Q2: ls there any engineer can help for technical supporting?
Sure, we have. Our technical team can help you for selecting PLC, Servo motor & drive, VFD(Variable Frequency Drive), Inverter, and so on. If you need any help, you can contact our technical department directly.
Sure, we have. Our technical team can help you for selecting PLC, Servo motor & drive, VFD(Variable Frequency Drive), Inverter, and so on. If you need any help, you can contact our technical department directly.
Q3: Do you support customization?
Yes, we do. We support products customization, such as, logo customization, package customization, and so on.
Yes, we do. We support products customization, such as, logo customization, package customization, and so on.
Q4: Do you supply 100% original and new products?
Of course, yes. No copy, no fake, no refurbished! Original only!
Of course, yes. No copy, no fake, no refurbished! Original only!
Q5: How long is your leading time?
Generally 2-3 working days if the goods are in stock. If large quantity, it will take 10-15 working days after getting the payment. If not common products, always need 3-4 weeks or 6-8 weeks to order.
Generally 2-3 working days if the goods are in stock. If large quantity, it will take 10-15 working days after getting the payment. If not common products, always need 3-4 weeks or 6-8 weeks to order.
Q6: How long is your delivery time?
It's up to your order quantity and shipping channels choices. We have many cooperatives shipping channels, such as, by sea, by express, by air, by land, and so on. If your order quantity is less, we could ship the package out by express, the delivery time just needs 3-7 days.If your order quantity is large, we could ship the package out by sea, the delivery time is about 25-45 days.Other shipping channels delivery time is about 15-25 days.
It's up to your order quantity and shipping channels choices. We have many cooperatives shipping channels, such as, by sea, by express, by air, by land, and so on. If your order quantity is less, we could ship the package out by express, the delivery time just needs 3-7 days.If your order quantity is large, we could ship the package out by sea, the delivery time is about 25-45 days.Other shipping channels delivery time is about 15-25 days.
Q7: Do you support samples?
Yes, we support partial products samples.
Yes, we support partial products samples.
Q8: Do you support after sale warranty service?
Yes, we support after sale warranty service within 1 year. All fees depends on the actual situation.
Yes, we support after sale warranty service within 1 year. All fees depends on the actual situation.
