Product Overview

Description






Product Overview

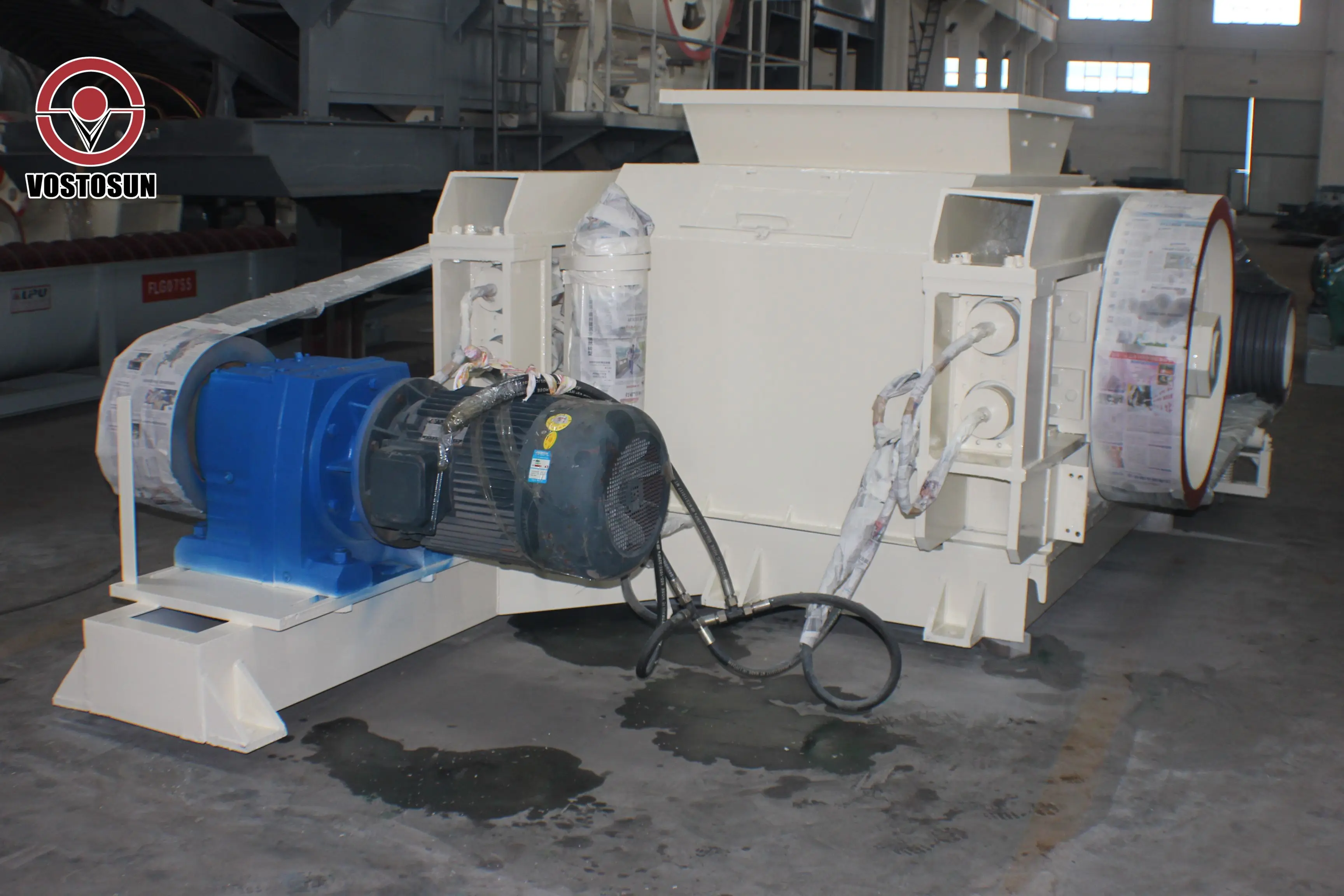

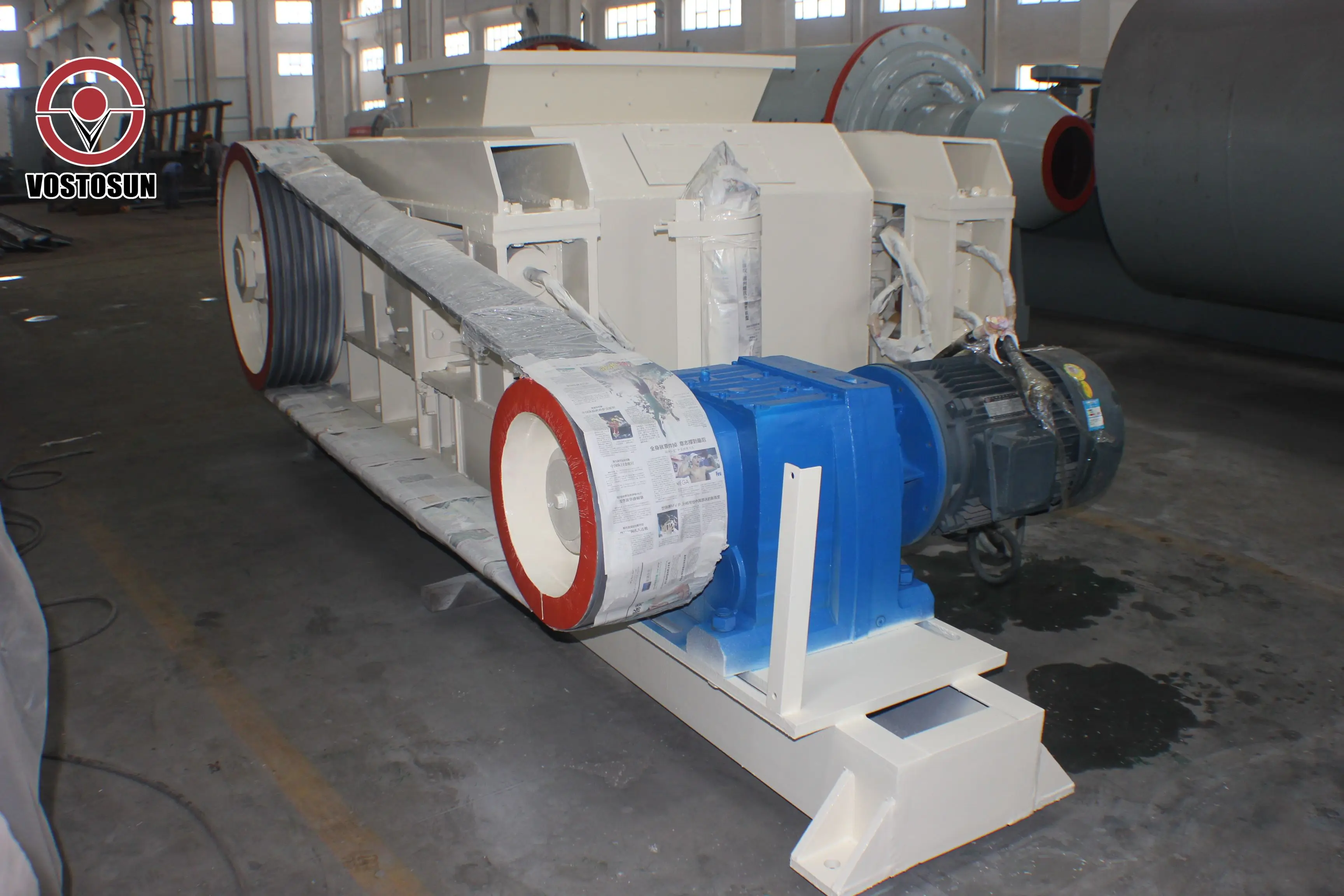

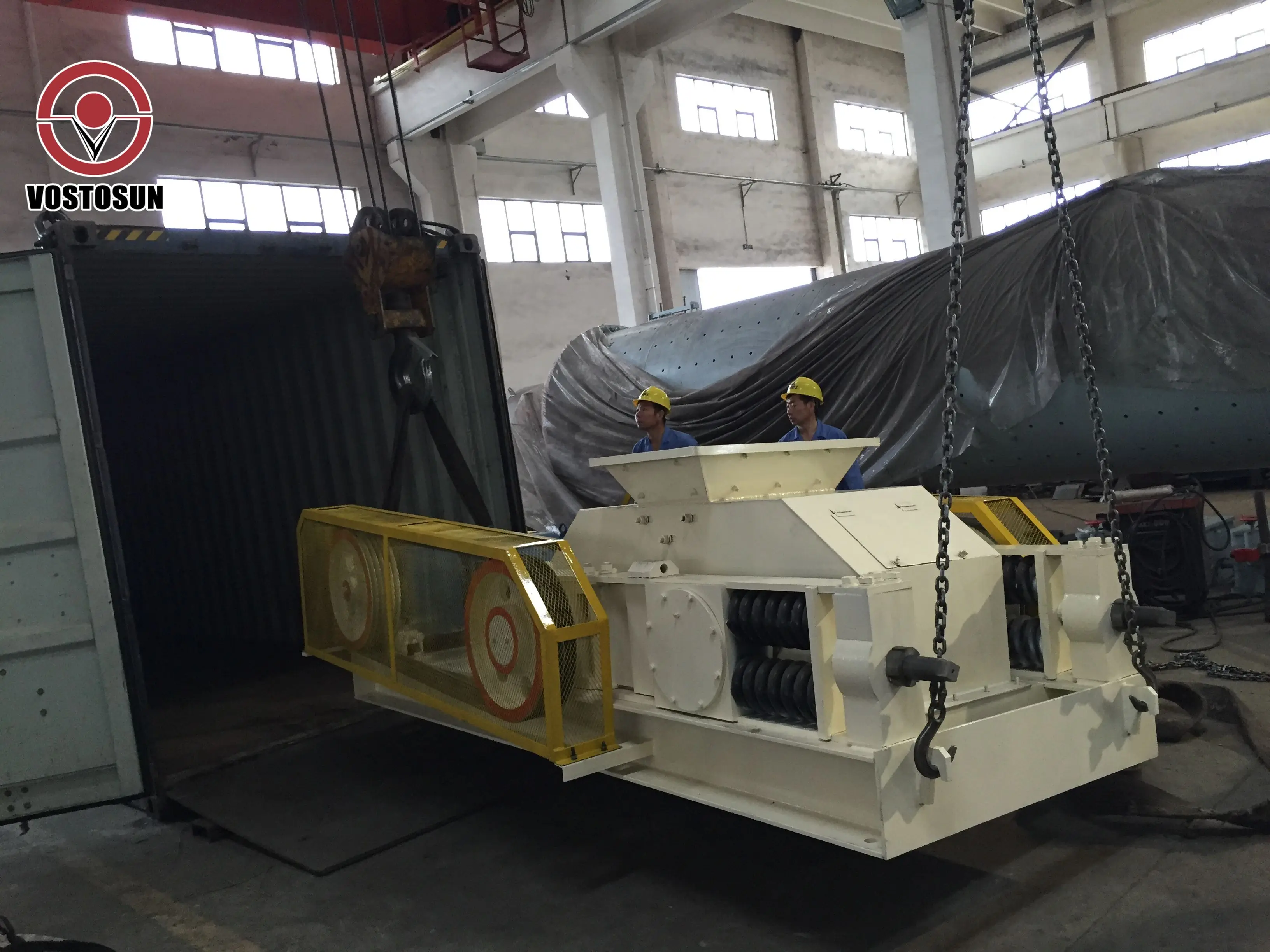

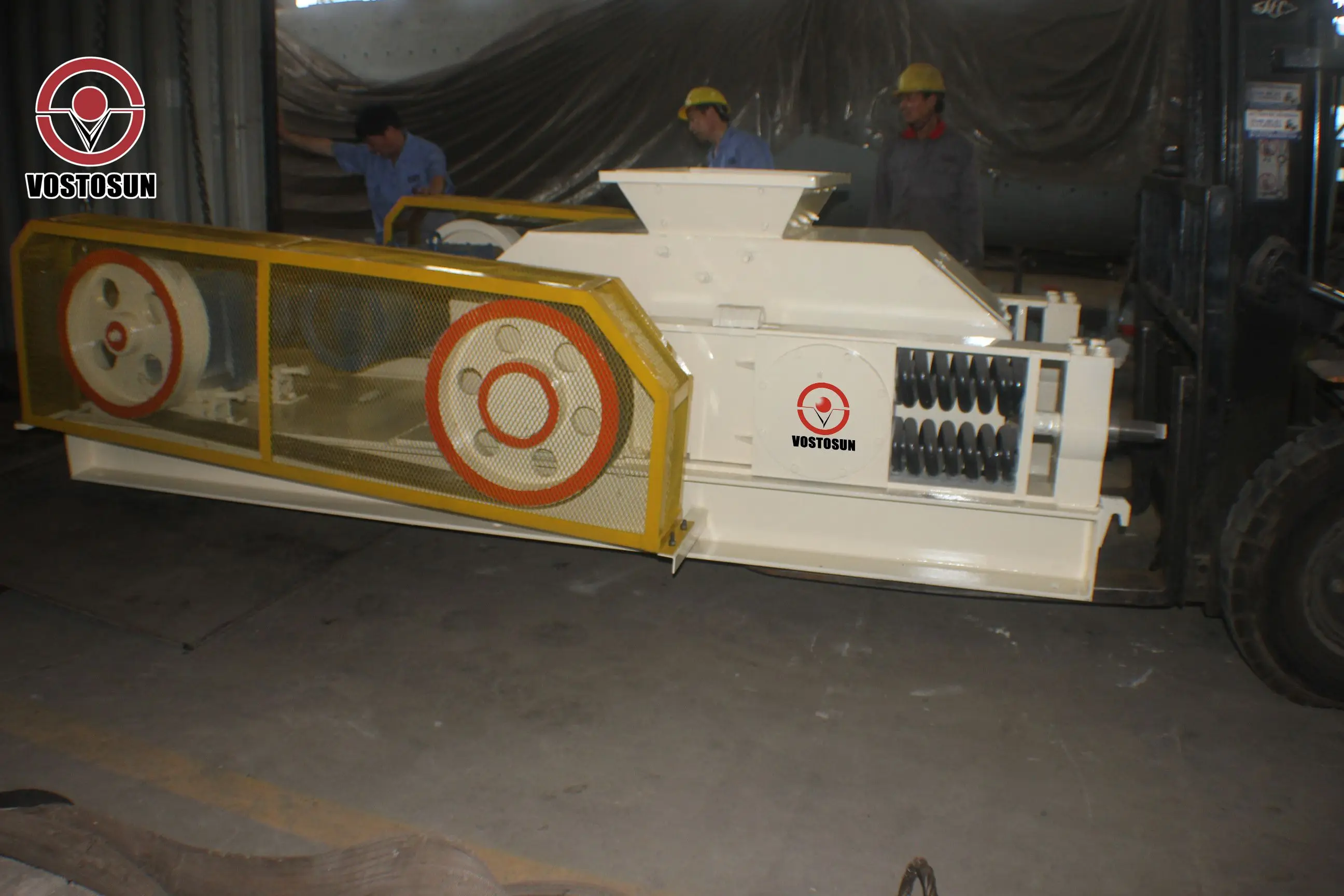

Roller Crusher

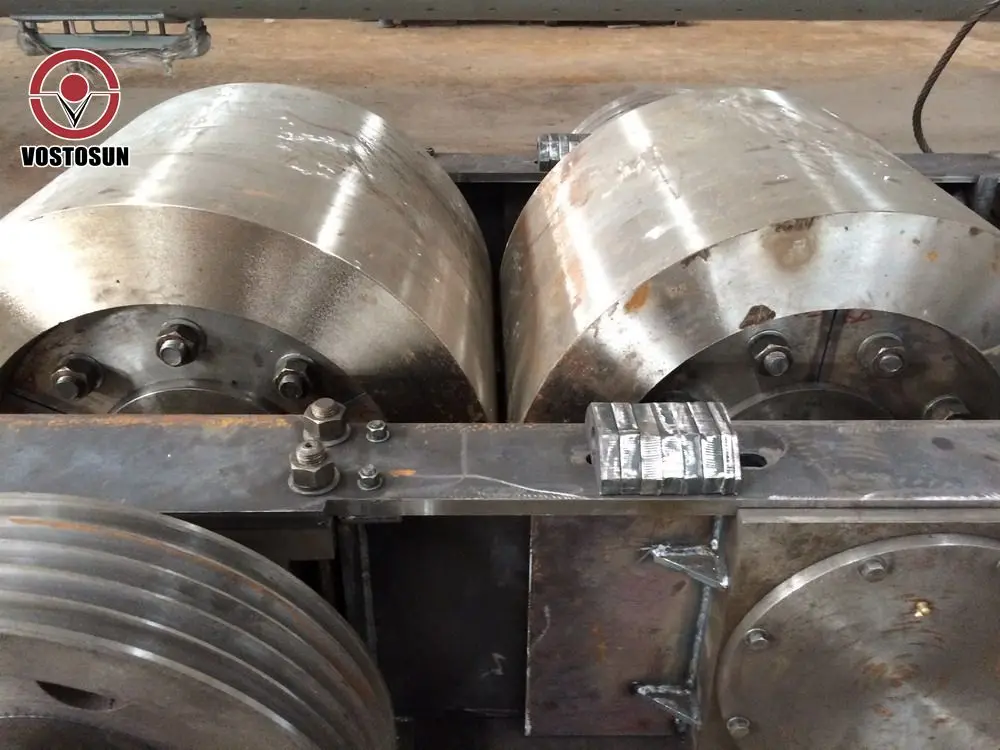

Roll Crushers are simple in design and construction, long-lasting, economical, and versatile across many applications and industries. A combination of impact, shear, and compression are the forces necessary to perform the crushing and size reduction in a roll crusher. The material enters the roll crusher machine and is impacted by the roll as it rotates.Then, as the material is pulled between a crushing plate or rolls, shear and compression forces act upon the material.





The rolls act as flywheels, contributing to smooth operation and efficient use of power. Roll crushing surfaces operate at a fixed distance apart, as opposed to the continually changing distances in a jaw or cone crusher. This creates a more consistent product size. Roll crushers are low in profile and relatively easy to install. They can be fed with a minimum of headroom, or even choke fed. Adjustments are simple and internal parts are readily accessible.










FEATURES AT A GLANCE










Typical feed materials for VOSTOSUN Roll Crushers include: bauxite, cement clinker, chalk, cinders, clay, coal, glass, gypsum, limestone, burnt lime, rock salt, sandstone, shale, sulfur ore, sea shells, and sewer sludge clinker. Single Roll Crushers, sometimes called lump breakers, can also be used for breaking frozen or agglomerated materials.


VOSTOSUN Roll Crushers are used in a variety of industries such as, mining recycling, and power industries.






































Left elevation













Front elevation










PRODUCT SPECIFICATIONS




















































































































































S,N

Model

Input size (mm)

Output size (mm)

Capacity (t/h)

Power (kW)

Weight (t)

Protection Method


1

2PG400×250

＜12

0-5

5-13

2×5.5

1.1

Spring


2

2PG450×500

＜12

0-5

6-19

2×11

3.8


3

2PG600×750

＜30

0-10

10-38

2×22

8.4


4

2PG610×400

＜30

0-10

5-21

2×15

3.5


5

2PG800×600

＜40

0-20

8-42

2×22

12.5


6

2PG900×900

＜40

0-20

12-72

2×37

15.3

Spring/

Hydraulic System


7

2PG900×1200

＜40

0-20

17-97

2×55

18.5


8

2PG1000×800

＜50

0-30

12-75

2×45

21.6


9

2PG1200×800

＜60

0-30

12-91

2×55

27.4


10

2PG1200×1200

＜60

0-30

18-136

2×75

32.8


11

2PG1600×1200

＜70

0-30

20-202

2×110

43.6


12

2PG1600×1600

＜70

0-30

27-270

2×132

51.2


13

2PG1800×1600

＜80

0-40

27-302

2×160

56.7























SALES AND SERVICE NETWORK

















Company Profile











AVP GROUP LIMITED (AVP for short) was founded in 2005, with its head office in Hongkong. Shanghai VOSTOSUN Industrial Co., Ltd ,was established in 2006, as one of the subsidiary companies of AVP, VOSTOSUN is mainly dedicated to designing and manufacturing drying equipment (Rotary drum dryer, single drum dryer, three-cylinder dryer, etc.), mineral beneficiation equipment (Ball mill, flotation machine, magnetic separator, thickener, mixer, etc.), crushing & grinding equipment(Jaw crusher, Impact crusher, Cone crusher, Mobile Crusher Plant, Raymond mill, Micro-powder Grinding Mill, etc.), gypsum powder & board plant,etc.





VOSTOSUN has well experienced technical team in our Technical Department and R&D Department with more than 30 technicians.We
guarantee product quality based on mature processing technic. Since we have established long-lasting relationship with forging
company and logistic company, we can assure you quality products and timely transportation.

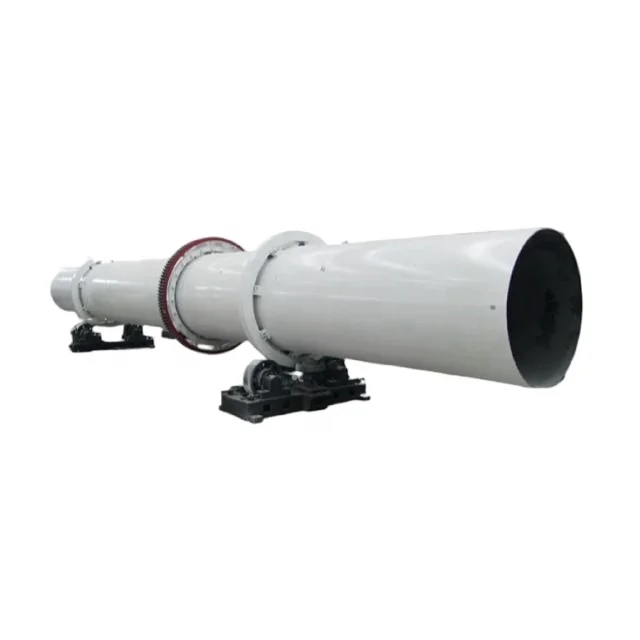

Industrial Drying Equipment

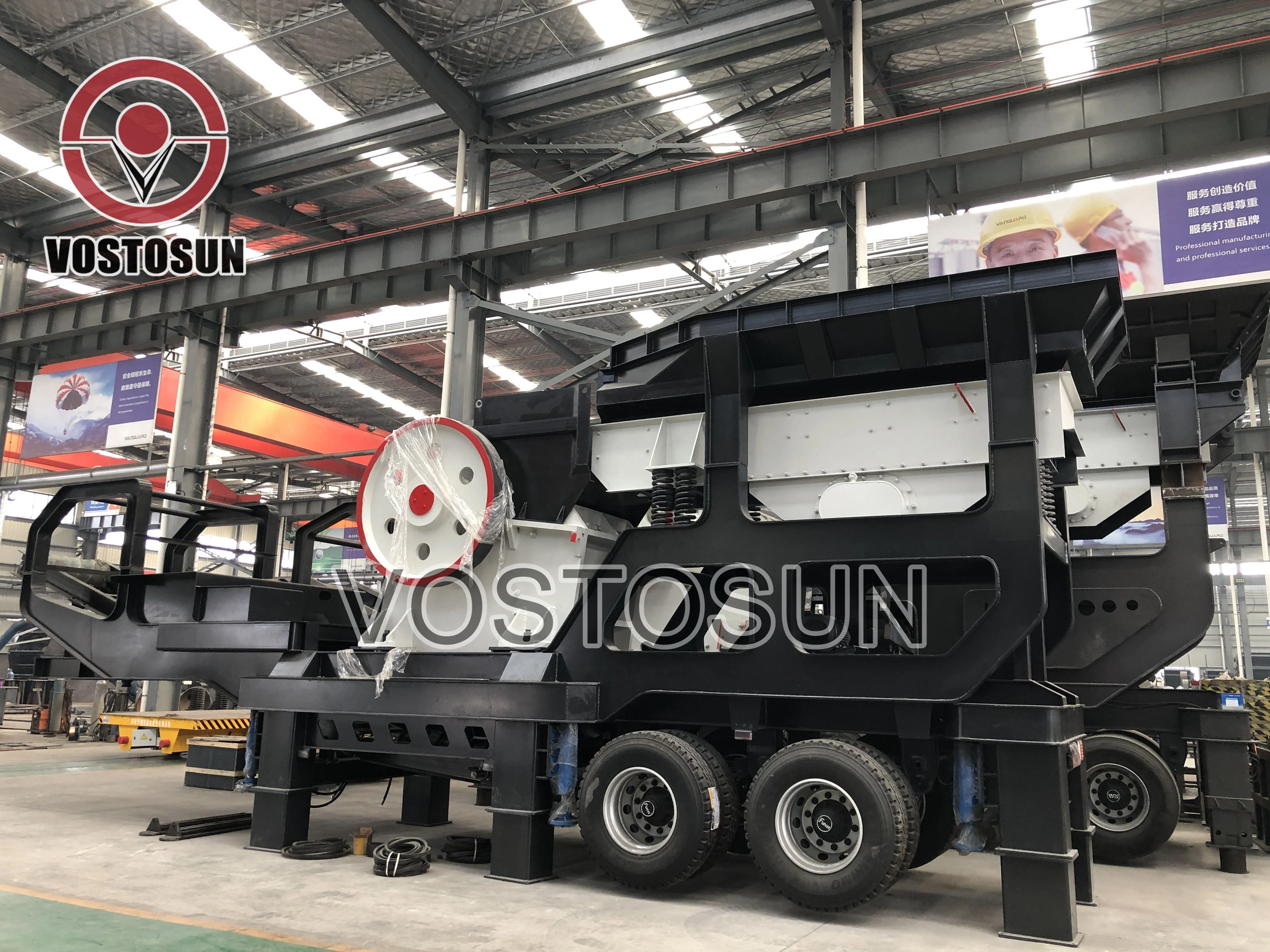

Stone Crushing & Screening Equipment











Mineral processing equipment















Grinding Equipment












Gypsum Powder Production Plant

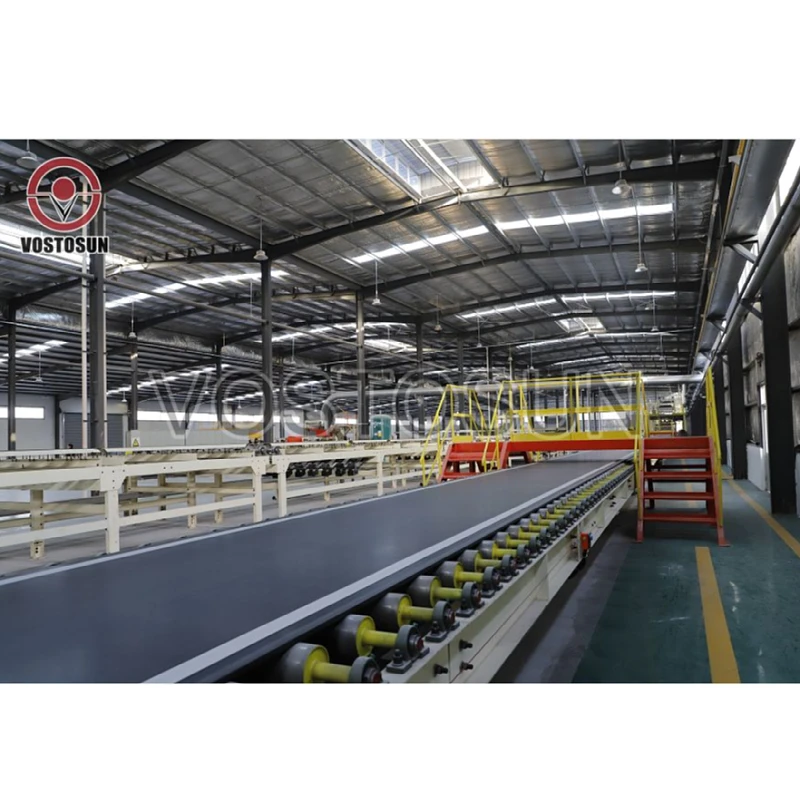

Gypsum Board Production Plant
































FAQ










1.Which countries do you export to?

Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.

Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc.

Europe: Russia, Ukraine, Belarus, Bulgaria, etc.

Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc.

South America: Brazil, Peru, Chile, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.




2.What is the proportion of your products exported?
75% of our products are exported to all over the world.




3.What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

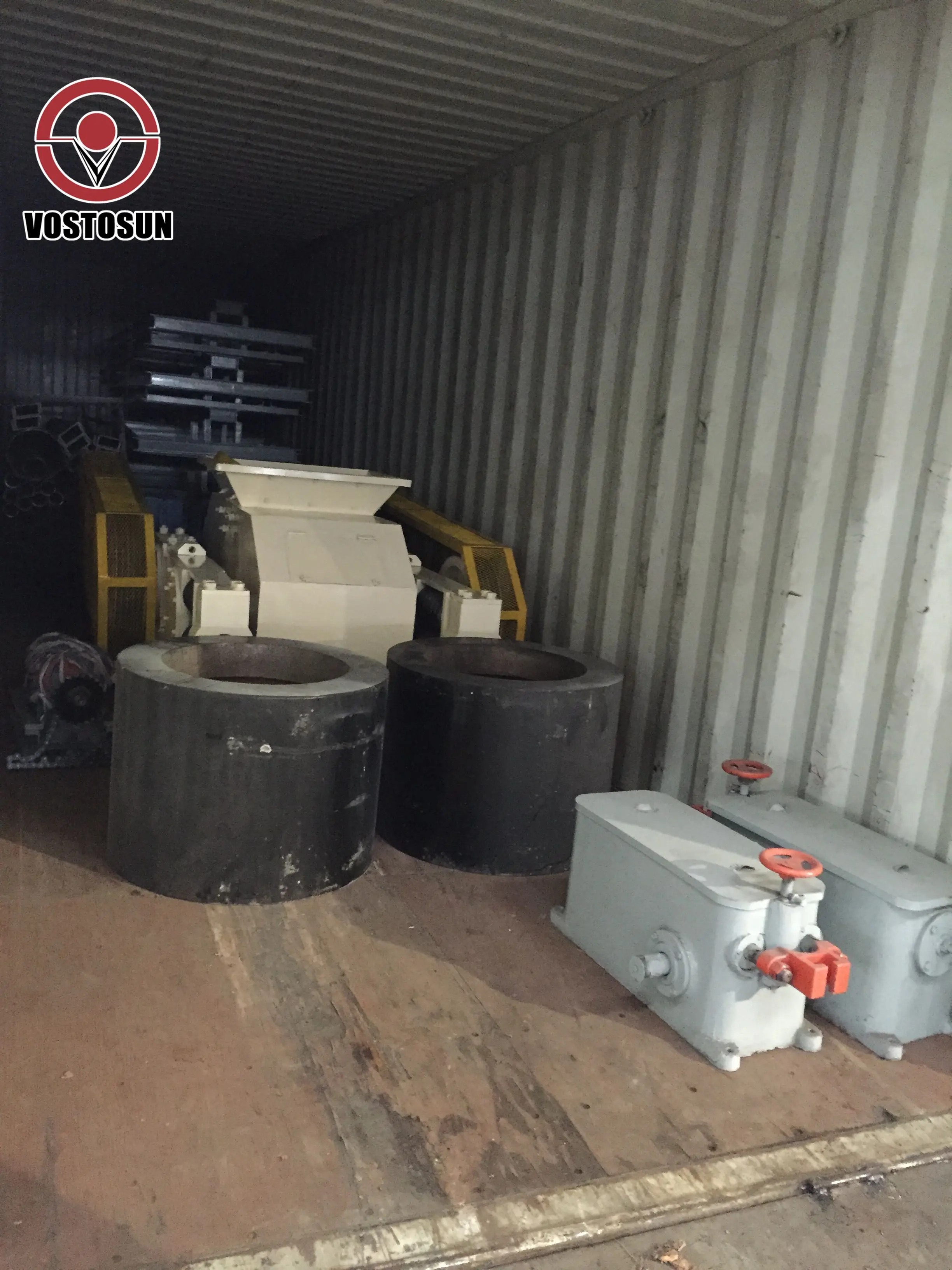

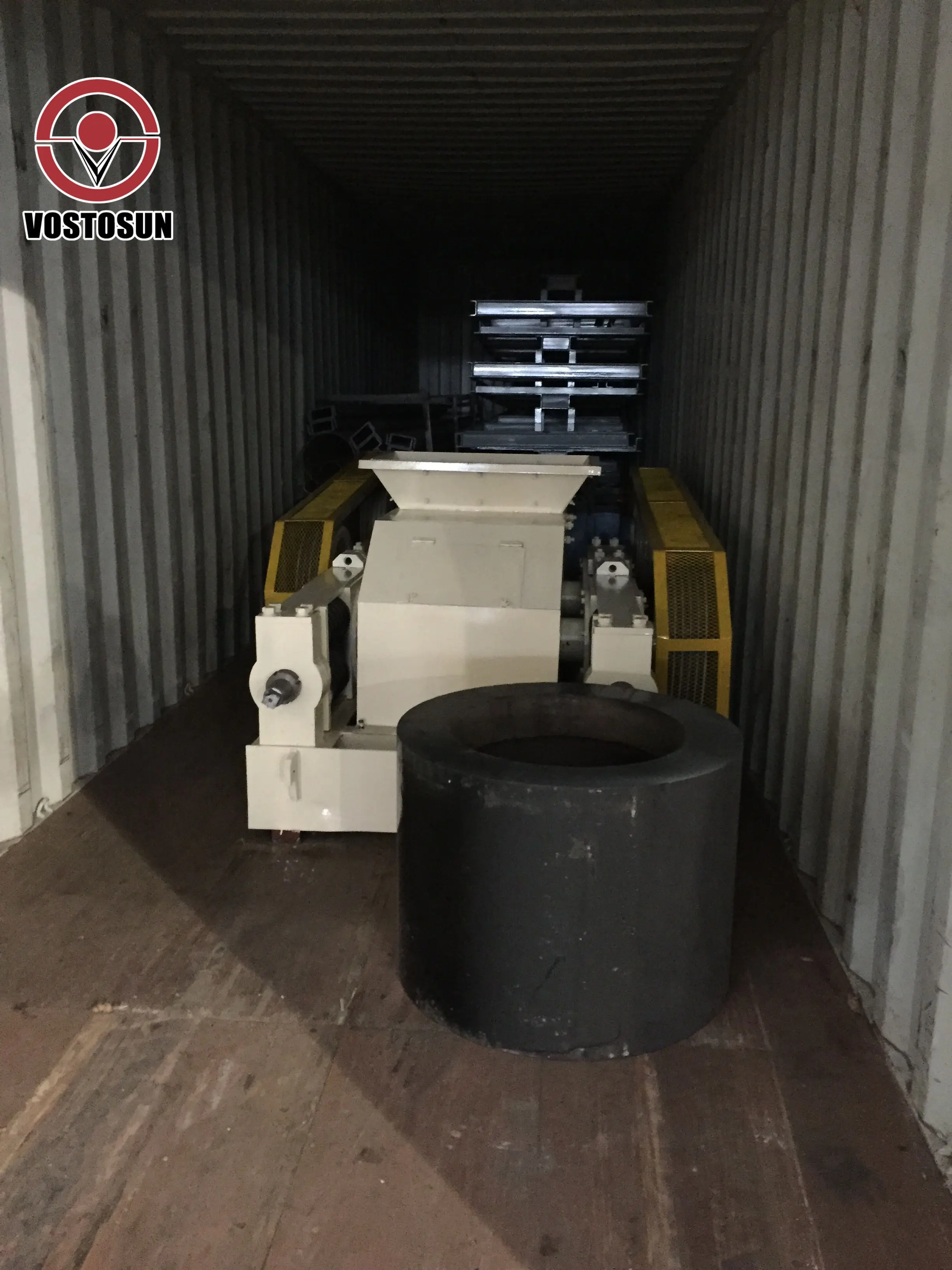

4.What kind of logistic service do you supply?
 A:Transportation: railway transportation, international through transport, including (international railway through

transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport :

Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.



B:Term: FOB,CIF, DAP, to door service, etc.




5.Can you produce customizable machines?
Yes, we can provide customizable machines according to your requirements.




6. How about your After-sales service?

We have after-sale service, and can provide 24-hour technical support by phone and email. We also have local oversea warehouse in Uzbekistan.
