HD Pipe Tube Endoscope 1MP Starvis Mini CCD Camera Module Analog Camera Module Endoscope Medical Low End Ear
- Category: >>>
- Supplier: Shenzhen Hanqin Electronic Technology Co. Ltd.
Share on (1601267569872):
Product Overview
Description
Features:

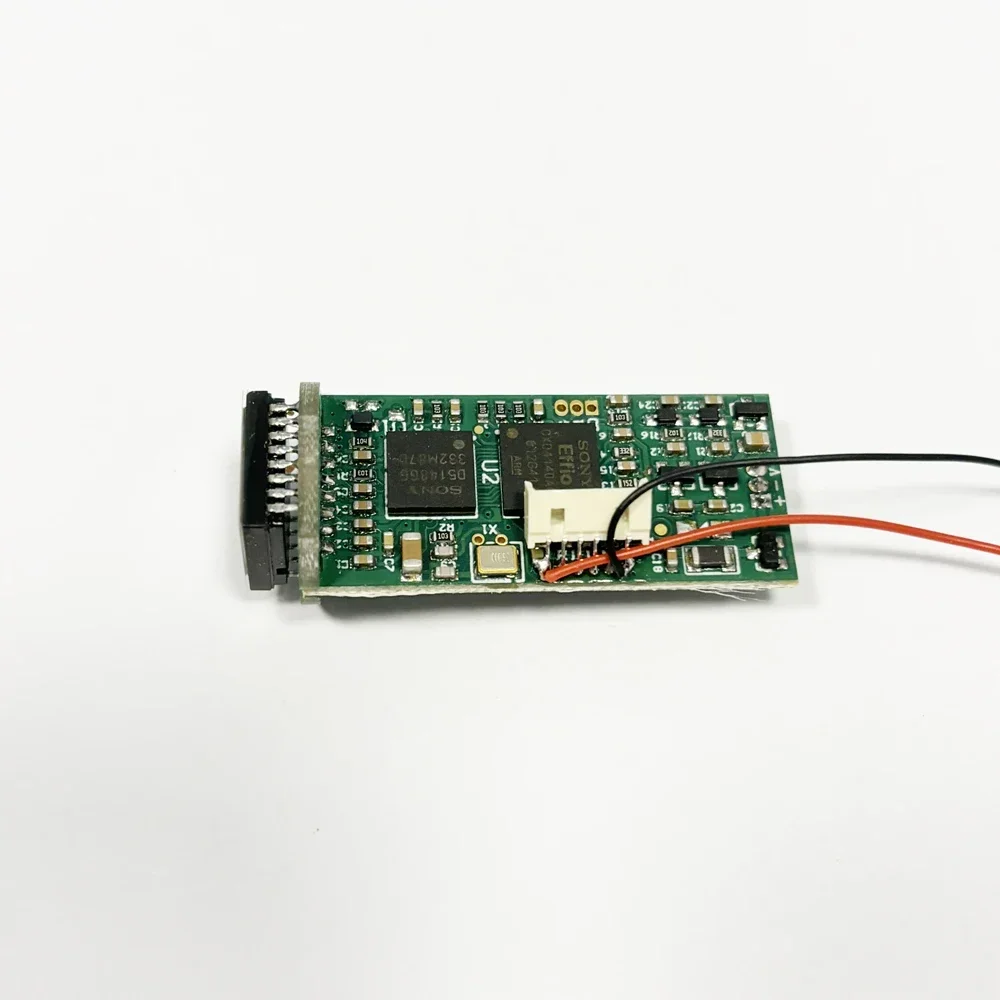

700TVL CCD Chip Board
Horizontal Resolution:Genuine 700TVL
Effective Pixels:PAL:976(H)x582(V) & NTSC: 976(H)x494(V)
Specifications:
Image Sensor: | 1/3" CCD Effio(4140+811) |
Signal system: | NTSC / PAL |
Back Light Compensation | Auto |
Auto Iris | Video / DC |
Gamma | 0.45 |
S/N Ratio: | 48db (AGC-OFF) |
Scanning System: | 2:1 Internal |
Synchronization System : | Internal Synchronization |
Shutter Speed: | 1/60-1/15000 (second) |
Video Output: | 1.0Vp-p, 75 OHM |
Power Supply: | 12V DC ( Not include) |
Operation Temperature | -10C ~ 50C / 0F ~ 110 F |
Packaging included:
1x700TVL Camera

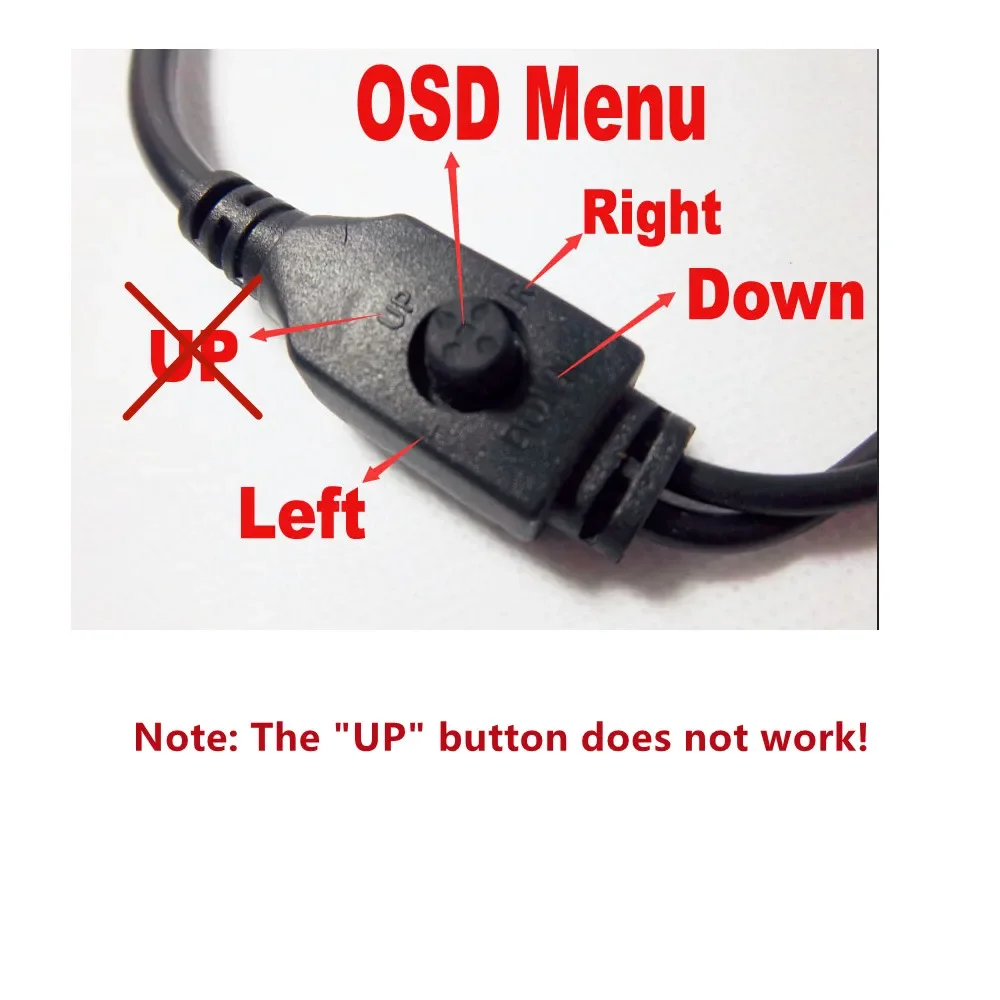

1x OSD wire
yi liao
