China Outdoor LED Screen Manufacturer High Resolution Outdoor LED Display with Good LED Panel Price
- Category: >>>
- Supplier: Guangzhou Li Cheng Electronic Technology Co. Ltd.Guangzhou Ltd.
Share on (1601267571004):
Product Overview
Description
Specifications
Pixel Pitch(mm) | 3.9mm | 4.8mm | 5.9mm | 6.25mm | 7.8mm | ||||
Pixel Density(dots/m² | 65410 | 43222 | 28224 | 25600 | 16352 | ||||
LED Encapsulation | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | ||||
Scan Mode | 1/8 scan | 1/7 scan | 1/7 scan | 1/5 scan | 1/4 scan | ||||

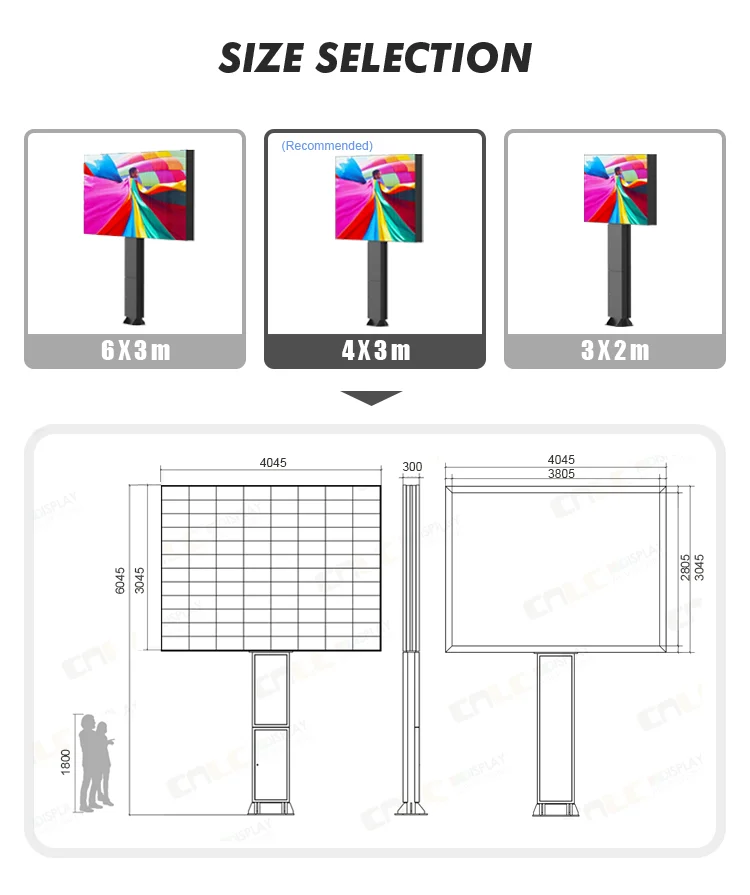

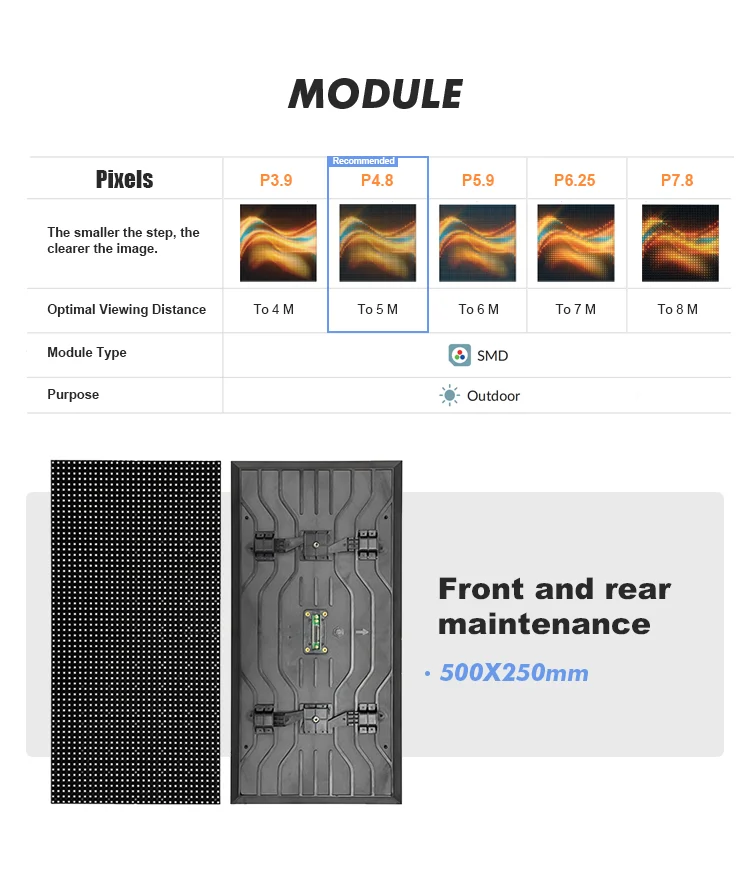

Module size (mm) | 500 x 250 | ||||||||
Module Resolution | 128x64 | 104 x 52 | 84 x 42 | 80 x 40 | 64x32 | ||||
Cabinet Resolution | 256 x 256 | 208 x 208 | 168 x 168 | 160 x 160 | 128 x 128 | ||||
Brightness (cd/m²) | ≥5,000 | ≥5,000 | ≥5,000 | ≥6,000 | ≥6,000 | ||||
(8,000-10,000) | (8,000-10,000) | ||||||||
Max. Power Consumption(W/m²) | 800 | 800 | 550 | 500 | 500 | ||||
Ave. Power Consumption(W/m²) | 270 | 270 | 185 | 175 | 175 | ||||
Energy Saving design | 4.6v & 5V Low voltage design | 2.8v & 3.8V Low voltage design | |||||||
Degree of Protection | Front IP67 / Rear IP65 | ||||||||
Service | Front & Rear Dual Service | ||||||||
Power Supply | AC120/ 240V (50Hz)(optional) | ||||||||
Refresh Rate (Hz) | 1920Hz ( 3840Hz Optional） | ||||||||

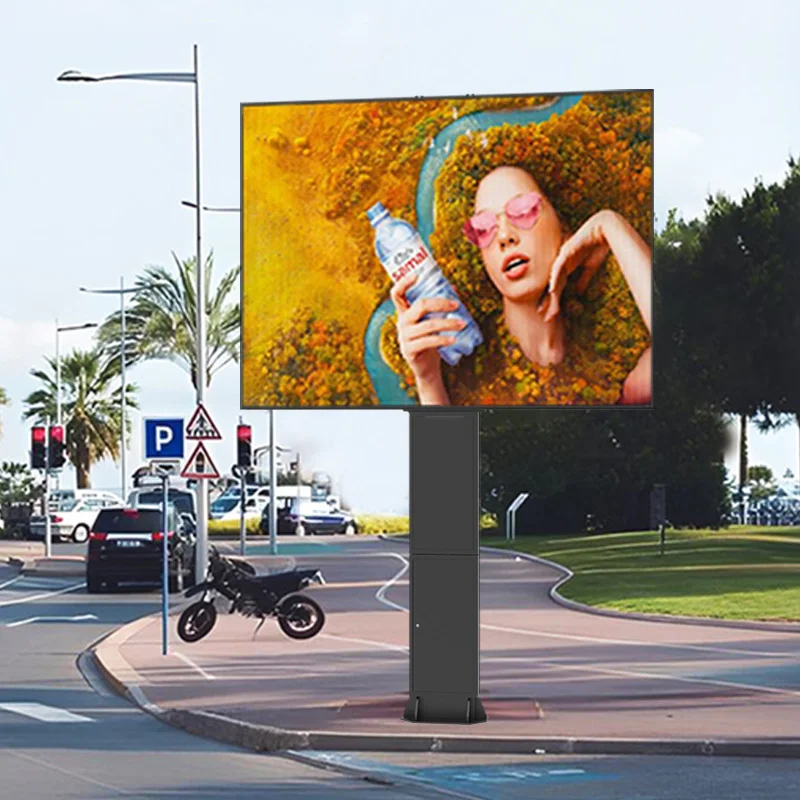

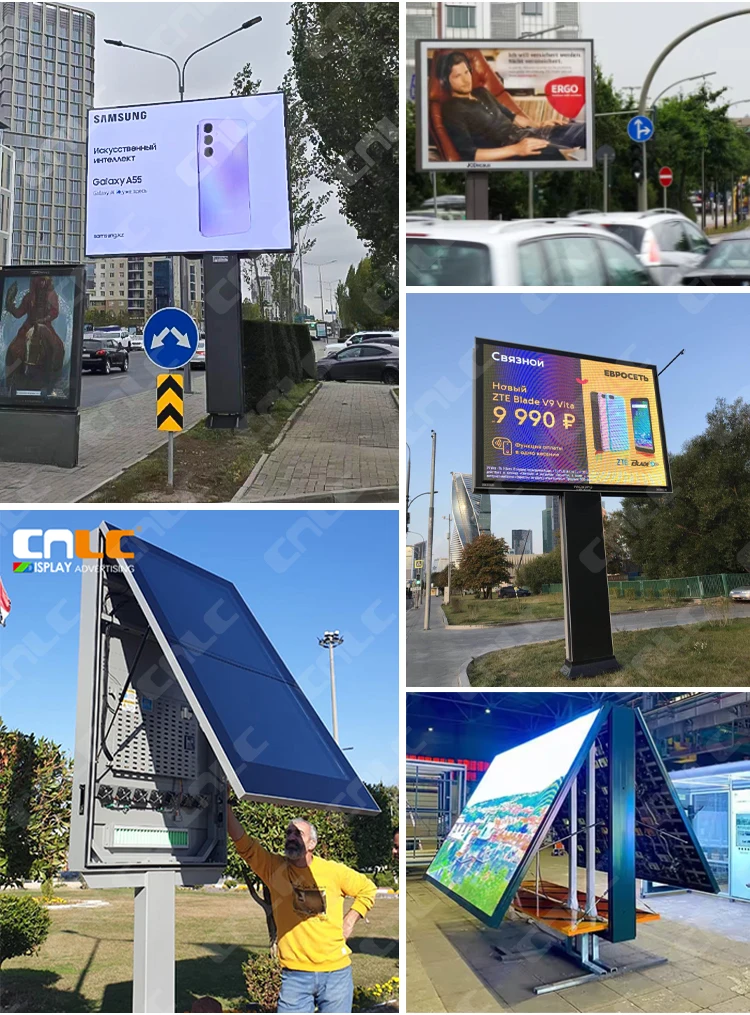

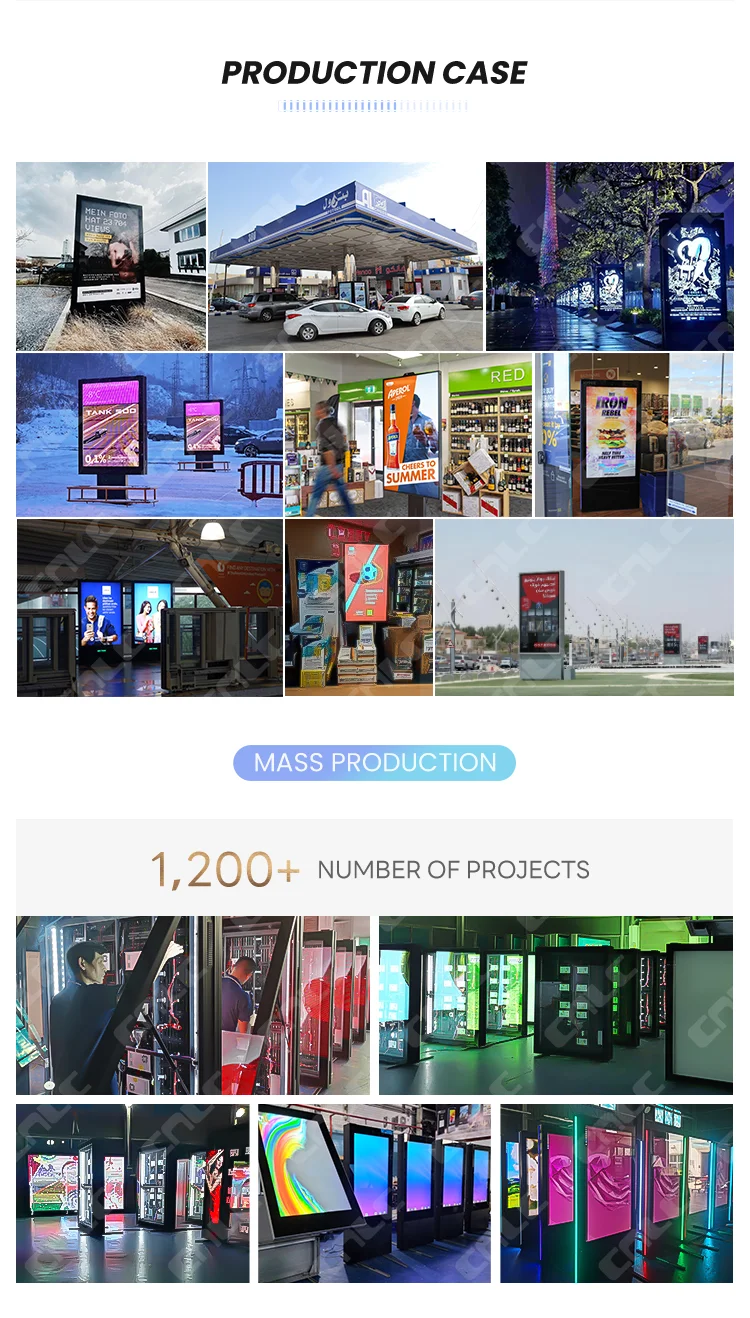

Projects We Have Done

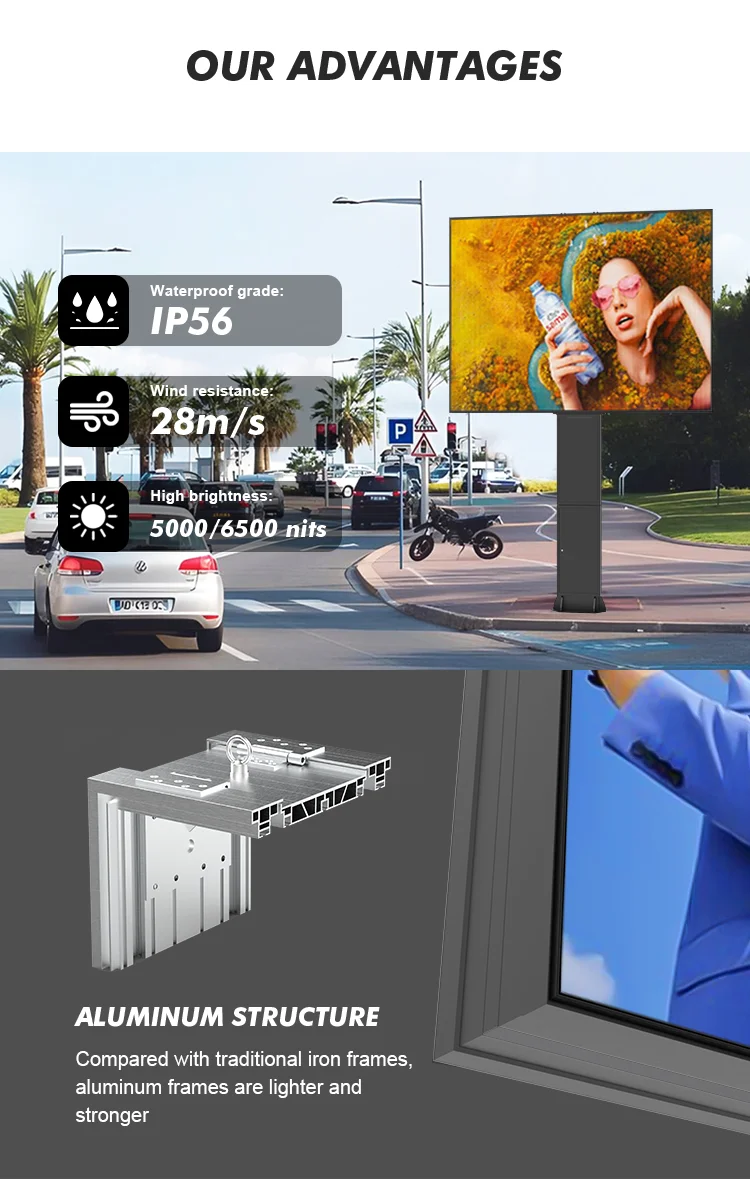

Our Advantages

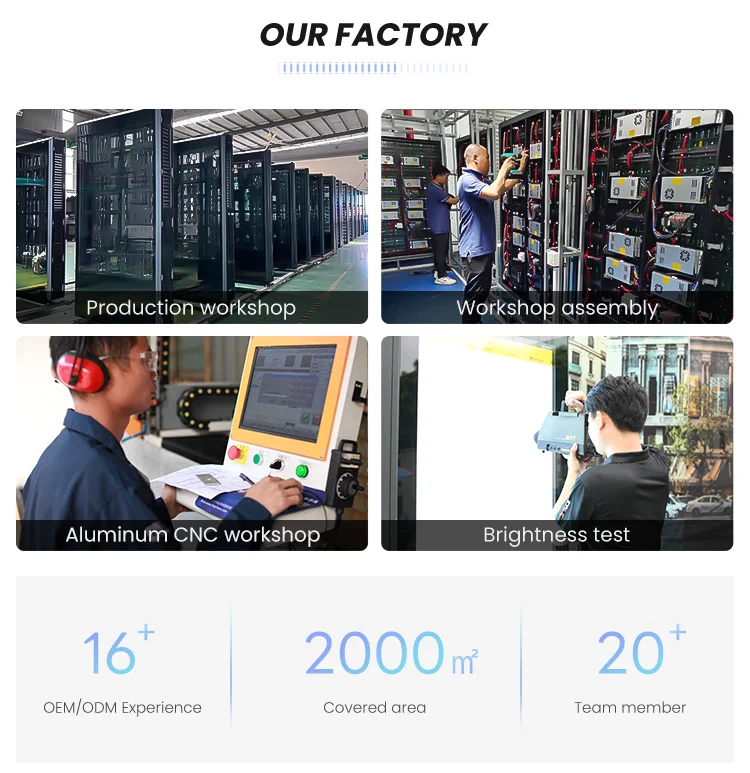

Company Profile
CNLC Display was established in 2007 located in Guangzhou,China. We have more than 16years of experience in production and development of advertising Displays.The mainproducts are outdoor high-brightness LCD digital signage, high-brightness LCD window display and indoor high-brightness advertising displays
