Professional Corn Flour Mill/ Grain Mills For Sale/ Small Agricultural Diesel Maize Milling Machine
- Category: >>>
- Supplier: Henan Gyang Machinery Co. Ltd.
Share on (1601267720744):
Product Overview
Description
Products Description

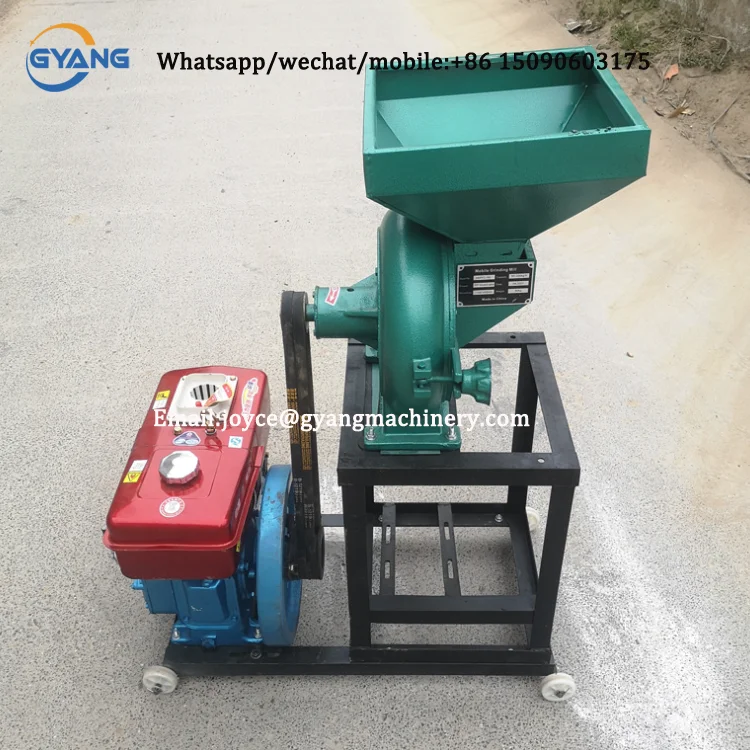

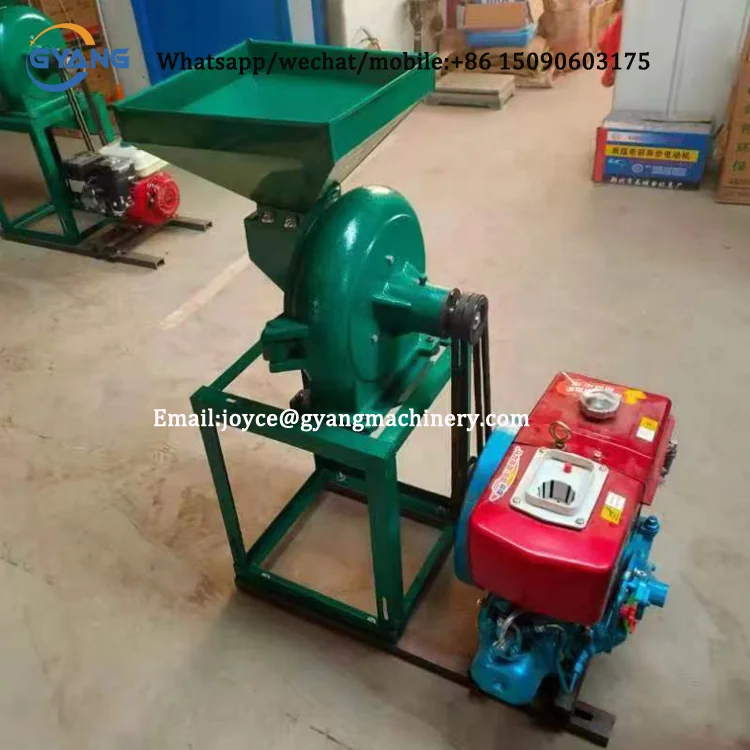

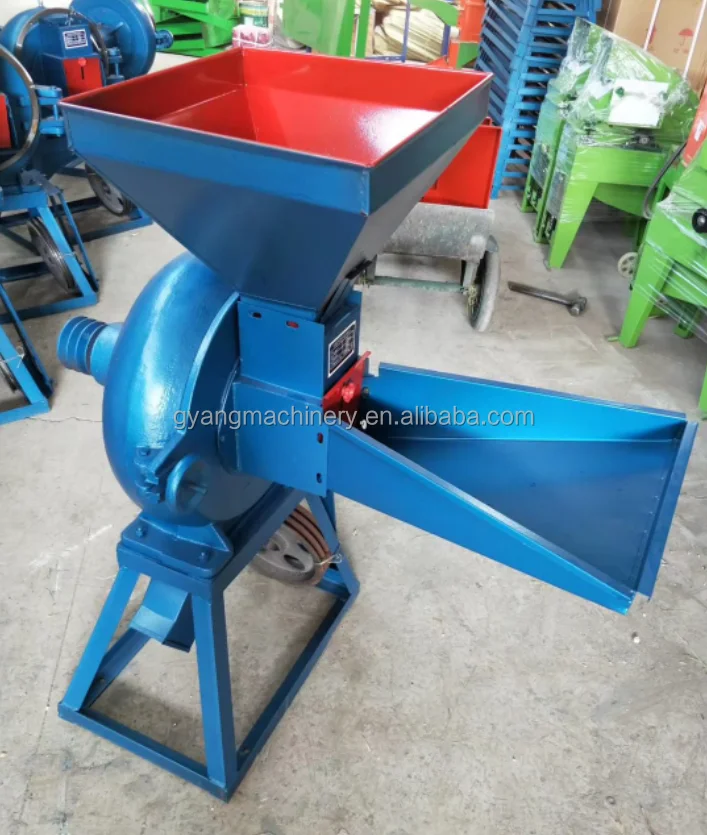

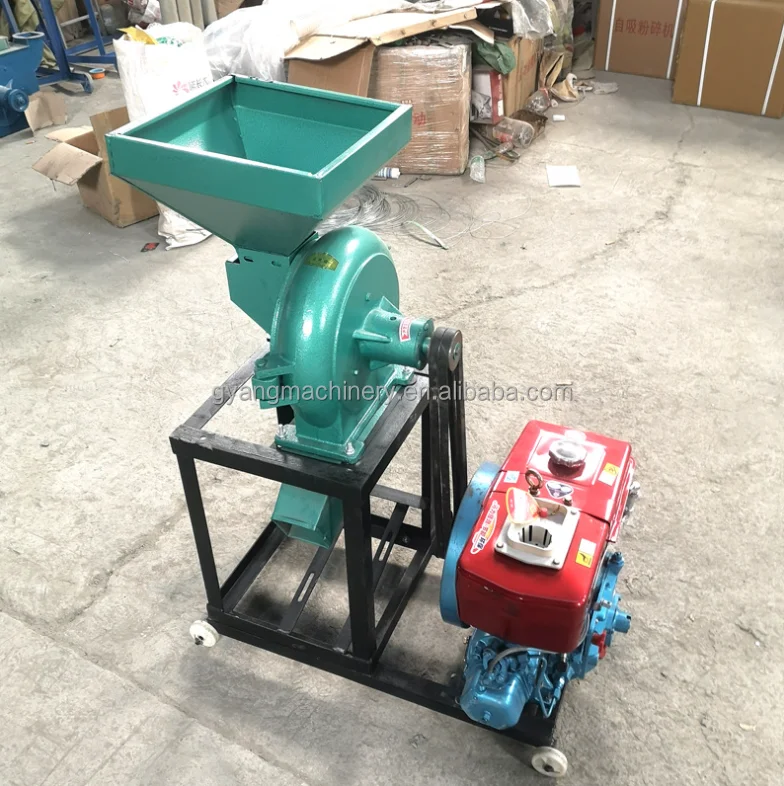

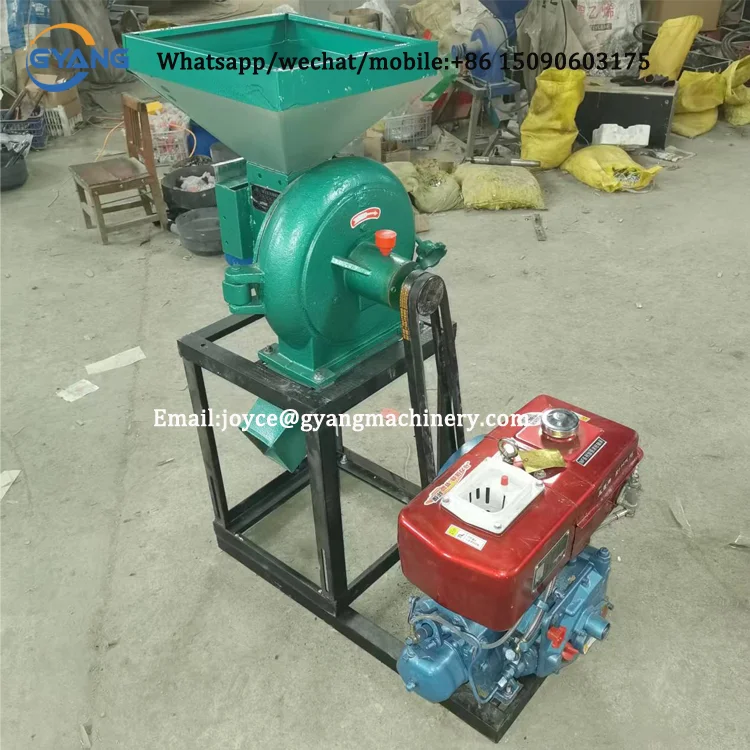

Professional Corn Flour Mill/ Grain Mills For Sale/ Small Agricultural Diesel Maize Milling Machine
Introduction:Industrial Corn Grinding Corn Crusher Machine Maize Milling Machine For Sale In Malawi
This machine is a multi-functional crusher, this series of crusher for the tooth nail grinding teeth claw, crushing material range is wide, high production efficiency, crusher can be a variety of grains crushed into powder, leaving no residue, the machine can process chemical raw materials, gypsum powder, fish bone powder, metal calcium and other materials, crushing fineness of 100 mesh, is a multi-functional crusher, crushing material range is wide, Pulverized material leaves no residue.Professional Corn Flour Mill/ Grain Mills For Sale/ Small Agricultural Diesel Maize Milling Machine
Application:Professional Corn Flour Mill/ Grain Mills For Sale/ Small Agricultural Diesel Maize Milling Machine
The machine has a wide range of processing, it can crush corn, wheat, beans, grains, vines, dry and fresh tubers; Leaf shell and other grain and feed, but also can crush gypsum, lead powder, slippery powder, rare earth, chemical, clay, coal and other low hardness minerals.
Product Parameters
Model | GY-YM160 | GY-YM280 | GY-YM300 | GY-YM320 | GY-YM360 |
Spindle speed | 6300 r/min | 4000 r/min | 4000 r/min | 4000 r/min | 4000 r/min |
Rotor diameter | 220mm | 280mm | 300mm | 320mm | 350mm |
Single hammer quantity | 3 | 3 | 3 | 5 | 5 |
Capacity (kg/h) | 50-100 | 150-300 | 200-350 | 300-500 | 500-1000 |
Power (kw) | 1.5-2.2 | 2.2-3 | 3-5.5 | 5.5-7.5 | 7.5-11 |
Voltage (V) | 220/380 | 220/380 | 220/380 | 380 | 380 |
Motor speed (r/min) | 2800 | 2800 | 2800 | 1400 | 1400 |
Size (mm) | 700×500x300 | 800x650x300 | 900×700×300 | 1150x550x400 | 1150×580x450 |
Weight (kg) | 20 | 50 | 60 | 110 | 150 |

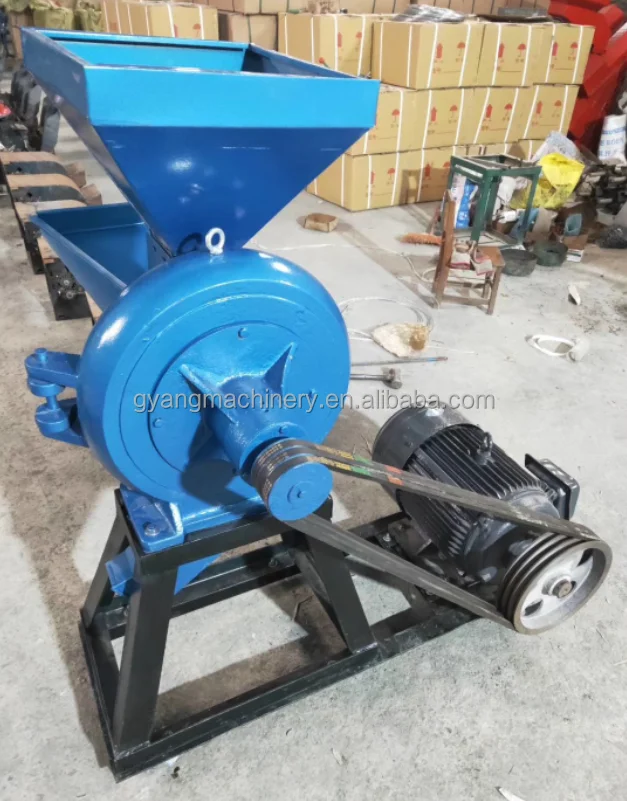

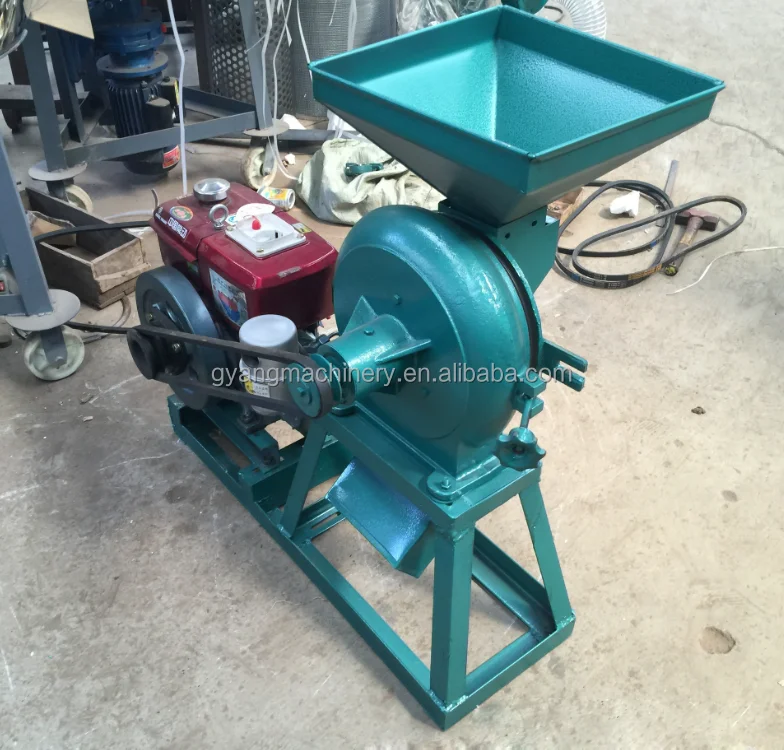

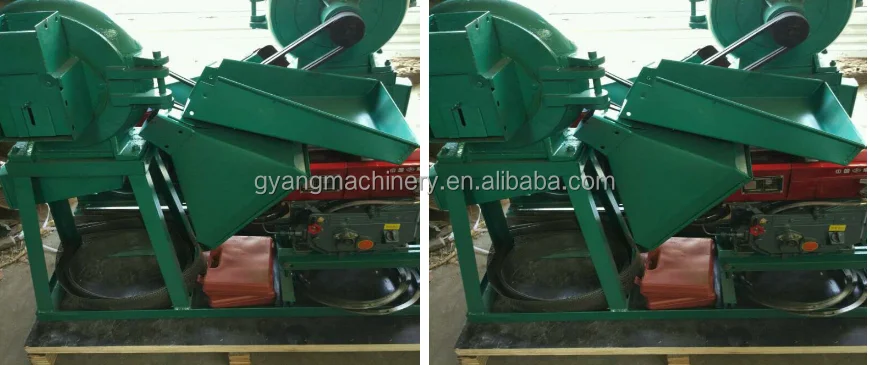

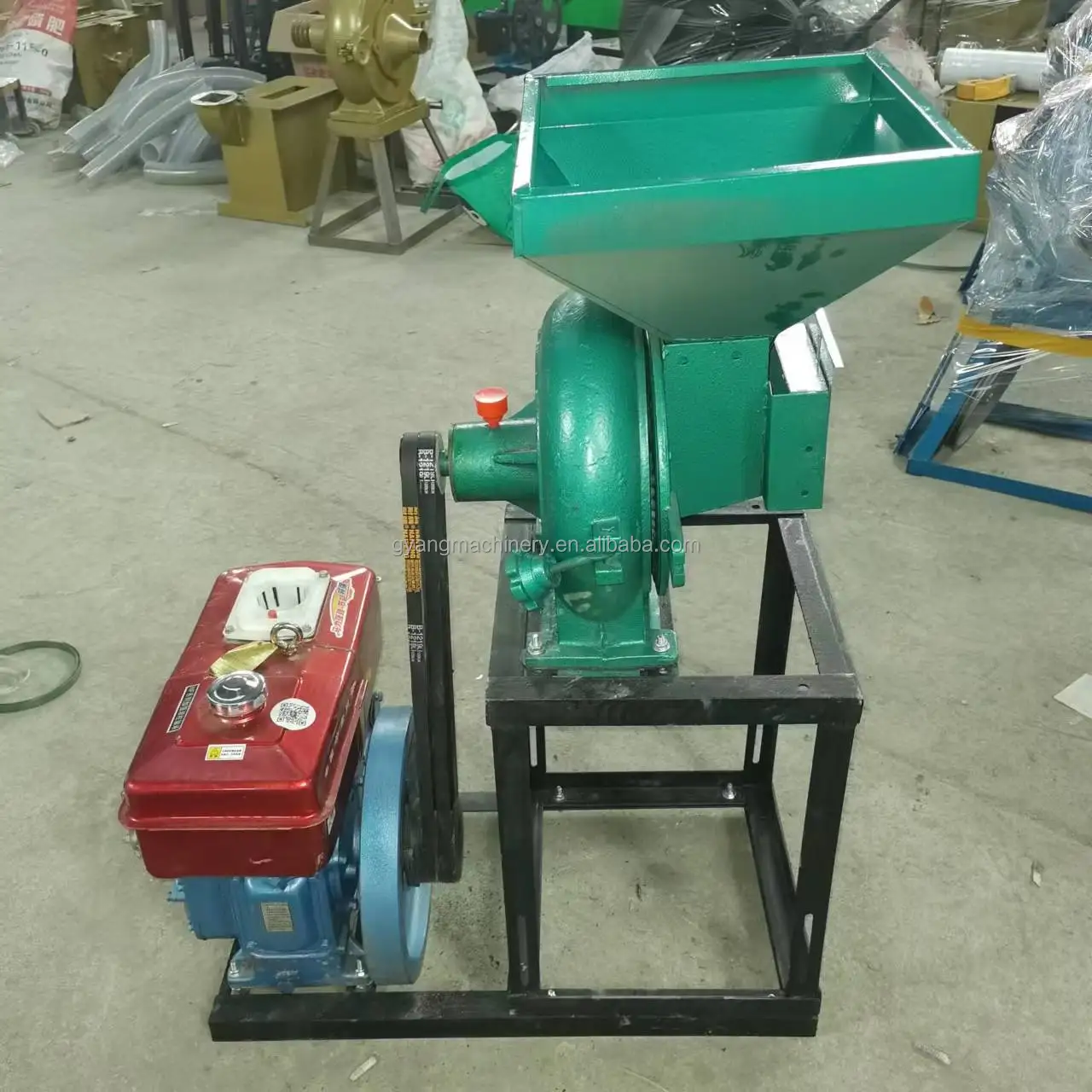

Details Images

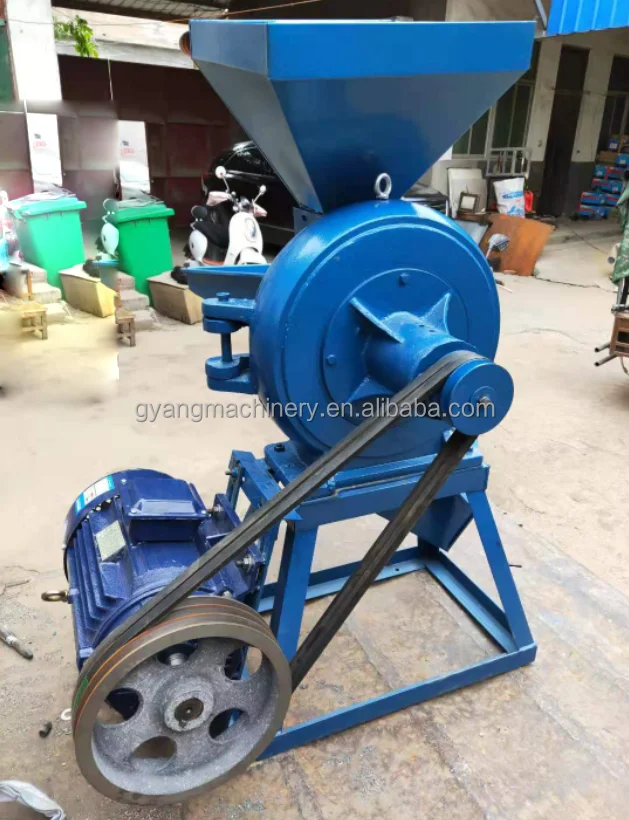

Machine principle:

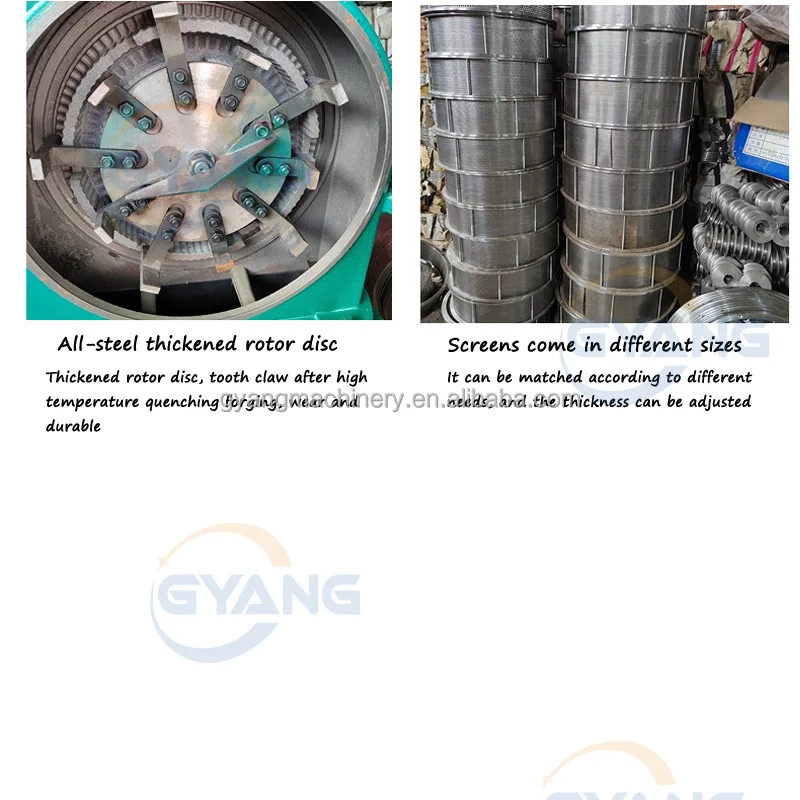

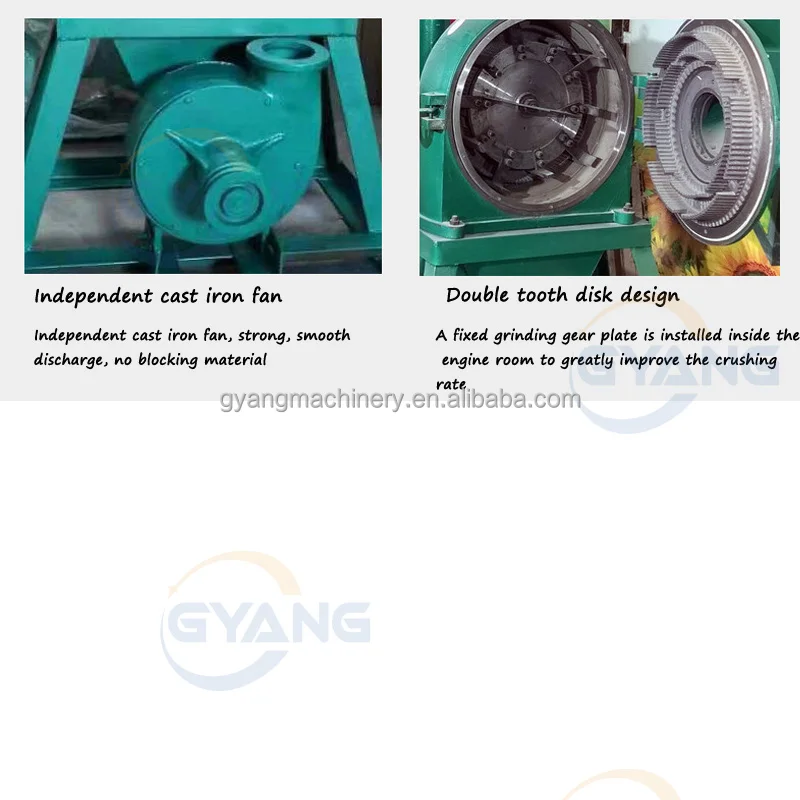

The machine is mainly composed of the upper body, cover, rotor assembly, screen, feeding device, frame and other six parts, the body and rotor assembly together form the crushing chamber, the rotor assembly room is the main working parts, the material crushing is completed in the crushing chamber. When the material enters the crushing chamber, it is rapidly broken into fine powder and paste under the action of the circular teeth and flat teeth, and discharged through the screen hole through the discharge port under the action of centrifugal force and air flow.
The machine is mainly composed of the upper body, cover, rotor assembly, screen, feeding device, frame and other six parts, the body and rotor assembly together form the crushing chamber, the rotor assembly room is the main working parts, the material crushing is completed in the crushing chamber. When the material enters the crushing chamber, it is rapidly broken into fine powder and paste under the action of the circular teeth and flat teeth, and discharged through the screen hole through the discharge port under the action of centrifugal force and air flow.

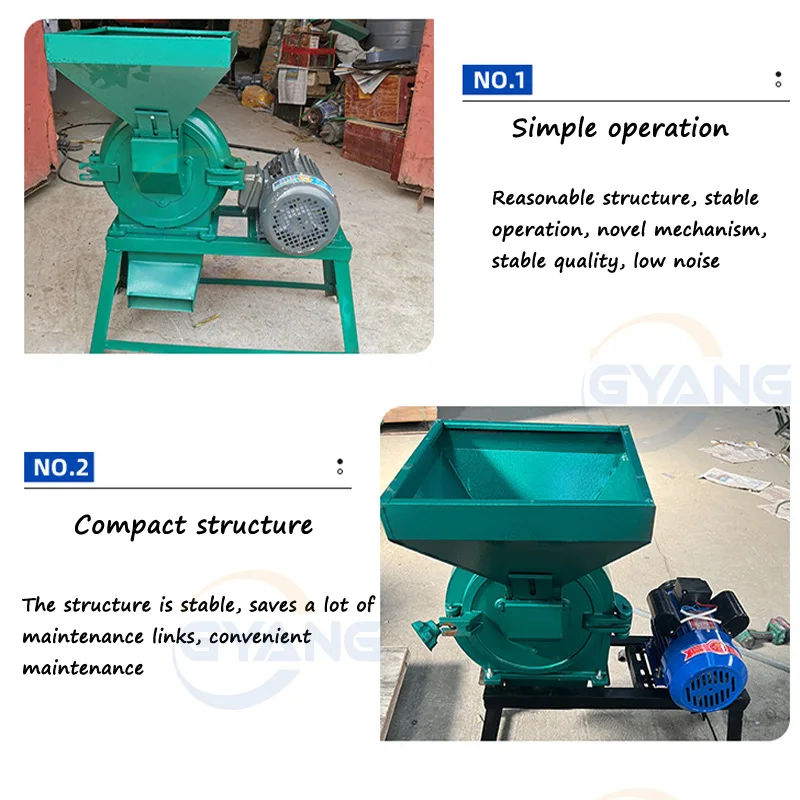

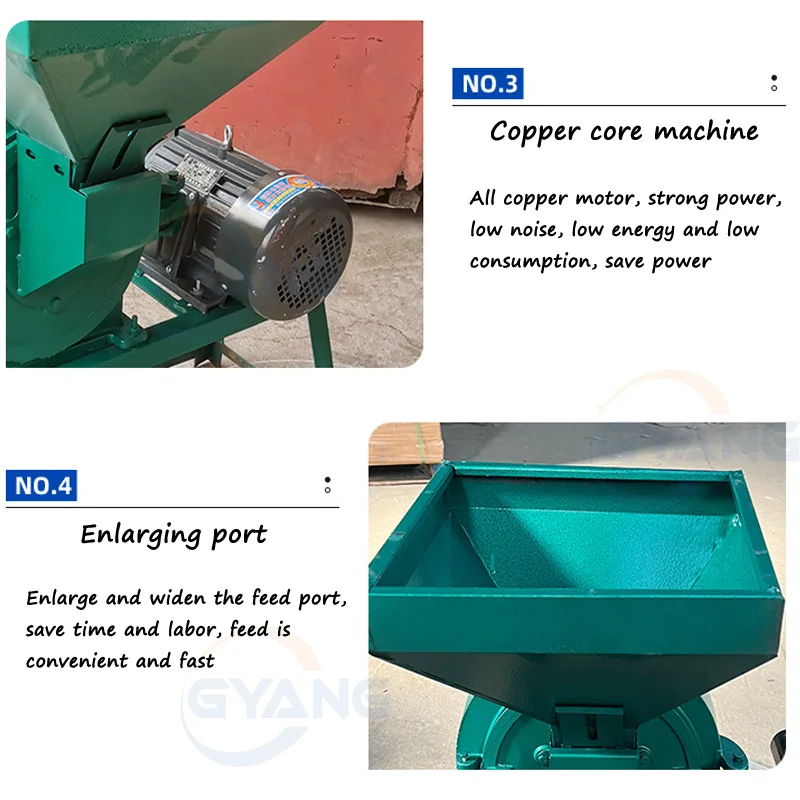

The machine has the advantages of advanced design, reasonable structure, reliable performance, convenient use and maintenance, less power consumption, small footprint and high production efficiency.
The machine has the advantages of small size, high efficiency, convenient operation and maintenance, simple process configuration, low power consumption, built-in rotor, grinding without dead Angle, and more uniform finished particle size.
Body insert seal, completely avoid dust spill, clean working environment.
This machine can be used for ordinary crushing, fine powder and micro crushing
The fineness of the material crushed by this machine is determined by the size of the screen aperture.
Customers can reasonably choose screens according to the granularity requirements of raw materials.
The main working parts of the machine are the flat teeth on the installed rotor. The round teeth can crush all kinds of granular raw materials. It is an economical crushing equipment widely used at present, with the advantages of small size, light weight, easy installation, operation and maintenance, and high production efficiency.
Product Packaging And Shipping
1. We will send you the photos and videos of the machine before delivery. After the machine is confirmed that there is no problem, it will be packed and shipped.
2. Our machines are packed in standard export wooden cases and cartons. If it is a large machine and a production line machine, we recommend that you use a small container.
3. When the machine sails, we will send you the customs clearance information and documents to help you smooth customs clearance. We will also send you the tracking information of the shipment so that you can keep track of the shipment status at all times.
2. Our machines are packed in standard export wooden cases and cartons. If it is a large machine and a production line machine, we recommend that you use a small container.
3. When the machine sails, we will send you the customs clearance information and documents to help you smooth customs clearance. We will also send you the tracking information of the shipment so that you can keep track of the shipment status at all times.

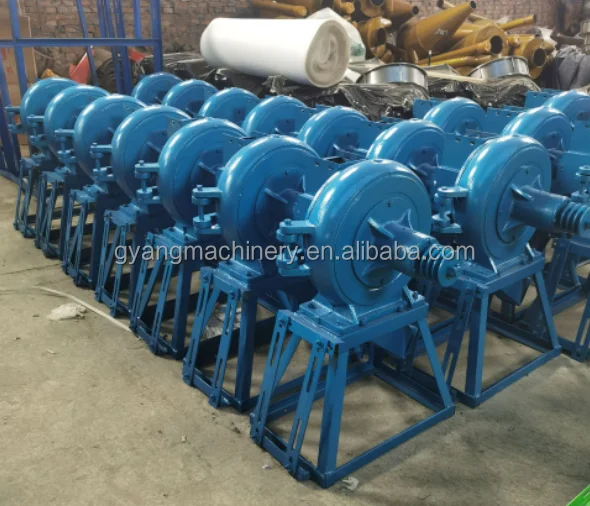

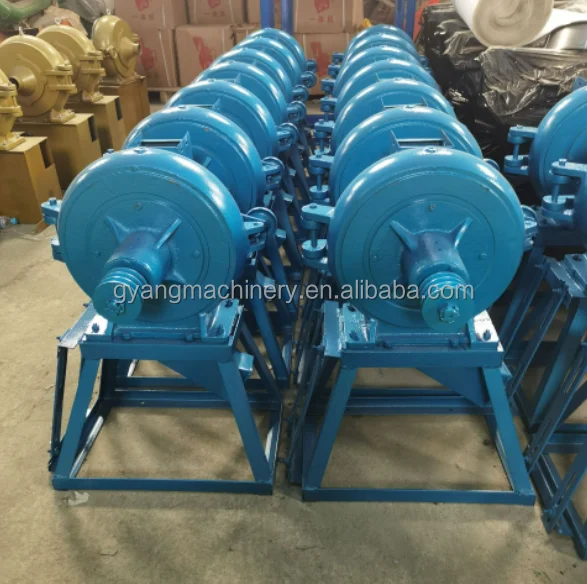

Our Factory
Why Choose Us
Our products has passed ISO 9001 International Quality Management System Certification and is exported to America, Canada, Chile, Indonesia, Cambodia, Malaysia, Kenya.Britain, Thailand, Egypt, South Korea, Spain, Ukraine, Argentina,Netherlands, Japan, Germany, Australia, France, Italy, Mexico, South Africa, Turkey, Romania, Sweden, Finland, etc. about more than 60 countries and area. We have won good reputation depends on our best qualified products and after-sales.Professional Corn Flour Mill/ Grain Mills For Sale/ Small Agricultural Diesel Maize Milling Machine
