Factory Wholesale CE RoHs Gold Plated Waterproof Connector Panel Mount M5 4 Pin solder cup IP67 Plug Male Connector
- Category: >>>
- Supplier: Dongguan Yuefeng Electronic Technology Co. Ltd.
Share on (1601267786299):
Product Overview
Description
Product Description

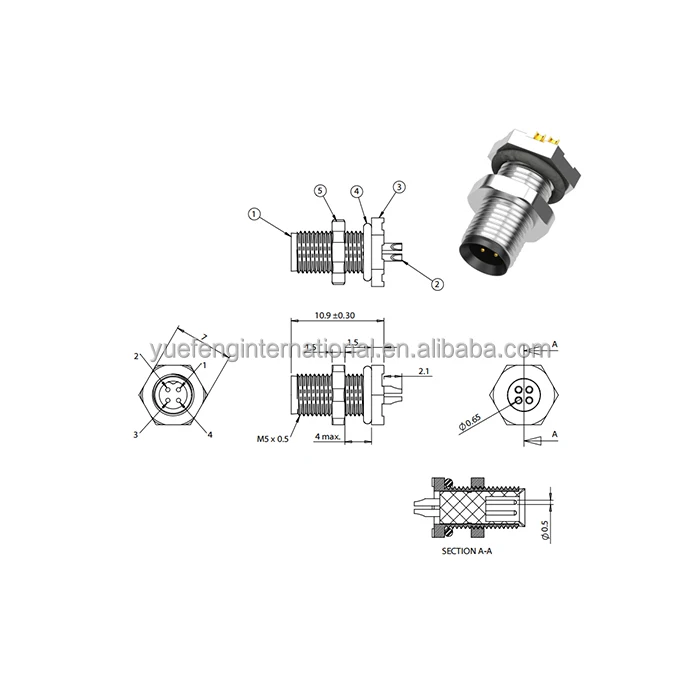

Factory Wholesale CE RoHs Gold Plated Waterproof Connector Panel Mount M5 3 Pin PCB IP67 Plug Male Connector

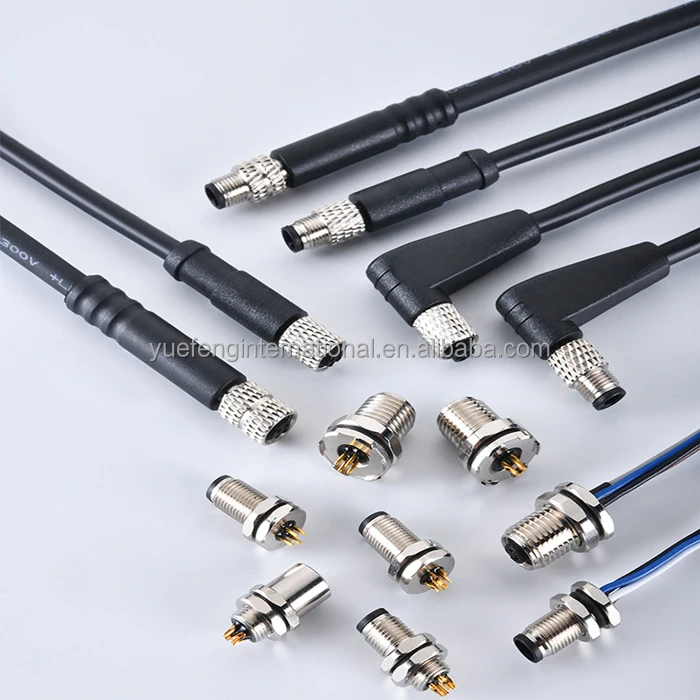

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC
overmolded or supplied with attached wire leads.
PUR or PVC overmolded
Threaded nut immune to vibration
Degree of protection IP 67
Available with 3 or 4 poles
Cable length 1m, 2m, 3m (PUR) or upon customized specification
overmolded or supplied with attached wire leads.
PUR or PVC overmolded
Threaded nut immune to vibration
Degree of protection IP 67
Available with 3 or 4 poles
Cable length 1m, 2m, 3m (PUR) or upon customized specification
- Female/Male, shielded(solder, screw, panel mount type), molded, field assembly and panel mount types
- gold plated, plug pcb connector for industry
- Inserts : PA/ PBT UL94-V0, pcb power connector assembly
- Shielded or unshielded available
- IP 67 in locked condition
- IEC61076-2-105 standard
- gold plated, plug pcb connector for industry
- Inserts : PA/ PBT UL94-V0, pcb power connector assembly
- Shielded or unshielded available
- IP 67 in locked condition
- IEC61076-2-105 standard
Specification
Standard | IEC 61076-2-101 |
Orientation | Straight |
Overmold/ Shell | Metal shell |
Connector contacts | Brass with gold plated |
Ambient temperature | -40°C ~ + 105°C |
Insulation resistance | ≥100 MΩ |
Contacts resistance | ≤ 10 mΩ |
Durability | >5000 cycles |
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
