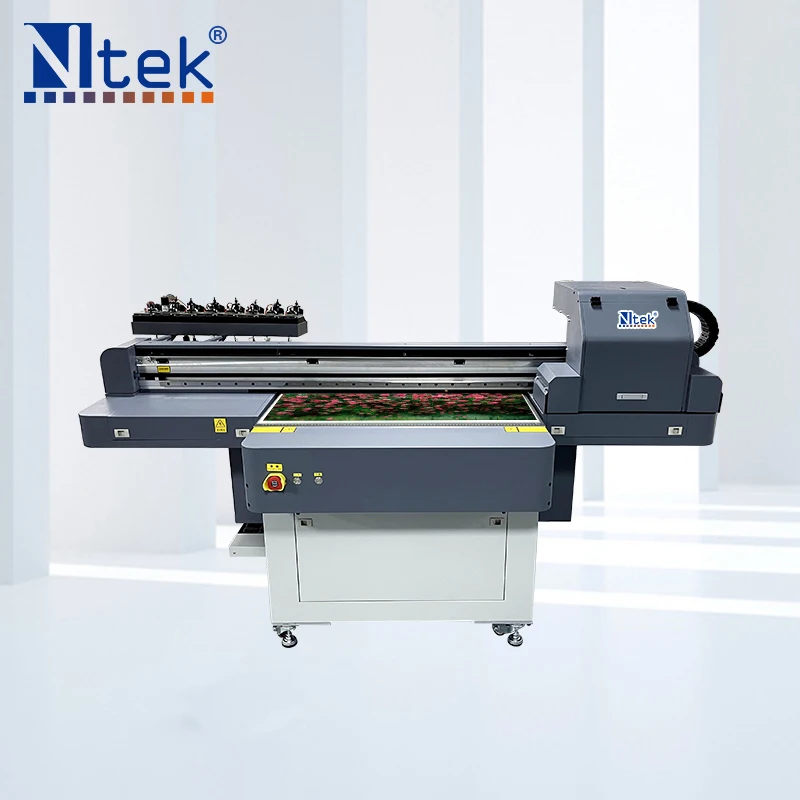

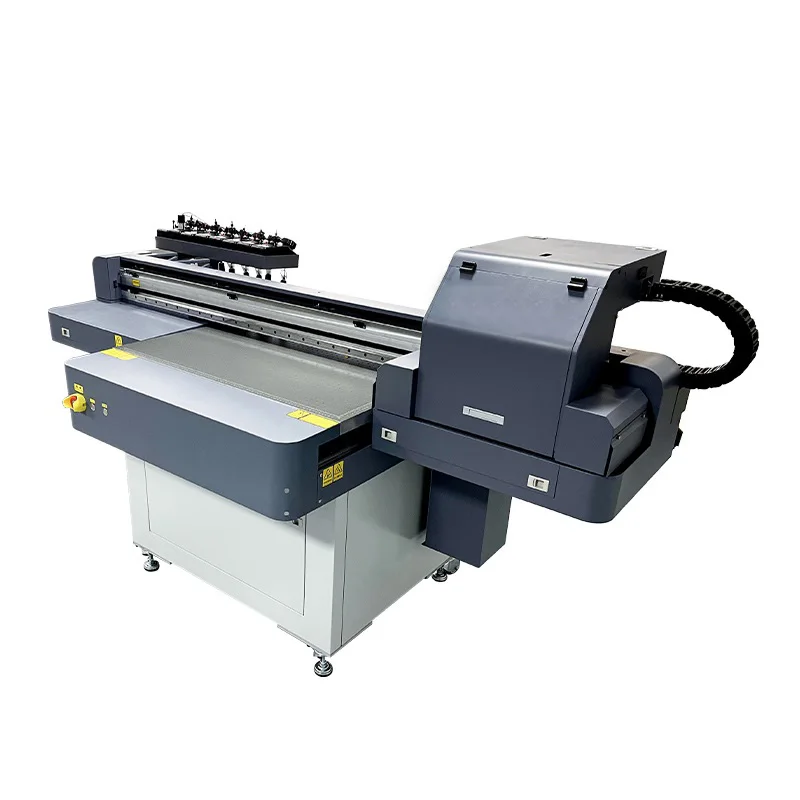

6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer
6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer

6090 UV Flatbed Printer 9060 Bottle Printing Machine DTF Printer

Share on (1601267907491):


Price:$1,980.00 - $2,280.00

Quantity:


Product Overview

Description



Products Description

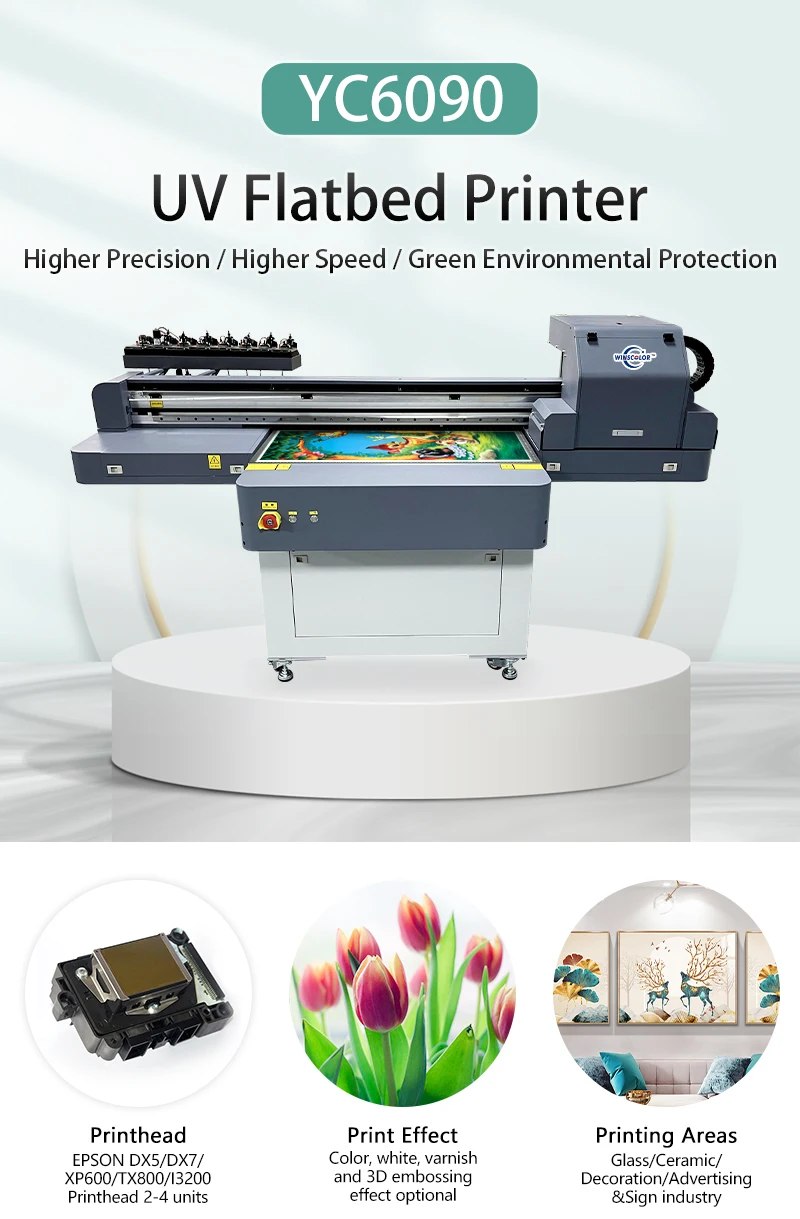

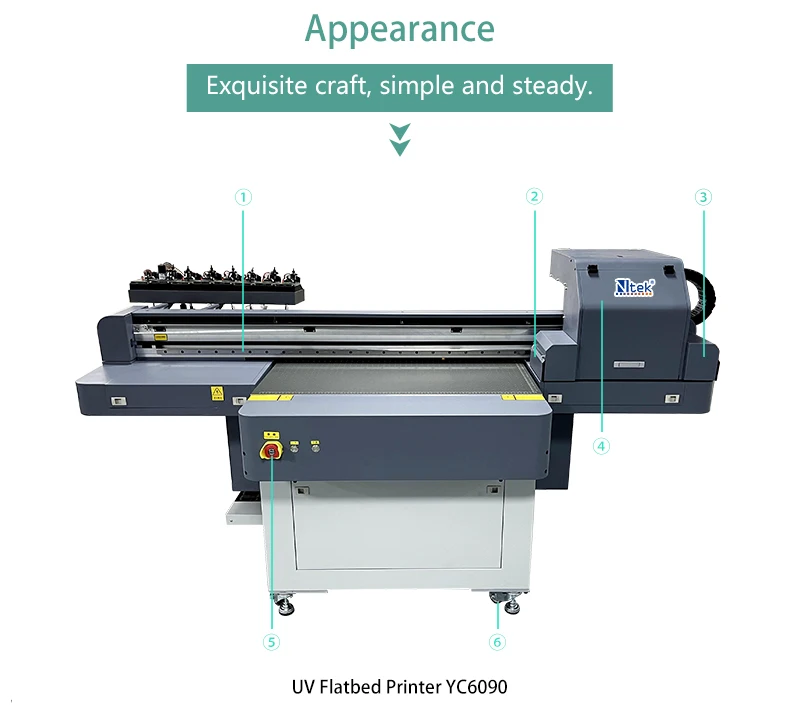

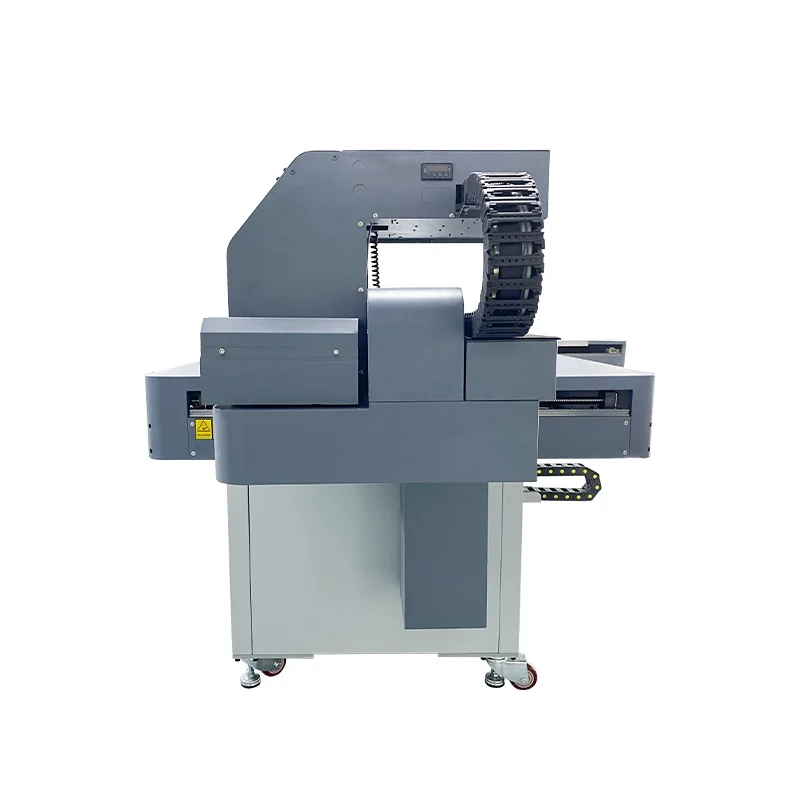

YC6090 UV Flatbed Printer
①Taiwan Hiwin Guide rail
④Industrial Printhead
②Anti-static, Anti-crash
⑤Switch and power switch area
③ UV LED Lamp
⑥Universal Wheel






Product Paramenters


Specifications
Product Model
YC6090
Printhead Type
EPSON
Printhead Number
2-4 heads
Ink Characteristics
UV Curing Ink (VOA Free)
Ink reservoirs
Refillable on the fly while printing/2500ml per color
LED UV Lamp
more than 30000-hours life
Printhead arrangement
CMYKW V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
ROUST mute
Working Table
Vacuum Sucking
Printing Size
900*600mm，a1 a2 a3 a4
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
4-16sqm/h
720X900dpi
6PASS
3-11sqm/h
720X1200dpi
8PASS
2-8sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
RIP/Photoprint optional
Power Supply
220V 50/60Hz(10%)
Power
3100W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%

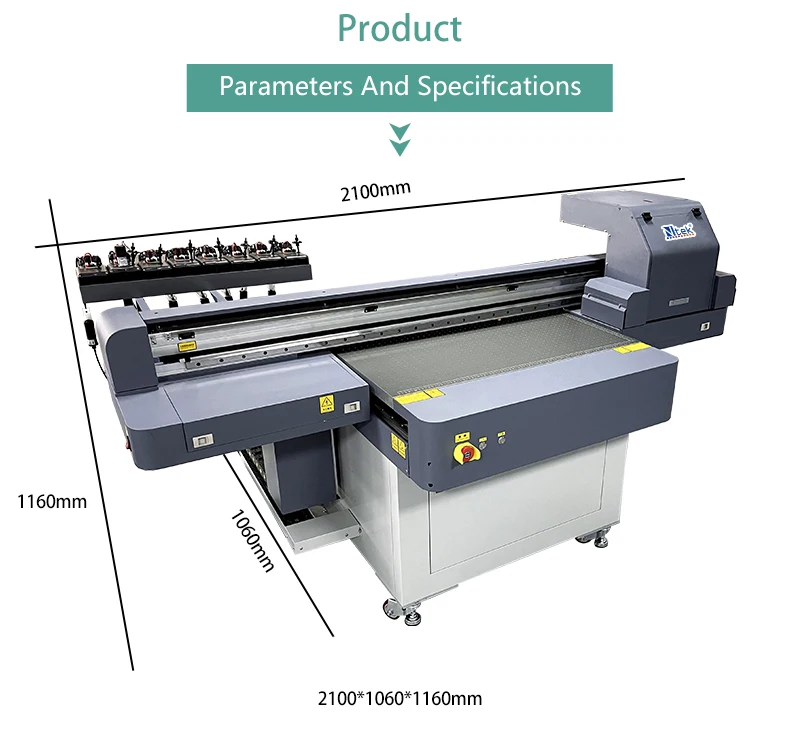

Machine Dimension
2100*1060*1160mm
Packing Dimension
2435*1225*1335mm
Weight
400kg
Warranty
12 months exclude the consumables
Above specification subject to change without notice beforehand


Machine Details

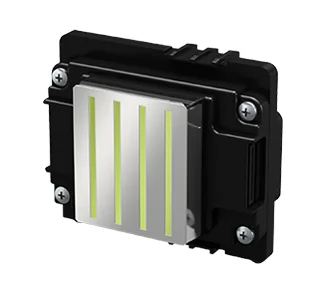

Epson Print Head
6090 printer pquiped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-precision printing.

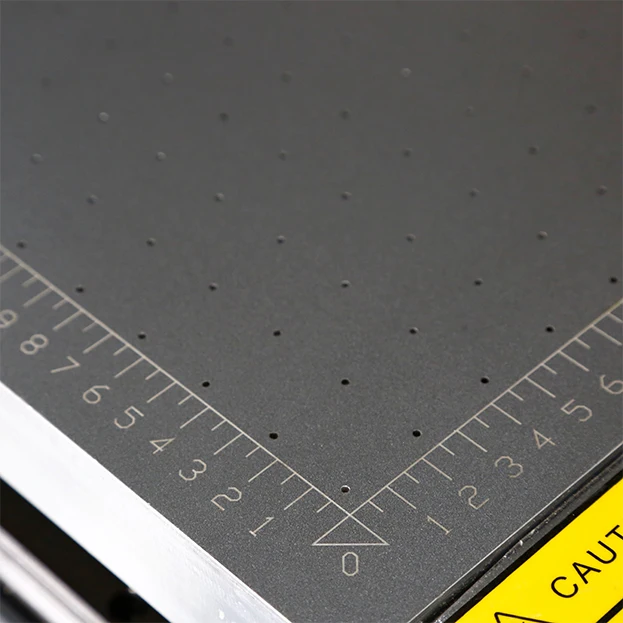

Vacuum Suction
The vacuum suction platform of 9060 uv flatbed printer is easy to operate and save energy,good for vario-us sizes of personalized printing; With full cover for bleeding printing, it will im-prove the utilization of materials.

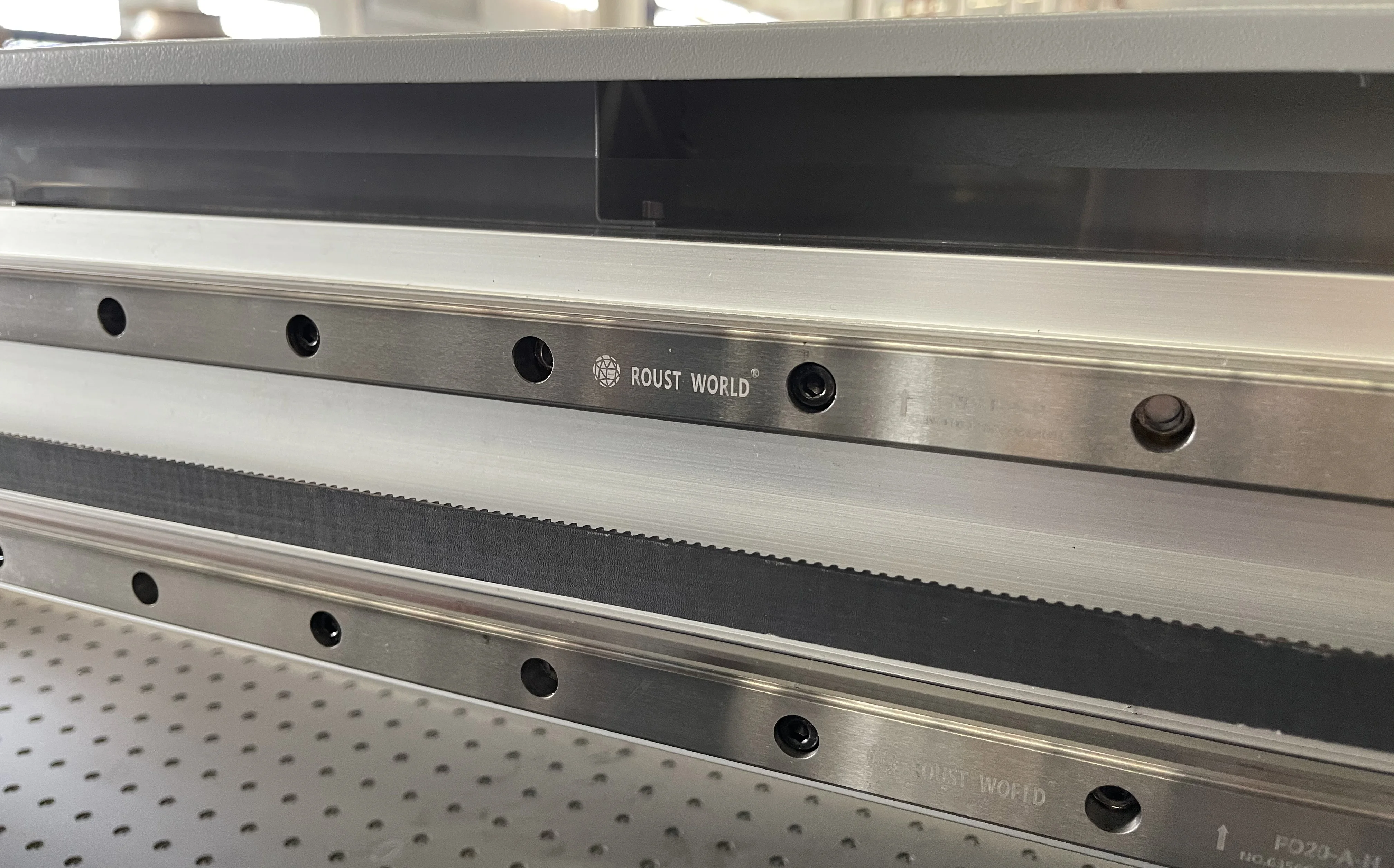

High Precision Mute
Linear Guide Rail
Our 6090 uv printer use high precision mute liner guide rail, long service life, high stability,immensely
decrease noise while printer is printing,
within 40DB while printing.





Customized Rotary Device
The rotary device of our 9060 bottle printing machine is mounted above the vacuum suction platform, which realize both the flat material and Cylinder obje-cts printing, like bottle or cup. And, the rotary device can be customized accor-ding to customer's need.




Lift Cap Station System
Temperature Control System
Korea UV LED Lamp




Automatic height measurement
Antistatic System
Customized Rotary Device




EPSON Nozzle

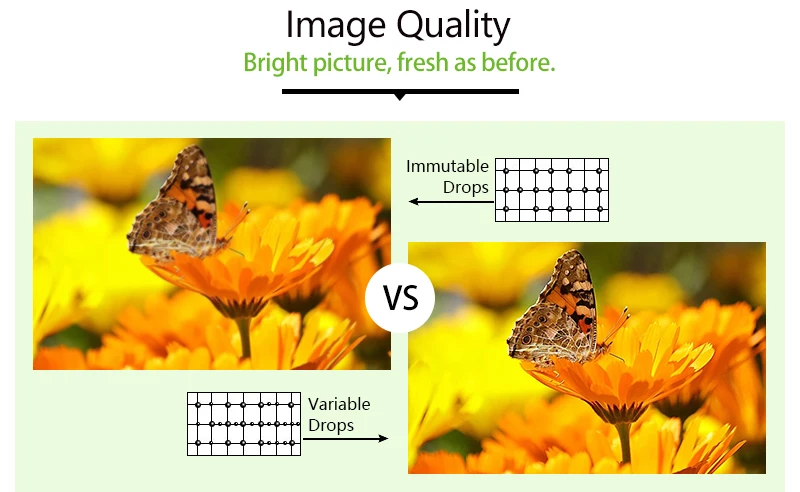

Our 6090 uv flatbed printer adopt Epson piezoelectric nozzle, the accuracy can reach 2160dpi, the new variable ink drop technology, provide 3/3.5pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

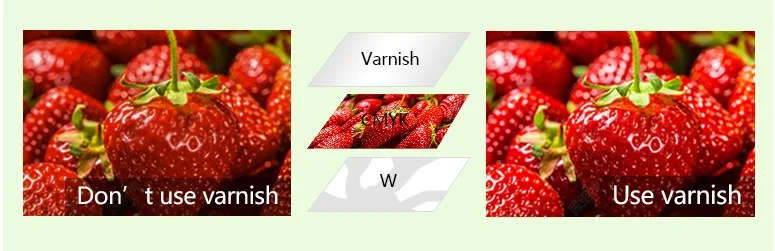

CMYK+W+V ALL three colors at once
The use of gloss oil of our 9060 uv flatbed printing machine makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.


Printing Samples




Glass Photo
Advertising Sign
Plastic


Photo Case
Floor Mat
Ceramic


Wood
Pen
Car Sticker


Wall Background
Glass Cup
Mouse Pad


Company Profile


Jinan Yingcai Digital Technology Co., Ltd
Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City, Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume.
Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed
printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.
Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solu-tions according to different demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.






Winscolor UV Flatbed Printer-Warranty
We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board,control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.


Packing & Delivery




Customer Photos




FAQ


1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1USD per square meter for ink cost.

3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4.How about the maintenance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer has to be responsible for the accommodation and transportation costs of the technical staff.

5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.

7.How can I install and start to use the printer?
Normally we will arrange technician for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48 hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10.What kinds of materials need premier before printing?
Glass, ceramic, metal, acrylic, marble etc
