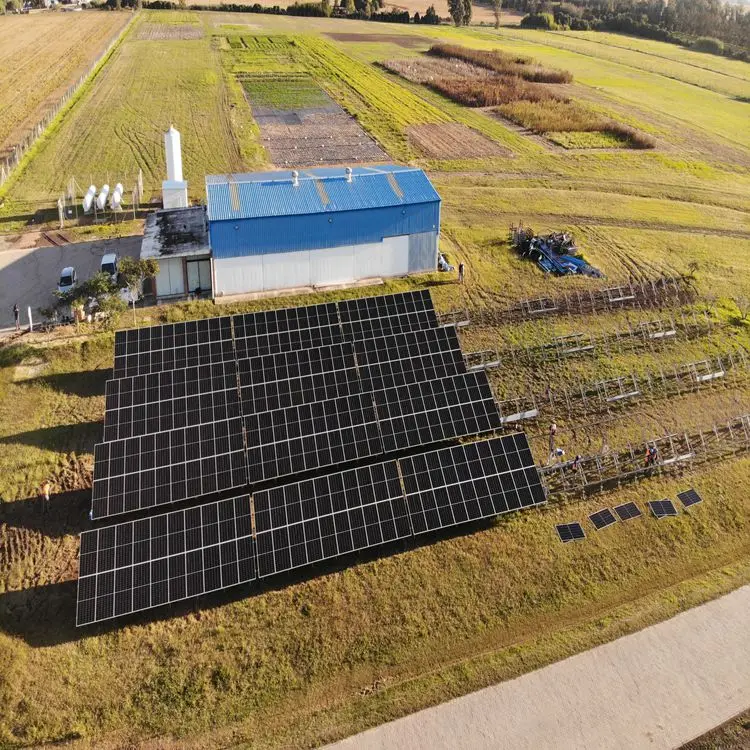

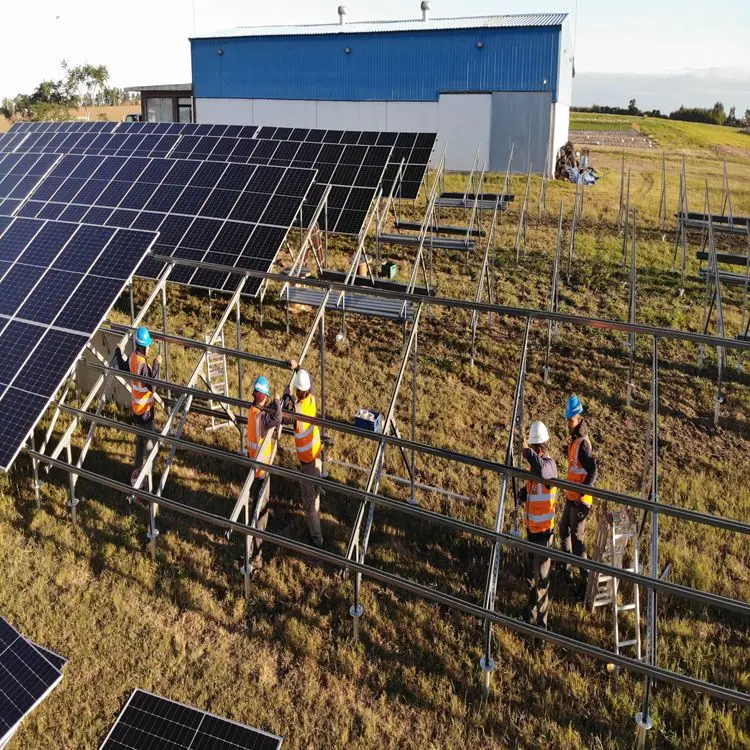

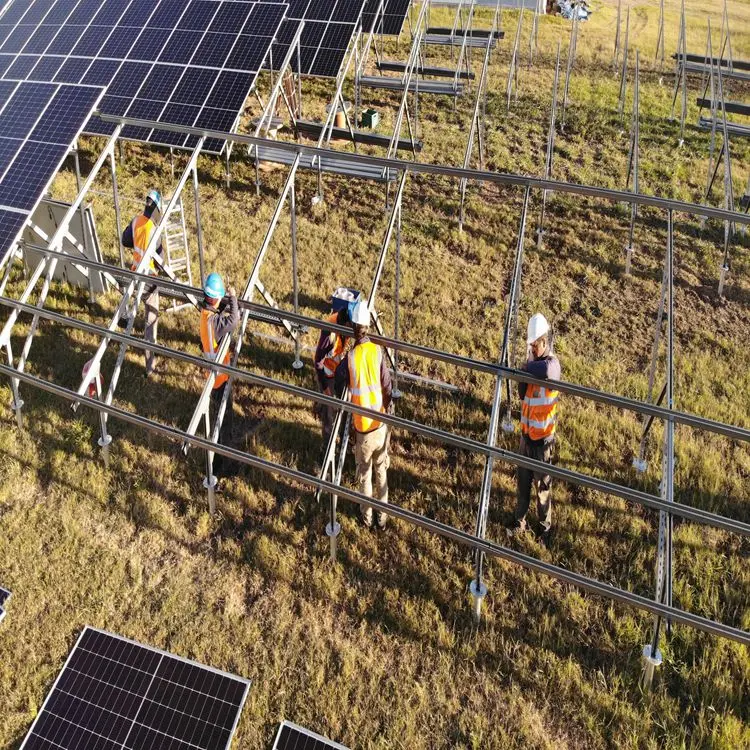

Large Scale Zn al mg Coated Steel Solar Ground Mounting System Solar Panels Ground Installation Tilt Mount Solar Ground System
- Category: >>>
- Supplier: Sunforson Power (Xiamen) Co. Ltd.
Share on (1601267907673):
Product Overview
Description
SunRack ZMA Steel Structure Ground Mounting System
Installation Site | Open ground | Ground clearance | Customized |
Panel | Solar panel for any size | Inclination | Customized |
Structural materials | S350 | Panel direction | Vertical |
Survival wind load | Up to 130mph | Design standard | BS 6399-2-1997 |
Design snow pressure | Up to 30psf(1.4kn/m2) | Warranty | 10 years on Aluminum material |

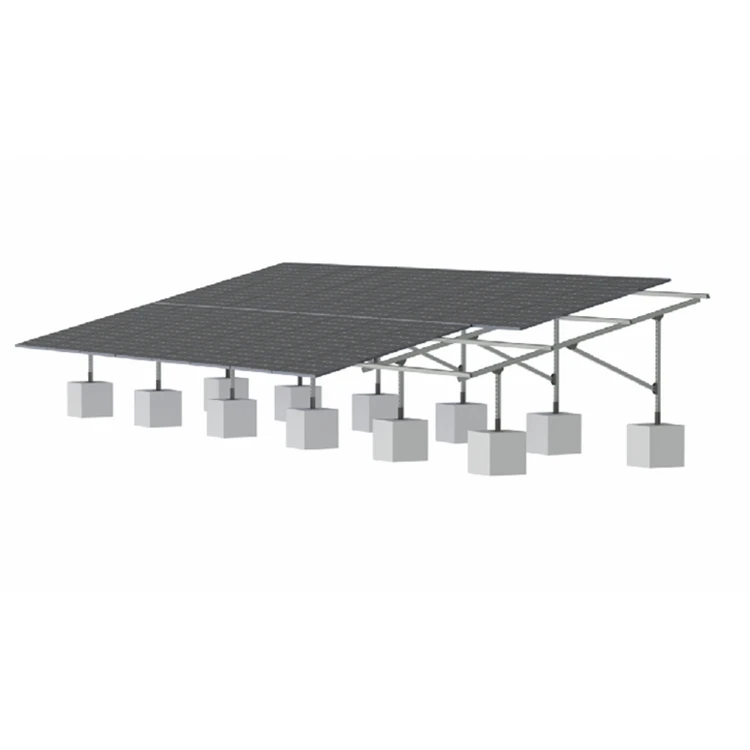

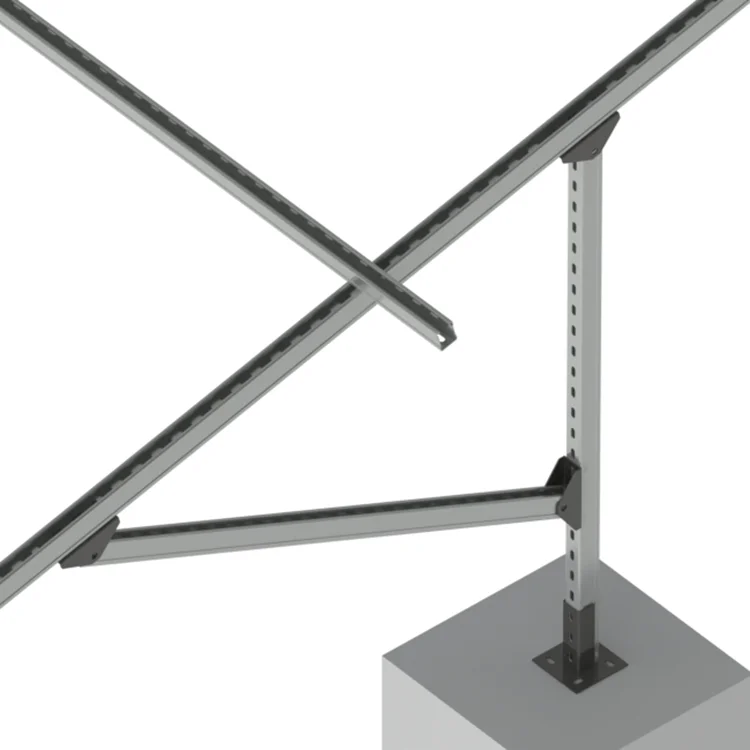

SFS-GM-03V3 SunRack ZMA Steel Structure Ground Mounting System

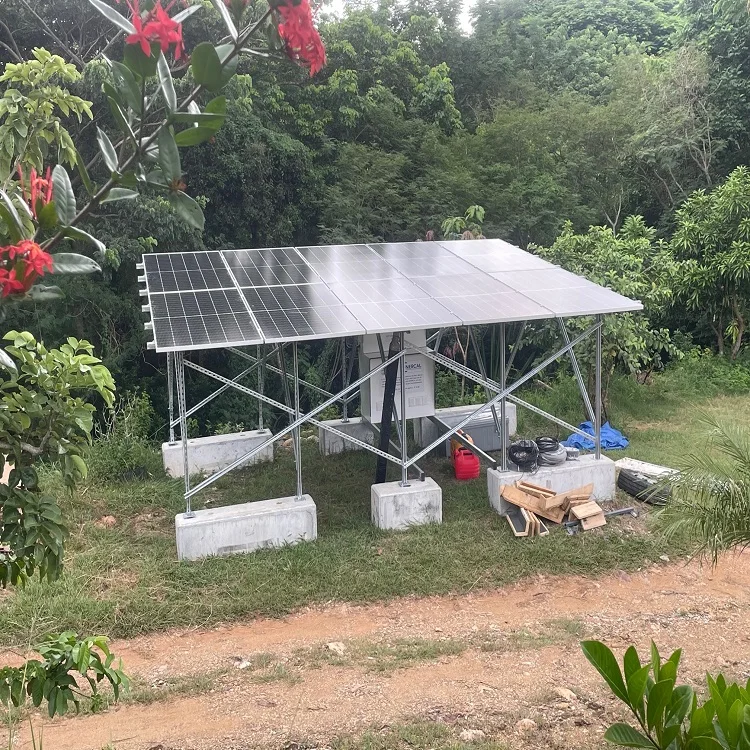

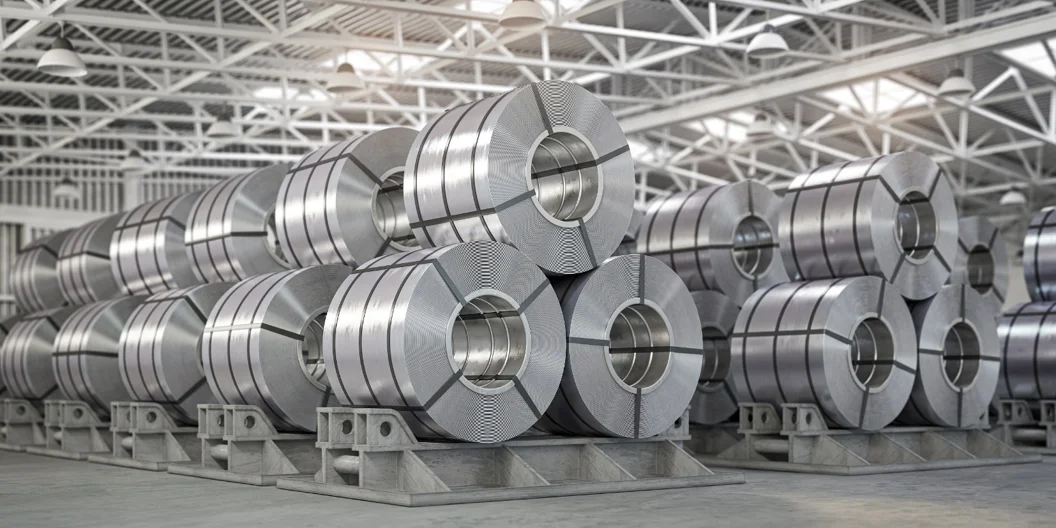

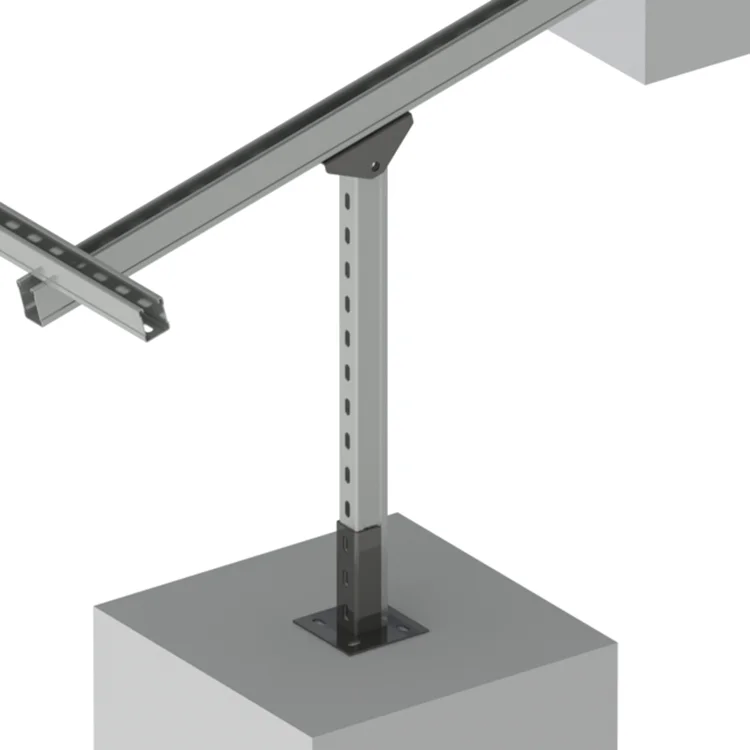

SunRack SFS-GM-03 Solar ground mounting system is manufactured in zinc-Mg-aluminum steel plates and can be used in a variety of conditions using concrete foundations and ground screws for different panel arrays. Using zinc magnesium aluminum steel structure,this floor type has a huge market advantages.
Features

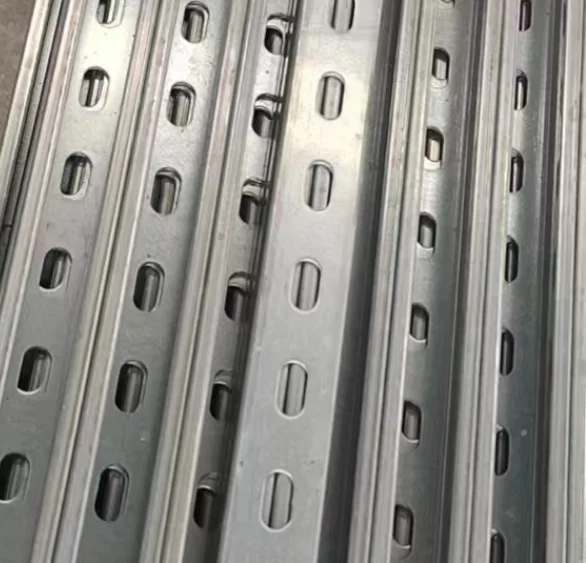

1.100% high strength zinc magnesium aluminum steel plate, good corrosion resistance, but also automatic repair.
2. High competitiveness on material cost.
3. Easy and fast installation with unique design.
4. Good processing performance, environmental protection and long service life.
5. The coating weight is less, and the simplified process eliminates the hot dip plating after forming.
Necessary info. for Sunforson to design and quote the solar mounting structures:
Part 1:
What kind of solar mount do you want?Roof mount,ground mount or carport mount?
Part 2:
1.Solar panels dimension:__mm(Length)x__mm(Width)x__mm(Thickness)
2.The layout of the solar panels__Nos.in a row,__Rows
3.How many panel are you going to install?__Nos
4.Max wind load:__m/s or __km/h or __mph
5.Max snow load:__kn/m2(if have)
Part 3:
6.For pitch roof solar mounting system:
Roof type:tile roof,tin roof,asphalt shingle roof or other?
7.For flat roof mount brackets/ground mount supports/carport mount structures:
1)Ground/flat clearance(Height between lowest point of panel and ground/roof floor):__mm
2)Solar mount installation tilt angle:__degree
