JA Industrial N Type Solar Panels 550W 555Watt 560Watt Monocrystalline Bifacial Solar Modules
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (1601267922522):
Product Overview
Description

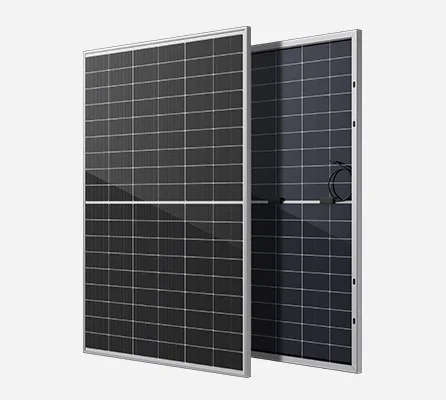

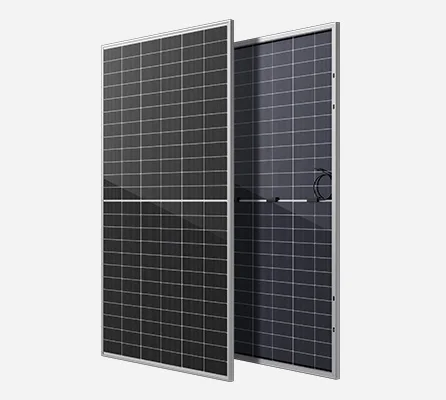

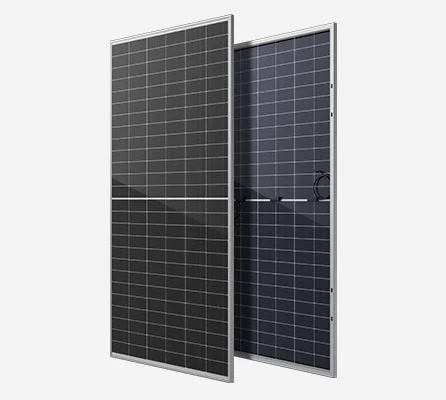

Solar Panel Detail
Specification
Module Type:JAM72D40-xxx/GB | 555 | 560 | 565 | 570 | 575 | 580 | |||||
Maximum Power (Pmax/W) | 555 | 560 | 565 | 570 | 575 | 580 | |||||
Open-circuit Voltage (Voc/V) | 50.85 | 51.08 | 51.30 | 51.52 | 51.73 | 51.95 | |||||
Maximum Power Voltage (Vmp/V) | 43.00 | 43.21 | 43.42 | 43.62 | 43.82 | 44.02 | |||||
Short-circuit Current (Isc/A) | 13.59 | 13.64 | 13.69 | 13.74 | 13.79 | 13.84 | |||||
Maximum Power Current (Imp/A) | 12.91 | 12.96 | 13.01 | 13.07 | 13.12 | 13.17 | |||||
Module Efficiency STC (%) | 21.5 | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | |||||
Power tolerance | 0~+5W | ||||||||||
Temperature coefficients of Isc | +0.046%/°C | ||||||||||
Temperature coefficients of Voc | -0.26%/°C | ||||||||||
Temperature coefficients of Pmax | -0.300%/°C | ||||||||||
STC | Irradiance 1000W/m2, Cell Temperature 25°C, AM1.5G | ||||||||||

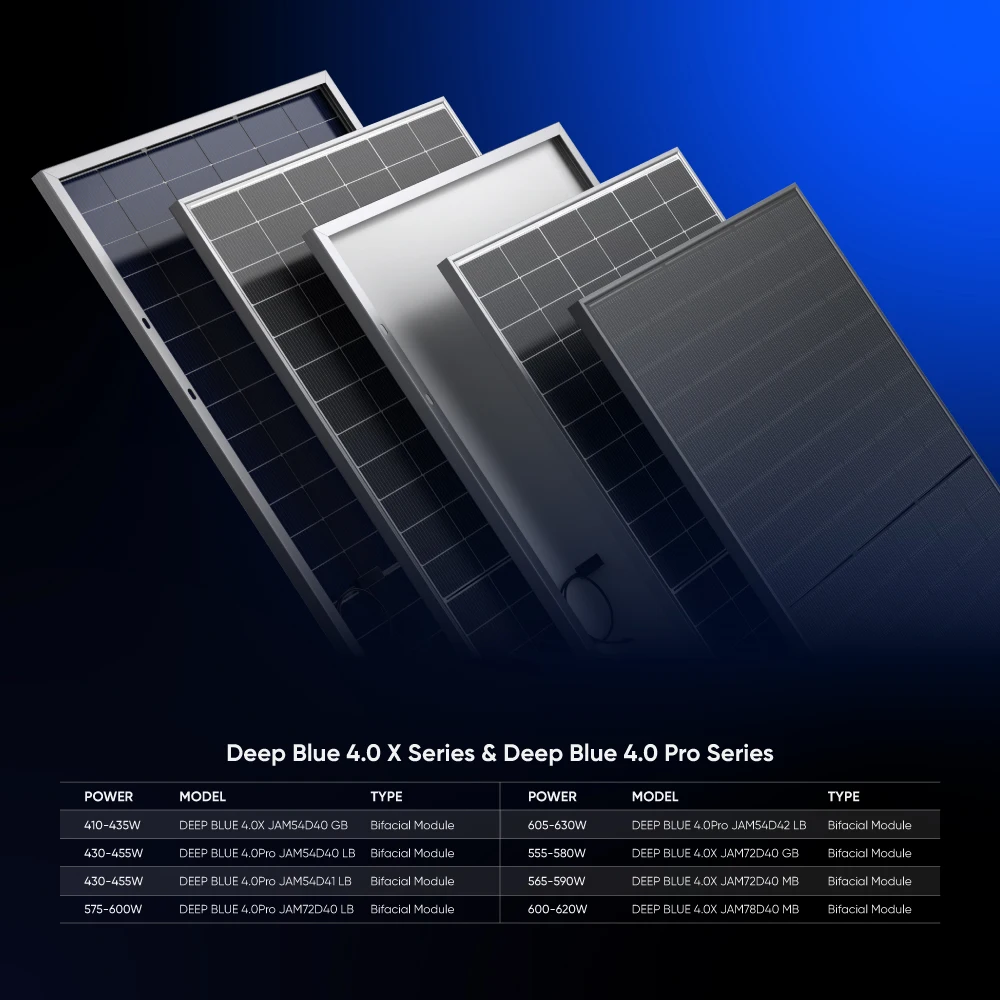

Deep Blue 4.0 & 4.0Pro Series
605~630W Bifacial
JAM72D42 LB
Cells Layout: 144 Half Cells(6x24)Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
600~625W Bifacial
JAM78D42 MB
Cells Layout: 144 Half Cells(6x24)Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
575~600W Bifacial
JAM72D40 LB
Cells Layout: 144 Half Cells(6x24)Dimensions: 2333x1134x30mm
Weight: 32.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
565~590W Bifacial
JAM72D40 MB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

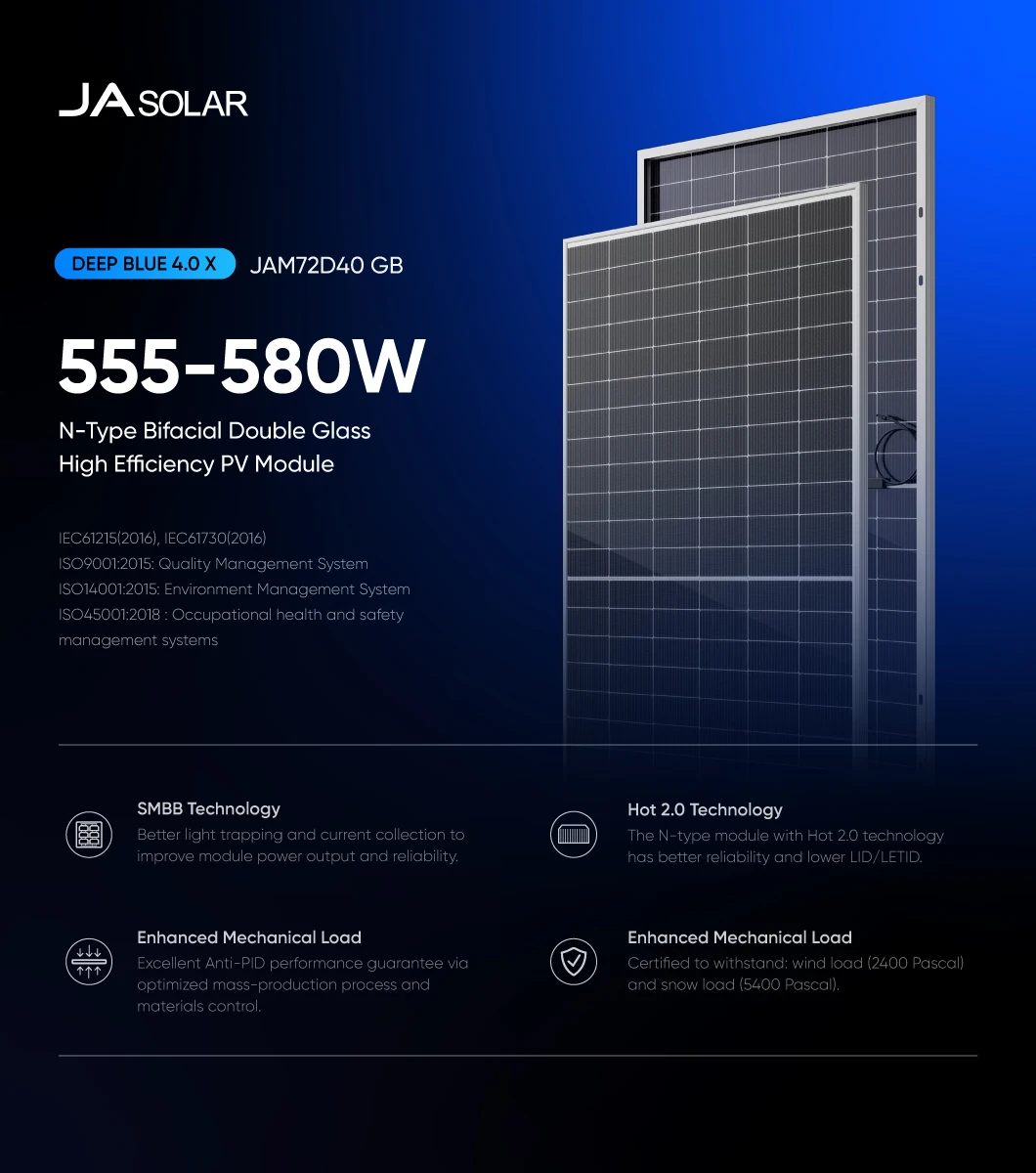

555~580W Bifacial
JAM72D40 GB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
430~455W Bifacial
JAM54D40 LB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

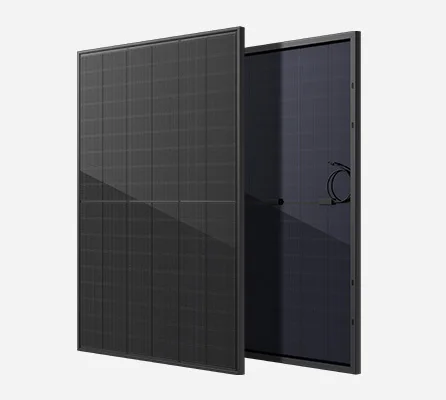

430~455W All Black
JAM54D41 LB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
410~435W Bifacial
JAM54D40 GB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722x1134x30mm
Weight: 21.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1722x1134x30mm
Weight: 21.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

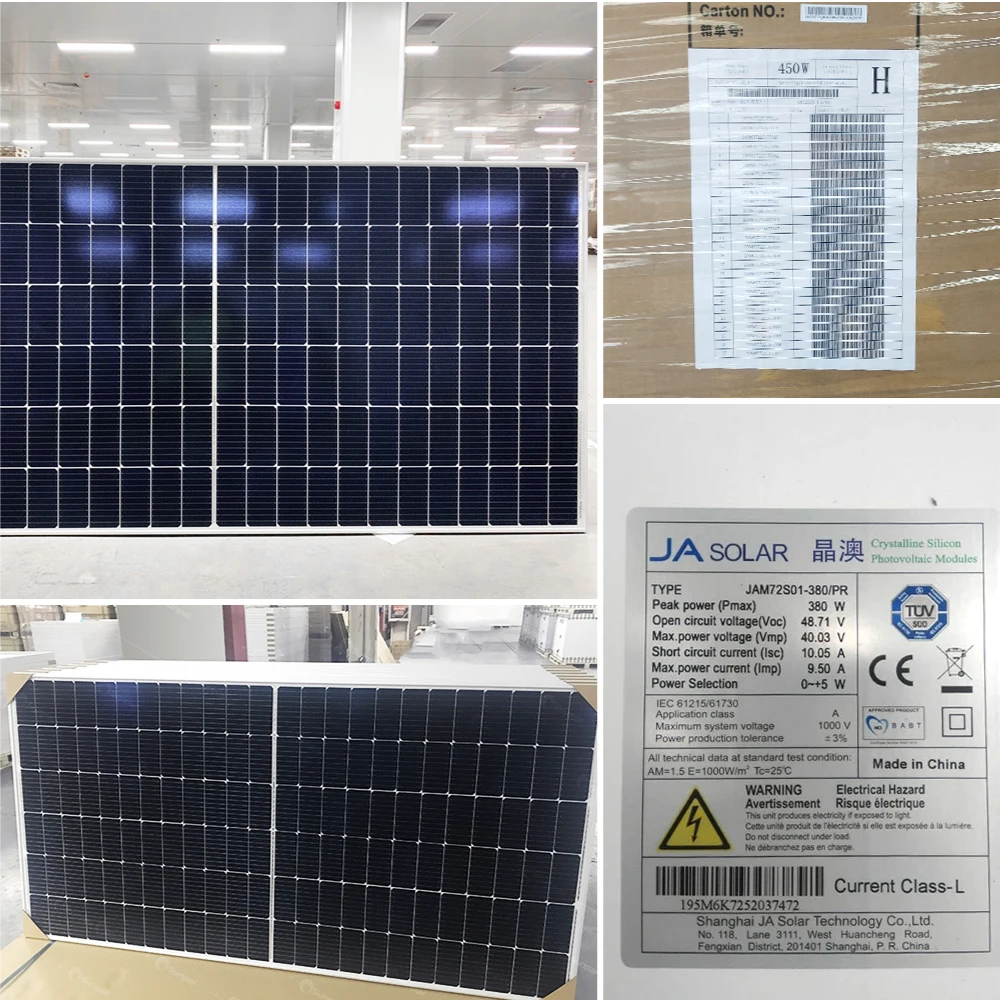

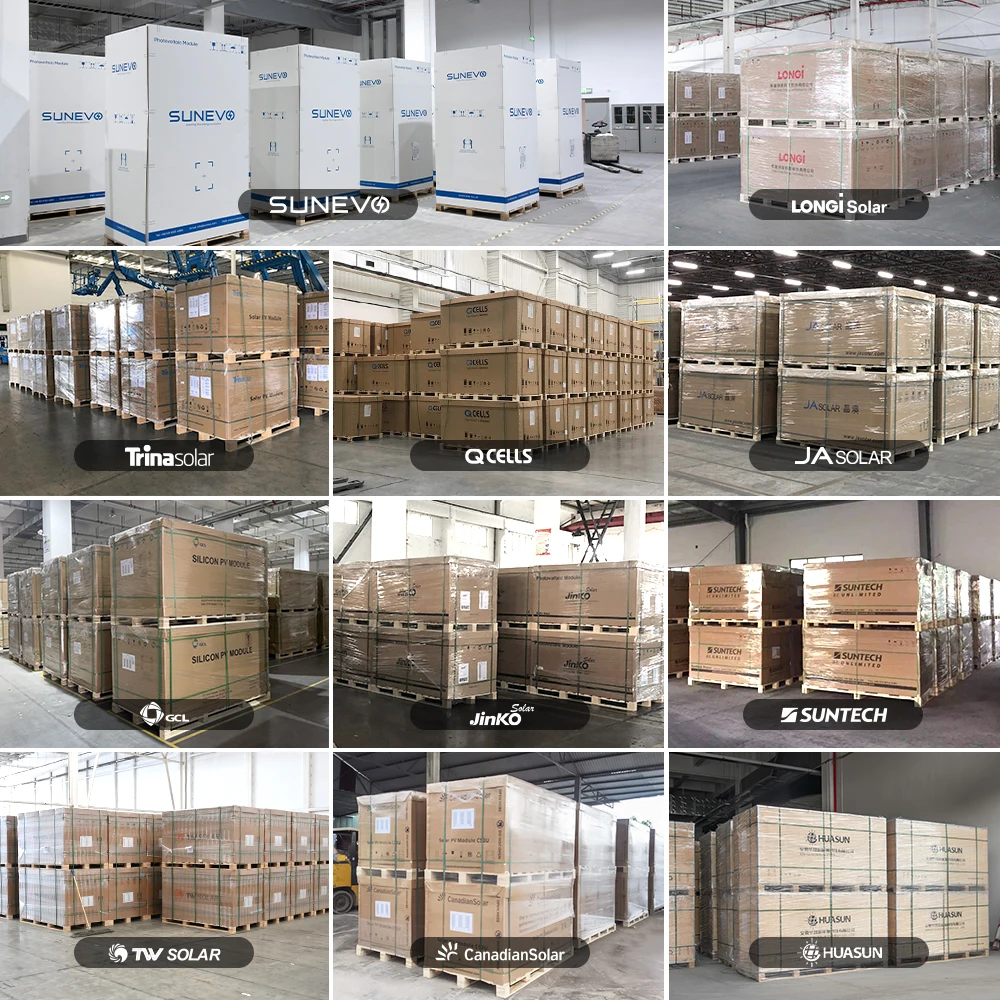

Pictures & Package
Tier 1 Solar Module

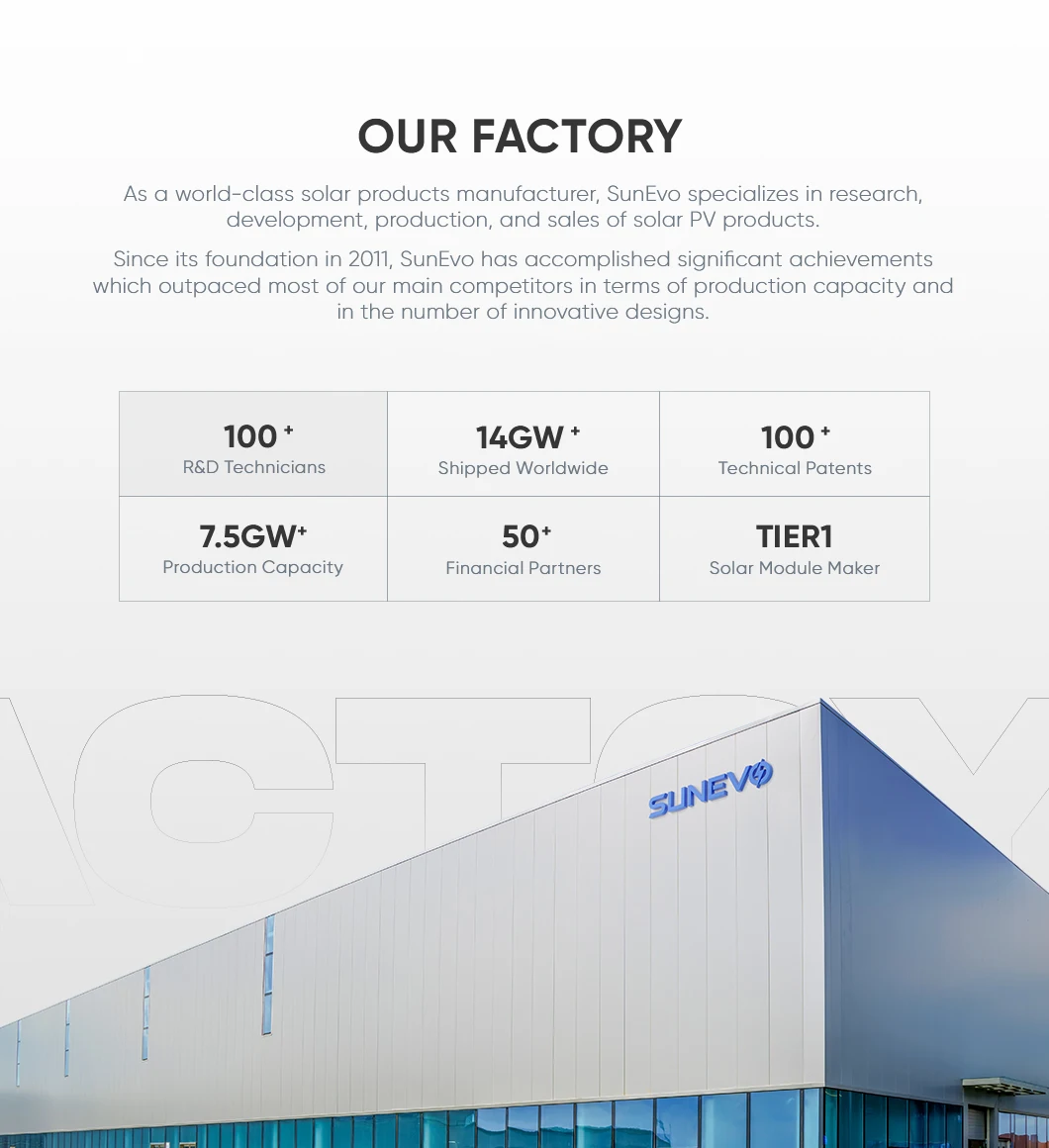

About Us
Certifications
OEM & ODM Services

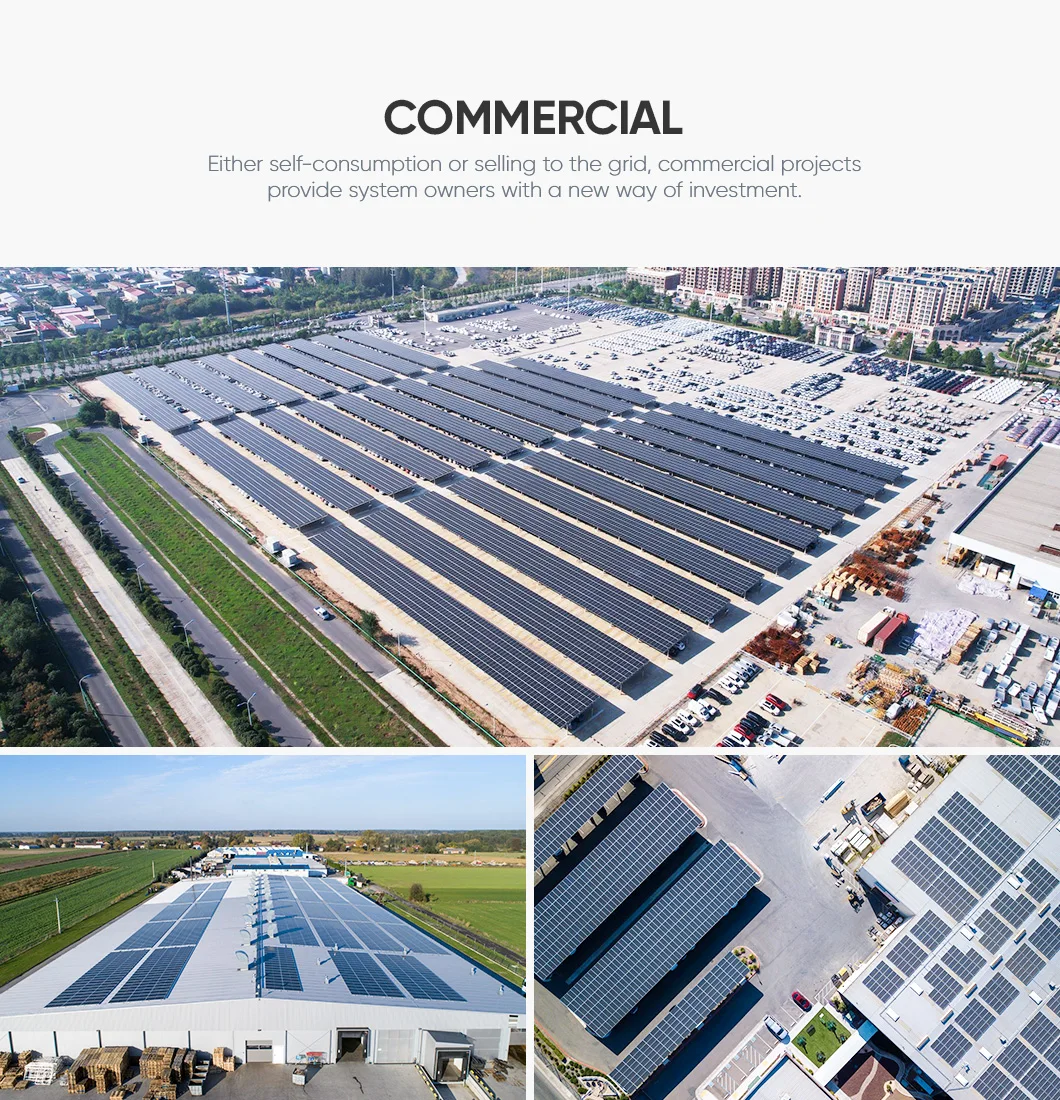

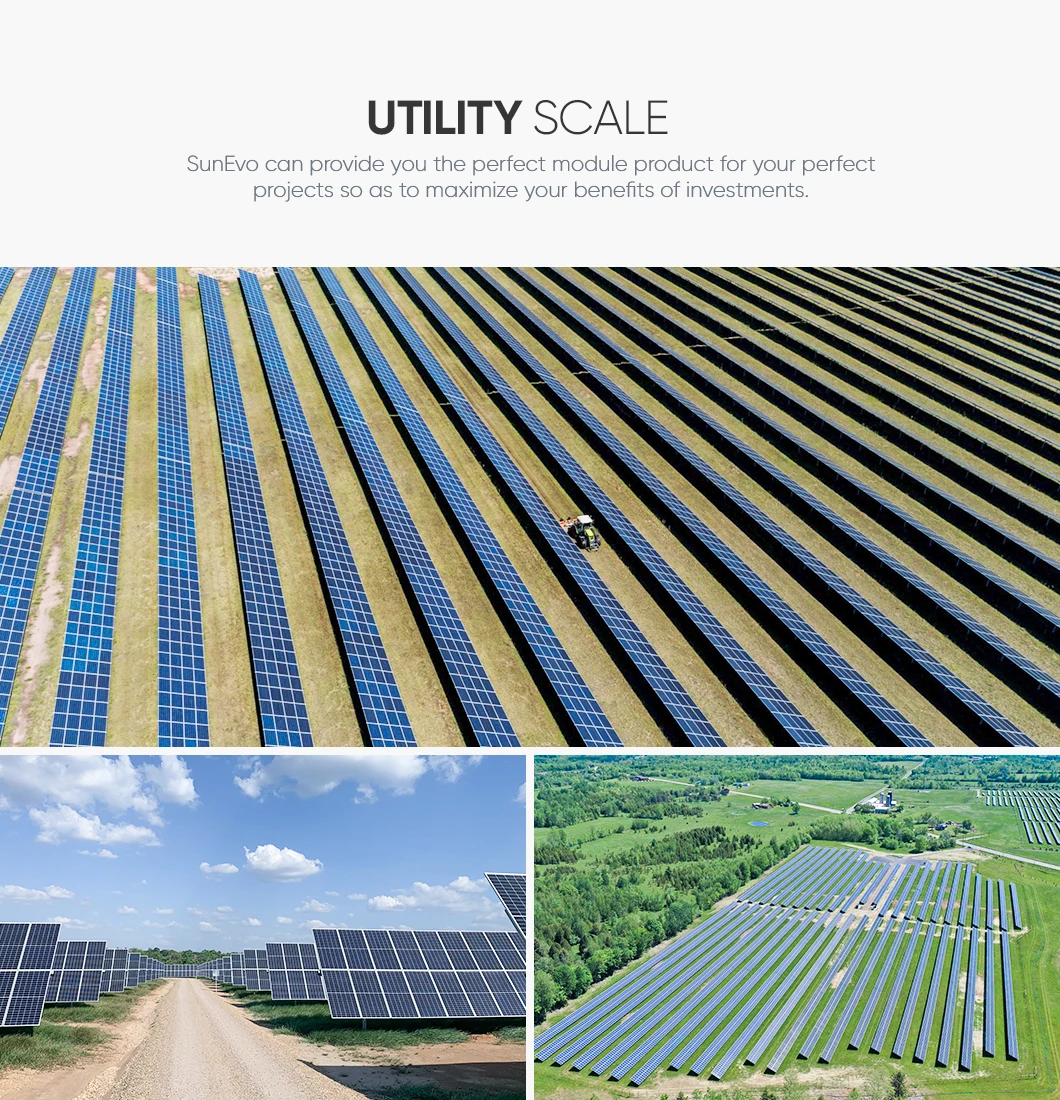

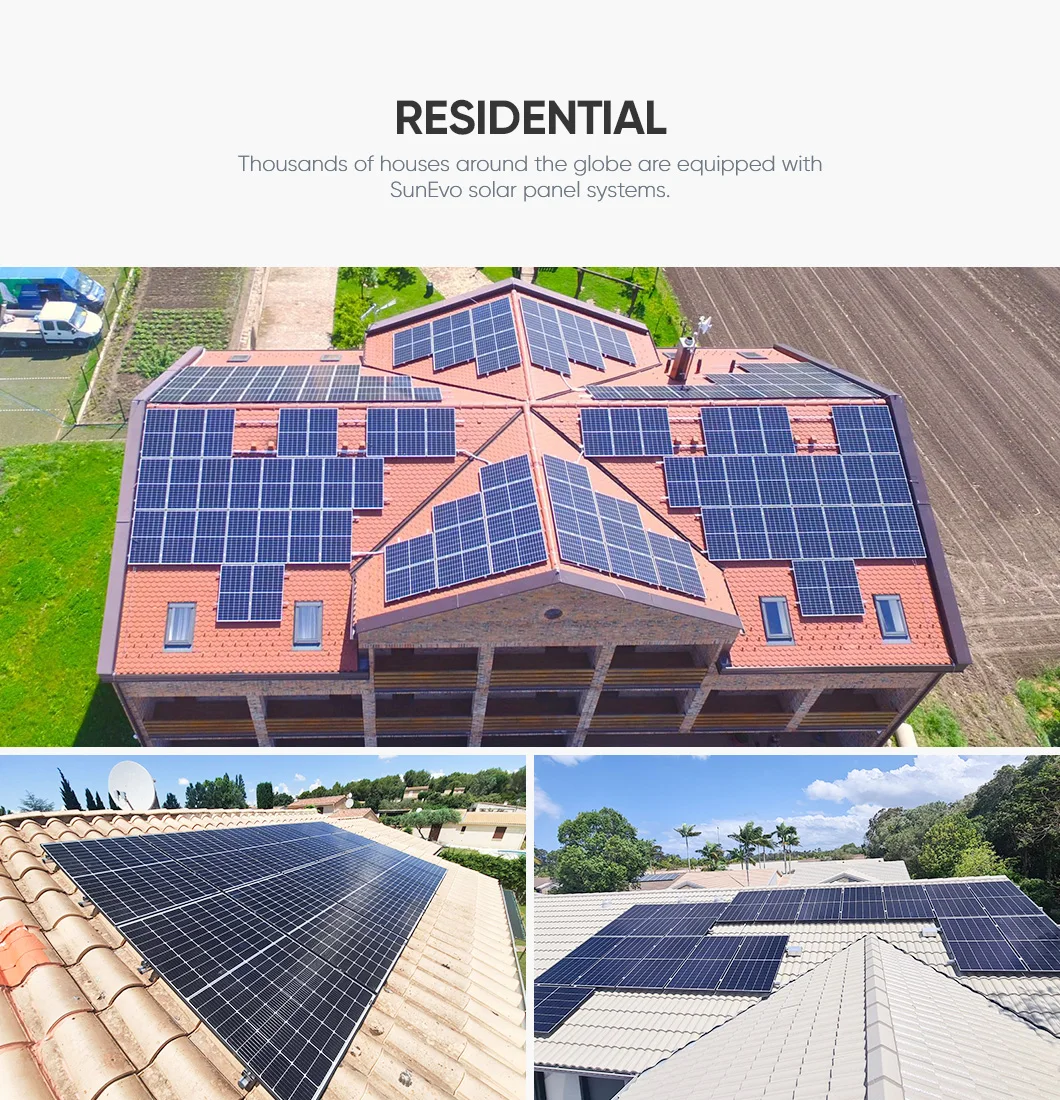

Project Case
Contact Us
FAQ
A: What's your warranty policy?
We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
