High quality Helical gps gnss uav antenna
$19.00-26.00

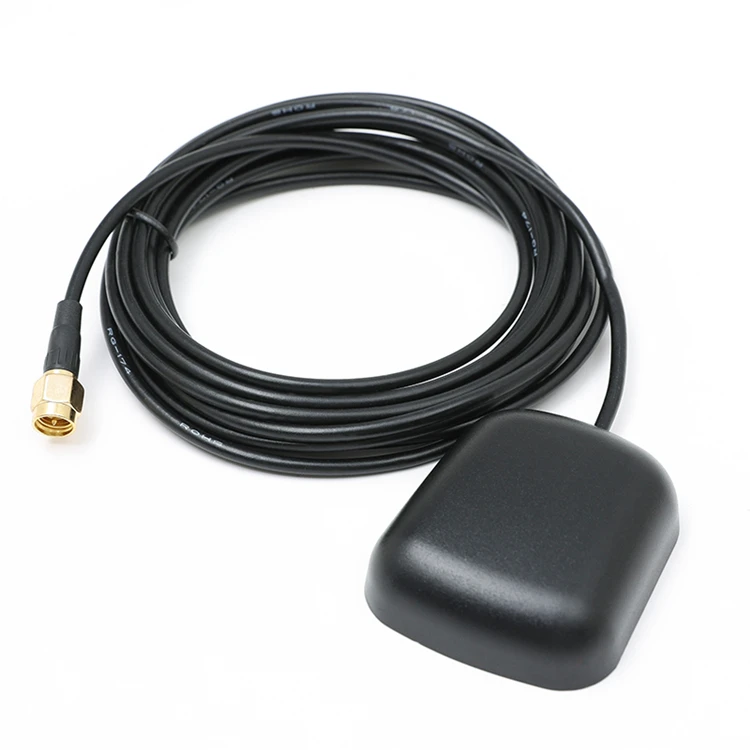

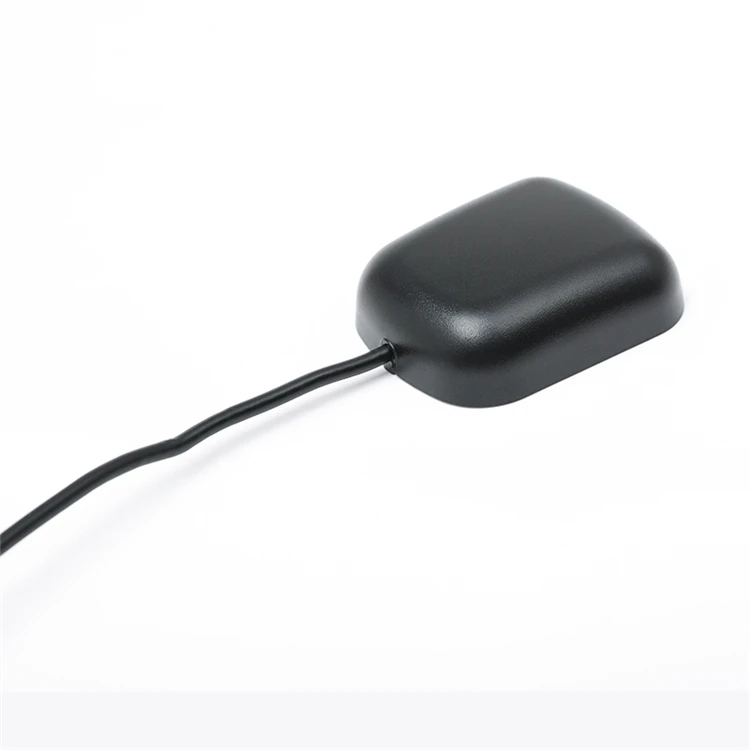

China Manufacturer High Performance Enhanced Satellite GPS Tracker Navigation Driving Recorder Antenna for Car/Vehicle/Marine
- Category: >>>
- Supplier: Shenzhen Bojia Communication Equipment Co. Ltd.
Share on (1601267942591):
Product Overview
Description
Product Description
Specification
Part Name: SPEC |
Antenna Dielectric : Ceramics |
PCB: FR4 |
Shielding : Tin-plate |

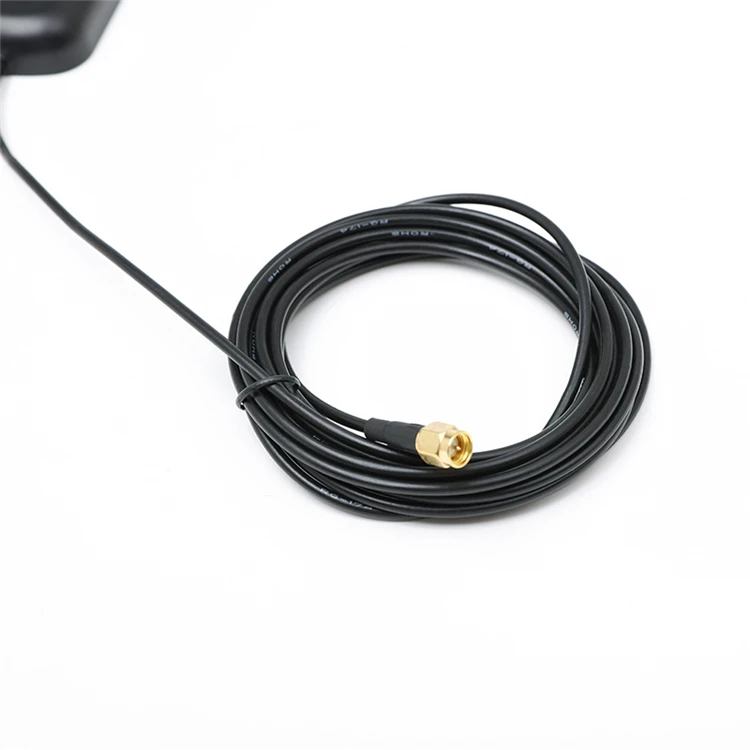

RF Cable RG174 Attenua tion : -1.2dB/m |

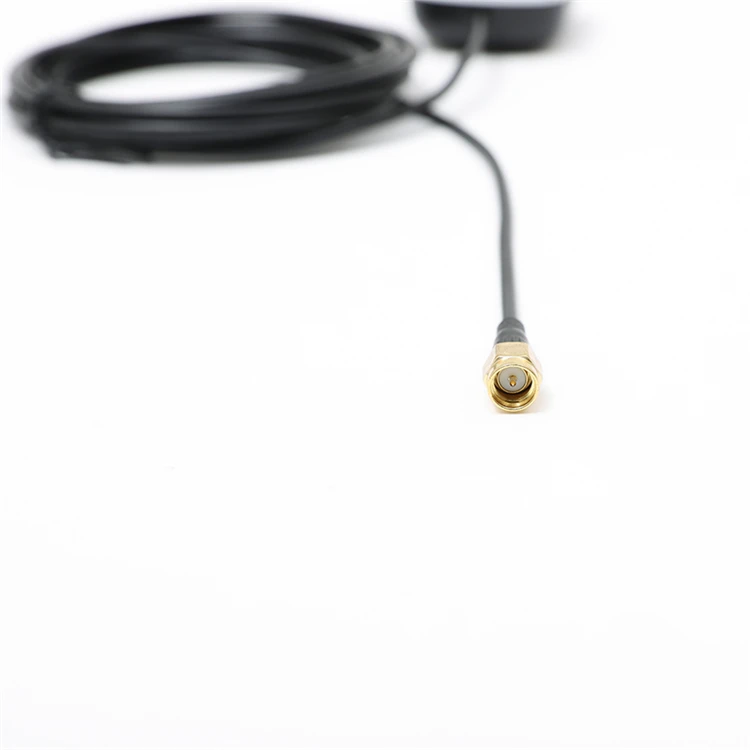

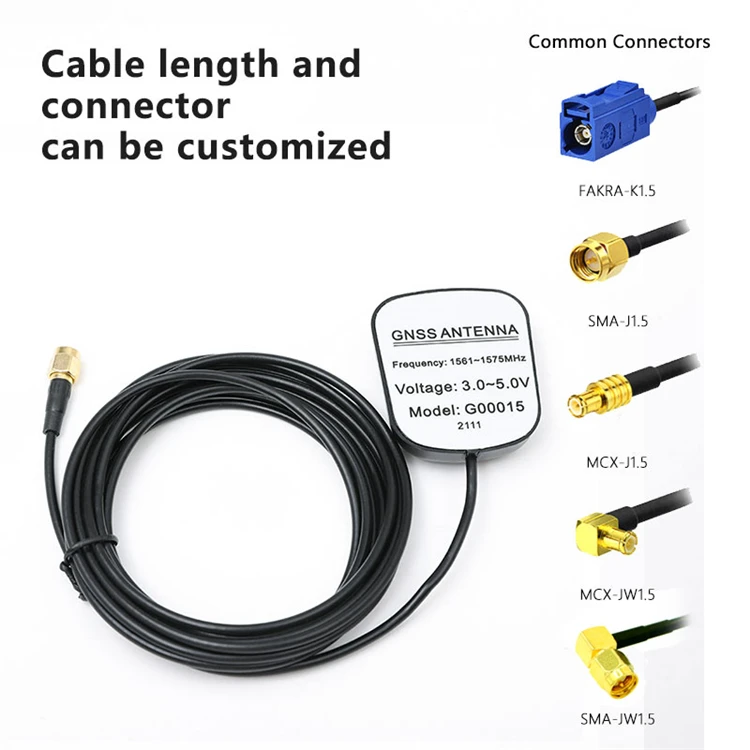

RF Connector : SMA-C-J1.5-2 Gold |
LNA, FILTER XW2659A; SAW filter |
Thickness : MAX |
Working Temp : -40℃~+80℃ |
Storage Temp : -45℃~+85℃ |
Vibration Sine sweep : 1g(0-p) |
International Protection : IPX-6 |
Antenna model : BD2-03 (25*25*4) |
Frequency Range : 1561MHz±2MHz～1575MHz±2MHz |
V.S.W.R : ≤2.0 |
Band Width : 24 MHz |
Impendence : 50Ω |
Gain : 3.5dBic Based on 25×25mm ground plane |
Polarization : RHCP |
DC Voltage : 3～5V |
Gain (Typical) : 18.5dB |
INput VSWR (Typical) : <2.0 |
Noise Figure (Typical) : ≤1.5 |
DC current (Typical) : 7～14mA |
Output VSWR : ≤2.0 |
Gain : 28±1dB |
The magnet size : 15*0.9 |
