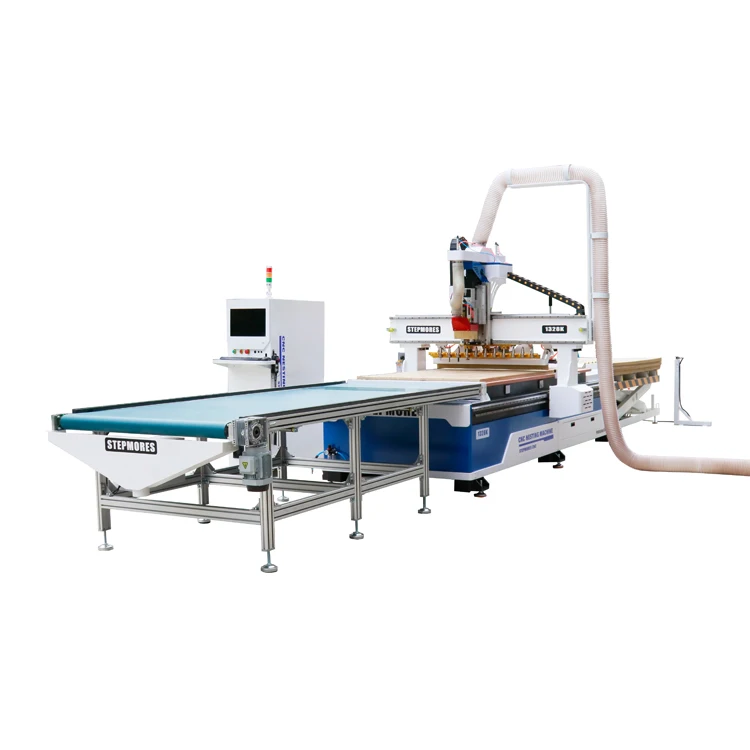

5x10 Nesting CNC Machine for Wooden Furniture 1530




Specification


Model
1530K-ATC
XYZ axis travel
1500x3000x300mm
Feeding height
100mm
ATC tool type
12 PCS linear type( under gantry）
Spindle power
9KW ATC air cooling spindle
Rail type
linear rails XYZ
Control system
Syntech controller 60CB
Drive type
Sntech servo motor (Absolute value ) + Shimpo reducer
Transmit
X Y Oblique gear rack / Z ball-screw
Table type
Vacuum absorption with T slot clamping with vacuum pump
Max travel speed
60000mm/min
Working precision
0.05mm
power
AC380V±10% /50~60Hz
Compatible Software
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command code
HPGL, G code
Machine size
4050*2260*2980mm(Height including dust tube support)
Upload unit size
3370*1510*810mm
Download unit size
2400*1200*700mm
packing size
3.57*2.28*1.86m
Net/Gross weight
2400kg/2600kg

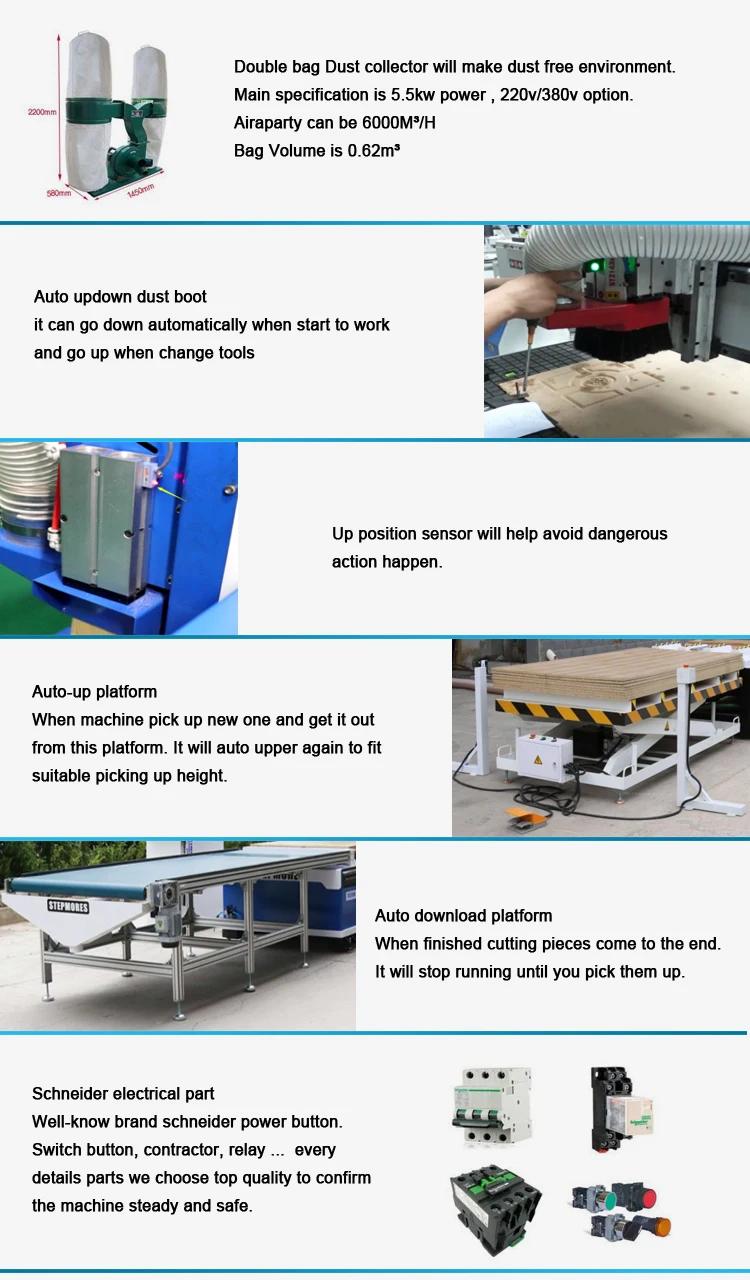

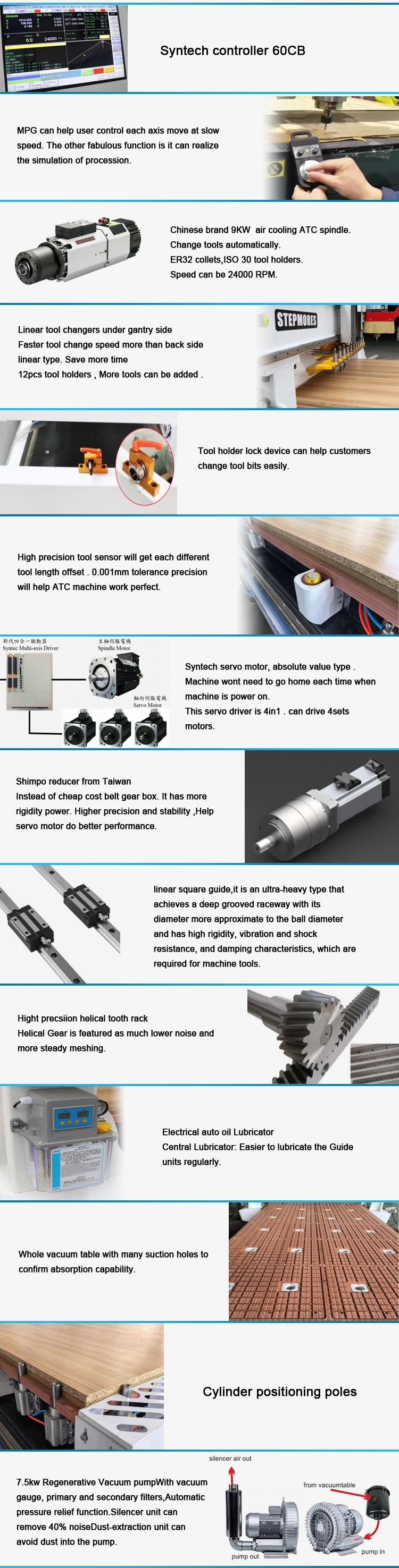

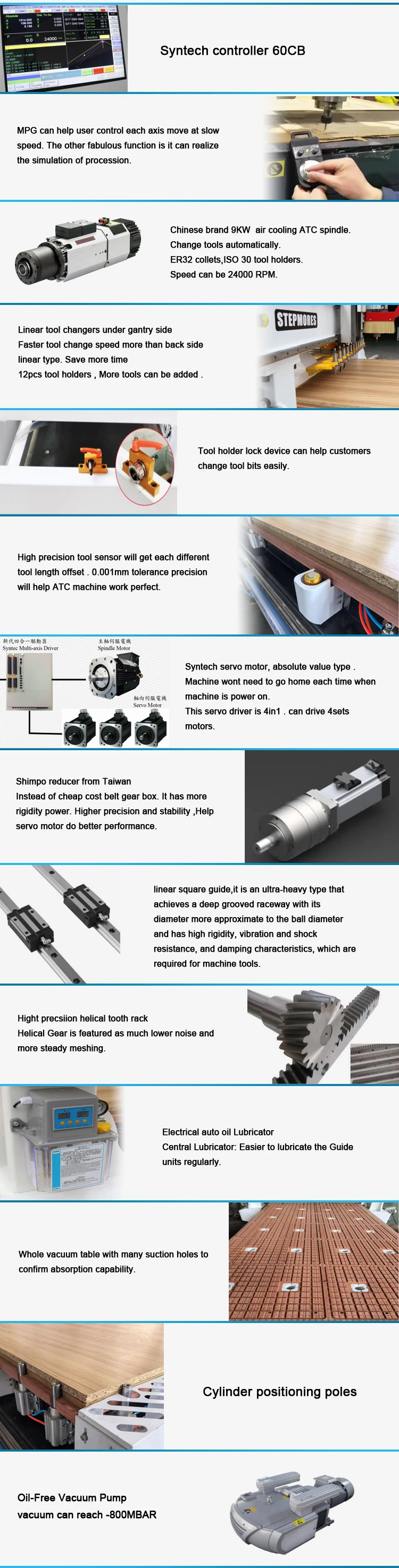

Machine Details






Samples




Procession of Production




Service&Feedback



Technical support online

Technical Training at customer's factory




Feedback from Customers




Stepmores Service
1. recommend suitable machine according to your working and demands
2. update the order status during production
3. 36 months warranty for whole machine, 12 months warranty for core parts
4. English manual and operation videos
5. Technical support by email, phone, Whatsapp / Skype, etc.
6. Engineer available to provide service overseas.


Packing & Delivery






Company Profile


Jinan chentuo industry and trade co., Ltd was established in 2011. We are well known for our superior quality and service in the
field of engineering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc
router, cnc laser machine, cnc plasma cutting machine, which have passed CE certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania,
France,Estonia, and so on.






FAQ


Q1: Are you a factory or trading company?
A: We are a manufacturer founded in 2011. Our new factory is located in Qihe County, Dezhou City, Shandong Province.
Q2: What's your payment terms? Delivery and MOQ?
A: Payment terms: we accept T/T, Western Union, Paypal, Alibaba Trade Assurance, etc. 30%~50% deposit, balance before delivery
from our factory.
Lead time: 7~10 days
Delivery terms: EXW, FCA, FOB, CFR, CIF, DDU, etc.
MOQ: 1set
Q3: What’s your warranty?
A: We provide 36 months warranty for whole machine, 12 months for core parts.
Q4: If I don't know how to use the machine, can you teach me?
A: 1) There is a U disk send together with the machine including machine manual and operation videosl. If you have further
question:
2) Online technical support (Email, Skype, Wechat, Phone and so on)
3) Remote control software to set for you
4) Demo Video to follow
