Rawsuns New product Electric motors Generator RG30DC D 30kW 1800RPM EV conversion kit for car
- Category: >>>
- Supplier: Rawsun Technology (shantou) Co. Ltd.
Share on (1601267968596):
Product Overview
Description
Product Description

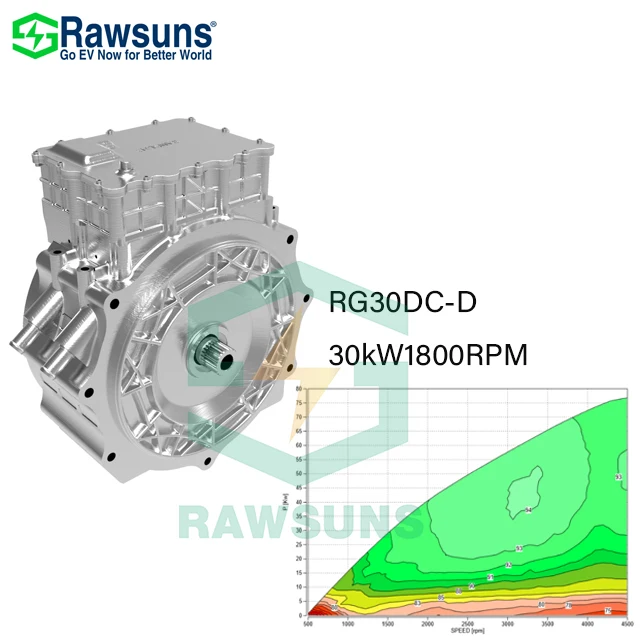

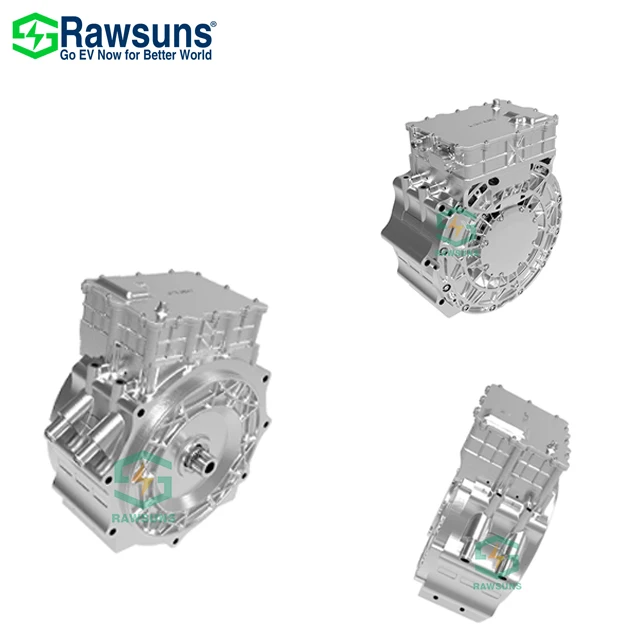

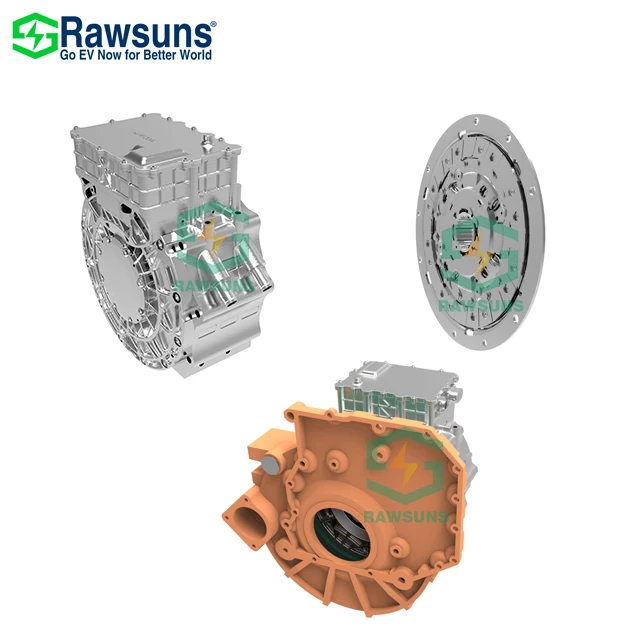

Rawsuns New product Electric motors Generator RG30DC-D 30kW 1800RPM EV conversion kit for car

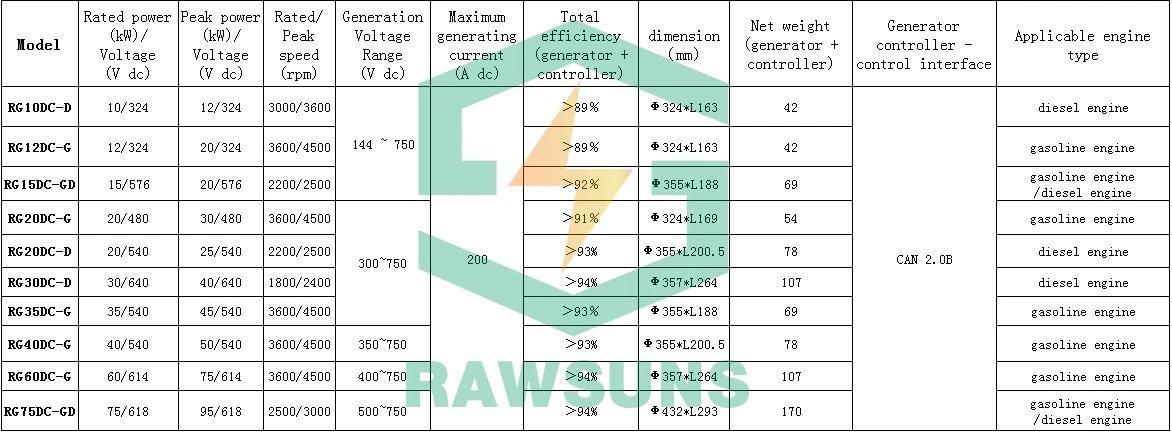

RG30DC-D 30kW 1800RPM 2 in1 Non-Rare-earth DC excitation Generator | ||
Rated Power（kW）/ Voltage（V dc） | 30 / 640 | |
Peak Power（kW）/ Voltage（V dc） | 40 / 640 | |
Rated/peak Speed（rpm） | 1800/2400 | |
Voltage Range（V dc） | 300~ 750 | |
Max Current（A dc） | 200 | |
2in1 Efficiency (Gen+GCU) | ＞94％ | |
Cooling Requirements | Inlet Temp.＜65℃ Min. Flow Rate 15L/min | |
Dimension (mm) | Ф357*L264 | |
Net Weight (Gen+GCU) (kg) | 107 | |
Recommended engine type | Diesel Engine | |
CAN Protocol | CAN 2.0B | |
2in1 Non-Rare-earth DC excitation Generator Technology:
2in1（Generator, GCU) Non-Rare-earth DC excitation generator technology is a NEW DC generator technology；
1.Rotor has no winding and no permanent magnet material: resistant to high temperature of IC engine, no risk of PM fading, support direct drive by the engine flywheel;
2. The controller only uses rectifier diode to rectify : no need high power high frequency IGBT, no high frequency switching loss, and conduction loss is very low, therefore high efficiency；
3. High reliability: the GCU controller has no IGBT failure mode and the rotor has no failure mode；
4. The average power generation efficiency of the generator system is high (>89%), and the high efficiency area of temperature/speed is super wide, making it suitable for direct mounting with the hot flywheel of the IC engine；
5. The Non-Rare-earth DC excitation generator system supports vehicle controller VCU via CAN command to directly control power generation (current source)，It also supports independent engine management and power generation control by RCU；
6. GCU can control the Non-Rare-earth DC excitation generator to automatically enter the constant voltage generation mode to ensure the continuous power supply in case the power battery is malfunction；
7. The GCU system supports the generator to crank the engine (ISG Anti-drag start function)；
8. Integrated generator and controller, high reliability, light weight；
1.Rotor has no winding and no permanent magnet material: resistant to high temperature of IC engine, no risk of PM fading, support direct drive by the engine flywheel;
2. The controller only uses rectifier diode to rectify : no need high power high frequency IGBT, no high frequency switching loss, and conduction loss is very low, therefore high efficiency；
3. High reliability: the GCU controller has no IGBT failure mode and the rotor has no failure mode；
4. The average power generation efficiency of the generator system is high (>89%), and the high efficiency area of temperature/speed is super wide, making it suitable for direct mounting with the hot flywheel of the IC engine；
5. The Non-Rare-earth DC excitation generator system supports vehicle controller VCU via CAN command to directly control power generation (current source)，It also supports independent engine management and power generation control by RCU；
6. GCU can control the Non-Rare-earth DC excitation generator to automatically enter the constant voltage generation mode to ensure the continuous power supply in case the power battery is malfunction；
7. The GCU system supports the generator to crank the engine (ISG Anti-drag start function)；
8. Integrated generator and controller, high reliability, light weight；
Rawsun EV Conversion Kit
*Drive System
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation service (optional)
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation service (optional)
*Vehicle Control System
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault code stable
10. System Electrical schematic diagram
11. System CANbus topological diagram
12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. Onsite installation guide service (optional)
* Battery System
1. Battery System Technical Specification
2. Component installation drawings
3. Component 3D step files
4. CANbus protocols
5. BMS Control strategies
6. BMS software for Battery parameter configuration
7. System Fault code stable
8. System Electrical schematic diagram
9. System layout diagram
10. System testing report.
11. System testing video
12. System operation manual
13. Remote installation support.
14. Dangerous goods transportation documentation and service.
15. Installation training
16. Onsite installation guide service (optional)
Why choose us
Our product is in view of the technical ability of the vehicle manufacturing company, and provide a full range of technical data (support file list) and software, customer vehicle parameters can be modified, so that customers fully grasp the vehicle system diagnosis and repair tools and problems, which do not need to rely on other companies on after sales and service, It can directly provide after-sales service to end customers.
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault code stable
10. System Electrical schematic diagram
11. System CANbus topological diagram
12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. Onsite installation guide service (optional)
* Battery System
1. Battery System Technical Specification
2. Component installation drawings
3. Component 3D step files
4. CANbus protocols
5. BMS Control strategies
6. BMS software for Battery parameter configuration
7. System Fault code stable
8. System Electrical schematic diagram
9. System layout diagram
10. System testing report.
11. System testing video
12. System operation manual
13. Remote installation support.
14. Dangerous goods transportation documentation and service.
15. Installation training
16. Onsite installation guide service (optional)
Why choose us
Our product is in view of the technical ability of the vehicle manufacturing company, and provide a full range of technical data (support file list) and software, customer vehicle parameters can be modified, so that customers fully grasp the vehicle system diagnosis and repair tools and problems, which do not need to rely on other companies on after sales and service, It can directly provide after-sales service to end customers.
BMS+VCU Host Computer Software Interface

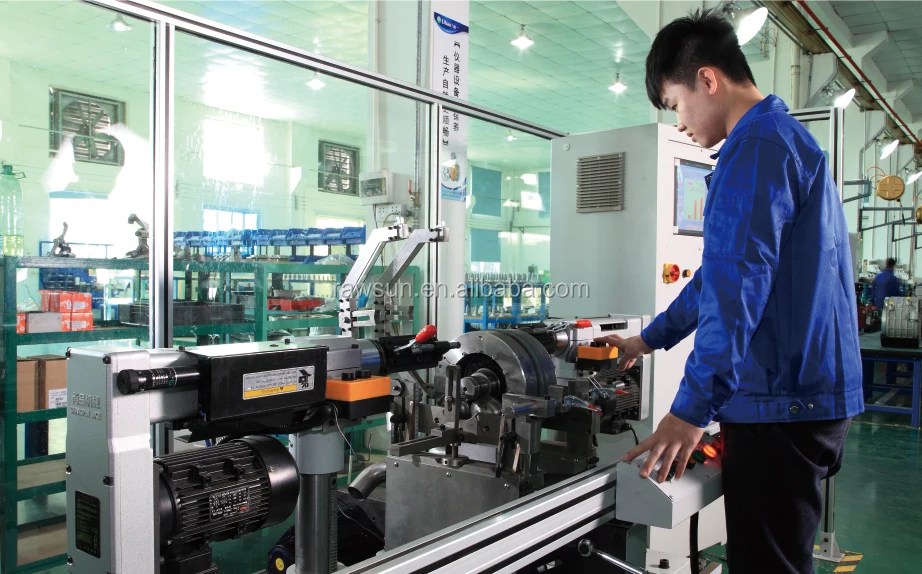

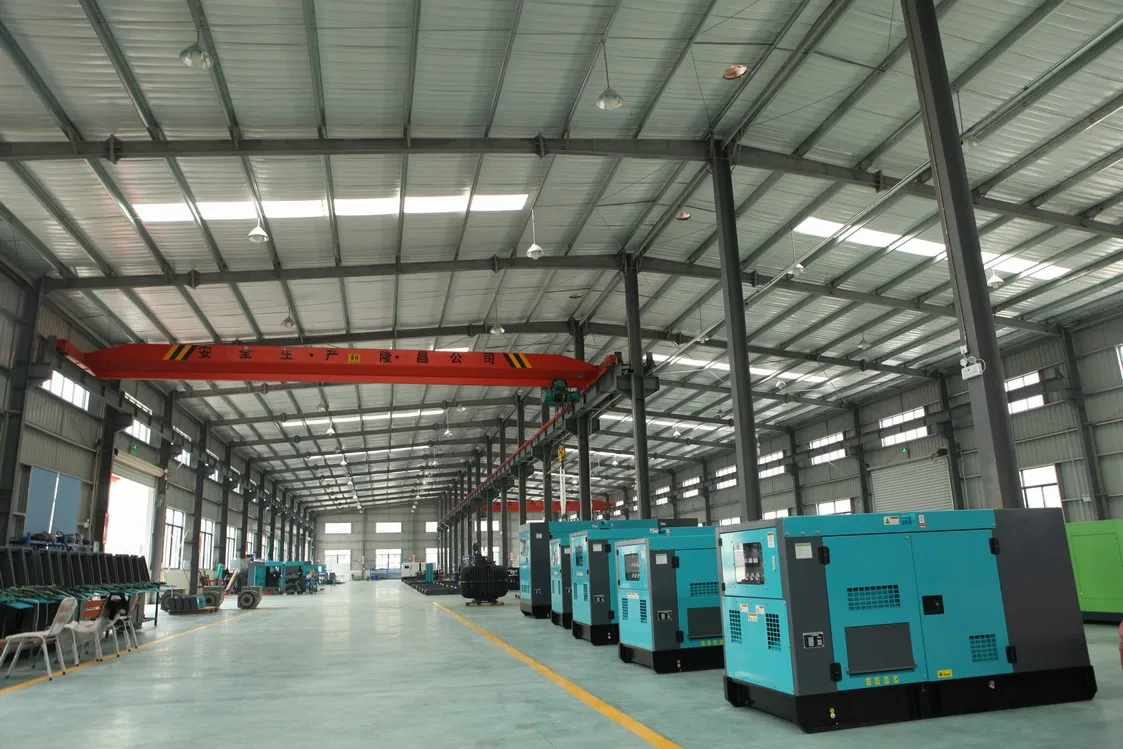

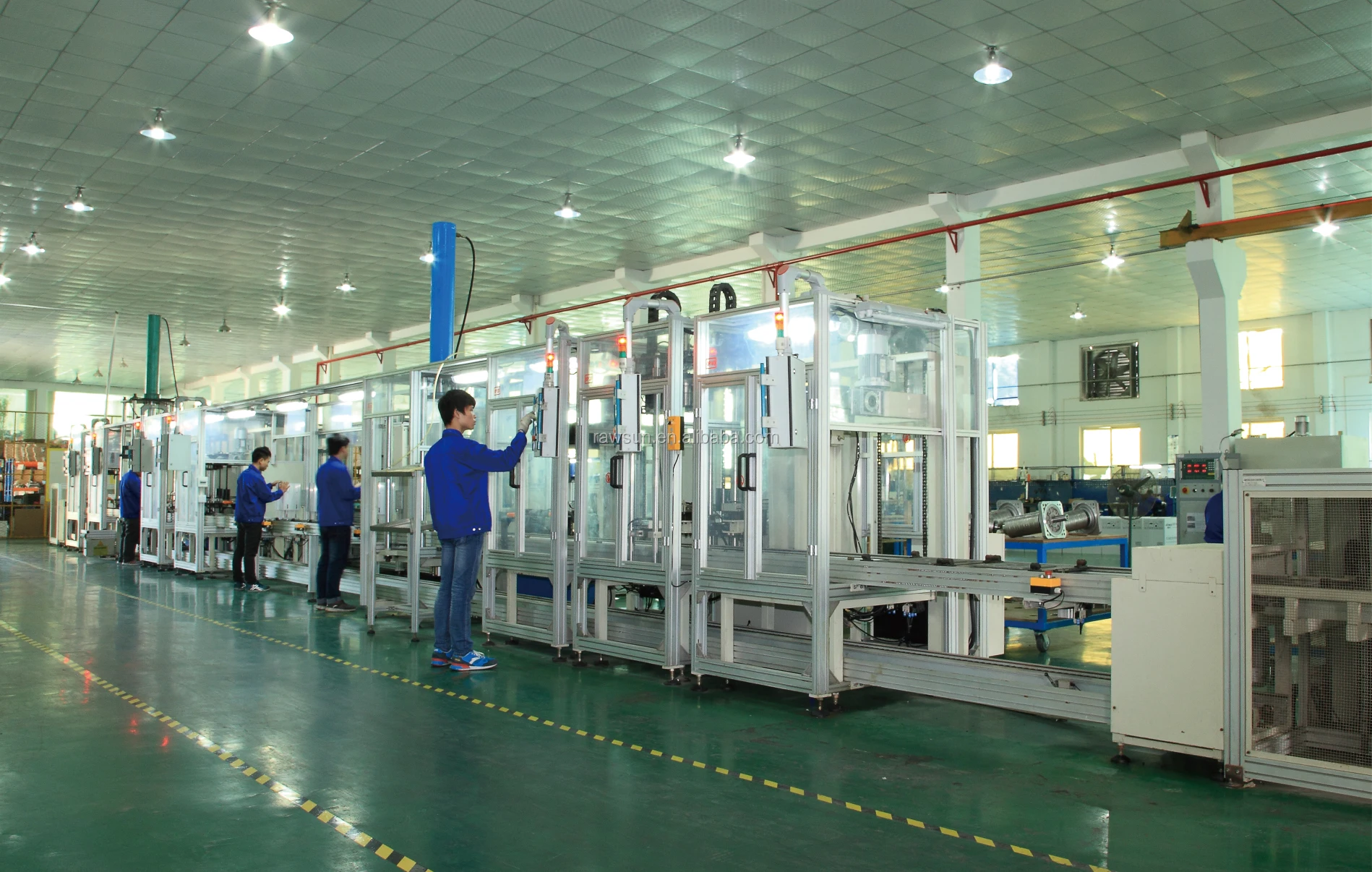

Workshop Pictures
Related Products
Packing&Shipping
Company Introduction
Rawsun Technology (Shantou) Co Ltd is a growing company committed to R&D, sales and service of Rawsuns complete electric propulsion solutions.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries. Rawsuns products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric boats with Rawsuns EV systems are conducive to reduce road exhaust pollution and oil pollution on the water surface. Rawsuns customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Rawsuns has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
Rawsuns are committed to promoting the electrification of the world, reducing carbon emissions, and making the world more environmentally friendly and better.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries. Rawsuns products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric boats with Rawsuns EV systems are conducive to reduce road exhaust pollution and oil pollution on the water surface. Rawsuns customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Rawsuns has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
Rawsuns are committed to promoting the electrification of the world, reducing carbon emissions, and making the world more environmentally friendly and better.
Our Services & Strength
Our product is in view of the technical ability of the vehicle manufacturing company, and provide a full range of technical data (support file list) and software, customer vehicle parameters can be modified, so that customers fully grasp the vehicle system diagnosis and repair tools and problems, which do not need to rely on other companies on after sales and service, It can directly provide after-sales service to end customers.
