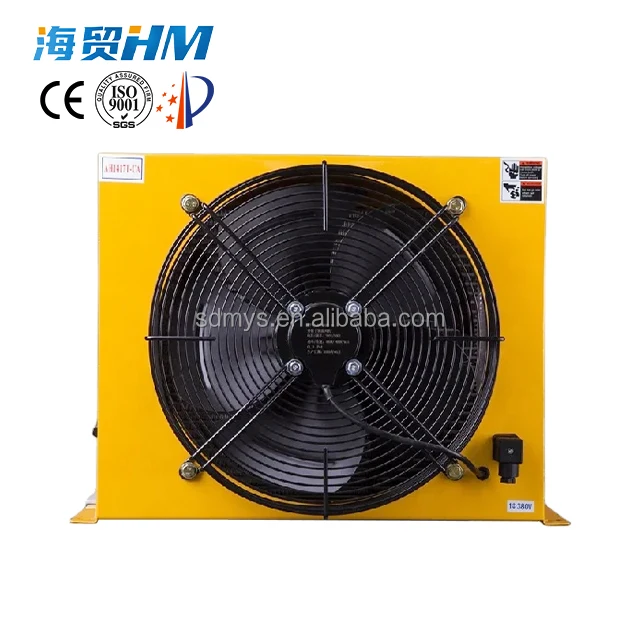

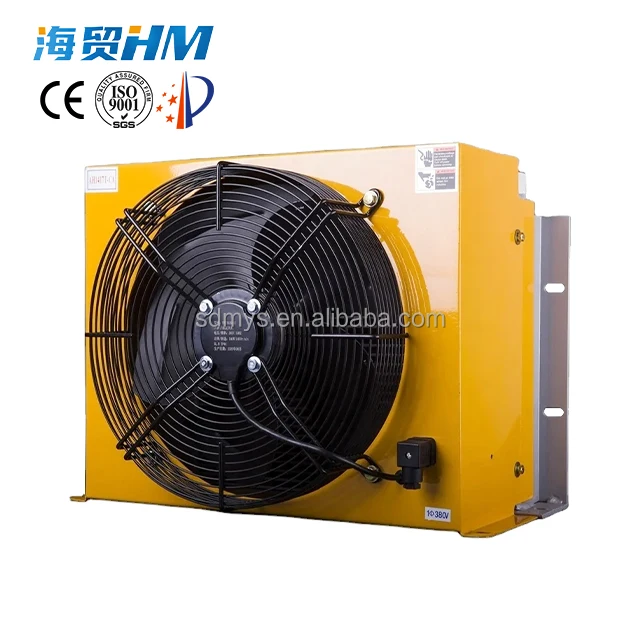

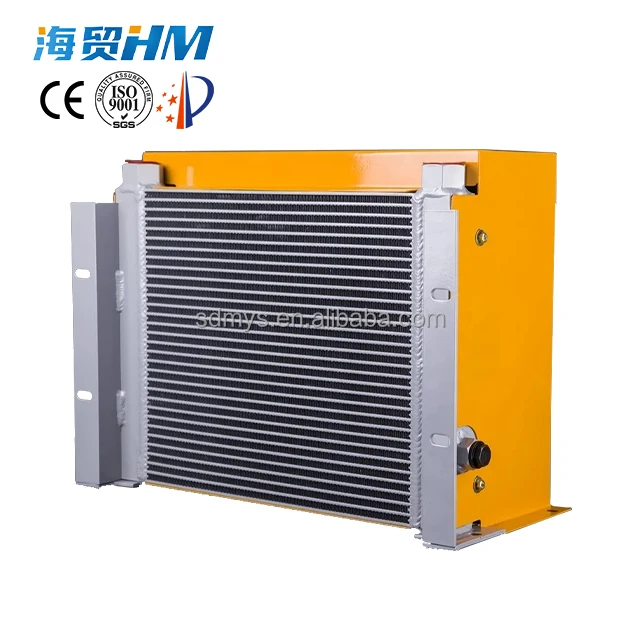

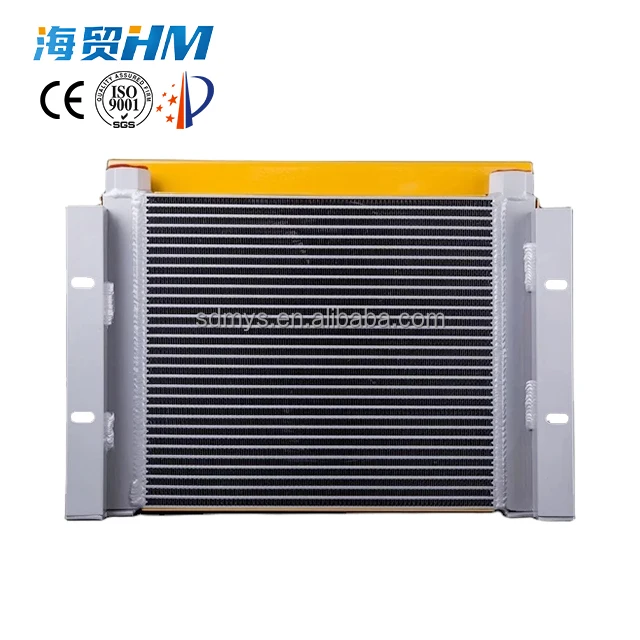

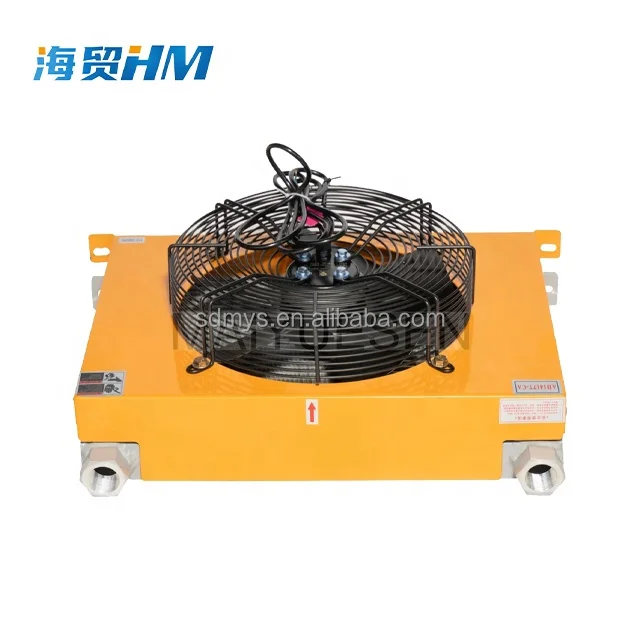

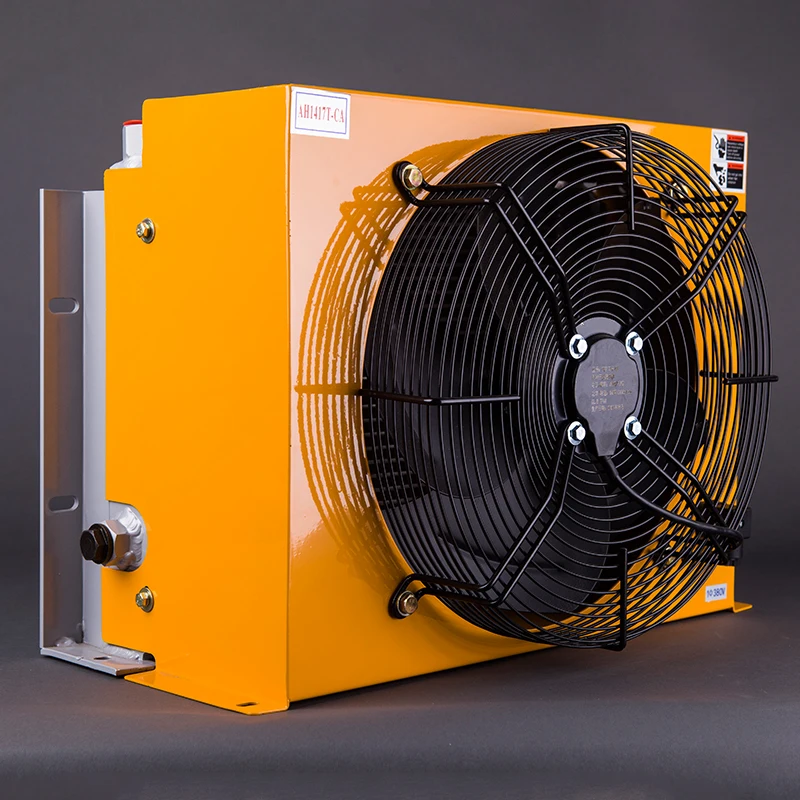

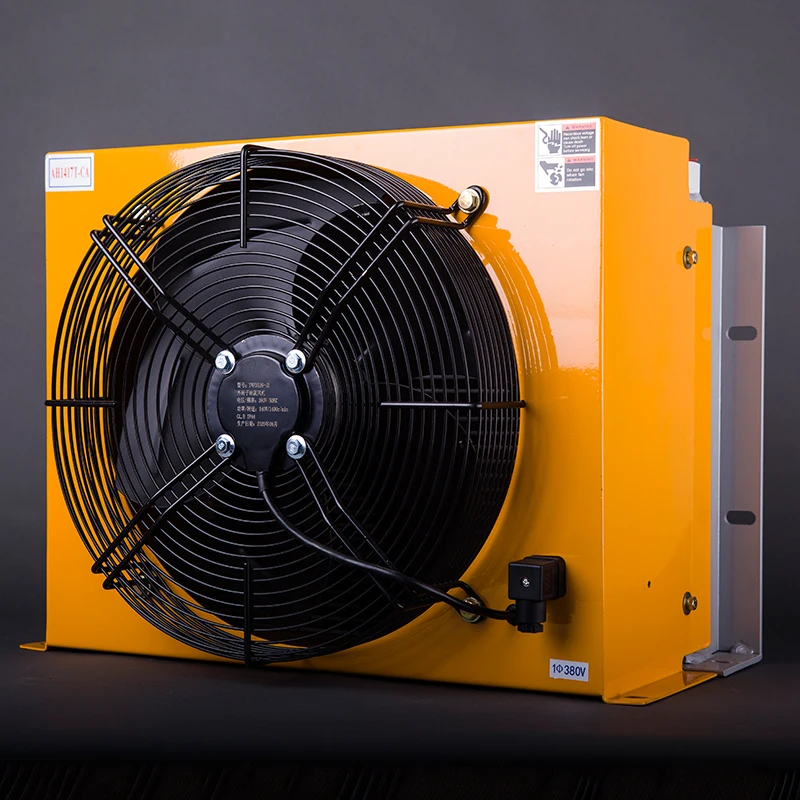

Manufacture supply hydraulic oil coolers AH1417T PLUS 150L/min china hydraulic oil cooler with 24v fan
- Category: >>>
- Supplier: Myusen Aluminum Products (Liaocheng) Co. Ltd.
Share on (1601267969476):
Product Overview
Description
Aluminum plate-fin heat exchanger of Weifang Haimao Radiator Co., Ltd are widely used in hydraulic system, lubrication system, air compressor, engineering/construction machinery, power system, transmission oil cooling system, ship, vehicle engine water tank and other fluid cooling system. And our regular air oil coolers are used for mobile crane heat exchanger.
Product Overview

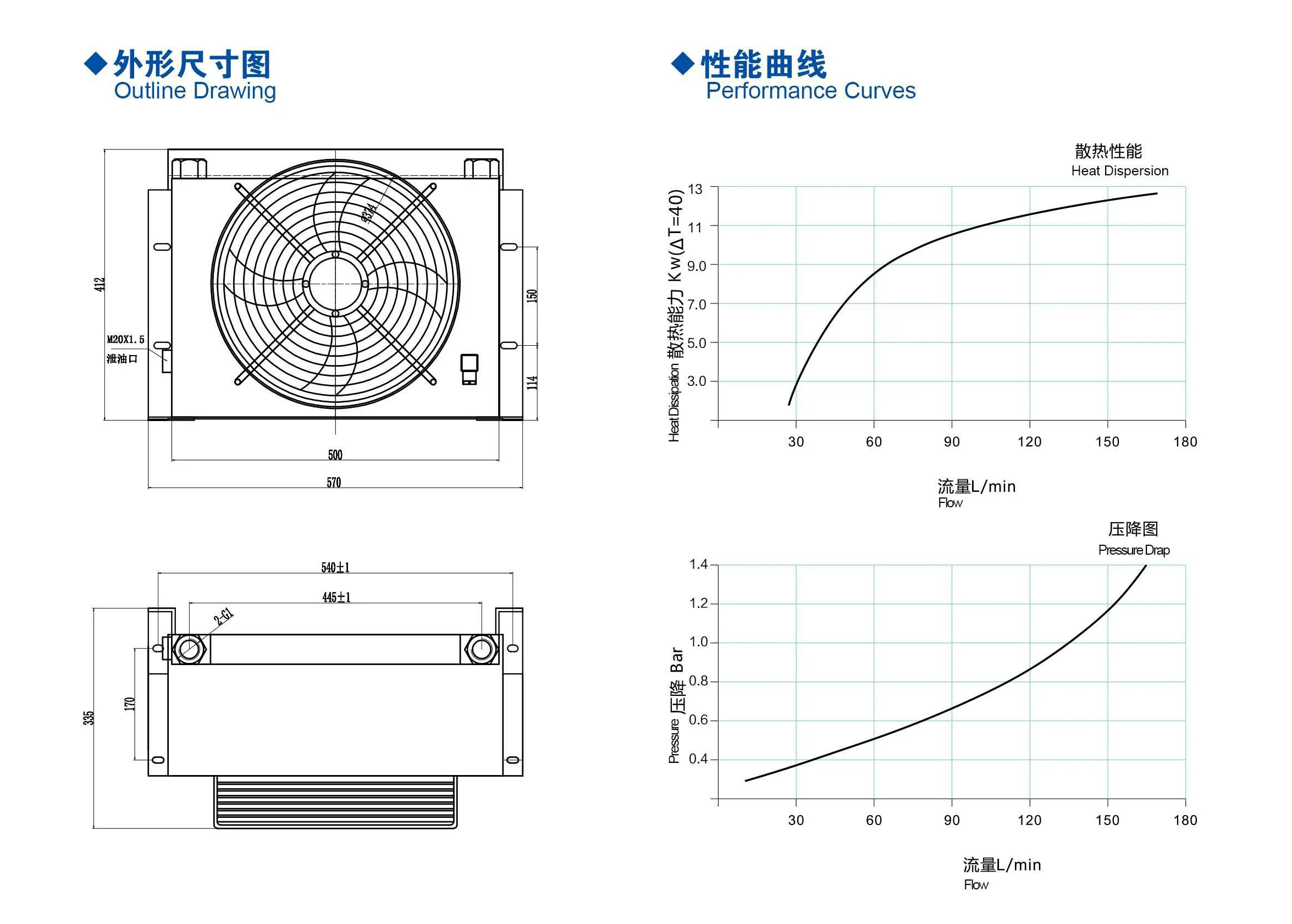

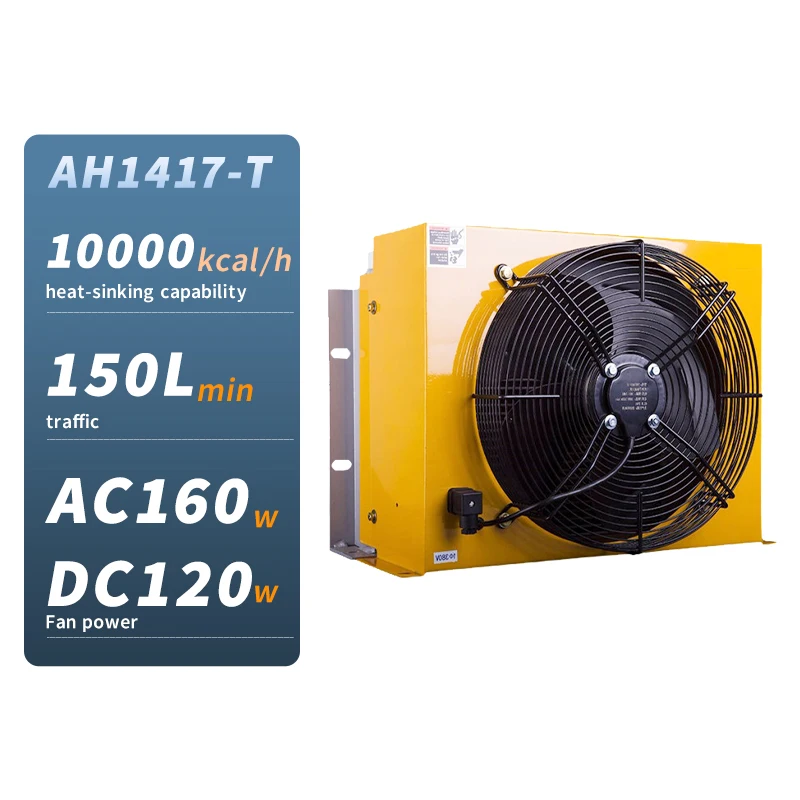

oil cooler heat exchanger radiator AH1417T-150L | ||||||
Size | AH1417T | Cooling Capacity | 10000Kcal/h | |||
Rate Of Flow | 150L/min | Package Size | 58*45*30cm | |||
Max Pressure | 2MPa | Fan Voltage | AC220V/AC380V DC12V/DC24V | |||
Fan Power | AC160W/DC120W | Air Output | 1810M3/h | |||
Cooling Area | 6.2M2 | Thread size | RC1'' | |||
Blade diameter | φ300mm | |||||
AH1417T-150L China Aluminum Plate Fin Heat Exchanger Price
This oil cooler radiators are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure, channel, adopt efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.
All aluminum build core
German seamless welding process
German seamless welding process
Pure copper high-power waterproof motor
Perfect Electrostatic spraying surface
Direct Manufacturer
Direct Manufacturer
Related products

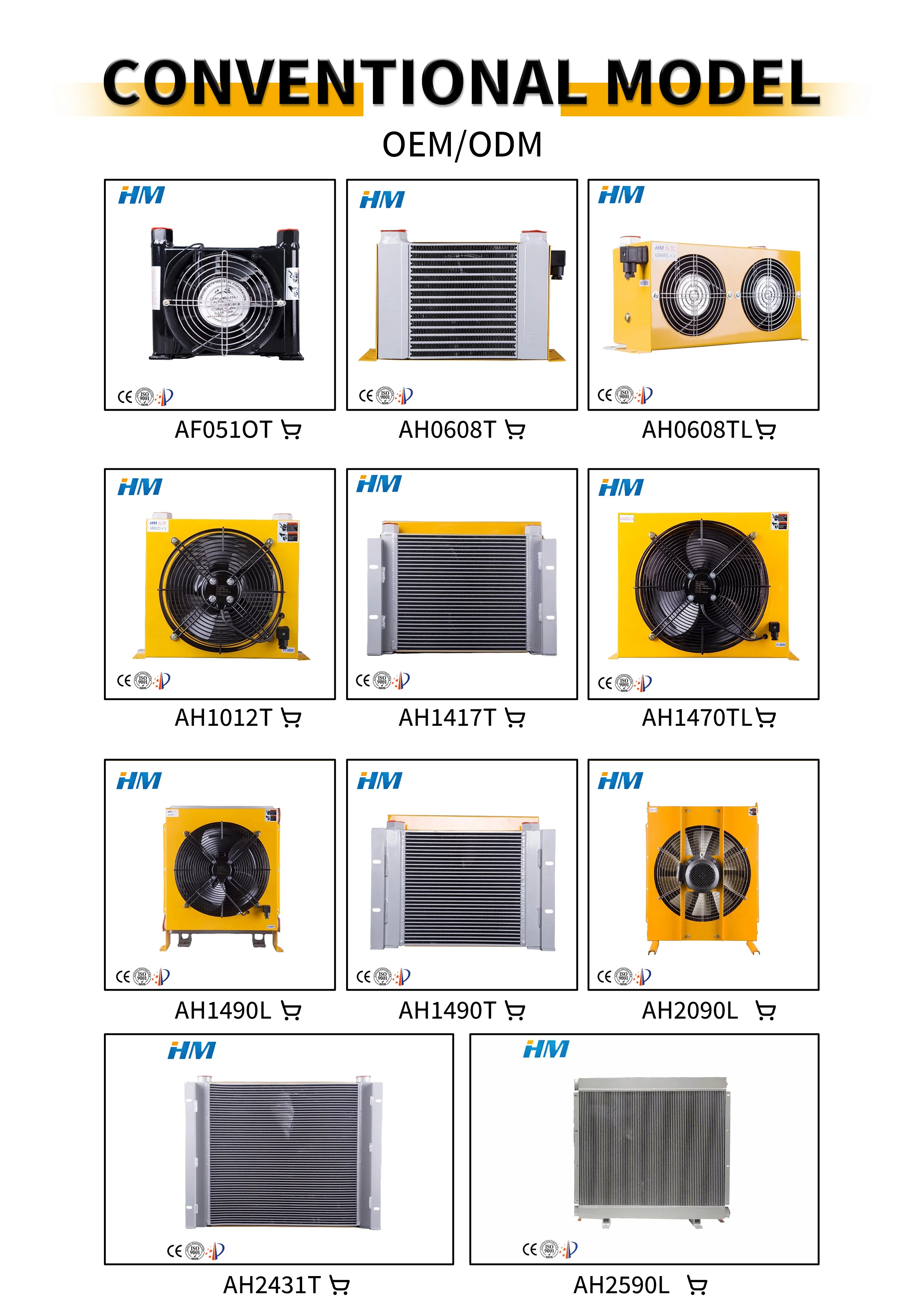

SELECTION TABLE | ||||||||||
Model | Rated Flow | Pressure | Fan Power | Fan Voltage | Rc/PT" | |||||
AF0510T-CA | 10L/min | ≤2MPa | 38W | 380V/220V/12V/24V | RC1/2" | |||||
AF1025T-CA | 25L/min | ≤2MPa | 38W | 380V/220V/12V/24V | RC1/2" | |||||
AW0607T-CA | 20L/min | ≤2MPa | 38W | 380V/220V/12V/24V | RC1/2" | |||||
AH0608T-CA | 60L/min | ≤2MPa | 38W | 380V/220V/12V/24V | RC3/4" | |||||
AH0608TL-CA | 80L/min | ≤2MPa | 38W*2 | 380V/220V/12V/24V | RC3/4" | |||||
AH1012T-CA | 100L/min | ≤2MPa | AC90W/DC120W | 380V/220V/12V/24V | RC1" | |||||
AH1417T-CA | 150L/min | ≤2MPa | AC160W/DC120W | 380V/220V/12V24V | RC1" | |||||
AH1417T+-CA | 150L/min | ≤2MPa | AC140W/DC120W | 380V/220V/12V/24V | RC1" | |||||
AH1470T-CA | 200L/min | ≤2MPa | AC140W/DC120W | 380V/220V/12V/24V | RC1-1/4" | |||||
AH1490L-CA | 250L/min | ≤2MPa | AC140W/DC120W | 380V/220V/12V/24V | RC1-1/2" | |||||
AH1490T-CA | 250L/min | ≤2MPa | AC140W/DC120W | 380V/220V/12V/24V | RC1-1/4" | |||||
AH1680T-CA | 300L/min | ≤2MPa | AC410W/DC120W | 380V/220V/12V/24V | RC1-1/2" | |||||
AH1890L-CA | 300L/min | ≤2MPa | AC410W | 380V/220V/12V/24V | RC1-1/2" | |||||
AH2431T-CA | 450L/min | ≤2MPa | AC760W | 380V/220V/12V/24V | RC1-1/2" | |||||
AH2090L-CA | 450L/min | ≤2MPa | AC760W | 380V/220V/12V/24V | RC1-1/2" | |||||
AH2290L-CA | 600L/min | ≤2MPa | AC760/830WDC120W*4 | 380V/220V/12V/24V | RC2" | |||||
AH3818T-CA | 600L/min | ≤2MPa | AC1800WDC120W*4 | 380V/220V/12V/24V | RC2" | |||||
AH2590L-CA | 700L/min | ≤2MPa | AC1800WDC120W*4 | 380V/220V/12V/24V | RC2" | |||||
2AH2290L-CA | 800L/min | ≤2MPa | AC760W*2 | 380V/220V/12V/24V | RC2" | |||||
3AH2290L-CA | 1000L/min | ≤2MPa | AC760W*3 | 380V/220V/12V/24V | RC2" | |||||

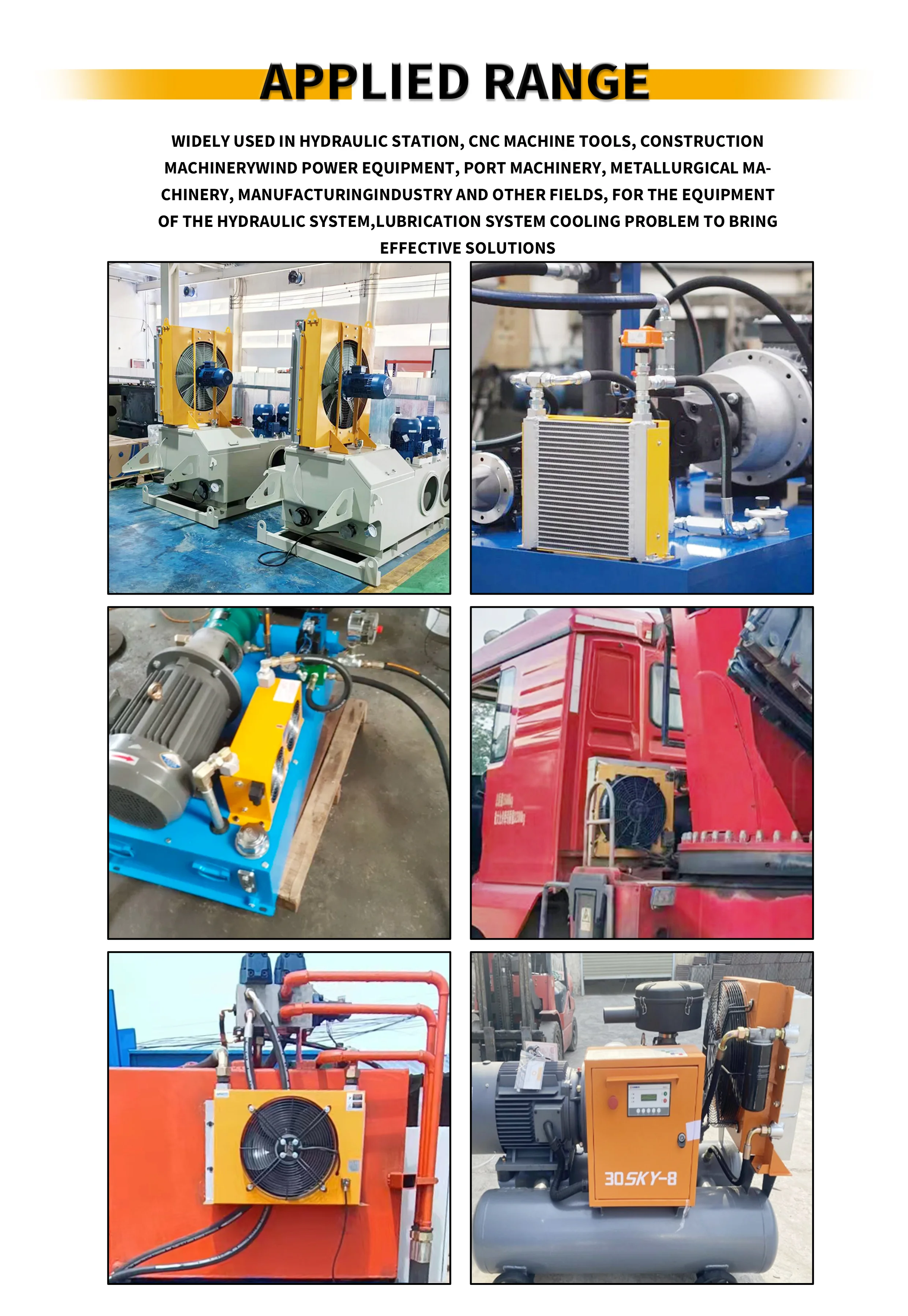

Application
oil cooler radiator are widely used in all kinds of hydraulic station, sawing machine, concrete mixer truck, engineering machinery, wind power equipment, concrete pump, cutting machine, woodworking sawing machine, packing machine, plastic machinery, metallurgical machinery, shipbuilding and other fields, for the equipment of the hydraulic system and lubrication system to reduce fluid hydraulic oil temperature, provide solution for the normal operation of equipment stability.

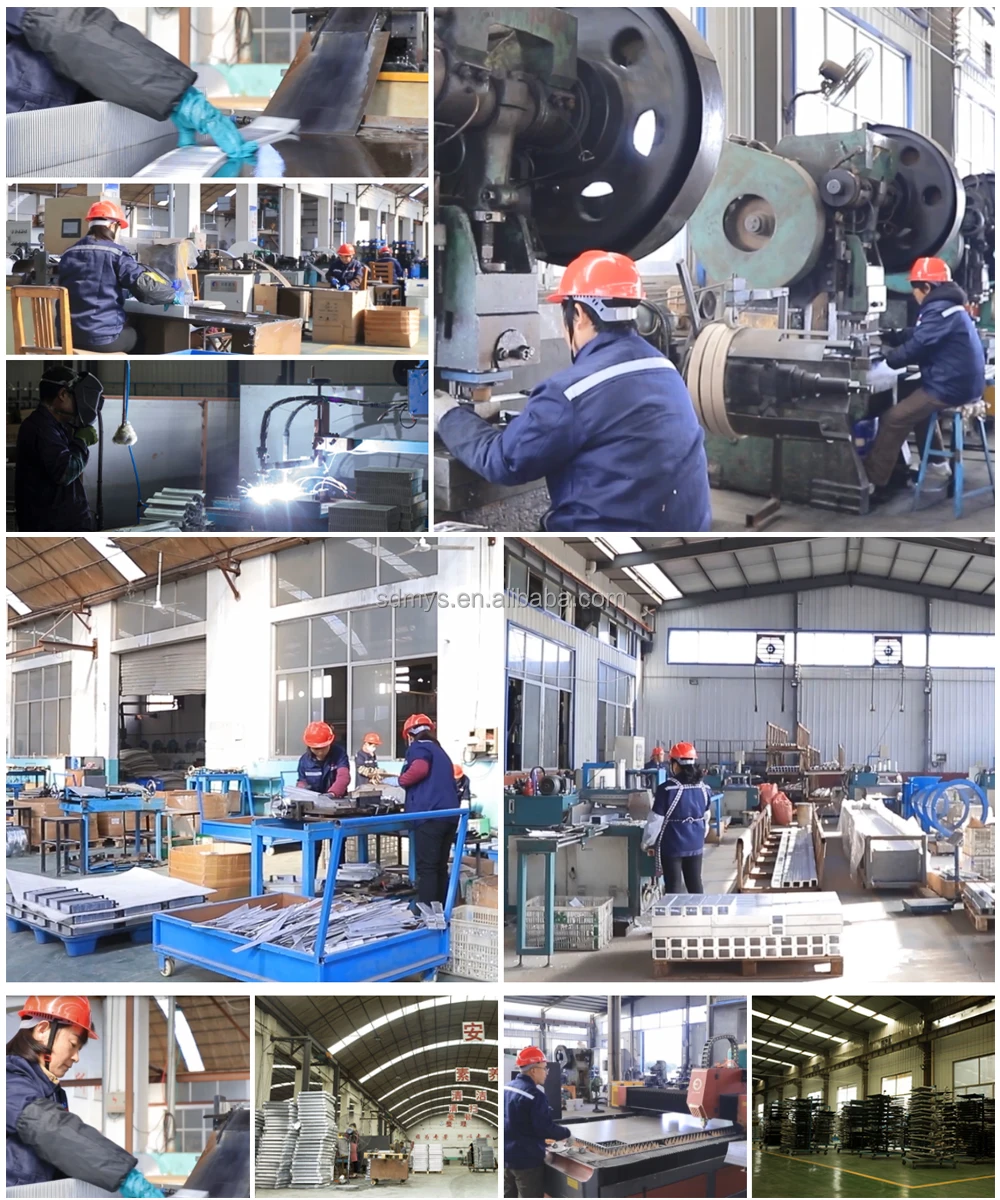

Company Profile
Shandong maiyuesen trading is belong to Weifang Haimao Radiator Co., Ltd. which is located in Linqu, Shandong province, Covering an area of 31,680 square meters, we specializes in design, manufacturing and marketing of aluminum profiles, air cooled hydraulic radiators, cultivation and breeding radiators, automotive radiators, automotive condensers, intercoolers and other heat exchange systems. Are widely used in all kinds of hydraulic machinery, such as hydraulic systems, hydraulic stations, engineering machinery, cultivation and breeding machinery, secondary structural delivery pumps and screw air compressors.
We has obtained the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality system certification in 2013, and won multiple honors.
Our products are highly accepted by the national key hydraulic equipment manufacturing and automobile industries, and are the first choice for Weichai Power, Futian Group, Shifeng Group, Hongwuhuan Group, etc.
We has obtained the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality system certification in 2013, and won multiple honors.
Our products are highly accepted by the national key hydraulic equipment manufacturing and automobile industries, and are the first choice for Weichai Power, Futian Group, Shifeng Group, Hongwuhuan Group, etc.
Our Advantages
Direct Manufacture
From raw materials to final products, one-stop processing, comprehensive control. We can control the cost, delivery time and quality.
Fast delivery, common order delivery in 7 days.
First Class Quality
Our Company has got IS09001 quality system certification in 2008 and ISO/TS16949 quality system certification in 2013, and we also won multiple honors in domestic market during 16 years.
Good Servise
Before delivery we can accept SGS OR video inspect, And 12 months warranty period for full range products.
Certifications
Our Company has got the IS09001 international quality system certification in 2008 and the ISO/TS16949 international quality system certification issued by SGS in 2013, and we also won multiple honors in domestic market during 21 years.

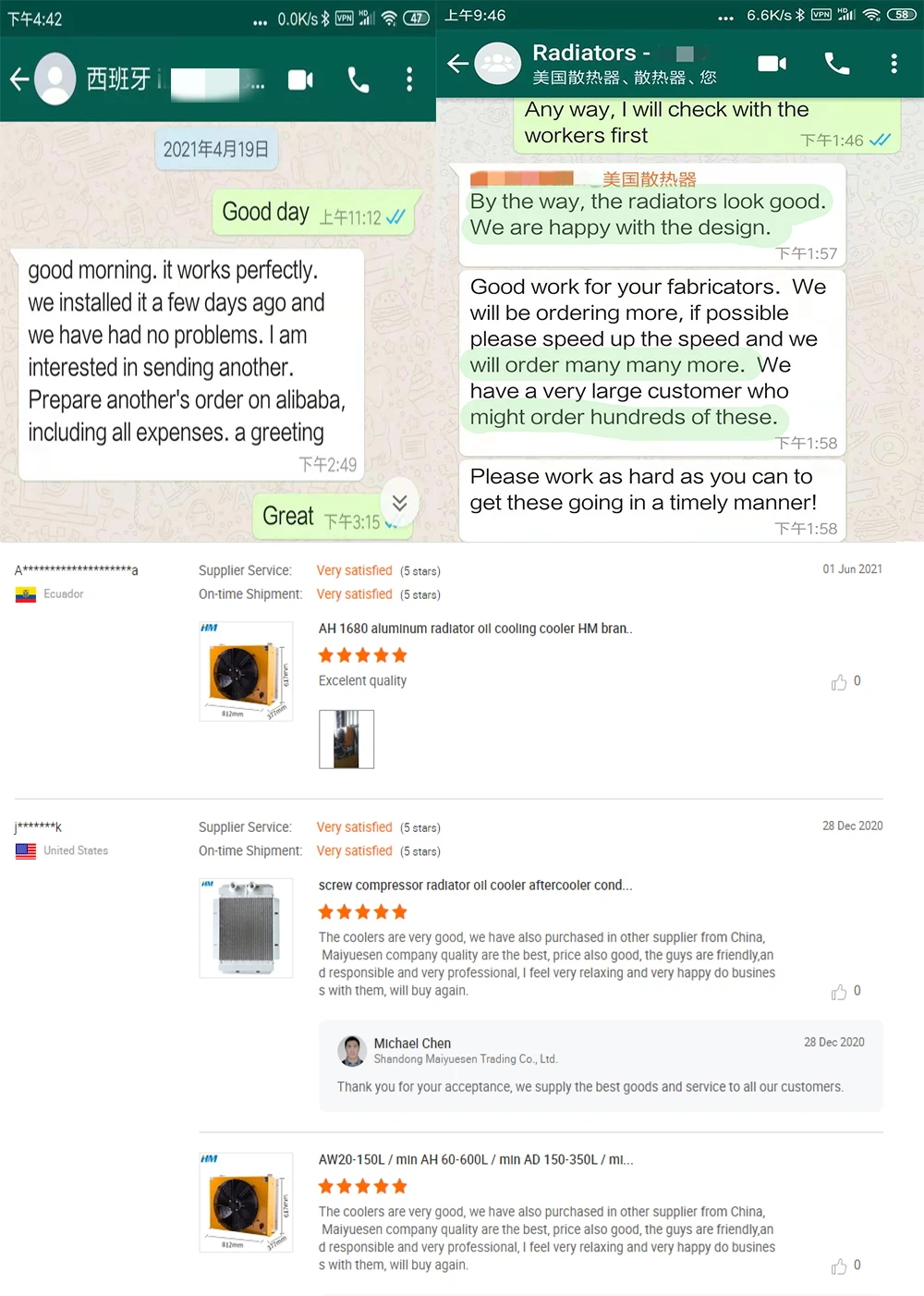

Customer Photos
During 21 years, Haimao radiator have cooperated with so many customer from all over the world, like the Middle East, Europe, South Asia, USA, South American... We are ready to cooperate with you.

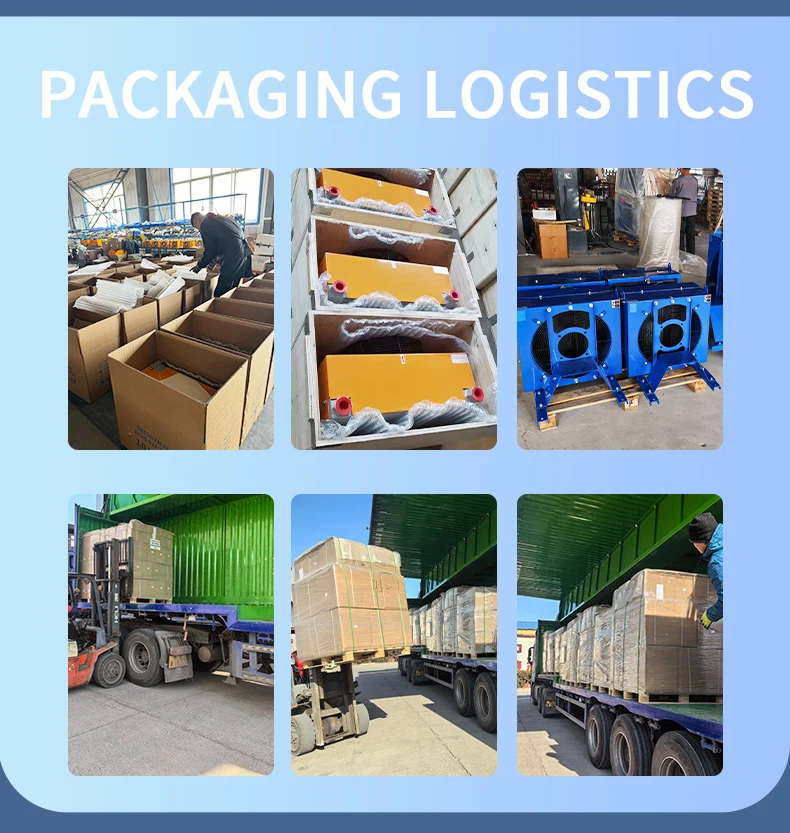

Product packaging
oil aluminum cooler radiator packed by carton box, the package size is 44.5*37*22cm.
20ft container load 700-750 pcs,
40ft container load 1400-1500 pcs
Our rule is With great virtue, our Company insists on integrity in operation, pursing excellence, to return our customers.
In the future, we will under the principle of environmental protection, high efficiency, high quality and high cost effectiveness and maximize benefits to serve our customers. We will strives to become an outstanding hydraulic radiator supplier in the world and strides forward towards the goal of becoming the world’s most competitive hydraulic radiator manufacturer. Hope we can have chance to cooperate with you, and hope you can help us to move towards the Globel market!!!
In the future, we will under the principle of environmental protection, high efficiency, high quality and high cost effectiveness and maximize benefits to serve our customers. We will strives to become an outstanding hydraulic radiator supplier in the world and strides forward towards the goal of becoming the world’s most competitive hydraulic radiator manufacturer. Hope we can have chance to cooperate with you, and hope you can help us to move towards the Globel market!!!
