USG6715F(HTM) AC host 02354MKN 2*QSFP28 2*QSFP 8*ZSFP 20*SFP 2 AC POWER for h w
USG6715F(HTM) AC host 02354MKN 2*QSFP28 + 2*QSFP+ + 8*ZSFP+ + 20*SFP+ 2 AC POWER for h w
USG6715F(HTM) AC host 02354MKN 2*QSFP28 + 2*QSFP+ + 8*ZSFP+ + 20*SFP+ 2 AC POWER for h w

USG6715F(HTM) AC host 02354MKN 2*QSFP28 2*QSFP 8*ZSFP 20*SFP 2 AC POWER for h w

Share on (1601267994443):


Price:

Quantity:


Product Overview

Description



Product Description





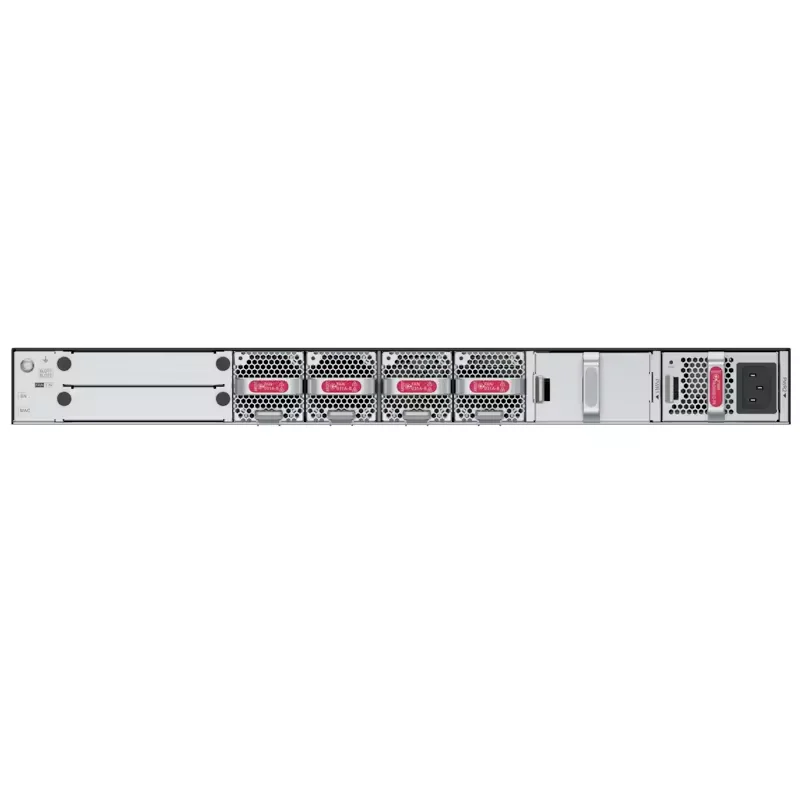

Structure






















1. Product series ID



2. Indicator and button area



3. HDD/SSD slot



4. Fixed interface area



5. Protective ground terminal



6. MAC label



7. SN label



8. Fan module



9. Power module



-



Component functions
















































Name



Description



Product series ID



Indicates the product series of the device. For details about the product model, see the nameplate in the lower part of the device.



Indicator and button area



Provides multiple indicators to display the running status of the device in real time and provides the RSTand OFL buttons for emergency maintenance.



HDD/SSD slot



Houses hard disks for storing log and report data.



Fixed interface area



Provides service ports, USB ports, console ports, and out-of-band management ports for device configuration and maintenance.



Protective ground terminal



Connects the M4 OT terminal of a PGND cable to the cabinet or the ground bar in the equipment room.



MAC label



Uniquely identifies the MAC address of the device, which is required during network forwarding configuration.



SN label



Uniquely identifies the device, which needs to be provided for the local technical support personnel to apply for a license.



Fan module



Dissipates heat for the device and is swappable. The fan module can be removed for no more than 1 minute.



Power module



Provides power input and distribution for the device. Two power modules are included in the standard configuration to provide 1+1 power redundancy. When one power module is running properly, the other one is hot swappable.



Slot Layout


































lot TypeSlot IDSlot DirectionRemarks
Hard disk (HDD/SSD) slot-Horizontal2.5-inch SATA hard disk (240 GB/960 GB/1000 GB)
Fan module slot1-4HorizontalAt the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Power module (PWR) slot1-2HorizontalPMs are plug-and-play.




Technical Specifications



















































































































































































ItemSpecification
Installation TypeRack
Cabinet installation standard

  • USG6715F-AC (02354MKN): Cabinets with a depth of 800 mm or more

  • USG6715F-AC (02354MKN-001): Cabinets with a depth of 800 mm or more

  • USG6715F-DC (02354TQE): Cabinet with a depth of 800 mm or above

  • USG6715F-DC (02354TQE-001): Cabinet with a depth of 800 mm or above


Dimensions without packaging (H x W x D) [mm(in.)]

  • Typical dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.)

  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 633 mm (1.72 in. x 17.40 in. x 24.92 in.)


Dimensions with packaging (H x W x D) [mm(in.)]260 mm x 590 mm x 790 mm
Chassis height [U]1 U
Weight with packaging [kg(lb)]15.48 kg (34.13 lb)
Weight without packaging [kg(lb)]10.26 kg (22.62 lb)
CPU

  • USG6715F-AC (02354MKN): 2 CPUs, 16-core/CPU, 2.0 GHz dominant frequency

  • USG6715F-AC (02354MKN-001): 2 CPUs, 16-core/CPU, 2.0 GHz dominant frequency

  • USG6715F-DC (02354TQE): 2 CPUs, 16 cores/CPU, 2.0 GHz dominant frequency

  • USG6715F-DC (02354TQE-001): 2 CPUs, 16 cores/CPU, 2.0 GHz dominant frequency


Memory

  • USG6715F-AC (02354MKN): DDR4 DIMM 64GB TOTAL, 32GB/CPU, supporting ECC

  • USG6715F-AC (02354MKN-001): DDR4 DIMM 64GB TOTAL, 32GB/CPU, supporting ECC

  • USG6715F-DC (02354TQE): DDR4 DIMM, 64 GB TOTAL, 32 GB/CPU, ECC supported

  • USG6715F-DC (02354TQE-001): DDR4 DIMM, 64 GB TOTAL, 32 GB/CPU, ECC supported


Storage32GB
NOR Flash64 MB/CPU, 128 MB in total
Hard disk

  • USG6715F-AC (02354MKN): Optional. Purchase a 2.5-inch hot-swappable SATA hard disk (240 GB, 960 GB, or 1000 GB) from Huawei.

  • USG6715F-AC (02354MKN-001): Optional. Purchase a 2.5-inch hot-swappable SATA hard disk (240 GB, 960 GB, or 1000 GB) from Huawei.

  • USG6715F-DC (02354TQE): Optional. Purchase a hot-swappable 2.5-inch SATA hard disk (240 GB, 960 GB, or 1000 GB) from Huawei on demand.

  • USG6715F-DC (02354TQE-001): Optional. Purchase a hot-swappable 2.5-inch SATA hard disk (240 GB, 960 GB, or 1000 GB) from Huawei on demand.


Console portRJ45
Eth Management portRJ45
Maximum power consumption [W]

  • USG6715F-AC (02354MKN): 391 W

  • USG6715F-AC (02354MKN-001): 391 W

  • USG6715F-DC (02354TQE): 399 W

  • USG6715F-DC (02354TQE-001): 399 W


Maximum heat dissipation [BTU/hour]

  • USG6715F-AC (02354MKN): 1334.1 BTU/hour

  • USG6715F-AC (02354MKN-001): 1334.1 BTU/hour

  • USG6715F-DC (02354TQE): 1361.4 BTU/hour

  • USG6715F-DC (02354TQE-001): 1361.4 BTU/hour


MTBF [years]42.63 years
MTTR [hours]2 hours
Power supply mode

  • USG6715F-AC (02354MKN): Built-in AC

  • USG6715F-AC (02354MKN-001): Built-in AC

  • USG6715F-DC (02354TQE): Built-in DC PM

  • USG6715F-DC (02354TQE-001): Built-in DC PM


Number of power modules2
Rated input voltage [V]

  • USG6715F-AC (02354MKN):

    • AC: 100 V to 240 V, 50 Hz or 60 Hz

    • High-voltage DC: 240 V, DC



  • USG6715F-AC (02354MKN-001):

    • AC: 100 V to 240 V, 50 Hz or 60 Hz

    • High-voltage DC: 240 V, DC



  • USG6715F-DC (02354TQE):

    • +48 V DC

    • -48 V DC to -60 V DC



  • USG6715F-DC (02354TQE-001):

    • +48 V DC

    • -48 V DC to -60 V DC




Input voltage range [V]

  • USG6715F-AC (02354MKN):

    • AC: 90 V to 290 V, 45 Hz to 65 Hz

    • High-voltage DC: 190–290 V, DC



  • USG6715F-AC (02354MKN-001):

    • AC: 90 V to 290 V, 45 Hz to 65 Hz

    • High-voltage DC: 190–290 V, DC



  • USG6715F-DC (02354TQE):

    • +40 V DC to +57 V DC

    • -38.4 V DC to -72 V DC



  • USG6715F-DC (02354TQE-001):

    • +40 V DC to +57 V DC

    • -38.4 V DC to -72 V DC




Maximum input current [A]

  • USG6715F-AC (02354MKN): 8 A

  • USG6715F-AC (02354MKN-001): 8 A

  • USG6715F-DC (02354TQE): 38 A

  • USG6715F-DC (02354TQE-001): 38 A


Maximum output power [W]

  • USG6715F-AC (02354MKN): 600 W

  • USG6715F-AC (02354MKN-001): 600 W

  • USG6715F-DC (02354TQE): 1200 W

  • USG6715F-DC (02354TQE-001): 1200 W


Types of fansPluggable
Number of fan modules4
Heat dissipation modeAbsorbing cold air into the device
Airflow direction

  • USG6715F-AC (02354MKN): Air flows in from the front panel and flows out from the rear panel.

  • USG6715F-AC (02354MKN-001): Air flows in from the front panel and flows out from the rear panel.

  • USG6715F-DC (02354TQE): Air flows in from the front panel and exhausts from the rear panel.

  • USG6715F-DC (02354TQE-001): Air flows in from the front panel and exhausts from the rear panel.


Maximum number of 100GE ports2
Maximum number of 40GE ports4
Maximum number of 25GE ports8
Maximum number of 10GE ports28
Maximum number of GE ports12
Redundant power supply1+1
Redundant fans3+1
Noise at normal temperature (acoustic power) [db(A)]≤ 72 dB(A)
Long-term operating temperature [°C(°F)]

  • USG6715F-AC (02354MKN):

    Without HDDs: 0°C to 45°C


    With HDDs: 5°C to 40°C



  • USG6715F-AC (02354MKN-001):

    Without HDDs: 0°C to 45°C


    With HDDs: 5°C to 40°C



  • USG6715F-DC (02354TQE):

    • Without hard disk driver: 0°C to 45°C

    • With hard disk driver: 5°C to 40°C



  • USG6715F-DC (02354TQE-001):

    • Without hard disk driver: 0°C to 45°C

    • With hard disk driver: 5°C to 40°C




Storage temperature [°C(°F)]-40°C to 70°C
Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensing
Storage relative humidity [RH]5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]

  • USG6715F-AC (02354MKN):

    Without HDDs: 0 m to 5000 m


    With HDDs: 0 m to 3000 m



  • USG6715F-AC (02354MKN-001):

    Without HDDs: 0 m to 5000 m


    With HDDs: 0 m to 3000 m



  • USG6715F-DC (02354TQE):

    • Without hard disk driver: 0 m to 5000 m

    • With hard disk driver: 0 m to 3000 m



  • USG6715F-DC (02354TQE-001):

    • Without hard disk driver: 0 m to 5000 m

    • With hard disk driver: 0 m to 3000 m




Storage altitude [m(ft.)]

  • USG6715F-AC (02354MKN): 0 m to 5000 m

  • USG6715F-AC (02354MKN-001): 0 m to 5000 m

  • USG6715F-DC (02354TQE): 0–5000 m (0–16404 ft.)

  • USG6715F-DC (02354TQE-001): 0–5000 m (0–16404 ft.)
