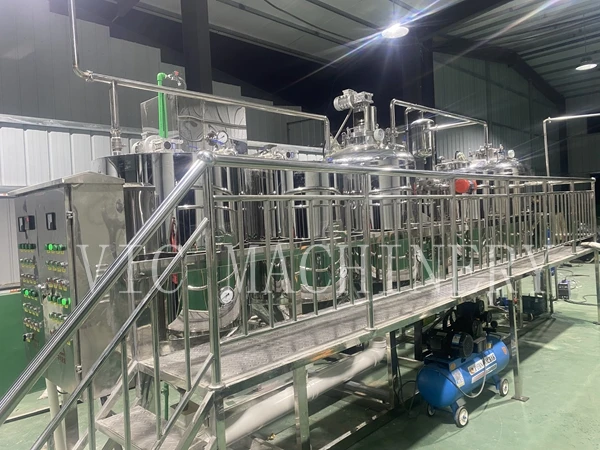

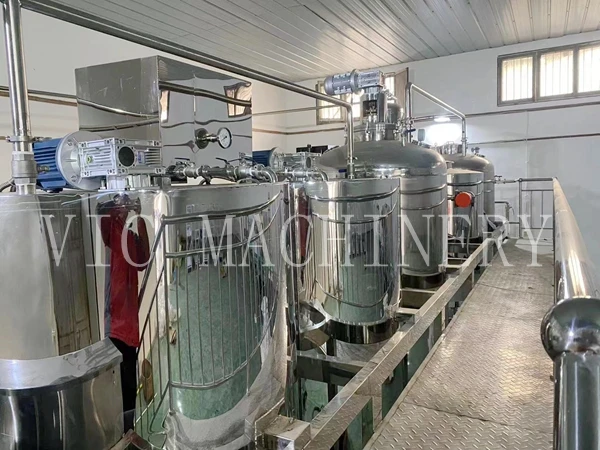

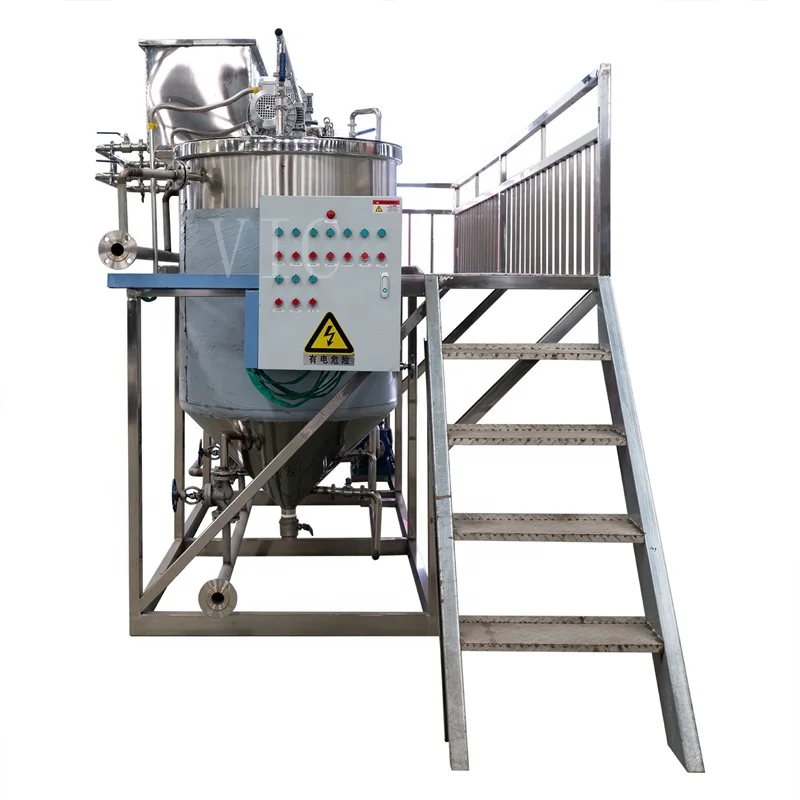

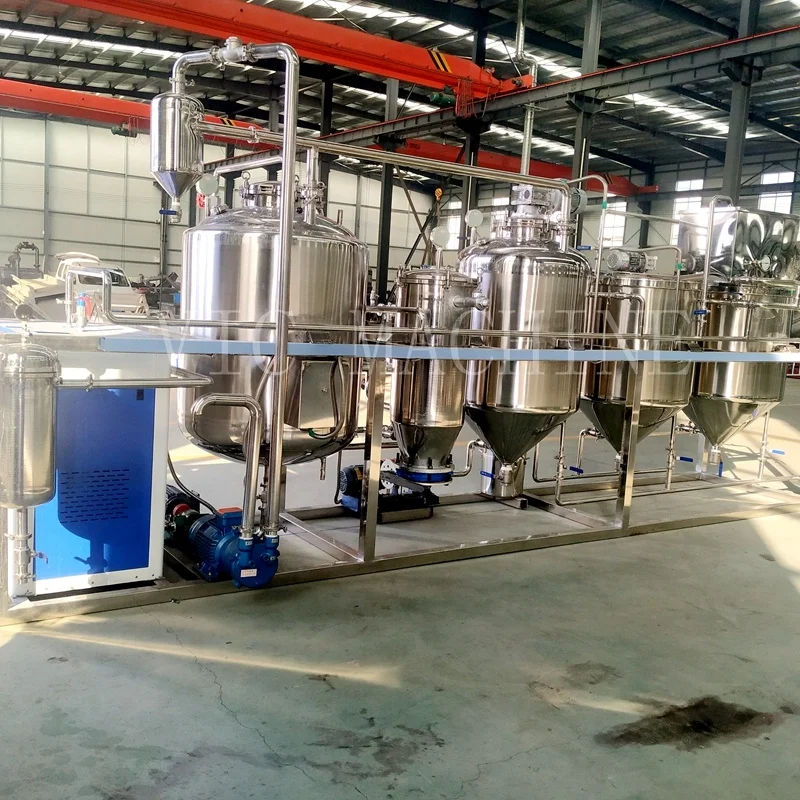

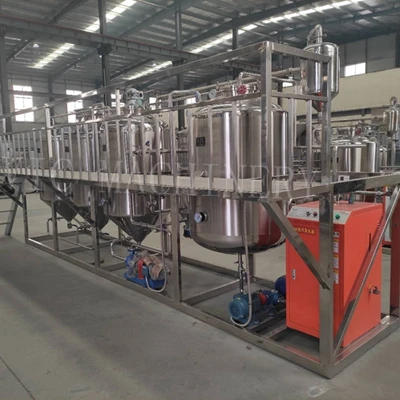

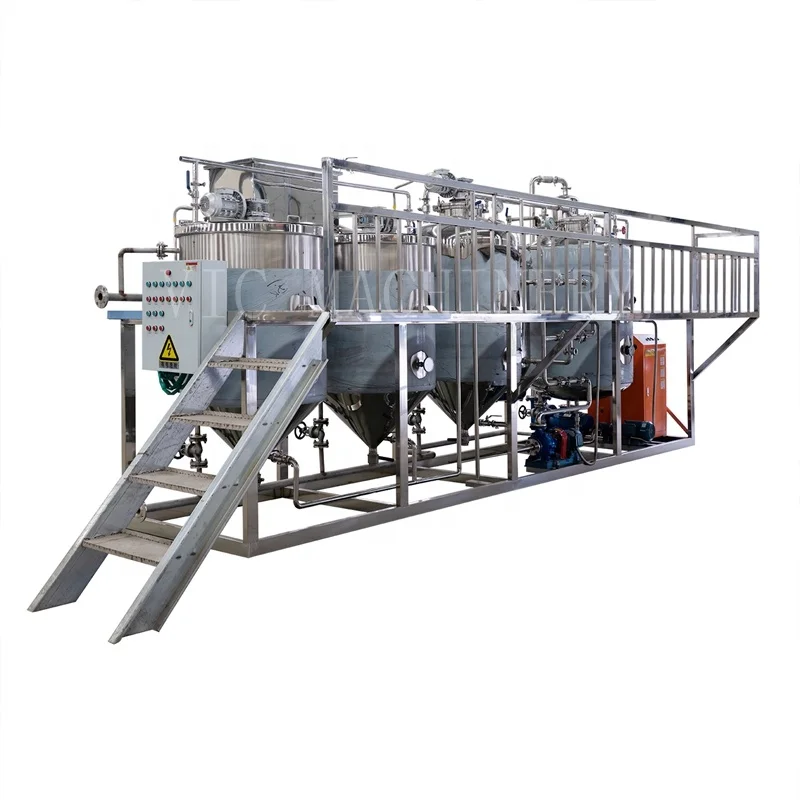

3TPD Edible oil complete production line sunflower oil refining machine coconut oil refinery machine

I Instruction about the coconut oil refinery machine:

1.  Delivery time and transportation:

Delivery time about 15 days by ship, maritime transport, 2*40HQ container.

2.  Warranty period and after-sales service:

Warranty period of 12 months (except wearing parts).The company provided free of damage mechanical parts and technical services within 12 months.

After I provide free internet and telephony services in the form of technology, for on-site service, users need to pay related costs.

II Equipment introduction :

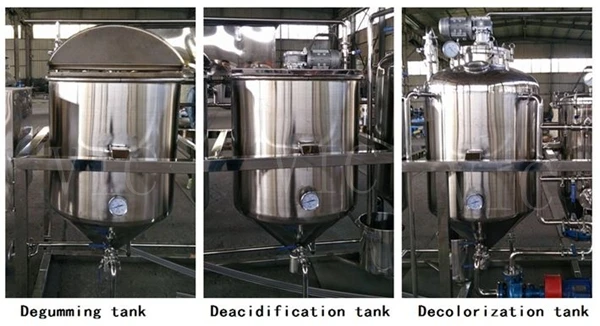

1.It can realize the four functions of degumming, dephosphorization, deacidification, decolorization and deodorization

2.Equipment volume: 500L

3.Heating method: direct electric heating and indirect steam heating (steam generator).

4.Process type: intermittent

5.Process method: physical refining and chemical refining mixed process.

6.Applications: Small-scale edible oil processing plants or private (individual) edible oil processing.

7.Operating procedures:

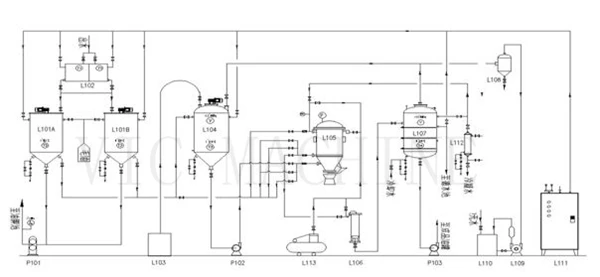

Crude oil--deacidification (alkali refining)--degumming and dephosphorization (washing)--optional (decolorization)--dehydration (vacuum drying)--deodorization (vacuum distillation)--product oil

8.Treatment effect:

The oil refined by this oil refining equipment meets the national first and second edible oil standards and can be directly filled and sold! The grease processed by the refining machine has a transparent color, no precipitation after long-term storage, no foaming in the pot, and less oily smoke.

9.Production Line Technical Indexes

9.1 Required crude palm oil quality index

9.1.1 Moisture and volatile matters (%):  ≤ 0.20

9.1.2 Insoluble impurities(%): ≤ 0.05

9.1.3 Acid value (Calculating as per KOH) (mg/g): ≤10.0

9.1.4 Smell,flavor: With inherent smell and flavor of crude oil, no off-flavor.

9.2.0 Finished oil quality index

9.2.1 Color (Lovibond color slot 133.4mm): Yellow value ≤30, red value ≤ 3.0

9.2.2 Smell,flavor: Good smell and flavor

9.2.3 Moisture and volatile matters (%):  ≤ 0.05

9.2.4 Insoluble impurities(%): ≤ 0.05

9.2.5 Acid value (Calculating as per KOH) (mg/g): ≤ 0.20

9.2.6 Peroxide value(mmol/kg): ≤ 5.0

III Equipment Features:

1. Using food grade 304 stainless steel material, standard equipment required by the country for edible oil, it can apply for SC food safety certification.

2. Simple design and exquisite appearance improve customer satisfaction.

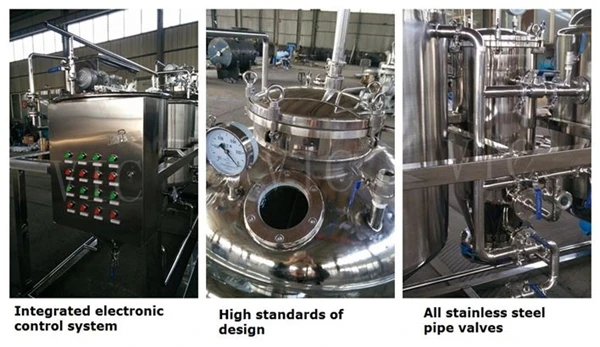

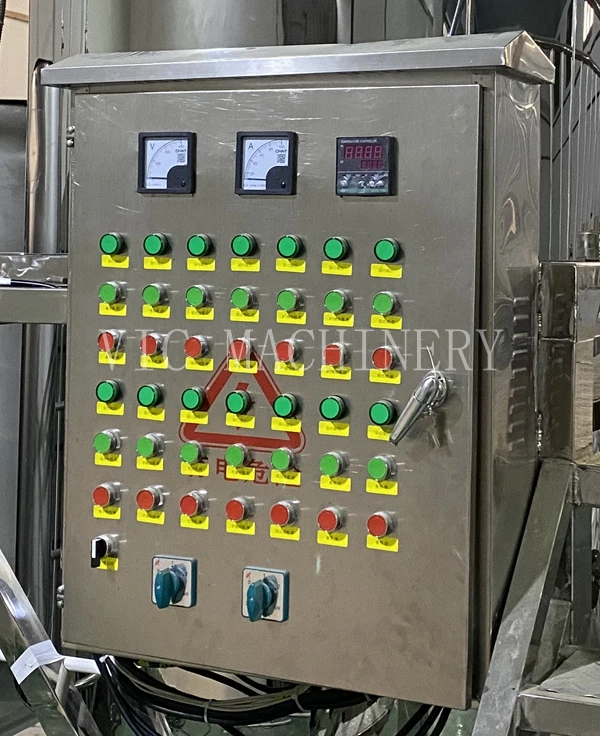

3. All operating data is displayed by the instrument, which is easy to operate and safe to run; ordinary staff can work on the machine after short-term training.

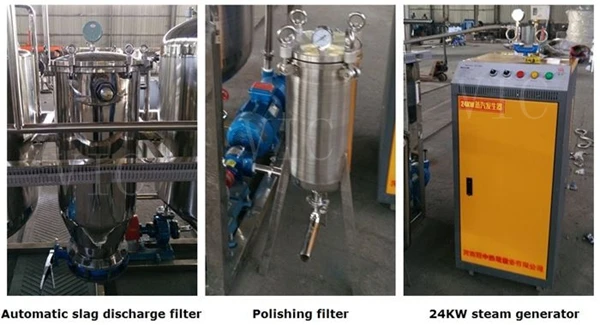

4. It can realize the low-temperature dehydration of oil products, and the decolorized soil is filtered by a leaf filter.

VI Equipment list about the coconut oil refinery machine
