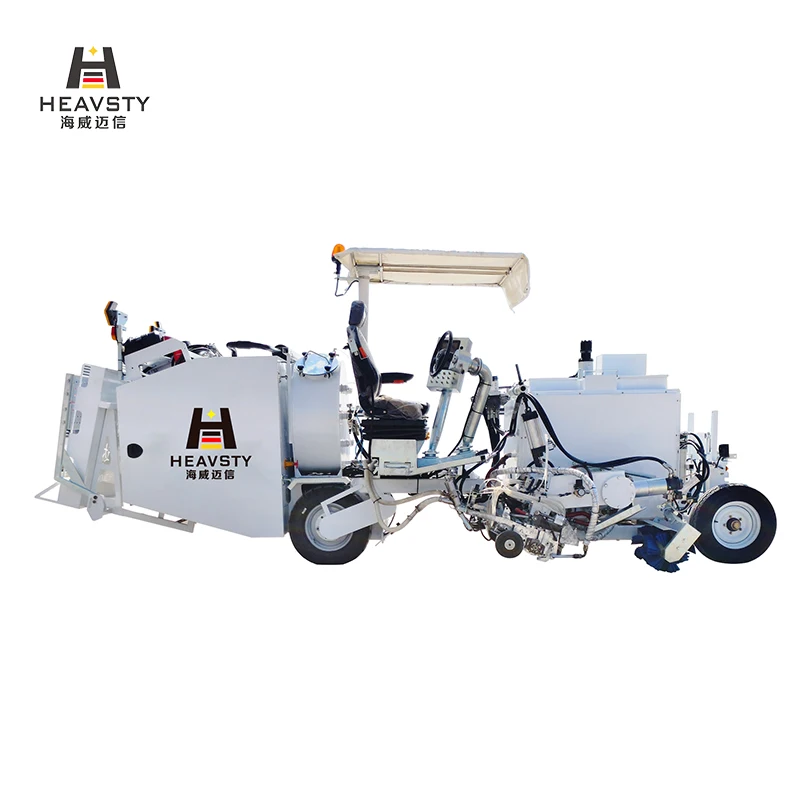

Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine
Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine

Big thermoplastic road pavement marker automatic ride on extrusion flat line traffic marking machine

Share on (1601268019901):


Price:$145,000.00

Quantity:


Product Overview

Description



Product Paramenters




Specification
Custom design driving type road marking machine
Engine
Japan Kubota 72kw
Steering
Steering is achieved through the operation of the steering wheel oil cylinder
Walking drive braking system (Danfoss）
Hydrostatic simultaneous service brake and hydraulic driven multi disc brake as parking brake
Marking Speed
3-8 km/h
Marking Thickness
1.5~3.0mm, Construction can be carried out on high roughness road surfaces (such as slurry sealed road surfaces)
Computer
Full touch screen panel, computer precise control construction, can achieve non-stop line changing
Cruise mode
Cruise control construction mode with uniform and stable marking quality
Glass beads tank
Pressure glass bead jar, capable of spreading double beads of different specifications
Spray gun system
Equipped with C6 spray gun water line system, it can achieve simultaneous marking and water line drawing
Line type
Multiple drainage structure markings, such as fishbones, pork ribs, chessboards, step lines, etc
Equipped with hot melt kettle function
Equipped with a 1.4-ton hot melt kettle, with circulating heating of thermal oil, precise insulation and temperature control
Construction technology
Extrusion construction technology reduces mechanical wear and extends equipment life
Optional
Supporting equipment such as sunshade cover, cruise control, quick edge changing, pressure glass bead double spraying system,
automatic waterline system, etc
Paint tank capacity
1 T
Size & Weight
6.7*2.4*2.5m  6.7 T


Products Pictures




Features
* Fast construction speed and high efficiency
* Belonging to larger construction equipment, reducing casualties caused by traffic accidents during the construction process
* Long maintenance free cycle and durability
* Extrusion construction technology, precise control of coating dosage, avoiding unnecessary consumption
*User friendly and easy to use (cruise control, computer system, etc.)
* Rapid conversion of operation and construction methods, achieving the installation of marking equipment from one side to the other in half an hour



* Minimal maintenance (high-quality components) and simple and convenient maintenance
* Customizable marking equipment according to customer needs

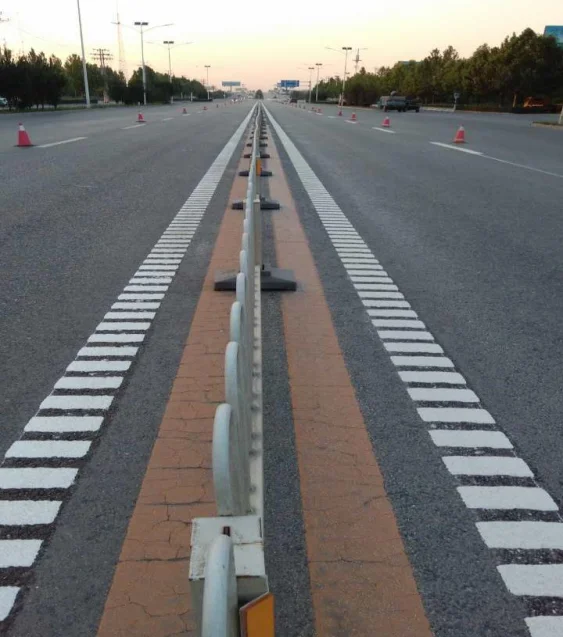

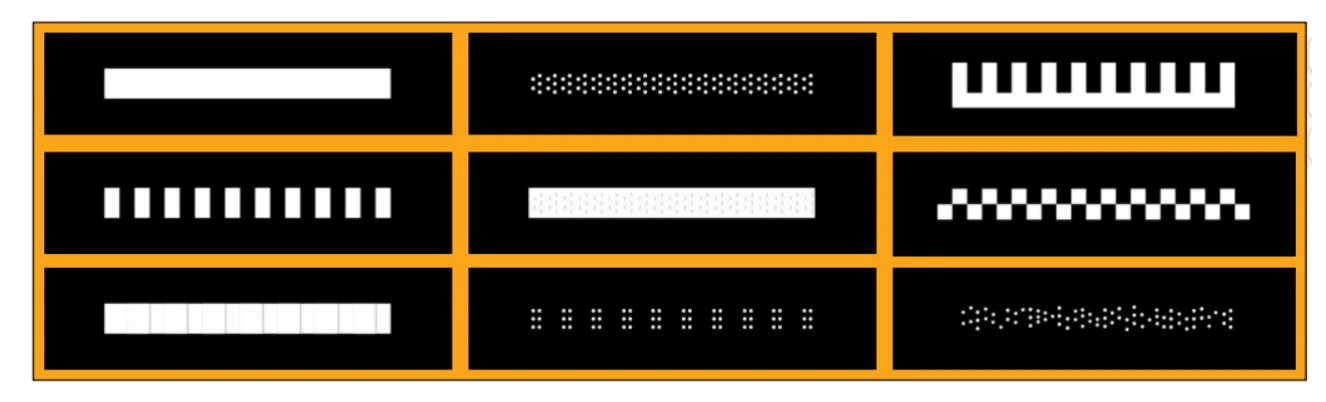

Line Types
solid line
dashed line
rib line
dot line
combining dots and lines
combination of rib dots line
Piano key line
Chessboard line
Irregular spray coating
