Overview

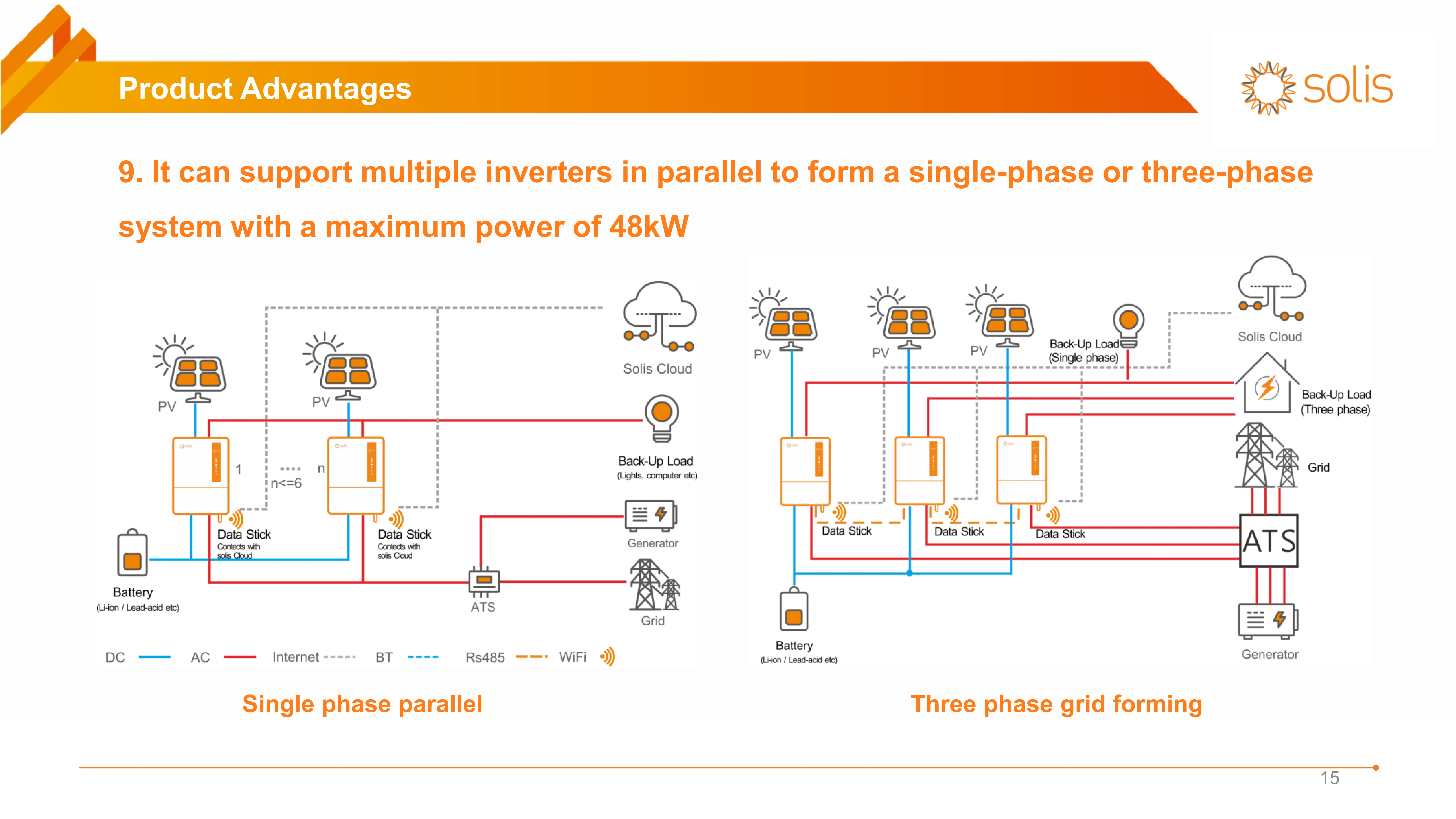

S6-EH1P(3-8)K-L-PLUS series energy storage inverter is suitable for residential PV energy storage system, support up to 32A MPPT current input, suitable for various high power PV panels; 6-stage timed charge and discharge function, integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW. With UPS switching and provides an independent generator interface to make energy applications more reliable. The product provides solutions for demanding power scenarioswith residential energy storage systems.

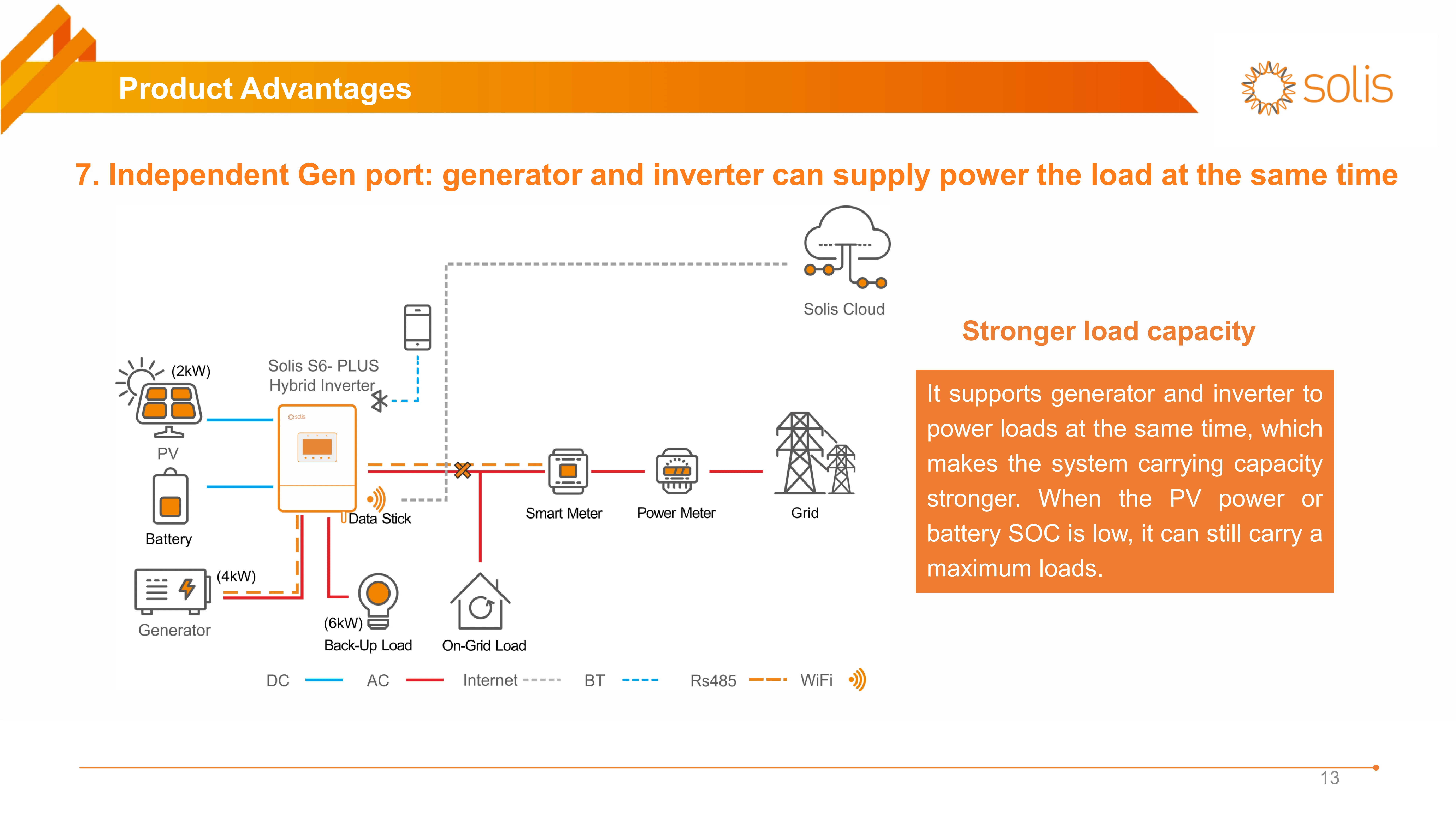

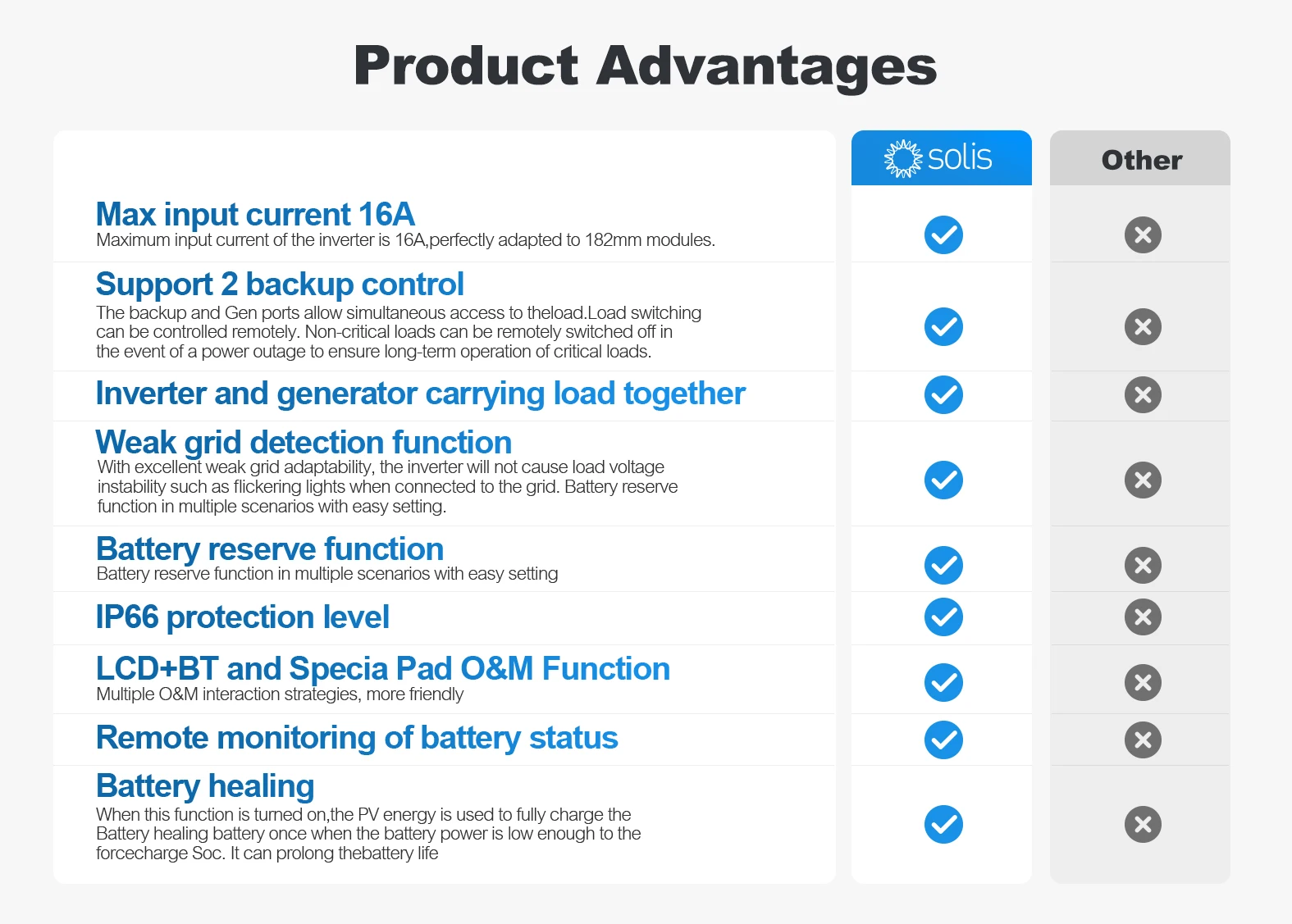

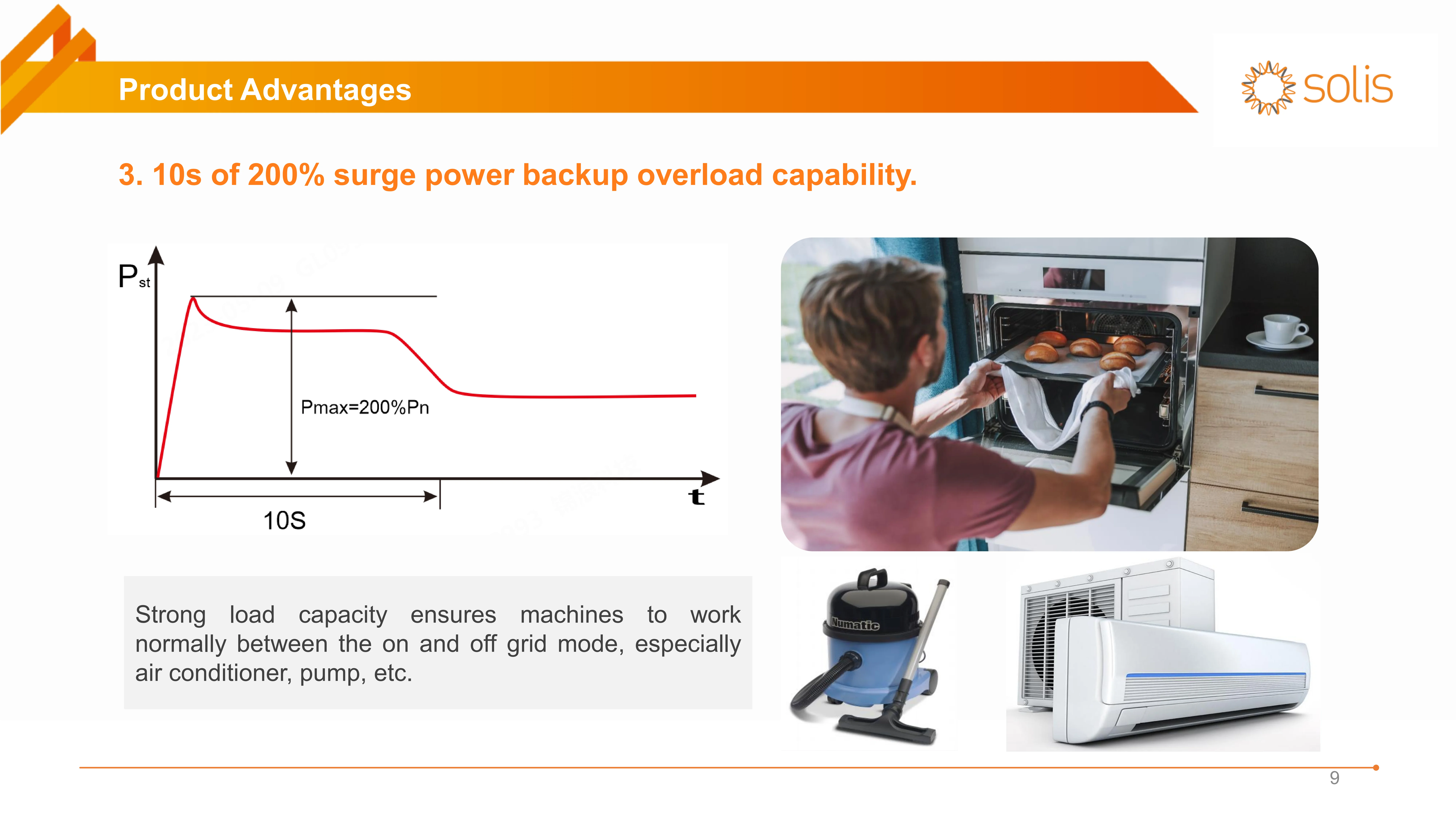

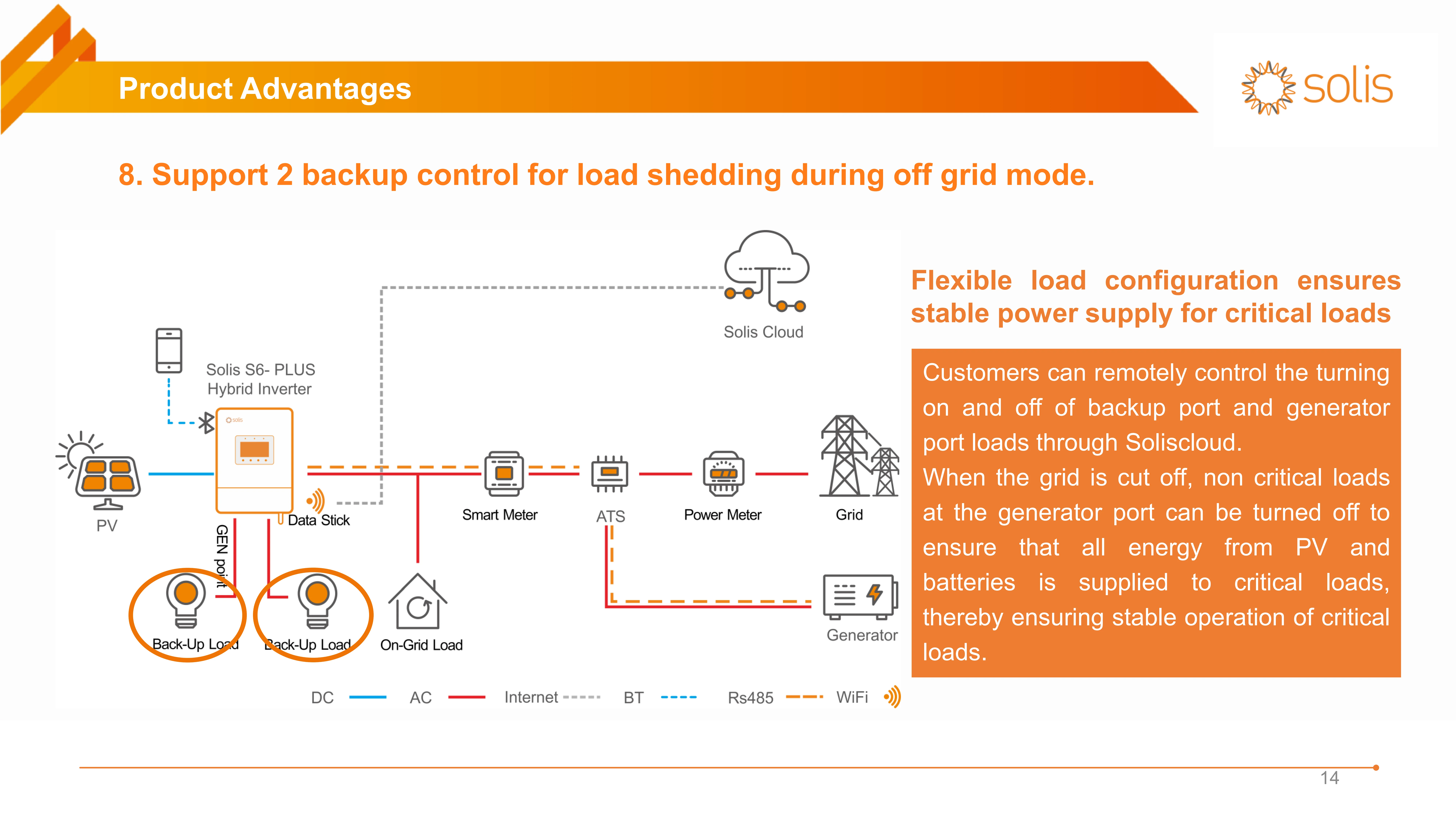

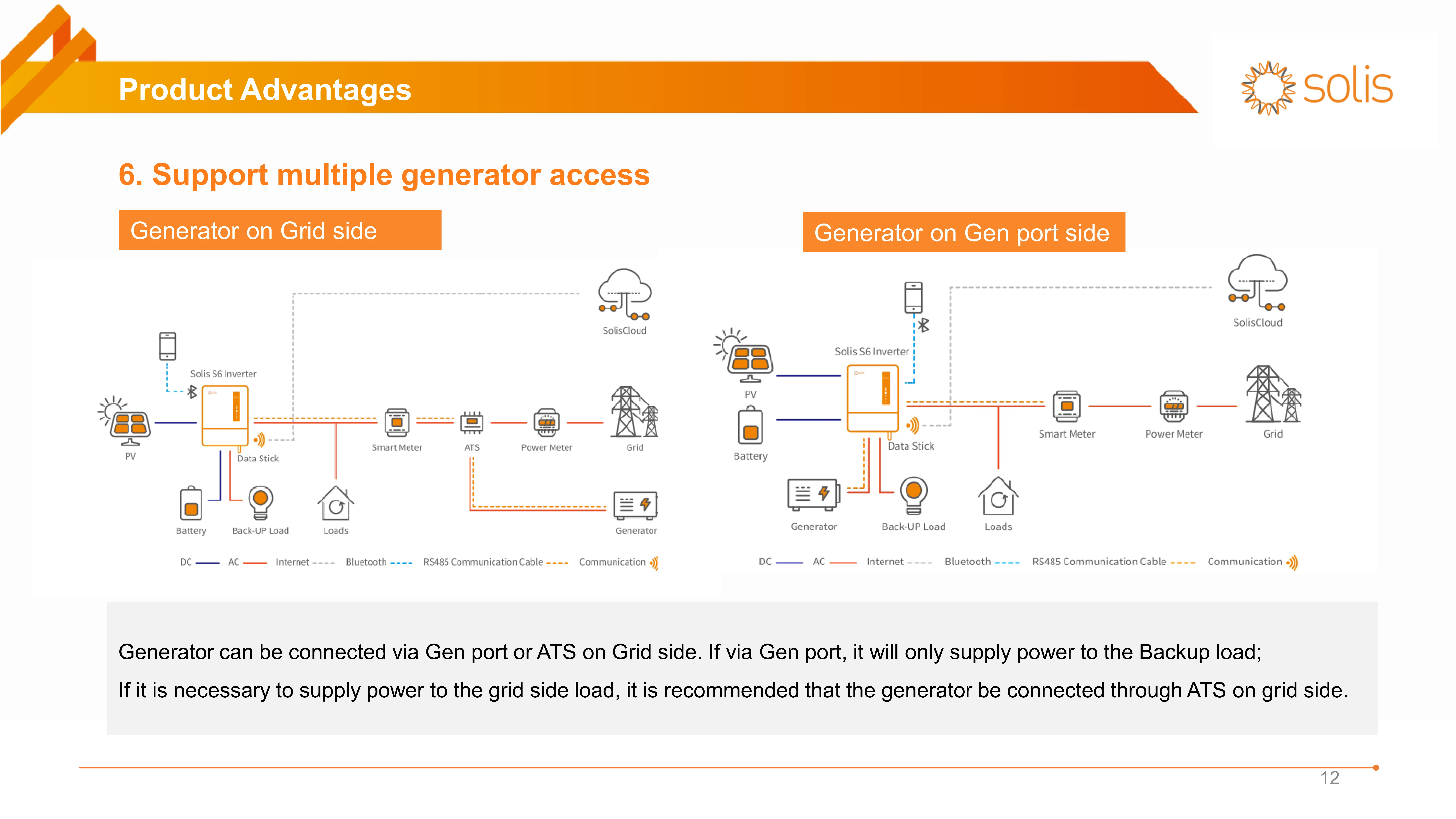

Product Advantages






















Technical Specifications


Models
S6-EH1P3K-L-PLUS
S6-EH1P3.6K-L-PLUS
S6-EH1P4.6K-L-PLUS
S6-EH1P5K-L-PLUS
S6-EH1P6K-L-PLUS
S6-EH1P8K-L-PLUS
Input DC (PV side)
Max. usable PV input power
4.8 kW
5.76 kW
7.36 kW
8 kW
9.6 kW
12.8 k
Max.input voltage
500V
Rated voltage
330 V
Start-up voltage
90 V
MPPT number/
Max. input strings number
2/2
Battery
Battery type
Li-ion / Lead-acid
Battery voltage range
40-60 V
Max. charge / discharge current
70 A
80 A
105 A
112A
135 A
190 A
Output AC (Grid side)
Rated output power
3 kW
3.6 kW
4.6 kW
5 kW
6kW
8kW
Max. apparent output power
3 kVA
3.6 kVA
4.6 kVA
 5 kVA
6 kVA
8 kVA
Operation phase
L/N/PE
Rated grid voltage
220 V/ 230 V
Rated grid frequency
50 Hz / 60 Hz
Input AC (Grid side)
Input voltage range
187-253 V
Max. input current
21A
25 A
29 A
32 A
40 A
50 A
Frequency range
45-55 Hz / 55-65 Hz
General Data
Max. efficiency
96.2%
Dimensions (W*H*D)
335*560*227 mm
Weight
21.6 kg
22.2 kg
Topology
High frequencyisolation (for battery)
Operating ambient temperature range
-40 ~+60℃℃
Ingress protection
IP66
Cooling concept
Natural convection
Intelligent redundant fan-cooling
Max. operation altitude
3000 m
Grid connection standard
NRS 097-2-1, IEC 62116,IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
Safety/EMC standard
IEC/EN 62109-1/-2, EN 61000-6-2/-3

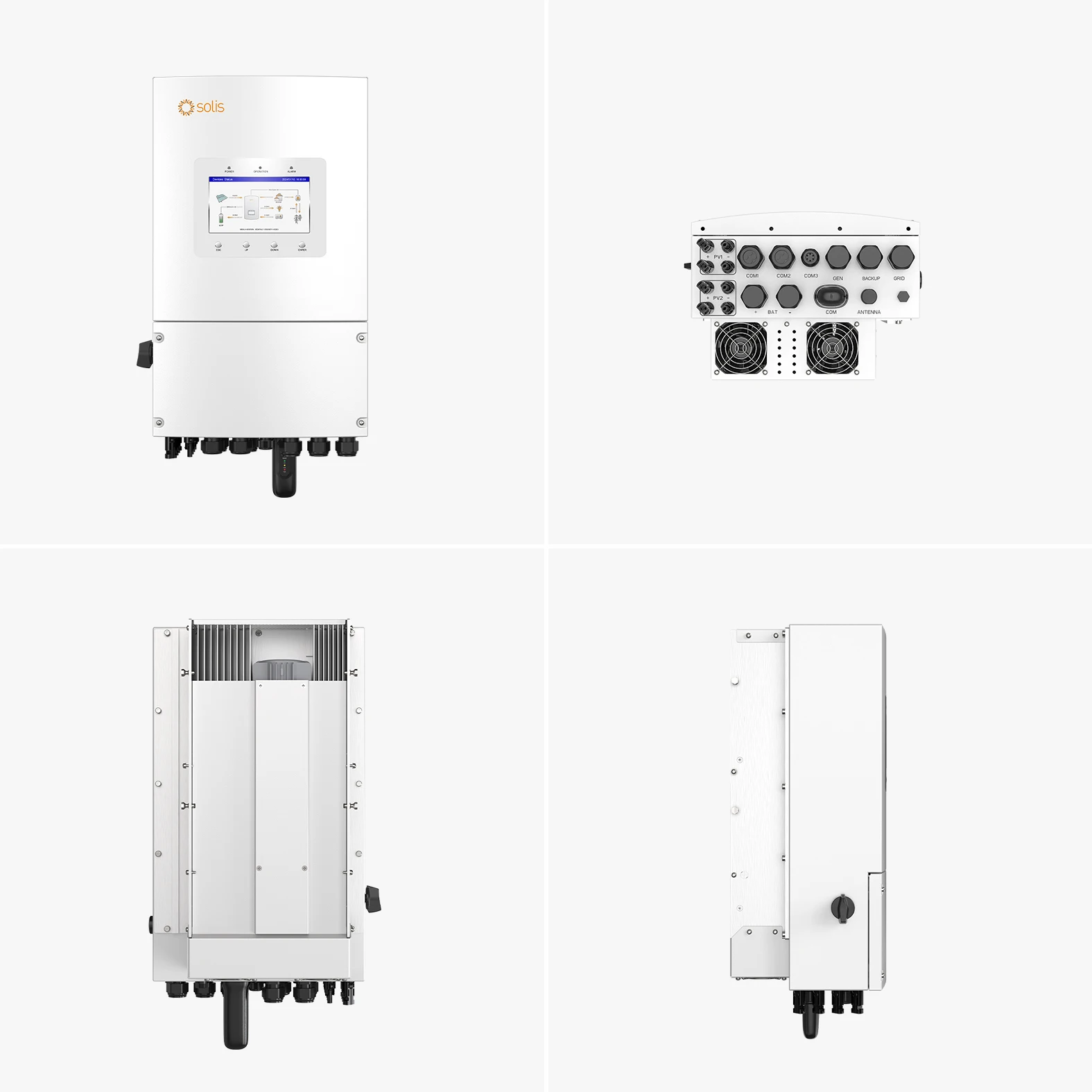

Product Details






Recommend Products

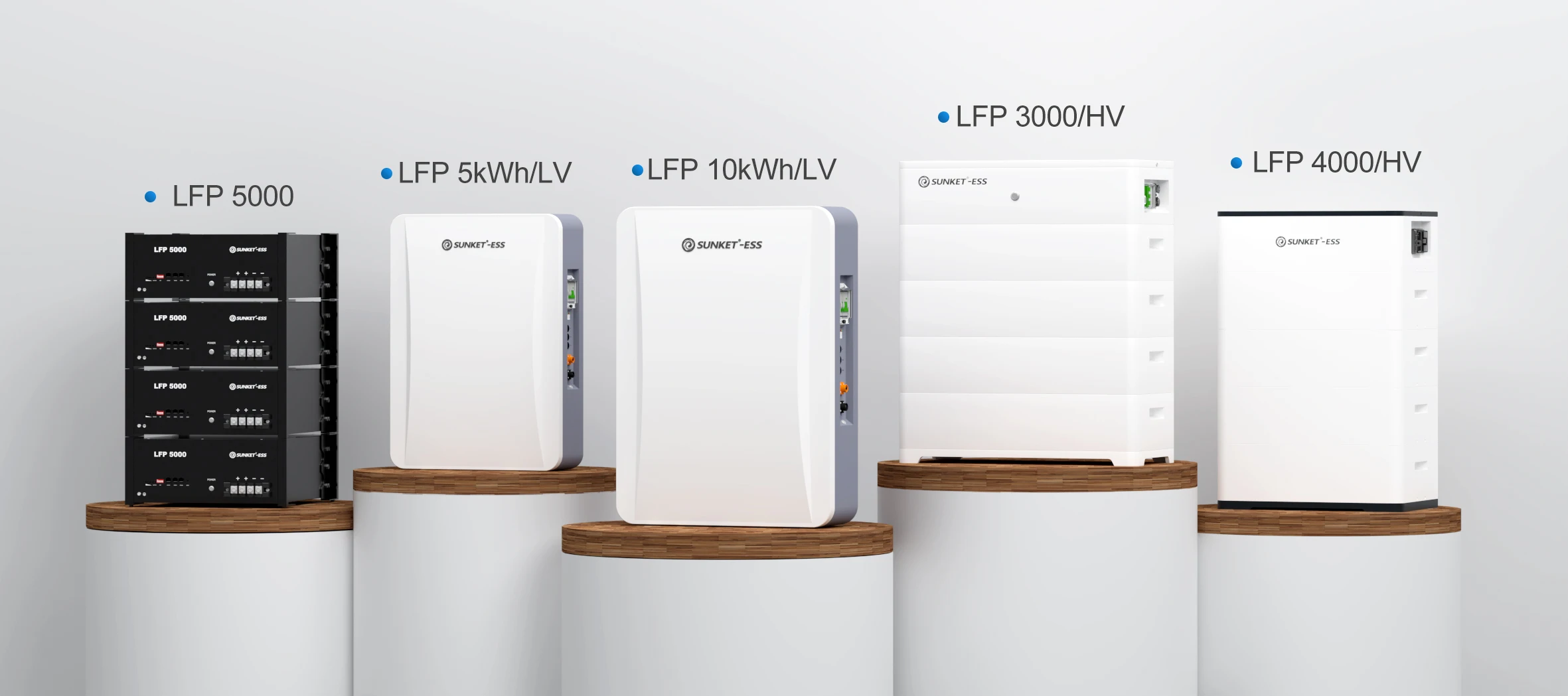

Sunket is officially authorised by Solis, to perfectly match the Sunket high and low voltage batteries to ensure the best performance of Solis hybrid inverters. The followings are Sunket matched battery types:

Low Voltage Battery: LFP 5000 / LFP 5kWh/LV / LFP 10kWh/LV
High Voltage Battery: LFP 3000/HV / LFP 4000/HV

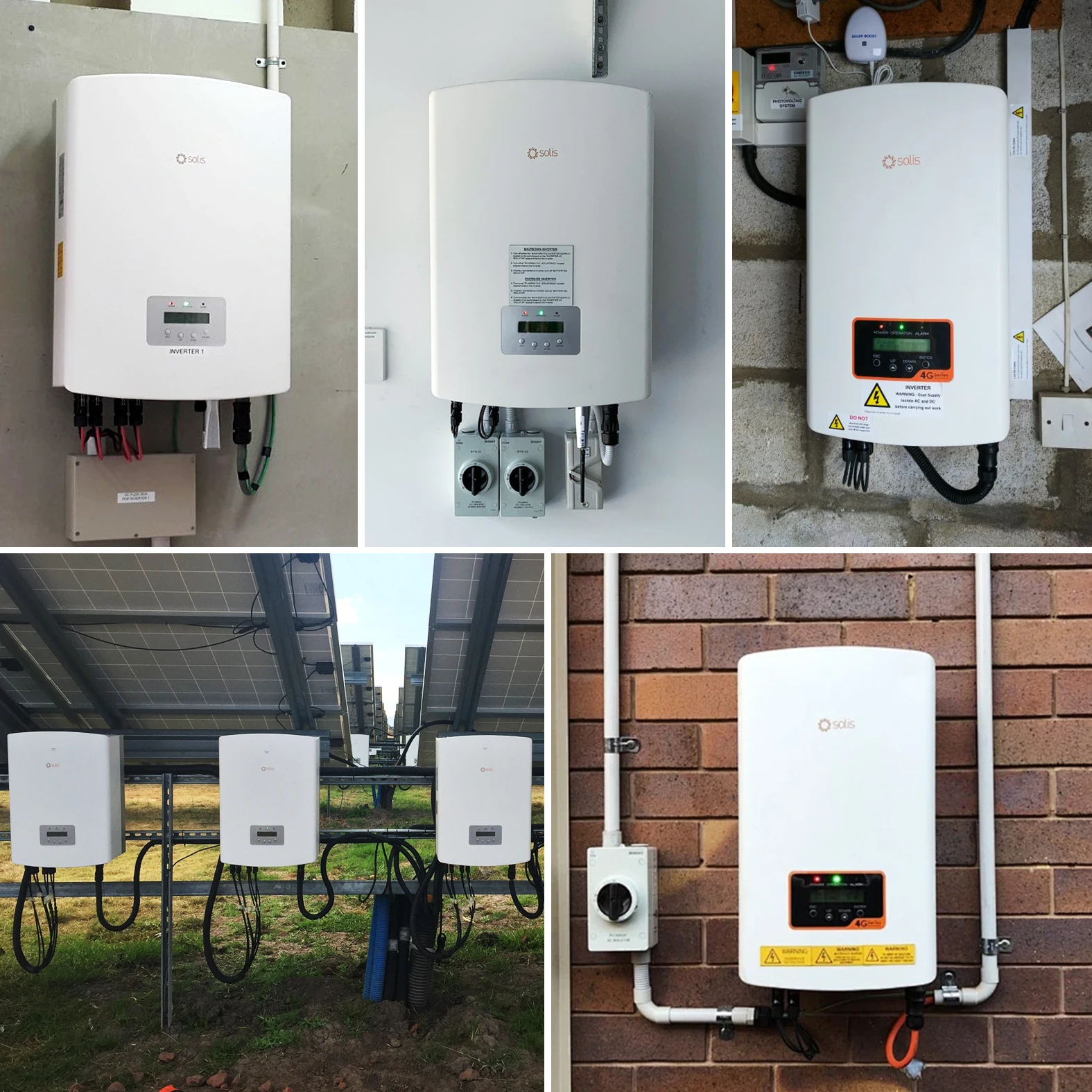

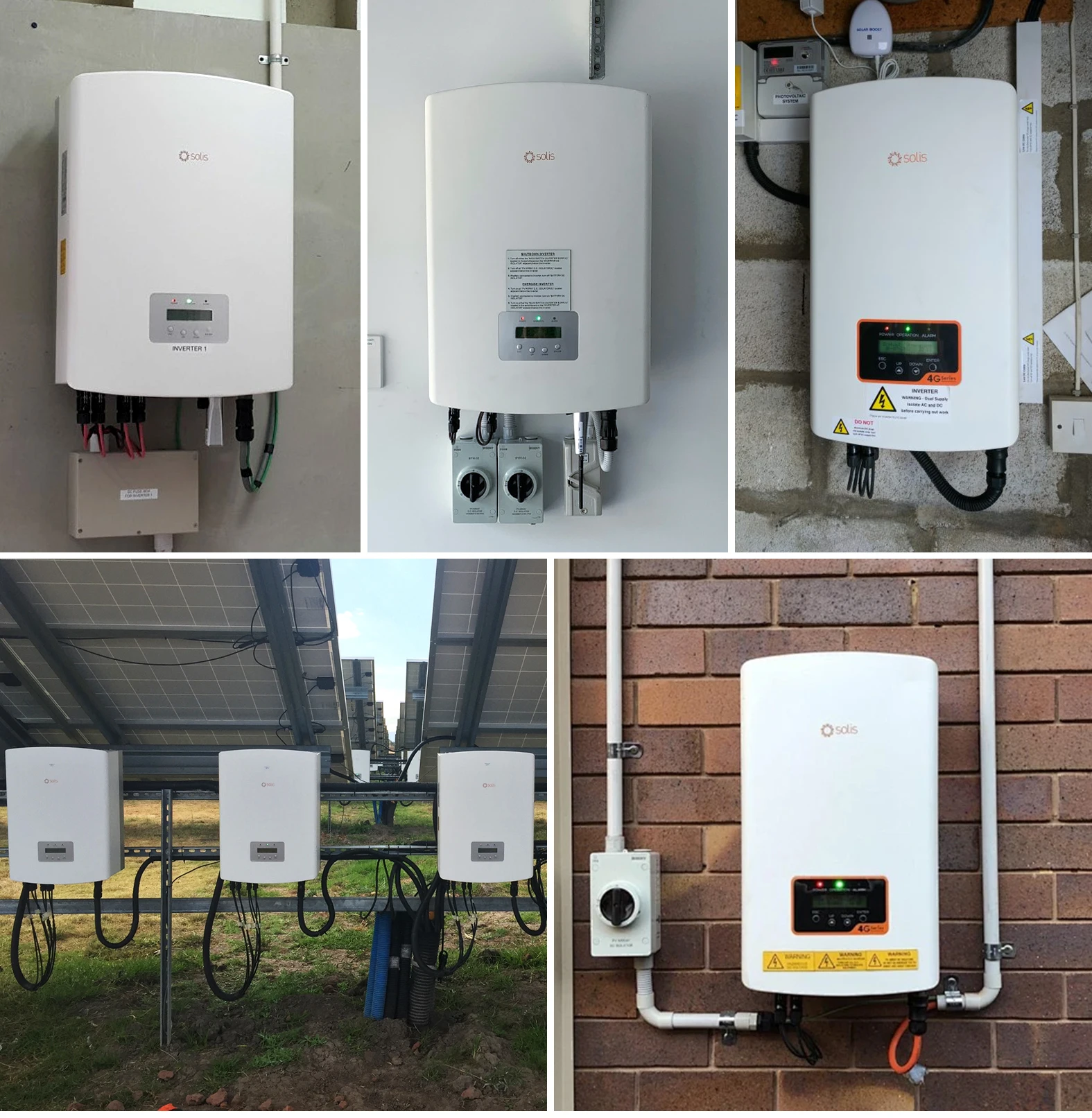

Project Cases
