Product Overview
Description

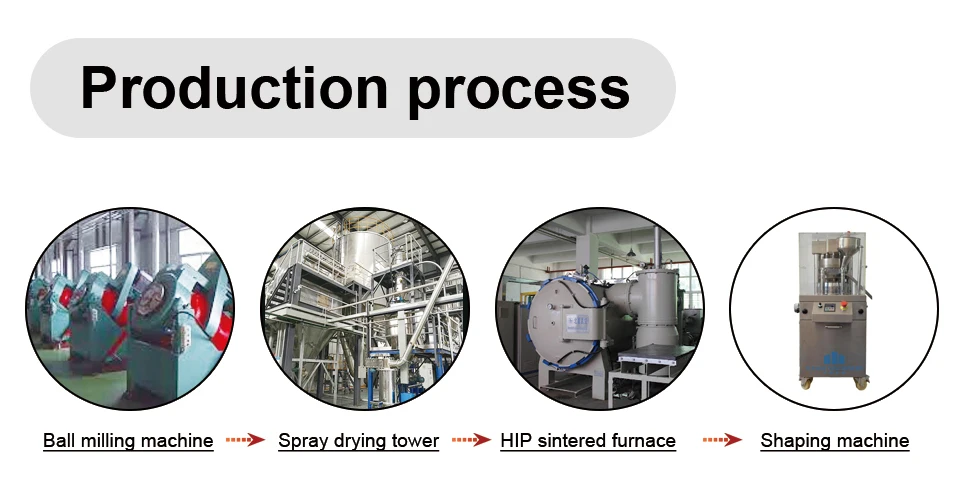

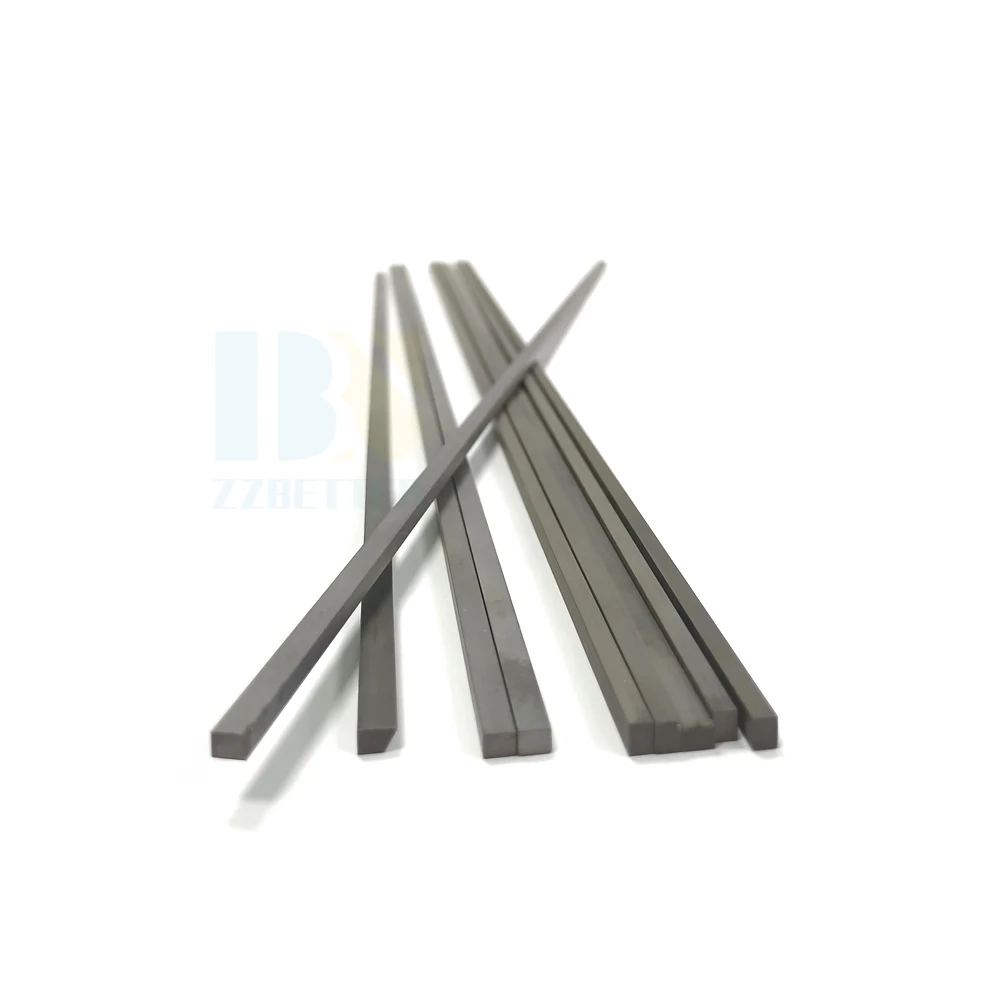

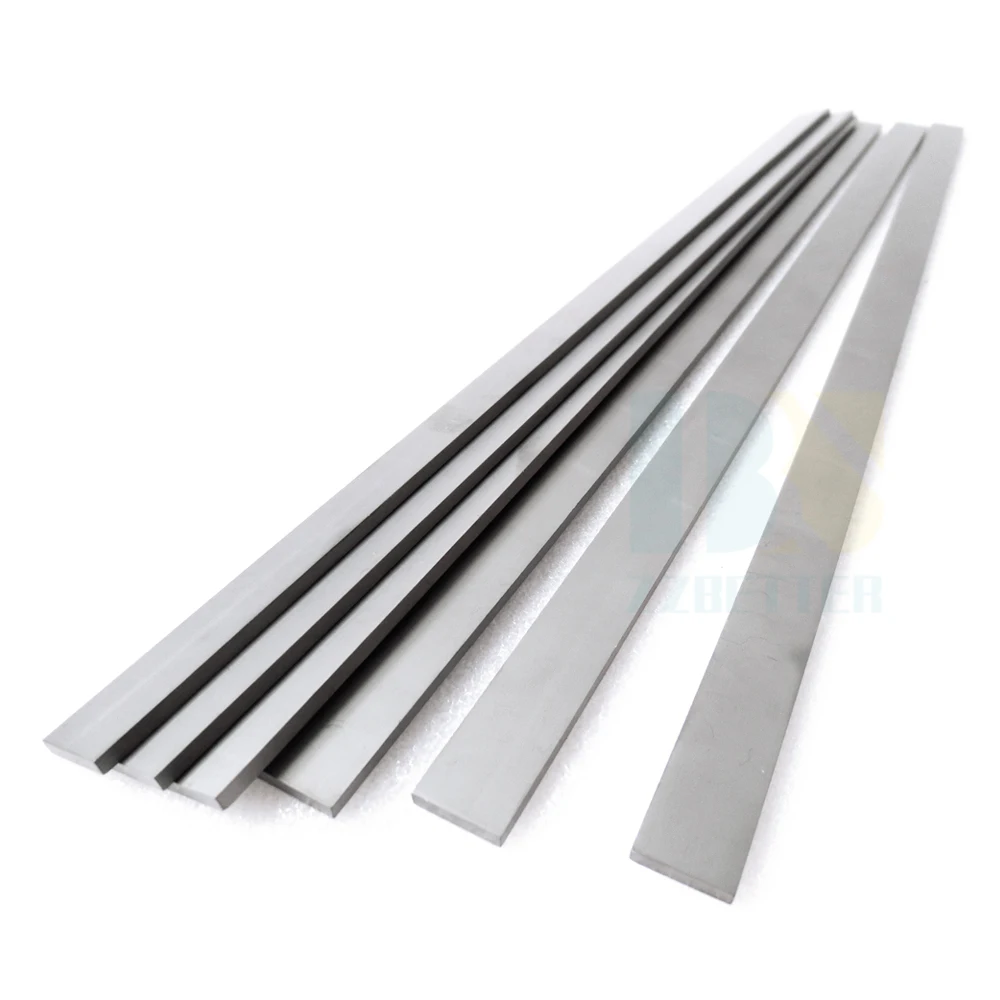

Tungsten carbide strips are named after their shape of a rectangle plate, so they can also be called tungsten carbide rectangle rods, tungsten carbide square bar or tungsten carbide plates. Tungsten carbide strips are made of a mixture of tungsten carbide powder and cobalt powder and are made by powder metallurgy by preparing mixture powder, ball milling, pressing, and sintering.
For manufacturing different tungsten carbide strips, which can be applied for different applications, the proportions of tungsten carbide and cobalt are different.

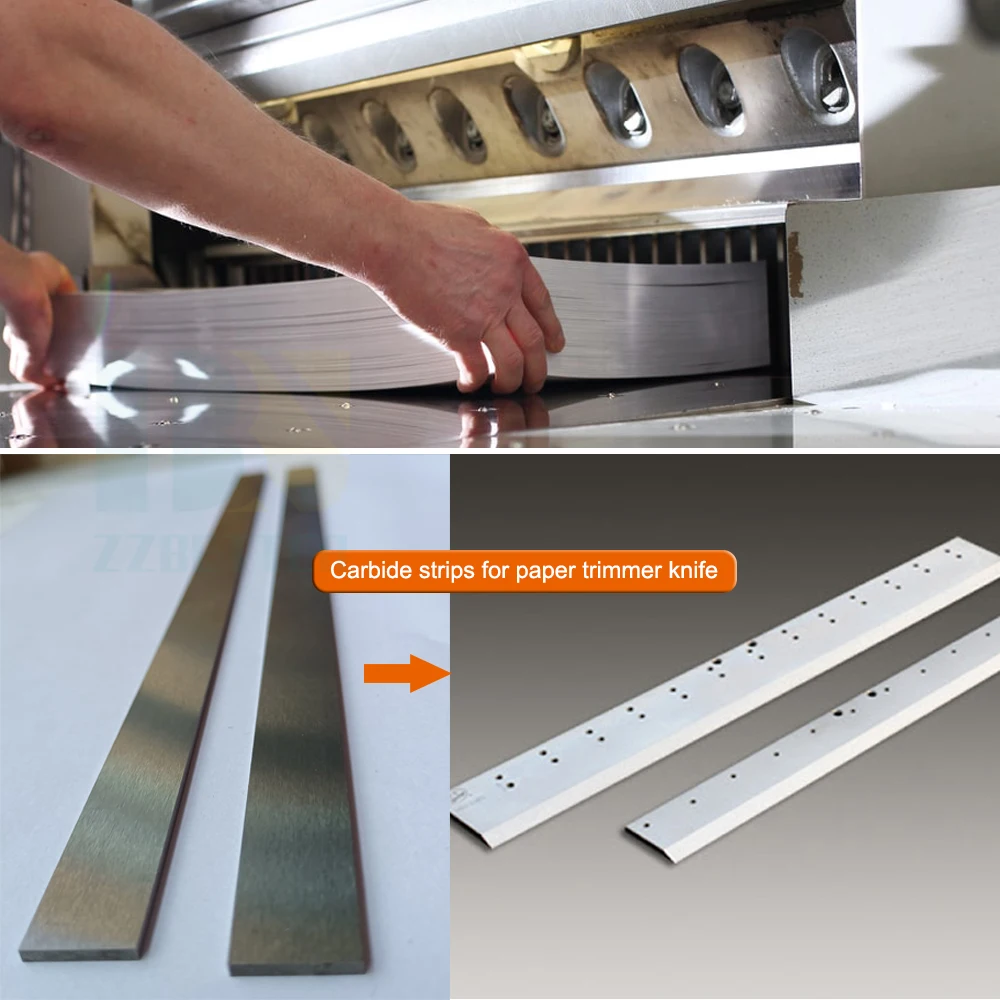

These strips are used in various cutting applications, including the production of paper products, like Book binding, publishing and textiles.

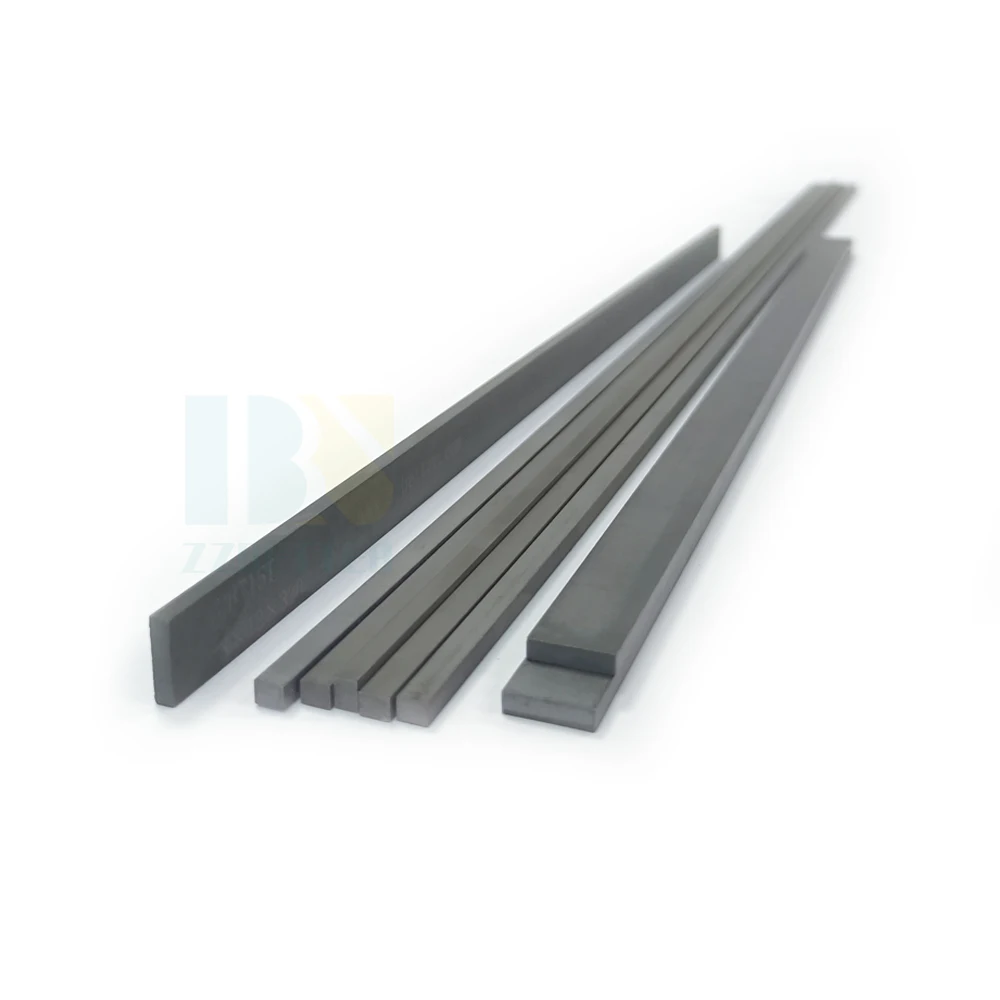

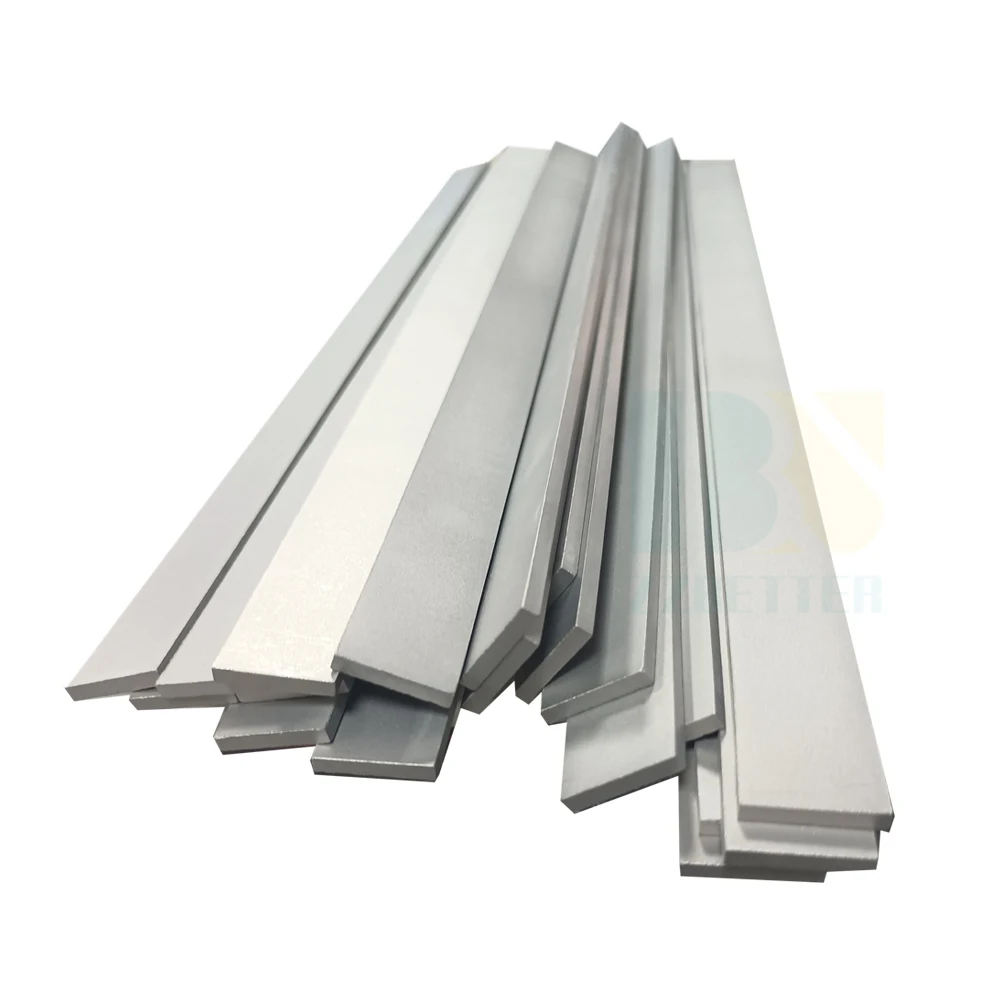

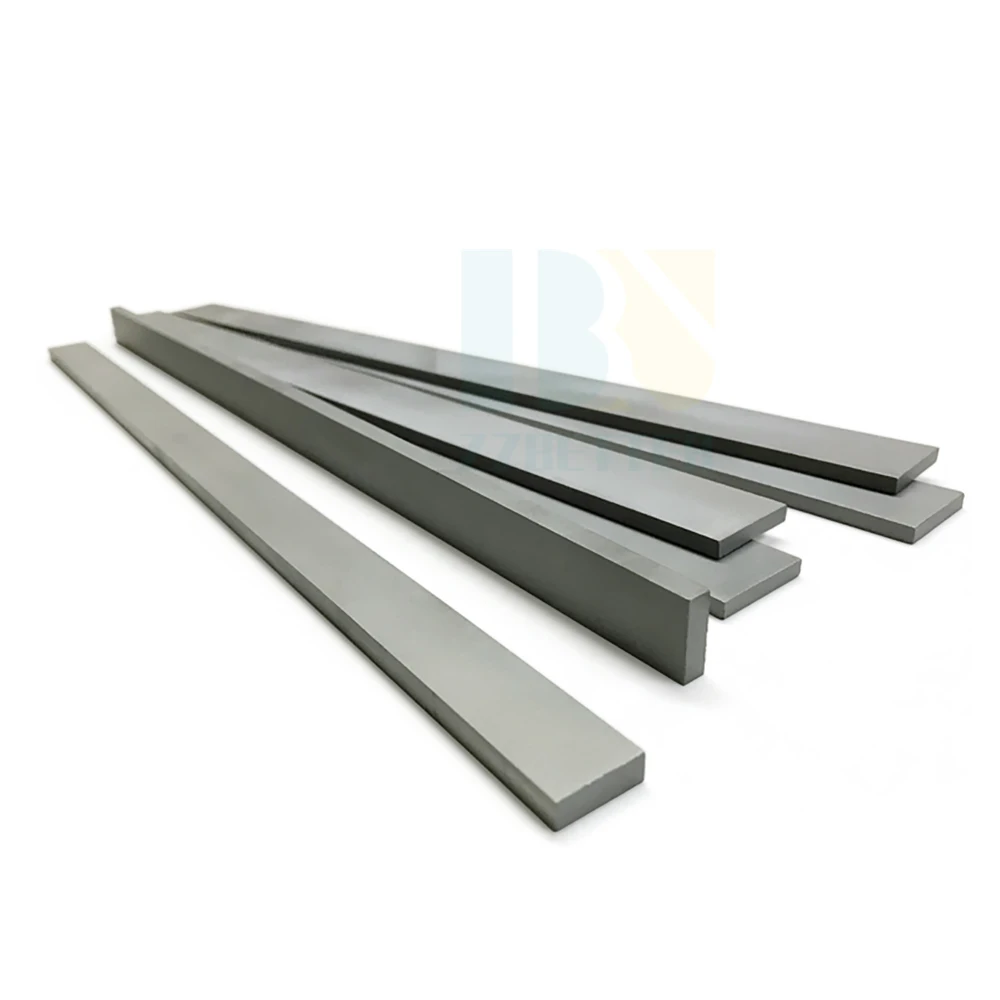

Long-Lasting Carbide Flat Bars for Reliable Paper Cutting Solutions

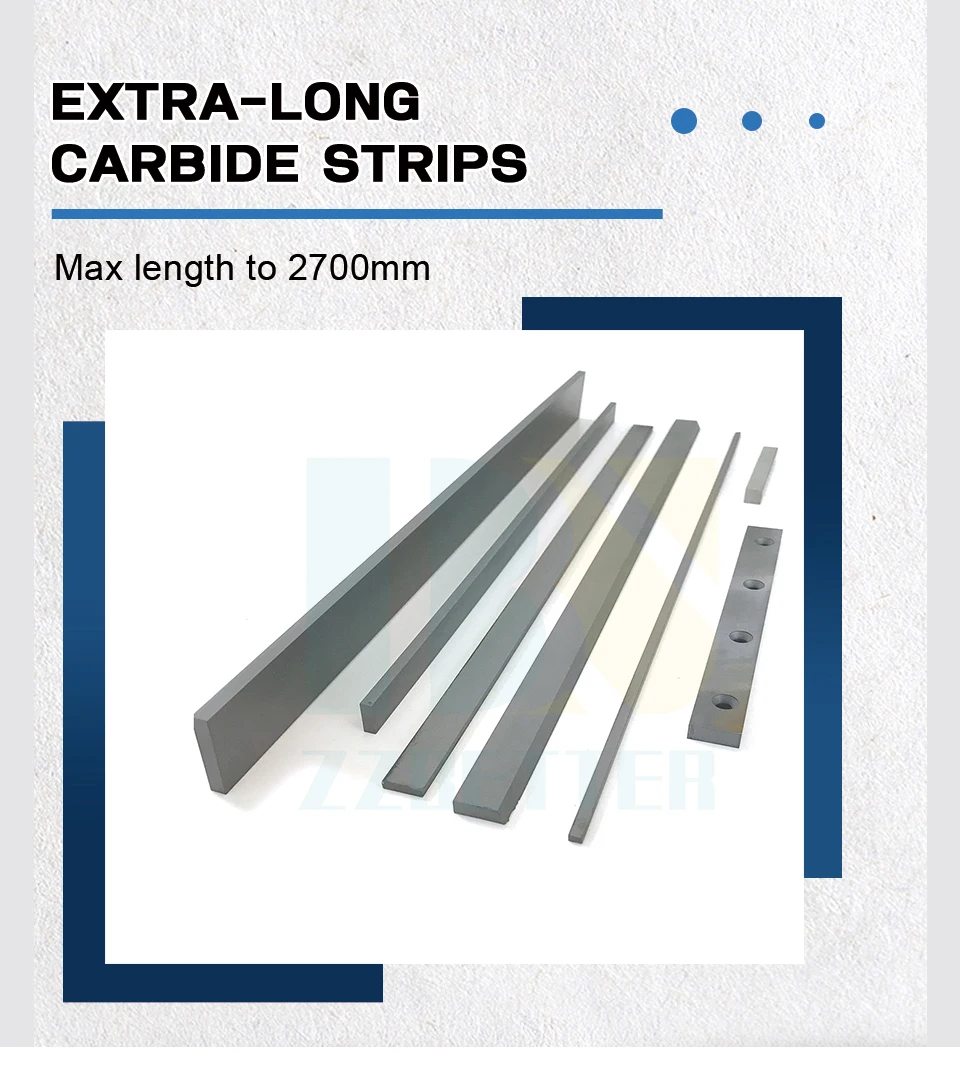

ZZBETTER is happy to provide high-quality tungsten carbide strips in lengths ranging from 100mm to 2700mm.
Our tungsten carbide strips are designed for endurance and precision, making them suitable for a wide range of industrial applications such as machining, cutting, and wear-resistant components. They are especially suitable for the plastics, rubber, paper, and textile sectors.
Length Options: Available in lengths ranging from 100mm to 2700mm, suited to your individual requirements.
Material Composition: zzbetter tungsten carbide strips are constructed from high-quality raw materials, assuring superior hardness and wear resistance, normally used grade are K20, K10, YL10.2, YG11C, YG15, YG15C.
Precision Engineering: Using modern technologies to achieve tight tolerances and exceptional surface finishes.
Material Composition: zzbetter tungsten carbide strips are constructed from high-quality raw materials, assuring superior hardness and wear resistance, normally used grade are K20, K10, YL10.2, YG11C, YG15, YG15C.
Precision Engineering: Using modern technologies to achieve tight tolerances and exceptional surface finishes.
Regular sizes of tungsten carbide strip
W (mm) | T （mm) | L (mm) |
20-30 | 1-30 | 100-1000 |
32-40 | 1-30 | 100-1000 |
45-50 | 1-30 | 100-1000 |
60 | 1-30 | 100-1000 |
3.5-10 | 1-30 | 100-330 |
11-19 | 1-30 | 100-330 |
customized | customized | 100-2700 |
Normally used grades and physical performance
Grades | Density(g/cm3) | Hardness(HRA) | T.R.S(Mpa) | Grain size |
K10 | 14.9 | ≥91.5 | ≥2000 | fine |
K20 | 14.9 | ≥89.5 | ≥2400 | fine |
YG10X | 14.5 | ≥89.5 | ≥2800 | fine |
YG11C | 14.4 | ≥87.0 | ≥2600 | coarse |
YG15C | 14.0 | ≥87.0 | ≥2500 | coarse |
UBT40 | 13.95 | ≥89.7 | ≥2930 | fine |
UBT25 | 14.08 | ≥89.7 | ≥4660 | fine |

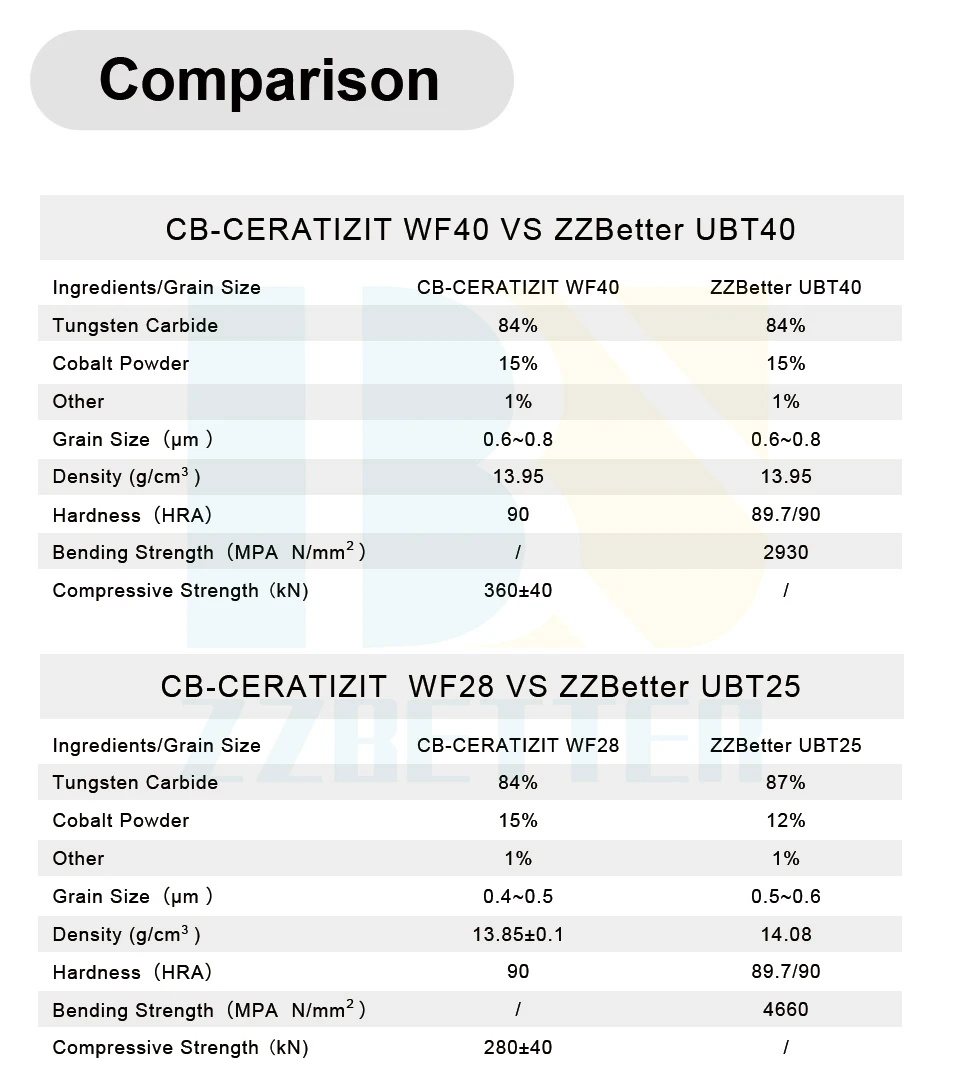

This report aims to conduct a detailed comparative analysis of CB-CERATIZIT WF40 and the self-developed UBT40,WF28 and the self-developed UBT25, including chemical composition, raw materials, proportions and physical properties, in order to better understand the characteristics and differences of the two products.

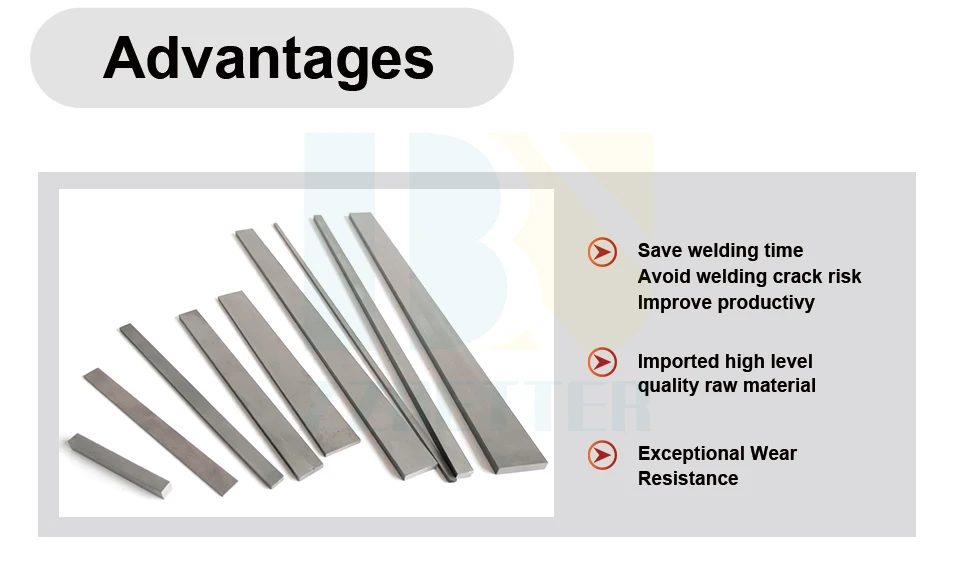

Save Welding Time
The amount of time spent on welding procedures may be greatly decreased by using our 2700mm tungsten carbide strips. These strips' accuracy makes installation simpler and quicker, reducing downtime and increasing workflow effectiveness overall.
Avoid Welding Crack Risk
The purpose of our tungsten carbide strips is to reduce the possibility of welding cracks. Their sturdy makeup guarantees structural integrity throughout the welding process, resulting in joints that are more dependable and long-lasting. This extends the life of your items and lowers the possibility of expensive repairs.
Improve Productivity
You may increase efficiency in your production process by incorporating premium tungsten carbide strips. Their ability to cut and shape materials efficiently enables increased productivity and faster turnaround times, which eventually increases your operational effectiveness.
The amount of time spent on welding procedures may be greatly decreased by using our 2700mm tungsten carbide strips. These strips' accuracy makes installation simpler and quicker, reducing downtime and increasing workflow effectiveness overall.
Avoid Welding Crack Risk
The purpose of our tungsten carbide strips is to reduce the possibility of welding cracks. Their sturdy makeup guarantees structural integrity throughout the welding process, resulting in joints that are more dependable and long-lasting. This extends the life of your items and lowers the possibility of expensive repairs.
Improve Productivity
You may increase efficiency in your production process by incorporating premium tungsten carbide strips. Their ability to cut and shape materials efficiently enables increased productivity and faster turnaround times, which eventually increases your operational effectiveness.
Imported High-Level Quality Raw Material
For our tungsten carbide strips, ZZBETTER always sources the best raw materials. Every strip provides outstanding performance and dependability in challenging applications because our imported materials adhere to strict international standards.
Exceptional Wear Resistance
Our tungsten carbide strips are perfect for prolonged usage in harsh situations because of their exceptional wear resistance. This feature offers a cost-effective answer to your cutting and shaping requirements by extending the strips' lifespan and lowering maintenance expenses.
Selecting the 2700mm tungsten carbide strips from ZZBETTER is an investment in effectiveness, dependability, and quality. Discover the benefits of using top-notch materials and skilled engineering!
For our tungsten carbide strips, ZZBETTER always sources the best raw materials. Every strip provides outstanding performance and dependability in challenging applications because our imported materials adhere to strict international standards.
Exceptional Wear Resistance
Our tungsten carbide strips are perfect for prolonged usage in harsh situations because of their exceptional wear resistance. This feature offers a cost-effective answer to your cutting and shaping requirements by extending the strips' lifespan and lowering maintenance expenses.
Selecting the 2700mm tungsten carbide strips from ZZBETTER is an investment in effectiveness, dependability, and quality. Discover the benefits of using top-notch materials and skilled engineering!
Plastic Rubber
Offers outstanding wear resistance and cutting performance in rubber processing.

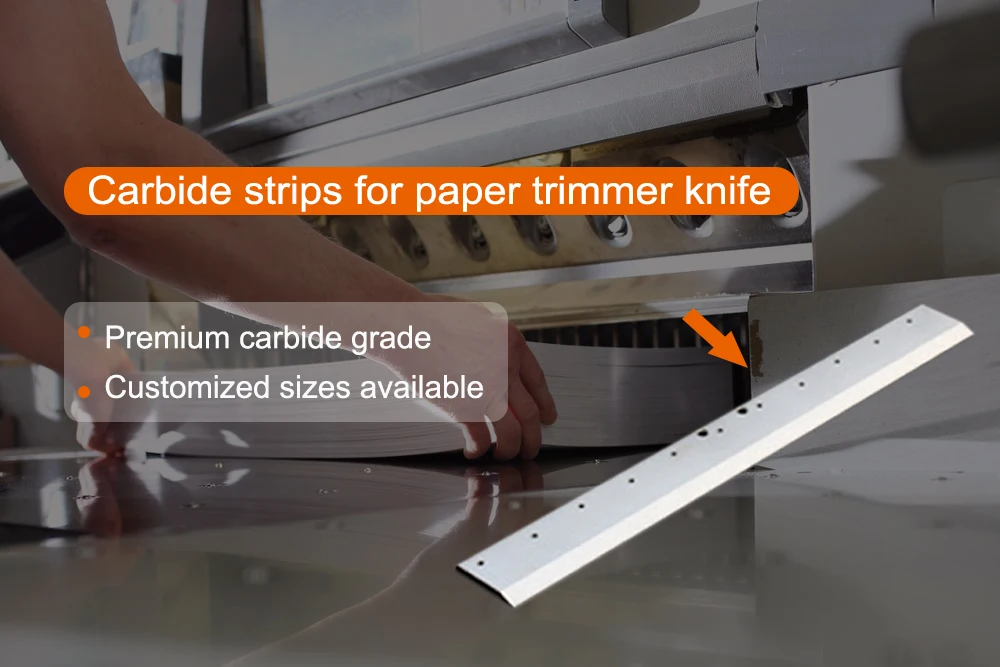

Paper and textile tools
Ideal for quickly cutting and trimming paper goods while maintaining crisp edges.
We are providing superior crude carbide material with higher wearing resistance and great consumption obstruction.
We are providing the exact quality items with exacting quality control after complete reviewing and testing hardware.
Precision resilience to the predetermined shape and size. Large load of standard measurement for quick conveyance.
