WellSunFan OEM ODM 12v cooling fan fans & cooling Inverter Cooling Axial 6025 Fan Cooler 60mm Home Appliances Smart Bathroom
- Category: >>>
- Supplier: Shenzhen Weilishun Technology Limited
Share on (1601268046903):
Product Overview
Description
Product Description

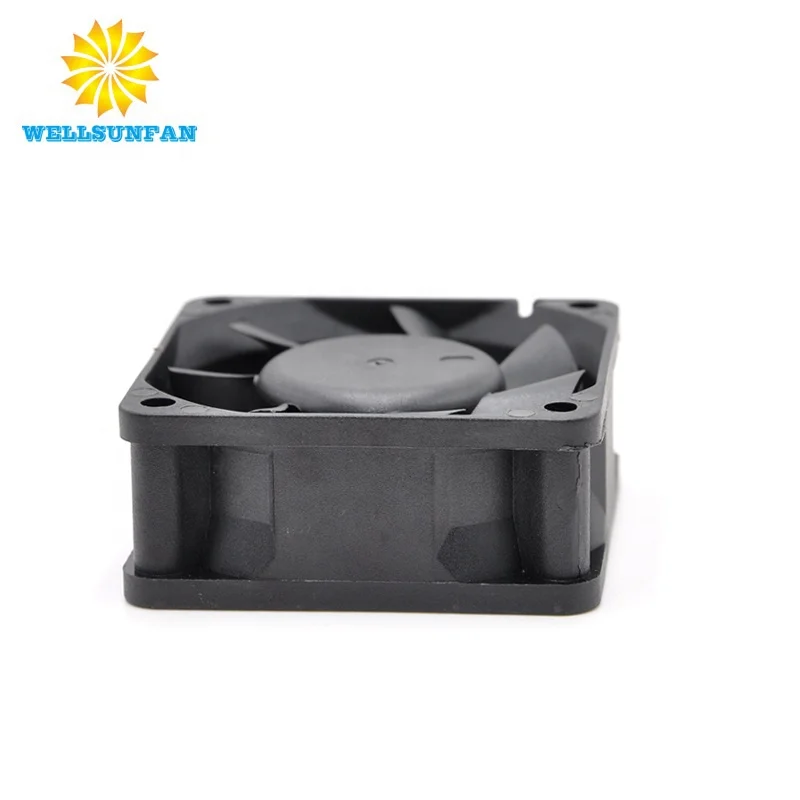

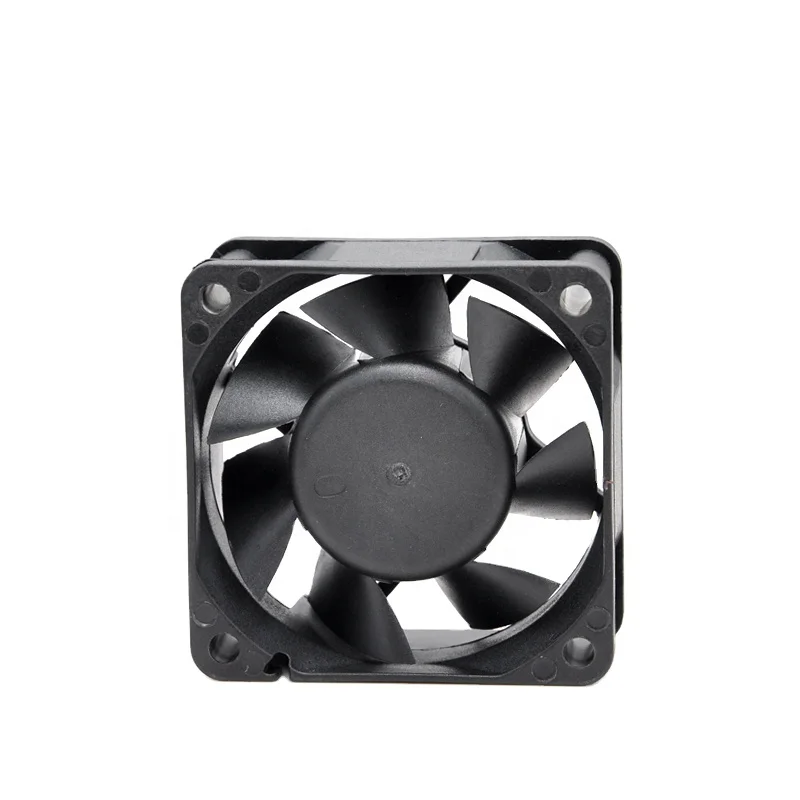

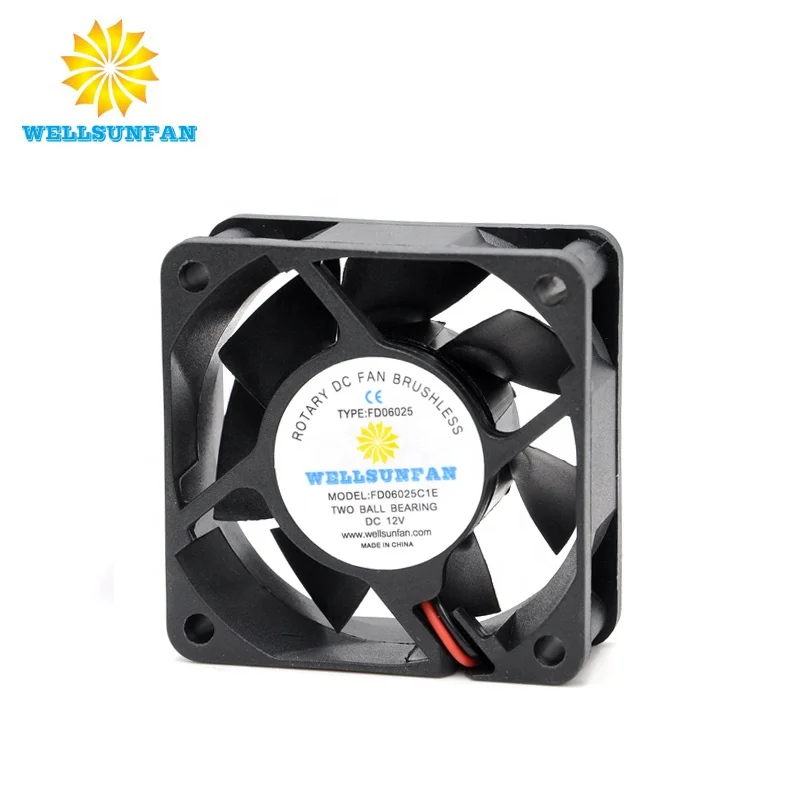

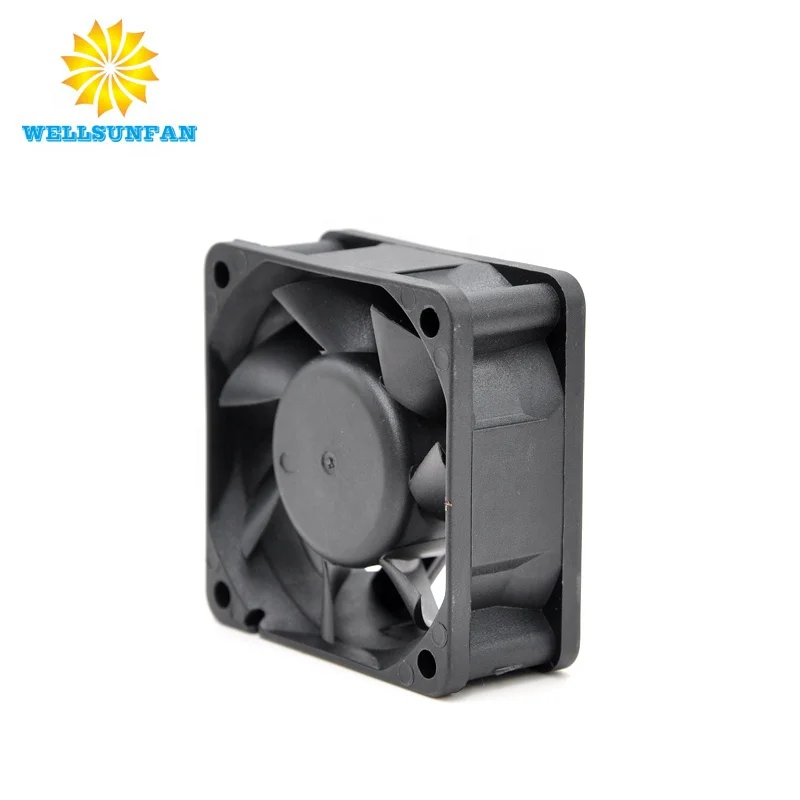

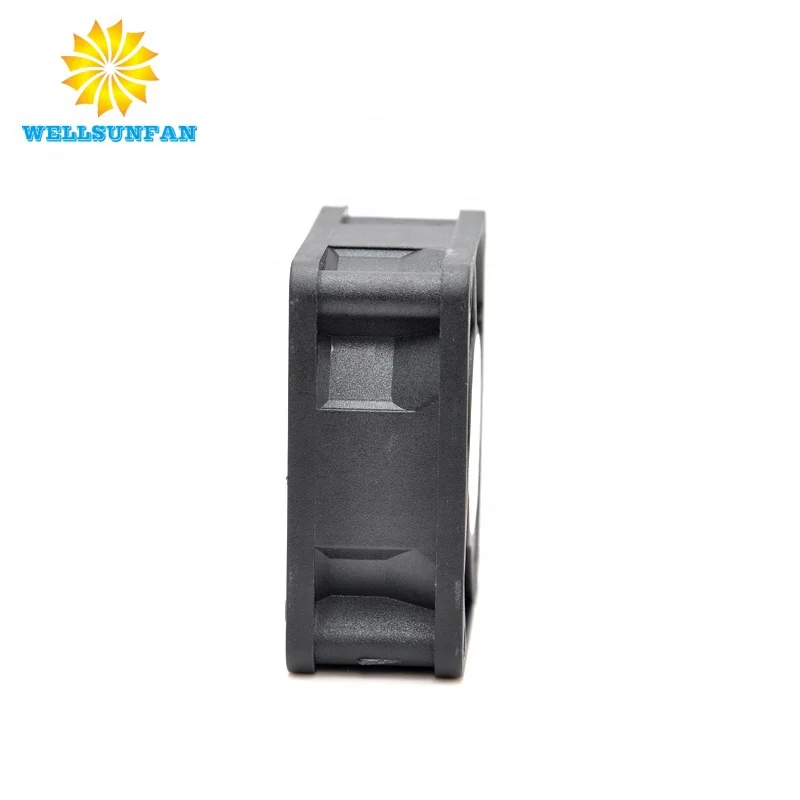

DC FAN 6025 60x60x25mm Features
| Size | 60x60x25mm(2.4x2.4x1.0inch) |
| Frame | Plastic UL94V0 |
| Impeller | Plastic UL94V0 |
| Lead Wire | UL1571AWG#28 or Equivalent (+) Red, (-) Black |
| Bearings | C=Ball Bearing&S=Sleeve Bearing |
| Life Expectancy | 70,000Hours at 20℃-Ball. 30,000Hours at 20℃-Sleeve |
| Temperature Range | Temperature Range...Operating Temperature -10*C~70'C(Non-condensing) |
| Storage Temperature -40'C~70'C(Non-condensing) | |
| Approvals | UL ETL TUV CE RoHS |
| DC FAN Specials | RD,FG, IP54, PWM |
Cooling Fans Specification
| Model | Bearing System | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | VDC | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| FD06025#12S | √ | √ | 12 | 7.0~13.8 | 0.45 | 5.40 | 6000 | 31.75 | 0.42 | 10.67 | 42.9 | 56.0 | |
| FD06025#12E | √ | √ | 12 | 7.0~13.8 | 0.25 | 3.00 | 5000 | 26.55 | 0.29 | 7.37 | 37.1 | 56.0 | |
| FD06025#12H | √ | √ | 12 | 7.0~13.8 | 0.18 | 2.16 | 4000 | 21.08 | 0.18 | 4.57 | 31.6 | 56.0 | |
| FD06025#12M | √ | √ | 12 | 7.0~13.8 | 0.10 | 1.20 | 3000 | 15.80 | 0.10 | 2.54 | 25.5 | 56.0 | |
| FD06025#12L | √ | √ | 12 | 7.0~13.8 | 0.06 | 0.72 | 2000 | 10.15 | 0.05 | 1.27 | 21.2 | 56.0 | |
| FD06025#24E | √ | √ | 24 | 14~27.6 | 0.25 | 6.00 | 6000 | 31.75 | 0.42 | 10.67 | 42.9 | 56.0 | |
| FD06025#24H | √ | √ | 24 | 14~27.6 | 0.18 | 4.32 | 5000 | 26.55 | 0.29 | 7.37 | 37.1 | 56.0 | |
| FD06025#24M | √ | √ | 24 | 14~27.6 | 0.15 | 3.60 | 4000 | 21.08 | 0.18 | 4.57 | 31.6 | 56.0 | |
| FD06025#24L | √ | √ | 24 | 14~27.6 | 0.10 | 2.40 | 3000 | 15.80 | 0.10 | 2.54 | 25.5 | 56.0 | |
| FD06025#48E | √ | √ | 48 | 28.0~56.0 | 0.18 | 8.64 | 6000 | 31.75 | 0.42 | 6.35 | 42.9 | 56.0 | |
| FD06025#48H | √ | √ | 48 | 28.0~56.0 | 0.12 | 5.76 | 5000 | 26.55 | 0.29 | 5.08 | 37.1 | 56.0 | |
| FD06025#48M | √ | √ | 48 | 28.0~56.0 | 0.08 | 3.84 | 4000 | 21.08 | 0.18 | 4.06 | 31.6 | 56.0 | |
| FD06025#48L | √ | √ | 48 | 28.0~56.0 | 0.06 | 2.88 | 3000 | 15.80 | 0.10 | 3.05 | 25.5 | 56.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
Optional Function
1. Waterproof Level: IPX5~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
2. Wire leading: 2 wires(red wire:positive;black wire:negative)
3 wires(red :positive;black :negative;yellow: PWM)
4 wires(red :positive;black :negative;Yellow :PWM;white:FG) 3. Additional function: auto-restart, temperature control speed, speed detection, stoppage alarm, waterproof etc. 4. We default 220mm wire length without connector, could be customized as your request. we just need the picture of connector and rank of wires for confirm.
