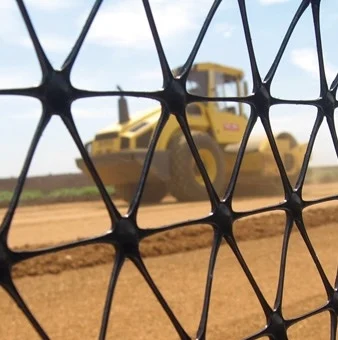

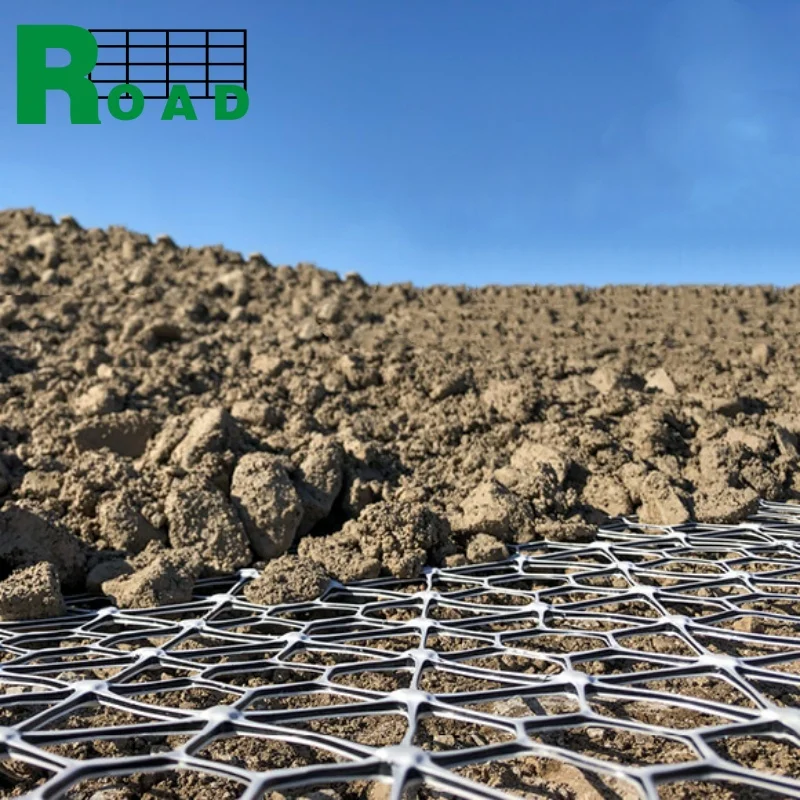

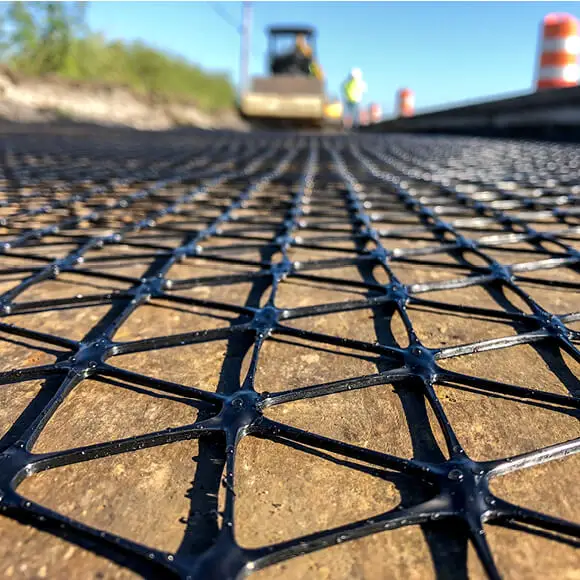

Reinforcement Triaxial geogrid For Base Stabilization And Road Way Grille Geogrilles
- Category: >>>
- Supplier: Taian Road Engineering Materials Co. Ltd.
Share on (1601268097410):
Product Overview
Description
Product Description

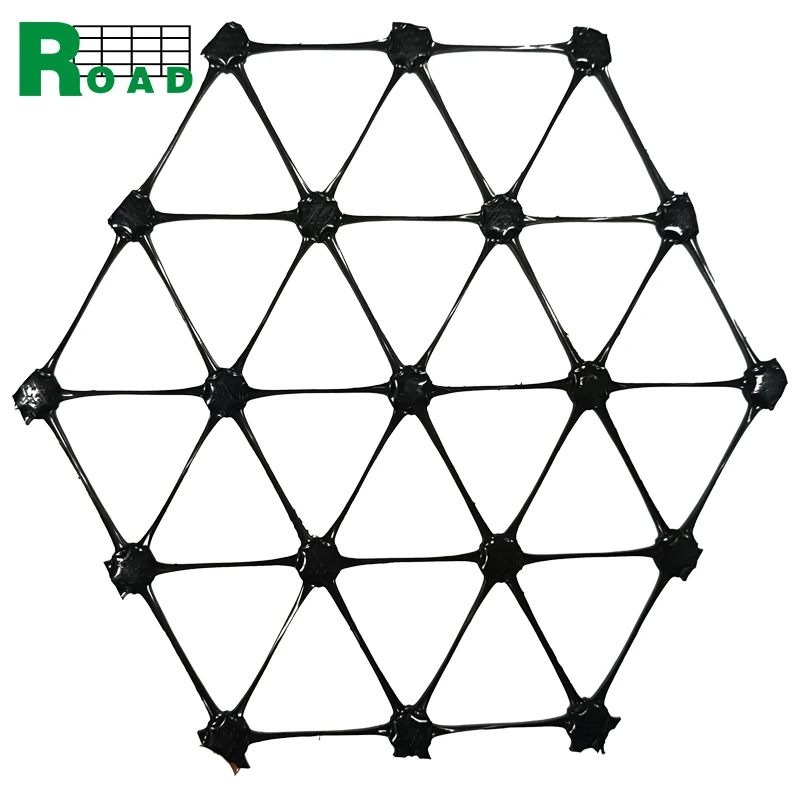

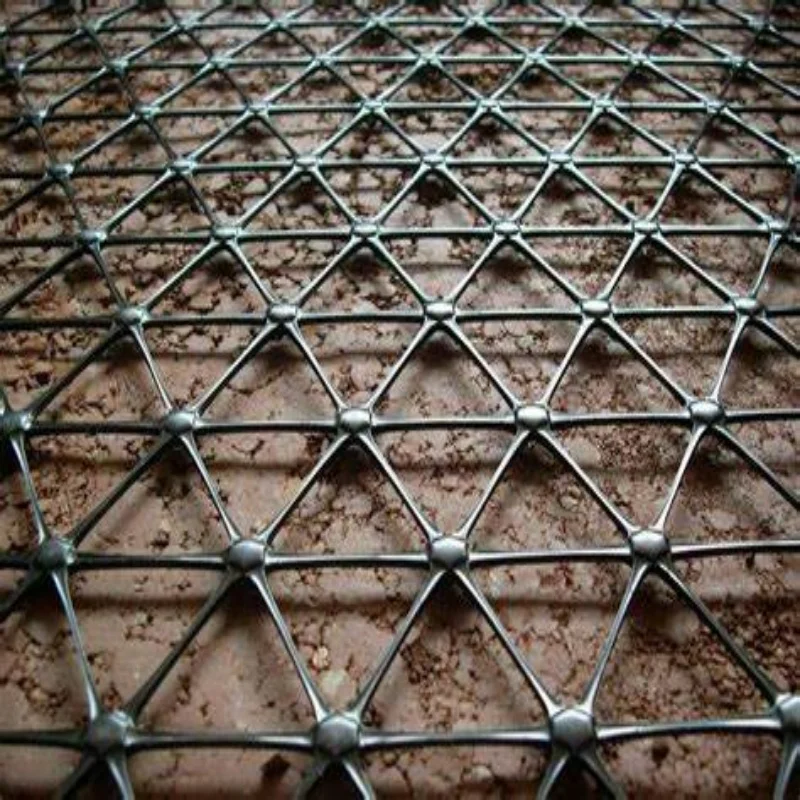

The geogrid is manufactured from a punched polypropylene sheet, which is then oriented in three substantially equilateral directions so that the resulting ribs shall have a high degree of molecular orientation, which continues at least in part through the mass of the integral node.

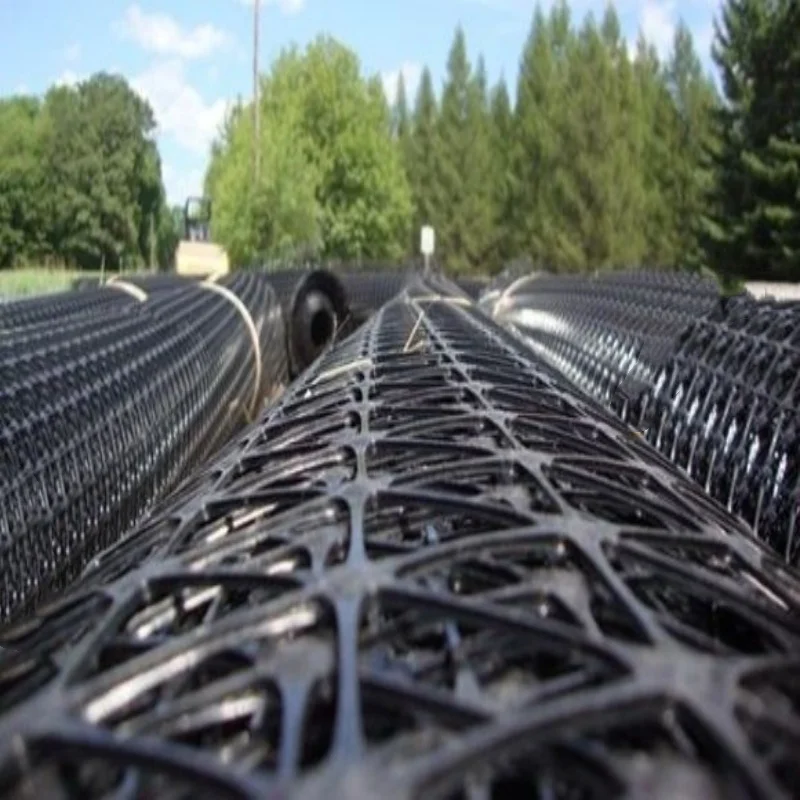

The TX geogrid shall be delivered to the jobsite in roll form with each roll individually identified and nominally measuring 3.0 meters (9.8 feet) and/or 4.0 meters (13.1feet) in width and 75 meters (246 feet) in length.
Specifications
Index Properties | TX5 | TX7 | TX120 | TX160 |
Rib pitch(2) , mm (in) Longitudinal | 40 (1.60) | 40 (1.60) | 40 (1.60) | 40 (1.60) |
Rib pitch(2) , mm (in) Diagonal | 40 (1.60) | 40 (1.60) | 40 (1.60) | 40 (1.60) |
Mid-rib depth(1), mm (in) Diagonal | 1.3(0.05) | 1.2 (0.05) | 1.2 (0.05) | 1.6(0.06) |
Mid-rib depth(1), mm (in) Transverse | 1.2 (0.05) | 1.2 (0.05) | 1.2 (0.05) | 1.4 (0.06) |
Mid-rib width(2) , mm (in) Diagonal | 0.9(0.04) | 1.1 (0.04) | 1.1 (0.04) | 1.0(0.04) |
Mid-rib width(2) , mm (in) Transverse | 1.2 (0.05) | 1.1 (0.04) | 1.1 (0.04) | 1.2(0.05) |
Rib shape | rectangular | rectangular | rectangular | rectangular |
Aperture shape | rectangular | triangular | triangular | triangular |
Product Display

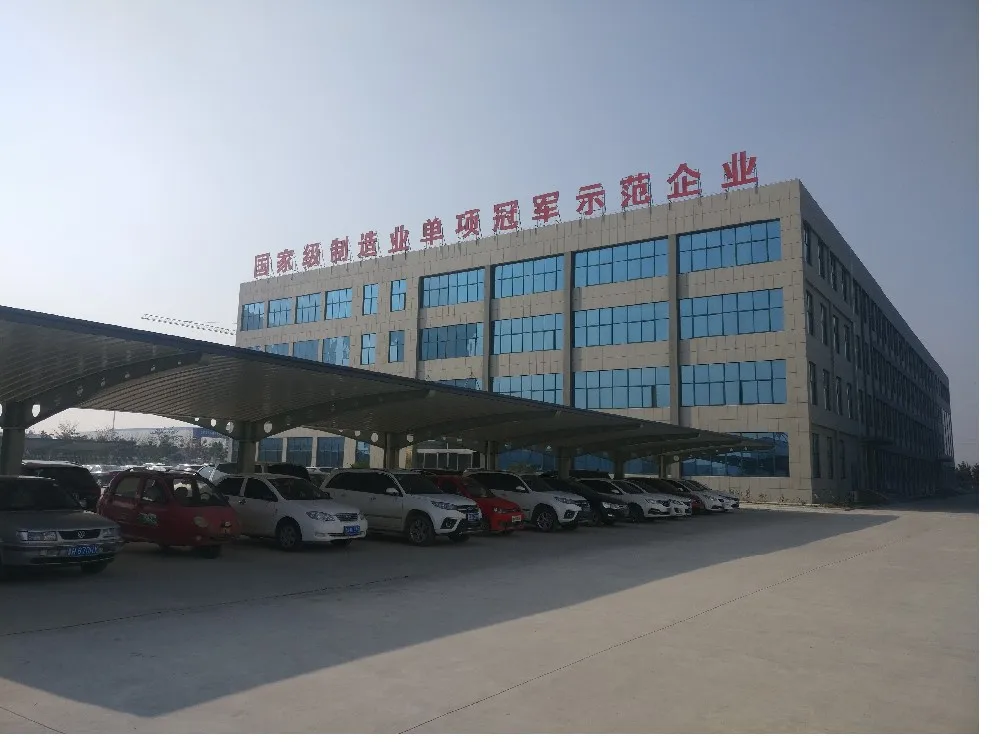

Company Profile

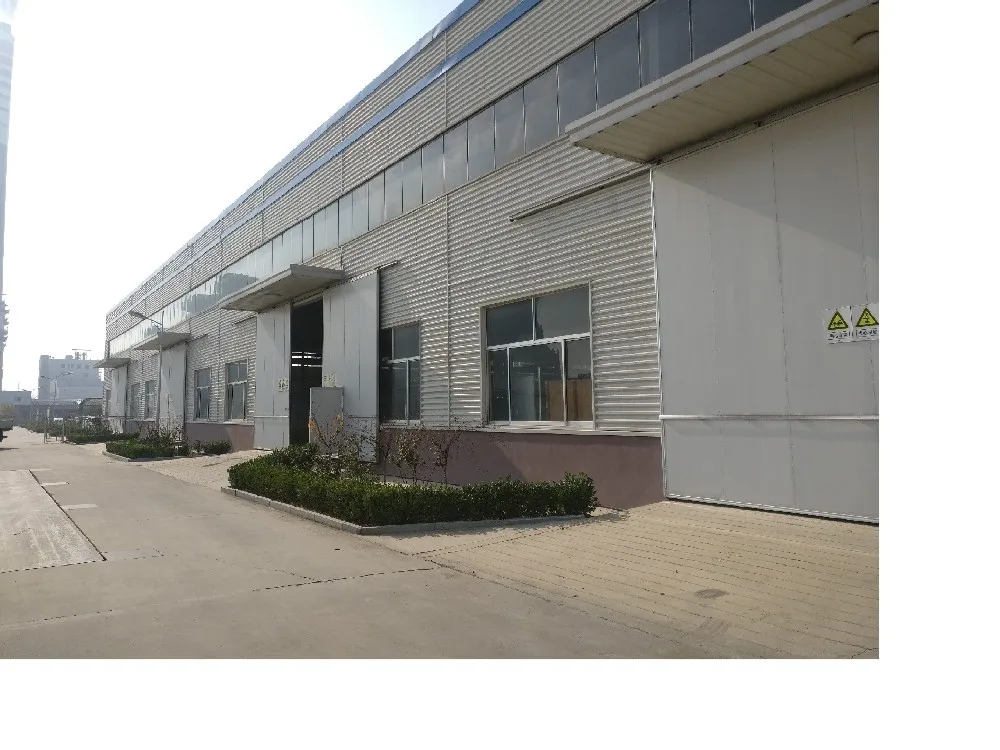

ROAD Geosynthetics(Taian Road Engineering Materials Co.,Ltd), established in 2002, specialized in manufacturing plastic uniaxial geogrid, biaxial geogrid,fiberglass geogrid, polyester geogrid, 3D geomat, geonet, geocell, geotextile, geomembrane, BOP stretched net, safety fence and Geocomposite products. They are mainly used in the foundation construction such as roadways, railways, irrigation works, electric power, water and land protection, and environment greening, etc.
As the leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.

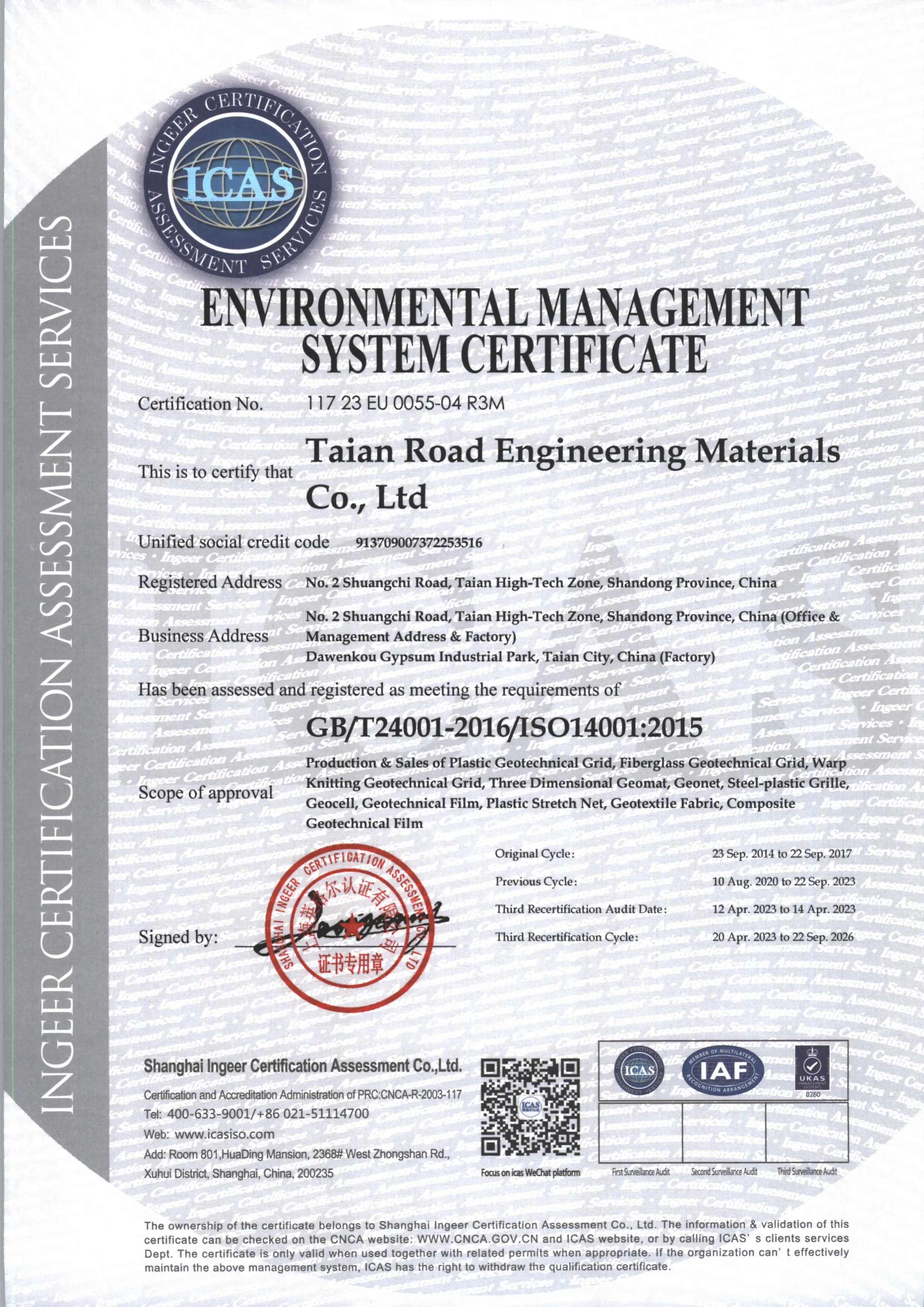

We have established advancing laboratory in China for internal inspecting. We founded strict quality control system from raw material to finished products testing. As national high tech enterprise, we obtained ISO9001:2008 & ISO14001:2004 quality & environment management system certification.With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification.
As the famous brand, our products have been exported to more than seventy countries and areas, we wish to do cooperate with you!
As the leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
We have established advancing laboratory in China for internal inspecting. We founded strict quality control system from raw material to finished products testing. As national high tech enterprise, we obtained ISO9001:2008 & ISO14001:2004 quality & environment management system certification.With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification.
As the famous brand, our products have been exported to more than seventy countries and areas, we wish to do cooperate with you!

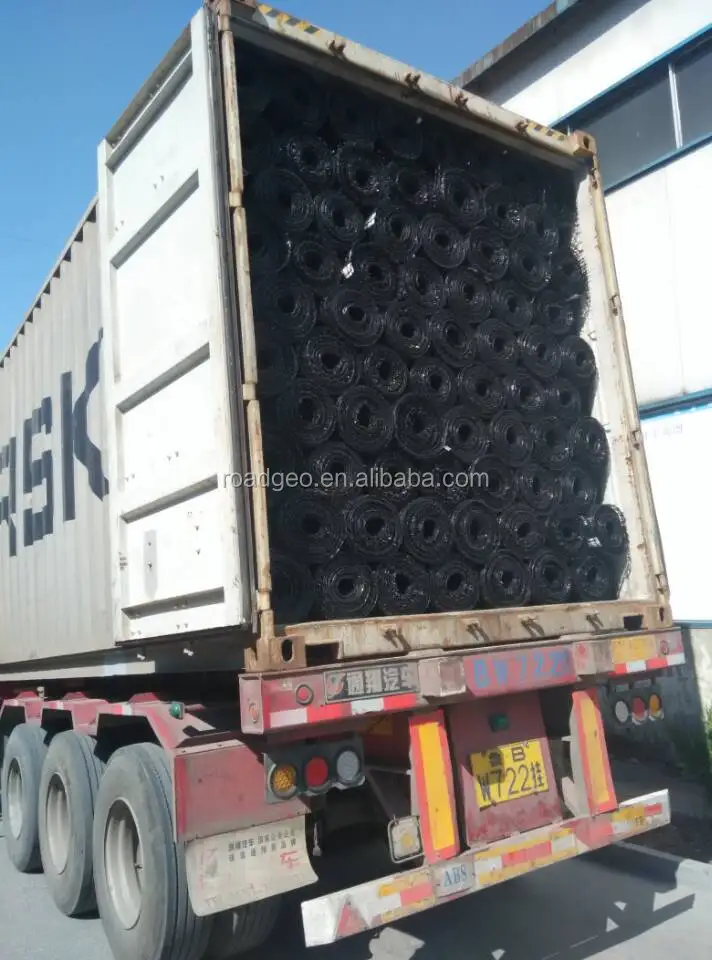

Packaging & Shipping
Negotiation Contact
Sherry Shen
Taian Road Engineering Materials Co.,Ltd
Add.: Middle of Taibo Street, Taian City, Shandong Province,China.
Post Code: 271000
T:+ 0086-538-8567339
M:+ 86 17864890103(WhatsApp/Wechat)
E: geoproducts@talude.com.cn
