Automatic twin shaft wood pallet wood garden tree shredder shredder machine for shredding wood
- Category: >>>
- Supplier: Henan Haishihong Machinery Manufacturing Co. Ltd.
Share on (1601268168743):
Product Overview
Description
Product Description
Wood pallet large tree roots logs planks multifunctional shredder
Double shaft shredder is a common industrial solid waste treatment equipment, by the national standard pure copper motor, aggravated reducer, thickening the knife shaft, shredding blade set, carrying box and other major structural components, through the shear, tearing and extrusion so as to reduce the size of the material. The equipment adopts PLC automatic control system, with start, stop, reverse and overload automatic reversal control function, with low rotational speed, high torque, low noise and so on.

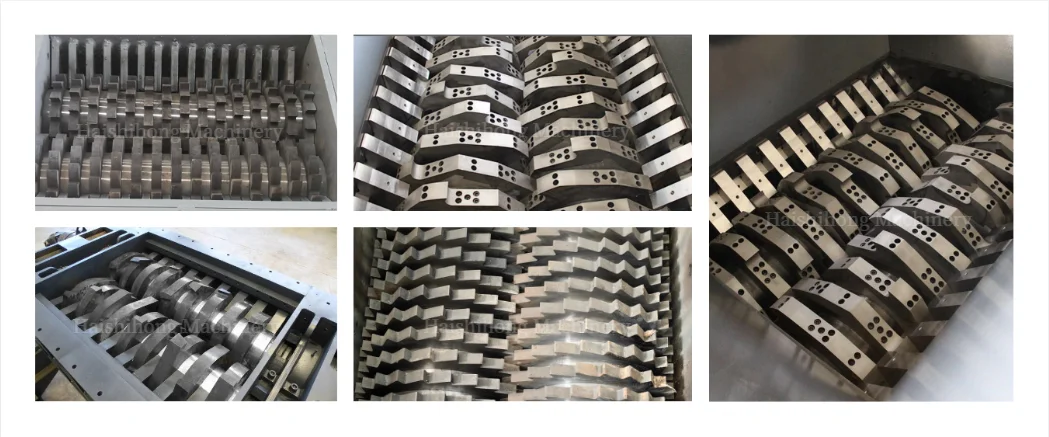

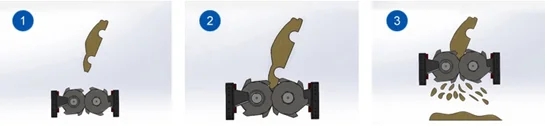

Shredding principle: Two interacting rotating shafts are equipped with blades and hook claws, two knife shafts in the process of rotating in the opposite direction, through the knife blade shear, as well as the teeth of the knife to tear to achieve shredding.
Product Parameters
Model | 600 | 800 | 800 | 1000 | 1200 | 1400 | 1600 | |||||||
Motor（kw） | 11*2 | 18.5*2 | 37*2 | 37/45*2 | 45*2 | 55*2 | 75*2 | |||||||
Rotation speed | 8-20rpm | 8-20rpm | 8-15rpm | 8-15rpm | 8-15rpm | 8-12rpm | 8-12rpm | |||||||
Reducer | ZQ400 | ZQ500 | BOX650 | BOX750 | BOX750 | BOX850 | BOX1000 | |||||||
Different types of reducers (three-axis reducer, four-axis reducer, hardened gear reducer, planetary reducer, etc.) can be selected according to customers' requirements, which affects the price. | ||||||||||||||
Blades Quantity | 30mm-20 | 40mm-20 | 40mm-20 | 50mm-20 | 50mm-24 | 50mm-28 | 80mm-20 | |||||||
The thickness and quantity of blades can be customized based on the shredding material and effect | ||||||||||||||
Blades Diameter | 220mm | 260mm | 260mm | 400mm | 400mm | 500mm | 500mm | |||||||
The blades diameter, blade tooth shape and number of teeth of the blade can be customized based on the shredding material and effect. | ||||||||||||||
Blades Material | The material of the blades (55sicr、5crsi、9crsi、skd11、m6v、h13) can be customized according to the customer's actual usage, which affects the product price. | |||||||||||||
Discharge Size | 10-30mm | 20-80mm | 20-80mm | 40-100mm | 50-100mm | 50-100mm | 50-100mm | |||||||
Feeding Hopper Size | 1.2*0.9m | 1.4*1m | 1.6*1.2m | 1.8*1.3m | 2*1.3m | 2.2*1.7m | 2.4*2m | |||||||
The size and appearance of the feeding hopper can be customized according to the customer's feeding situation | ||||||||||||||
Weight(kg) | 1800 | 2500 | 3700 | 5500 | 7500 | 9500 | 13000 | |||||||
Note: All models can be customised according to customers' requirements, the above data is for reference only, please contact us for more details. | ||||||||||||||

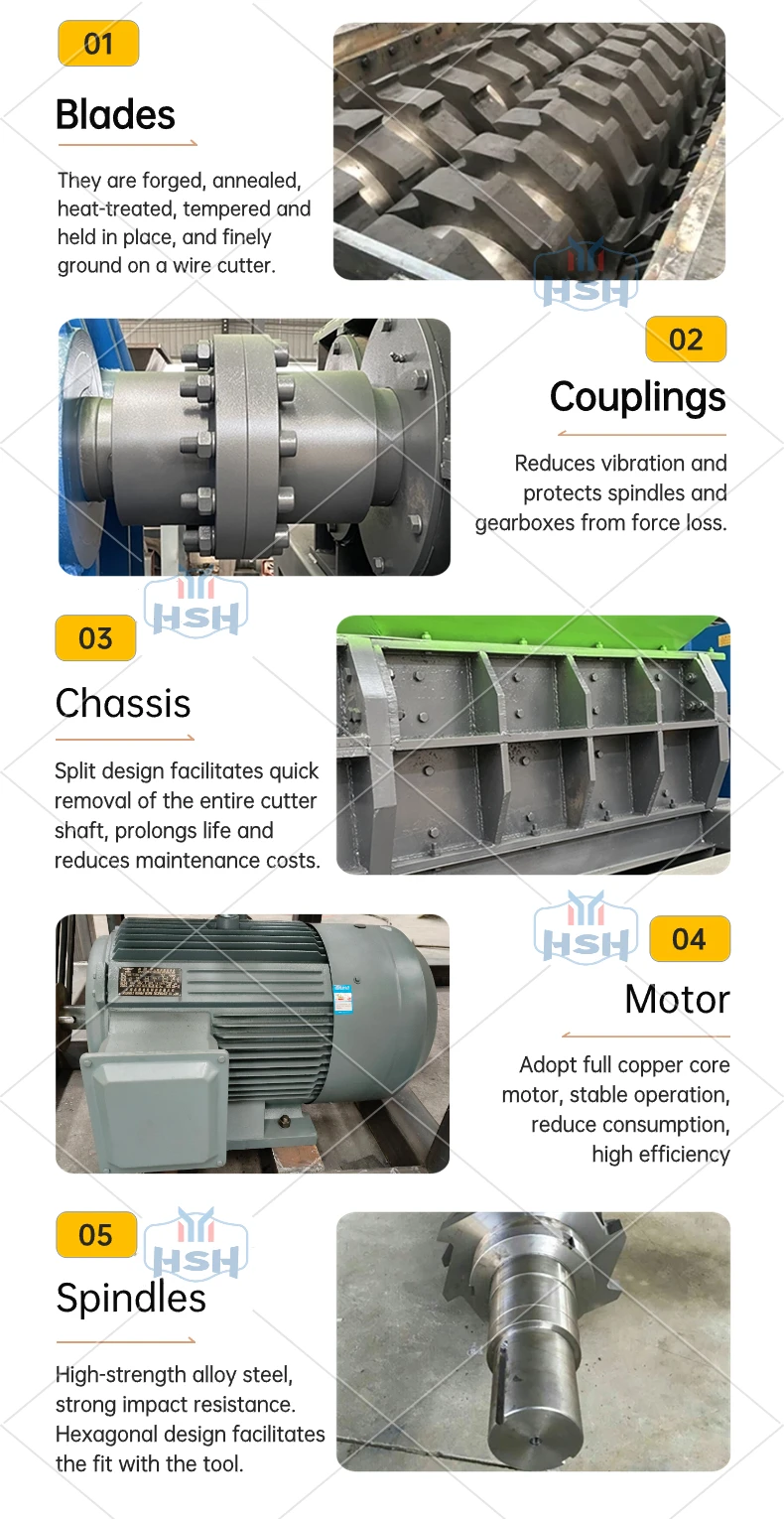

Product Details

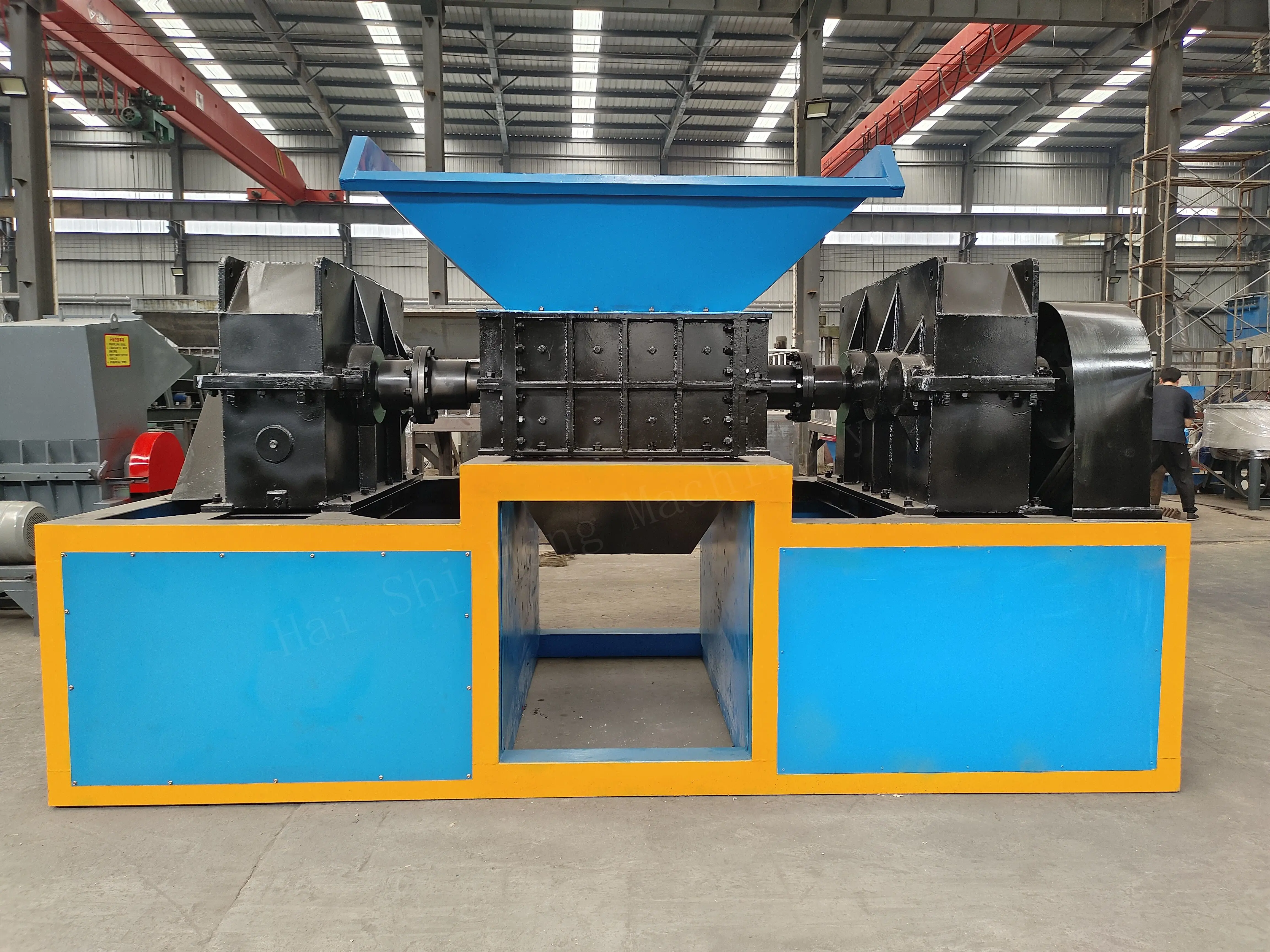

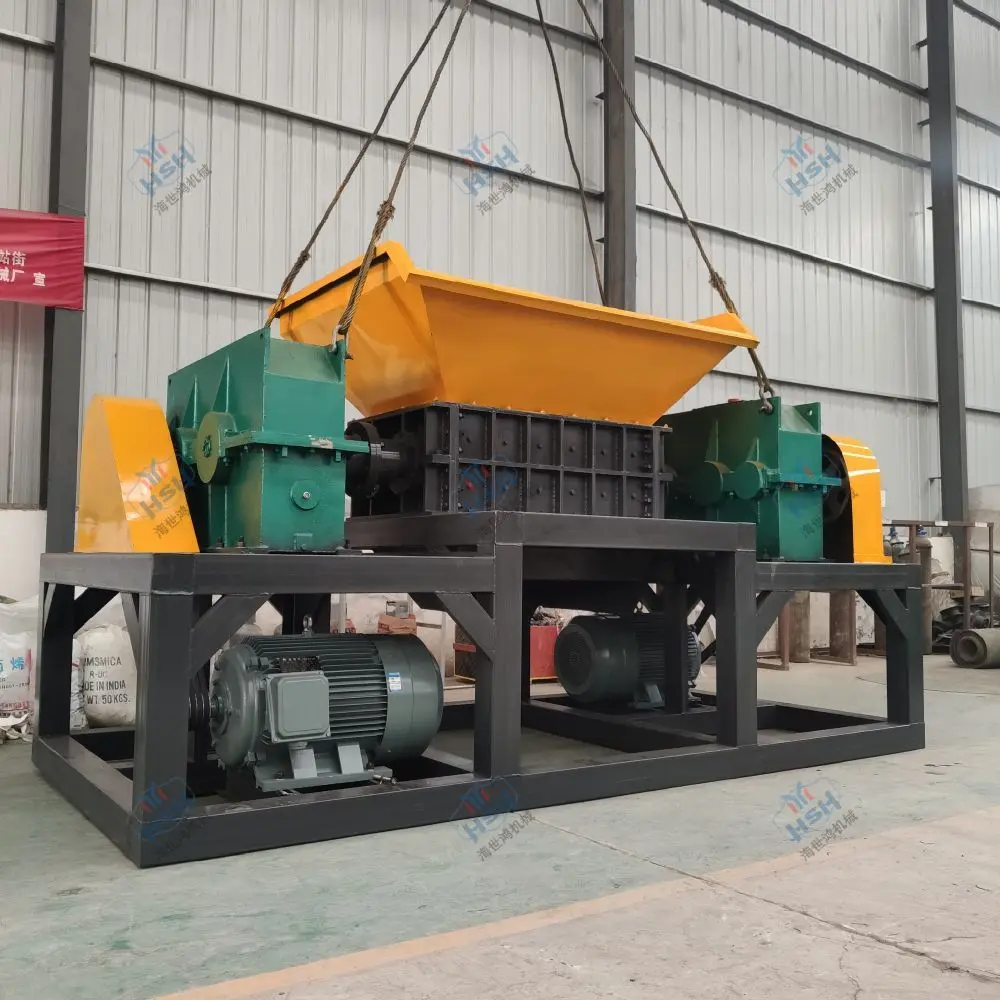

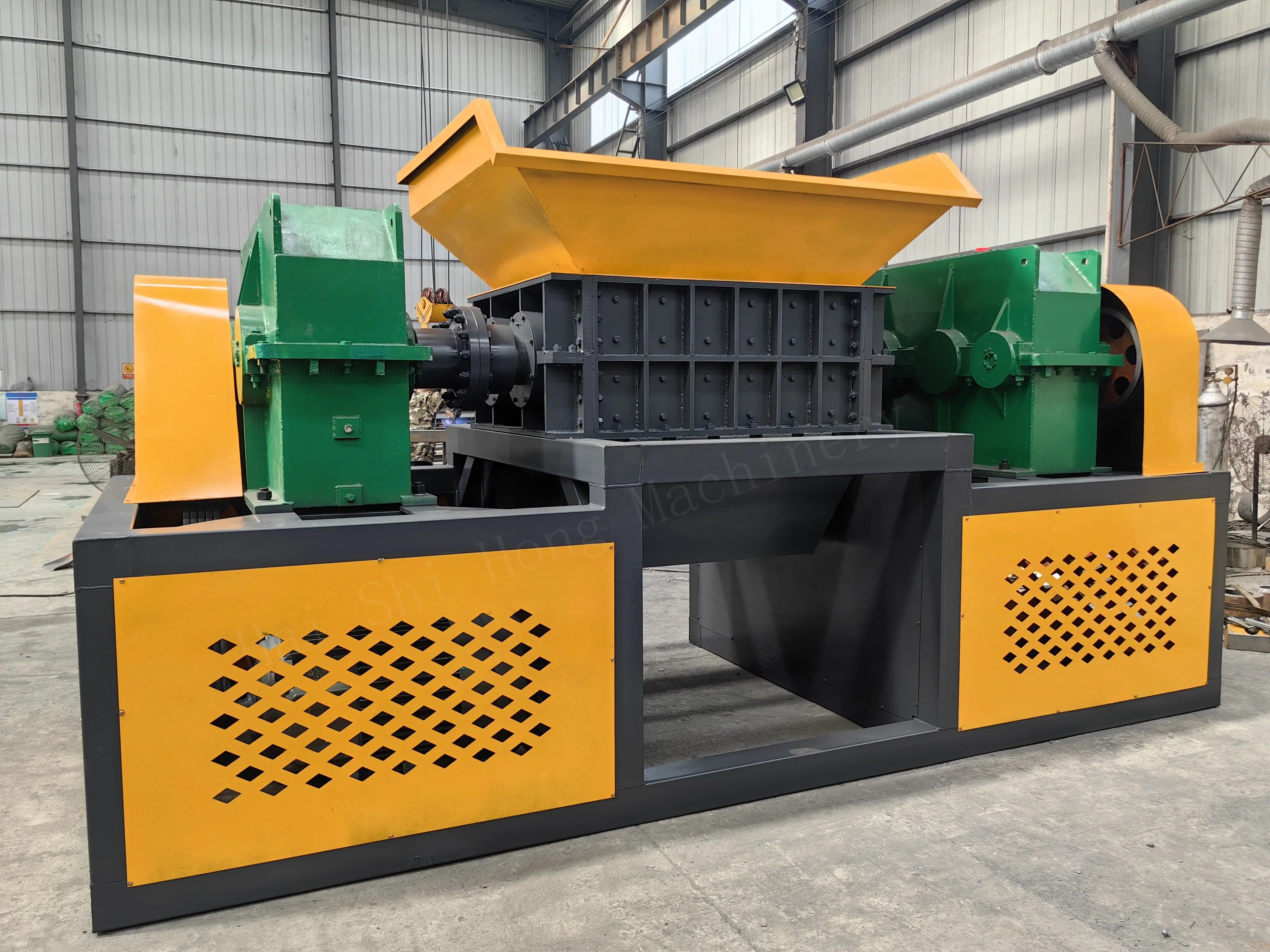

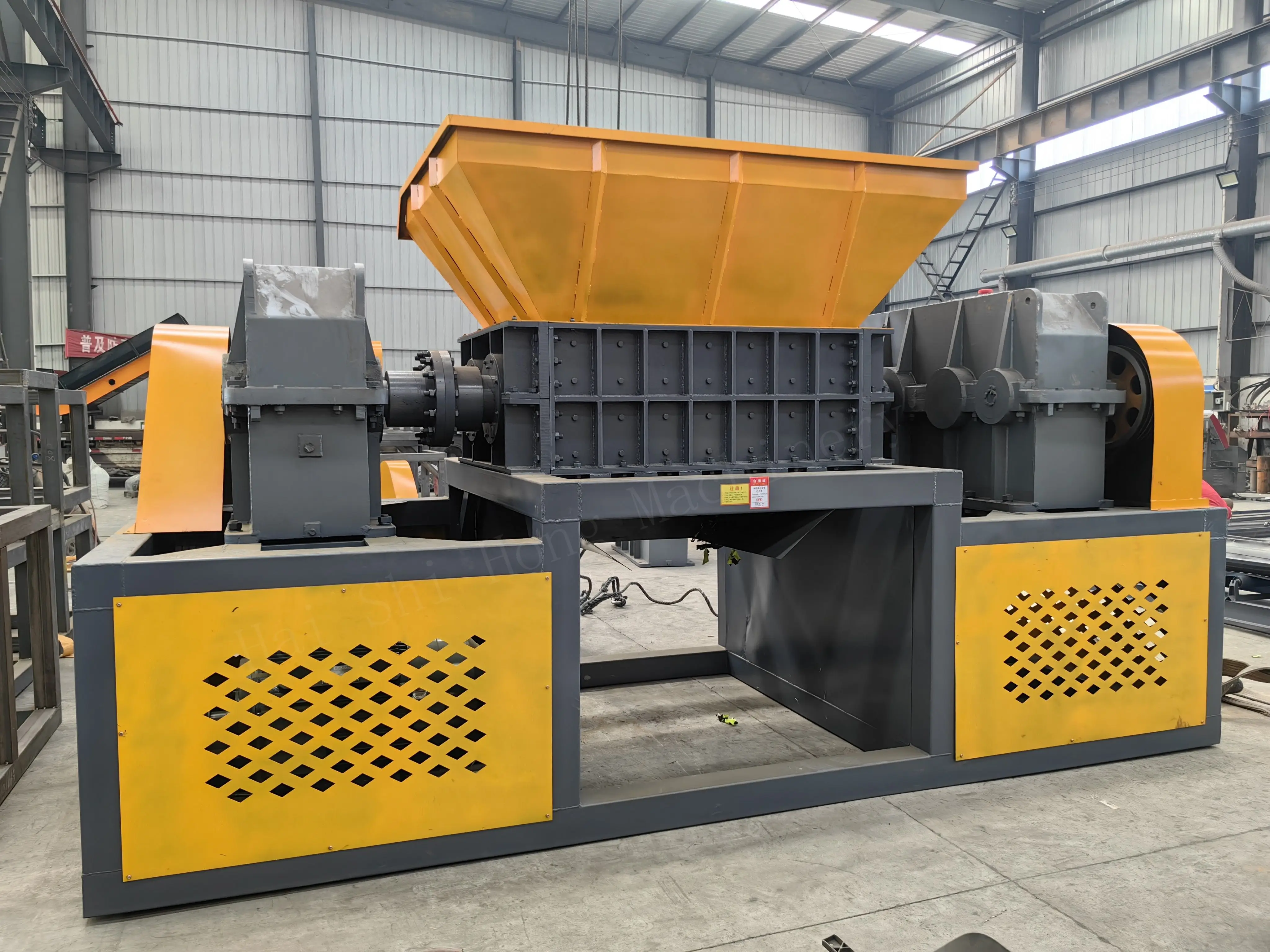

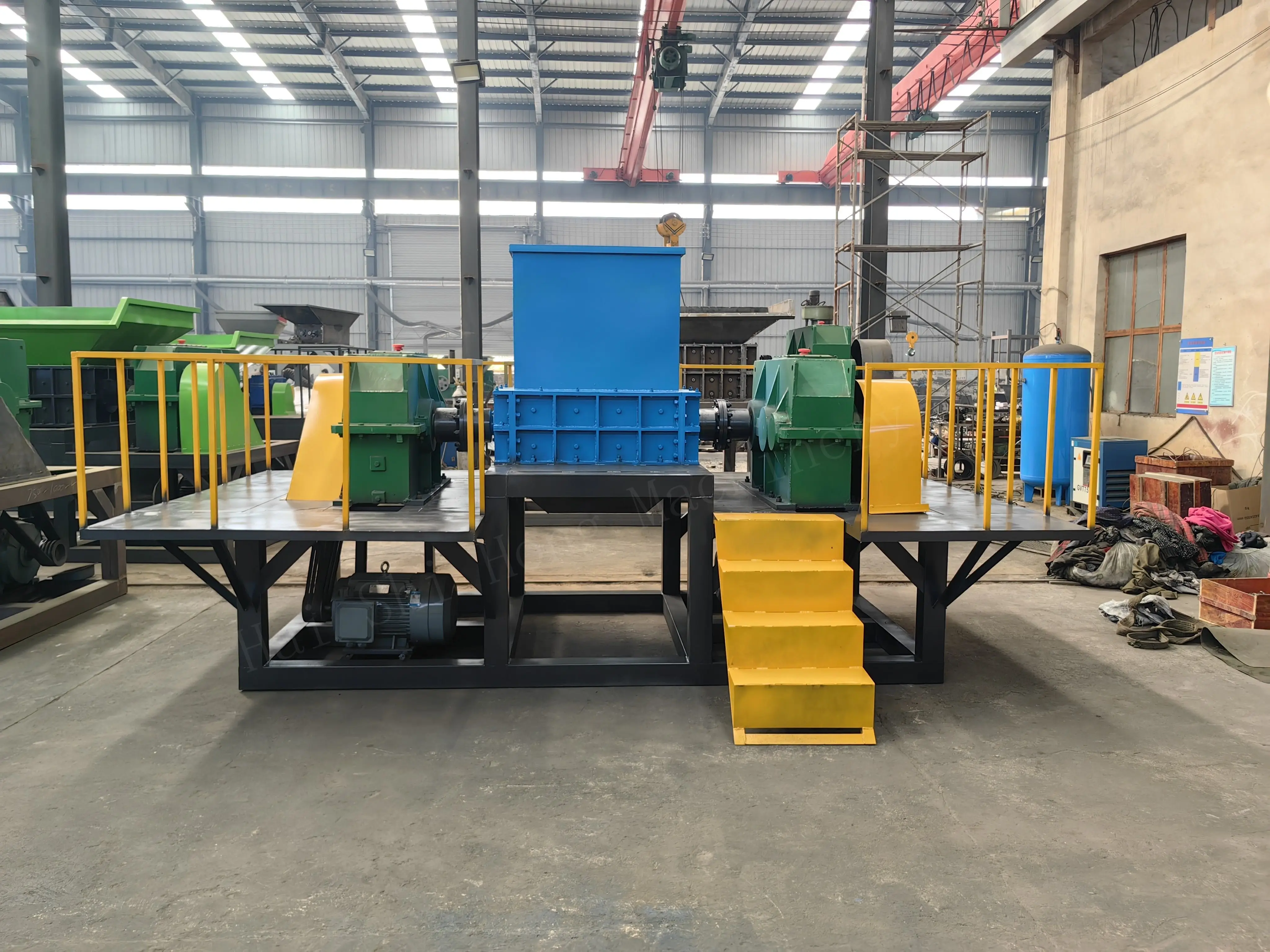

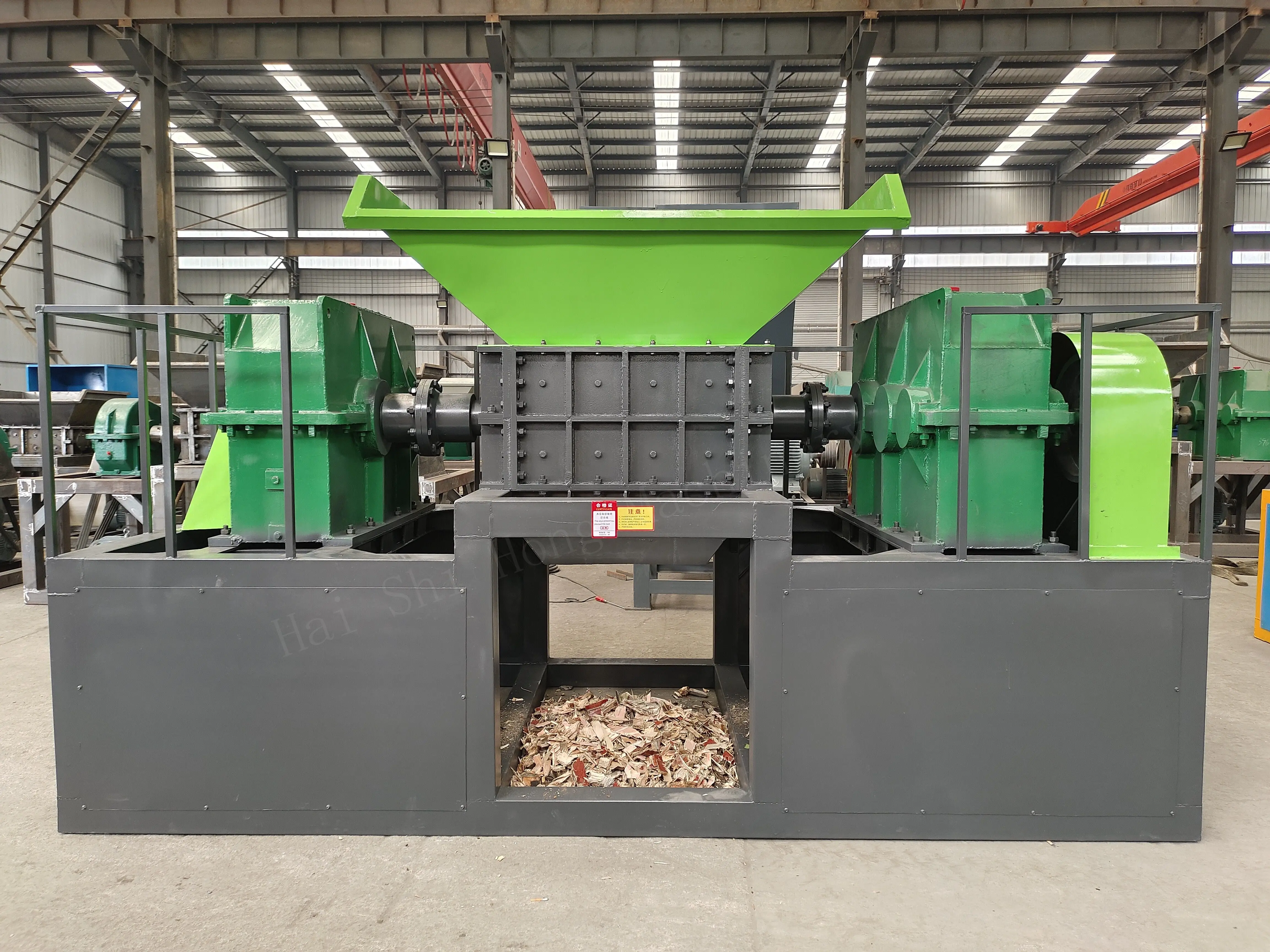

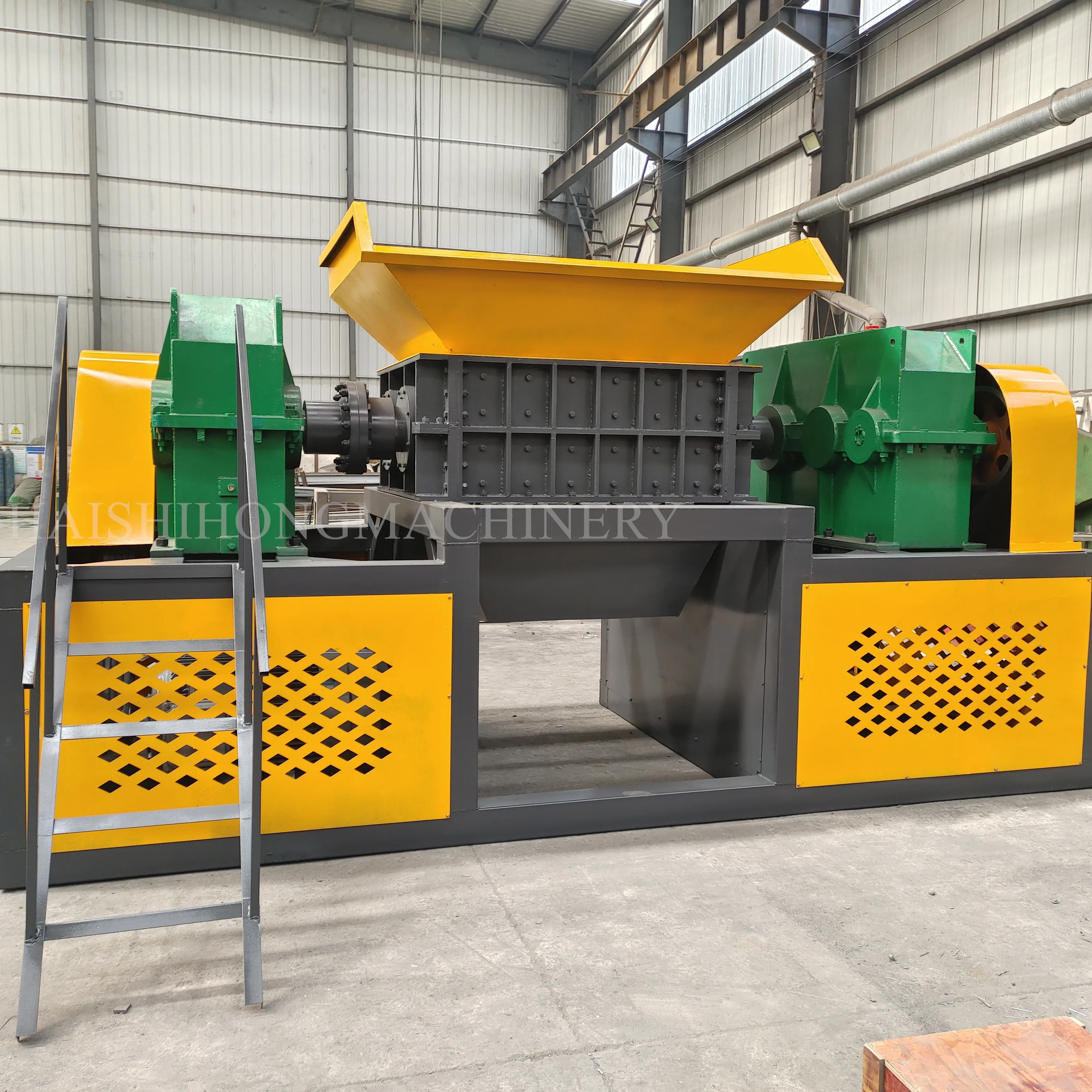

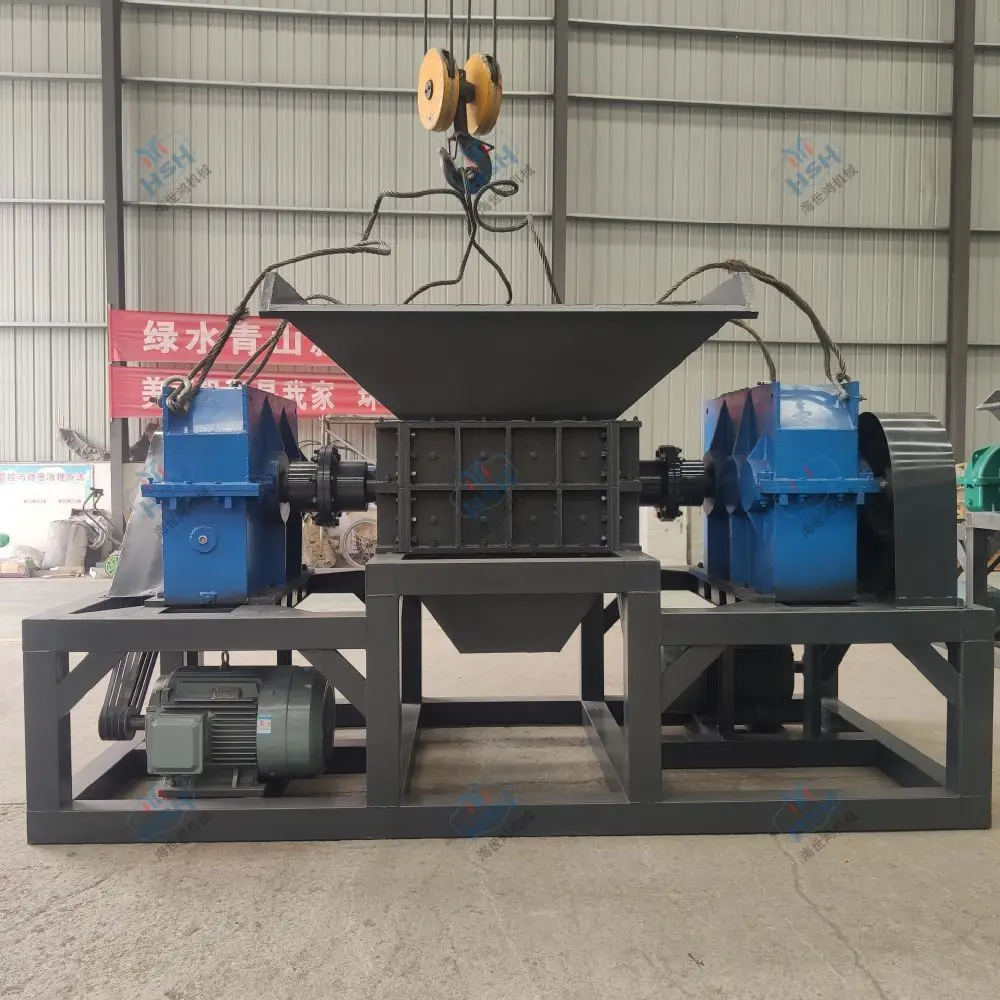

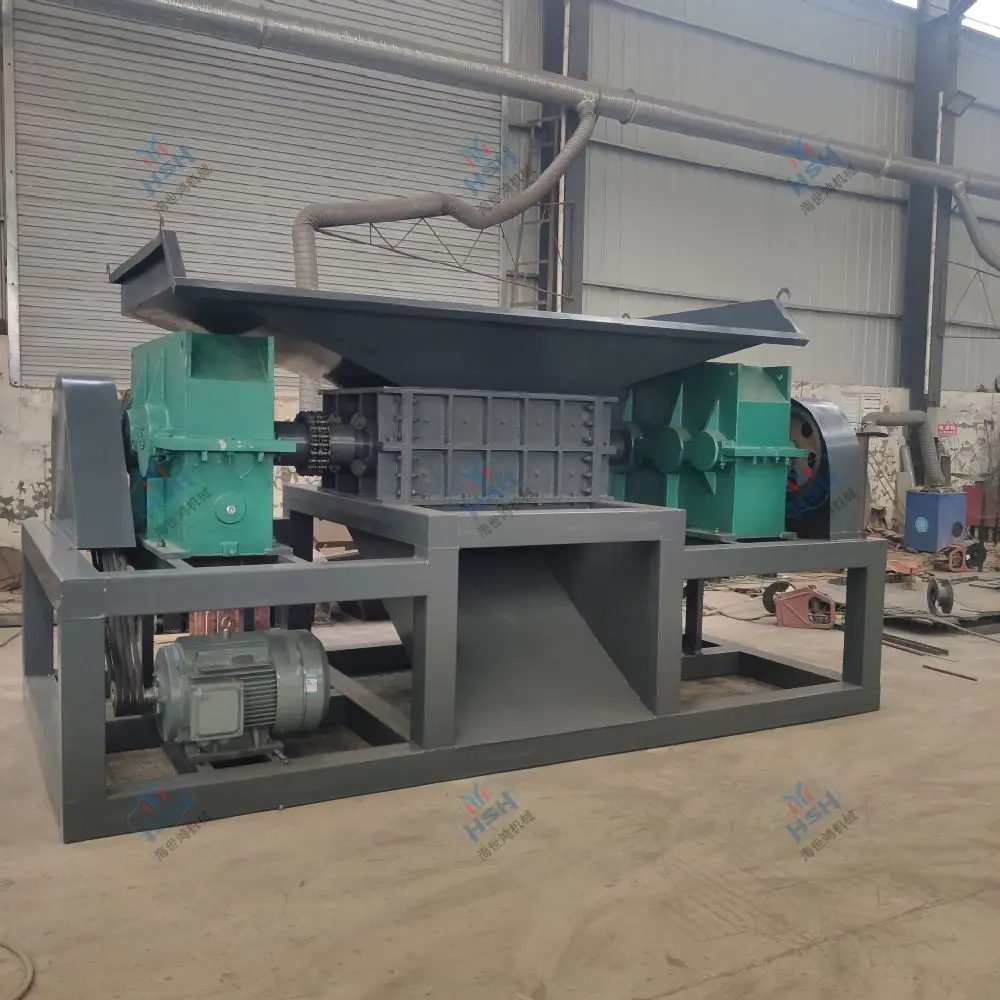

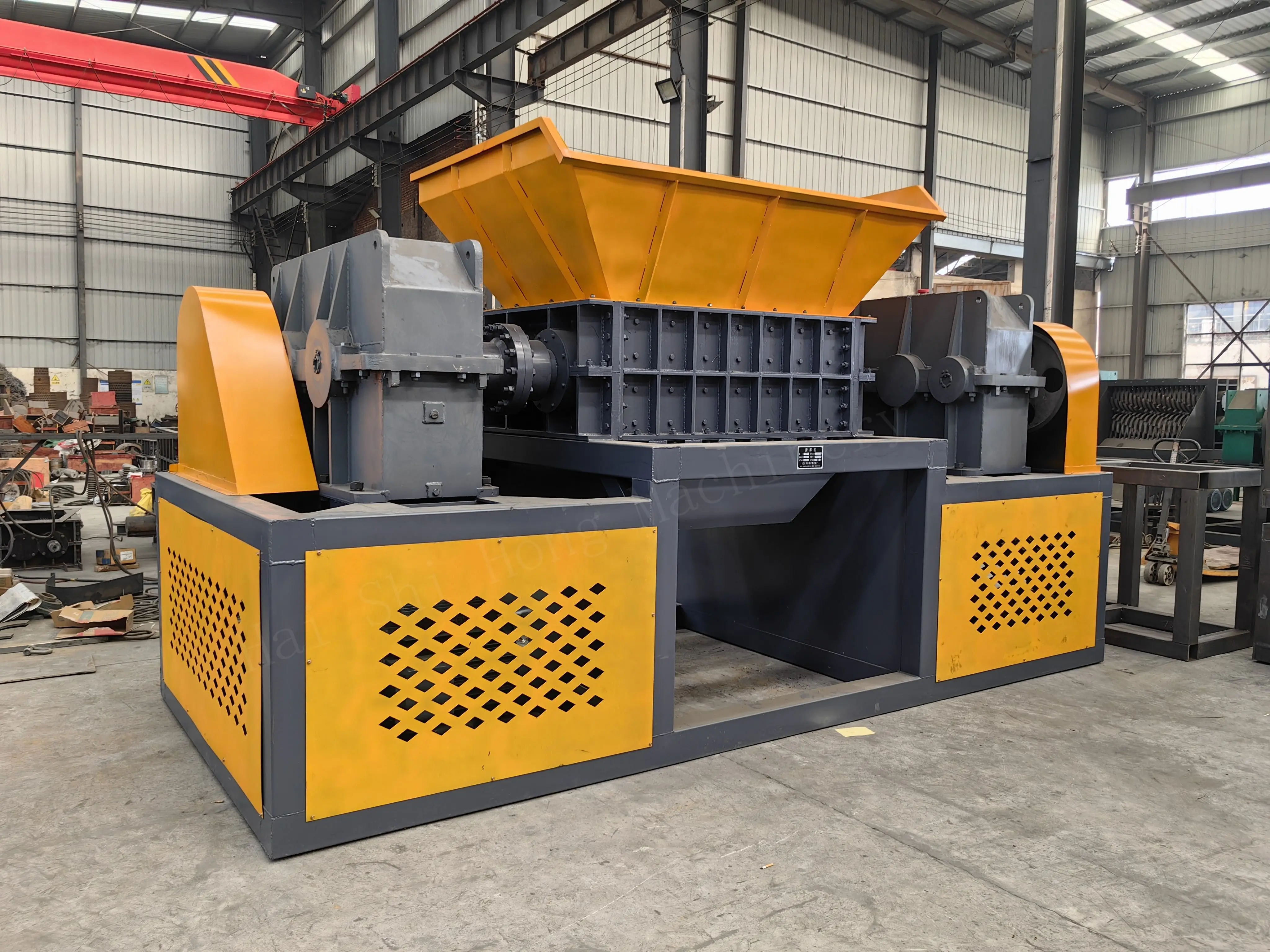

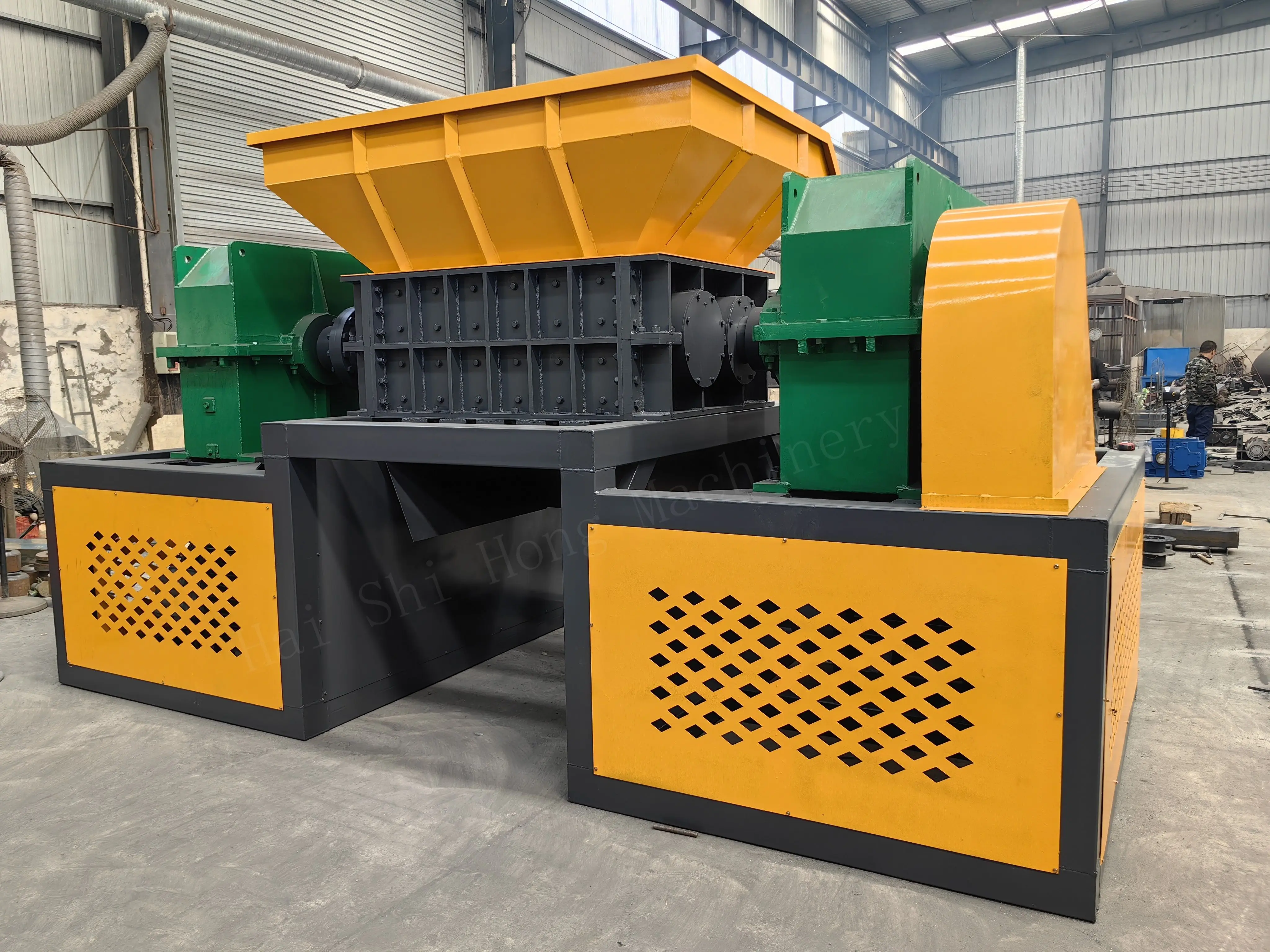

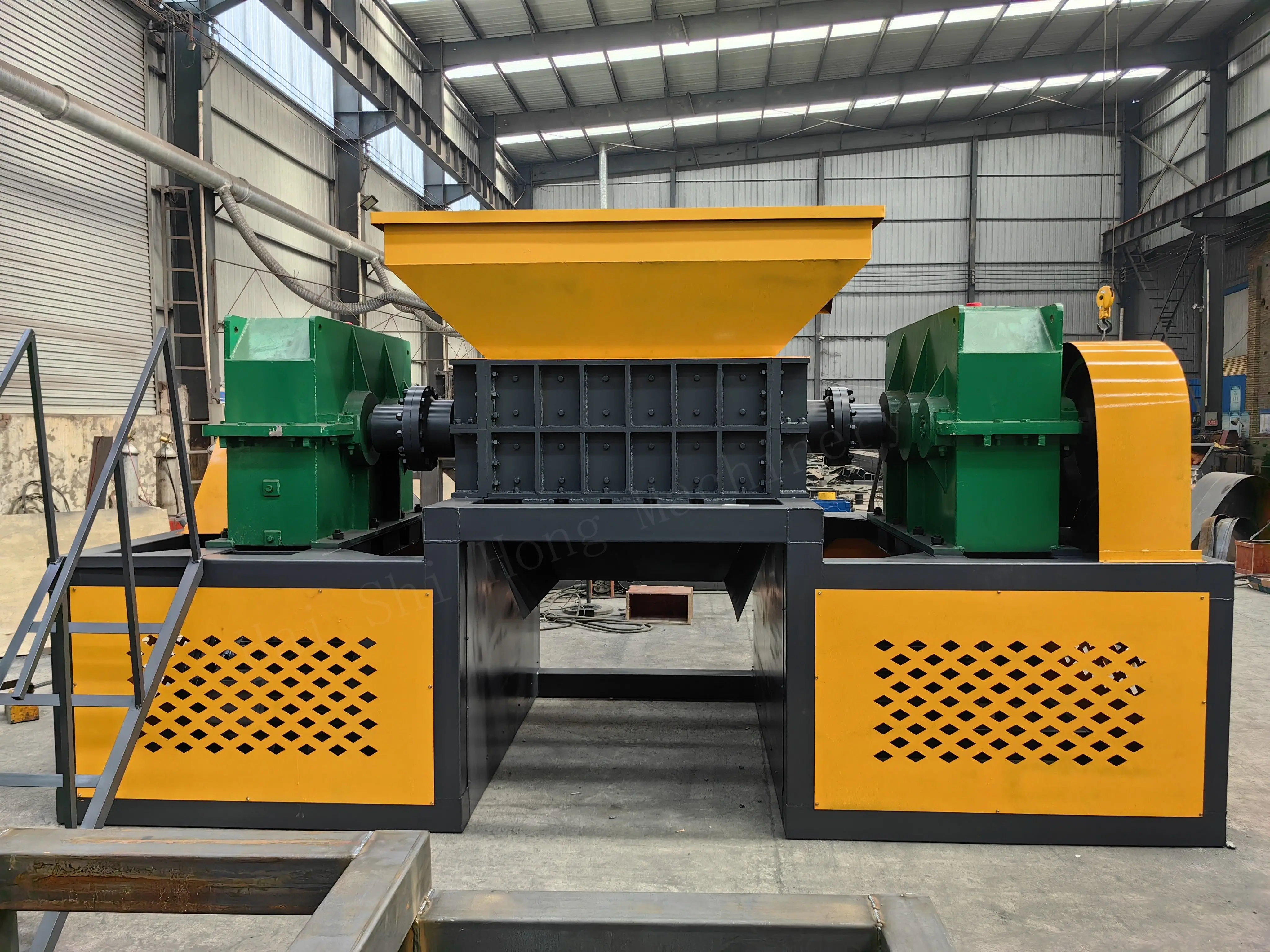

Product Display
Wide Applications

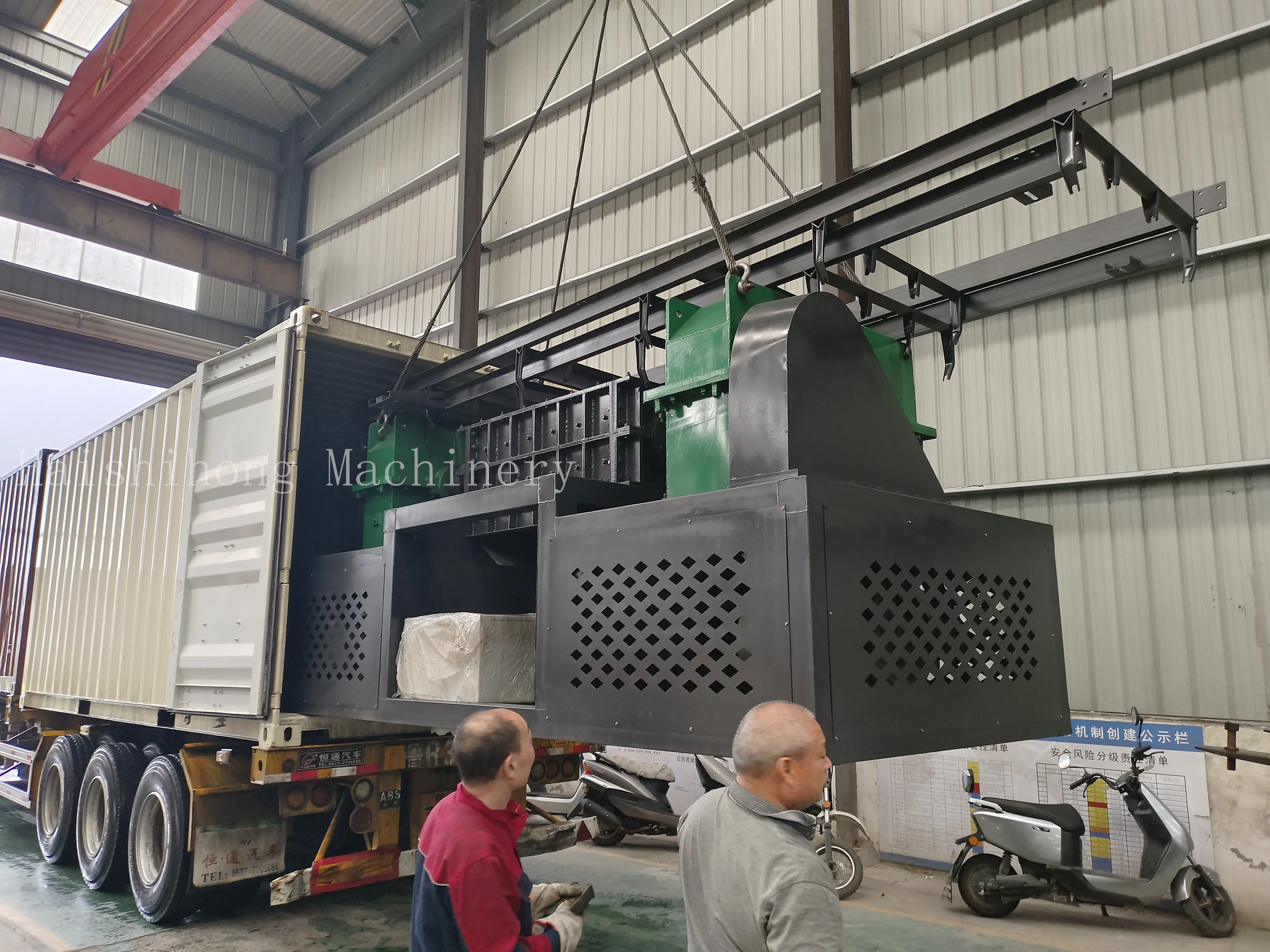

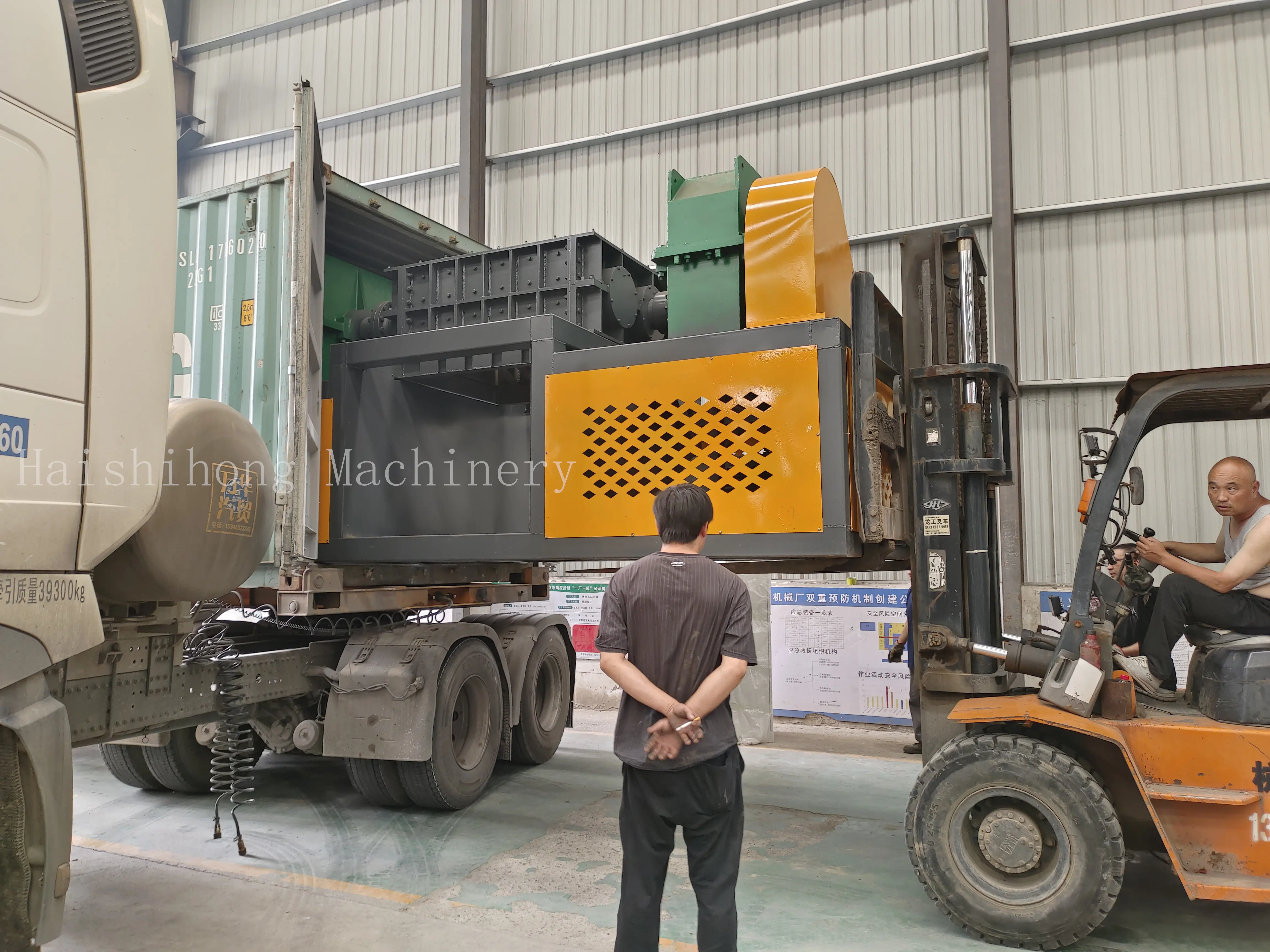

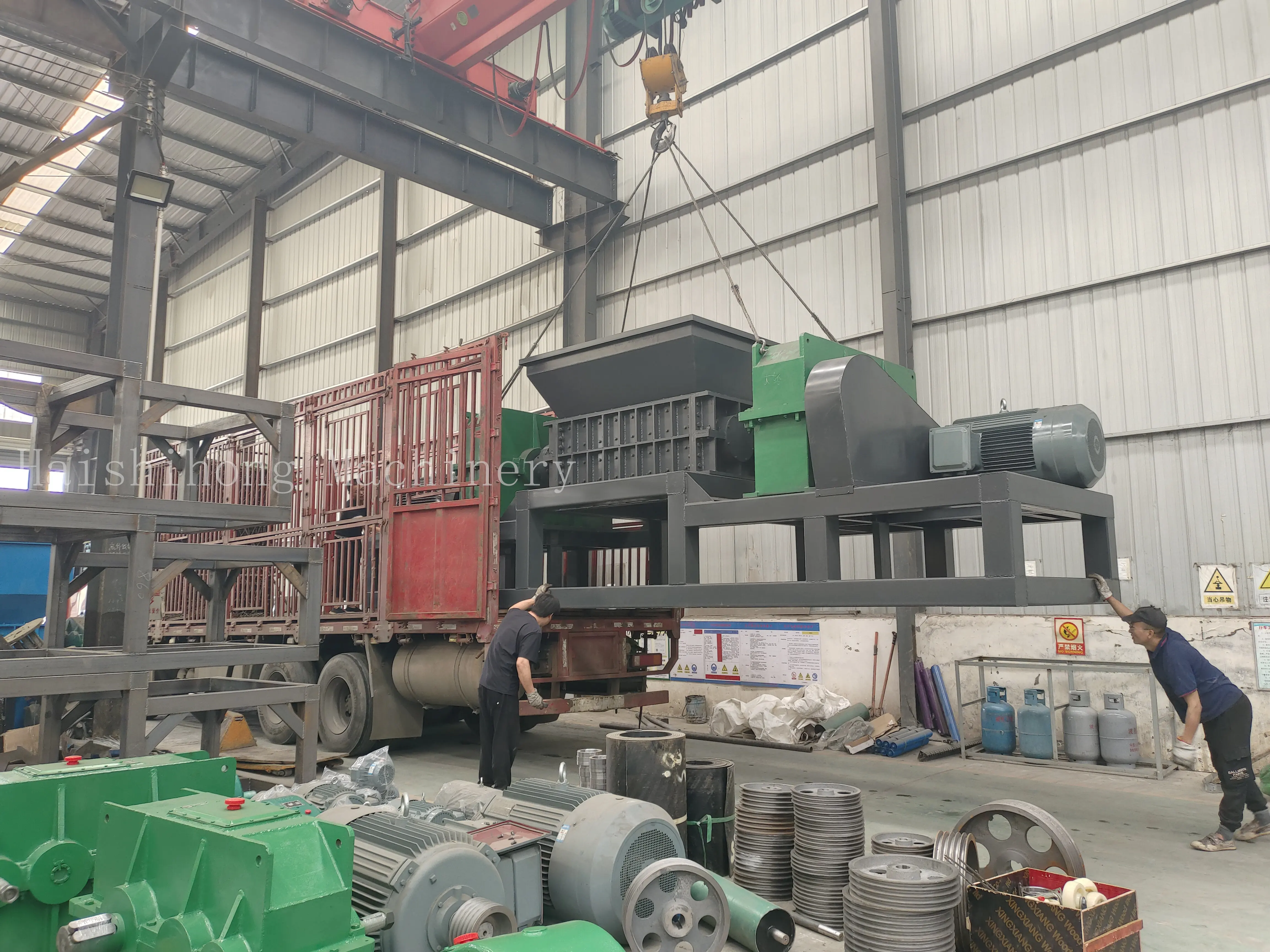

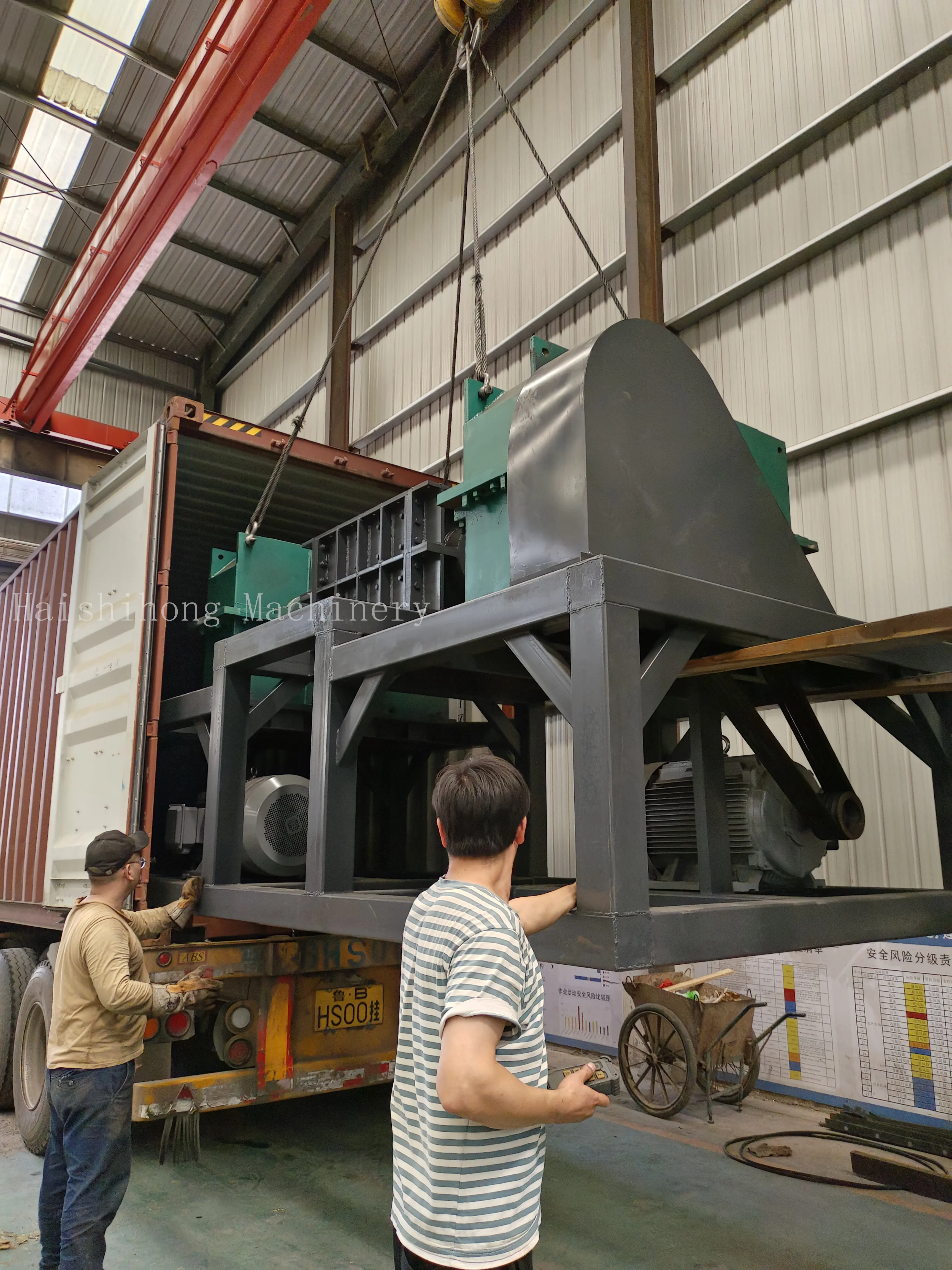

Packing & Delivery
About Our Factory
FAQ
Q:How many years have your factory been established?
A:Our factory established from 2004, and most of our engineers are workingin this industry over 20 years.
Q:Can you customise the product for me?
A:Yes. We can customize according to customer's requirements in terms of model, knife type, colour, etc. Meanwhile, our engineers can also give you professional guidance advice.
Q:Do you provide after-sales service?
A:Yes. Our machine warranty is one year. We have professional after-sales service team to solve your problem within 24 hours.
Q:What are the payment terms?
A:40% down payment as deposit and 60% balance before shipment.
A:Our factory established from 2004, and most of our engineers are workingin this industry over 20 years.
Q:Can you customise the product for me?
A:Yes. We can customize according to customer's requirements in terms of model, knife type, colour, etc. Meanwhile, our engineers can also give you professional guidance advice.
Q:Do you provide after-sales service?
A:Yes. Our machine warranty is one year. We have professional after-sales service team to solve your problem within 24 hours.
Q:What are the payment terms?
A:40% down payment as deposit and 60% balance before shipment.
