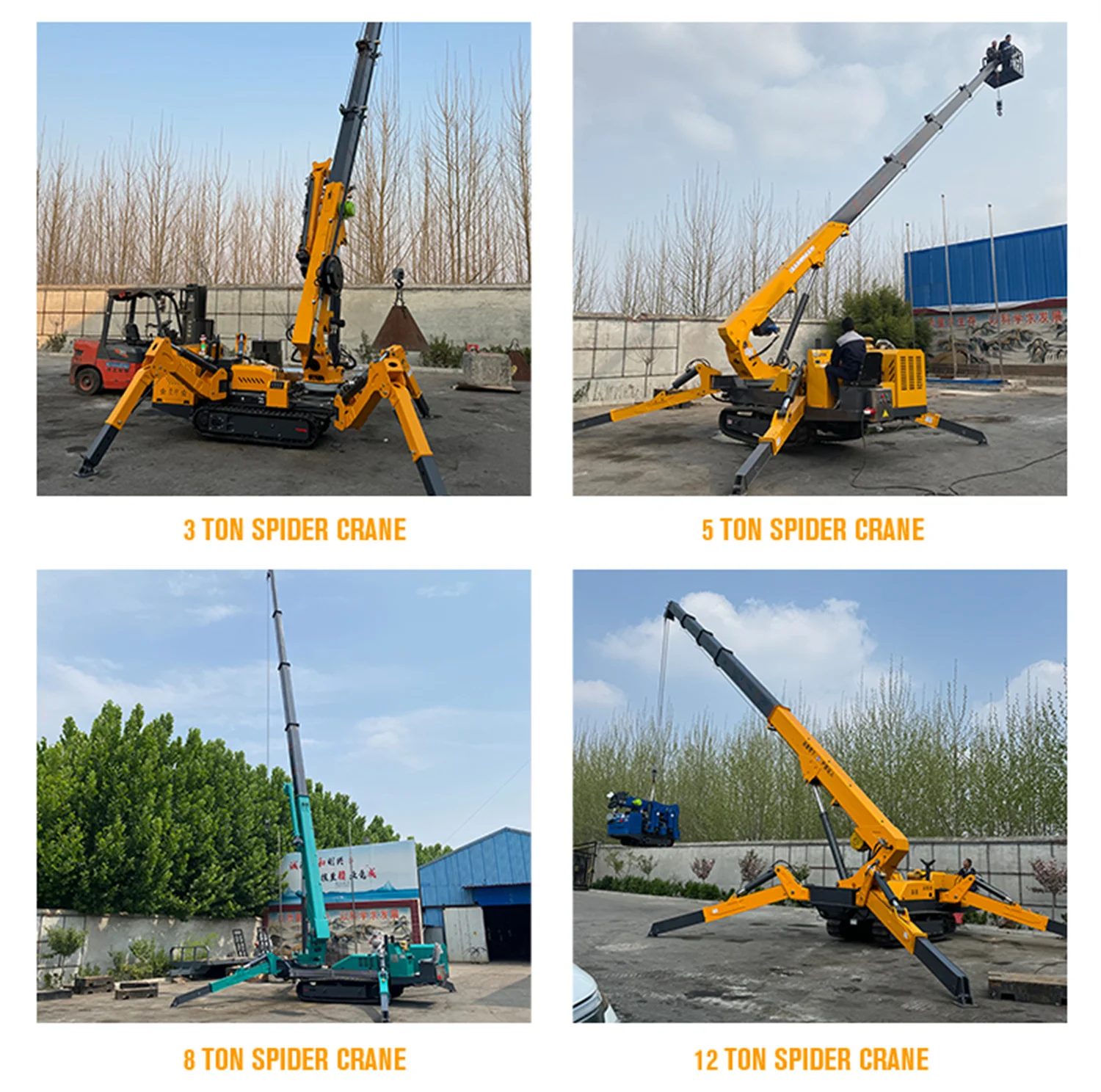

Mobile Spider Crane 3 Ton 5ton 8ton 12ton Telescopic Boom 360 degree mini Crawler Hydraulic Crane lifting with fly jib
- Category: >>>
- Supplier: Jining Guanyu Construction Machinery Co. Ltd.
Share on (1601268170037):
Product Overview
Description

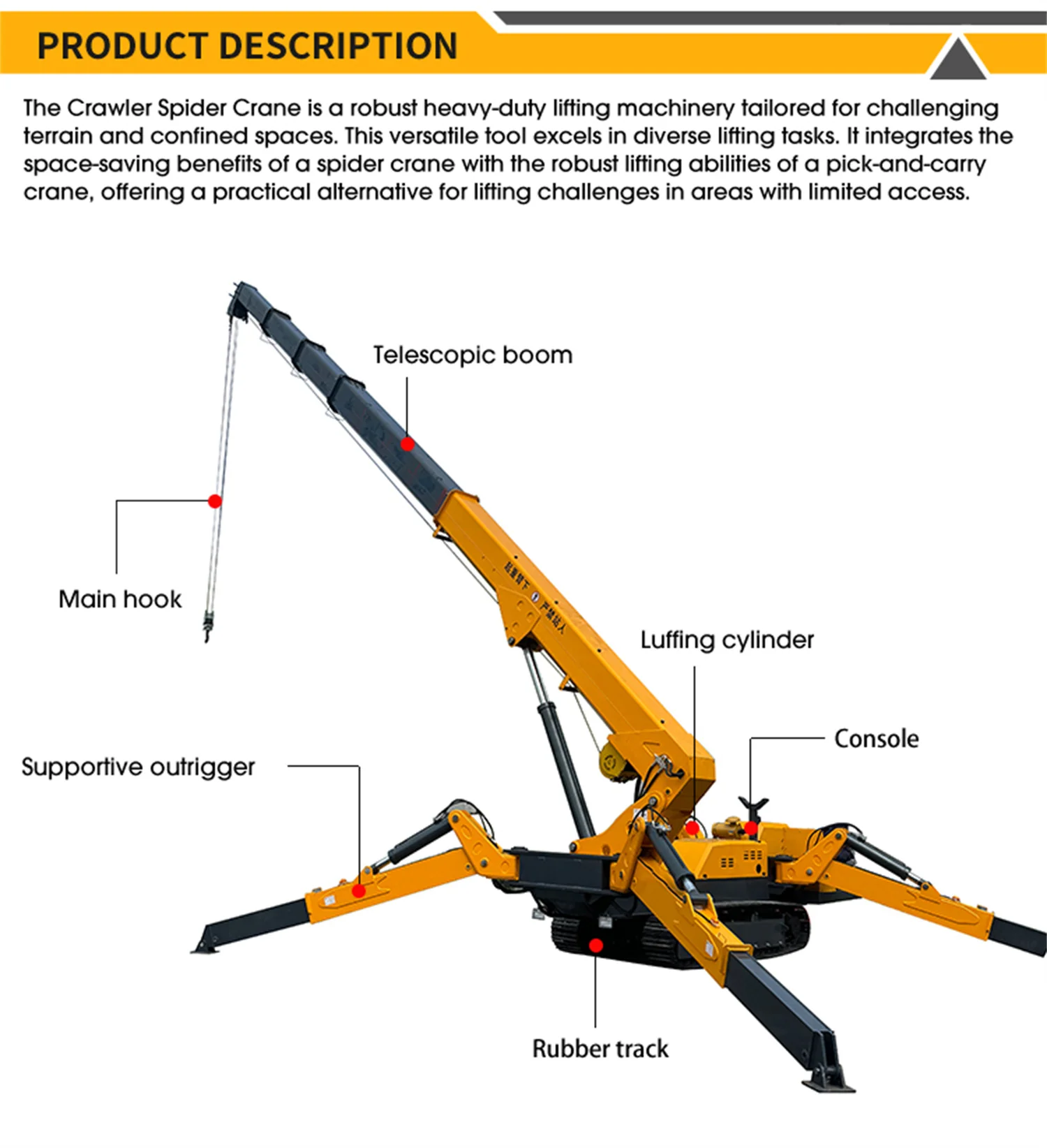

Product Description

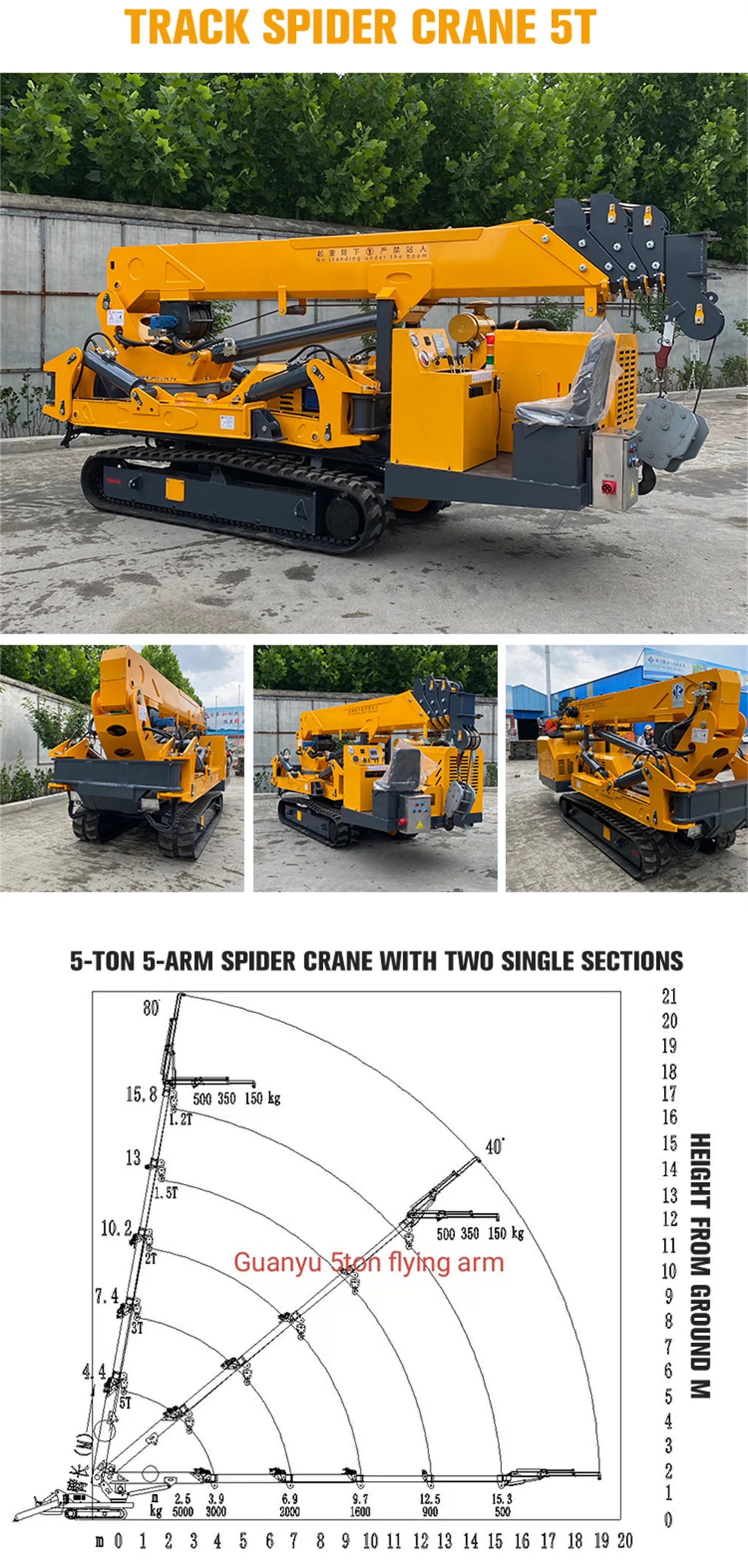

Basic Parameters of 5-ton Spider Crane | ||||
Model | 5t | |||
Maximum Working Radius | 15.3m×0.5t | |||
Maximum Ground Lifting Height | 16.8m | |||
Maximum Underground Lifting Height | 18.5m | |||
Winch Device | Hook Speed | 12m/min (4 The rope） | ||
Specification of steel wire rope | Φ11mm×80m | |||
Telescopic Device | Boom Type | Fullautomatic 5 section | ||
Telescopic Boom length | 4.7m-15.8m | |||
Boom angle/time | 0-80°/13sec | |||
Rotation angle/speed | 0-360°（连续）/38sec | |||
Outrigger | Outrigger movement form | Manual Spin Out， Hydraulic Telescopic， Automatic Support (Two Legs) | ||
Maximum Extended Dimensions（mm） | Left and right（6600）around（5600） | |||
Traction system | Walking Way | Hydraulic motor drive | ||
Walking Speed | 0-2.5km/h | |||
Grade Ability | 20°(36%) | |||
Power Supply Voltage | AC 380v | |||
Engine | Producer | YunNei | ||
Model | 490 | |||
Starting method | Electric start | |||
FuelTank Capacity | -5°C~40°C | |||
Fuel/Volume | Diesel oil /48L | |||
Battery capacity | 12v 45AH | |||
operating system | Operational characteristics | Manual operation | ||
vehicle size | 4.75m*1.5m*2.2m | 4.75m*1.5m*2.2m | ||
Weight | 6.5T | |||
Standard configuration | Diesel engine and electric motor (dual power) | |||

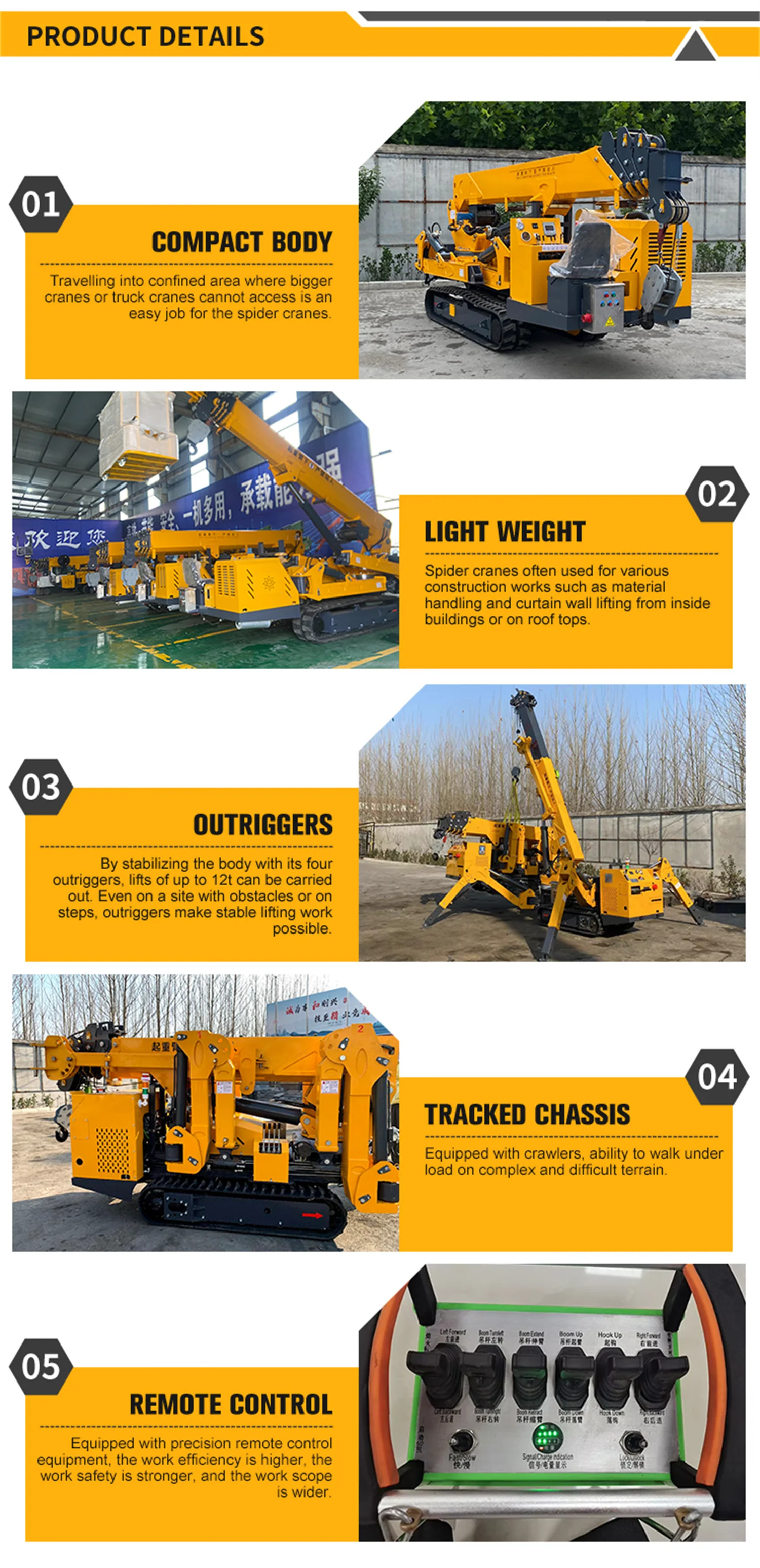

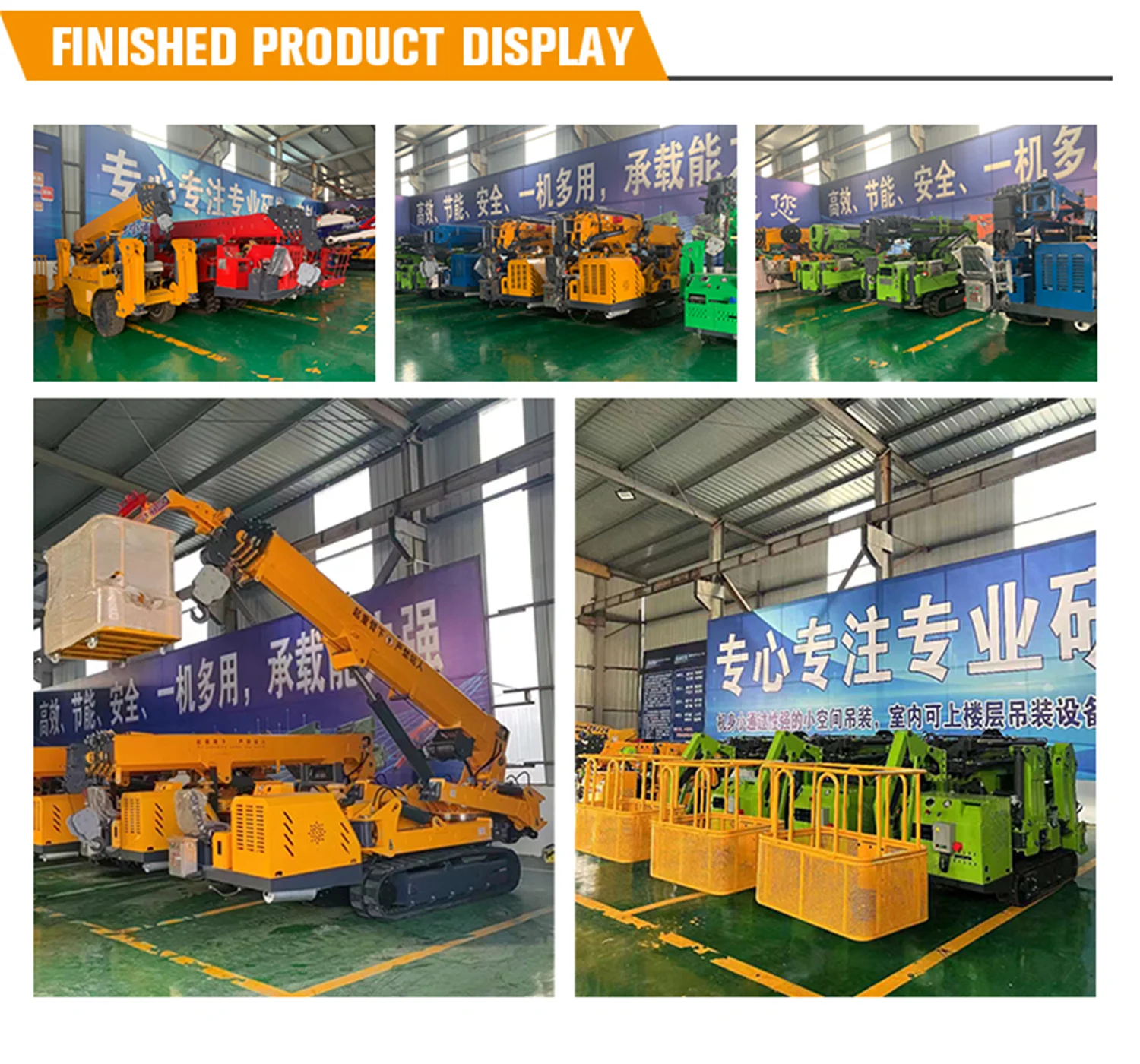

Details Images

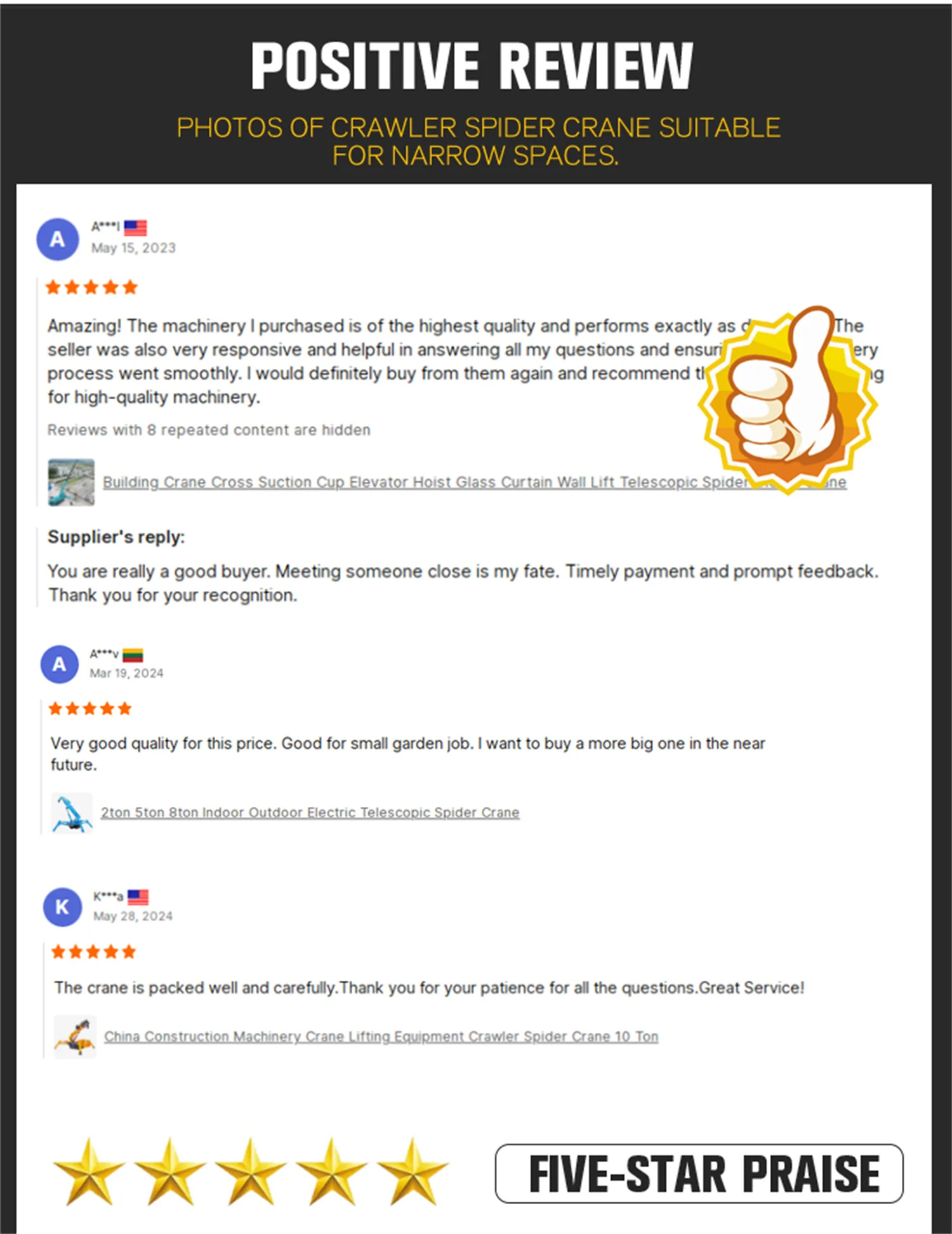

Positive Review

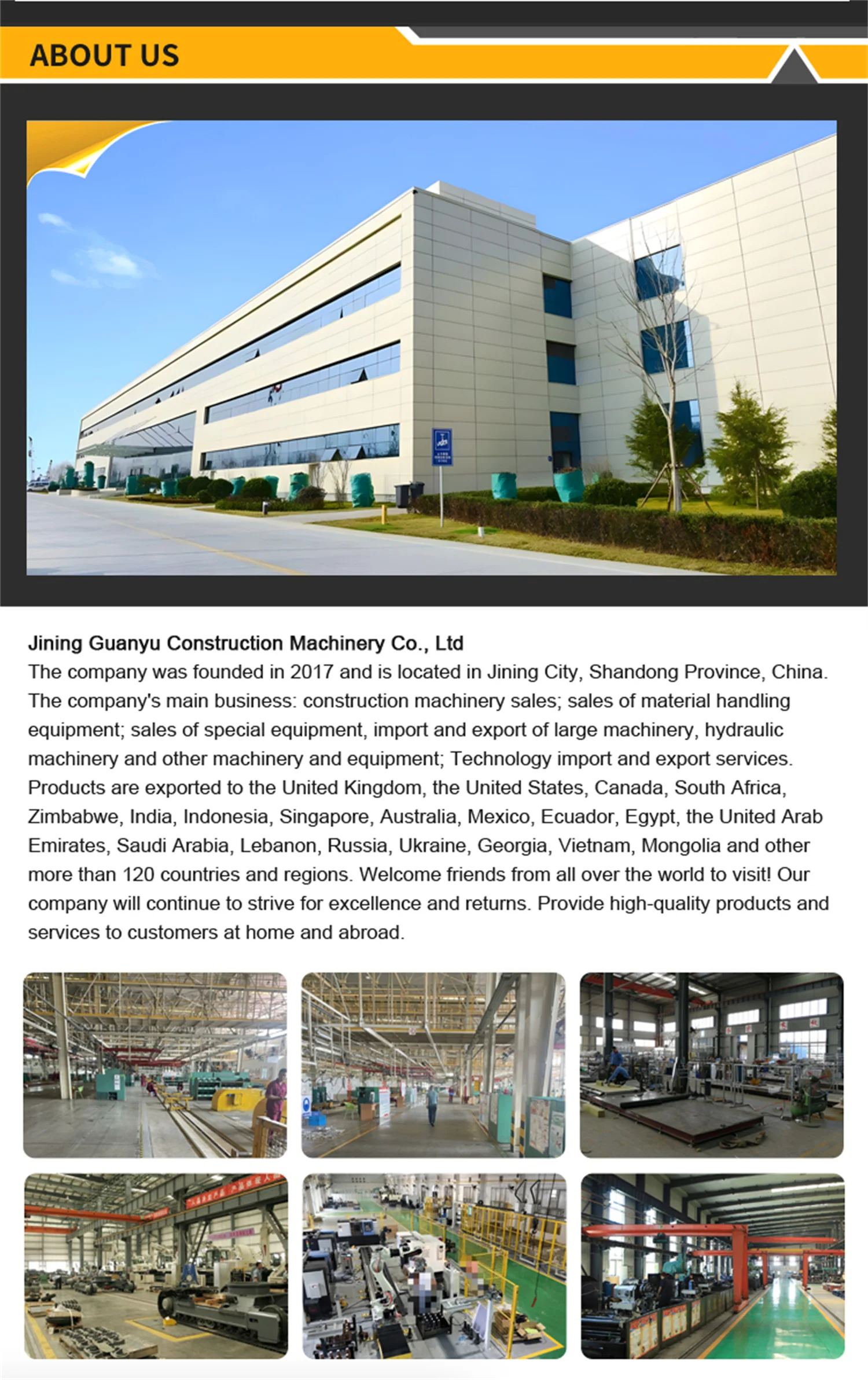

Company Profile

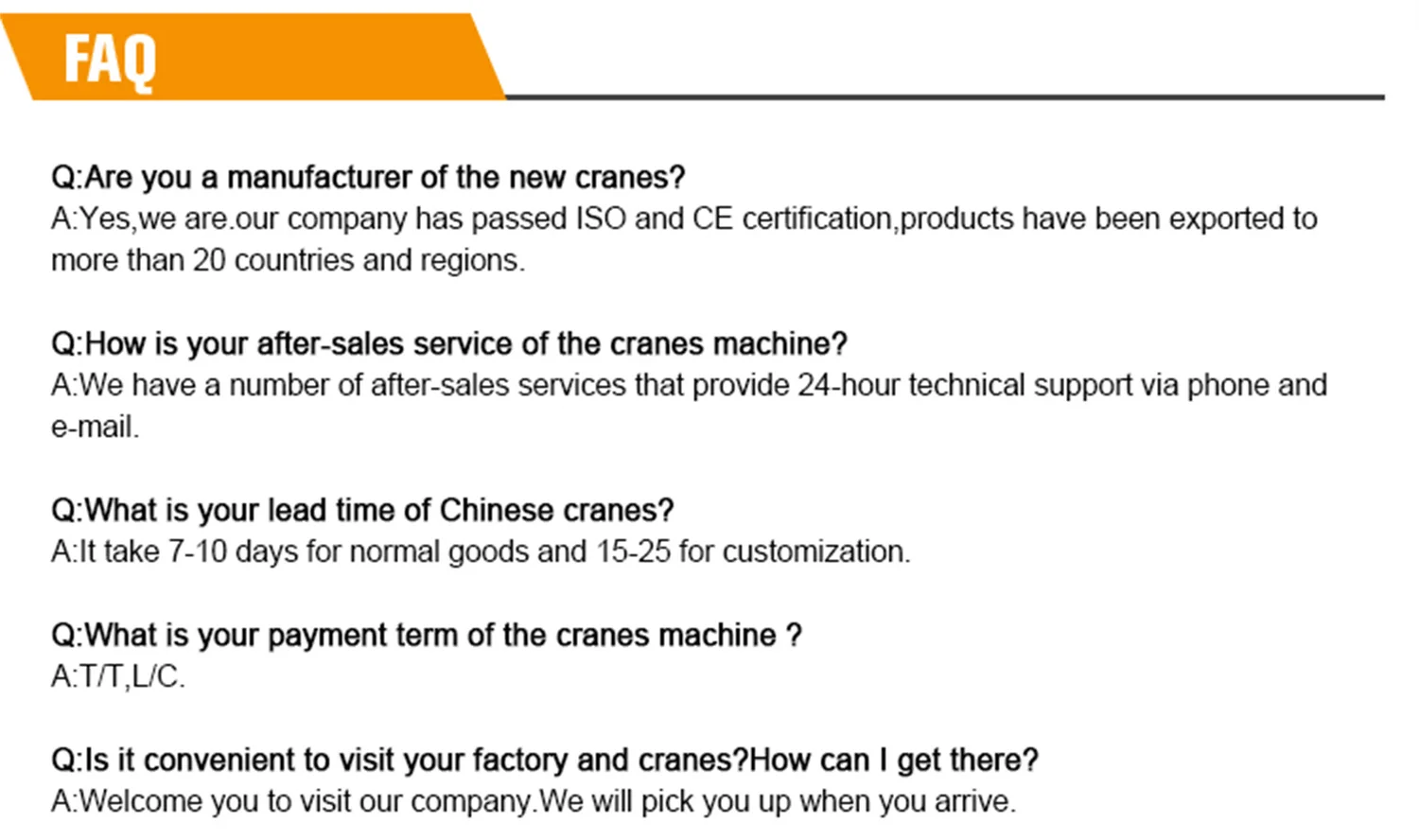

FAQ
