UMSTBVK2,5/21-G-5,08 Plug-in Terminal Block I/O
$35.00-50.00

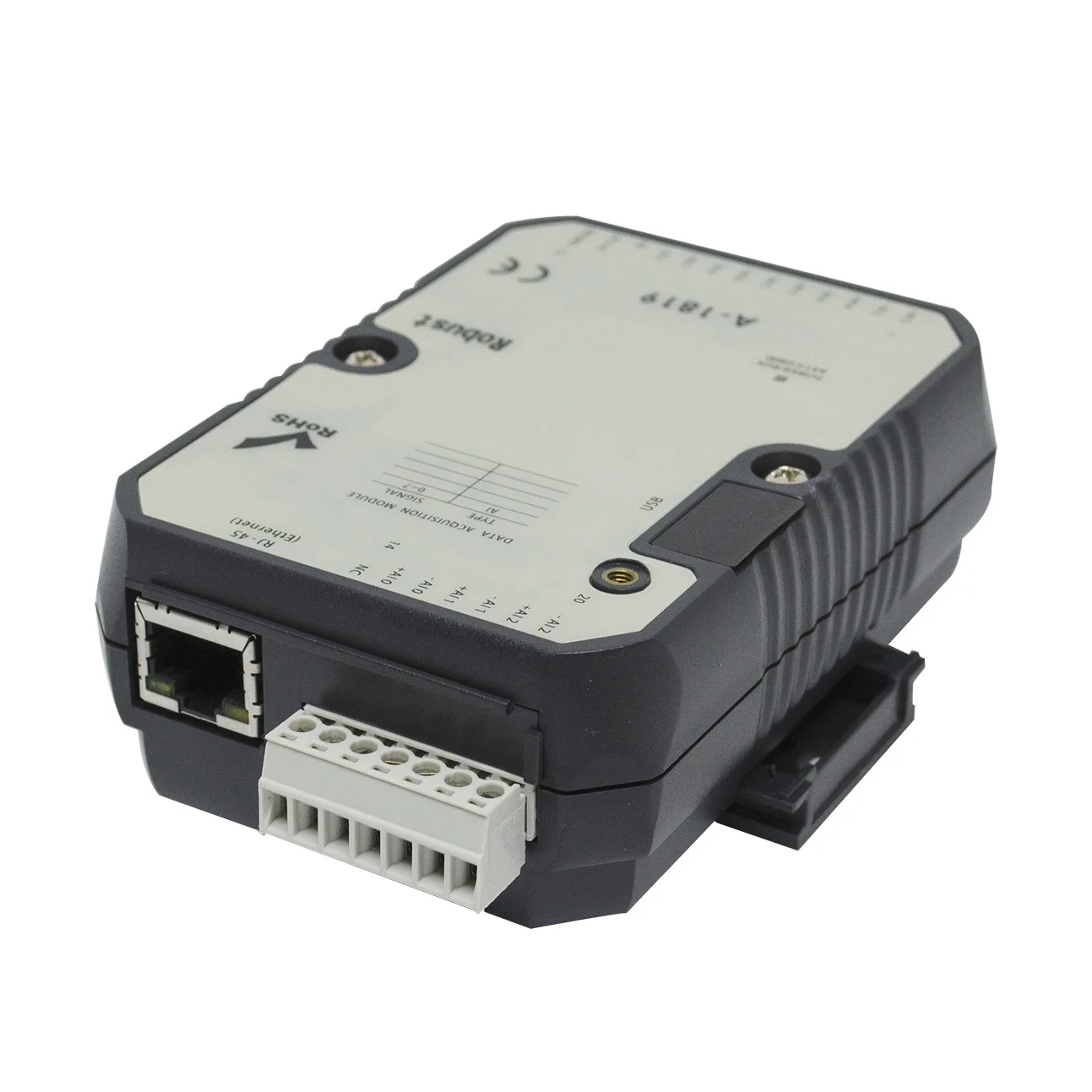

ATC Factory supply Ethernet Analog IO Module with 8AI(0/4 20mA) support Modbus TCP protocol for Automation A 1819
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (1601268201689):
Product Overview
Description
Products Description
ATC Industrail remote Ethernet I/O module is an industrial class.High reliability, high stability and high precision data
acquisition module. Embedded ARM-Cortex-M4 MCU (ST). Integrated 1-Port Industrial 10/100M Ethernet port. It provides multi I/O
with digital input/output and analog input/output. It support ModBus TCP protocol. The user's can through IPC or DCS controller
communication with Ethernet I/O module and support 7 independent TCP socket connection.
It’s design for working in the harsh industrial application environment. Such as industrial automation, factory automation,
building antomation,automatically measurement and control system.
acquisition module. Embedded ARM-Cortex-M4 MCU (ST). Integrated 1-Port Industrial 10/100M Ethernet port. It provides multi I/O
with digital input/output and analog input/output. It support ModBus TCP protocol. The user's can through IPC or DCS controller
communication with Ethernet I/O module and support 7 independent TCP socket connection.
It’s design for working in the harsh industrial application environment. Such as industrial automation, factory automation,
building antomation,automatically measurement and control system.
Specifications
Part No. | A-1819 | ||
Analog Inputs | 8AI（16 bit） | ||
Analog Input Type | 0/4~20mA,J,K,T,E,R,S,B,Thermistor(-270 ~ +1800℃) | ||
Input Impedance | Current: 100Ω Voltage: 10MΩ | ||
Analog Input/Output Accuracy | ±0.1% / — | ||
Sampling Rate | 10 sample/second（Total） | ||
CMR @ 50/60 Hz | 120 dB | ||
Span Drift | ±50 ppm/℃ | ||
Zero Drift | ±18 μV/℃ | ||
Temperature Ranges | (PT-100:-200~+600℃) (PT-1000:-200~+600℃) (J:-210~760℃) (K:-270~1,370℃) (T:-270~400℃) (E:-270~1,000℃) (R:0~1,750℃) (S:0~1,750℃) (B:0~1,800℃) (Thermistor-10K-T2:0~100℃) (Thermistor-10K-T3:0~100℃) (Thermistor-6.8K:-10~100℃) (Thermistor-4.7K:-10~100℃) (Thermistor-3.3K:-20~100℃) (Thermistor-3K:-20~100℃) (Thermistor-2.7K:-20~100℃) (Thermistor-2.252K:-20~100℃) (Thermistor-2.1K:-30~100℃) (Thermistor-2K:-30~100℃) (Thermistor-1.5K:-40~100℃) (Thermistor-1K:-40~100℃) | ||
Channel Independent Configuration | Yes. Configuration by ATC Utility. | ||
Communication Baud Rate | 10/100Mbps | ||
Protocol | MODBUS TCP | ||
Communication Interface | Ethernet + USB(Configuration only ) | ||
Operation Temperature | -20 to +75℃ | ||
Degree Of Protection | IP20 | ||
Installation | 35 mm DIN rail / Flush mounting | ||
Dimension（W×H×D） | 76.4*118.2*38.5 mm | ||
Pins and wiring
Product size
Product Category
Order information
May you have interesting below RS-485 interface I/O module
FAQ
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Western Europe(25.00%),Southeast Asia(23.00%),North America(15.00%),Eastern Europe(10.00%),South America(7.00%),Mid East(5.00%),Oceania(3.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Remote I/O module,Mini PLC,Serial server,Wireless data Module,USB Cable
4. why should you buy from us not from other suppliers?
ATC is one design and manufacture combine together company.It handing the industrial I/O module ,PLC,serial server and others application for industrial field
more than 15 years.We can offer one-stop serve for industrial.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2003,sell to Western Europe(25.00%),Southeast Asia(23.00%),North America(15.00%),Eastern Europe(10.00%),South America(7.00%),Mid East(5.00%),Oceania(3.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Remote I/O module,Mini PLC,Serial server,Wireless data Module,USB Cable
4. why should you buy from us not from other suppliers?
ATC is one design and manufacture combine together company.It handing the industrial I/O module ,PLC,serial server and others application for industrial field
more than 15 years.We can offer one-stop serve for industrial.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
