Product Overview


STC500 50Ton Truck Crane for sale

Products Description:
Cab
Fabricated from corrosion-resistant steel, equipped full-covered flexible decorations, front window door could be open, adjustable seat provide comfort for the driver.

Winch
Fixed displacement piston pump, hydraulic braking system, mounted balanced valve. Max. speed(single rope) 130m/min, rope length 220m.

Main boom
Five sections partially synchronized section; telescopic mechanism assisted by two cylinders and sheaves, balanced valve
mounted on the cylinder.

Auxiliary winch
Constant displacement piston system, mounted balanced valve, max. speed(single rope)130m/min, rope length 130m.

Counterweight
3.5t, mounted on the frame through connecting bolts.

Luffing
Deadweight dependent and electric-proportion balanced valve controlled elevation.

Hydraulic system
Load adaptor and constant power control variable displacement axial piston pump, speed-proportion and power-adjust regulation, automatically regulate oil pump through load condition to utilize power. Speed-control does not depend onflow distribution to reduce power.

Slewing mechanism
Fixed displacement piston pump, slewing with buffer. Max. slewing speed 2r/min.

Safety devices
Colorful LCD, integrated hook load, rated load, boom length, angle, lifting height. Integrated parame tersetup . Safety-limit


Product Specifications


Item
Value
Working performance specification
Max. rated total lifting capacity
50000 kg
Max. load moment of basic boom
1590 kN.m
Max. load moment with max. main boom
length
573 kN.m
Max. lifting height of basic boom
11.5 m
Max. lifting height of main boom
44.5 m
Max. lifting height of fly jib
59.5m
Working speed
Max. speed of single rope on main winch
120 m/min
Max. speed of single rope onauxiliary winch
105 m/min
Derricking time of boom
40 s
Telescopic time of boom
60 s
Slewing speed
0~2.2 r/min
Traveling specification
Max. traveling speed
85 km/h
Max. gradeability
40 %
Min. turning circle diameter
20 m
Min. ground clearance
220 mm
Limits for exhaust pollutants and smoke
Comply with related standards
Oil consumption per hundred kilometers
46 L
Mass specification
Deadweight of crane in traveling condition
28930 kg
Complete vehicle kerb mass
28800 kg
Front axle load
6300 kg
Rear axle load
22630 kg
Dimension specification
Overall dimensions(L×W×H)
13000×2500×3450 mm
Base on outriggers
5.36 m
Distance between outriggers
6.1 m
Main boom length
10.5~33.3 m
Main boom angle°
-2~80
Fly jib length
8 m
Offset angle of fly jib°
0 , 30
Chassis
Model
Class
II
Feature No.
Engine
Model
WP10.270
Rated power
199/2200 kW/r/min
Max. output torque
1100/1200~1600 N.m/r/min

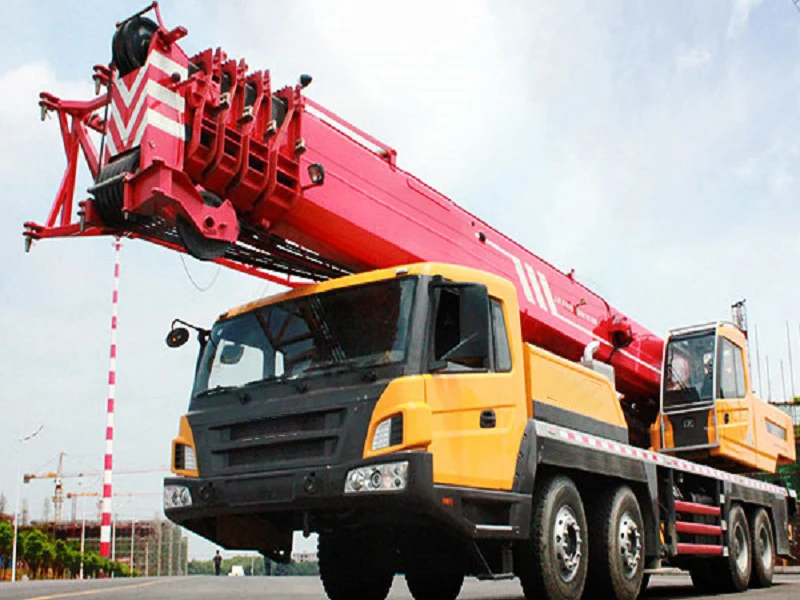

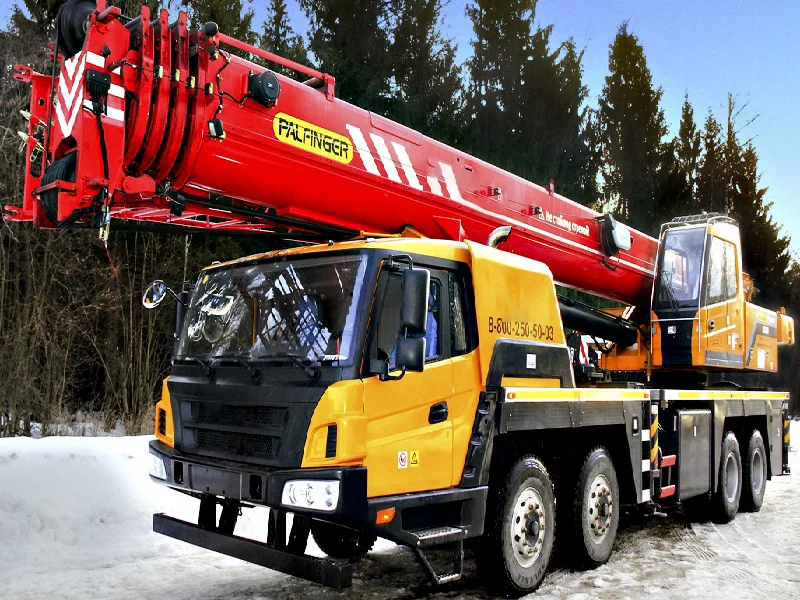

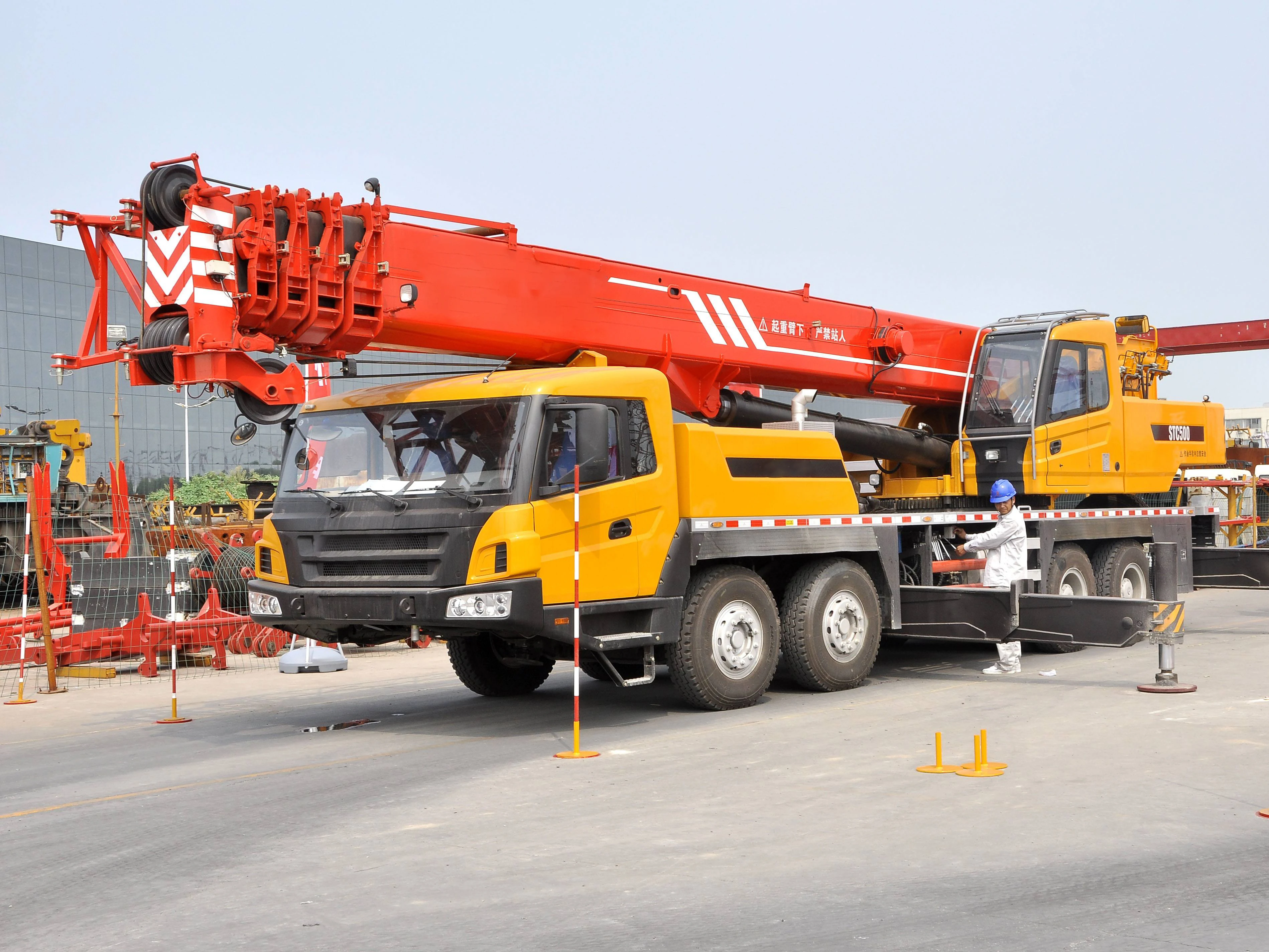

Products Photos
