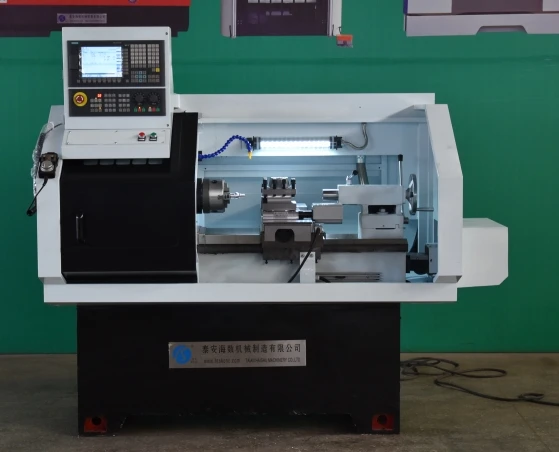

High Precision Lathe Machine Torno With CNC Controller CK0660A
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1601268277151):
Product Overview
Description

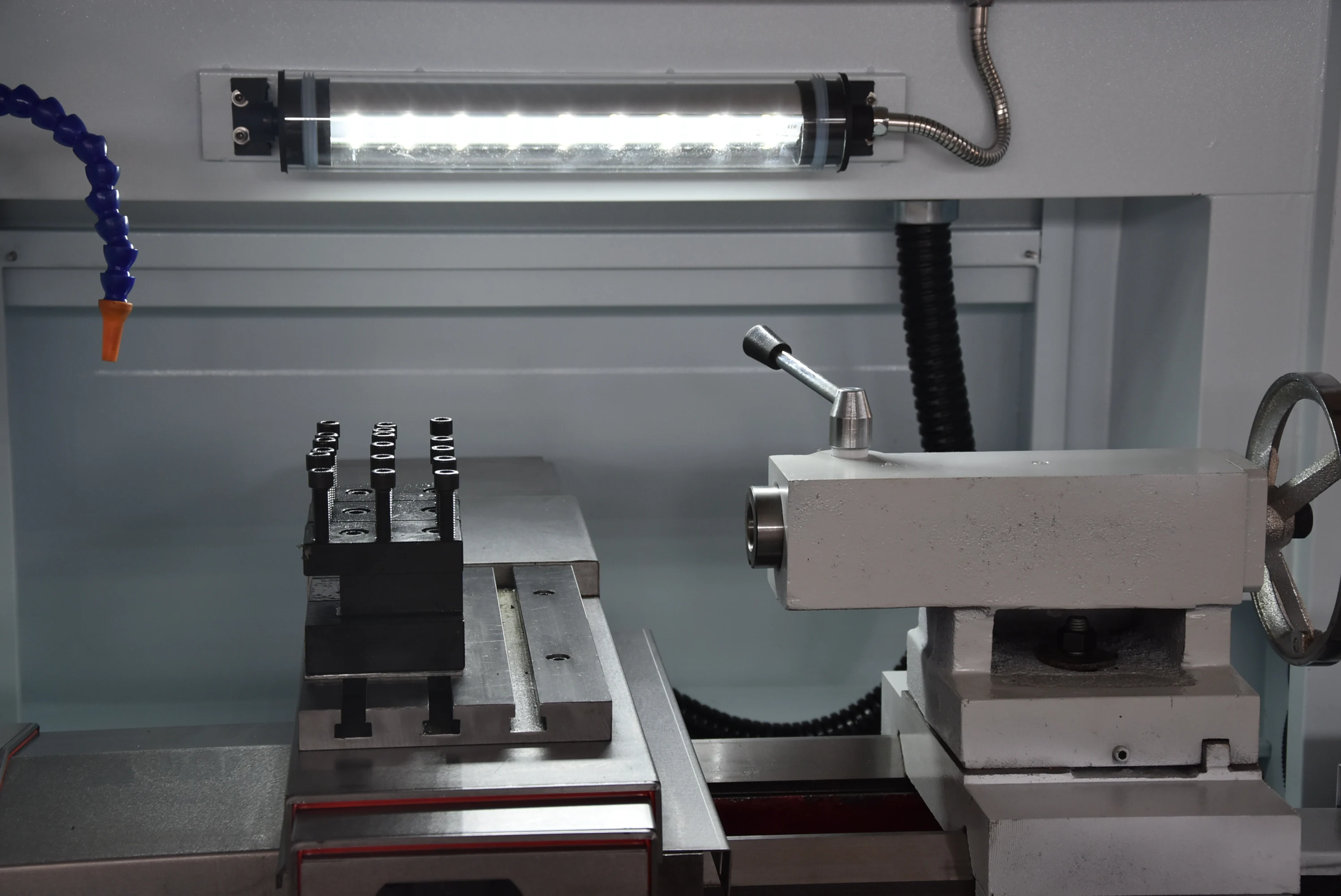

High Precision Lathe Machine Torno With CNC Controller CK0660A
Precision Lathe Machine Main features:
Small Cnc Lathe Machine CNC Horizontal Lathe Machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
Precision Lathe Machine Reasonable structure
The Small Cnc Lathe Machine area is small, professional is strong, value for money, operation and use more convenient.
Precision Lathe Machine Sturdy durable
Cast iron bed. The Small Cnc Lathe Machine bed is made of cast steel in horizontal flat bed structure.
Precision Lathe Machine Product performance
HAISHU brand Small Cnc Lathe Machine is preferable for for metal cutting, turning or drilling functions. This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications.
Precision Lathe Machine Easy to operate
Small Cnc Lathe Machine can process short materials efficiently and save labor costs and labor intensity, it is very suitable for automated processing of a large number of workpieces. At the same time, our automatic feeding CNC lathe is equipped with rotatable and telescopic cylinders, and the clamping efficiency is very fast which is very worthy of customers’ trust and purchase of CNC lathes.
Items | CK0632A | CK0640A | CK0660A |
Spindle bore | 40mm | 48mm | 70mm |
Max.swing over bed | 280mm | 280mm | 300mm |
Max.swing over carriage | 140mm | φ140mm | 150mm |
Z-axis max length of work piece | 200mm | 200mm | 220mm |
Spindle head form | A2-5 | A2-5 | A2-5 |
Drawn tube bore | 30mm | 40mm | 160mm |
Hydraulic chuck | 160mm | 160mm | 160mm |
X/Z Repeat positioning accuracy | 0.012/0.013 | 0.012/0.013 | 0.012/0.013 |
X-axis max motion traveling | 260mm | 260mm | 320mm |
Z-axis max motion traveling | 250mm | 250mm | 250mm |
X-axis fast moving speed | 8m/min | 8m/min | 8m/min |
Z- axis fast moving speed | 10m/min | 10m/min | 10m/min |
Range of spindle speed | 0-3000 r/min | 0-3000 r/min | 0-2600 r/min |
Stations of tool carrier | 4 or gang-type tool carrier | 4 or gang-type tool carrier | 4 or gang-type tool carrier |
Power of the main drive motor | 3kw | 3kw | 4kw |
Overall dimensions(L×W×H) | 1700*1200*1580mm | 1860*1300*1580mm | 1900*1300*1600mm |
Net weight | 800kg | 1000kg | 1200kg |
Precision Lathe Machine Configuration
CNC system
CNC lathes can choose CNC systems of different brands and be customized according to customer requirements

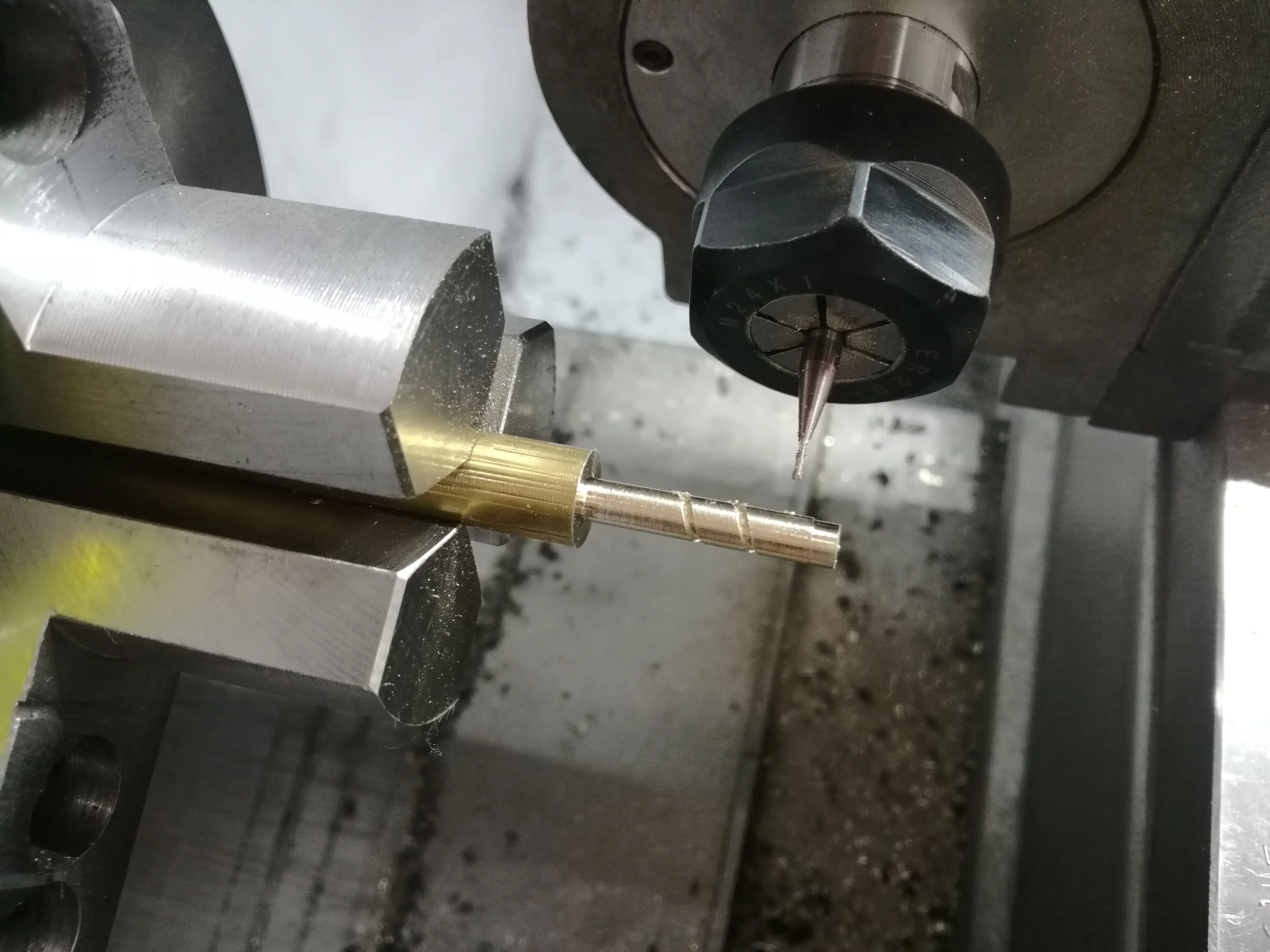

Cheap Cnc Lathe Collet
CNC lathes Standard clamping tool spring collet, easy to operate and high accuracy.

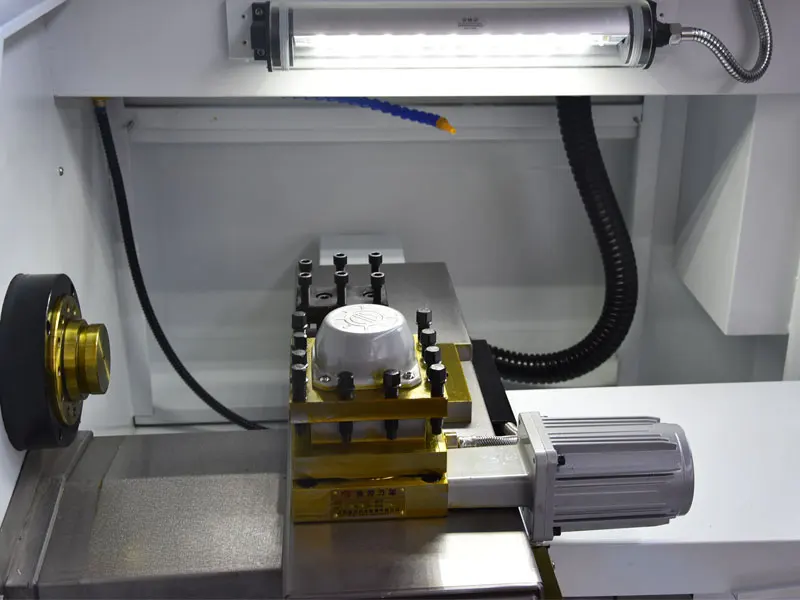

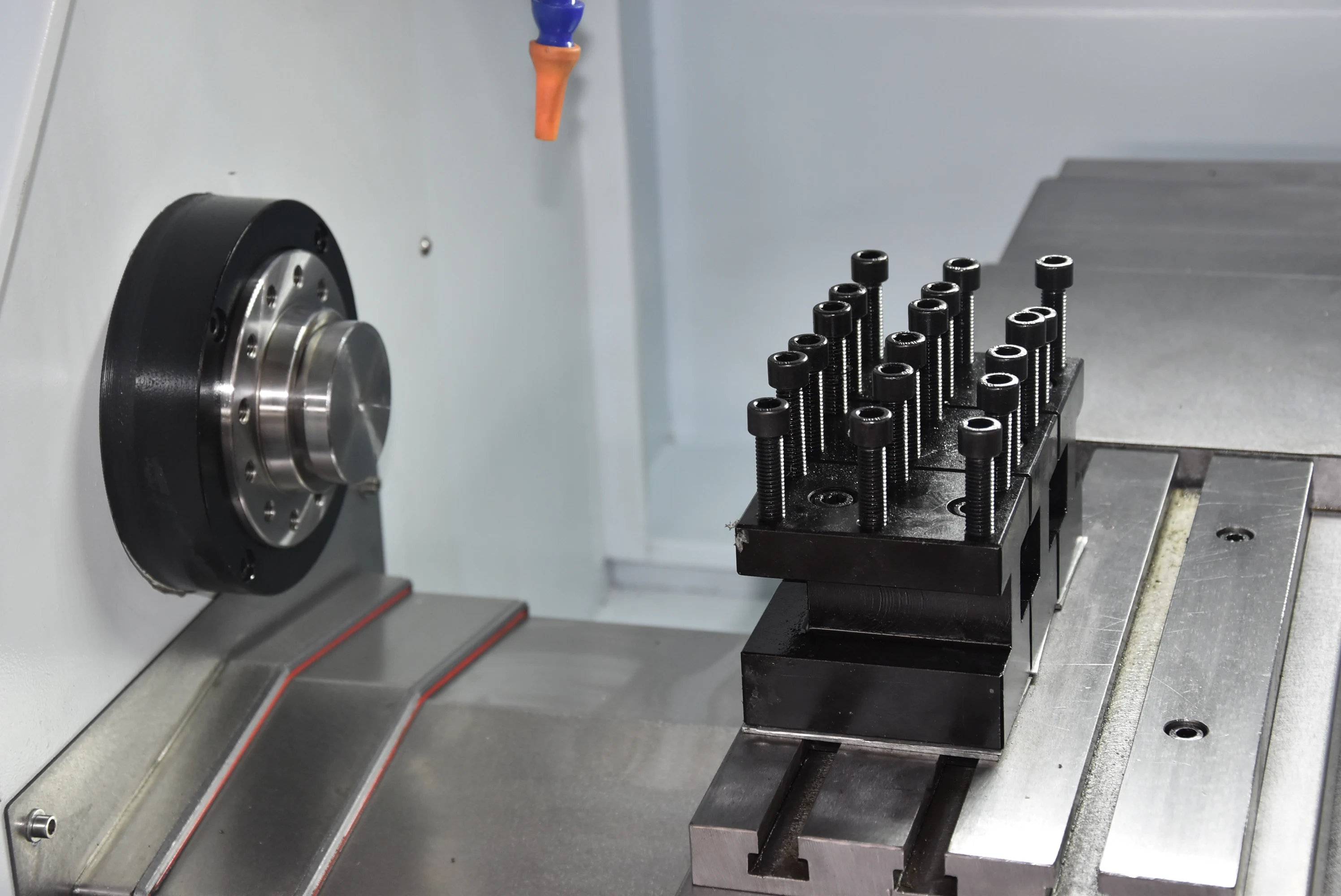

Metal Lathe CNC Machine Row Tool
The CNC lathes Standard configuration
Row tool, easy to install tools, saving space.

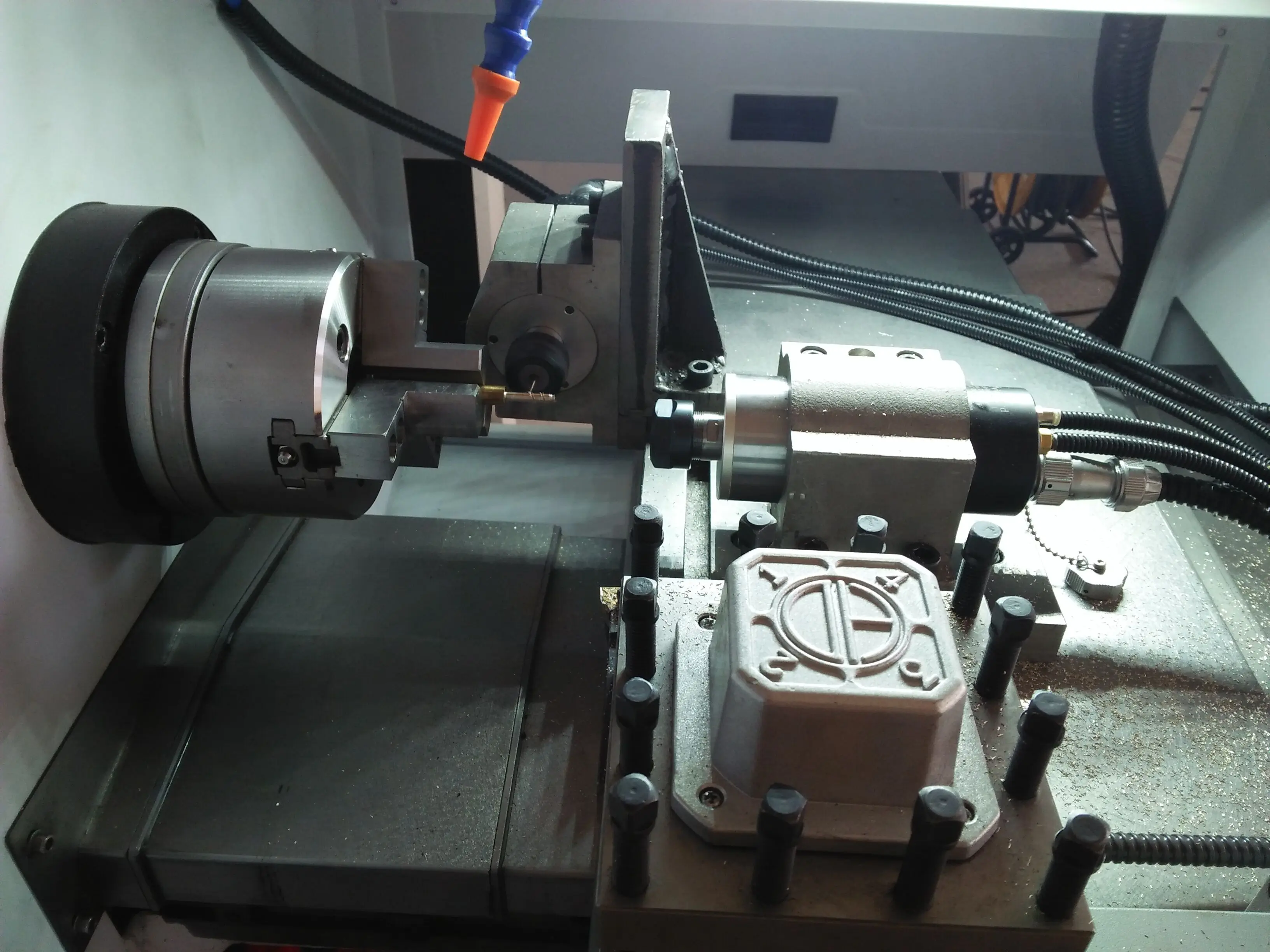

Power head/live tools(Optional)
CNC lathes can customize the required power head according to the workpiece processing requirements to complete complex processing such as drilling and milling.

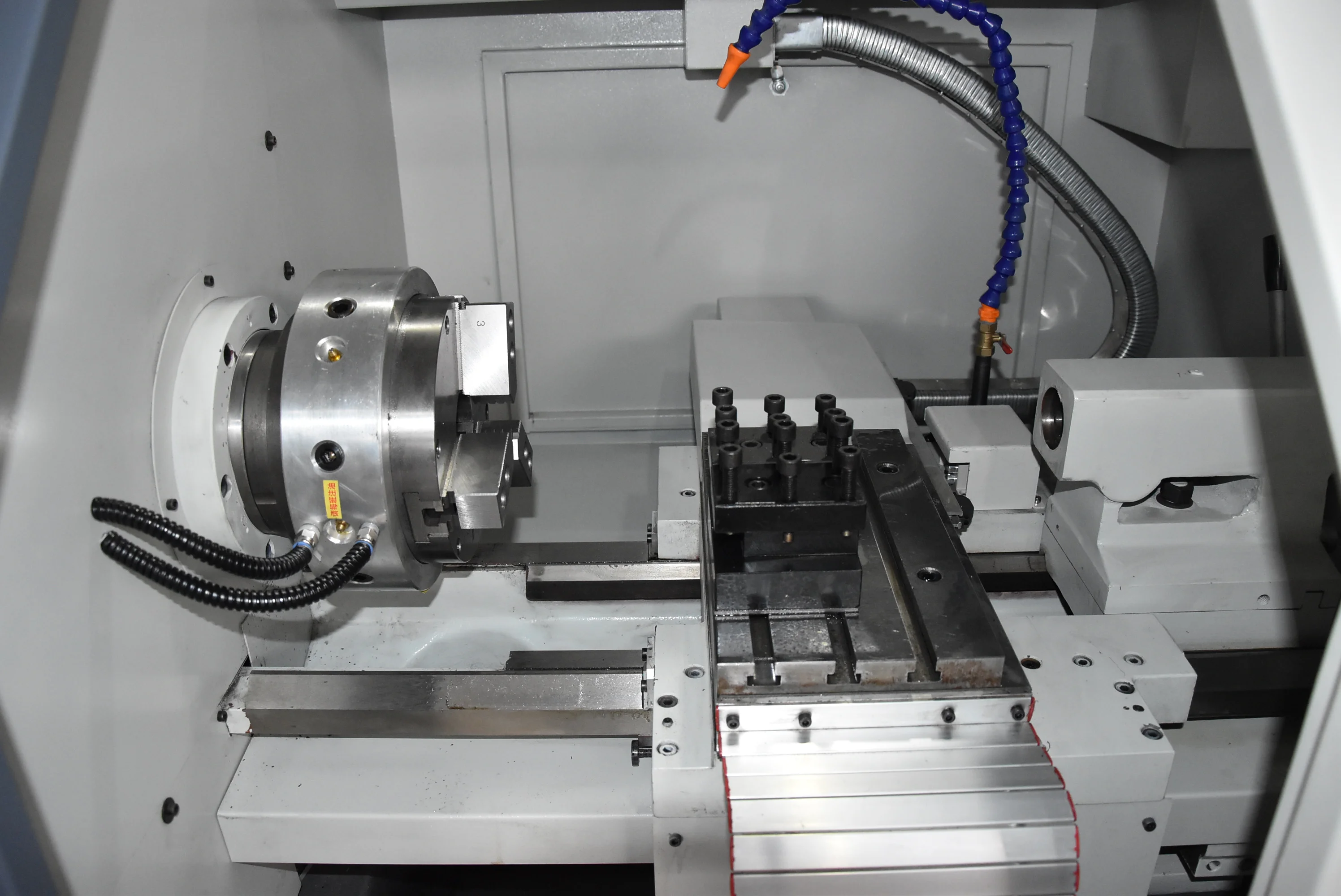

Cheap Cnc Lathe Chuck(Optional)
Small Cnc Lathe Machine can be customized with different clamping methods, including manual chuck, pneumatic chuck, hydraulic chuck, 4-jaw or 6-jaw chuck, etc.

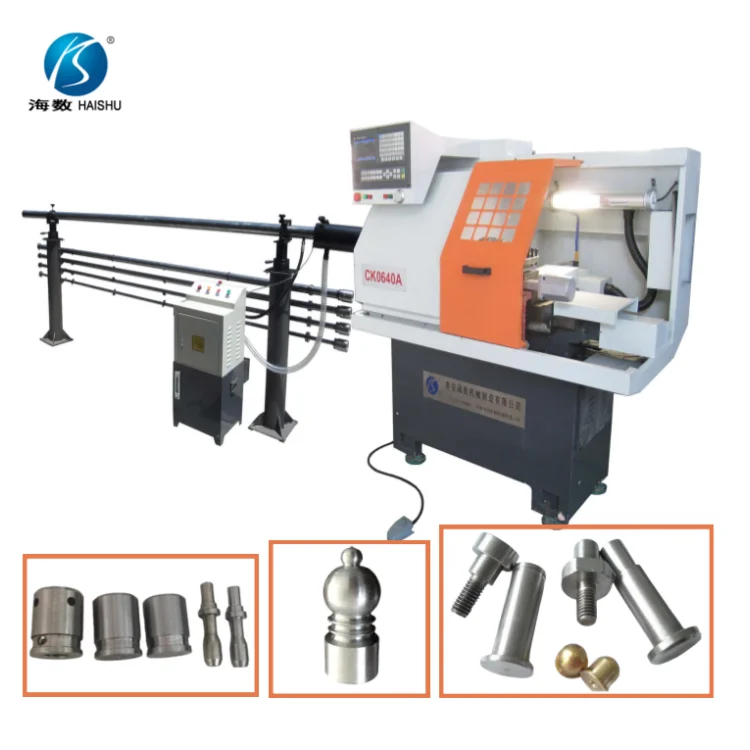

Automatic feeder(Optional)
CNC lathes can be customized with automatic feeding and receiving, pneumatic, hydraulic and servo feeders, and automatic manipulators customized according to the parts.

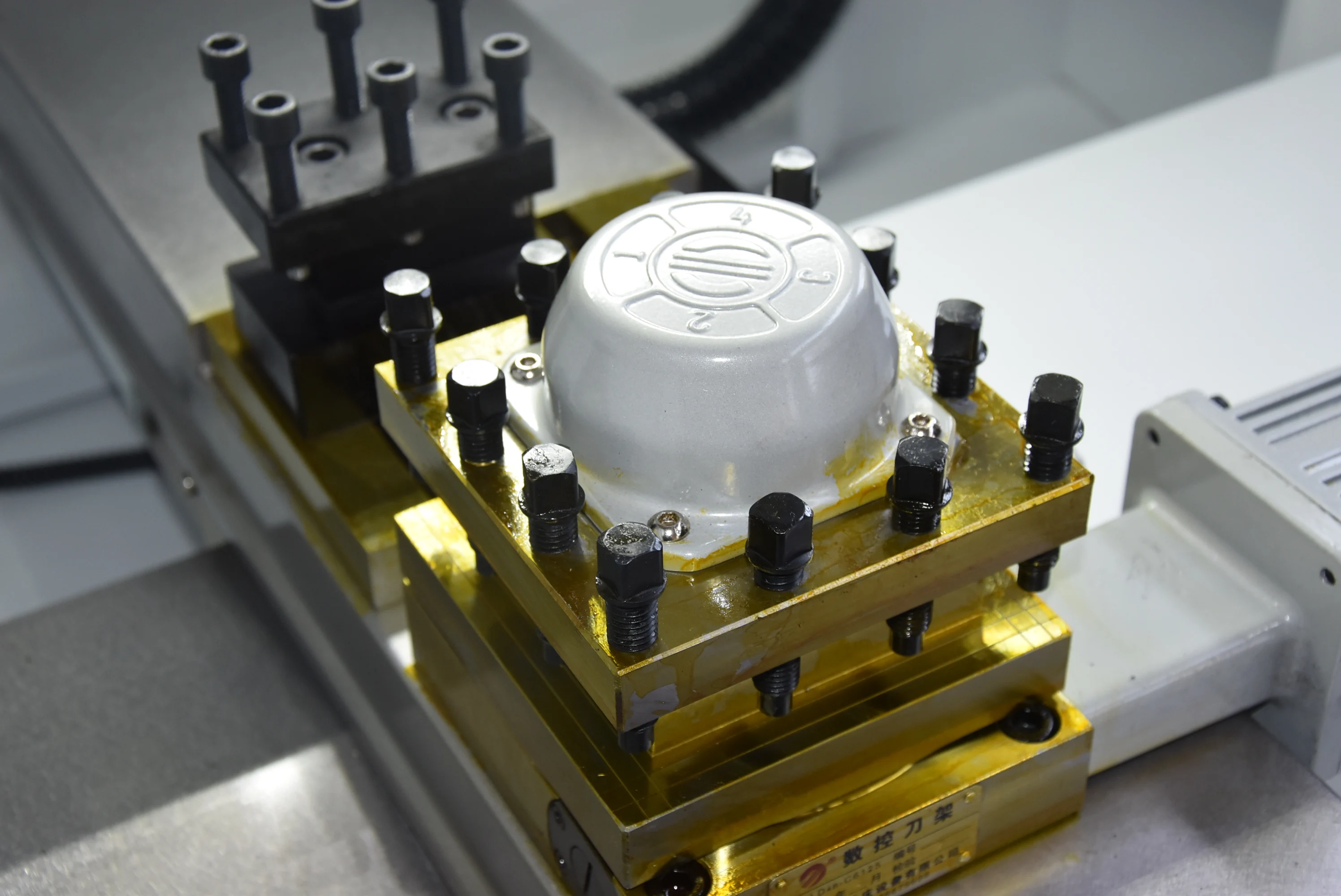

Turret(Optional)
Various electric turret (4 station or 6 station or others)can also be configured on Cnc Lathe Machine
Tailstock(Optional)
Small Cnc Lathe Machine can be customized with manual ,pneumatic or hydraulic tailstock.
Lathe appearance(Optional)
Small Cnc Lathe Machine With small space and can be customized with X or Z axis travel and full protection of the shape if necessary.

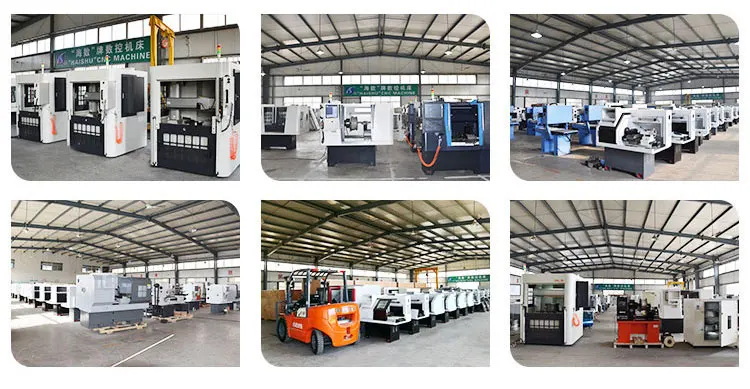

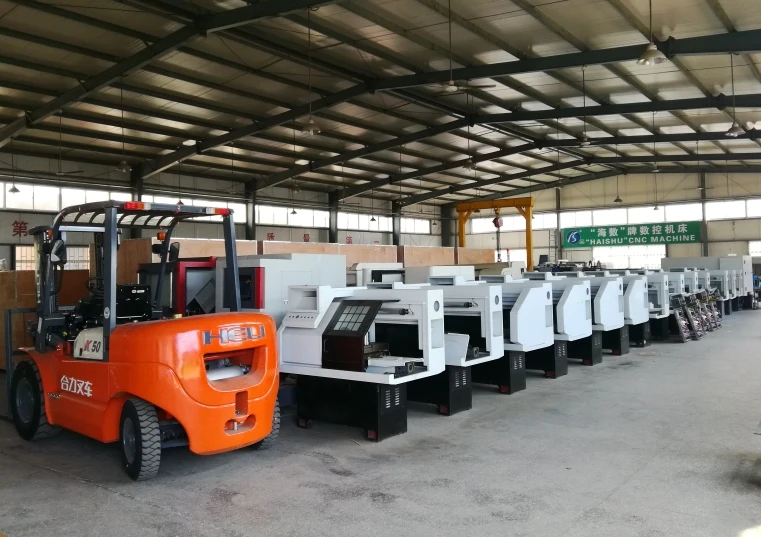

Taian HAISHU Machinery Co., Ltd, established in 2010, is a professional manufacturer engaged in the research, development, production, sale and service of CNC machine tools. Products include:Precision Lathe Machine,CNC lathe, wheel CNC lathe, pipe CNC lathe, turning center, machining center and special CNC machine tools.
We are located in Taian city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we have an experienced research and development team of CNC machine tools, they are always available to discuss your requirements, to provide customers with machining solutions and ensure customer satisfaction. In recent years, our company have produced a lot of special-purpose CNC machine tools for our customers, such as fully automatic turning milling machine tools,five-axis machining center, five-axis tool grinder,car wheel automatic processing lines,Micro Cnc Lathe.
In addition, we have obtained CE certification and ISO9001 certification. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as United States, Britain, Germany, Turkey, Australia, Peru, South Korea, South Africa and across Europe, Asia, Africa, North America, South America, Oceania 120 countries.
We also welcome OEM and ODM orders of Precision Lathe Machine. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
