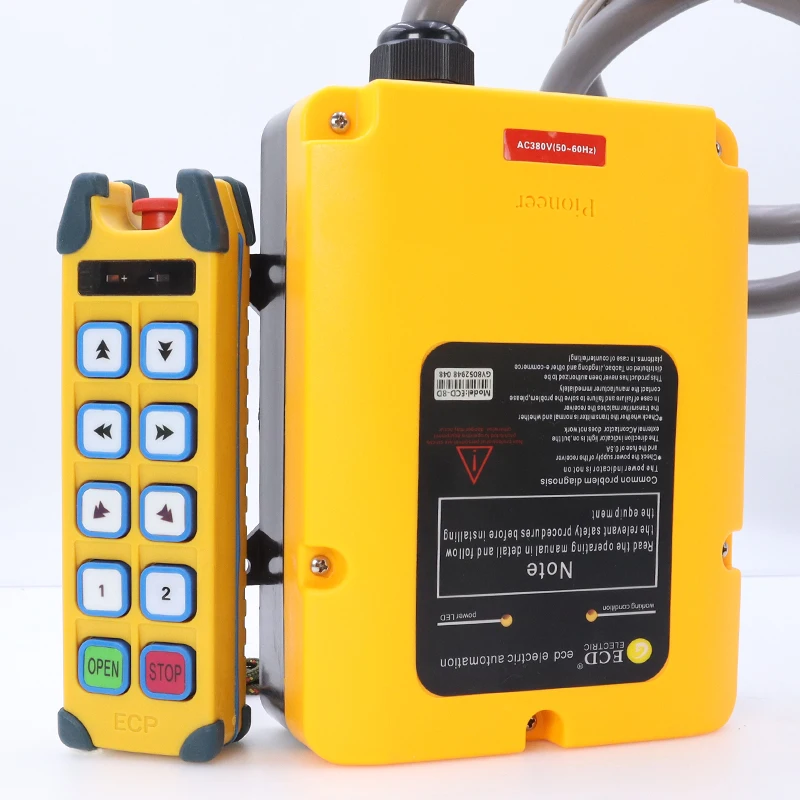

Guaranteed service 8 keys double speed scissor lift industrial wireless crane remote control
- Category: >>>
- Supplier: Nomi Electronic Technology LLC
Share on (1601268340697):
Product Overview
Description

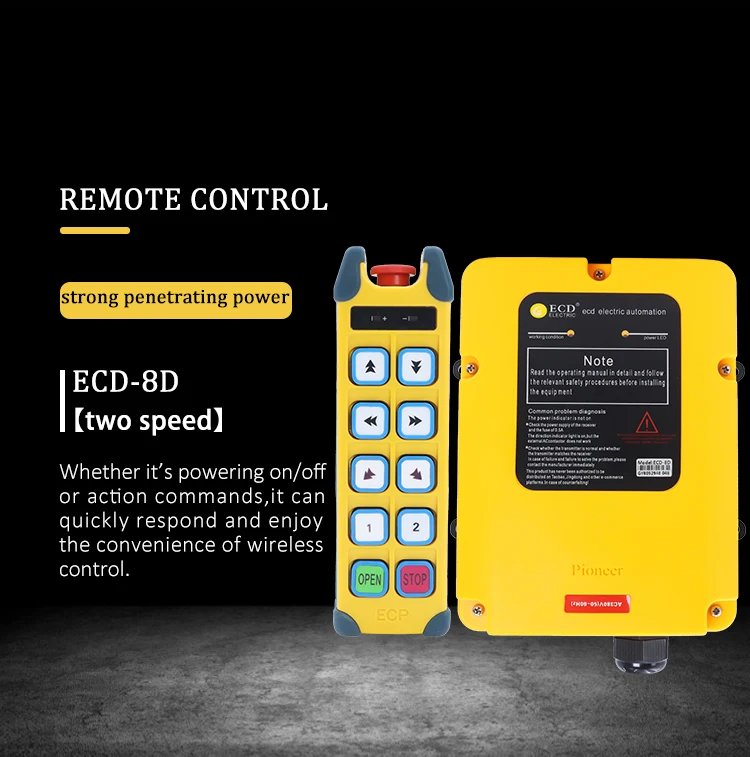

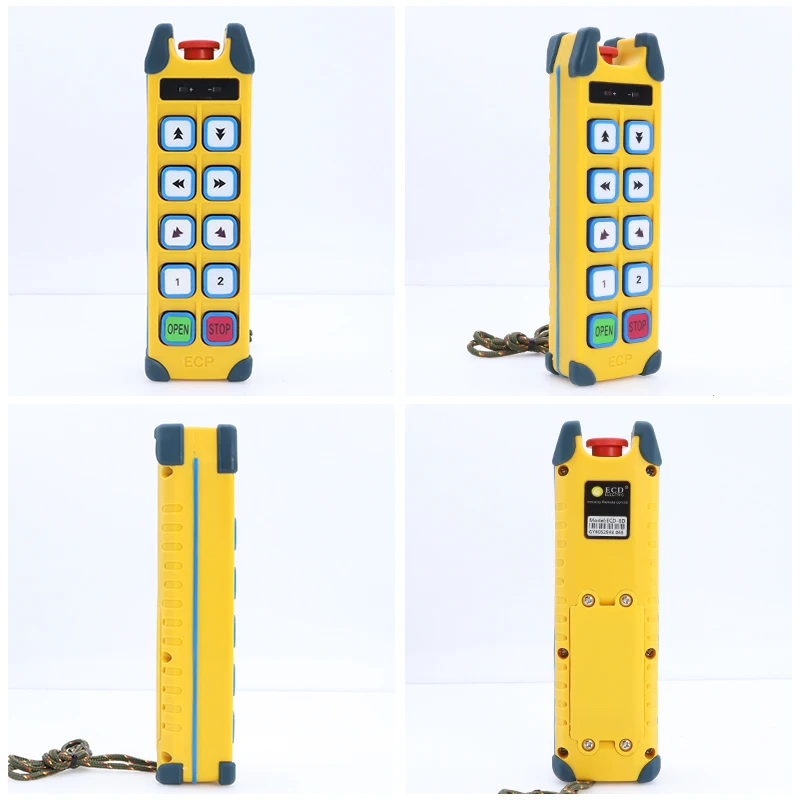

ECD-8D Industrial Remote Control

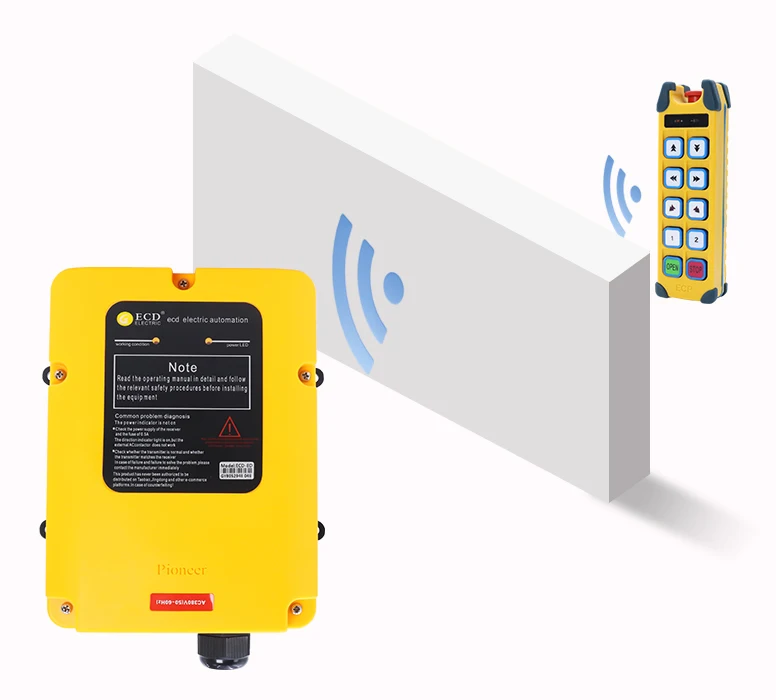

Strong penetrating power
Whether it's powering on/off or action commands, it can quickly respond and enjoy the convenience of wireless control.
Product Paramenters
Model | ECD-8D |
Protection level | IP68 |
Corrosion protection grade | WF2 |
Transmit power | ≤10MW |
Rated power of receiver | ≤6MW |
Response time | ≤20MS |
Channel spacing | 25HZ |
Frequency tolerance | 4ppm |
Adjacent channel suppression | 60DB |
Moulation mode | GFSK |
Verification method | CRC-1TM |
Signal transmission rate | 9600BIT/S |
Signal reception sensitivity | -115DBM |
Function customization | Accepted |
OEM/ODM | Accepted |
Working humidity range | 0~97%RH |
Adaptive temperature | -40°C~+85°C |
Shell material | PA66+ high quality fiber |
Transmitting frequency | 315MHZ/433MHZ/868MHZ/Customizable |
Power supply | AA Battery * 2 (not included) |
Remote control distance | 225 meters/Can be customized to 5km |
Products Description
SIGNAL IS STABLE
1. The signal is stable and can operate normally in complex construction environments.
2.The signal has strong penetrating power.
3. The remote control distance can reach 225 meters.
4. The transmission distance can be customized according to actual needs.

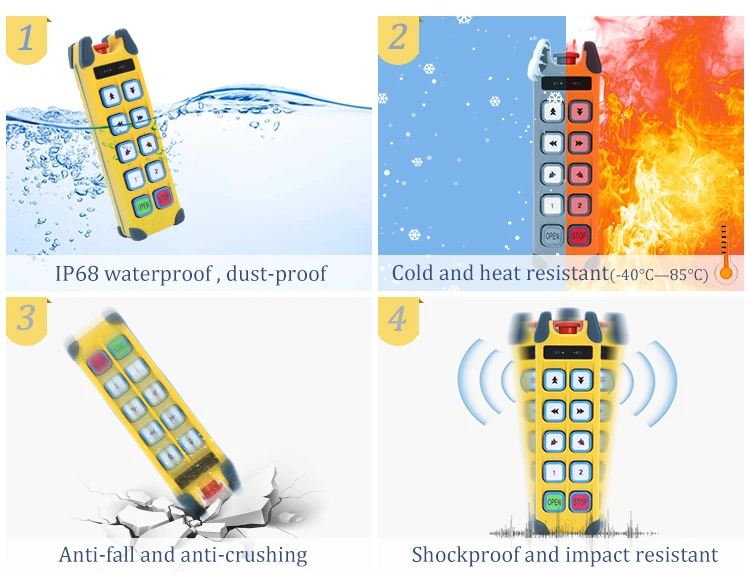

1. IP68 waterproof, dust-proof, anti-shock, auto shut-off, single service, privacy
2. Cold and heat resistant(-40℃~+80℃)
3. Anti-fall and anti-crushing
4. Shockproof and impact resistant
2. Cold and heat resistant(-40℃~+80℃)
3. Anti-fall and anti-crushing
4. Shockproof and impact resistant
Details Images

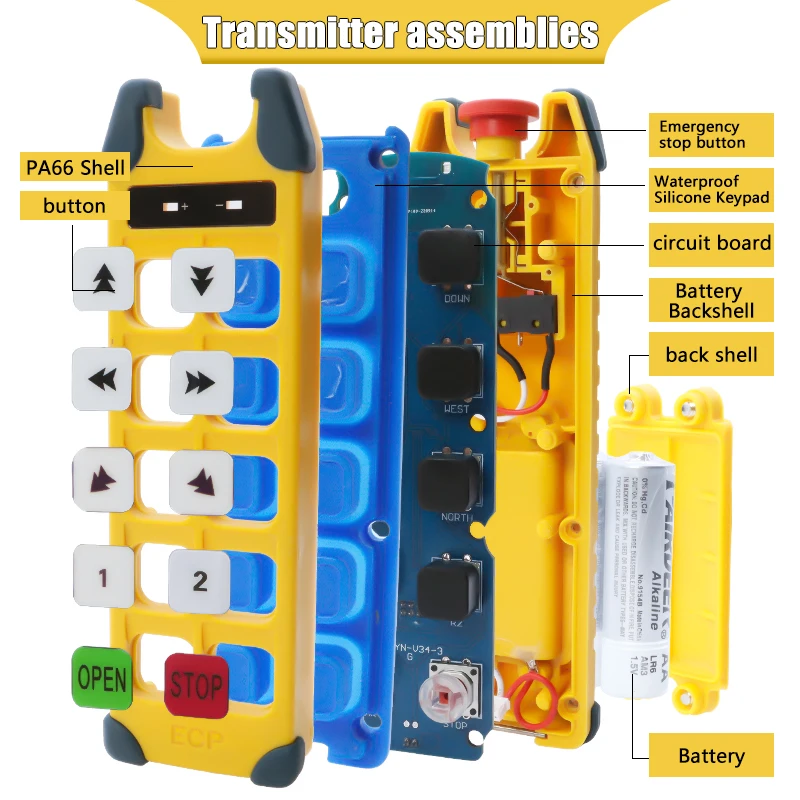

1. DUAL SPEED BUTTON
The two-speed button is pressed once for low speed and twice for fast speed. The combination of fast and slow gives you more choices.
2. ANTI-COLLISION RUBBER PAD
The four corners of the remote control are equipped with rubber protective pads to provide buffering protection during the fall process.
3. EMERGENCY STOP
Pressing the red button emergency stop device meets user's safety requirements.
4. CUSTOMIZABLE PROGRAMMING
Customize and modify multiple modes using an editing program.

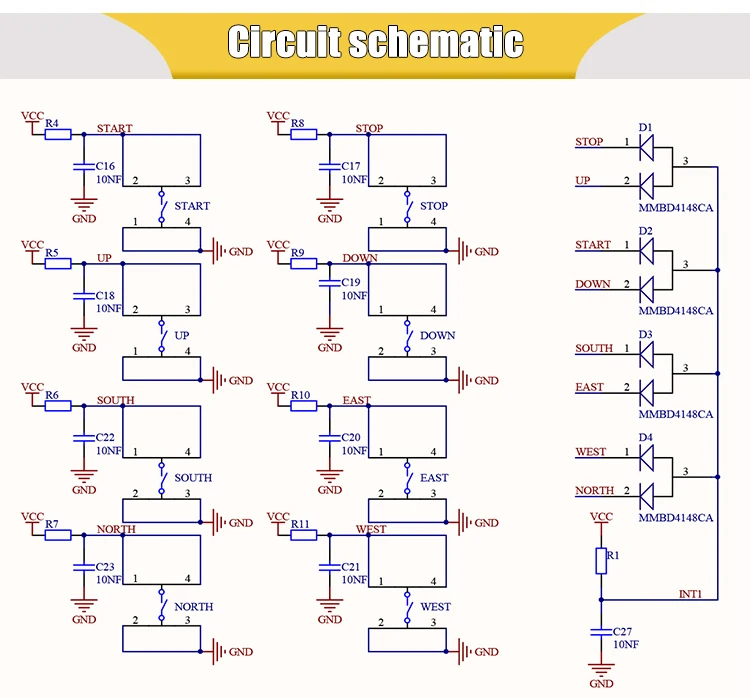

5. CIRCUIT BOARD
High specification circuit board, imported chip keypad, strictly tested, quality assurance.
6. PURE COPPER CABLE
With high purity copper conductors and connection ports.
Our Advantages
1. Designed with a battery voltage warning device, it automatically shuts off the circuit when the voltage is insufficient.
2. Adopting intelligent wireless technology to design circuits, with strong penetration and signal fearless interference.
3. The remote control casing is made of PA66 and high-quality fiber, which is one-time die-cast, comfortable to touch, and
resistant to falling and pressure.
4. The remote control relay adopts the American brand TE, which is a leader in the relay field, with over 14000 global
technology patents and decades of experience in relay development and production, ensuring excellent product quality.
5. The crystal oscillator remote control adopts a U-shaped anti-interference crystal oscillator with military quality, with
clear printing, high accuracy, stable frequency, and RoHS material to ensure environmental protection.
6. The main chip of the remote control adopts Texas Instruments (TI) and South Korean ABOV brands, providing customers with high energy efficiency, ultra stable, and ultra safe semiconductor solutions and product services. It adopts a low-power design method and can be used normally for up to one month.
technology patents and decades of experience in relay development and production, ensuring excellent product quality.
5. The crystal oscillator remote control adopts a U-shaped anti-interference crystal oscillator with military quality, with
clear printing, high accuracy, stable frequency, and RoHS material to ensure environmental protection.
6. The main chip of the remote control adopts Texas Instruments (TI) and South Korean ABOV brands, providing customers with high energy efficiency, ultra stable, and ultra safe semiconductor solutions and product services. It adopts a low-power design method and can be used normally for up to one month.
7. The remote control button adopts the world-renowned Alpine brand, with a unique structure, optimized materials, advanced technology, comfortable touch, and long service life. The embedded parts, base parts, spring parts, button parts, and cover parts of the button all use the best materials and processing technology to ensure the overall quality of the button, ensuring a service life of 12 million times, sensitive contacts, and quick response.
8. The remote control transistor adopts the Japanese brands of RENESAS and ROHM. As a leading manufacturer of microcontrollers and analog power devices worldwide, RENESAS and ROHM have taken the forefront in product solutions and system solutions.
8. The remote control transistor adopts the Japanese brands of RENESAS and ROHM. As a leading manufacturer of microcontrollers and analog power devices worldwide, RENESAS and ROHM have taken the forefront in product solutions and system solutions.
Application Scenarios
I AM BORN TO BE USEFUL
With the industrial remote control system, workers can hold the portable transmitters on hand, walk freely and choose the best position to operate. lt makes the working environment be safer, reduces the injury accidents and saves manpower cost during the operation. With remote control, the operator can finish various tasks independently, which will improve the working efficiency.
HIGH-TECH,WIDELY USED
lt can be used in most fields. At present, the ECD remote control system is mainly used in eight fields: lifting machinery,
construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, computer numerical control machine tools, explosion-proof machinery, and special vehicles, such as cranes, engineering machinery, lifting platforms, travelling vehicles, hydraulic equipment, automobile tailboards, breakdown trucks, conveyor belts, industrial equipment and robots.
construction machinery, port machinery, engineering machinery, industrial customization, agricultural and forestry machinery, computer numerical control machine tools, explosion-proof machinery, and special vehicles, such as cranes, engineering machinery, lifting platforms, travelling vehicles, hydraulic equipment, automobile tailboards, breakdown trucks, conveyor belts, industrial equipment and robots.

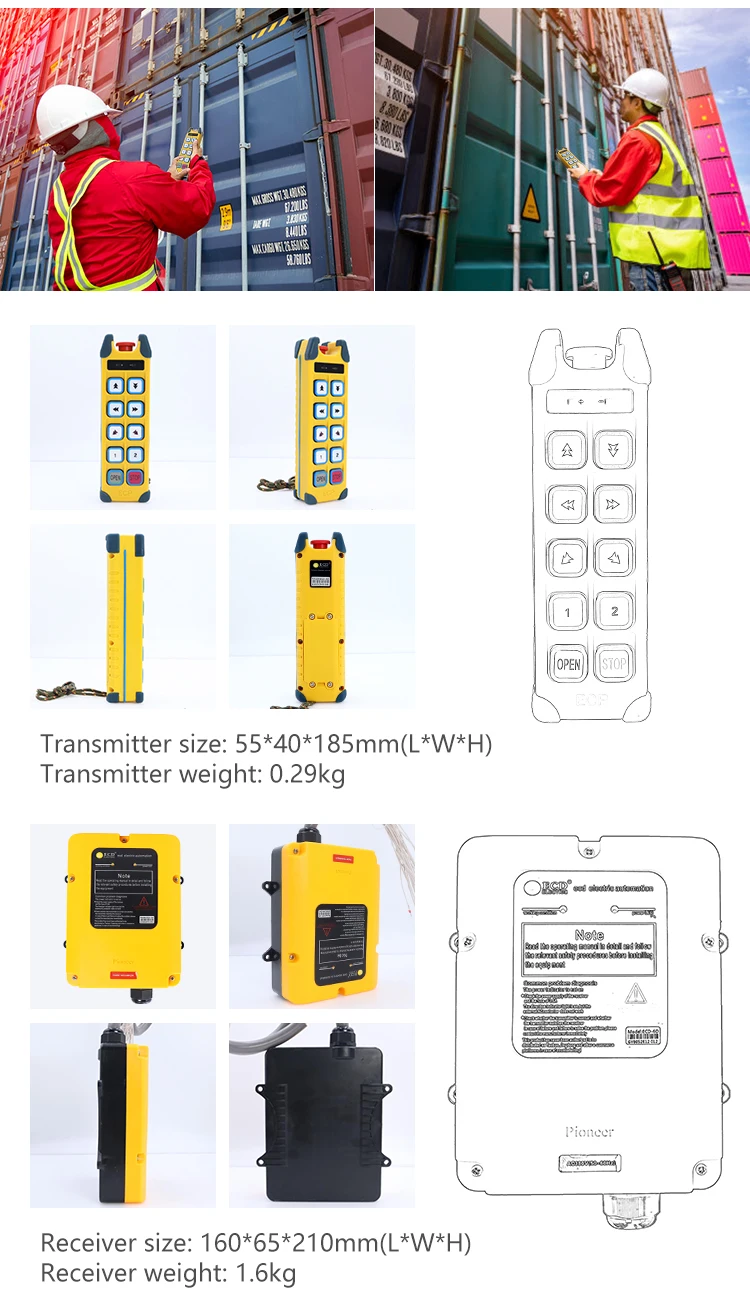

SIZE
Transmitter size: 55*40*185 mm(L*W*H)
Transmitter weight: 0.29 kg

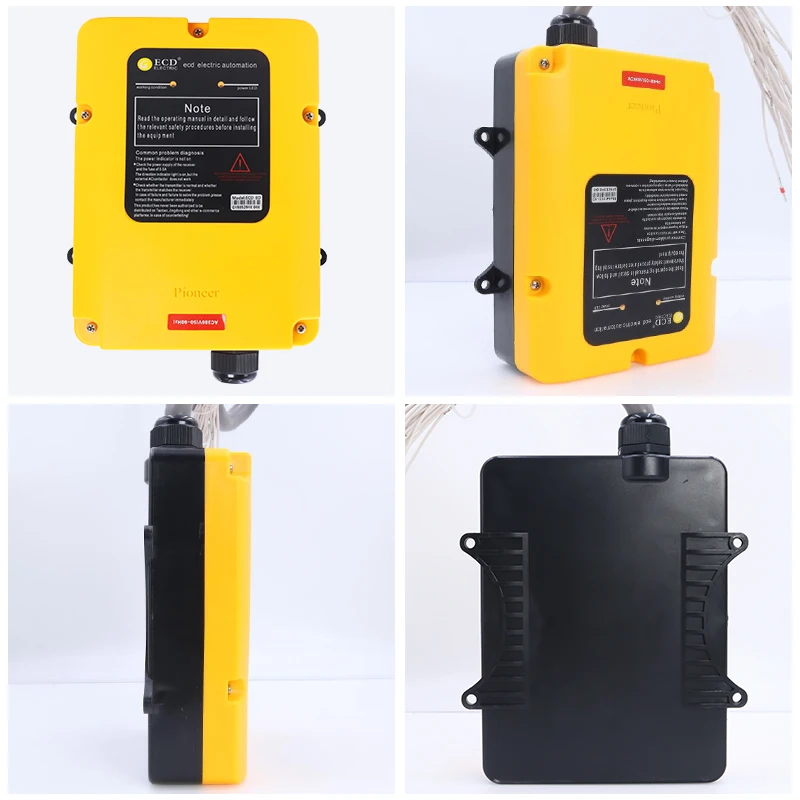

Receiver size: 160*65*210 mm(L*W*H)
Receiver weight: 1.6 kg
Transmitter weight: 0.29 kg
Receiver size: 160*65*210 mm(L*W*H)
Receiver weight: 1.6 kg

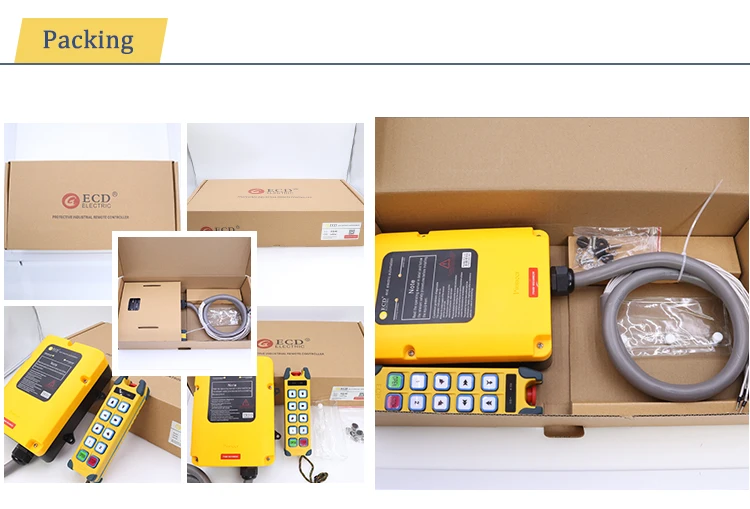

Packing and Shipping
Company Profile
Nomi Electronics has long been focusing on the R&D and practice in the field of industrial wireless remote control. After years of development, it has become a leading enterprise in the field of industrial remote control, which integrates independent research and development, technical consultation and system integration, and integrates remote control and intelligence of equipment.
The company continues to deepen the field of wireless remote control, helping the industry to develop in a smarter, more efficient and safer direction. Committed to developing safe, reliable, durable, and high-quality industrial wireless remote control equipment, improving work efficiency and providing operators with a more convenient and safer operating environment. In industry, construction, forestry, mining, etc. The field realizes the perfect unification of mechanical equipment and intelligent control.
The company continues to deepen the field of wireless remote control, helping the industry to develop in a smarter, more efficient and safer direction. Committed to developing safe, reliable, durable, and high-quality industrial wireless remote control equipment, improving work efficiency and providing operators with a more convenient and safer operating environment. In industry, construction, forestry, mining, etc. The field realizes the perfect unification of mechanical equipment and intelligent control.
FAQ
1.What is your minimum order and payment method?
We can accept sample orders for trial orders. T/T 100% for less than $10,000, and T/T 50% can be used for more than $10,000.
2. Will you provide after-sales service?
2. Will you provide after-sales service?
Of course
1) all products are subject to strict factory quality inspection before
packaging.
2) all the products are packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
3. ls there a warranty?
packaging.
2) all the products are packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
3. ls there a warranty?
Of course. all our branded products have a 12-month warranty period. we provide 24-hour after-sales service
and technical support. if you find any problems during installation, please feel free to contact us.
4. What certificates are approved for your product?
4. What certificates are approved for your product?
We have CE, FCC, ISO9001 and so on.
5. Can you customize it according to my needs?
You can send me inquiries according to your needs. we can customize them with technical engineers.
6. ls your price the lowest? Do you mind the quality?
5. Can you customize it according to my needs?
You can send me inquiries according to your needs. we can customize them with technical engineers.
6. ls your price the lowest? Do you mind the quality?
The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price to work well?
7. ls the product 100% assembled?
Yes, all the products are 100% assembled
7. ls the product 100% assembled?
Yes, all the products are 100% assembled
