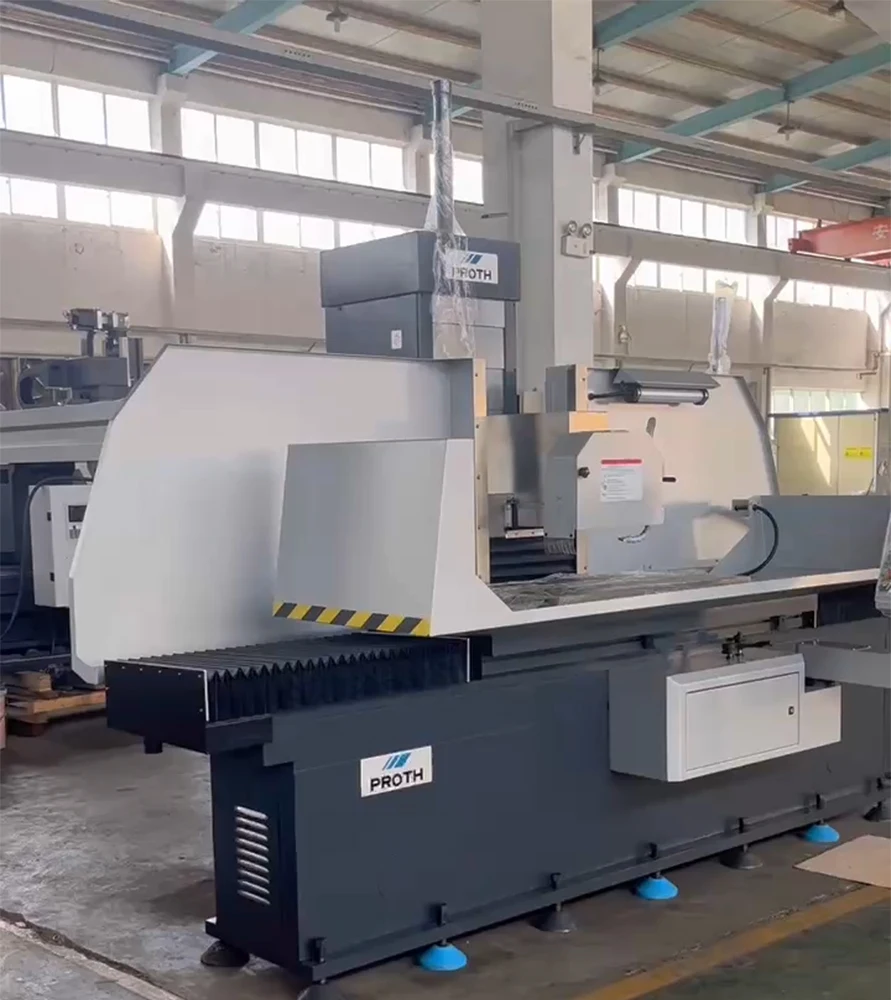

High Quality PSGC 50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core
High Quality PSGC-50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core

High Quality PSGC 50100AHR Column Type Surface Grinding Machine Taiwan PROTH Hot Selling Surface Grinder Motor Pump Core

Share on (1601268378323):


Price:$53,900.00 - $54,000.00

Quantity:


Product Overview

Description



Product Description




Specification


Model
Column Series
PSGC-50100AHR
                                                                                                                     General Capacity
Max.Travel(Cross x Longitudinal)
560x1150mm
Spindle Center Height from Table
700mm
Max.Height From Table Top to Bottom of Standard Wheel
522mm
Grinding Surface of Table
500x1000mm
Longitudinal Movement
Hydraulic Table Speed
1-25m/min
                                                                     Cross Movement
Intermittent Cross Feed-Approx.
 (Electro-mechanical)
0.1-15mm/feed
Continuous Cross Feed-Approx.
 (Electro-mechanical) 50/60 Hz
2000/2400mm/min
Hand feed Per Revolution
5mm
Hand feed Per Division
0.02mm
                                                                             Vertical Downfeed
Rapid Traverse Approx.(option)
240mm/min
Hand Feed Per Revolution
0.25mm
Hand Feed Per Division
0.002mm
                                              Grinding Wheel
Dimension(O.DxWxI.D)
355x50x127mm
Spindle Speed 50/60 Hz
1500/1800 r.p.m.
                                                     Motor
Spindle Motor
7.5(11)Kw/10(15)Hp
Hydraulic Motor
3.7Kw/5Hp
                                                     Weight
Net Weight
5800kg
Gross Weight
6900kg
      Packing Size
Dimension(LxWxH) (m)
3.98x2.27x2.54

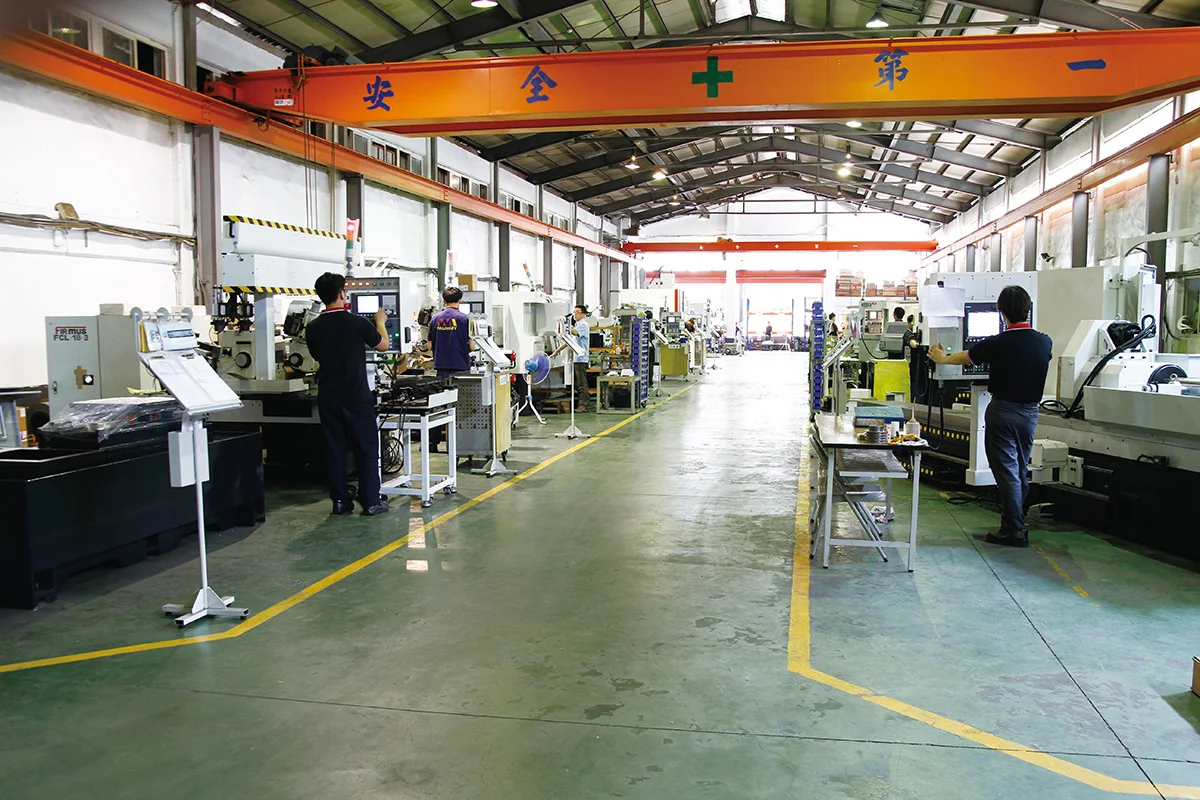

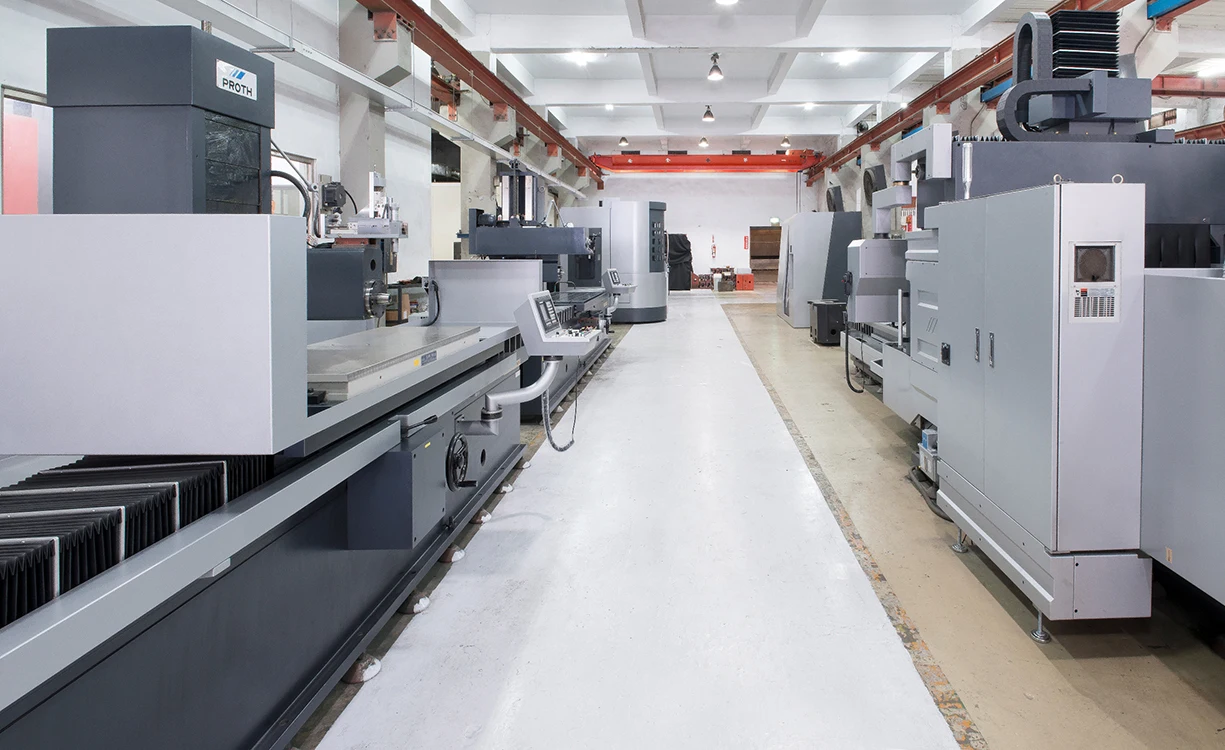

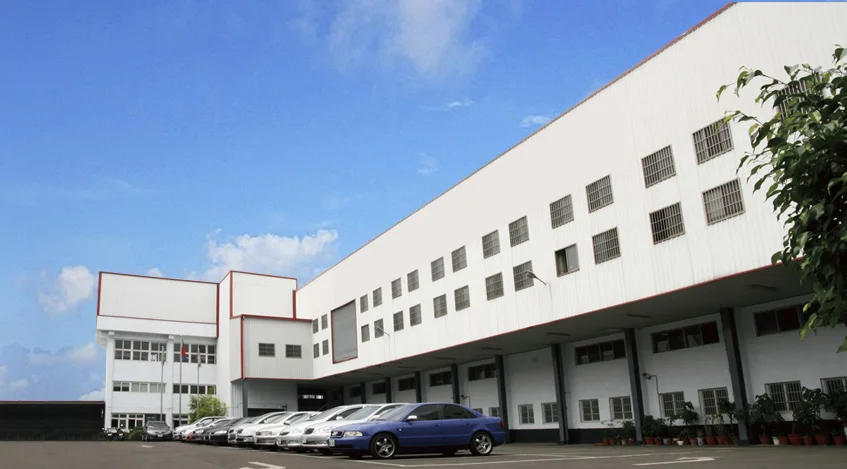

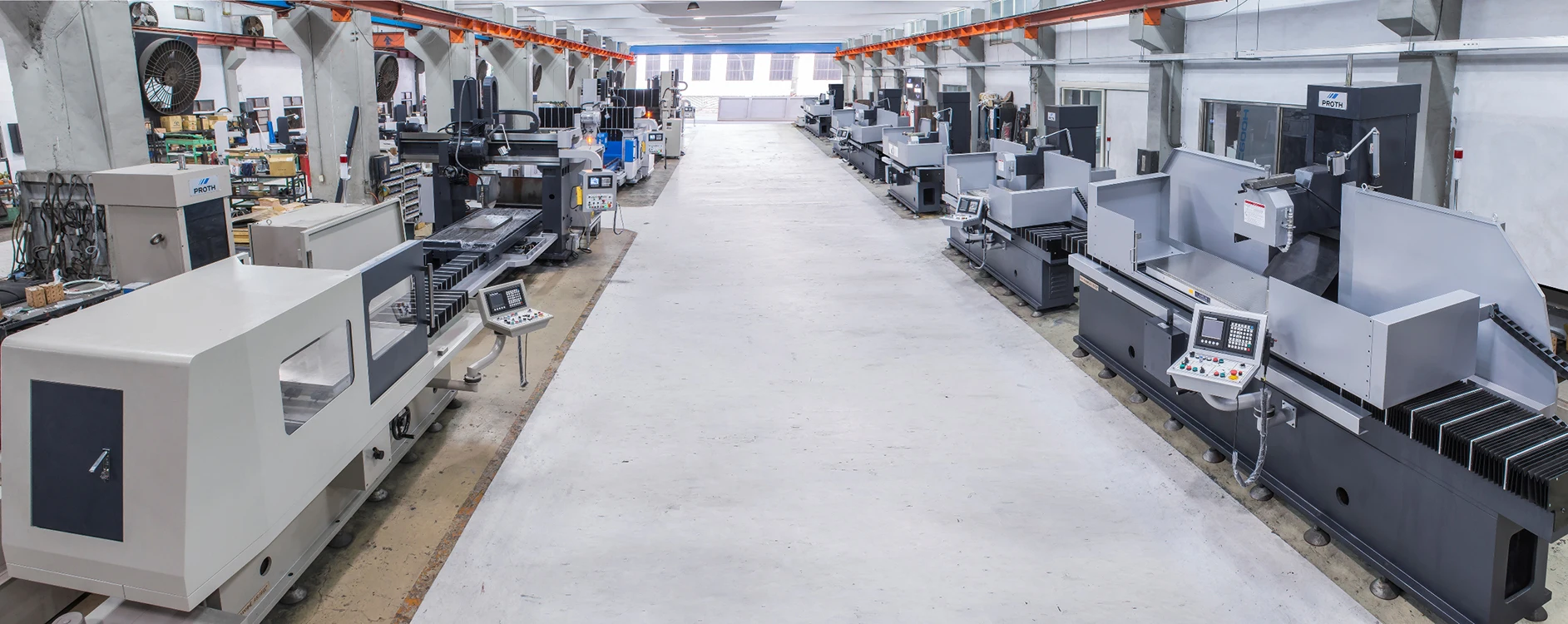

Company Profile






QINGDAO MINGRUIDA MACHINERY CO.,LTD.
Qingdao Mingruida Machinery Co. Ltd was established in April 2011,Our company is located in the beautiful international port city of Qingdao,a manufacturing service provider dedicated to high-quality precision machining specialized machine tools and equipment,We possess an excellent team for technical development, manufacturing, and sales services,Our products have a wide customer base in various industries such as automotive spare parts, aerospace, household appliances, mobile phones, computers, packaging, and air conditioning, among others.
Our main products include precision surface grinding machines, internal and external cylindrical grinding machines, turret milling machines, lathes, spark discharge machines and other precision machining equipment.We export to multiple countries, including Turkey, Uzbekistan, Vietnam, and others.
Our company adheres to the business philosophy of survival through quality, development through reputation, competition through strength, and customer as the top priority.
Customer satisfaction is our goal, and a commitment to high-quality products is the direction of our company's development.
We sincerely welcome people from all walks of life to visit us for guidance and contact us to discuss business.

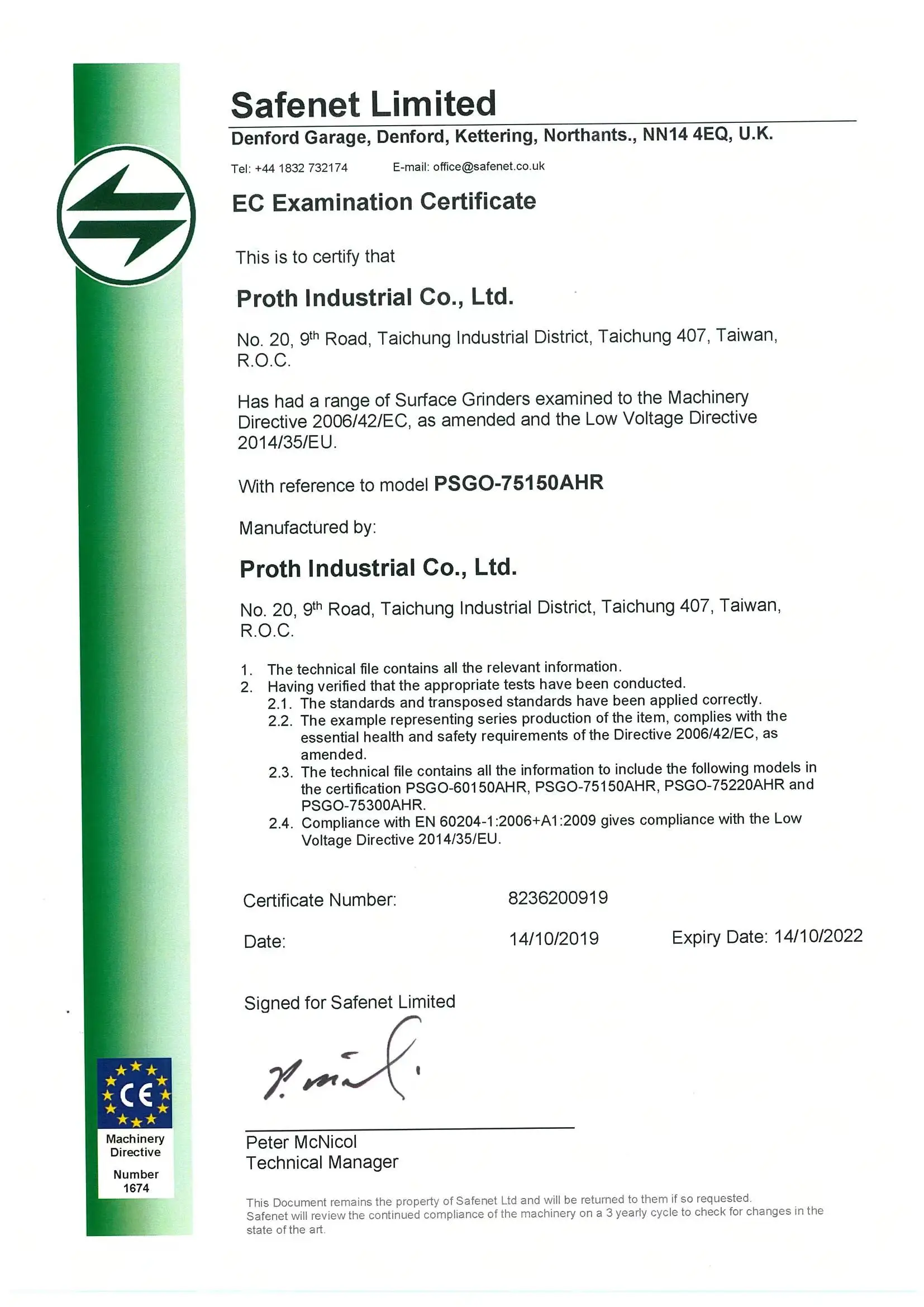

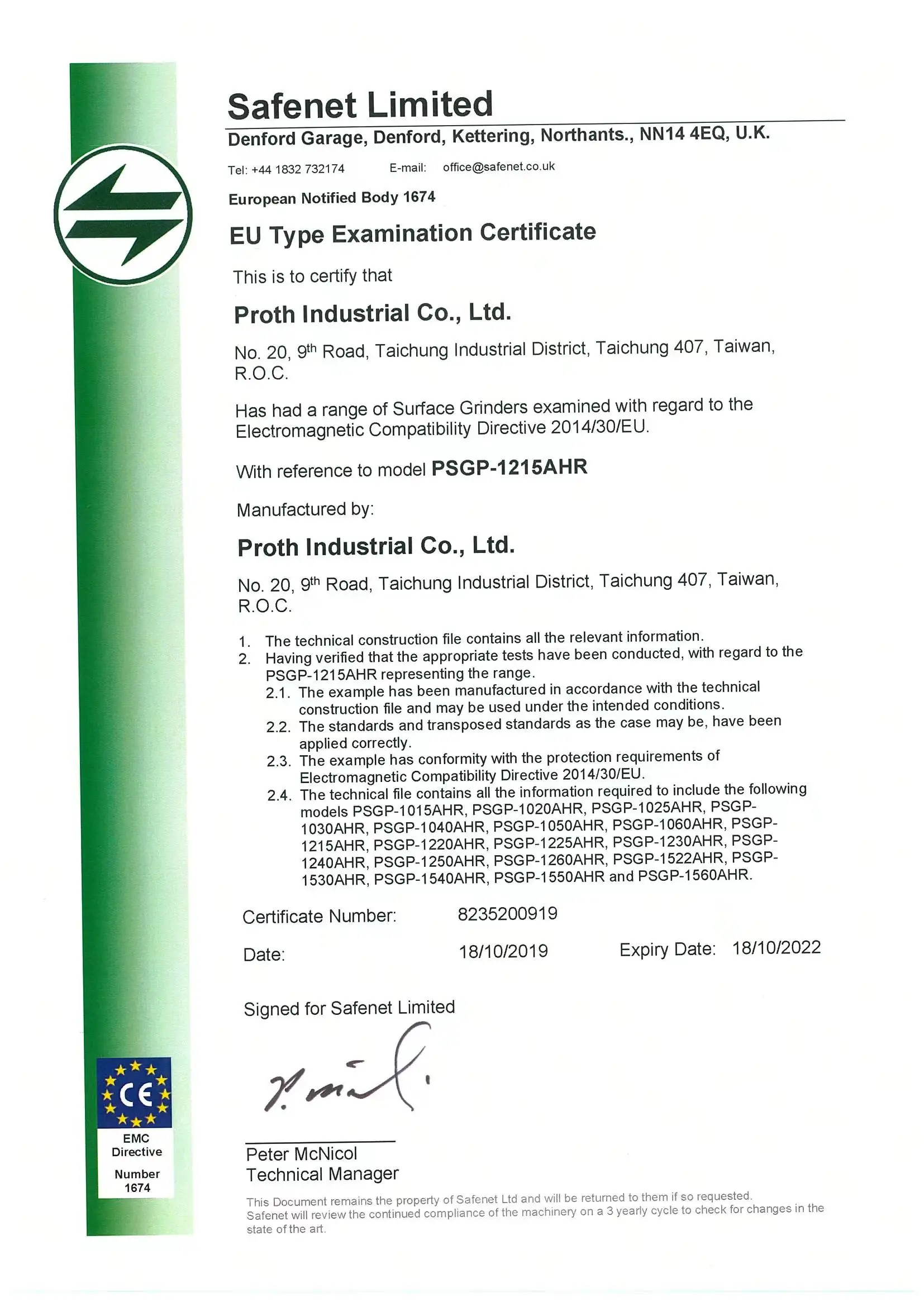

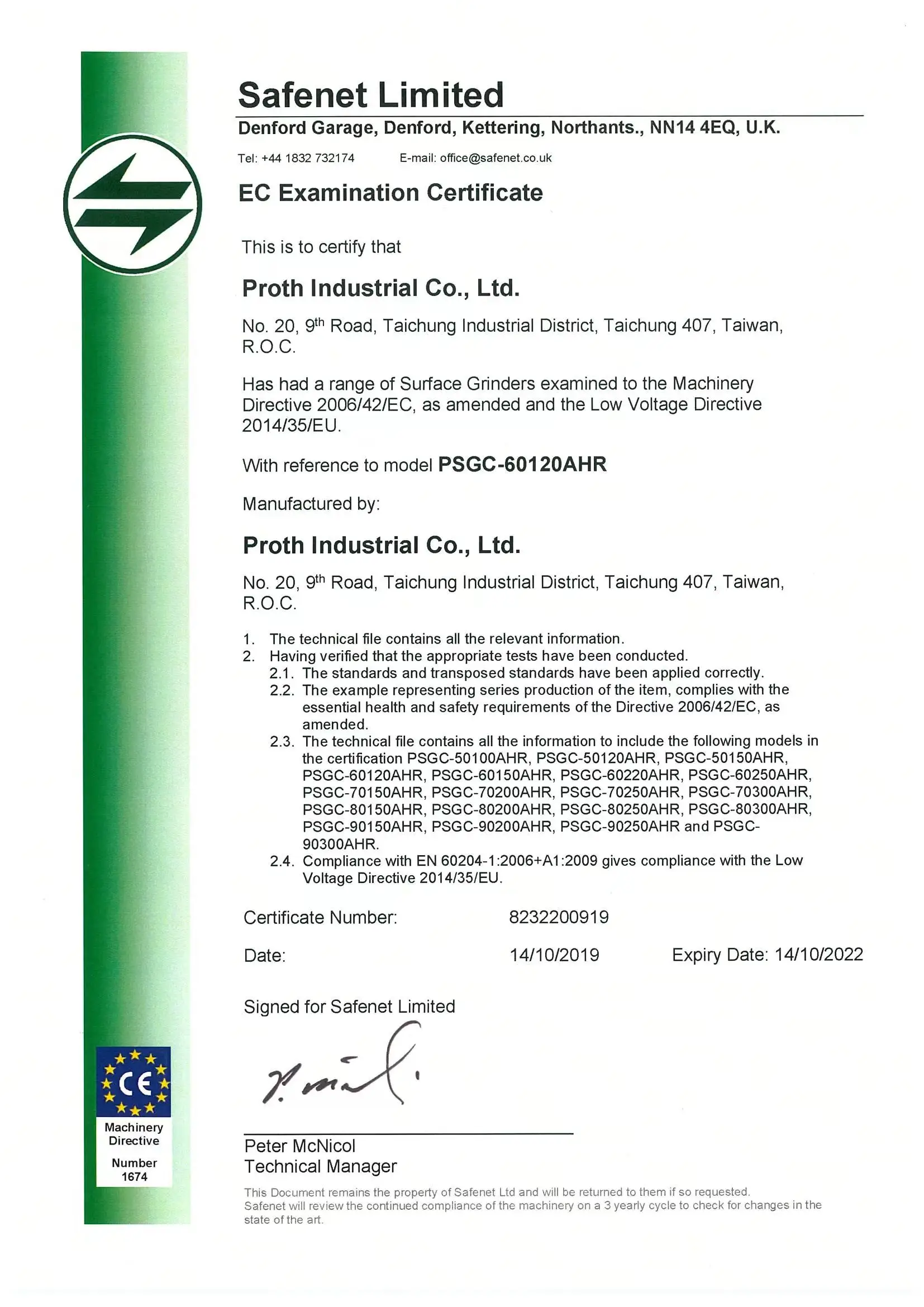

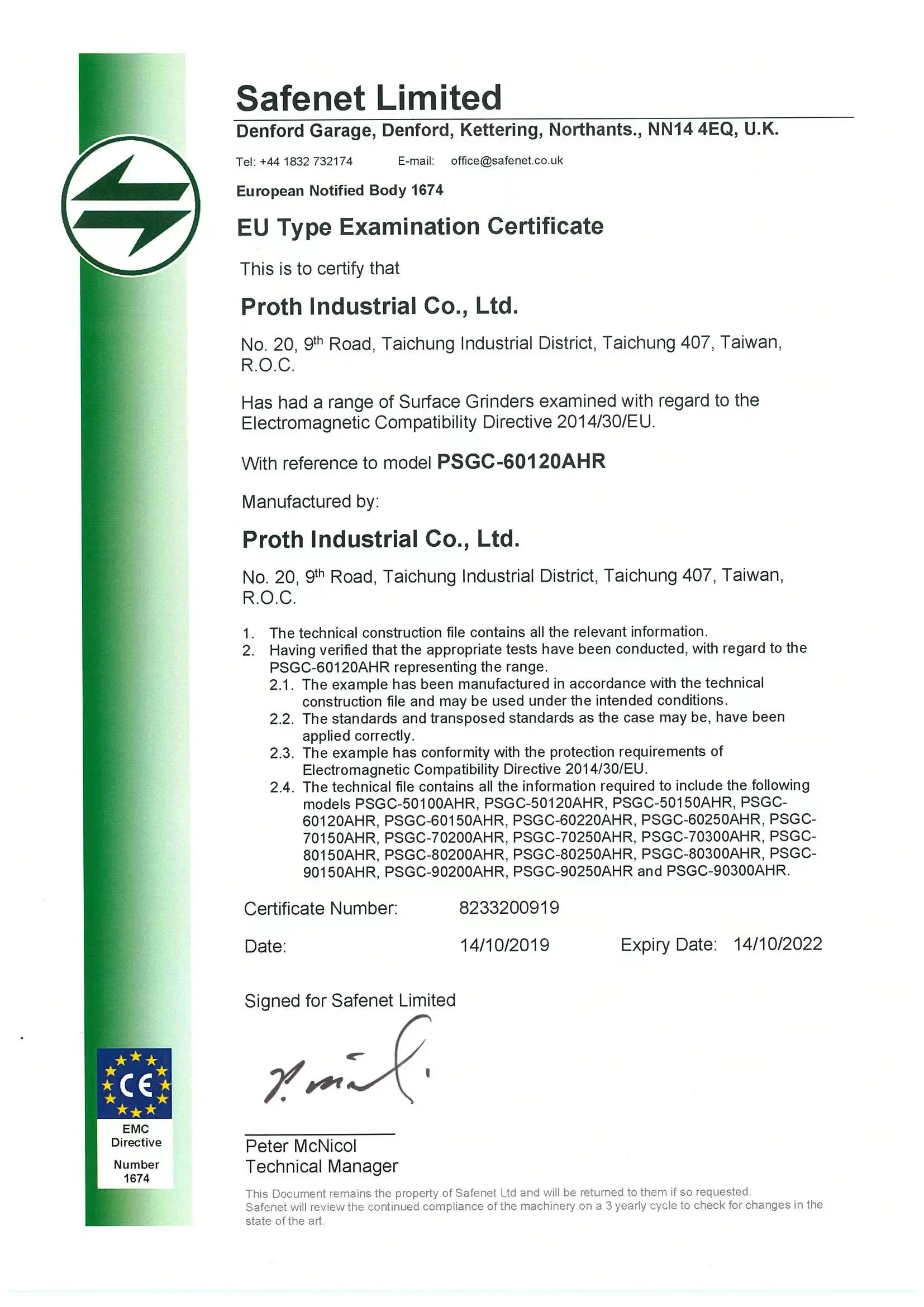

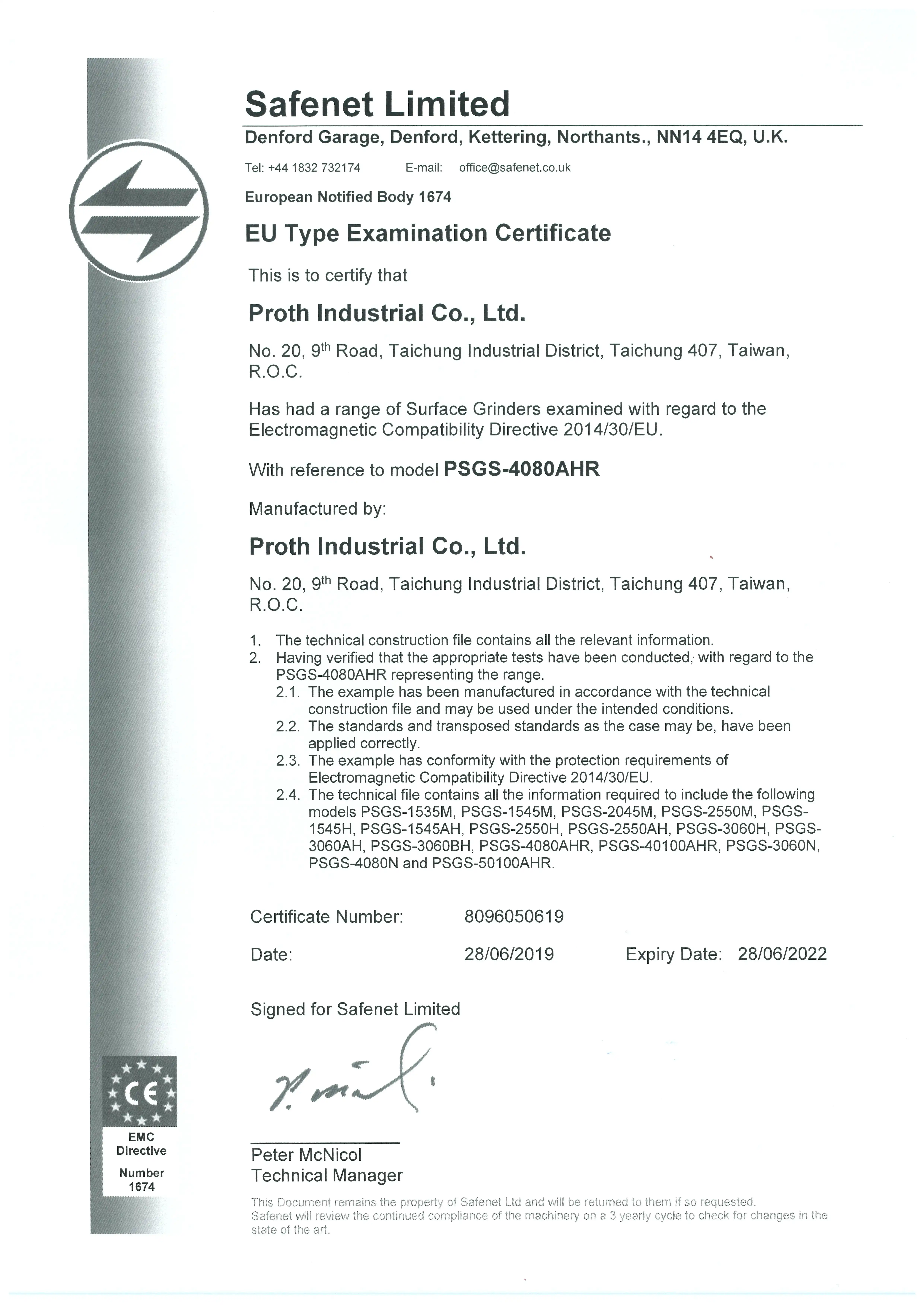

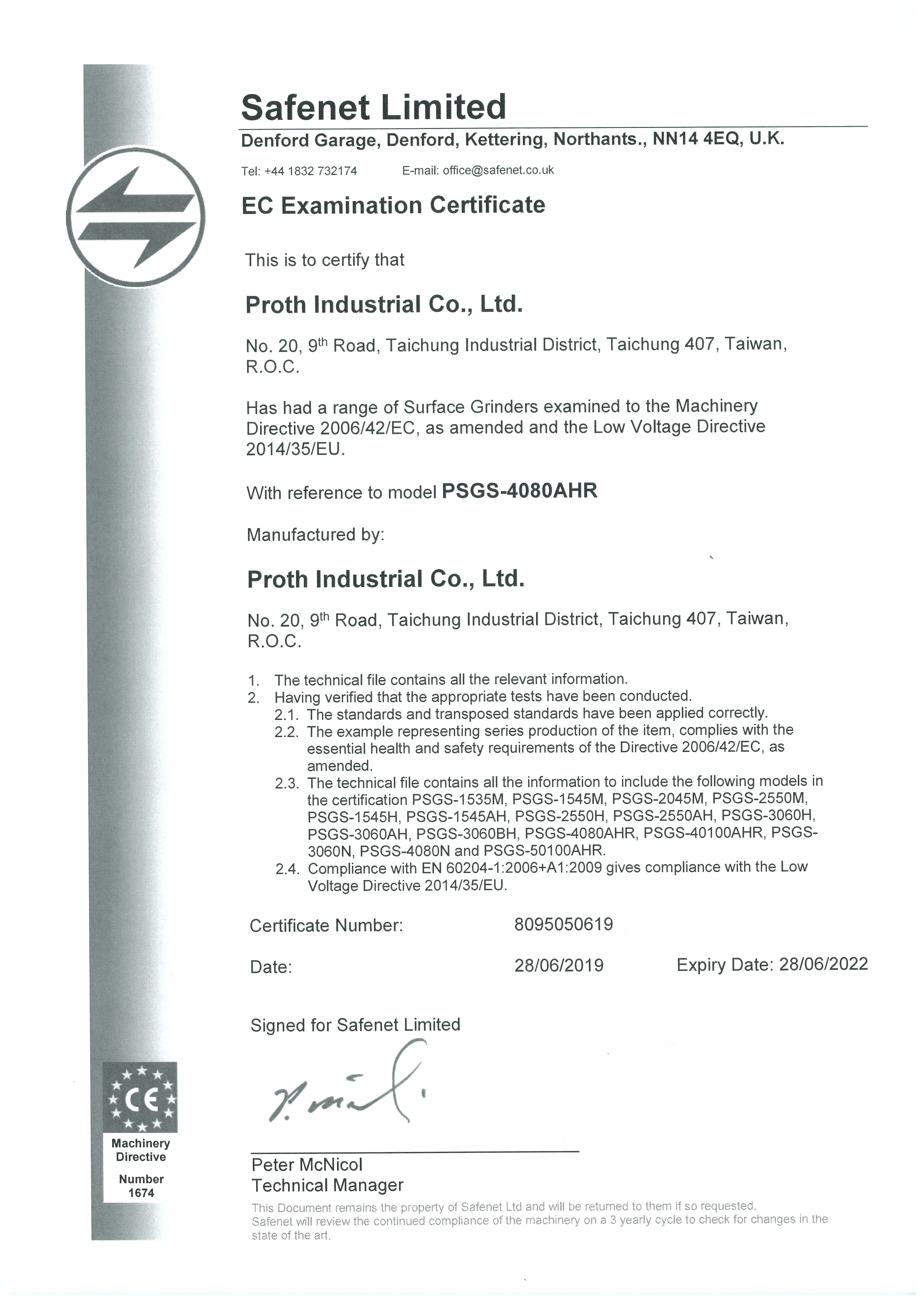

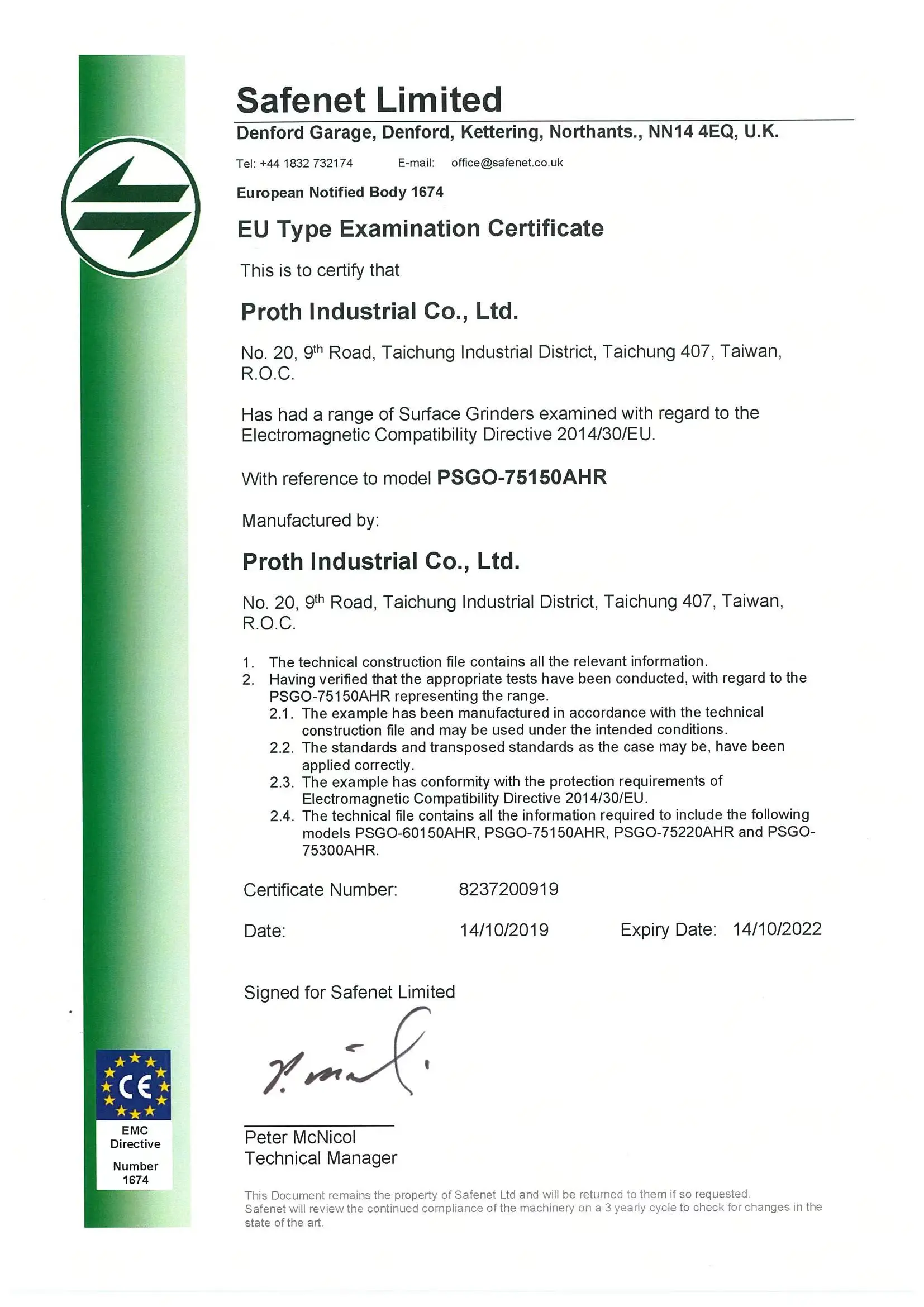

Certifications

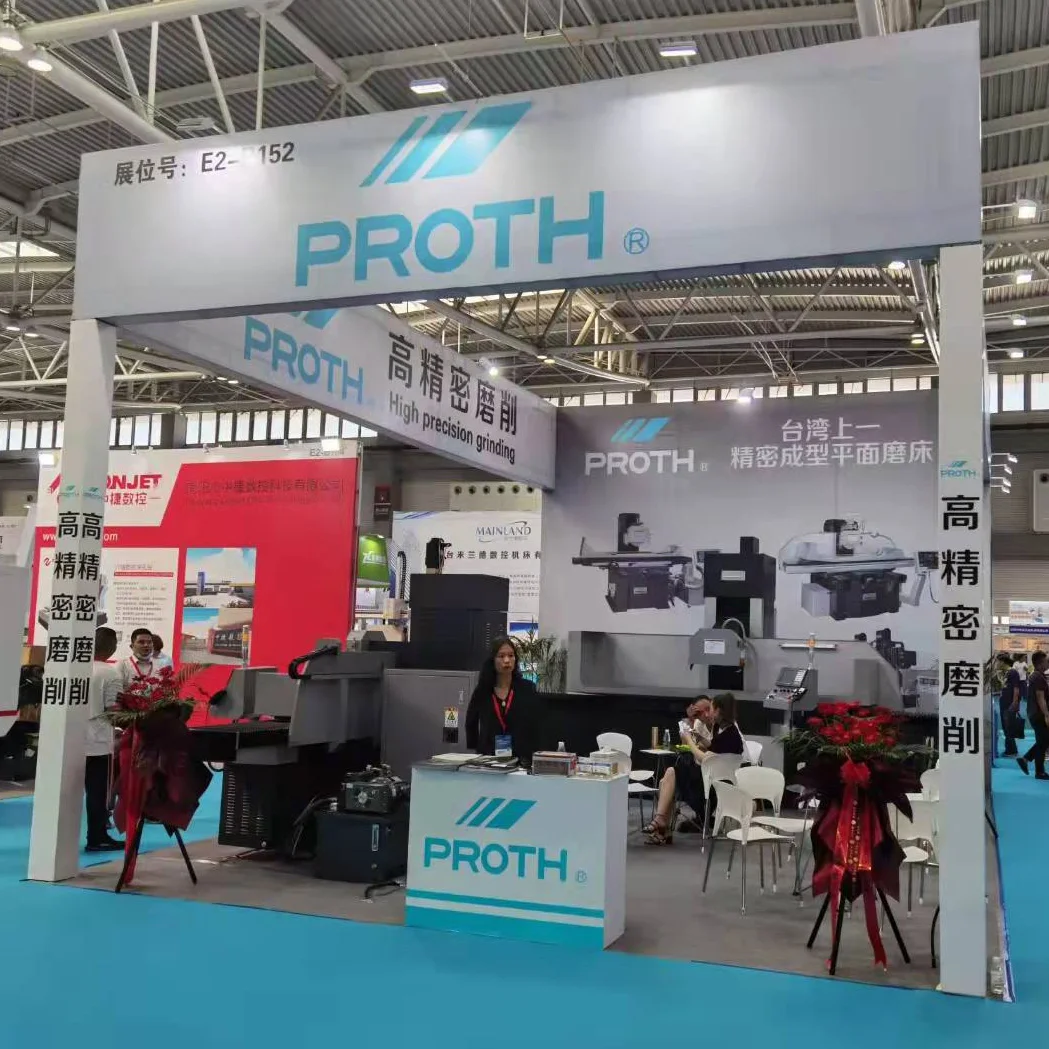

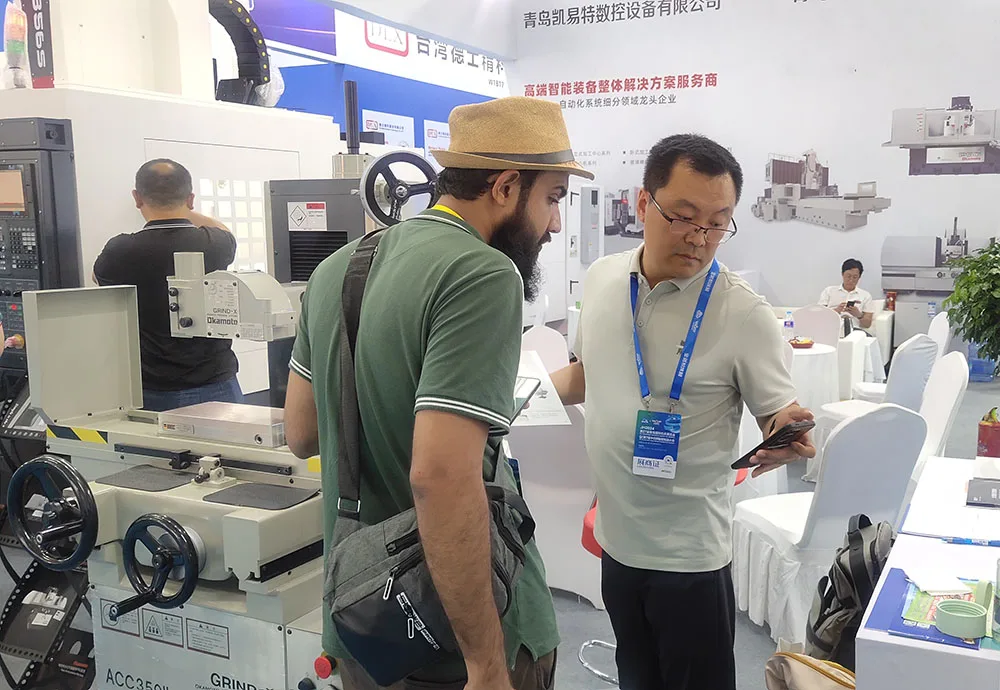

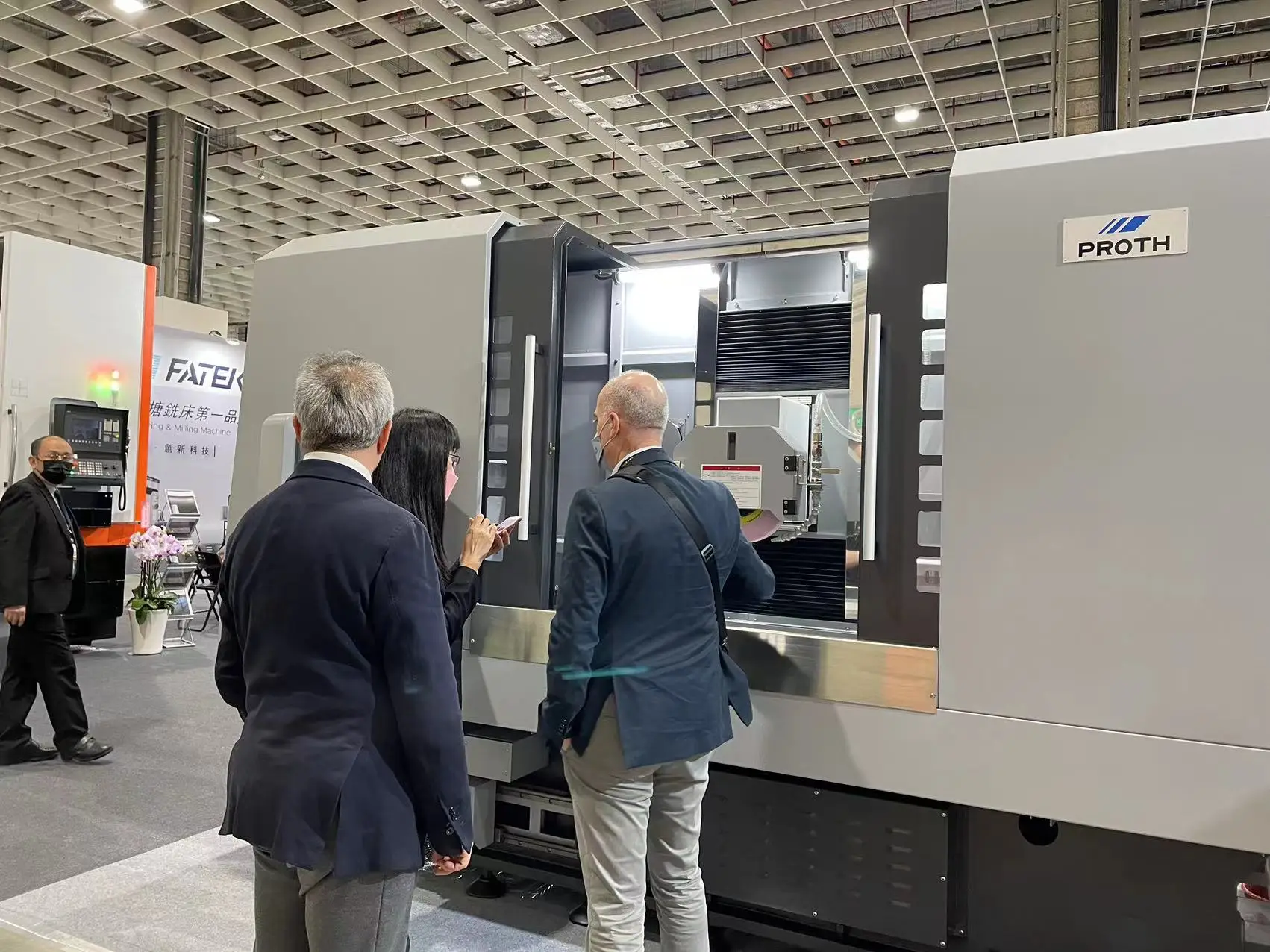

Exhibition

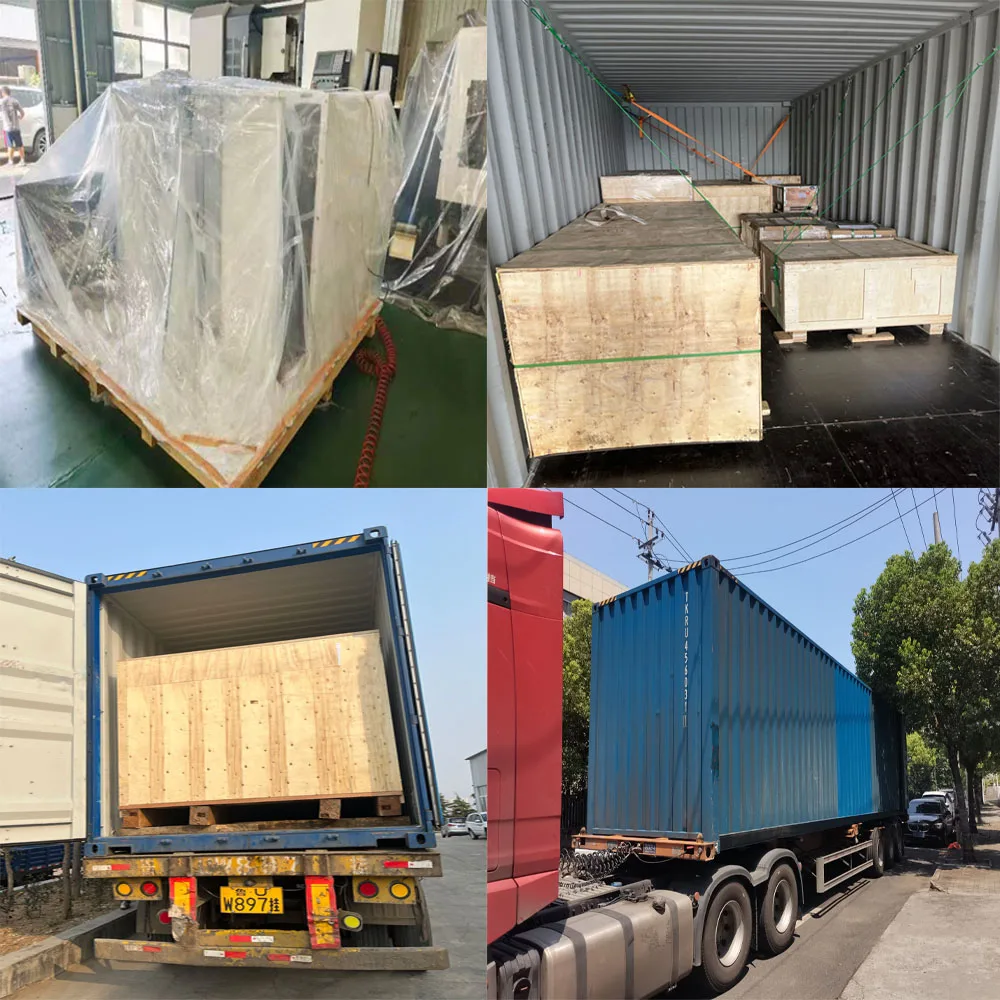

Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




FAQ


Q: Are you trading company or manufacturer ?
A: We are factory.

Q: This is the first time I use this kind of machine, is it easyto operate?
A: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail/trademanager online service.

Q: How to install?
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.

Q: How to ensure the safety?
A:Here have the overload and over heat protection, it ensure working people safety.
