NF roof top air conditioner portable electric van air conditioner 12v electric roof top rv air conditioner for cars
- Category: >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (1601268396352):
Product Overview
Description
Model NFX700 12V Product Parameters
Power | 300-800W | Rated voltage | 12V |
Cooling capacity | 600-2000W | Battery requirements | ≥150A |
Rated current | 50A | Refrigerant | R-134a |
Maximum current | 80A | Electronic fan air volume | 2000M³/h |
Model NFX700 24V Product Parameters
Power | 500-1000W | Rated voltage | 24V |
Cooling capacity | 2600W | Battery requirements | ≥100A |
Rated current | 35A | Refrigerant | R-134a |
Maximum current | 50A | Electronic fan air volume | 2000M³/h |
Model NFX700 48~72V Product Parameters
Input voltage | DC48V/60V/72V | Minimum installation size | 400mm*200mm |
Power | 800W | Heating power | 1200W |
Cooling capacity | 2200W | Electronic fan | 120W |
Blower | 400m³/h | Number of air outlets | 3 |

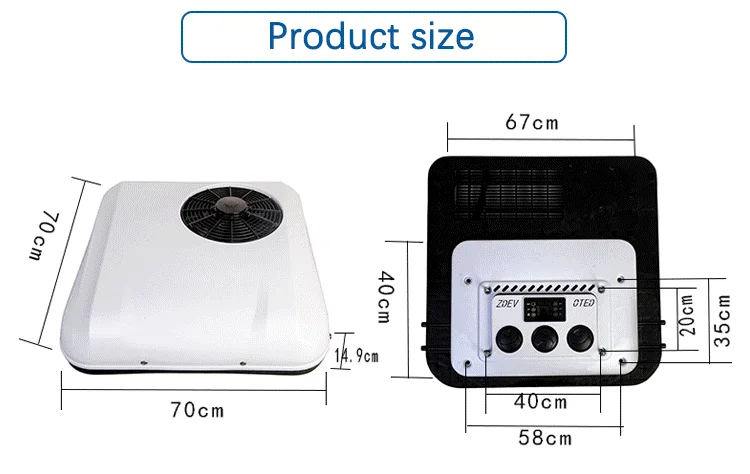

Weight | 20kg | External machine dimensions | 700*700*149mm |
Product features：
1）12V, 24V products are suitable for light trucks, trucks, saloon cars, construction machinery and other vehicles with small skylight openings.
2）48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.
3）Vehicles with sunroof can be installed without damage, without drilling, without damage to the interior, can be restored to the original car at any time.
4）Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
5）The whole aircraft high strength material, bearing load without deformation, environmental protection and light, high temperature resistance and anti-aging.

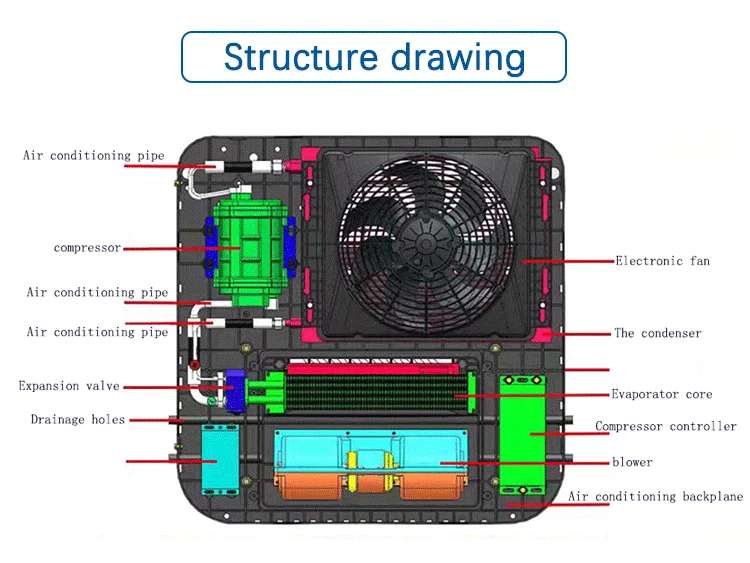

6）Compressor adopts scroll type, vibration resistance, high energy efficiency, low noise.
7）Bottom plate arc design, more fit the body, beautiful appearance, streamline design, reduce wind resistance.
8）Air conditioning can be connected to the water pipe, free of condensed water flowing troubles.
2）48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.
3）Vehicles with sunroof can be installed without damage, without drilling, without damage to the interior, can be restored to the original car at any time.
4）Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
5）The whole aircraft high strength material, bearing load without deformation, environmental protection and light, high temperature resistance and anti-aging.
6）Compressor adopts scroll type, vibration resistance, high energy efficiency, low noise.
7）Bottom plate arc design, more fit the body, beautiful appearance, streamline design, reduce wind resistance.
8）Air conditioning can be connected to the water pipe, free of condensed water flowing troubles.

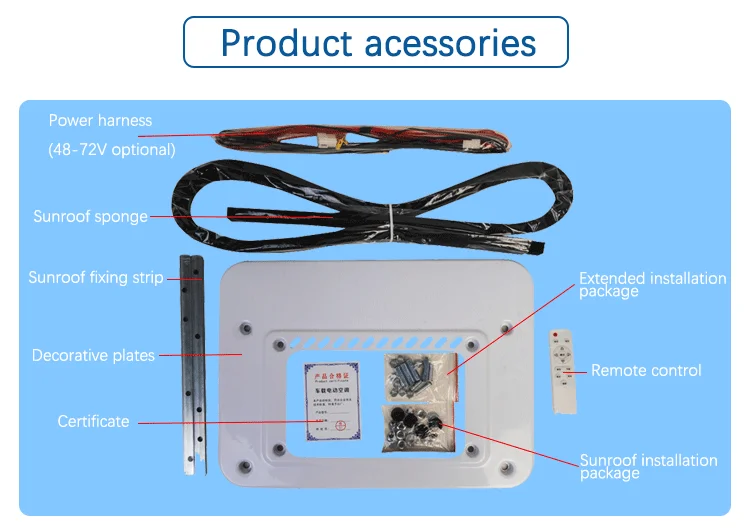

Air conditioning assembly | 1 | Certificate of approval | 1 |
Instructions | 1 | Decorative | 1 |
Skylight sponge strip | 1 | Screw package | 1 |
Power cord | 1 | Screw extension bag | 1 |
Air conditioner mounting strip | 2 | Remote control | 1 |

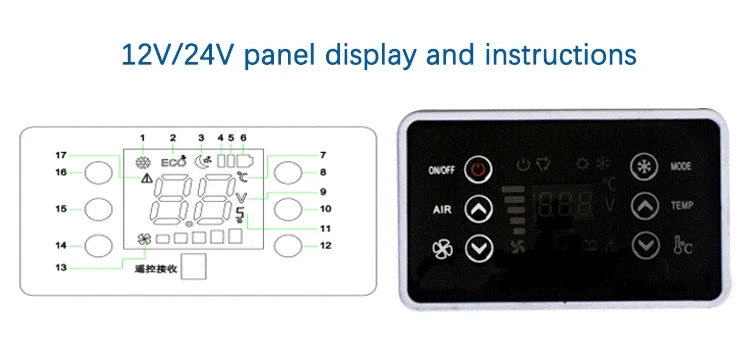

Key functions：
16 power switch: Short press to power on, long press for 3 seconds to power off. In shutdown state, long press 10 seconds to restore all Settings to factory Settings.
15 Wind speed +: Increase air supply ;Increase the low voltage protection value.
14 The wind -: Reduce air supply ;Reduce the low voltage protection value.
8 mode key：Cycle to switch four modes of air supply, power, energy saving and sleep. Press for 6 seconds to enter the voltage setting
10 temperature+ ：Increase the temperature; Increase the recovery value of low voltage protection.
12temperature- ：Step-down temperature;Reduce the low-voltage protection recovery value.
Description of instructions:
1.Strong mode\t 2.ECO -Energy saving mode 3.Sleep patterns 4.High power 5. middle power 6.Low power
7.Temperature icon 9.Voltage icon 11.Decimal point icon 13.Wind speed icon 17.Fault icon
16 power switch: Short press to power on, long press for 3 seconds to power off. In shutdown state, long press 10 seconds to restore all Settings to factory Settings.
15 Wind speed +: Increase air supply ;Increase the low voltage protection value.
14 The wind -: Reduce air supply ;Reduce the low voltage protection value.
8 mode key：Cycle to switch four modes of air supply, power, energy saving and sleep. Press for 6 seconds to enter the voltage setting
10 temperature+ ：Increase the temperature; Increase the recovery value of low voltage protection.
12temperature- ：Step-down temperature;Reduce the low-voltage protection recovery value.
Description of instructions:
1.Strong mode\t 2.ECO -Energy saving mode 3.Sleep patterns 4.High power 5. middle power 6.Low power
7.Temperature icon 9.Voltage icon 11.Decimal point icon 13.Wind speed icon 17.Fault icon
Q1. Who are we?
A: We are a group company with 5 factories. We are the largest manufacturer of automotive heating and cooling systems in China anda designated supplier for Chinese military vehicles. We have been supporting many well-known domestic automobile factories and our products are exported to overseas and international markets.
Q2. What is your terms of payment?
A: T/T 100% in advance.
Q3. What can you buy from us?
A: Parking air heater, parking water heater, parking air conditioner, caravan air and water heater, electronic water pump,
electric heater, high voltage coolant heater,other auto parts and accessories, etc.
electric heater, high voltage coolant heater,other auto parts and accessories, etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
