2MP camera module suppliers for advertising machine industrial control equipment
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1601268450177):
Product Overview
Description
Product Parameter
72 degree lens
120 degree lens
Product Name | Industrial Equipment & Advertising Machine Camera Module |
Module No | HBVCAM-U2210 V22 |
Module Size | 60mm × 8mm × 10.5mm±0.3MM |
specificities | 1. Standard advertising machine structure 60 * 8mm 2. replace 1315S1.0 better 3. built-in digital microphone |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROHS) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 470mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | GC2145 (1/5” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1600*1200 |
Sensitivity | 1200mv /（lux-sec） |
Pixel Size | 1.75µm x 1.75µm |
Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 20FPS / YUY2 800x600 12FPS MJPEG 1280x720 20FPS / YUY2 1280x720 10FPS |
S/N Ratio | 36 db |
Max Dynamic Range | 70 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 2G2P |
F/No | 2.0 |
EFL | 1.66mm |
FOV | 120° |
TV Distortion | <8.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROHS |

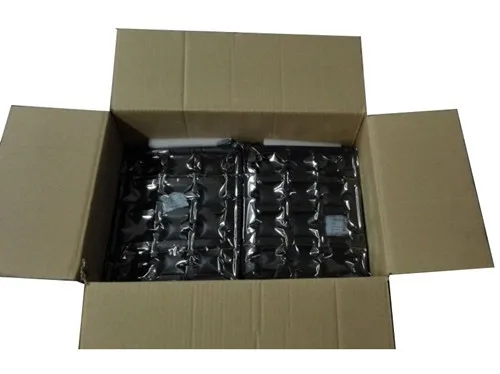

Packing&Shipping
We focus on environmental protection and balance the choice of product packaging between product safety and environmental impact.
Of course, we can also accept your customized packaging requirements.
For transportation.
Air, express, land and sea transportation, we support.
First of all, we will measure and recommend to you according to the quantity of the product, your acceptable arrival time, and the logistics price. Your own freight forwarder is also acceptable.
Of course, we can also accept your customized packaging requirements.
For transportation.
Air, express, land and sea transportation, we support.
First of all, we will measure and recommend to you according to the quantity of the product, your acceptable arrival time, and the logistics price. Your own freight forwarder is also acceptable.

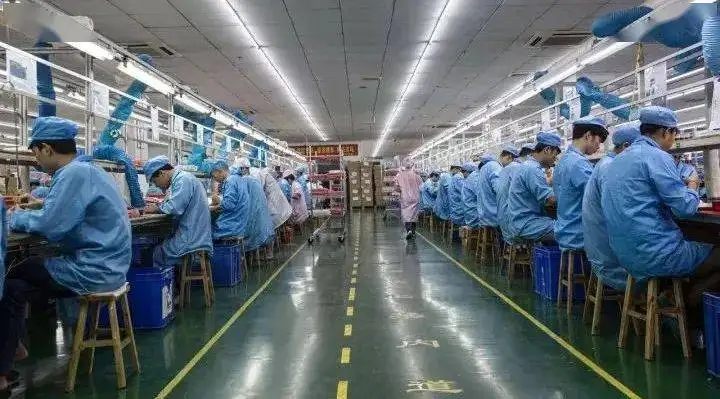

Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(41.00%),North America(15.00%),Eastern
Europe(13.00%),Eastern Asia(10.00%),Western Europe(5.00%),Oceania(5.00%),Southeast Asia(3.00%),Southern Europe(2.00%),South
America(2.00%),South Asia(2.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
USB Camera Module,Raspberry pi Camera Module,Endoscope Camera Module,Dual Camera Module,Webcam Camera Module.
4. why should you buy from us not from other suppliers?
Huiber Vision Technology Co., Limited is an outstanding CMOS camera module designer and manufacturer. We have first-class
technology development capability, advanced testing equipment, complete production lines and manufacturing process management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese.
We are based in Guangdong, China, start from 2013,sell to Domestic Market(41.00%),North America(15.00%),Eastern
Europe(13.00%),Eastern Asia(10.00%),Western Europe(5.00%),Oceania(5.00%),Southeast Asia(3.00%),Southern Europe(2.00%),South
America(2.00%),South Asia(2.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
USB Camera Module,Raspberry pi Camera Module,Endoscope Camera Module,Dual Camera Module,Webcam Camera Module.
4. why should you buy from us not from other suppliers?
Huiber Vision Technology Co., Limited is an outstanding CMOS camera module designer and manufacturer. We have first-class
technology development capability, advanced testing equipment, complete production lines and manufacturing process management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese.
