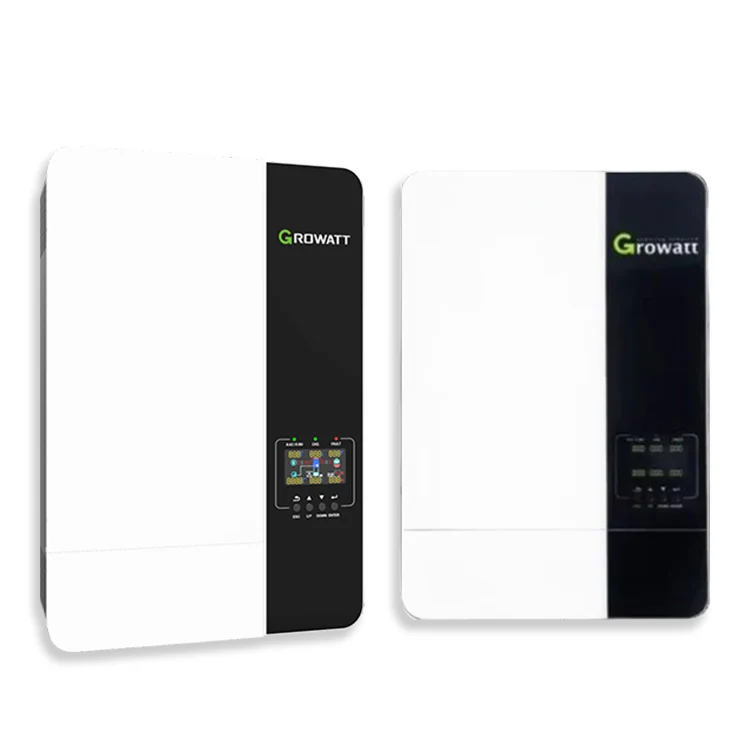

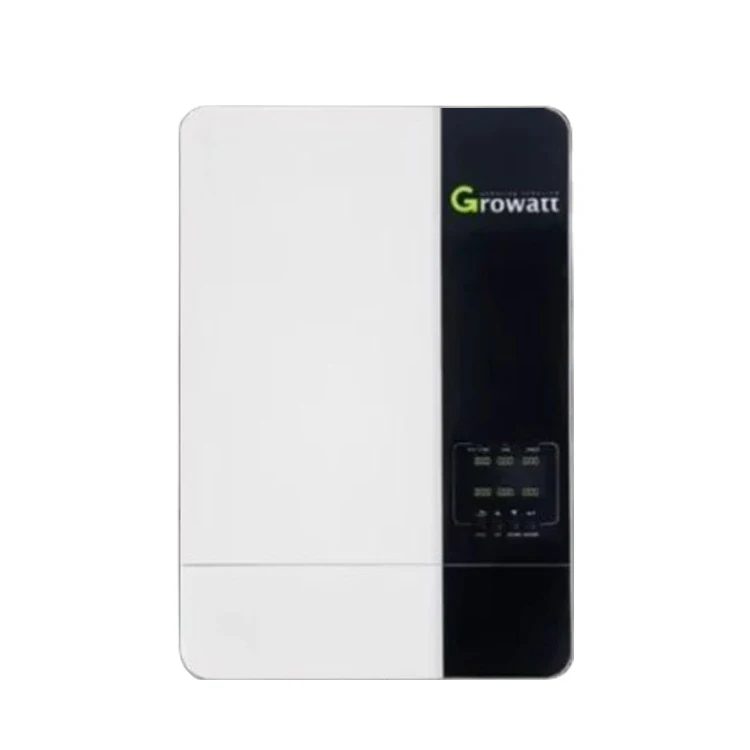

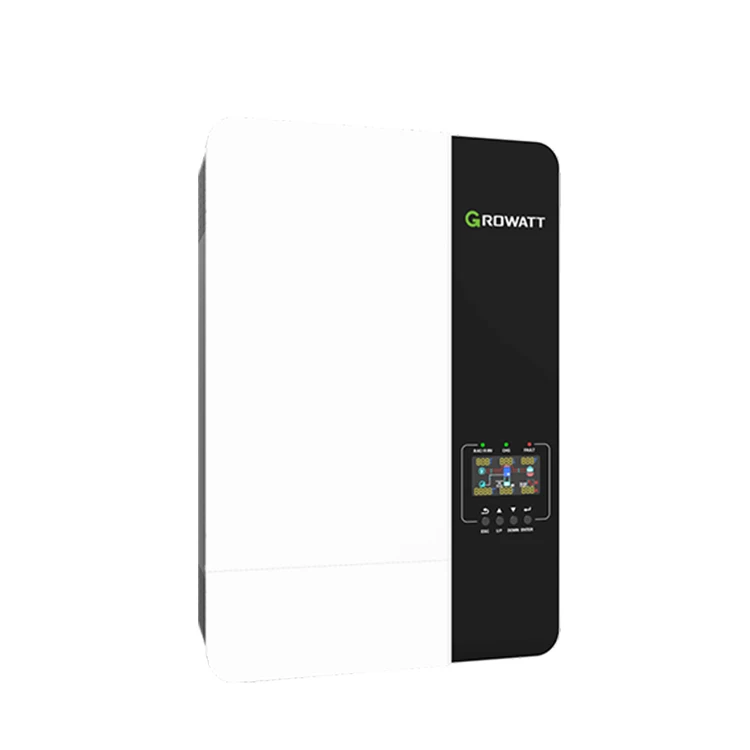

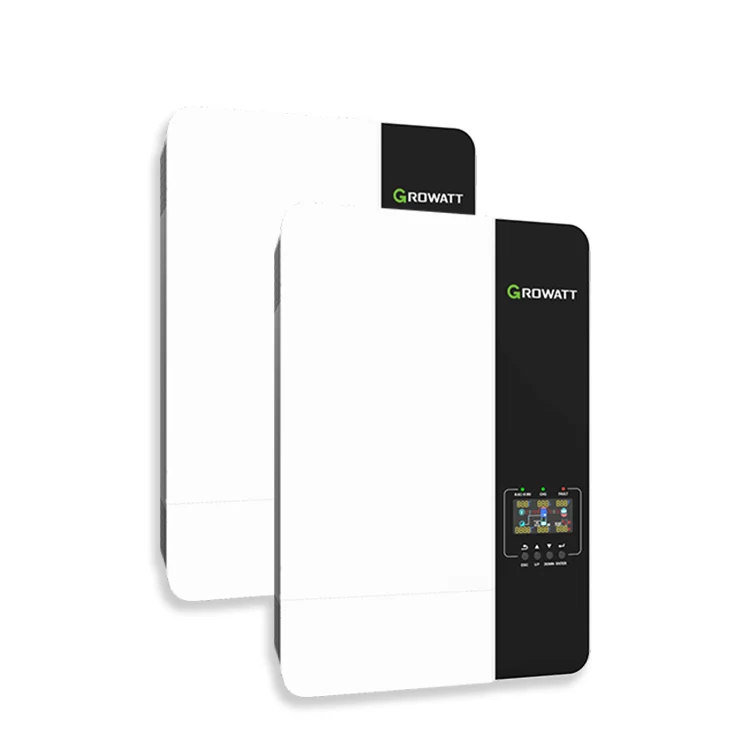

GROWATT 3KW 5KW 48V Pure Sine Wave Solar Inverter with Toroidal Transformer SPF 3500ES 5000ES 24V Inverter

Product Overview

Description

GROWATT 3KW 5KW 48V Pure Sine Wave Solar Inverter with Toroidal Transformer SPF 3500ES 5000ES 24V Inverter

WHY CHOOSE US?





Advantage

The quality and service let you know

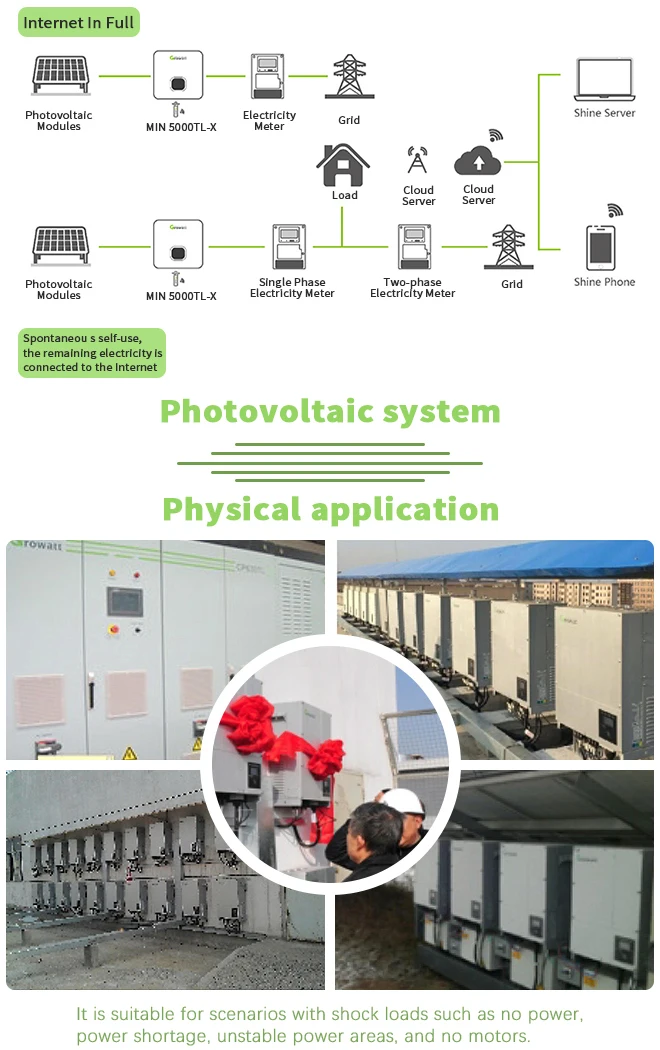

1.APPLICATION



Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter

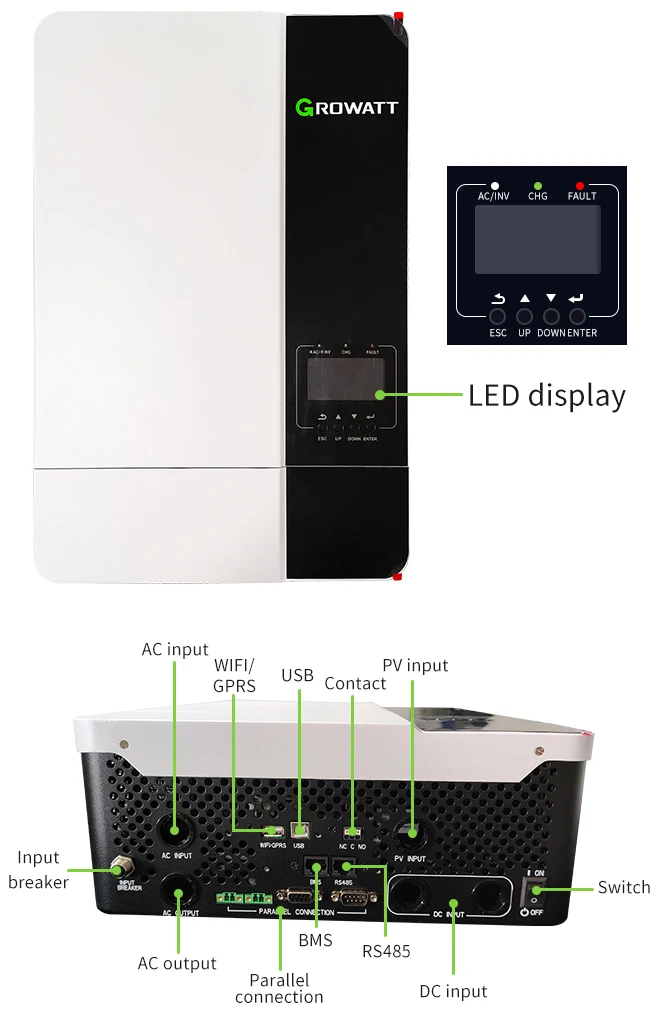

4.Construction





Datasheet	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker	1/1
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree                                                                                                                                         IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C  - 60°C

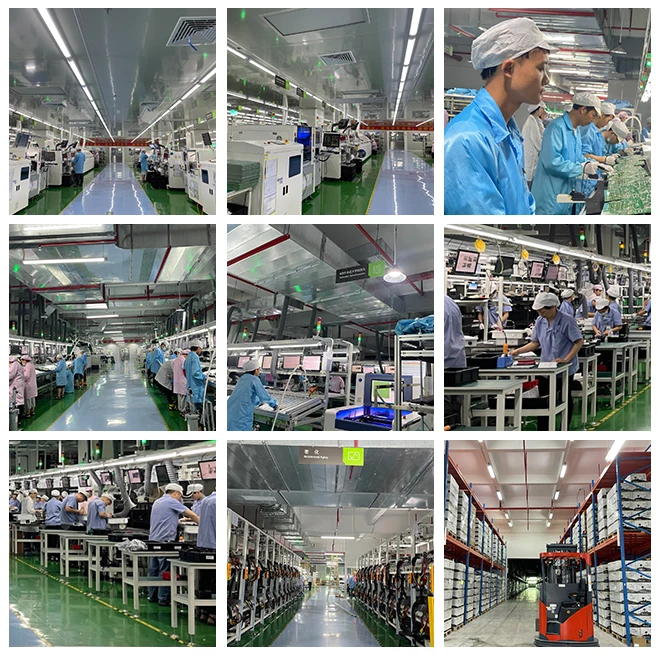

5.Our work shop

Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter





6.QC

Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter



7.Certificate

Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter

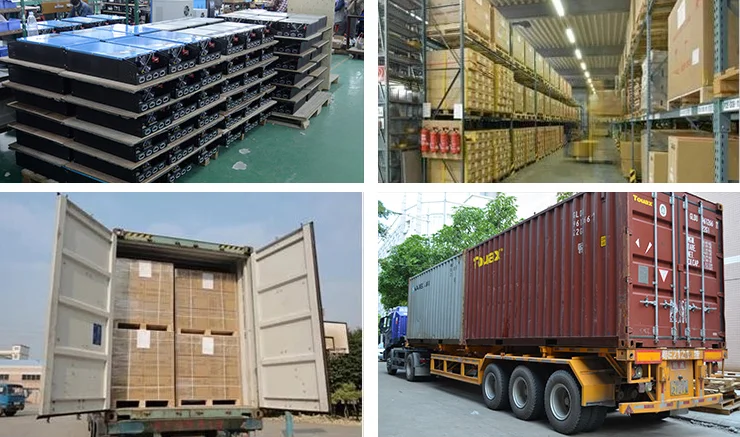

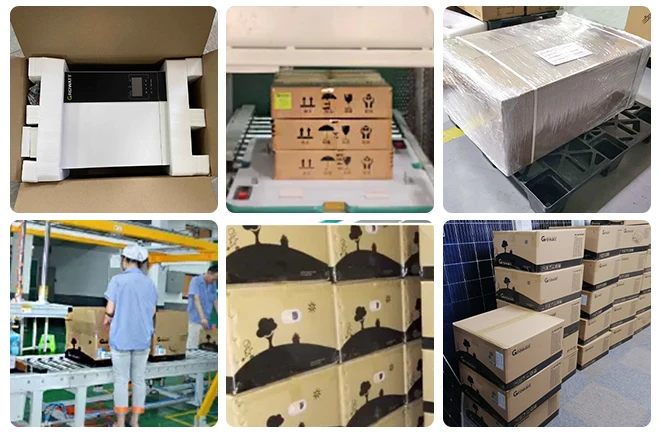

8.Packing

1 pc/2 pcs/4 pcs each carton with wooden pallet or as your request

The packing







Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter

9.About ESG



The cllient feed back

Free Sample  Toys tools Green Energy AGM Sealed Lead Acid Batteries12V7ah12ah  Back UPS battery



Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter

10.Main fair

Growatt SPF 5000ES solar inverter control all-in-one machine with mppt solar charge converter

Please contact us for more details and send us your inquiry!!!!
