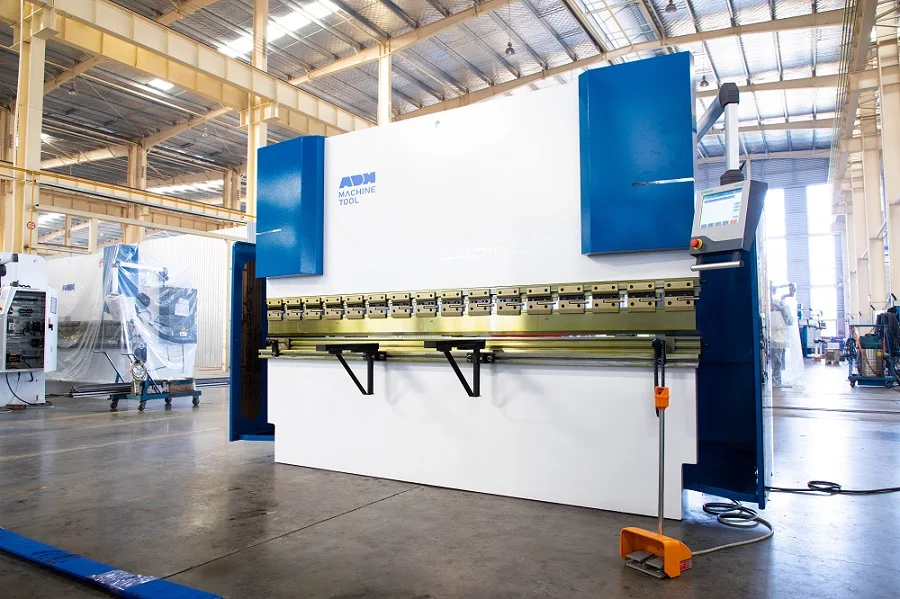

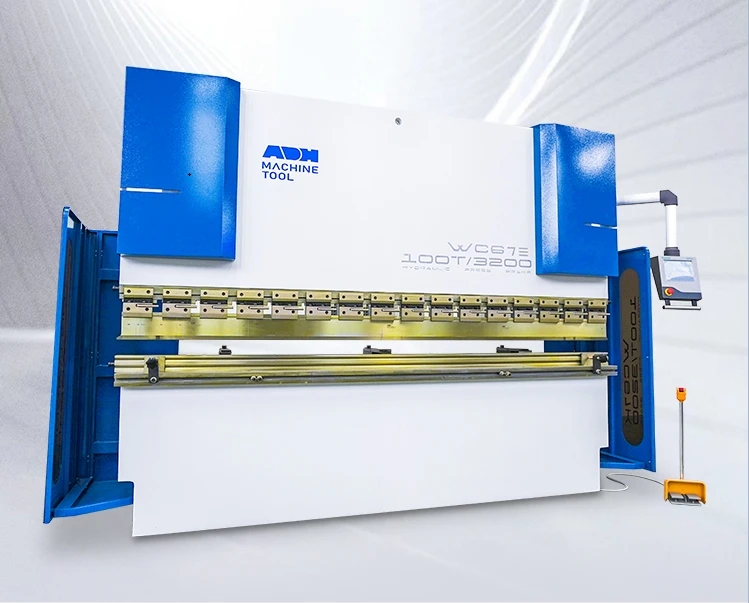

metal Galvanized sheet plate ms sheet banding machine automatic 100 60 ton NC Press brake machine
- Category: >>>
- Supplier: Anhui Donghai Machine Tool Co. Ltd.
Share on (1601268484160):
Product Overview
Description
Products Description
Controller Brand: ESTUN E21, E300, E310P, DELEM DA41T, Cybelec CT8, etc
Capabilities: 30T - 800Ton 1000 2000 3000 Ton
Single or Tandem Options
Made with state-of-the-art industrial design andtop-notch craftsmanship, with an aestheticappearance.
Heavy-duty machine frame, sturdy and durable,with integral welding structure and furnaceannealing treatment to maintain good machinetool accuracy.
Advanced production technology and strictquality control ensure the reliability of themachine tool.
Heavy-duty machine frame, sturdy and durable,with integral welding structure and furnaceannealing treatment to maintain good machinetool accuracy.
Advanced production technology and strictquality control ensure the reliability of themachine tool.
Main component

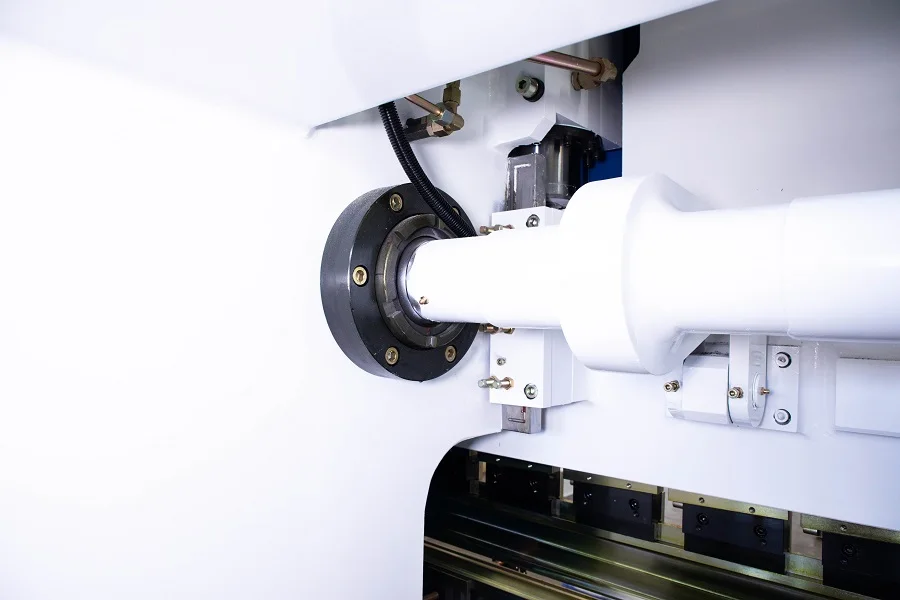

Mechanical Structure
The press brake's structure mainly includes a frame, column, ram, worktable, main cylinder, and backgauge, all optimized through finite element analysis and 3D software, strong and rigid. Structural components are exquisitely designed, durable and stable, enhancing the machine's performance and lifespan.
Long Service Life Machine Body Frame
ADH press brake frames are supported by a 15-year warranty, indicating a strong commitment to long-term customer satisfaction and reliability.
The frame undergoes post-welding heat treatment to relieve stress, ensuring it remains deformation-free.
The frame undergoes post-welding heat treatment to relieve stress, ensuring it remains deformation-free.

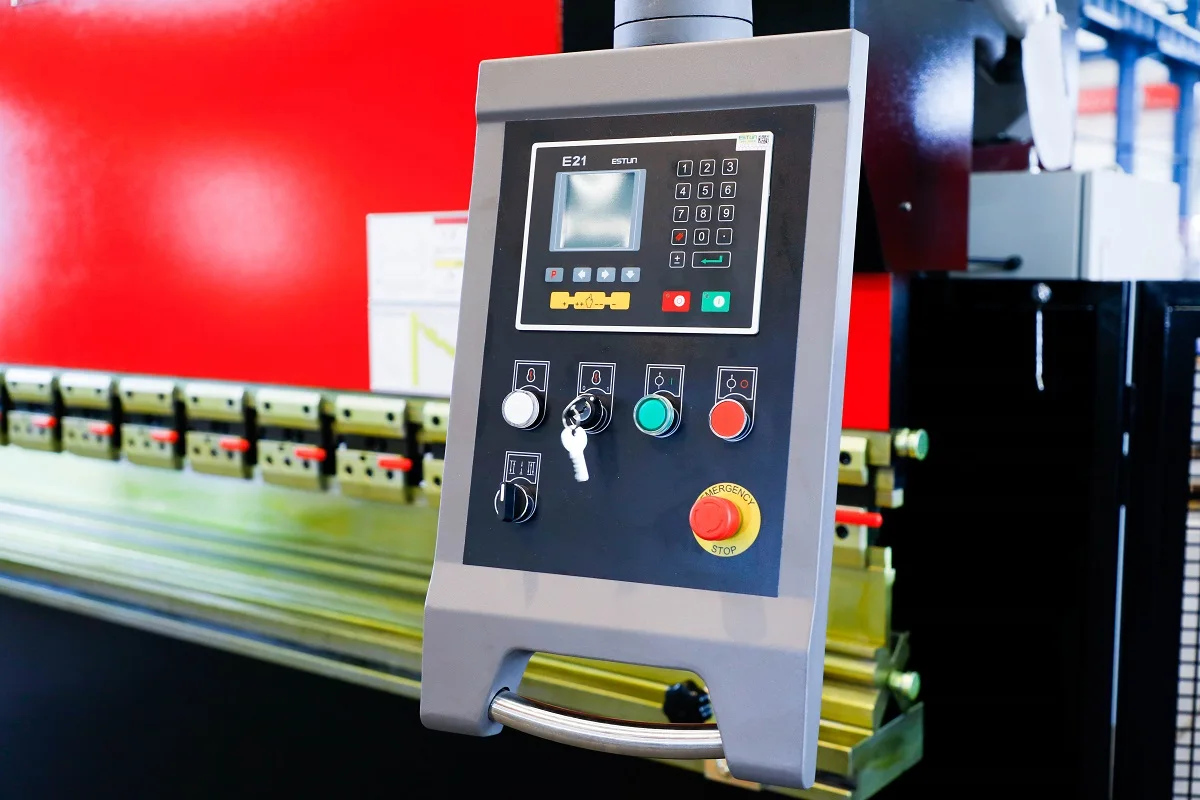

· HD LCD display, Chinese and English language options
· X, Y-axis intelligent positioning
· Built-in dwell time, unloading delay design function, the operation is more simple, no time relays, reduce costs
· a key parameter backup and restore functionality
· Support multi-step programming
· X, Y-axis intelligent positioning
· Built-in dwell time, unloading delay design function, the operation is more simple, no time relays, reduce costs
· a key parameter backup and restore functionality
· Support multi-step programming

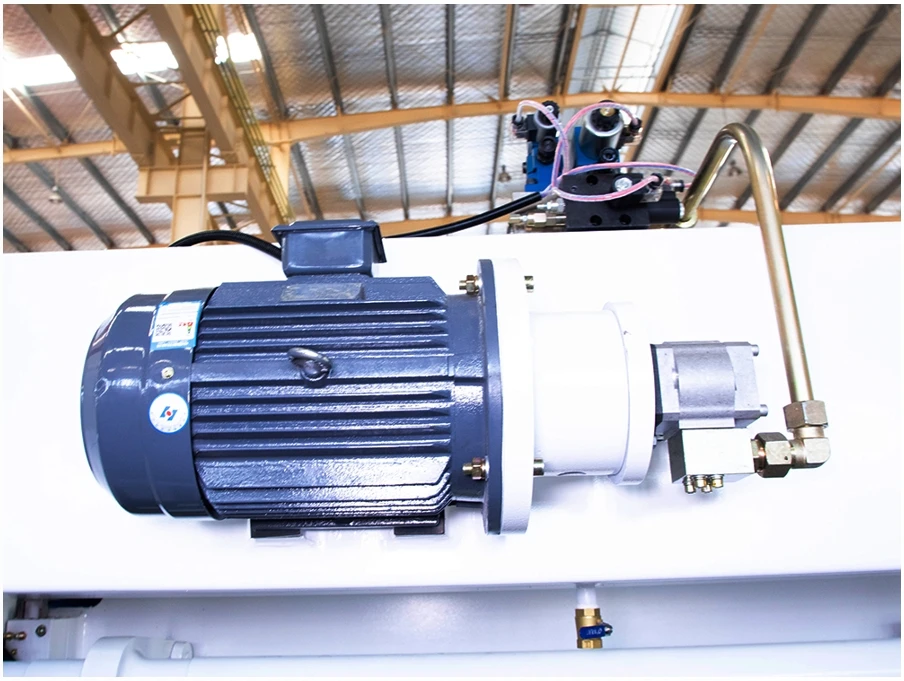

Motor
Siemens motors from Germany stand out due to their high efficiency and energy-saving features, directly contributing to reduced operational costs.
Designed with large starting torque and adherence to IEC standards, these motors ensure compatibility and ease of maintenance across various applications.
They offer excellent performance with low noise and vibration, alongside exceptional reliability, enhancing user experience and system longevity.

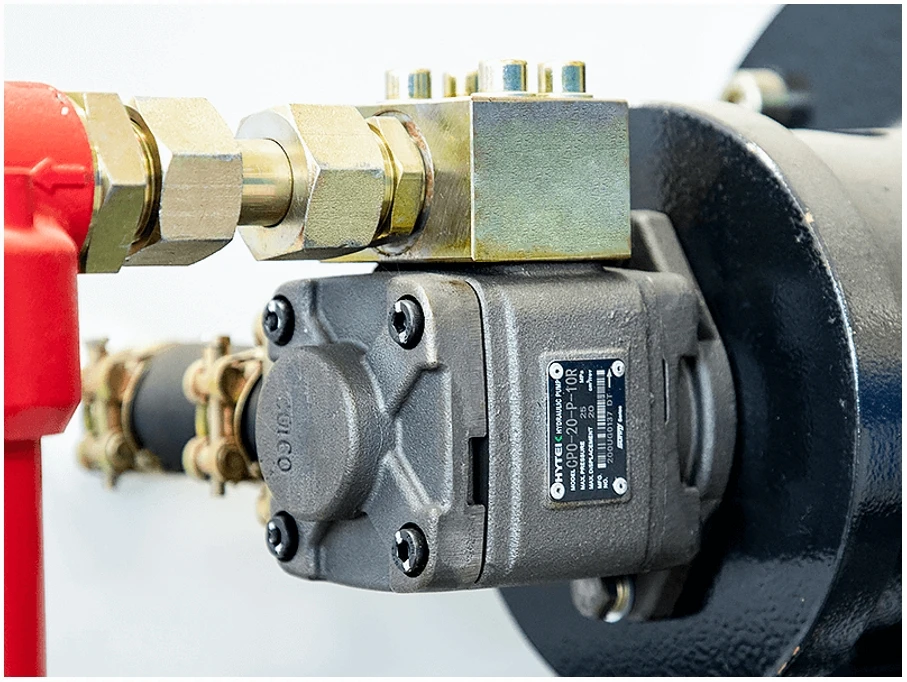

Constructed from high-strength cast iron, these gear pumps can withstand high pressure, ensuring durability and reliability in demanding conditions.
Designed with low sensitivity to oil pollution, which significantly extends the machine's service life by minimizing maintenance needs.

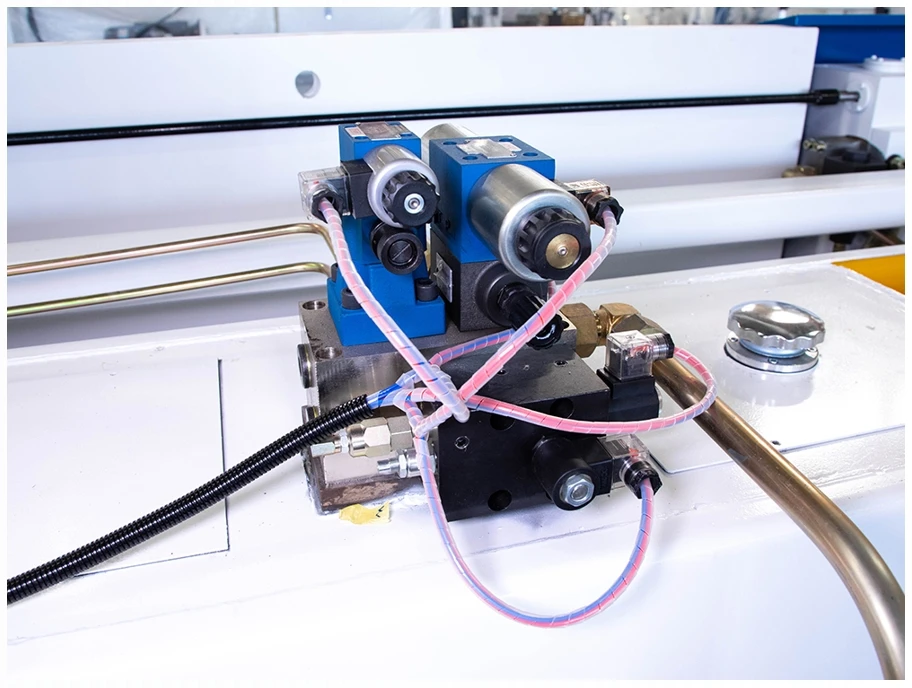

Rexroth hydraulic valves offer exceptional durability and high-pressure resistance, ensuring reliable performance under demanding conditions.
The machines equipped with these valves support multiple actions, such as rapid and slow descent, working speed bending, rapid return, and an emergency stop feature for enhanced operational flexibility and safety.

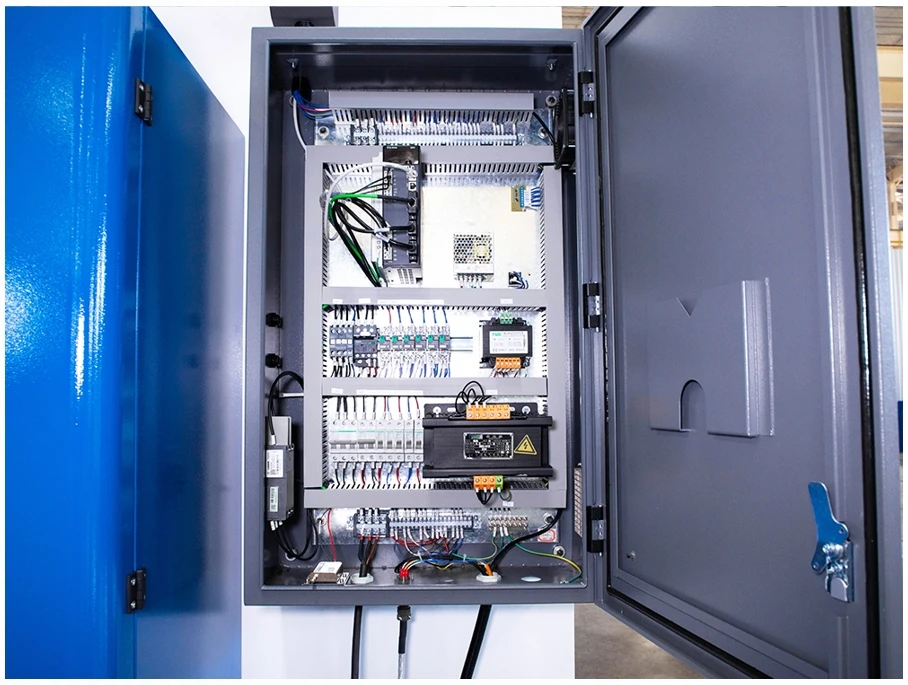

Features genuine Schneider parts from France, enhancing durability and stability for a prolonged service life.
Incorporates Estun's original adaptive electrical box assemblies, ensuring stable electrical operation with superior anti-interference capability.

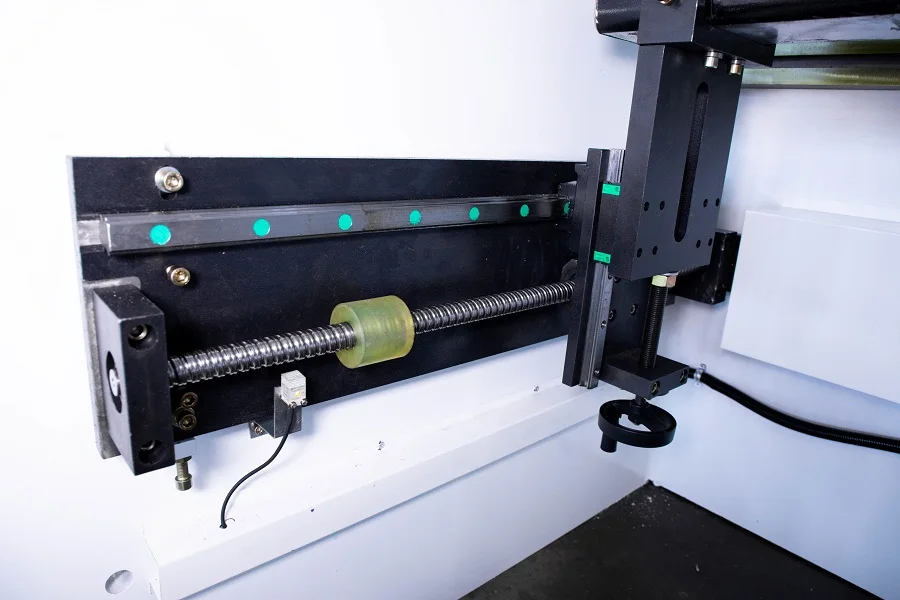

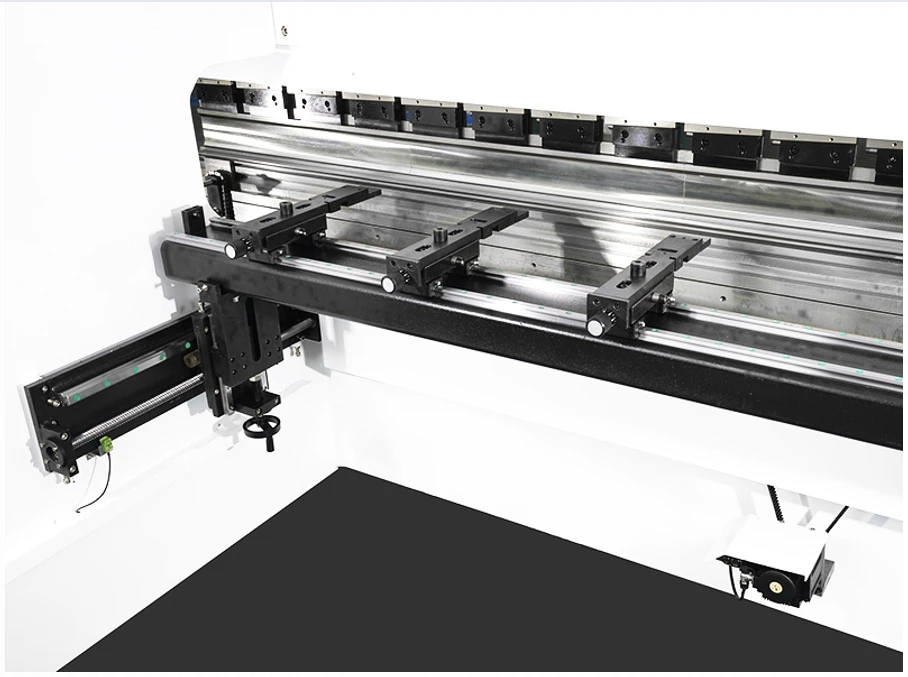

The machine's rear stop assembly boasts a high-precision ball screw and adjustable stop finger, ensuring precise positioning for varied punches.
Manual lifting capabilities enhance the adaptability of the machine to accommodate a diverse range of punch types.
A servo motor's precision control enables exact positioning and movement, crucial for applications requiring fine adjustments and repeatability.

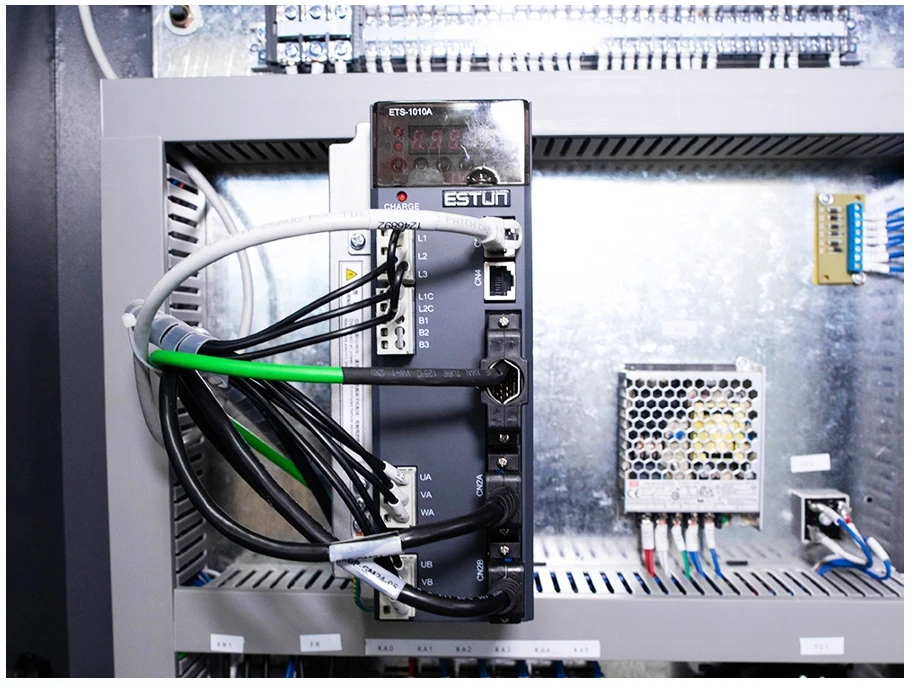

The Estun servo drive is engineered for precision, enhancing the accuracy of mechanical operations in industrial applications.
Optional configuration
Optional Controllers
Estun E310P
Cybelec CT8
DELEM DA41T
Optional DSP Laser Protection
The DSP laser safety device prevents hand injuries by protecting a zone just below the press brake's upper die.
Optional Light Curtain
It enhances personal safety with features like strong anti-electromagnetic and anti-light interference capabilities, ensuring reliable operation in various environments.
Product Paramenters
Model | Bending Force | Bending Length | Daylight distance | Throat Depth | Ram Stroke | Open Height | Main Motor | Overall Dimensions |
Unit | KN | mm | mm | mm | mm | mm | KW | L×W×H mm |
WC67K/E-30t/1600 | 300 | 1600 | 1300 | 200 | 80 | 320 | 5.5 | 1650*1200*1700 |
WC67K/E-30t/2000 | 300 | 2000 | 1300 | 200 | 80 | 320 | 5.5 | 2000*1200*1700 |
WC67K/E-40t/2500 | 400 | 2500 | 2030 | 250 | 100 | 340 | 5.5 | 2500*1200*1900 |
WC67K/E-63t/2500 | 630 | 2500 | 2050 | 250 | 120 | 340 | 5.5 | 2500*1350*2100 |
WC67K/E-63t/3200 | 630 | 3200 | 2510 | 250 | 120 | 340 | 5.5 | 3200*1350*2100 |
WC67K/E-80t/2500 | 800 | 2500 | 2050 | 250 | 120 | 350 | 5.5 | 2500*1400*2150 |
WC67K/E-80t/3200 | 800 | 3200 | 2510 | 250 | 120 | 350 | 5.5 | 3200*1400*2150 |
WC67K/E-100t/2500 | 1000 | 2500 | 2050 | 320 | 120 | 380 | 7.5 | 2500*1500*2200 |
WC67K/E-100t/3200 | 1000 | 3200 | 2510 | 320 | 120 | 380 | 7.5 | 3200*1500*2300 |
WC67K/E-100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 4000*1500*2400 |
WX67Y-100t/4000 | 1000 | 4000 | 3100 | 420 | 160 | 435 | 7.5 | 4000*1650*2500 |
WC67K/E-125t/3200 | 1250 | 3200 | 2510 | 320 | 120 | 380 | 7.5 | 3200*1600*2350 |
WC67K/E-125t/4000 | 1250 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 4000*1600*2450 |
WX67Y-125t/4000 | 1250 | 4000 | 3100 | 420 | 160 | 435 | 7.5 | 4000*1700*2500 |
WC67K/E-160t/2500 | 1600 | 2500 | 2050 | 320 | 200 | 450 | 11 | 2500*1650*2700 |
WC67K/E-160t/3200 | 1600 | 3200 | 2510 | 320 | 200 | 450 | 11 | 3200*1650*2800 |
WC67K/E-160t/4000 | 1600 | 4000 | 3040 | 320 | 200 | 450 | 11 | 4000*1650*2800 |
WC67K/E-160t/5000 | 1600 | 5000 | 3800 | 320 | 200 | 450 | 11 | 5000*1750*3100 |
WC67K/E-160t/6000 | 1600 | 6000 | 4600 | 320 | 200 | 450 | 11 | 6000*1750*3300 |
WC67K/E-200T/3200 | 2000 | 3200 | 2600 | 320 | 250 | 540 | 15 | 3200*1900*3100 |
WC67K/E-200T/3200C | 2000 | 3200 | 2510 | 320 | 200 | 450 | 11 | 3200*1650*2800 |
WC67K/E-200T/4000 | 2000 | 4000 | 3300 | 320 | 250 | 540 | 15 | 4000*1900*3100 |
WC67K/E-200T/4000C | 2000 | 4000 | 3040 | 320 | 200 | 450 | 11 | 4000*1650*2800 |
