Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment
Pumps used in conjunction with casting processes and equipment

Pumps used in conjunction with casting processes and equipment

Share on (1601268496612):


Price:$250.00

Quantity:


Product Overview

Description



Products Description


Products Description

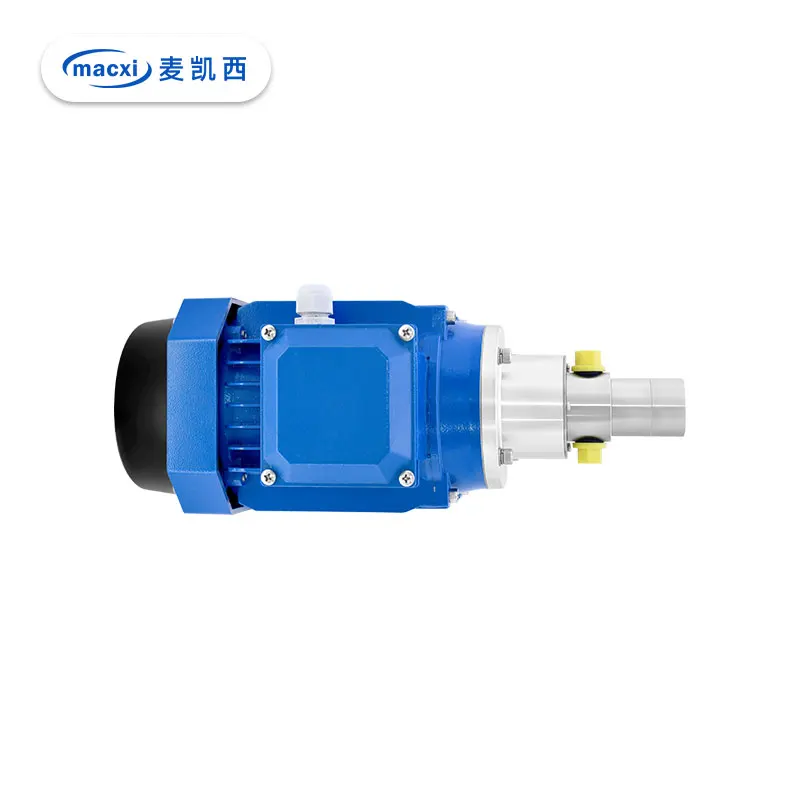

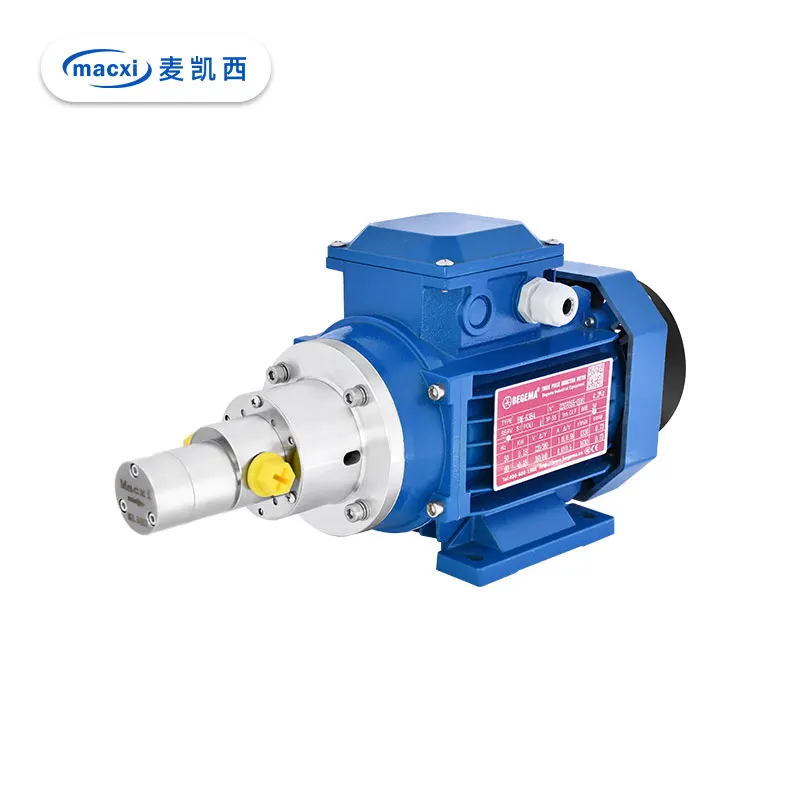

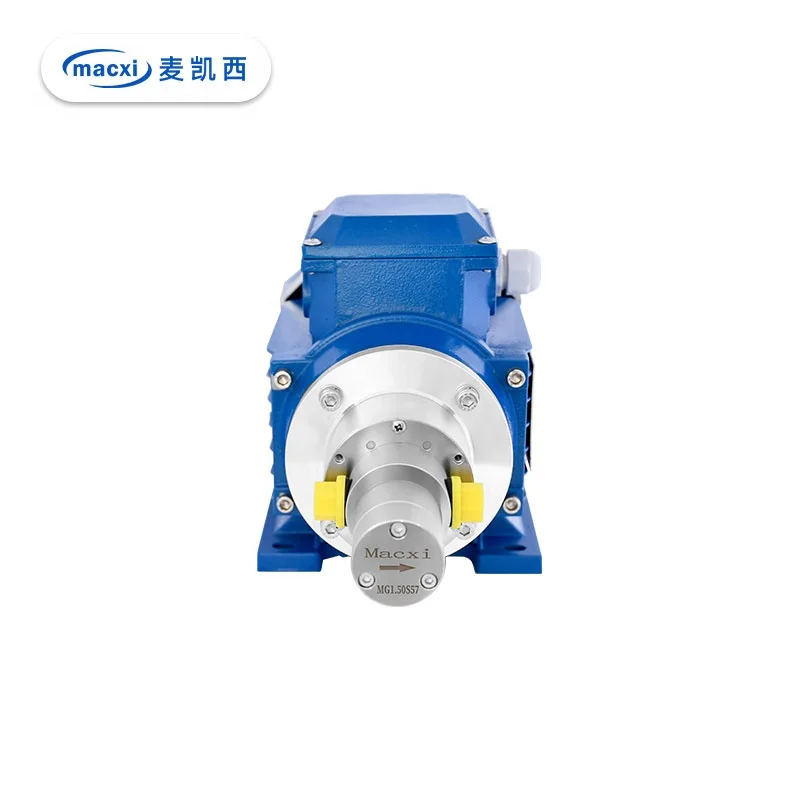

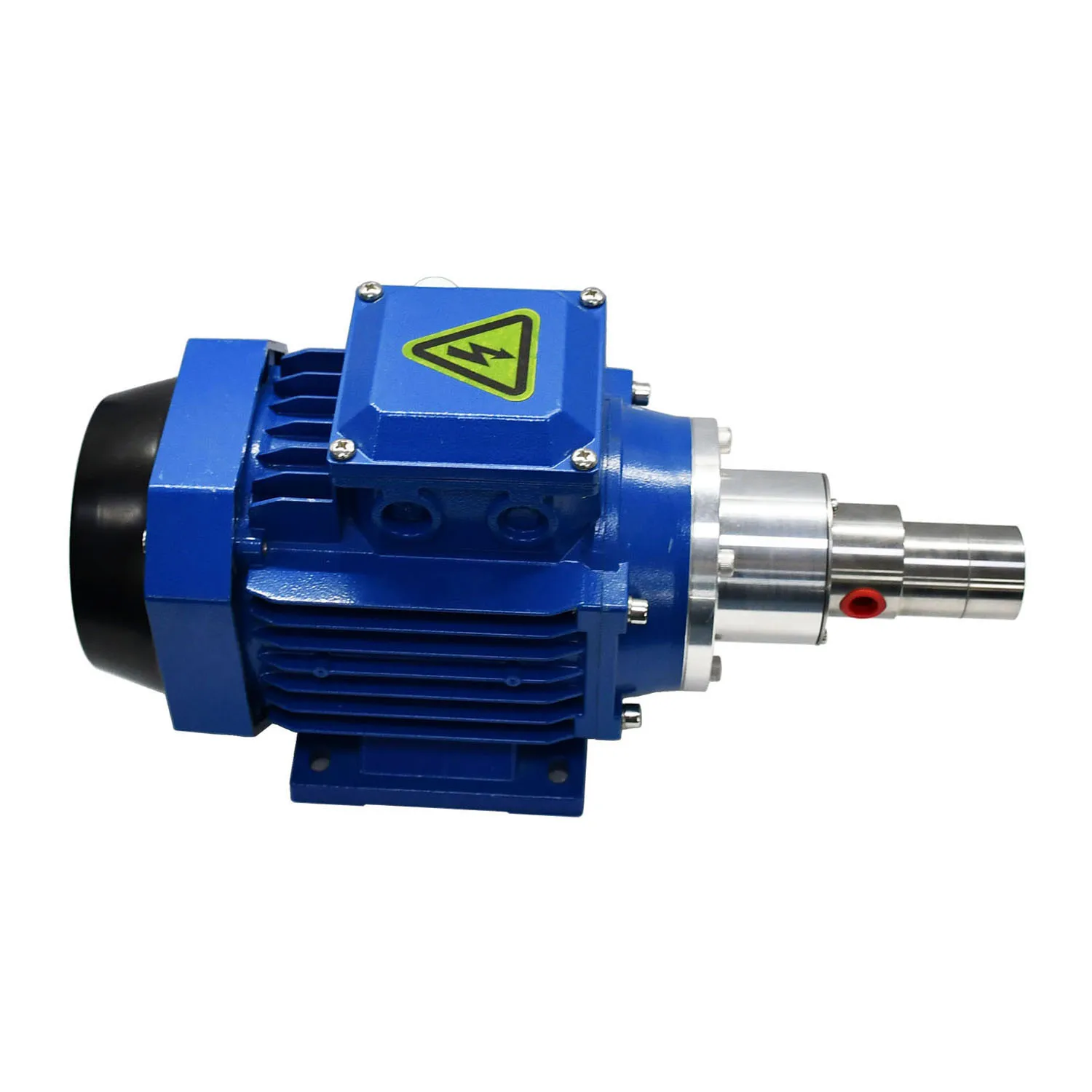

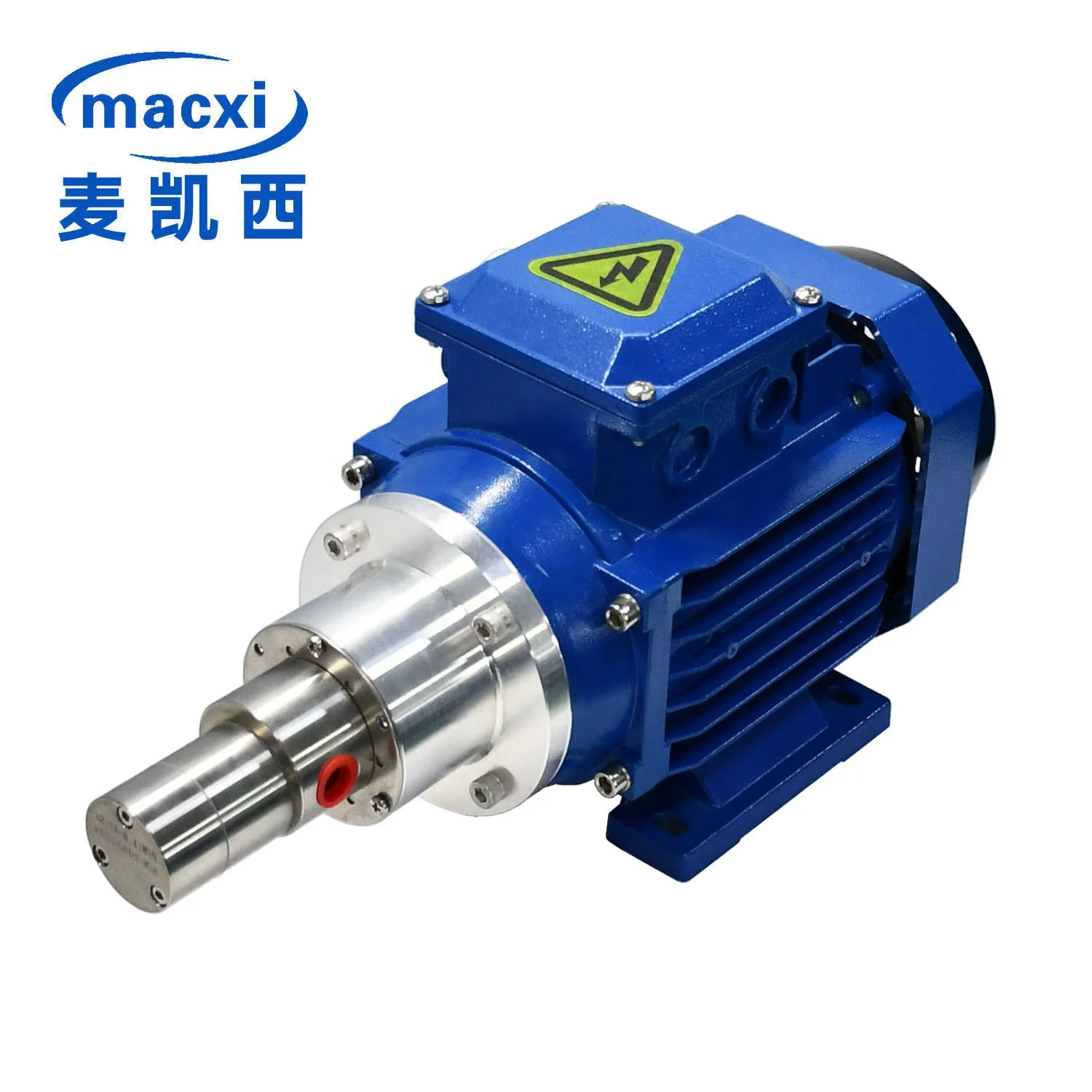

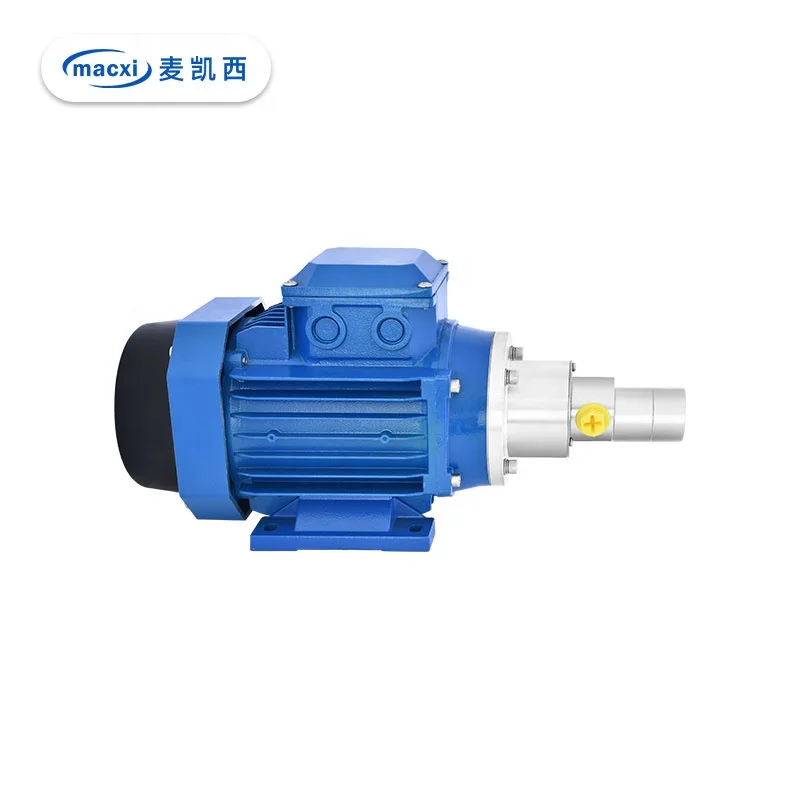

1. This pump head is made by 316L, gear materail and shaft sleeve are PEEK, seal material is PTFE, the rest others are 316L.
2. AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the frequency converter. If used in flammable and explosive places, explosion-proof motor should be selected.

Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.






Product Paramenters




Pump Model
Motor Base
L1
L2
L3
The max pressure (bar) (test medium: water)
2 Pole
4 Pole
MG0.07S57Y0.18KW
63
284.5
89.5
31.2
2
1
MG0.15S57Y0.18KW

286.2
91.2
33.5
4
2
MG0.30S57Y0.18KW

286.2
91.2
33.5
8
4
MG0.60S57Y0.18KW

290.2
95.2
37.7
8
MG0.90S57Y0.18KW

294.6
99.6
41.9
MG1.20S57Y0.18KW

299
104
46
MG1.50S57Y0.18KW

303.6
108.6
52.1


Pump Model
Weight(kg)
Imp.&Exp. Size
Rated Flow（ml/min）
temperature range
2 Pole
4 Pole
MG0.07S57Y0.18KW
5.11
G1/8
196
98
-40℃～80℃
MG0.15S57Y0.18KW
5.11
420
210
MG0.30S57Y0.18KW
5.11
840
420
MG0.60S57Y0.18KW
5.12
1680
840
-40℃～70℃
MG0.90S57Y0.18KW
5.14
2520
1260
-40℃～50℃
MG1.20S57Y0.18KW
5.16
3360
1680
MG1.50S57Y0.18KW
5.17
G1/4
4200
2100
-40℃~50℃


Pump Head Parameters
Motor Paramerers
Fluid Viscosity
0.2~1500cps
Rated Power
Three-Phase 380V/220V
Ambient Temperature
-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)
Rated frequency
50HZ
Static Sealing
FKM
Protection Level
IP55
Pump Body
304 / 316L
Working system
Continuous
Gear
Gear PEEK, gear shaft 304 / 316L


The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.




1.Inner-hexagon screw*3
2.Front cover
3.Shaft sleeve*6
4.Pin*2
5.Pump body
6.Teflon gasket*2
7.Driving gear
8.Driven gear
9.Rear cover
10.O-ring

11.Platen
12.Internal magnetic steel
13.Countersunk head screw*3
14.Isolation cover




Product Introduction


No pulse, high precision.
the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.
Stable transmission.
Gear transmission can ensure constant instantaneous transmission ratio.
Zero leakage.
no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage


Corrosion resistance.
304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.
Efficient and convenient, long service life
adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.
Applicability.
suitable for high differential pressure, high system pressure and wide range of medium viscosity.


long service life.
The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.


Diversified drive mode.
magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.


A wide range of applications.
magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.


Applicable Conditions


All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation




It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries


Industrial machinery and equipment
Water treatment
Food and cosmetics
Inkjet printing/painting
Mask making
Food and Beverage filling
Oil transportation
Booster pressure
Filling of perfume cosmetics
Sand mill/Grinding
Circulating cooling
Quantitative Transport


Company Profile


Suzhou Macxi Fluid Technology Co., Ltd. was established in 2014. Since the establishment of the company, we adhere to the concept of innovation and forge ahead. Our company is mainly engaged in the development,production and sales of pumps. Main magnetic drive micro gear pump, with an annual output of 100000 gear pump production capacity.The company has been committed to the optimization of product structure, improvement of service life and customization according to customer requirements, so as to improve the competitiveness of products for supporting manufacturers. We are looking forward to providing more high-quality products and services for more domestic and foreign users.






Certifications




FAQ


1. Q: Are you a manufacturer or trading company?
A : We are a manufacturer specializing in the development, production and sales of pumps. Our product has passed the test.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pleasecheck with our salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pleasepay the sample and express fee.
4 .Q: What's your delivery time?
A: 1.The samples can be sent out within 5-7 days.
2.The batch order can be shipped out within 7-15 days after get your payment.
5 .Q:What's your warranty & after sale service policy?
A: 12 Months for all products starts from delivery date.
6. Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, please consult our salesman.
7 .Q: What's the payment can you accept?
A:Usually we accept T/T , also RMB transfer in China.
