Wholesale Price Disposable PVC/PET/PS Plastic Coffee Lids Thermoforming Making Machine

Machine Introduction

JC-500C Automatic Plastic Forming Machine is developed by our research and development personnel according to the demand of packing market. This machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. Machine adopts a fully automatic flow covering blow molding or plastic sucking molding, punching and diet cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. therefore, the quality requirement is secured during the production.





Main Technical Parameters

Punch Speed	10-35(times/minute)
Max.Forming Area	470mm×290mm
Max.Forming Depth	47mm
Stroke	60-300mm
Packing Material	PVC, PET, PS
Material Thickness	0.15~0.7mm
Max. Sheet Width	500mm
Material Inner Roll Diameter	75mm
Total Power	11.5kW(380V)
Compressed Air(Mpa)	0.6-0.8Mpa
Mold Cooling	60L/H tap water/recycle water
Overall Dimension	3500×1000×1800mm
Weight	2400kg

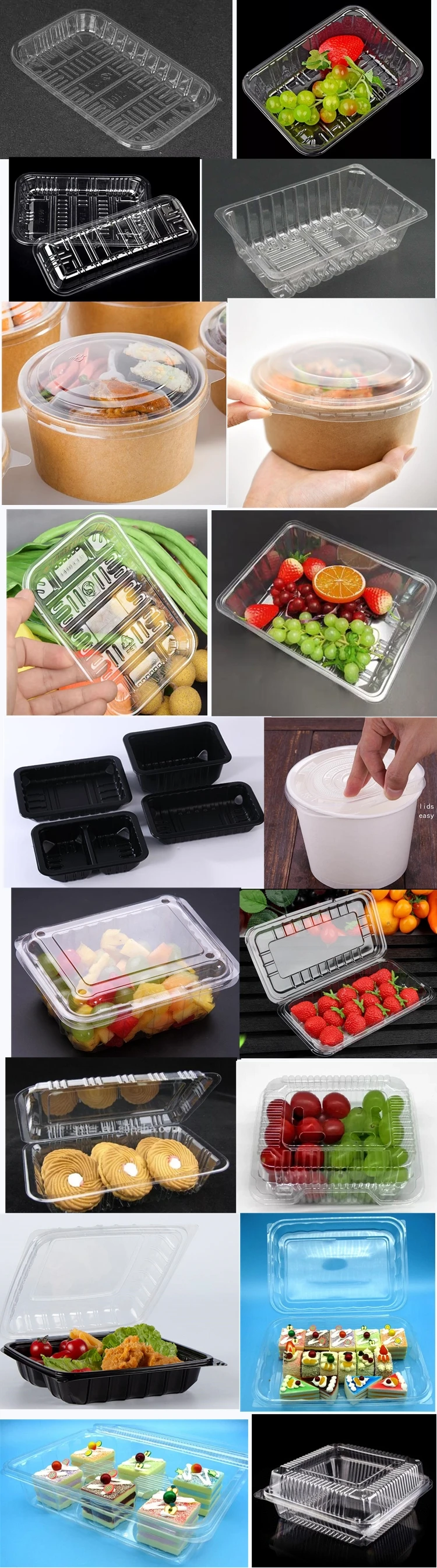

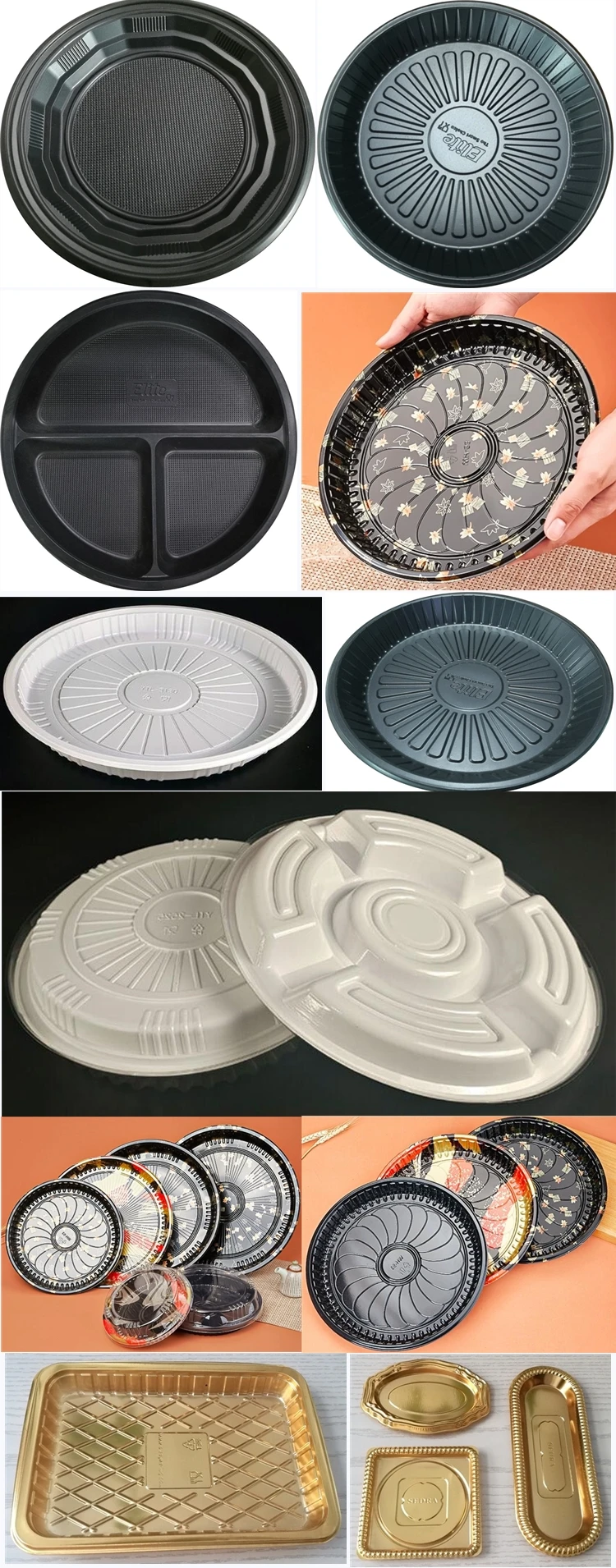

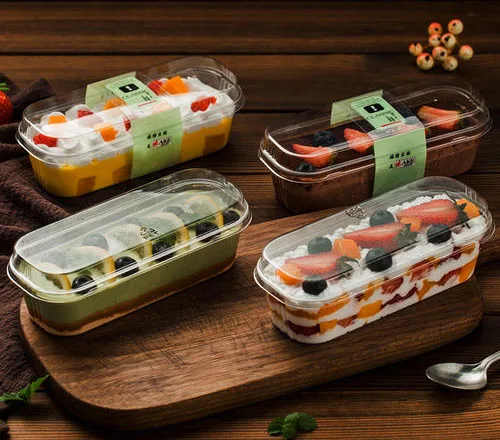

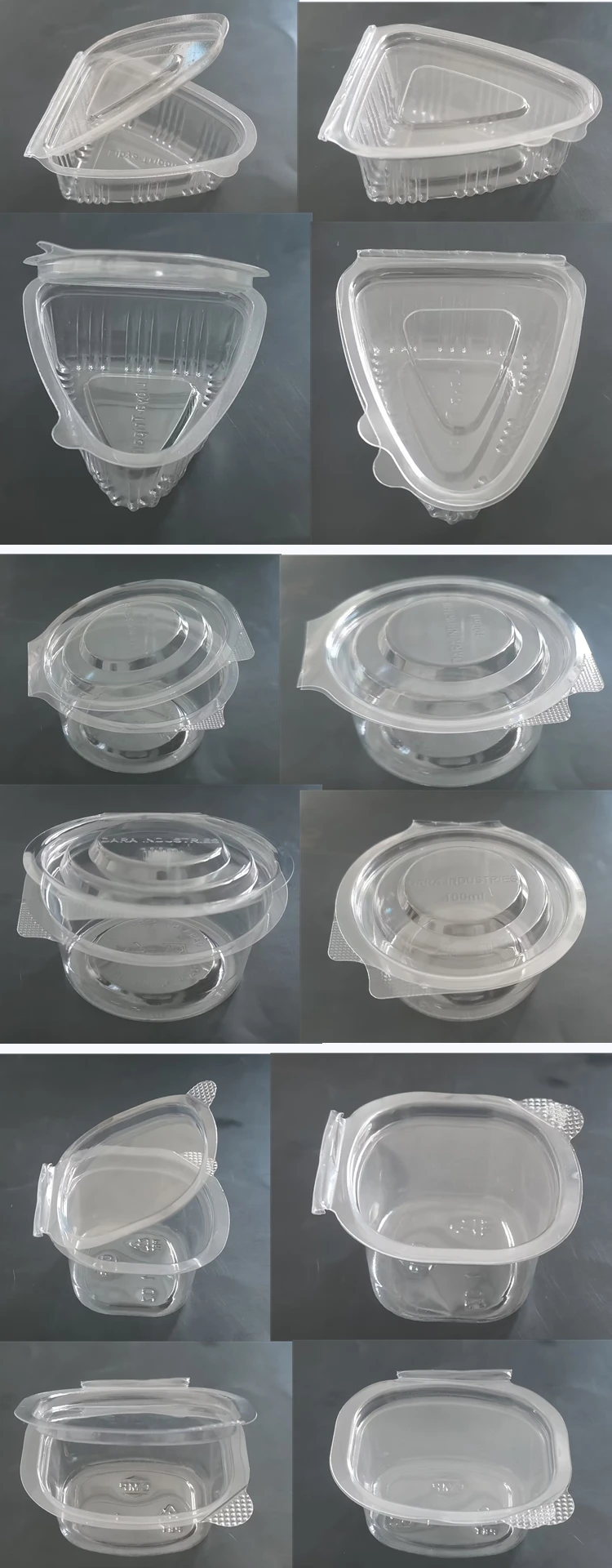

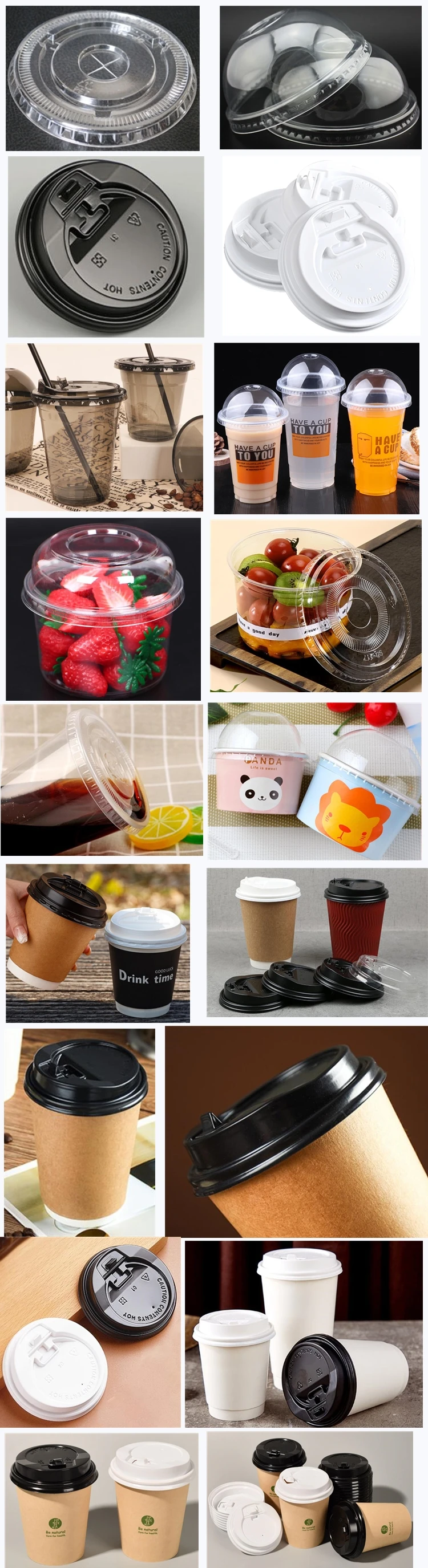

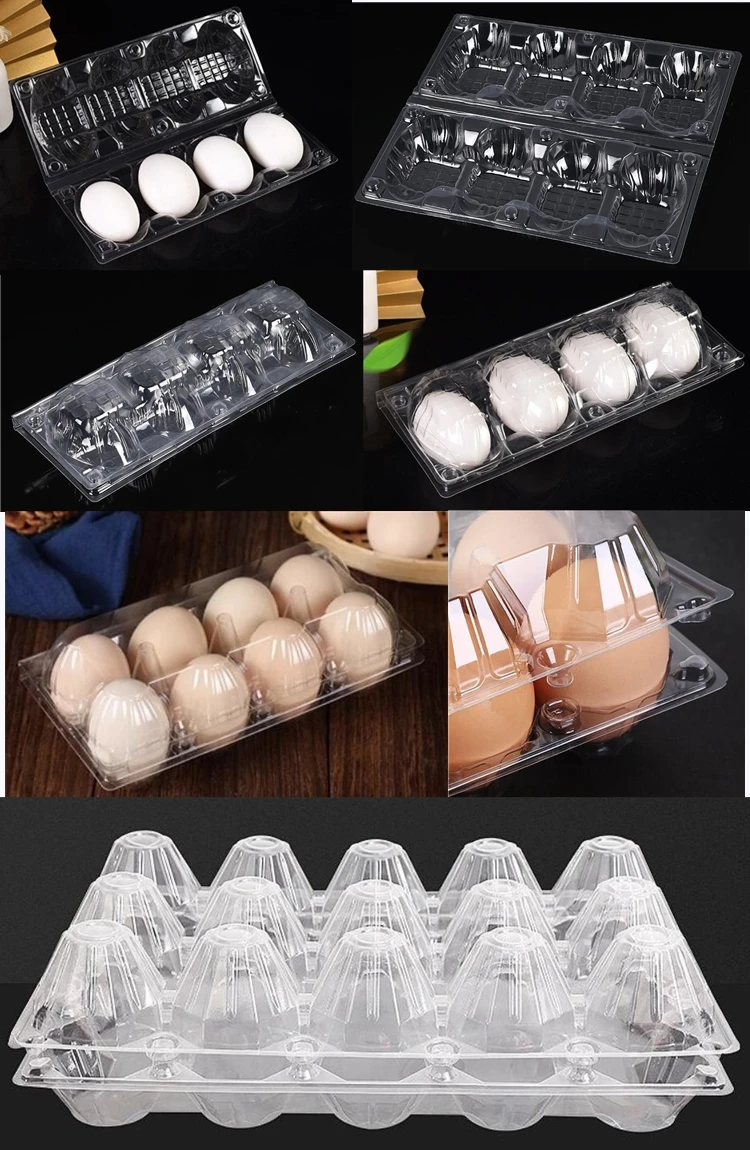

This machine applicable to the plastic sheet such as PVC, PET, PS, to making cup lid, cover, tray, container, box, plate. Just need to replace the mold can be achieved!

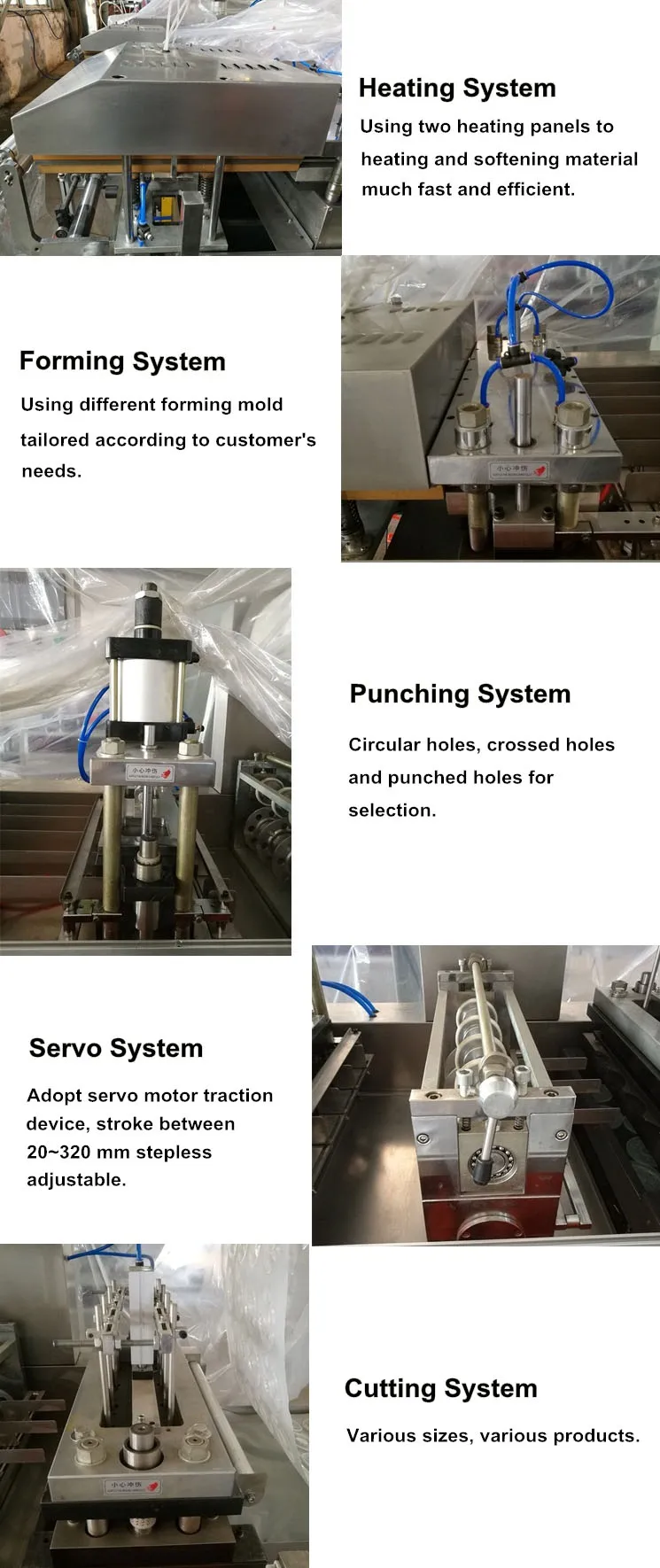

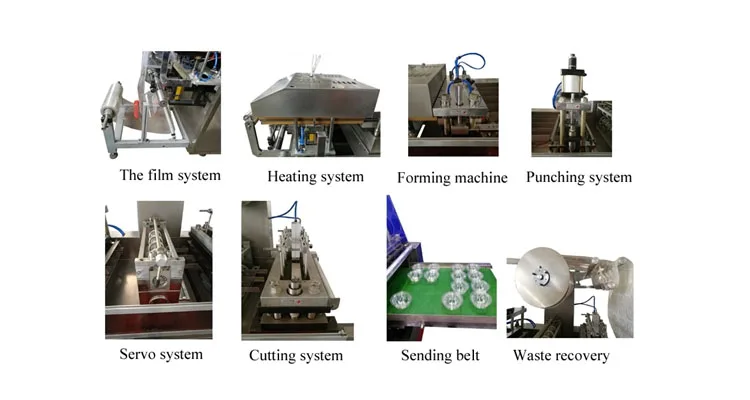

Machine Features

1) The machine realizes automatic control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.



2) The mechanical transmission adopts the reducer and the main rotation connection. Forming, punching, pulling, and punching stations are on the same axis to ensure operational synchronization (reduced transmission error).



3) Automatic lifting and loading material system is safe and labor-saving, plate type upper and lower preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knife are durable and no burr, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.



4) The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.



5) The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.



Related Machine

Automatic PP Lids&Boxes Making Thermoforming Machine



Certification

Customers From All Over The World

Machine quality wins the trust of customers

We attend exhibitions every year

THE HERITAGE OF 20 YEARS PACKAGING PROFESSIONAL KNOWLEDGE

Wenzhou Jiacheng Machinery Co., Ltd. is located in Wenzhou city. This is a professional company engaged in various packaging machinery, pharmaceuticals, mechanical design, development, production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production technique; with a modern system of scientific and technological management and perfect service system, also a crack team with youthful vigor.



Since its establishment, the company all along adhere "good faith-based, development study, innovation" spirit of enterprise. Based on human technology, and customer-oriented service, develop the market with integrity and high-quality and establish the corporate culture system with the unique features.

TRUSTWORTHY PROFESSIONAL ABILITY

Responsibility

We believe that we have responsibility for our enterprise and have responsibility for spirit of innovation; we have responsibility for our environment; Whatever we do, we confirm we have strong enduring foundation.

Vision

Have the vision to have innovation. We encourage any vision based on Jiacheng, there let everyone have firmly faith to contribute and think. We try our best to supply the best solution. We always think and practice.

Innovation

Innovation is the soul. Jiacheng company become unique by innovation. We provide customized solutions for clients so we can do the best. We never afraid of difficulties and overcome every challenge — we are looking forward by intelligence. Innovation is Jiacheng’ s soul.

What We Can Do For Customers

1. Supplies standard products to customers.

2. Supplies standard products under customers’ brands and packaging, etc.

3. R&D department develops any new products together with the customers.

Service

1. One year guarantee for whole machine.

2. 24 hours technical support by e-mail.

3. Engineer available machinery oversea service, door to door.

4. Use-friendly English software, user manual and detailed videos.

Installation & Commissioning

1. Offer English manual for install and commissioning.

2. Send engineers to customers’ factory to teach customers how to install and commissioning the machine.





Any problems, just inform us please.
