Animal Clinics Equipment 17 Inch 5 Parameters Veterinary Monitors for Sale
- Category: >>>
- Supplier: Chongqing Vision Star Optical Co. Ltd.
Share on (1601268508961):
Product Overview
Description

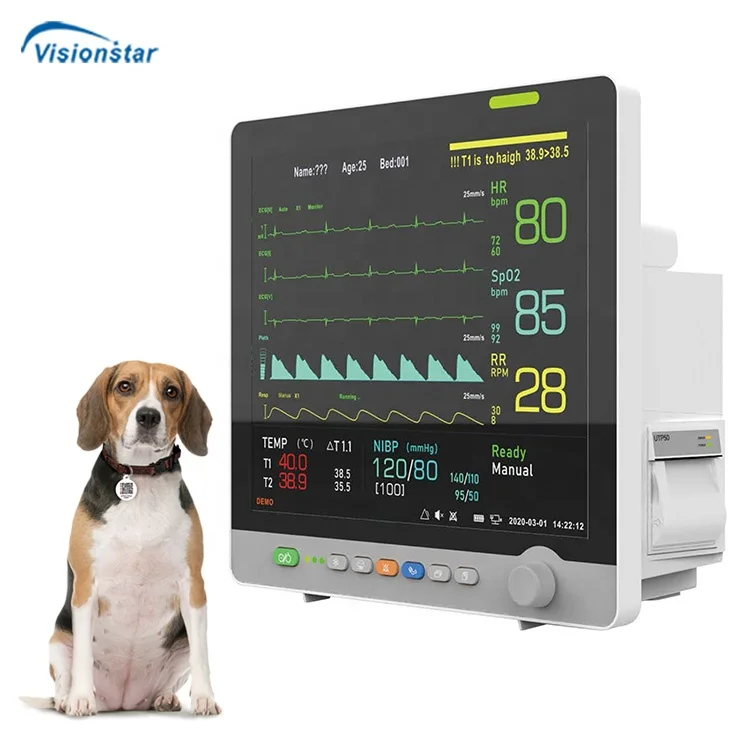

Animal Clinics Equipment 17 Inch 5 Parameters Veterinary Monitors for Sale
Feature:
The VCA2017V Veterinary Monitor is a monitor that breaks the shape of the traditional monitor. The unique inclined panel design makes the angle of the buttons and the screen more in line with the angle of human observation, which is a kind of humanized design. It may be used in the hospital, clinical environment, homecare. The rounded chamfer design makes it full of sense of science and technology.
* 17 inch optional touch screen design, tilting panel, LED high-definition display screen. A rounded chanfer design with a sense of technology, including buttons.
* Connect to the central monitoring system for remote and wireless monitoring.
* Large capacity storage, power failure protection.
* NIBP Cuff for Veterinary (Cat, Dog, Horse)
* Large character display, respiratory oxygen uptake chart, trend table data, and other multiple interfaces for users to choose from.
* Pulse oximetry technology designed specifically for animals, with adaptive adjustment of emission light and a wide measurement range.
* Electrocardiogran technology designed specifically for animals with ultra-high input impedance to adapt to different surface conditions of various animals.
* Anon-invasive blood pressure measurement technology specifically designed for animals, equipped with professional measurement accessories for animals of different body sizes.
* Optional parameters and accessories that natch the corresponding interface.
* The convenient and agile handle makes the entire device lighter and easier for medical staff to carry when going out.
* Standard configuration: ECG/RESP/SpO2/NIBP/TEMP/Lithium Battery
* Optional configuration: ETCO2/Dual IBP/Printer/Trolley/Brace/ Intelligent Patient Management System
Standard Configuration | 1. Main Unit 2. Veterinary SpO2 Sensor 3. 5-Lead ECG Cable 4. ECG electrodes (5pcs) 5. NIBP Cuff for Veterinary (Cat, Dog, Horse) 6. NIBP Extension Tube 7. TEMP Rectal Probe 8. Lithium Battery 9. Power Cord 10. User Manual 11. Packing List |
Technical Data |
|
Enclosure
| Weight: 6.8 kg(14.9lb), including 1 battery. Dimension: 180*365*390mm(W*H*D) (7.0in.*14.3x15.3)(W*H*D) Display Screen size: 17inch diagonal high-resolution Screen type: TFT (Thin Film Transistor) Active Matrix LCD Resolution: 1280*1024 pixels Alarms Categories: Patient status and system status Priorities: Low, medium, and high Notification: Audible and visual Setting: Full storage, low battery and sensor off Alarm volume level: 45 to 85 decibels Alarm system delay: < 10 seconds |
SpO2
| Measurement range: 0 to 100% Functional Saturation Accuracy: 70-100%, +2%; <70% unspecified Resolution: 1% Display wave speed: 10.00 mm/sec |
Pulse Rate | PR range: 20 to 350 bpm Accuracy: ±2bpm or ±2% (whichever is greater) Resolution: 1bpm |
ECG | HR range: 20 to 350 bpm Accuracy: ±2bpm or ±2% (whichever is greater) Resolution: 1bpm Leads: I, II, III, V, aVR, aVL, or aVF (5-lead) Display gain: X 1/4, X1/2, X1, X2, X4. Display sweep speed: 6.25, 12.5, 25, 50mm/sec |
NIBP | Method: Oscillometric with step-down deflation Measurement Range: 0-300mmHg Accuracy: Algorithm based on human algorithm that meets or exceeds accuracy requirements of ANSI / AAMI SP10:1992 and 2002 standards for non-invasive blood pressure using the oscillometric method. Measurement Time: 30 to 50 seconds typical, 120 seconds maximum AUTO Interval Times: 2, 3, 5, 10, or 30 minutes, or 1, 2 hours 20-260 (in 1 mmHg steps), and OFF |
RESP | Measurement range: 0 to 120 breaths per minute(rpm) Accuracy: ±1 rpm Resolution: 1rpm |
TEMP | Measurement range: 0 to 50°C/ 32 to 122 °F Accuracy: ±0.2°C plus the temperature sensor tolerance Resolution: 0.1°C |
ETCO2(Optional) | Mode: Sidestream or Mainstream Measurement Range: 0-150mmHg Accuracy: 0-40mmHg: ±2mmHg 41-150mmHg: ±10% of reading Resolution: 0.1mmHg Flow rate: 50ml/min ±10ml/min |
Electrical | Battery: Lithium battery with 4,400mAh will typically provide 8 hours of monitoring with no external communication, no audible alarm sound, and at an ambient temperature of 25°C Type: Lithium Battery, 4,400mAh, DC 11.1V Voltage: AC 100-240V, 50- 60Hz, SOVA |
Environmental | Transport and Storage Temperature: (-40~+75)°C (-40~+167)°F Operating Conditions Temperature: (0~+50)°C ( +32~+122)°F Altitude: -500 to 5,000m ( 1640 to 16404ft) Relative humidity: 15% to 95%x non condensing |
Configuration | Standard: Sp02+ ECG+NIBP+ RESP+ TEMP Optional: Sidestream/ Mainstream ETCO2 Module, Trolley, Brace, Central monitoring system, Recorder, Touch screen. |
Trend | Tabular Memory: Saves a total of 120 hours of data events; saves date and time, alarm conditions, measurements Tabular format: One table for all parameters |
