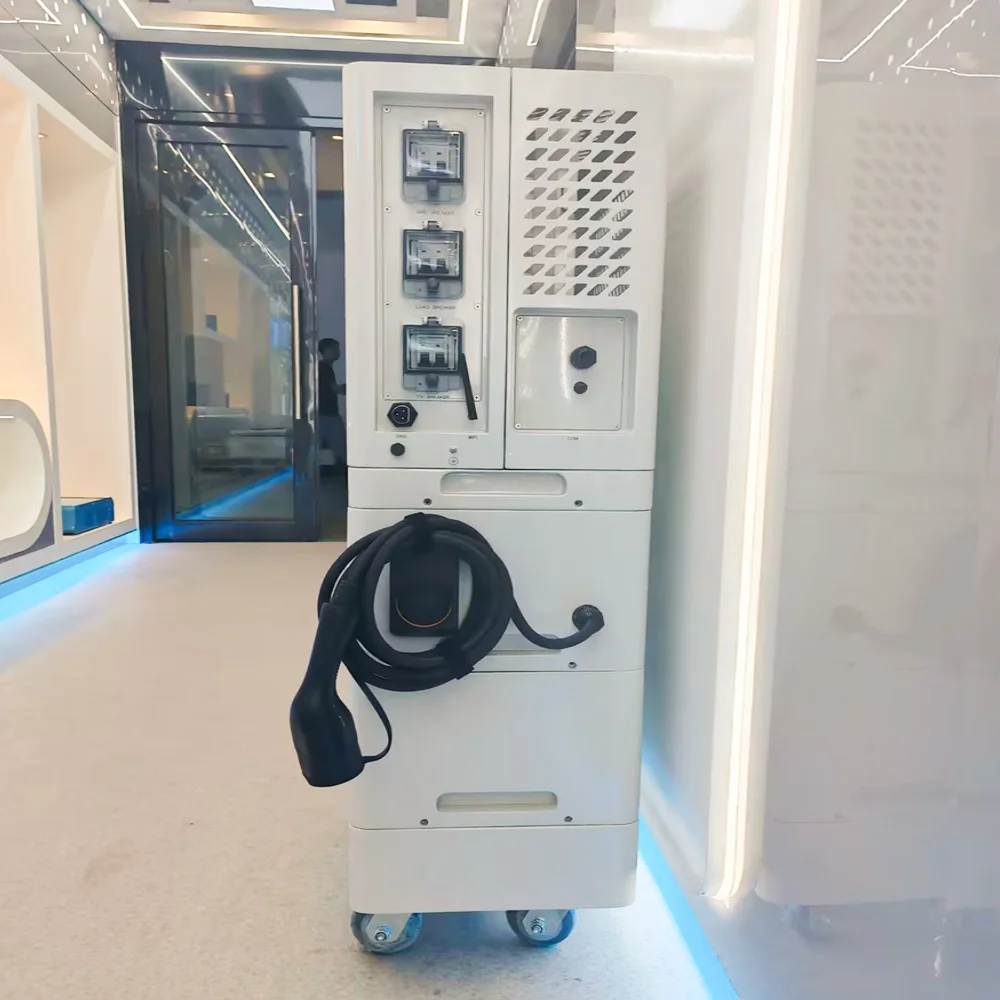

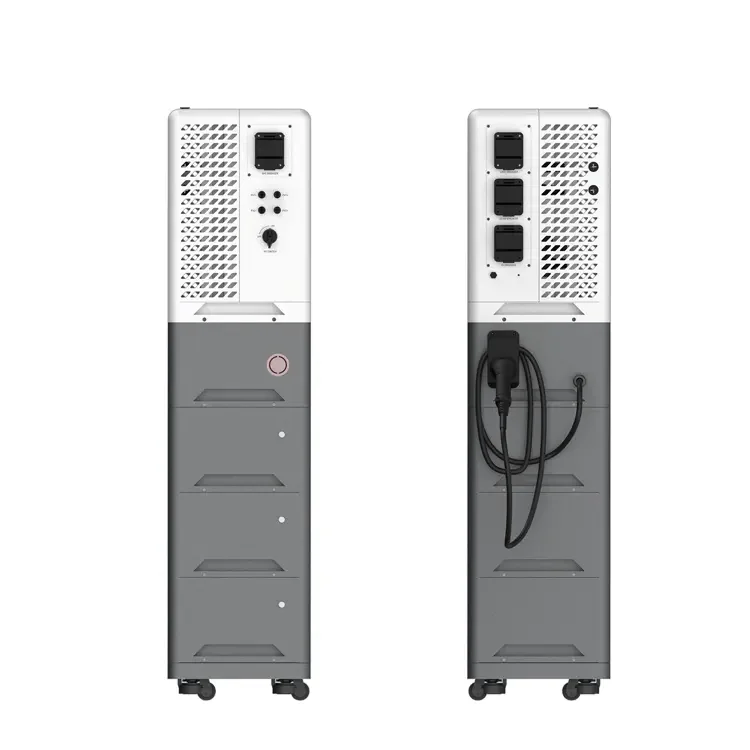

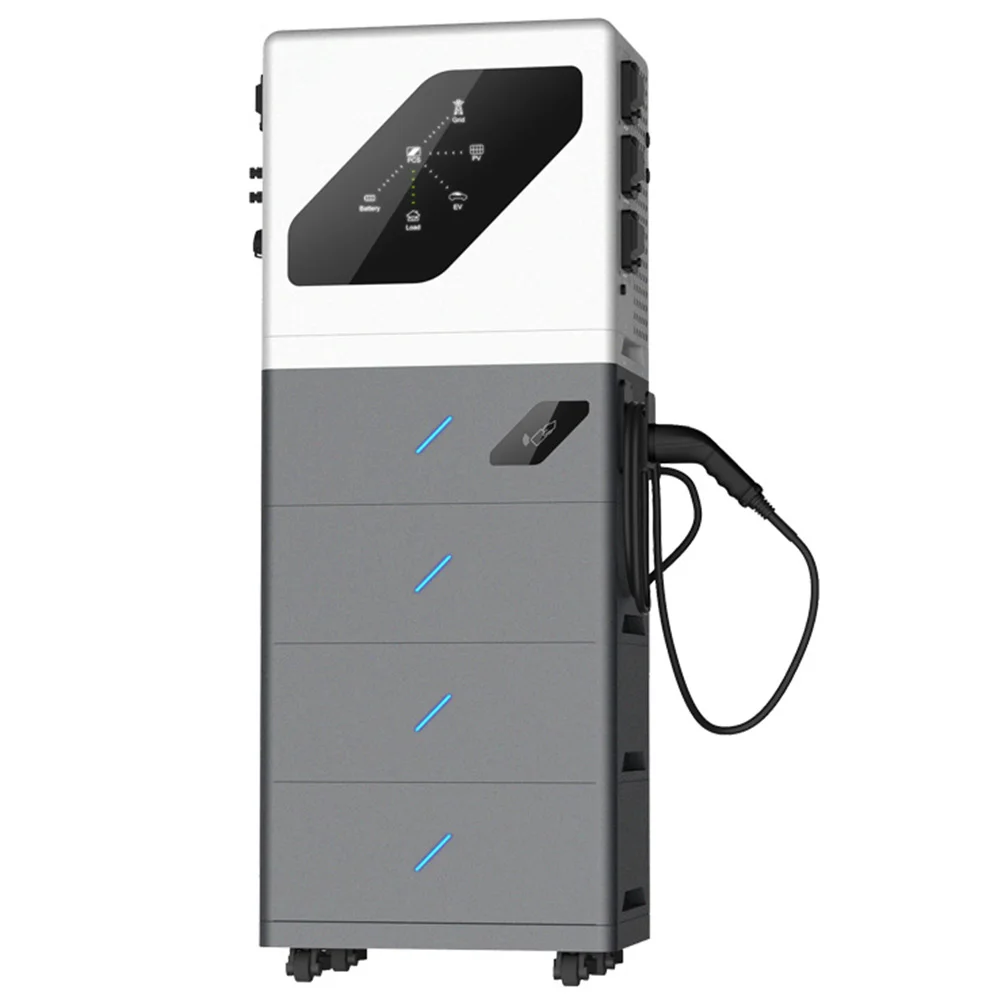

Derun 5Kw 8Kw Floor Mounted Ac Ev Charger Station One Guns Type Electric Car Charging Station With Ocpp Ev Charger With Pos
- Category: >>>
- Supplier: Derun Energy (shenzhen) Co. Ltd.
Share on (1601268614923):
Product Overview
Description
Product Description
If you need professional help or want product information, please>>>>>> click here
Derun 5KW-50KW EV charger with energy storage system. 98% Max. Efficiency, 5m AC charging cable output cable. Integrated EV charger and ESS batteries solar inverter, All-in-one design for home use.
Specification
If you need professional help or want product information, please>>>>>> click here
Multi-functions
EV charger | Connect the gun to the EV charging socket. Intelligent charging control! Based on a highly integrated charging control board, the EV charger integrates AC power supply, charging control, management, query and communication. That brings a much smaller pile with a simple and reliable layout. Simple wiring for easy operation. Good user experience. | ||||||
Energy Storage | Modular design for easy energy expansion! The system takes 1 ~ 6 pieces of stackable LiFePO4 batteries (In parallel) for energy storage. Capacity 5.12 kWh for a single battery. Capacity 15.36 kWh for three batteries. Capacity 30.72 kWh for six batteries. There is an LED light on each battery to display the battery status and remaining capacity. | ||||||
Hybrid solar inverter | As the brain of the systems, the inverter is a typical hybrid solar inverter (On-grid & Off-grid). Adopting advanced SPWM technology, it’s controlled by built-in DSP. By the advanced PCS algorithm, the inverter controls power transmission between the grid, PV, EV, load and battery. The LED lights can show different working status: Standby, Normal working, Warning, Error or Upgrade. | ||||||
Power distribution | With the technology of intelligent power distribution & power consumption, the 7kW Home EV Charging ESS is a micro-grid device. For EV charging piles, the technology is very important as it brings intelligent dispatching, optimizes charging strategies, improves charging efficiency and reduces grid load. | ||||||
If you need professional help or want product information, please>>>>>> click here
Technical Parameters / Model | DR5K/7K/5K~30K-XSLE | DR8K/11K/10K~50K-XSLE | ||||||||
Inverter Data | ||||||||||
AC Output Rated Power | 5KW 8KW | |||||||||
Max. PV Input Power(W) | 7000W | 11000W | ||||||||
PV Input Voltage Range(V) | 150～500 | 150～1000 | ||||||||
MPPT Operating Voltage Range(V) | 120～430 | 150～800 | ||||||||
Number of MPPT rackers | 2 | |||||||||
Number of Strings per MPPT | 1 | |||||||||
Max. Input Current per MPPT | 15A/15A | 18A/18A | ||||||||
Nominal Utility Grid Voltage(V) | 220/230/240 | 380/400 | ||||||||
Nominal Utility Grid Frequency(Hz) | 50/60 | |||||||||
Rated Power Output to Utility Grid(W) | 5000 | 8000 | ||||||||
Max. Apparent Power Output to Utility Grid(VA) | 5500 | 8800 | ||||||||
Back-up Rated Power(W) | 4500 | 7200 | ||||||||
Switch Time | <10ms | <15ms | ||||||||
Battery Data | ||||||||||
Battery Type | LiFePO4 | Lithium / Lead-Acid | ||||||||
Single Battery Energy(kWh) | 5.12 | 10 | ||||||||
No. of Expandable Batteries | 6 | |||||||||
Usable Energy Range(kWh) | 25.12～30.72 | 10.24～61.44 | ||||||||
Battery Voltage Range(V) | 41.6～58.5 | 41.6～58.5 | ||||||||
EV Charger Data | ||||||||||
Rated Power(W) | 7000 | 11000 | ||||||||
Nominal Voltage(V) | 220 / 230 / 240 | 380/400 | ||||||||
Nominal Frequency(Hz) | 50 / 60 | 99.9% | ||||||||
Operation Mode | Swipe card/APP control/Insert charger plug to start automatically Schedule appointment for charging | |||||||||
Output cable | 5mAC charging cable | |||||||||
Convention Efficiency | ||||||||||
Max. Efficiency | 98% | |||||||||
EU Efficiency | 97% | 97.5% | ||||||||
Max. Battery to AC Efficiency | 95% | 94.5% | ||||||||
MPPT Efficiency | 99.9% | |||||||||
System Data | ||||||||||
Operating Temperature Range (°C) | -25～55°C | -25～60°C | ||||||||
Relative Humidity | ≤95％（25℃) | ≤0-95% | ||||||||
Vibration | ＜0.5G | ＜0.5G | ||||||||
Noise | ＜35 dB | ＜25 dB | ||||||||
Installation Altitude above Sea Level | ＜2000m | ≤4000m | ||||||||
Protection Level | IP54 | IP66 | ||||||||
Cooling Mode | Natural Cooling | Air Cooling | ||||||||
Communication | RS485/CAN/WiFi | |||||||||

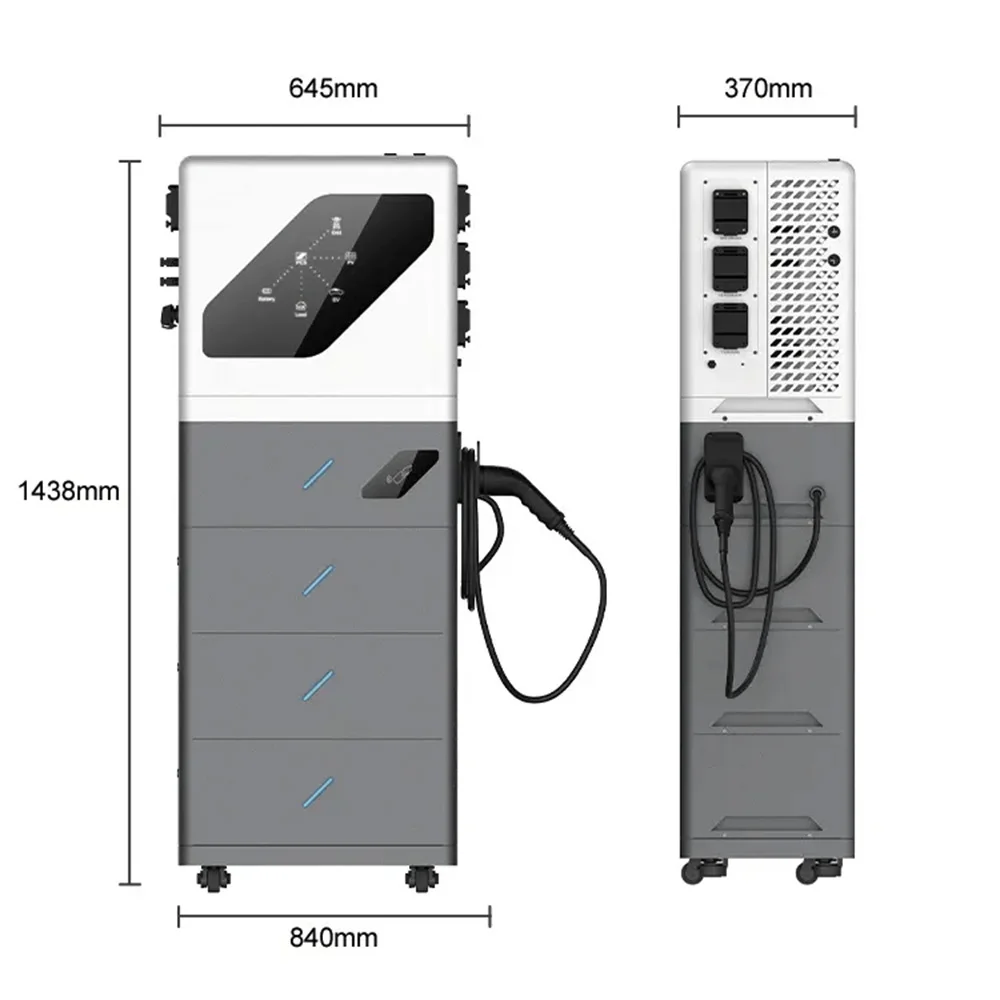

Inverter Dimensions (W ×H × D mm) | 645 x 557 x 370 | |||||||||
EV Charger Dimensions (W ×H × D mm) | 650 x 270 x 370 | |||||||||
Single Battery Dimensions(W ×H × D mm) | 585 x 270 x 370 | |||||||||
Base Dimensions (W ×H × D mm) | 680 x 110 x 378 | |||||||||

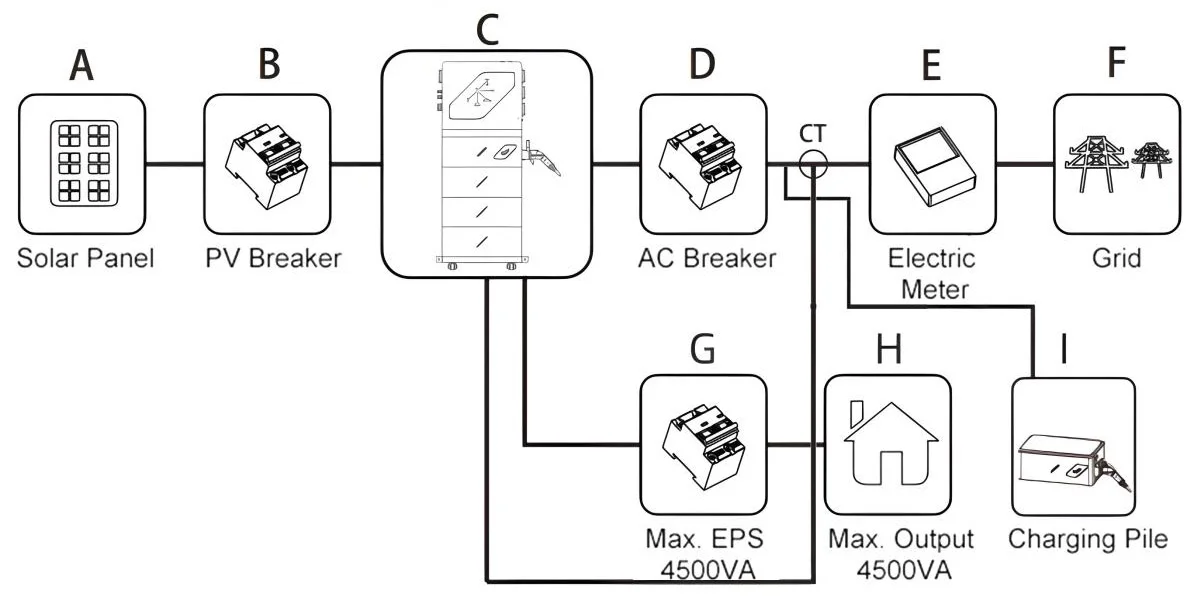

Working Mechanism of the Systems
The device is designed for building a compact bi-directional PV system with functions of EV charging, hybrid solar inverter, energy storage and power distribution. By the PCS algorithm, power generated by PV panels has the 1st priority to power the loads including charging an EV, the 2nd priority to re-charge the battery (if the power is in excess) and the 3rd priority to feed the grid (if the power is in excess).
When the loads can’t get sufficient power from the PV panels, they automatically obtain power from the batteries with sufficient power. When the battery power becomes insufficient, the loads will automatically turn to the grid for power supply.
Home EV Charging ESS
Certifications
Packing & Delivery
Company Profile

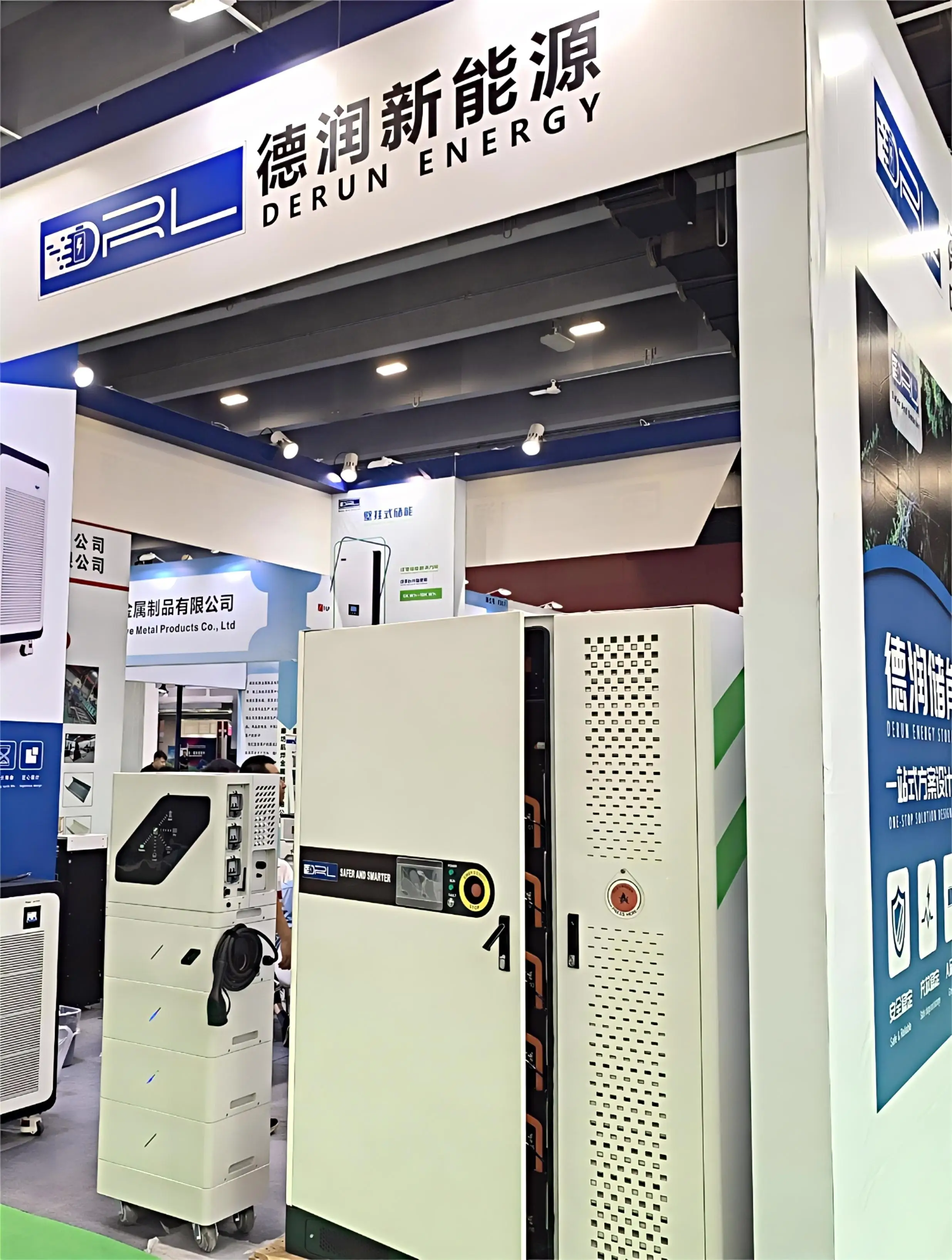

Exhibition
FAQ
Q1: Who is Derun and what do they specialize in?
A1: Derun is a manufacturer of LiFePO4 batteries. Established in 2010, the factory covers 10,000 square meters, near BYD, with an automated production line capable of producing up to 600 units per day. It is the only manufacturer with a dedicated high-temperature testing room.
Q2: Can I visit Derun's factory?
A2: Yes, you are welcome to visit our factory at any time. Free samples are available for quality testing. Large orders can follow the production line and track quality control throughout the process.
Q3: What type of cells does Derun use?
A3:All batteriesuse high-quality A-grade EVE cells with over 8,000 cycles and QR codes.
Q4: What brands of BMS protection boards does Derun use?
A4:We use high-quality BMS boards from well-known brands such as PACE and JBD.
Q5: Are Derun's batteries compatible with various inverters?
A5:Yes, our batteries are compatible with almost all brands of inverters, including SMA, VICTRON,PYLONTECH, DEYE, GROWATT, MEGAREVO, SOFAR, MUST, FELICTY, and more.
Q6: Does Derun offer OEM and ODM services?
A6:Yes, you can choose our standard products and customize them with your own brand logo as OEM, or customize according to your own standards as ODM.
Q7: What is the warranty policy of Derun?
A7: All batteries come with a 3-year full warranty and an optional 5-year or 10-year paid warranty.
Q8: How is the after-sales service of Derun?
A8: We offer worry-free after-sales service. If there is any quality issue with the battery, please return it for a replacement.
Q9: Does Derun have the necessary transportation certificates?
A9:Yes, we have complete transportation certificates including CE, MSDS, UN38.3, and sea shipping certificates, ensuring worry-free transportation by sea, air, land, and rail.
Q10: What are the main products offered by Derun?
A10:Our main products include wall-mounted batteries, stackable batteries, low-voltage cabinets, portable power stations, UPS systems, LiFePO4 batteries, and various residential and commercial energy storage and backup batteries.
