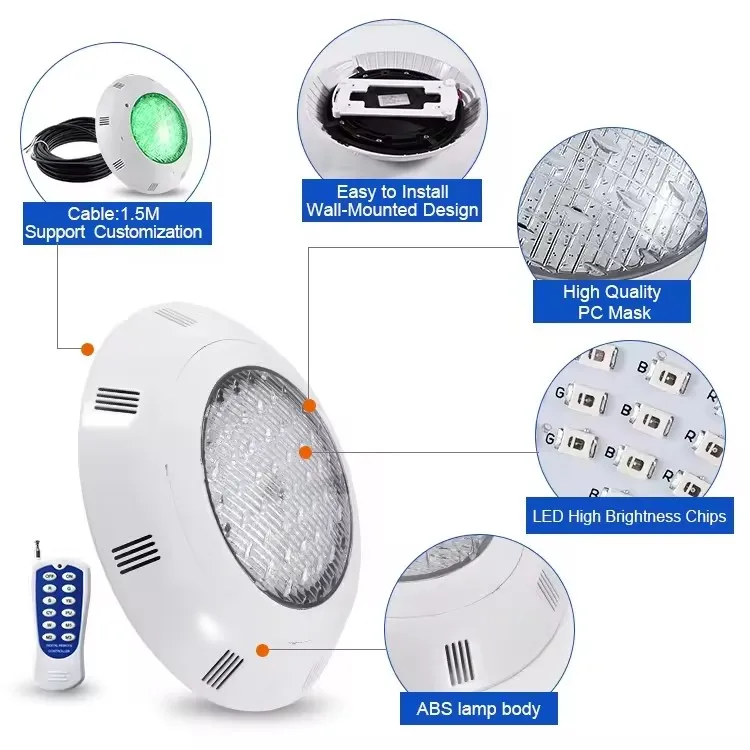

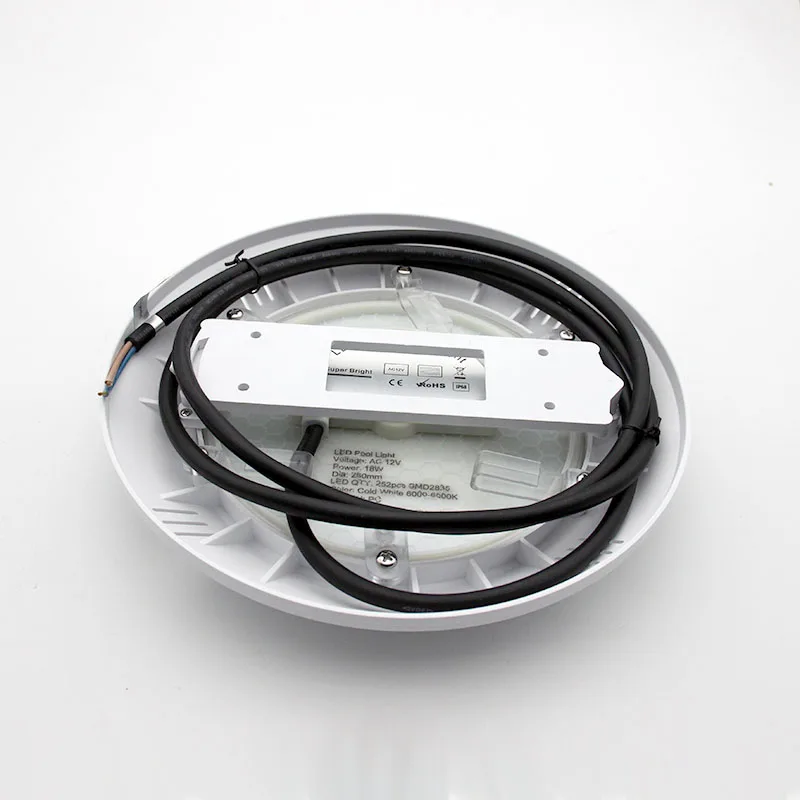

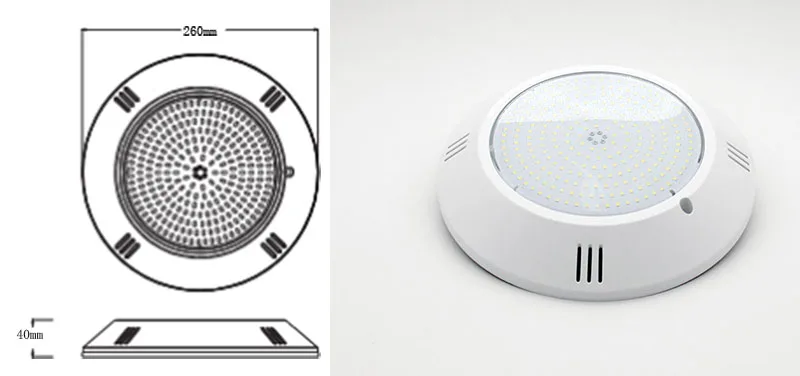

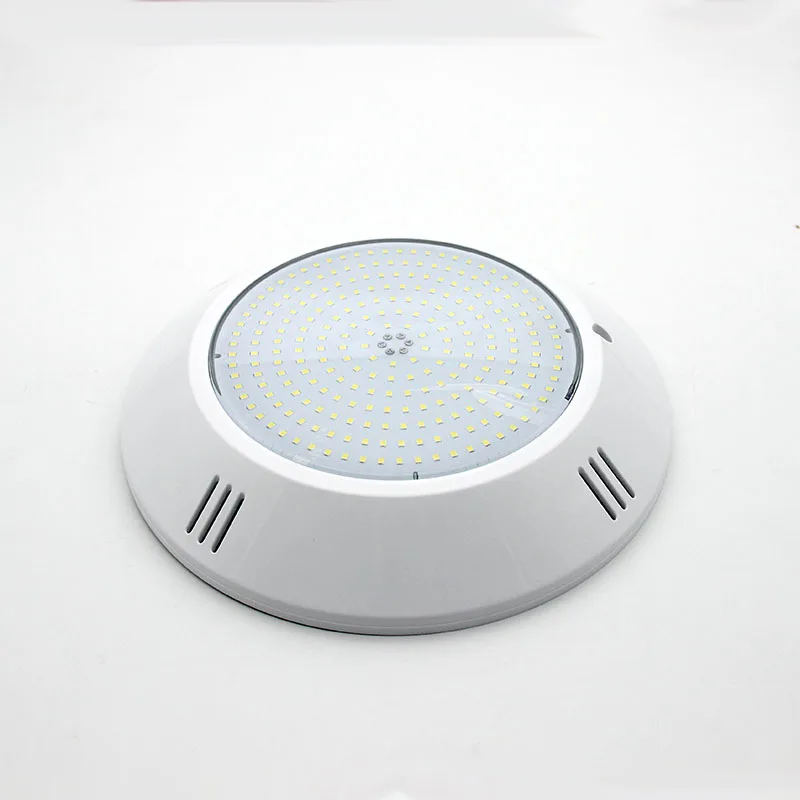

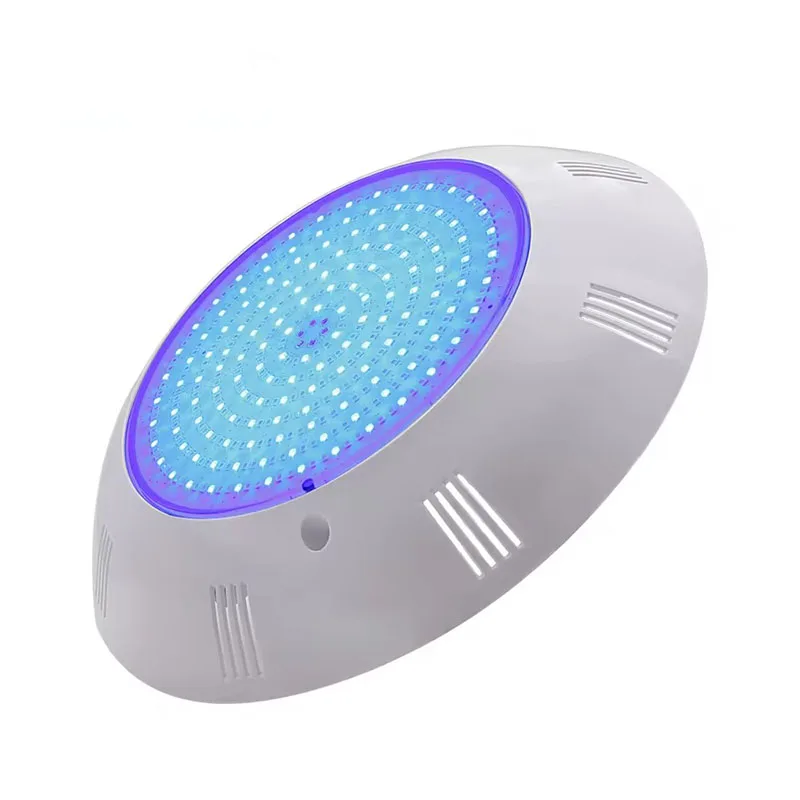

PC Flat Pool lamp 12V Wall Mounted 260mm led pool light resin RGB Remote Control 2 Wries LED Underwater swimming pool Light
- Category: >>>
- Supplier: Chongqing Xinyuanhui Optoelectronic Technology Co. Ltd.
Share on (1601268633940):
Product Overview
Description
PC Flat Pool lamp 12V Wall Mounted 260mm led pool light rensin RGB Remote Control 2 Wries LED Underwater swimming pool Light
Specification

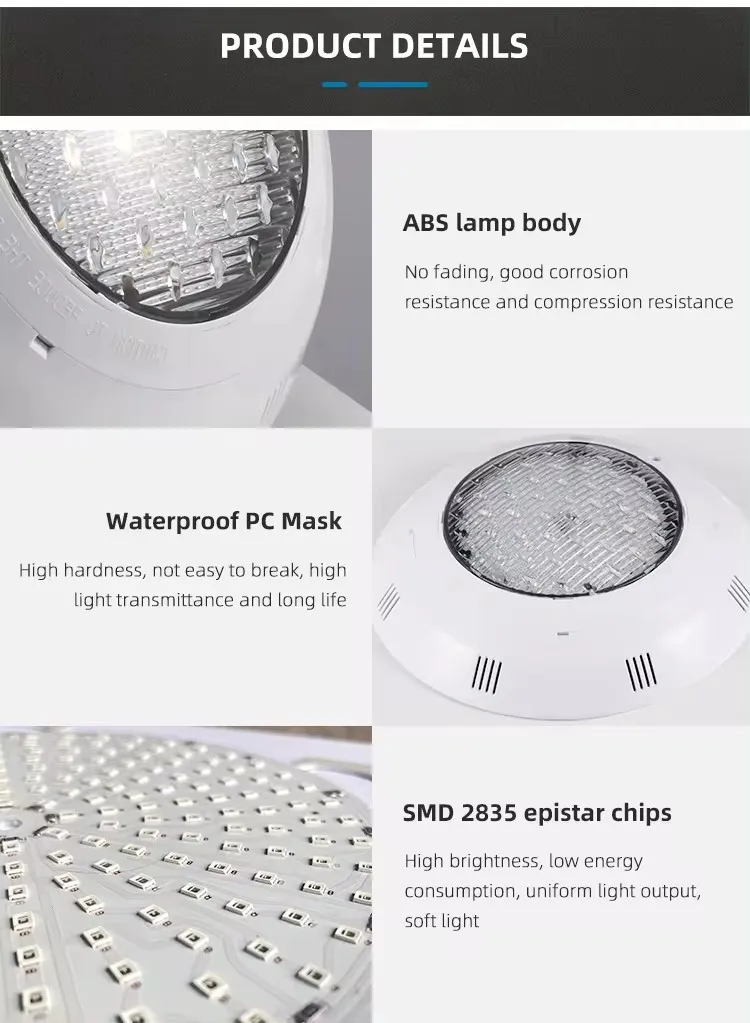

1.100%Resin Filled -100% Waterproof
2.The LED's are driven by constant current driver which allows more stability
3.Super brightness SMD2835 LEDs, we use Edison Brand LED Chip
4.Easy Installation- Just fix two screws on the wall
5.The most reasonable arrangement of LED enhance the brightness of the pool lights
6.Transparent resin protect the LED lamp from water ,at the same time , enhances the brightness of the LED
Material | Resin filling/ABS Plastic | Amount | Led power | Voltage | Light angle | Weight | |||||
LED Type | 252pcs SMD2835 for 18Watt 324pcs SMD2835 for 24Watt | 9 | 1W | 12v | 10,30, 60,90 | 2.5kg | |||||
Input voltage | AC 12V | 12 | 1W | 12v | 10,30, 60,90 | 2.5kg | |||||
Power | 18Watt/24Watt/35Watt/42Watt | ||||||||||
Light angle | 100-120° | ||||||||||

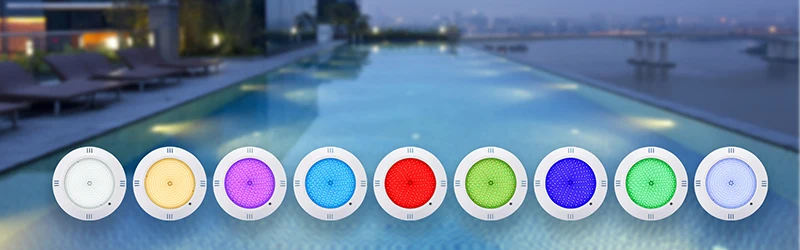

LED Colour | Cool White/Warm White/Green/Blue/RGB/RGBW | ||||||||||
Illumination | 2200Lm18Watt for (Cool White) 2100Lm18Watt for (Warm White) 2500Lm24Watt for(Cool White) 2400Lm24Watt for (Warm White) 3400Lm35Watt for(Cool White) 3300Lm35Watt for (Warm White) 4100Lm42Watt for(Cool White) 4000Lm42Watt for (Warm White) | ||||||||||
LED Color rendering index | Ra≥80 | ||||||||||
Protection class | IP68/CE/ROHS | ||||||||||
Product Warranty | 2 years | ||||||||||

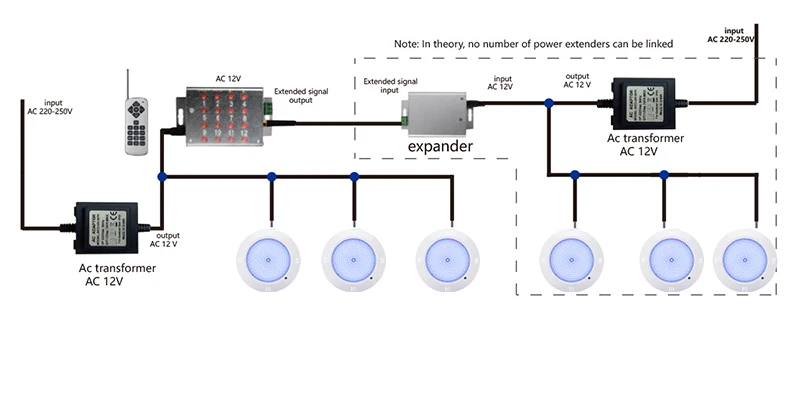

Control Type | 1. DC 12V -- 4-pin cable RGB or 5-pin cable RGBW needs to be connected to an external controller for control. 2. AC 12V -- 2-pin cable RGB or RGBW has 15 preset color change modes, which can be controlled by power on / off or 18 key wireless remote | ||||||||||
Environment | Concrete swimming pools | ||||||||||
Working ambient temperature | -20°~40° | ||||||||||

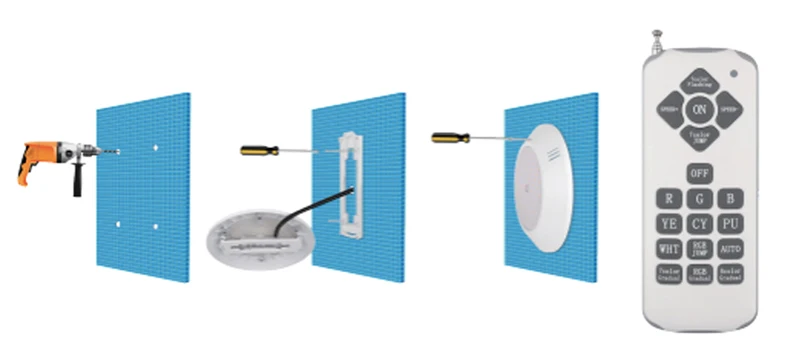

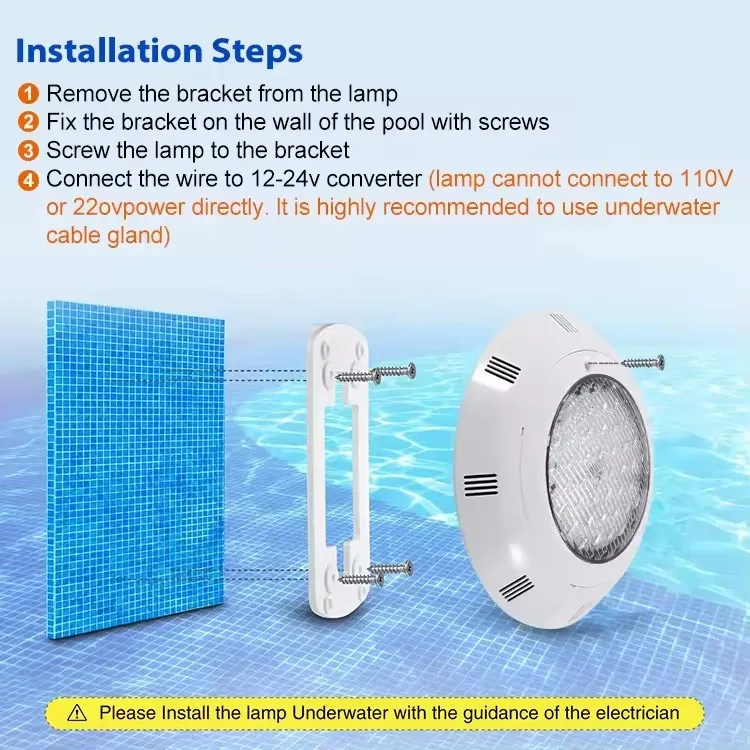

Installation Instructions
1. Remove the bracket from theLight
2. Fix the bracket to the cement wallwith screws
3. Fix the lamp to the bracket withscrews
4. Connect the wires to the 12V converter (the lamp cannot be directly connectedto a110V or 220V power supply), and it is strongly
recommended to use awaterprooftransformer or junction box
5. Suggested installation depth is 50 cm.
2. Fix the bracket to the cement wallwith screws
3. Fix the lamp to the bracket withscrews
4. Connect the wires to the 12V converter (the lamp cannot be directly connectedto a110V or 220V power supply), and it is strongly
recommended to use awaterprooftransformer or junction box
5. Suggested installation depth is 50 cm.

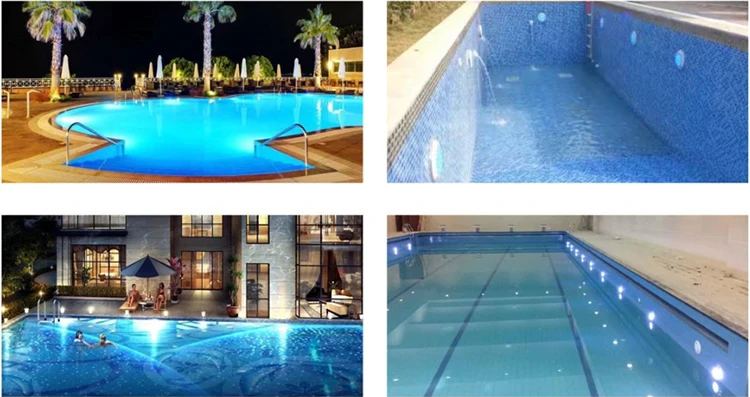

Applications
Our swiiming pool light are used in many kinds of landscapes,such as, outdoor,underwater,pool,fountain, swimming pool,pond,fish pond,ground,square,lawn,and other project lighting.Which could brighten the enviroment, beautify the environment and make our life happier.
Our products are used worldwide in many feature projects including Beijing Gold Water River Briges Fountain,Russia Chechen Musical Fountain, Maylasia Johor Bahru Musical fountain,etc.
Certifications
We passed ISO9001 CE,rohs,ip68 waterproof, you can choose us safely.
Company Information
ChongQing Xin Yuan Hui Optoelectric Technology co.,ltd is located in Chongqing GangCheng industrial district. The factory is professional in Led underwater lights,underground lights,landscape lights,fountain light, pool lights,swimming pool lights,wall lights, flood light etc.for more than 15 years. In the past 3 years, the company had sucessfuly obtained 80 national professional authorizations.We also provide MTO (make to order) services to under water lights for your special needs. Our underwater serie products are widely used in DMX512 professional fountain feature system. We supplied products to customers throughtout the world from 31 cities and have gained reputation for quality, relibility, flexibility and safety. Welcome to choose us!
1. Our factory can customize different products according to your special requirements. We can provide the perfect customization for you.
2.We will reply all your inquires in details within 24 hours,and the reliable after-sale service and patience will make you feel satisfied and pleasant.
Packing & Delivery
1.OEM service offered.
2.Normally,within 7 days,upon receipt of the deposit.
3.We will supply enough led lights for each project.
4.24 hours service is always available,your package will be protected and shipped very carefully.And during the shipping,we will track the products for you once every two days,until you get products and test them.If you meet any problems,contact us,we will provide solutions for you.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, of course, we have a factory, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx TNT etc. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you accept customization for my products?
A: Yes, our factory have ability to customize according to you requests, welcome to tell us your special requires.
