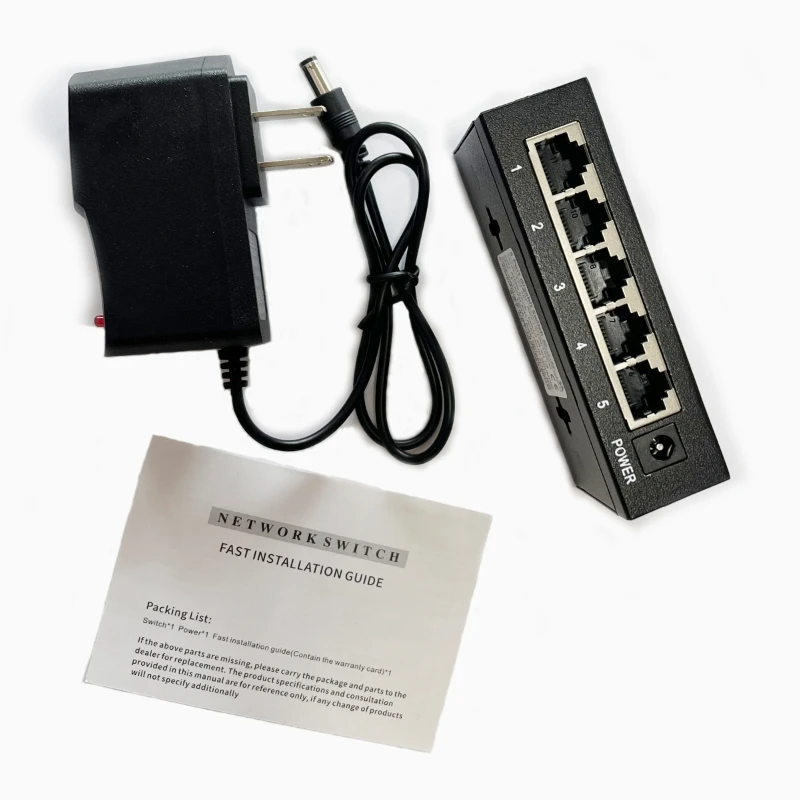

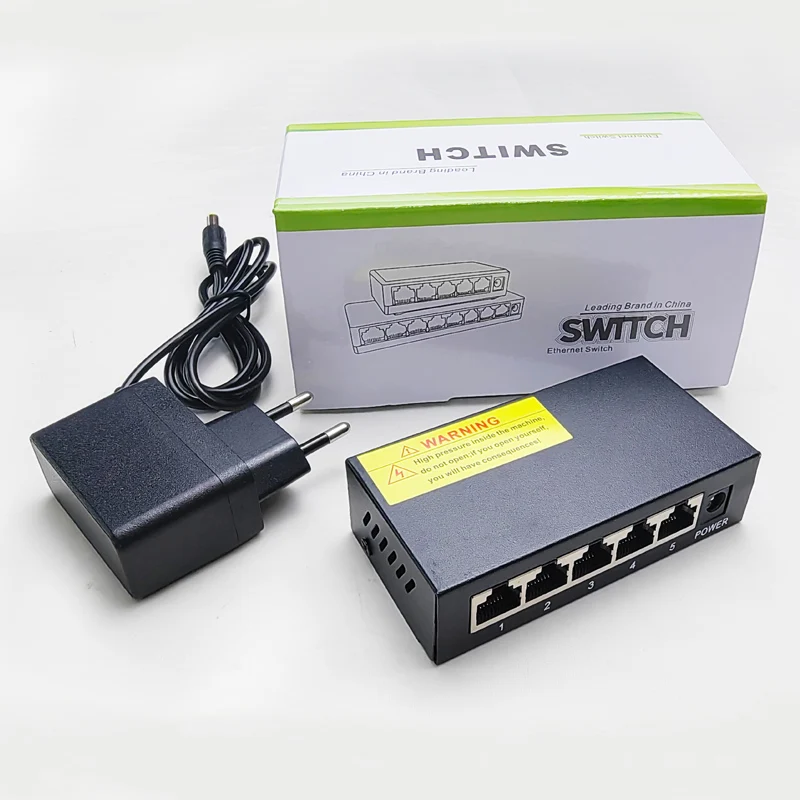

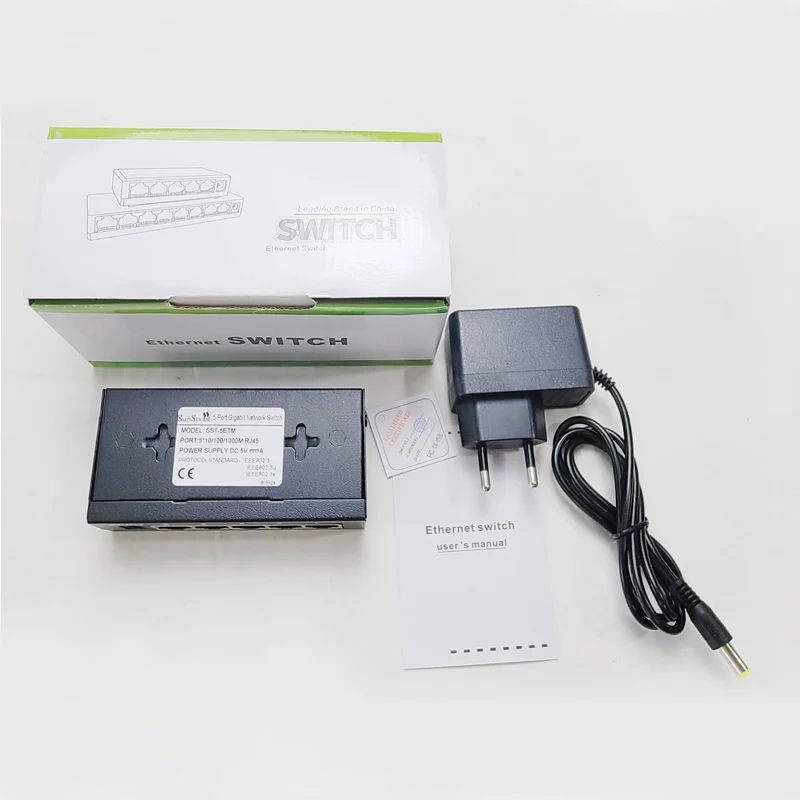

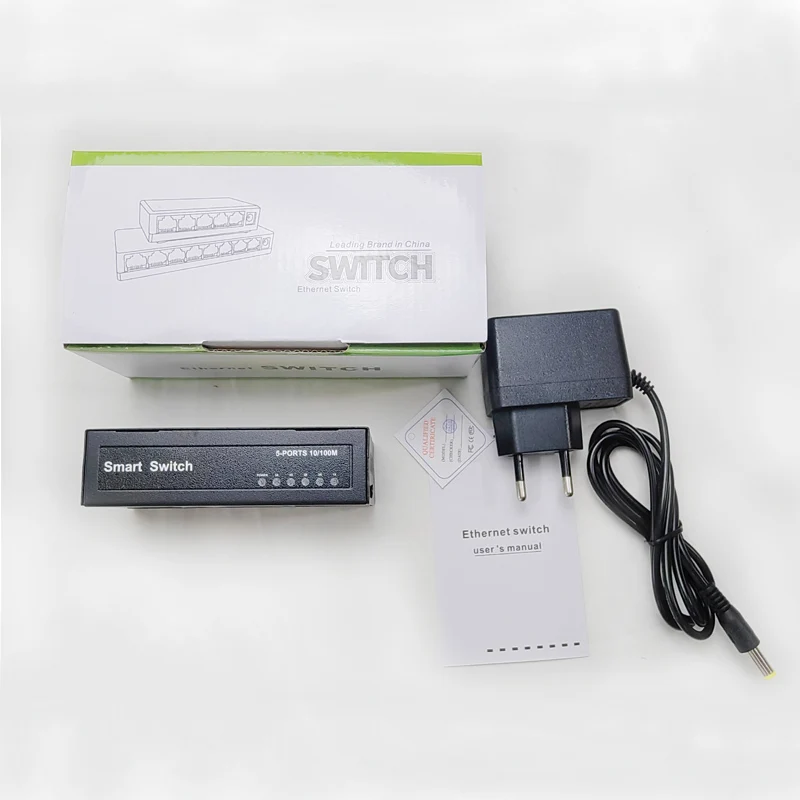

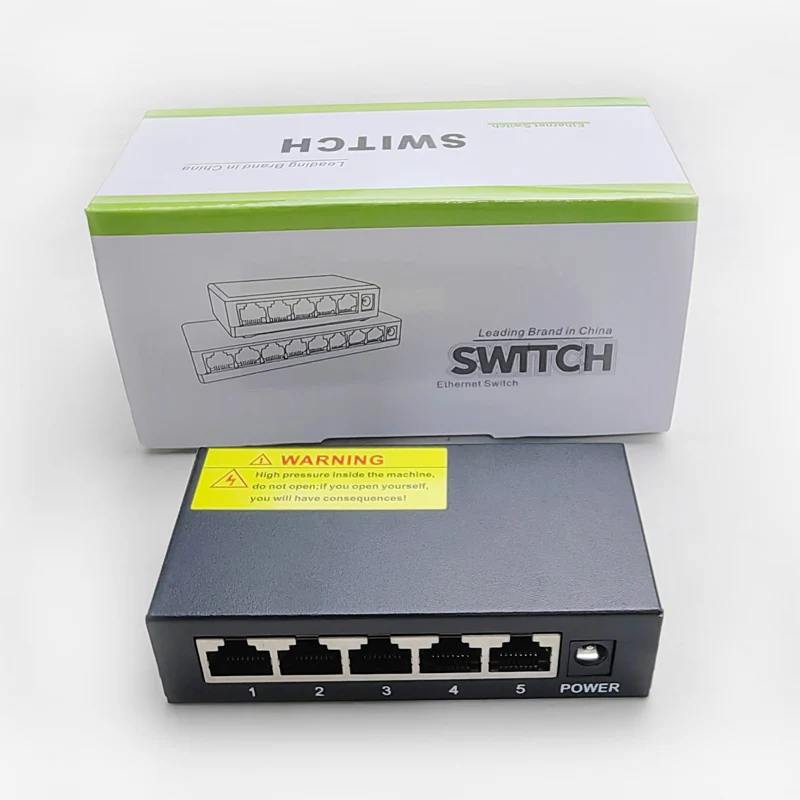

gigabit network switch 5 port Gigabit splitter/ethernet network switch with metal shell
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601268654142):
Product Overview
Description
Product Description
Factory price metal case 5 port ethernet network switch 1000mbps
Sunsoont SST-5ETM Ethernet network switch series unmanaged switches are full gigabit switches which are specially designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 5 10/100/1000Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 1000Mbps. There is lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required, it will instantly operate as soon as you power it up.
Feature
5*10/100/1000M Ethernet ports with auto-negotiation function;
Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function;
Each port has the complete LED Indicator light;
Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot;
Support IEEE802.1d Spanning Tree;
Each port supports wire-speed switching, 64~1518 frame length can reach the wire speed;
Support 9216bytes Jumbo packet;
Internal 4K MAC Address Entities;
Support high performance QoS function on each port;
Support multicast to avoid network congestion;
Support 5-16V voltage input;
Support 4KV port lightning protection;
VLAN DIP effectively solve the network congestion and lagging caused by broadcast storm;

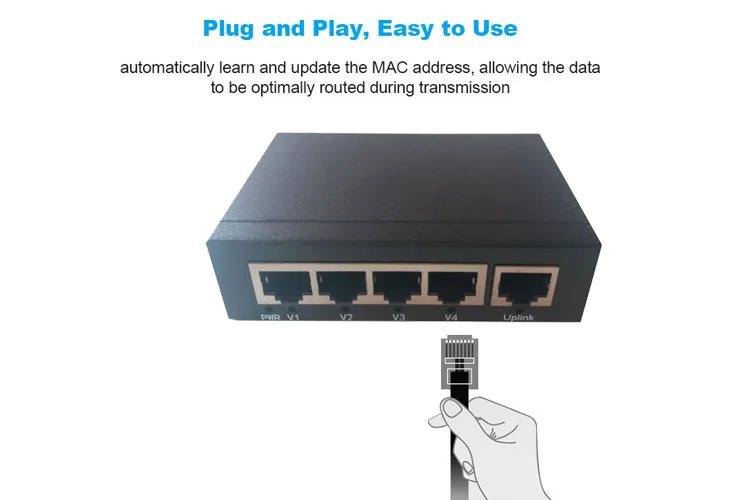

Require no configuration and will instantly operate as soon as you power it up;
Use low-power consumption chips, only 2.0W in full load conditions.
Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function;
Each port has the complete LED Indicator light;
Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot;
Support IEEE802.1d Spanning Tree;
Each port supports wire-speed switching, 64~1518 frame length can reach the wire speed;
Support 9216bytes Jumbo packet;
Internal 4K MAC Address Entities;
Support high performance QoS function on each port;
Support multicast to avoid network congestion;
Support 5-16V voltage input;
Support 4KV port lightning protection;
VLAN DIP effectively solve the network congestion and lagging caused by broadcast storm;
Require no configuration and will instantly operate as soon as you power it up;
Use low-power consumption chips, only 2.0W in full load conditions.
Details Images
Specification
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x Flow control | IEEE802.3q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree | |
Certifications | CCC, CE, FCC, RoHS | ||
Ethernet Port | Ø Connector: RJ45 Ø Data Rate: 10/100/1000M Ø Distance: 100m Ø UTP Type: UTP-5E or higher level | ||
Performance | Ø Processing Type: Store and Forward Ø Transmission Mode: half/full-duplex with auto-negotiation function Ø MAC Table Size: 1K Ø Buffer Space: 448K Ø Back bandwidth: 10G Ø Time Delay:＜150μs | ||
Power | Ø Power Type: external power supply Ø Input Voltage: AC100V～240V 50/60Hz Ø Connector: DC Socket Ø Working Voltage: 5-16V Ø Power Consumption: 1W～2W | ||
Environment | Ø Storage Temperature: -40～70℃ Ø Operating Temperature: -10～55℃ Ø Relative Humidity: 5-90% ( no condensation) | ||
Warranty | 3 year | ||
Physical Characteristics | Ø Dimension: 87.6×79.2×26mm Ø Weight: 0.20kg Ø Color: Metal, Blue/Black | ||
