2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply
2kva intelligent UPS ups backup power for homes emergency backup power supply

2kva intelligent UPS ups backup power for homes emergency backup power supply

Share on (1601268711271):


Price:$64.27 - $71.83

Quantity:


Product Overview

Description





VR


Product Description


Product Feature:
1. Wide applicable voltage range 2. Wide voltage stabilization range 3. Overload protection 4..Short circuit protection
5. Small current switch
6.Wide applicable voltage range




Specification


Output
Rated output power
1200W
Adaptability of power supply
Input voltage (AC mode)
175Vac-275Vac(±5Vac)
Output voltage (AC mode)
202Vac-242Vac
Output voltage (battery mode)
210Vac~235Vac（No load, effective value）
Output frequency (AC mode)
The Frequency is same as AC
Output frequency (battery mode)
50/60Hz±0.5Hz
Backup time
≥4min / 600W
Efficiency of power
Mains power mode≧90% （@220VAC±10% Fully loaded）
Battery mode≧70% （Load 600W）
Transfer time
From DC to AC ≤ 10ms
From AC to DC ≤ 10ms
Output waveform (battery mode)
DC mode:PWM（square wave）
Protection
Overload
Overload warning point
1300W±100W
Overload protection point
1300W±100W
Low voltage
Low voltage disconnect
175Vac±5Vac
Low voltage reconnect
185Vac±5Vac
High voltage
High voltage disconnect
275Vac±5Vac
High voltage reconnect
265Vac±5Vac
Stage 1
Enter stage 1 point of Regulator
/
Exit stage 1 point of Regulator
/
Stage 2
Enter stage 2 point of Regulator
202Vac±5Vac
Exit stage 2 point of Regulator
209Vac±5Vac
Stage 3
Enter stage 3point of Regulator
242Vac±5Vac
Exit stage 3 point of Regulator
235Vac±5Vac
Low battery
Low battery warning point
22V±0.4V
Low battery protection point
20 V±0.4V
Synchronism/phase-shifting
Synchronism
Surge/short circuit
Protection
Charging voltage
27.4V±0.4V
Automatic re-starts when AC recovers
YES
Communication&Management
Communication function
USB
On-load indication function
Sound alarm prompt + indicator light prompt
Operation condition indication function
as below
Silence setup
Yes
Battery
Self discharge
When the machine is off, discharging current (I) of the battery, I≤30uA
Battery voltage
Lead-Acid maintenance 12V/9AH*2PCS
Battery charging time
10-16hours
Physical
Product Net Weight
14KG
Product Size
345*122*192mm
Noise (1 meter horizontal distance)
≦55dB
Usage environment
Temperature
Use ambient temperature 0℃～40℃；Storage ambient temperature -10℃～50℃；
Humidity
Use relative humidity 30%～90%；Storage relative humidity 20%～95%；
Atmospheric pressure
Use atmospheric pressure 86kPa～106kPa；Store atmospheric pressure 75kPa～120kPa；
Altitude
Below 2000 meters above sea level
Implementation standards
GB/T 14715－2017 General specification for uninterruptible power supplies for information technology equipment
Note: Product technical requirements may change with customer requirements. If there is any discrepancy between the actual
products, the samples agreed or determined by both parties shall prevail.

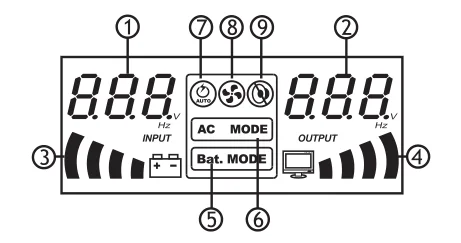

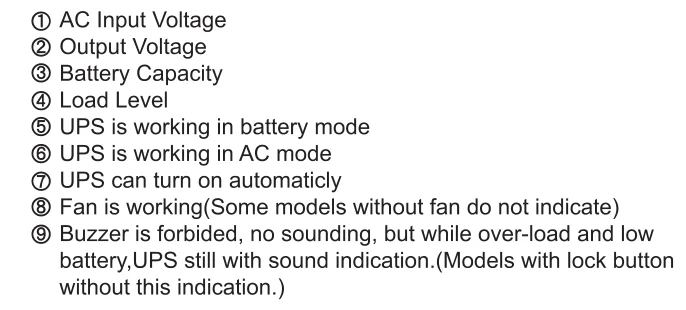

Operation condition indication function






Packing & Delivery

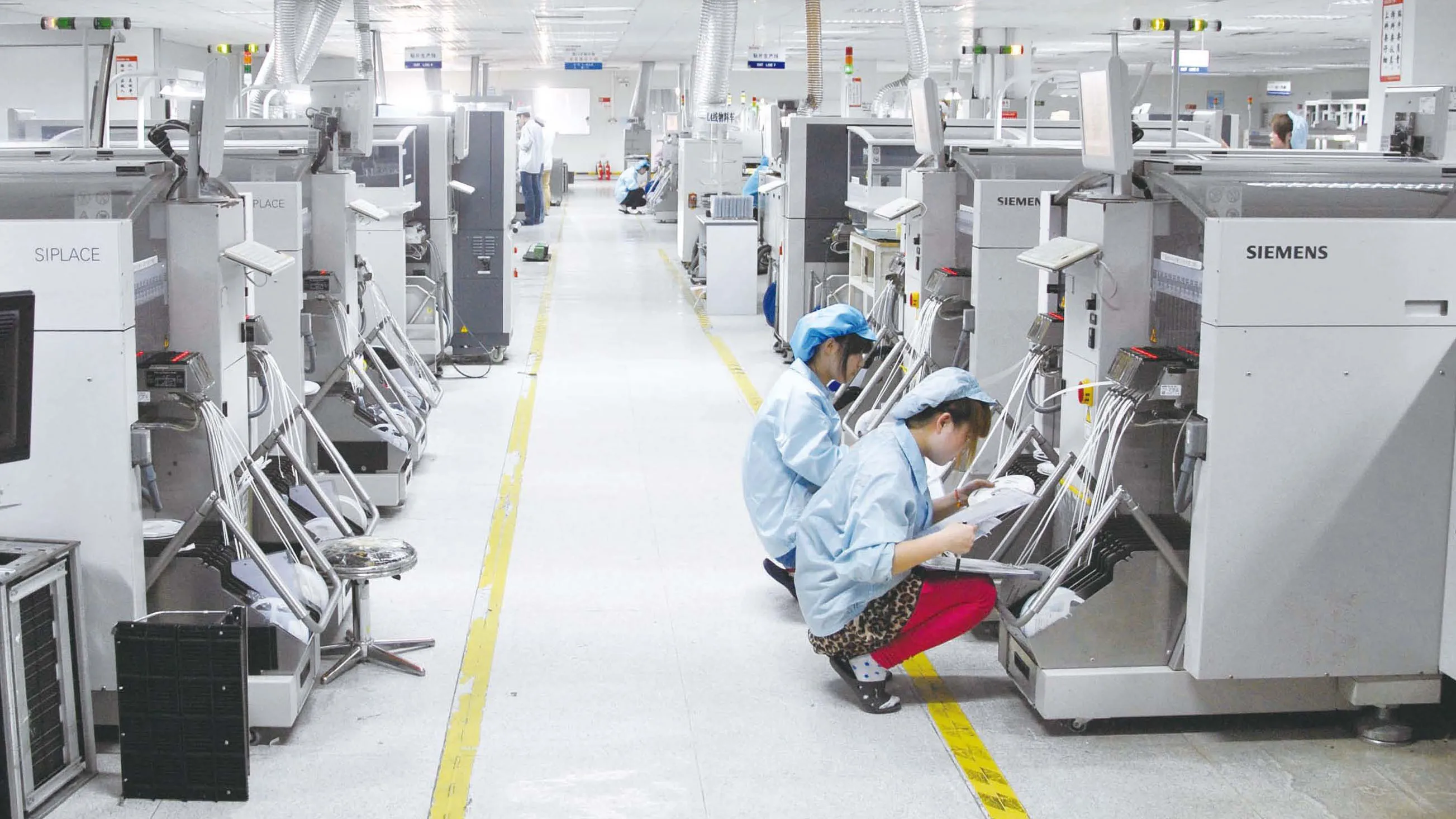

Company Profile






FAQ


1. Who are we?
We are based in Guangdong, China, start from 2013.There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Power Supply, Power Adapter, POE Switch, Monitor, UPS

4. Why should you buy from us not from other suppliers?
21 years of experience in manufacturing electronic products, strong R & D capability, OEM, ODM, stable quality, good after-sales service and support CKD, SKD mode.

5. What's your payment term?
Normally, T/T: 30% advance before production, 70% balance before delivery;
For small amount, Western Union/Paypal/Moneygram are acceptable;
For order with large amount, Irrevocable L/C is acceptable.

6. What's MOQ?
Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please contact with our sales for inventory status.

7. What's the lead time for order?
20-25 days

8. Is sample free? How many days does it take for sample?
Yes, sample is free, but you should bear shipping freight by yourself;
Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.

9. What kind of certificate do you have for your product?
TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver; CE & RoHS for power supply.

10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
