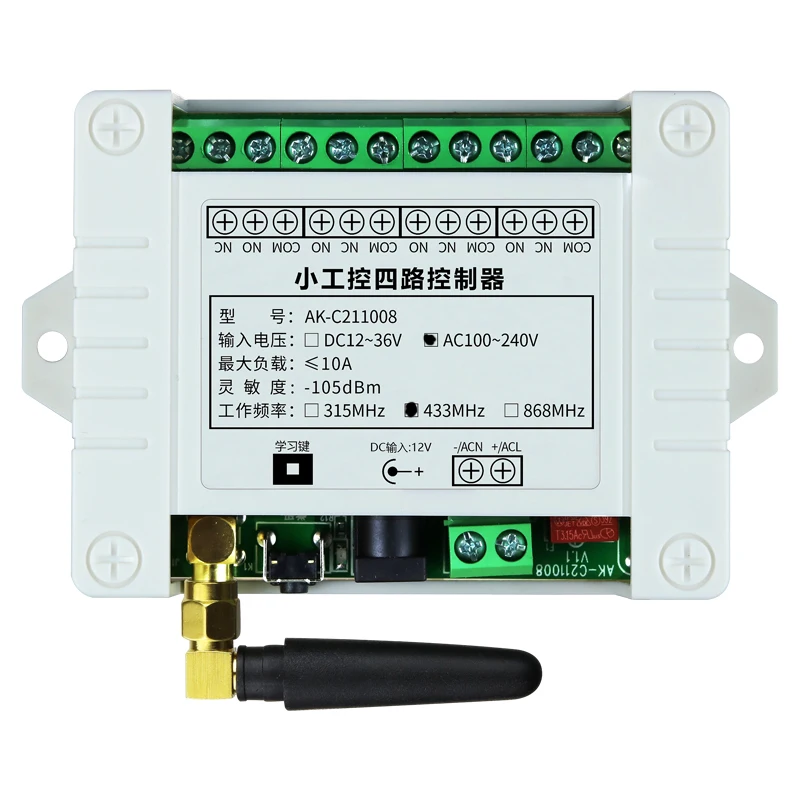

4 Channel 315/433Mhz Universal Remote Control Wireless For Smart Home Security Monitoring

Share on (1601268757461):


Price:$4.00 - $4.90

Quantity:


Product Overview

Description
































































Product Name


 Remote Control


Model


AK-C211008


Frequency


315/433.92MHz (Other Customizable)


Working Voltage


DC12-36V

  Working Mode
Inching/Self-Locking/Interlocking

  Working Current ≤10A
  Standby Current
≤1mA


Sensitivity


 ≥-105dBm



Modulation Mode


ASK


Working Temperature


-20-70℃


Size


95*62*28mm


Load. Current


Single Current≤10A


Weight


105g


Application Field


Electric Door And Window Control, Lifting Equipment Control, Led Light Control, Elevator Control, Industrial Control, Security Equipment Control,etc.

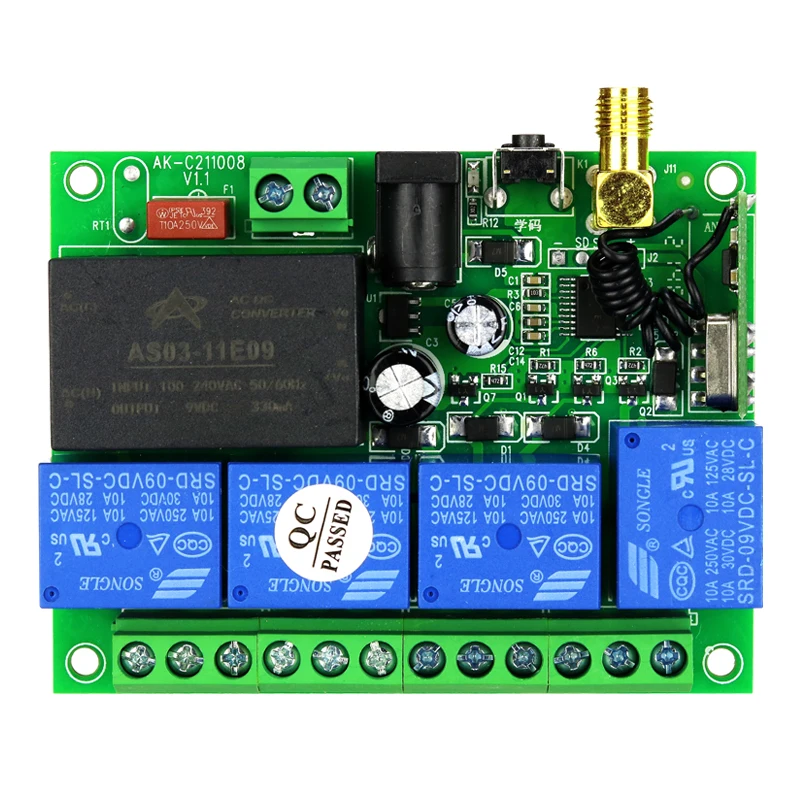

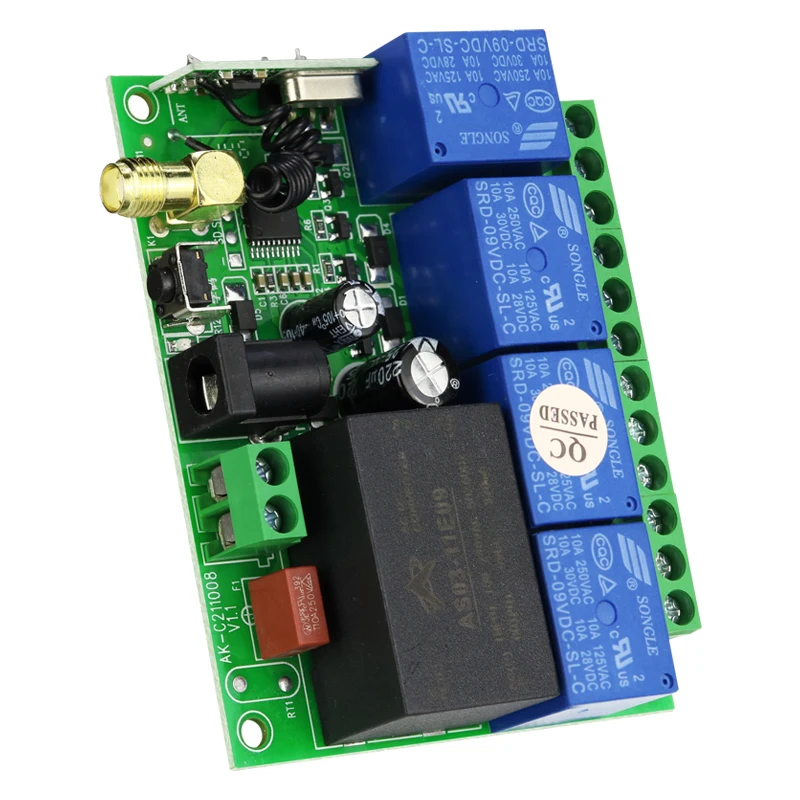

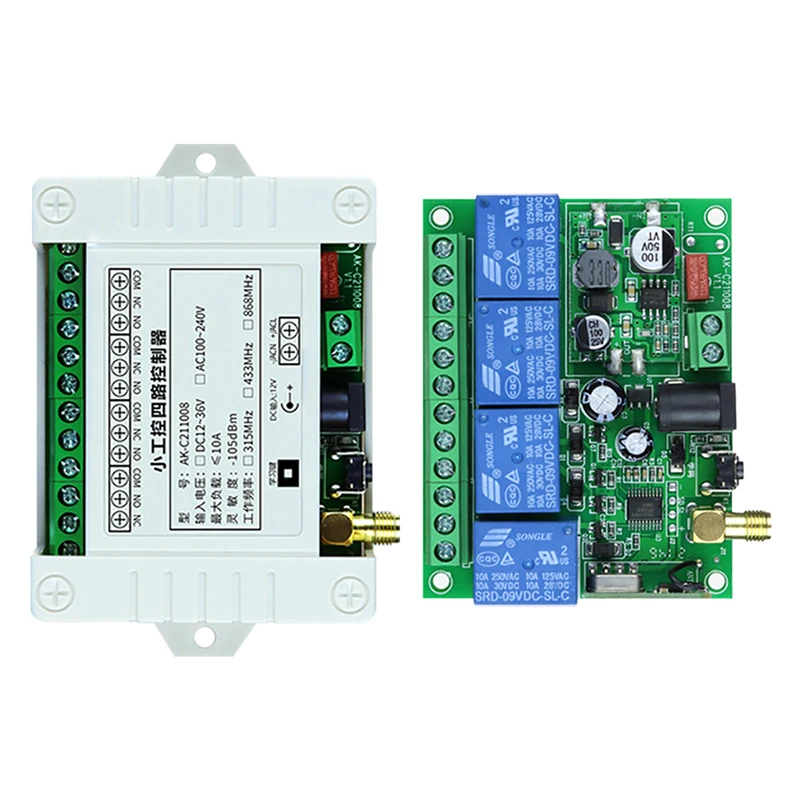

Details Images

Details Images46932285.jpg49129916.jpg49129917.jpg49129918.jpg



























Suitable for remote control matching and copying of electric door remote control, retractable door remote control, garage door remote control, motor control remote control, curtain control remote control, LED light remote control, automobile and motorcycle remote control, industrial equipment remote control, etc.







Operation and use

Operation and use




Copy Method




1. Code Clearing Method: Press and hold the lock/unlock buttons at the same time until the LED indicator flashes 3 times and then release the unlock button (press the lock button all the time), press the unlock button 3 times and the indicator light will not stop Flashes, it means that the code clearing is successful. 2. Duplicate Operation: After the code is cleared, put the old remote control and the copy remote control close together, press and hold the button to be copied and any button of the remote control at the same time, until the indicator light on the copy remote control flashes After 5 times, it keeps on, indicating that the copy is successful. (If the copy is unsuccessful, please follow the above method carefully again. In order to ensure the success rate of the copy, please keep the old remote control and the copy remote control away from too far when copying. Together.) 3. Code Recovery: After clearing the code, before copying the new data, you can recover the last used data through the following operations. When pressing the two buttons on the remote control at the same time, wait for three seconds to see that the LED indicator flashes continuously and the data recovery function is completed, which means that all the buttons are restored to store data.
