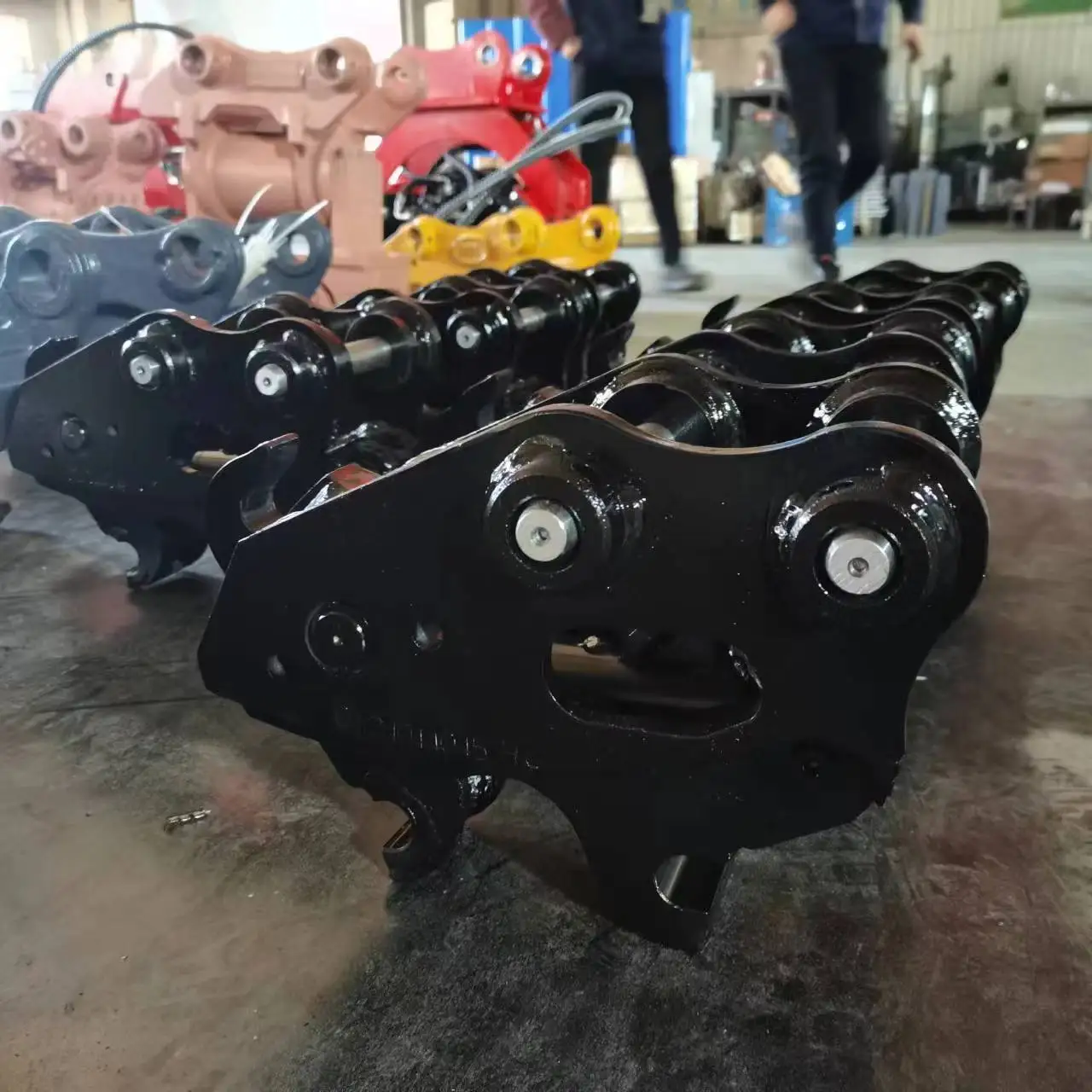

Construction Machinery Attachments Mini Excavator Parts Hydraulic Quick Hitch for 1 4ton excavator
- Category: >>>
- Supplier: Yantai Donghong Construction Machinery Co. Ltd.
Share on (1601268762989):
Product Overview
Description
Professional Excavator Quick Hitch Manufacturer
DHG is a factory specializing in the manufacture of excavator attachments.
The products are made of Q355, safe, stable and reliable, high strength and light weight.
Just tell me the excavator model and your requirements. I will give you the suitable solution.
Mechanical Quick Coupler
Hydraulic Quick Coupler
Tilting Quick Coupler
Rotating Quick Coupler
Double Safety Lock Quick Coupler
Quick Coupler Model
DHG-mini
Suitable for 1-4 ton excavators
DHG-02
Suitable for 5-6 ton excavators
DHG-04
Suitable for 7-9 ton excavators
DHG-06
Suitable for 10-17 ton excavators
DHG-08
Suitable for 18-24 ton excavators
DHG-10
Suitable for 25-32 ton excavators
DHG-17
Suitable for 33-45 ton excavators
DHG-20
Suitable for 46-50 ton excavators
Model | DHG-mini | DHG-02 | DHG-04 | DHG-06 | DHG-08 | DHG-10 | DHG-17 | DHG-20 |
Suitable Weight | 1-4T | 5-6T | 7-9T | 10-17T | 18-24T | 25-32T | 33-45T | 46-50T |
Total Length(mm) | 360-475 | 534-545 | 600 | 820 | 944-990 | 1040 | 1006-1173 | 1100-1200 |
Total Height(mm) | 250-300 | 307 | 320 | 410 | 520 | 600 | 630 | 650 |
Total Width(mm) | 175-242 | 258-263 | 270-350 | 365-436 | 449-483 | 480-540 | 550-660 | 650-700 |
Pin Distance(mm) | 85-200 | 220-270 | 290-360 | 360-420 | 430-520 | 450-560 | 500-600 | 550-660 |
Arm Width(mm) | 90-150 | 155-170 | 180-230 | 220-315 | 300-350 | 350-410 | 370-480 | 480-550 |
Pin Diameter(mm) | 25-40 | 45-50 | 50-55 | 60-65 | 70-80 | 90 | 100-110 | 110-130 |
Product Weight (kg) | 45 | 70 | 80 | 180 | 350 | 550 | 750 | 900 |

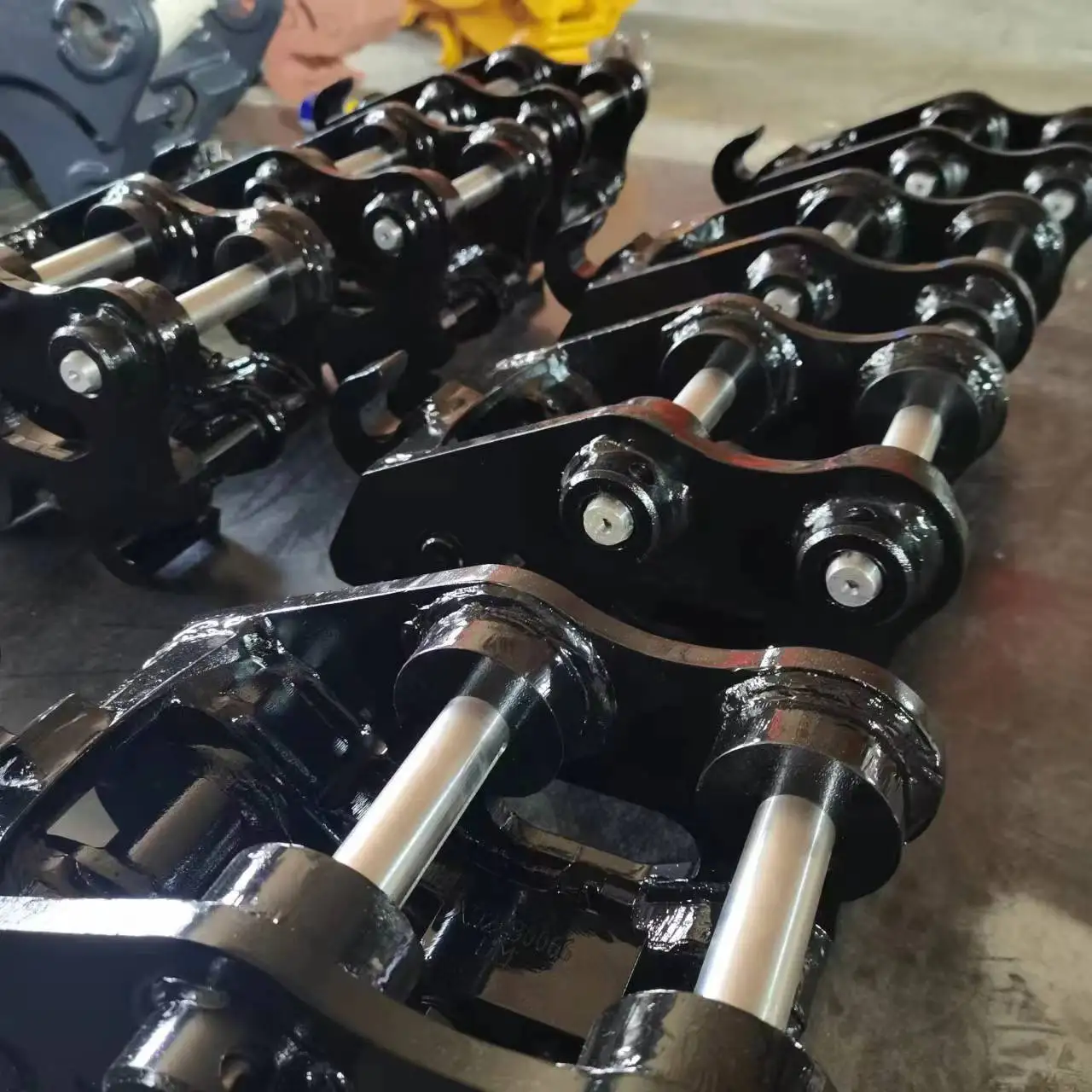

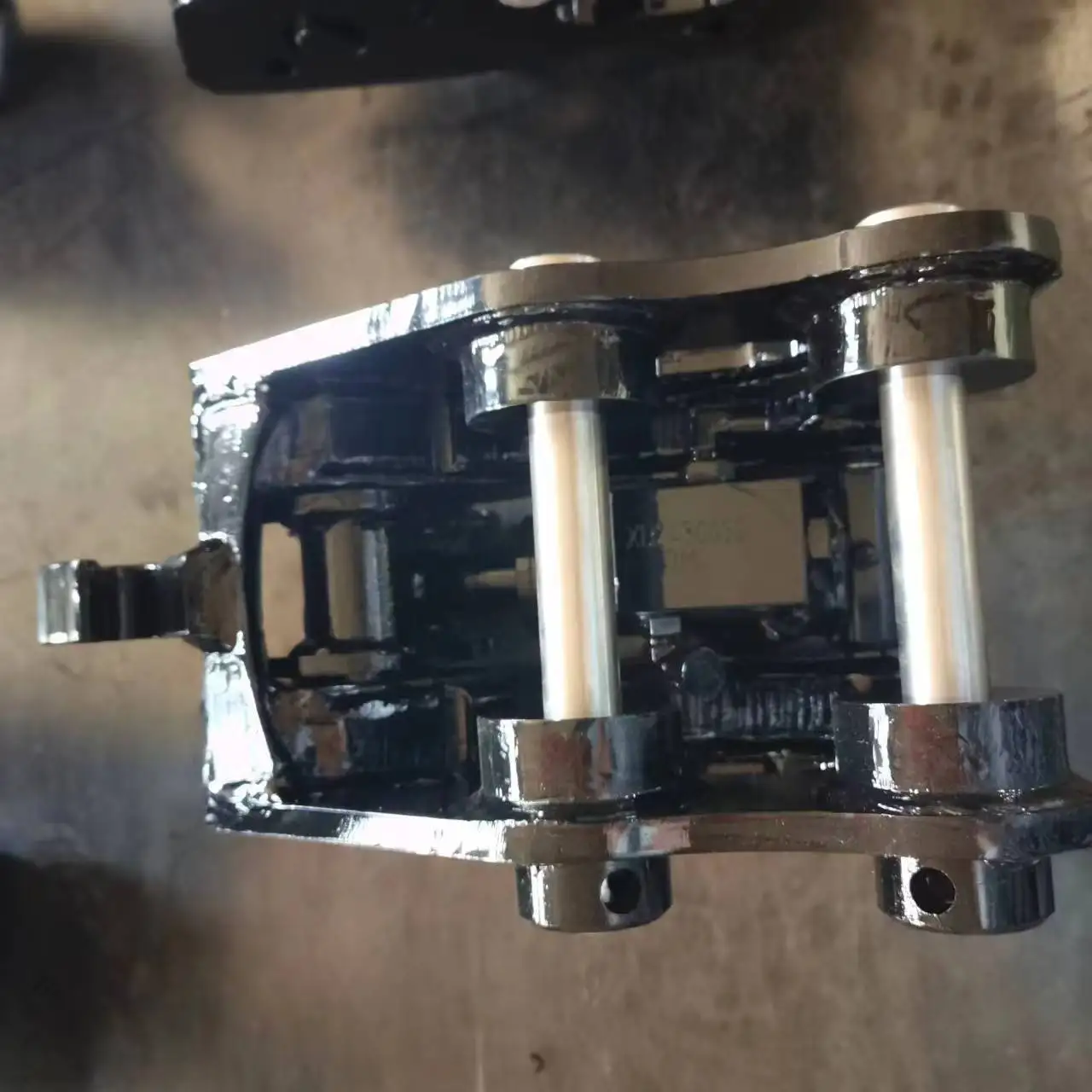

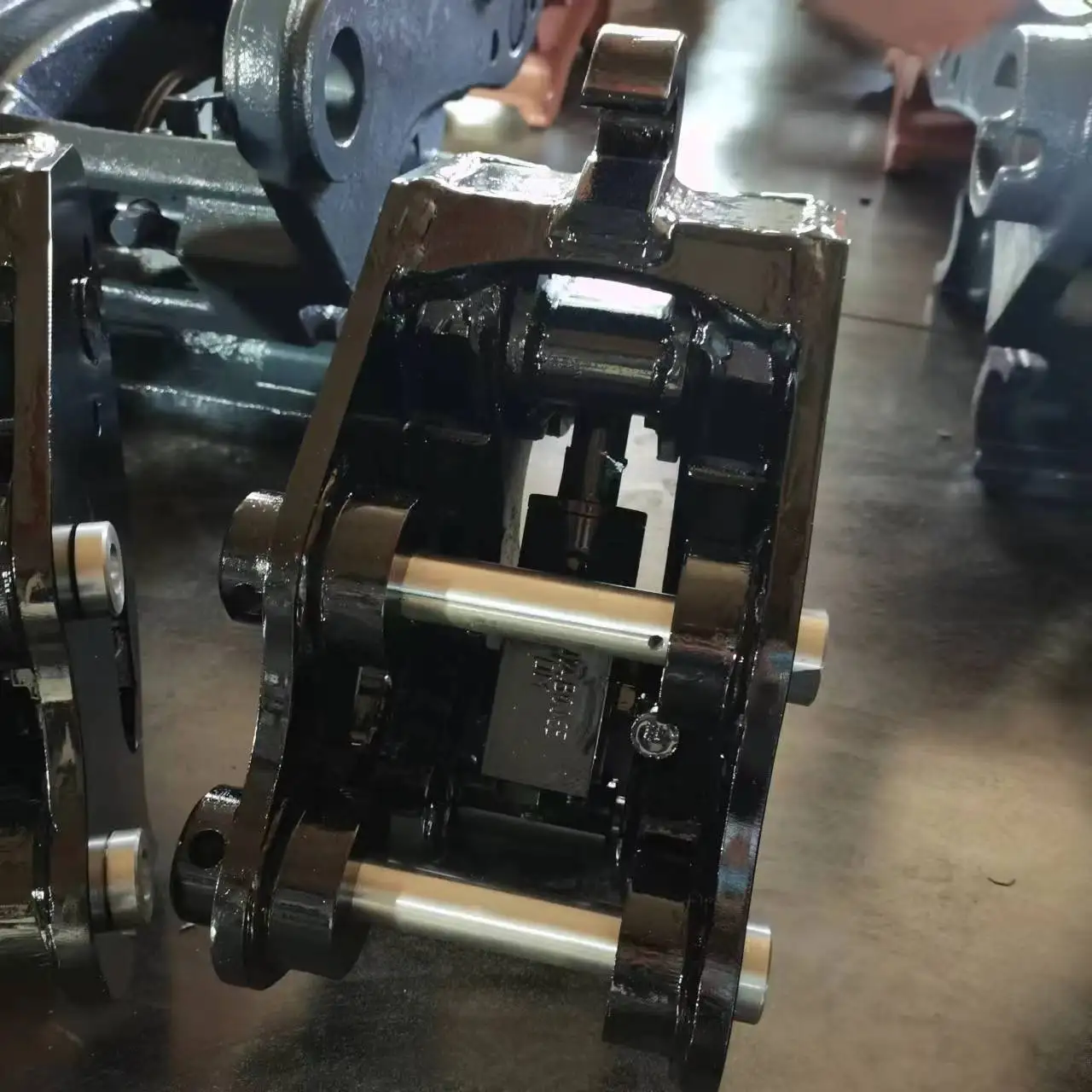

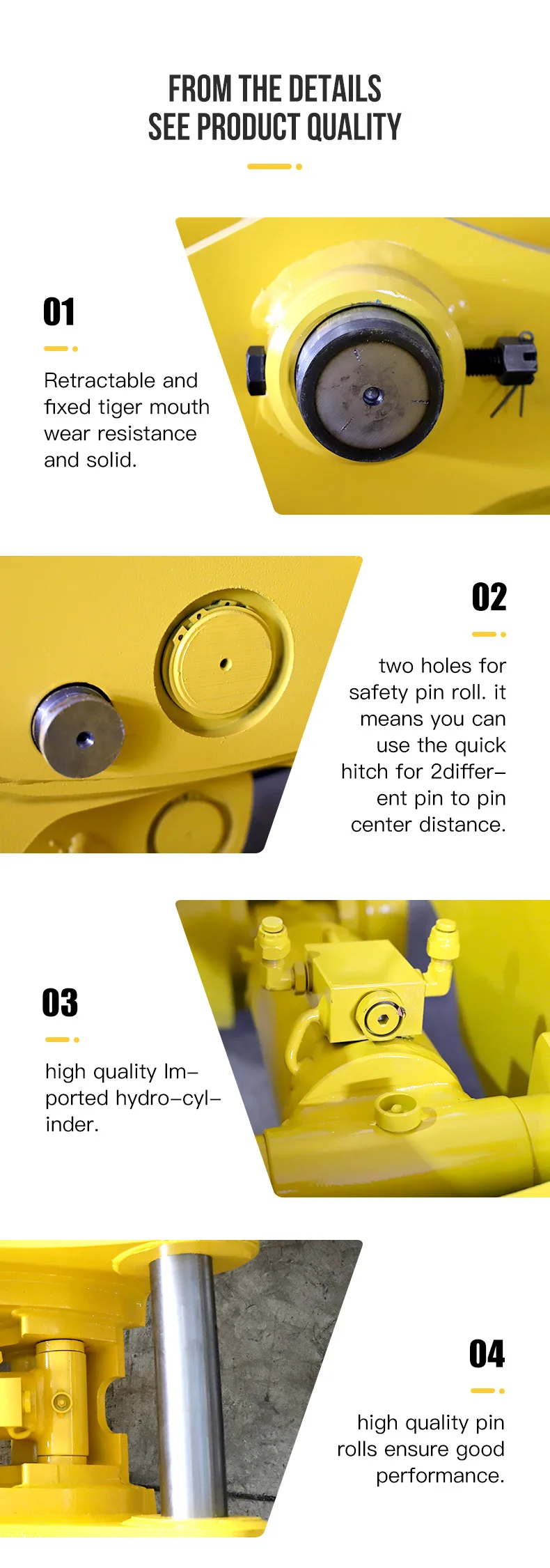

Details Images

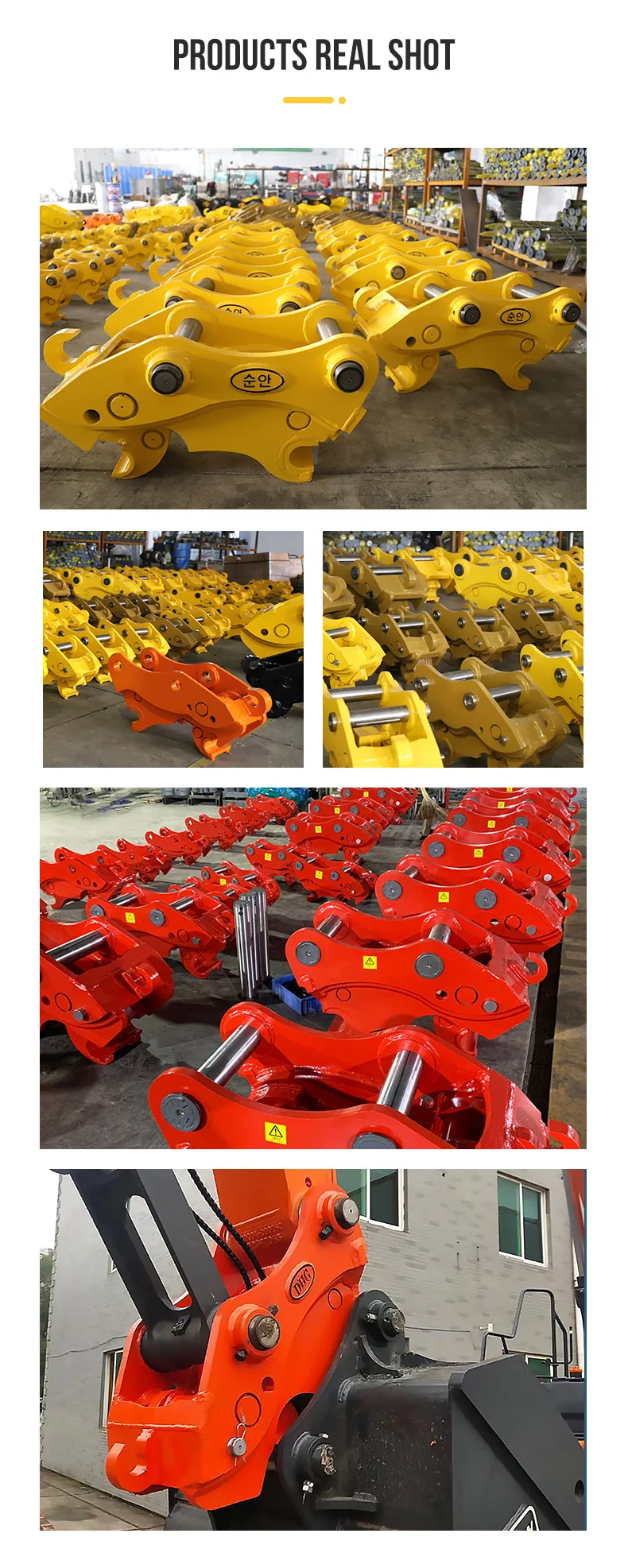

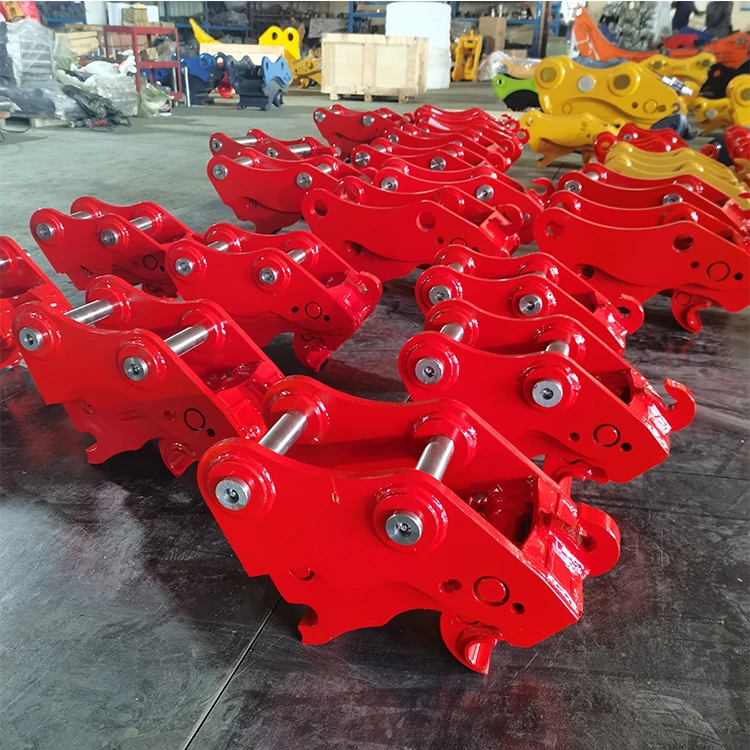

Product display

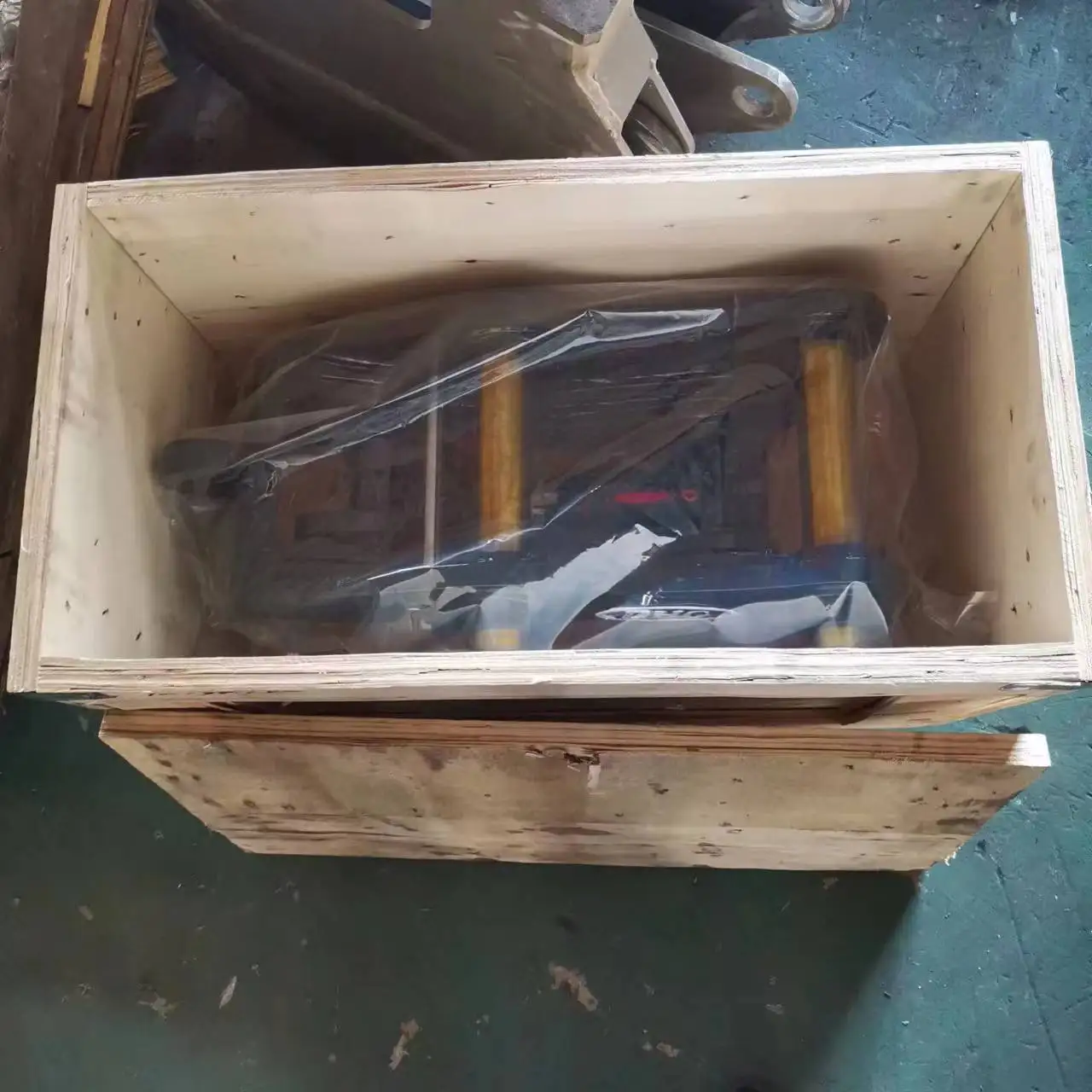

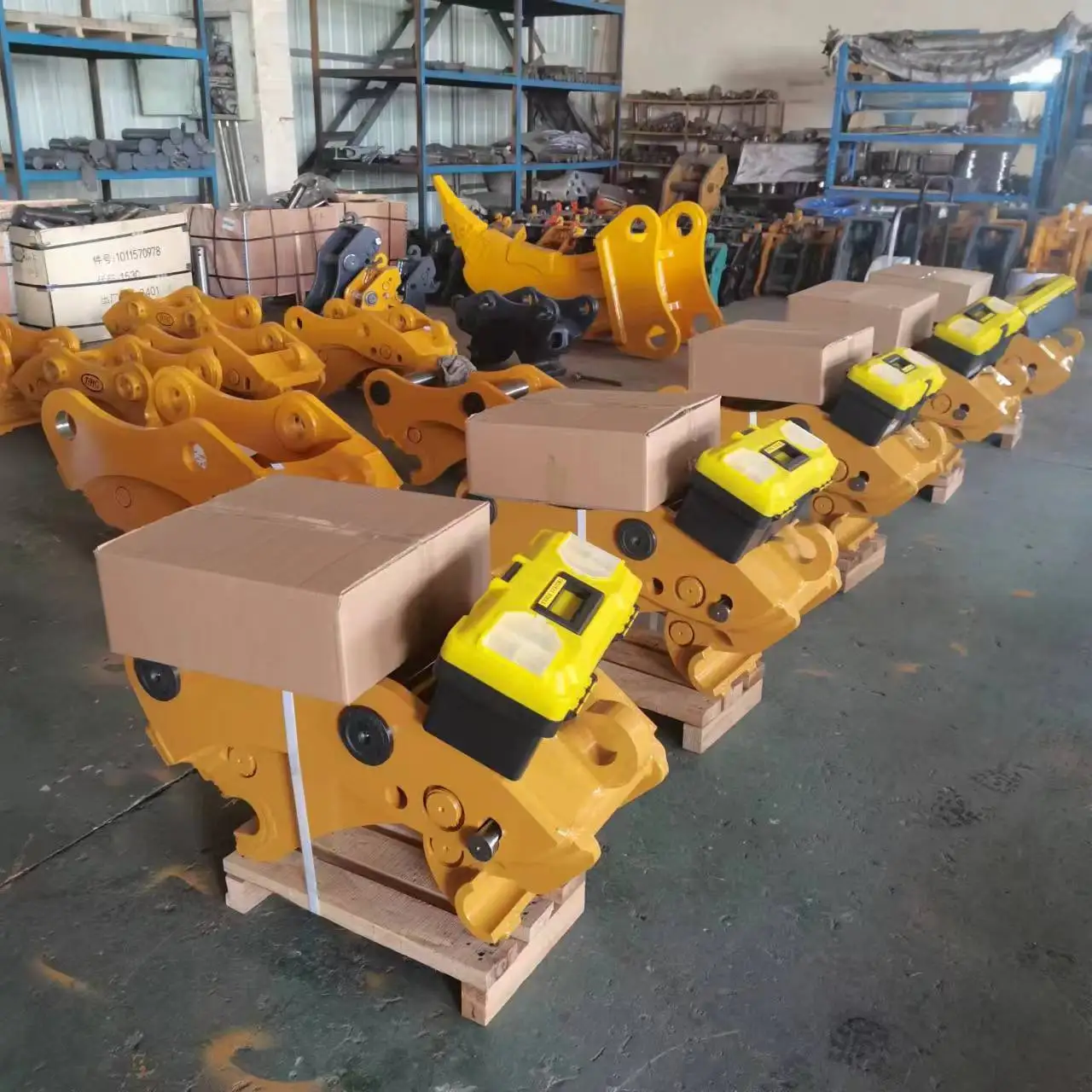

Product packaging
